Peco 942520H-J User manual

OPERATOR’S MANUAL
ASSEMBLY OPERATION MAINTENANCE
MANUAL PART#: Q0446 REV:3 (Mar 2013)
942520H-J, 942521H-J, 942522H-J, 942523H-J
P
PP
PECO
PECOPECO
PECO
PECOPECO
P
PP
P
PP
P
PPP
PECO
PECOPECO
RPTO GRASS
COLLECTION
SYSTEM
DESIGNED TO FIT:
DESIGNED TO FIT:DESIGNED TO FIT:
2012-2013 MODEL #: 23621222
PTO DRIVE
MODEL #: 23621223
900 SERIES BRIGGS & STRATTON
MODEL #: 23621224
6.5HP BRIGGS & STRATTON
VANGUARD
PROCAT SE - H & J SERIES
PREDATOR PRO - J SERIES
942514J, 942515J

PECO GRASS COLLECTION SYSTEM
TABLE OF CONTENTS
SECTION PAGE
Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3
Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
I INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - 5
1-1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - 5
1-2 Description - - - - - - - - - - - - - - - - - - - - - - - - - 5
II INSTALLATION FOR USE - - - - - - - - - - - - - - - - - - - - - 6
2-1 Preparation Of Mower - - - - - - - - - - - - - - - - - - 6
2-2 Rear Frame Bracket Installation - - - - - - - - - - - - 6
2-3 Right & Left Frame Bracket Installation - - - - - - - 7
2-4 Main Frame Assembly Installation - - - - - - - - - - 7
2-5 Lift Handle Installation - - - - - - - - - - - - - - - - - - 8
2-6 Aluminum Grass Container Installation - - - - - - - 9
2-7 Dump Mechanism Adjustment - - - - - - - - - - - - - 9
2-8 Inlet Installation - - - - - - - - - - - - - - - - - - - - - - 9
Box Assembly Exploded Views- - - - - - - - - - -10-11
2-9 PTO Mount Plate Installation - - - - - - - - - - - - - - 12
2-10 PTO Assembly Installation - - - - - - - - - - - - - - 12
2-11 Belt Installation and Adjustment - - - - - - - - - - - 13
2-12 Cam Assembly Adjustment - - - - - - - - - - - - - - 14
2-13 Outer Engine Mount Tube Installation - - - - - - - 14
2-14 Engine Mount Arm Assembly Installation - - - - - 14
SECTION PAGE
2-15 Engine/Blower/Blade Assembly Installation - - - - 14
2-16 Blower Cone Installation - - - - - - - - - - - - - - - - 14
2-17 Impeller Blade Removal and Replacement - - - - 15
Parts List and Exploded Views - - - - - - - - - - 16-20
2-18 Boot To Mower Deck Installation - - - - - - - - - - - 21
2-19 Length of Hose Adjustment - - - - - - - - - - - - - - 21
2-20 Upper Hose Installation - - - - - - - - - - - - - - - - 21
2-21 Lower Hose To Blower Cone Installation- - - - - - 21
2-22 Lower Hose To Boot Installation - - - - - - - - - - - 21
2-23 Front Weight Assembly - - - - - - - - - - - - - - - - - 21
2-25 Throttle Cable Installation - - - - - - - - - - - - - - - 22
III OPERATING INSTRUCTIONS - - - - - - - - - - - - - - - - - 23
3-1 General Safety - - - - - - - - - - - - - - - - - - - - - - - 23
3-2 Operation & Tips On Mowing - - - - - - - - - - - - - - 23
3-3 Disengagement Of The Blower - - - - - - - - - - - 23
3-4 Unloading The Collection System - - - - - - - - - - - 23
IV MAINTENANCE - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
4-1 Maintenance Checklist - - - - - - - - - - - - - - - - - - 23
4-2 Lubrication- - - - - - - - - - - - - - - - - - - - - - - - - - 24
V PARTS AND SERVICE - - - - - - - - - - - - - - - - - - - - - - 24
5-1 Parts And Service Information - - - - - - - - - - - - - 24
Safety Decals - - - - - - - - - - - - - - - - - - - - - - - - - - 25
Torque Specifications - - - - - - - - - - - - - - - - - - - - - 26
Safety
1. Read the operator’s manual carefully and familiarize yourself with the proper use of your attachment. Do not allow
anyone who is not acquainted with the Safety Instructions to use your attachment.
2. Know the controls and how to stop quickly. READ THE OPERATOR’S MANUAL!
3. Do not allow children to operate the vehicle. Do not allow adults to operate it without proper instruction.
4. Be especially watchful of children and pets darting into the area while operating.
5. Keep your eyes and mind on your unit while mowing or operating your attachment. Don’t let others distract you.
6. Do not attempt to operate your unit or mower when not in the driver’s seat.
7. Always stop unit when emptying the container.
8. Stop unit, shut off deck attachment, set parking brake, shut off mower engine and remove spark plug wire before
removing clogs, removing or replacing hose, boot, blower cone, or performing any maintenance.
9. Mow across the face of slopes (not steeper than 10 degrees); never up and down the face.
10. It is recommended that the container be kept only half full when negotiating any slopes. Start mowing on slopes
when the container is empty.
11. Inspect your lawn and remove any foreign objects before mowing. Never deliberately run the mower across any
foreign object.
12. Wear ear protection if the noise level is offensive.
13. Wear eye protection to prevent debris from damaging your eyes.
2

3
SAFETY
WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or
the vacuum collector adapter are fastened securely in place.
WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower
blades and the blower impeller have stopped rotating.
WARNING! To avoid serious injury, perform maintenance on the vacuum collector; ONLY AFTER
STOPPING THE MOWER’S ENGINE AND WAITING FOR ALL MOVING PARTS TO COME TO A
COMPLETE STOP. Set the parking brake. Always remove the ignition key before beginning maintenance.
WARNING! For your own personal safety, ALWAYS mow ACROSS the face of slopes and NEVER UP
and DOWN the face. NEVER attempt to mow excessively steep slopes, and use caution when turning on any slope.
Safety Alert Symbol
This Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!”
This symbol is used to call attention to safety precautions that
Should be followed by the operator to avoid accidents. When
you see this symbol, carefully read the message that follows
and heed its advice. Failure to comply with safety precautions
could result in death or serious bodily injury.
Safety Signs
The signal words DANGER, WARNING, and CAUTION are used on the equipment safety signs. These words
are intended to alert the viewer to the existence and the degree of hazard seriousness.
!
DANGER
!
WARNING
!
CAUTION
!
This signal word indicates a potentially hazardous situation which, if not
avoided, will result in death or serious injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
It may also be used to alert against unsafe practices.
This signal word indicates a potentially hazardous situation exist which, if
not avoided, will result in minor or moderate injury.
It may also be used to alert against unsafe practices.
White letters on RED
Black letters on ORANGE
Black letters on YELLOW

4
PECO LIMITED WARRANTY FOR NEW PRODUCTS
A. WHAT IS UNDER WARRANTY?
PECO extends the following warranties to the original purchaser of each new PECO consumer product subject
to the following limitations.
1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as
delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the
defect appears within 12 months from the date of delivery of the product to the original purchaser.
ALL DEFECTIVE PARTS MUST BE RETURNED TO PECO FOR INSPECTION TO
DETERMINE VALIDITY OF WARRANTY CLAIMS. Freight and mailing will be borne by the customer.
2. PARTS REPLACED DURING WARRANTY: Any new PECO part which is furnished in performance of this
warranty and is defective in material or workmanship as delivered to the purchaser will be repaired or replaced,
as PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or
before the expiration of the original warranty period, whichever is later.
B. SECURING WARRANTY ADJUSTMENTS.
Call PECO for Return Authorization. Damaged or broken parts other than engines or batteries, must be
returned to New PECO, Inc. 100 Airport Road, Arden, NC 28704 before any warranty adjustment can be
authorized. At the time of requesting warranty adjustment, the purchaser must present evidence of the date of
delivery of the product. The purchaser shall pay any charge for the product to and from Arden, NC.
C. ITEMS NOT COVERED BY PECO WARRANTY.
Engines and batteries attached to PECO products are covered under a separate warranty by the respective
manufacturer.
D. UNAPPROVED ALTERATION OR MODIFICATION.
All obligations of New PECO, Inc. under this warranty shall be terminated if products are altered or modified in
ways not approved by New PECO, Inc.
E. ACCIDENTS AND NORMAL MAINTENANCE.
The warranty covers only defective material and workmanship. It does not cover depreciation or damage
caused by normal wear, accident, improper use or abuse of products. The cost of normal maintenance and
normal replacement of service items such as belts, cutting blades, hoses, etc., which are not defective shall be
paid for by the purchaser.
F. NO REPRESENTATIONS ADDITIONAL WARRANTIES, DISCLAIMER.
Neither New PECO, Inc. nor any company affiliated with it makes any warranties, representations or promises
as to the quality of performance of its products other than those set forth herein. Except as described above,
New PECO, Inc. makes no other warranties AND SPECIFICALLY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES OF FITNESS AND MERCHANTABILITY.
G. ANY MACHINE USED FOR RENTAL PURPOSES ARE GUARANTEED FOR 45 DAYS FROM
DATE OF ORIGINAL SALE ONLY.
H. REMEDIED EXCLUSIVE.
The only remedies the purchaser has in connection with the breach or performance of any warranty on New
PECO, Inc. consumer products are set forth above. In no event will PECO be liable for special incidental or
consequential damages.
1. NO SERVICE CENTER WARRANTY.
The selling Service Center makes no warranty on his own on any item warranted by New PECO, Inc. unless he
delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no
authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in
any way.

5
1-1 Introduction
We are pleased to have you as a PECO customer. Your
collection system has been designed to give you a low
maintenance, simple, and effective way to collect the
grass clippings from your mower. This manual is
provided to give you the necessary instructions to
properly mount and operate the collection system on
your mower. Please read this manual thoroughly.
Understand what each control is for and how to use it.
Observe all safety decal precautions on the machine and
noted throughout the manual.
NOTE: all references made to right, left, front, rear, top
or bottom are as viewed from the normal operator’s
position on the mower.
1-2 Description
The grass collection system is designed for turf
maintenance where there is a need to collect the grass
clippings as the mower cuts the turf. It is also used for
picking up leaves and in pre-season and post-season
clean-up. The blower, mounted on the right side of the
unit, uses a belt and gearbox system from the engine
PTO shaft. Drive train protection comes through belt
slippage. The blower is also available with an external
engine option of 5.5HP or 6.5HP. The blower draws
grass clippings from the discharge area of the cutter
deck back to the 12 cubic foot aluminum box at the rear
portion of the mower frame. The operator can engage
the blower with a push of the over-center linkage on the
right side of the unit, or starting the external engine.
Once the bags are full with clippings, they can be
released to make for easy dumping.
Section I - INTRODUCTION AND DESCRIPTION
PTO Drive
Engine Drive
Universal PTO
Assembly P#(A0623)
Engine/Blower/Blade Assembly
5.5HP Briggs and Stratton P#(A602)
or
Engine/Blower/Blade Assembly
6.5HP Briggs and Stratton P#(A639)

6
Section II
INSTALLATION FOR USE
2-1 Preparation Of Mower
Carefully dismantle wooden shipping crate from around
the components. Cut retaining straps and separate the
parts. The collection system will have various parts
located inside. Remove and sort all parts for easy
identification.
NOTE: Before each step of assembly it will help to study
the exploded drawings on pages 16-18.
NOTE: Engine pulley installation instructions are for
PTO models only.
From the underside of the engine remove the bolt and
bushing from the electric clutch assembly. Replace these
parts with the engine pulley assembly #20 P#(A1798),
7/16” lock washer P#(K0140), and 7/16”-20 x 3-3/4”
HHCS P#(K0359).
The added pulley will power the collection system. Note
the engine pulley’s center bushing is extended upward
toward the engine (Figure 2-1a). Torque the bolt to 55
ft./lbs.
NOTE: It may be necessary to remove the drive belt
from the deck pulley before removing the bushing. Refer
to your Bob-Cat owner’s manual.
SECTION I
Remove the rear bumper from the mower and save all
hardware for use in the next steps of installation. Refer
to Figure 2-1b and Figure 2-1c.
2-2 Rear Frame Bracket Installation
Secure the rear frame bracket P#(B0728) to the rear
frame of the mower using the existing hardware
removed from the rear bumper. Refer to Figure 2-2.
INTRODUCTION AND DESCRIPTION
Figure 2-1a
Engine Pulley
Assembly
Lock Washer
Hex Bolt
Figure 2-1b
Remove
Rear Bumper
Figure 2-1c
Rear Bumper
Removed
Figure 2-2
Existing
Hardware
Rear Frame
Bracket

2-3 Right and Left Frame Bracket
Installation
Secure the right frame bracket P#(B0785) to the rear
frame bracket and rear frame of the mower using
(2) 3/8”-16 x 1” HHCS P#(K1191), (2) 3/8”-16 nylon
flange locknuts P#(K2038) and existing hardware. Refer
to Figure 2-3a.
Secure the left frame bracket P#(B0786) to the rear
frame bracket and rear frame of the mower using
(2) 3/8”-16 x 1” HHCS P#(K1191), (2) 3/8”-16 nylon
flange locknuts P#(K2038) and existing hardware. Refer
to Figure 2-3b.
2-4 Main Frame Assembly Installation
NOTE: On units with the Donaldson air cleaner, loosen
the hardware are rotate the air cleaner to the forward-
most position. Re-tighten the hardware. Refer to Figure
2-4a.
Secure the main frame assembly P#(A1874) to the left
and right frame brackets, using (4) 3/8”-16 x 1” HHCS
P#(K1191) and (4) 3/8”-16 nylon flange locknuts
P#(K2038). Refer to Figure 2-4b.
7
Figure 2-3a
Right Frame
Bracket
(2) 3/8”-16 x 1” HHCS
(2) 3/8”-16 Nylon
Flange Locknuts
Existing
Hardware
Figure 2-3b
Left Frame
Bracket
(2) 3/8”-16 x 1” HHCS
(2) 3/8”-16 Nylon
Flange Locknuts
Existing
Hardware
Figure 2-4b
Main Frame
Assembly
(4) 3/8”-16 x 1” HHCS
(4) 3/8”-16 Locknuts
Loosen
Hardware
Rotate Air Cleaner
Forward
Figure 2-4a
J-Series Mounts
to Top Set of Holes
H-Series Mounts
to Bottom Set of Holes

2-5 Lift Handle Installation
NOTE: Before continuing the lift handle installation,
have someone assist you in turning the grass container
upside down. Insert (1) 3/8”-16 x 2” HHCS P#(K1208)
into the lift handle P#(A0273), and secure with (1) 3/8”-
16 flange nut P#(K1215). Thread the flange nut onto the
bolt upside down, as shown in Figure 2-5a.
Slide the lift handle through the slot on the handle mount
bracket. Insert the lift handle into the box frame as
shown in Figure 2-5b, and secure using (1) 3/8”-16
flange nut P#(K1215) on the inside of the container as
shown in Figure 2-5c. Attach black handle grip
P#(J0522) to handle end.
8
Fasten the ball joint P#(K1442) to the end of the latch
rod P#(A0620). Tighten the ball joint to approximately
half way down the threads on the latch rod. Attach the
ball joint to the latch hook as shown in Figure 2-5d, using
(1) 5/16”-24 hex nut P#(K1444) and (1) 5/16” lock
washer P#(K0043).
Attach the other end of the latch rod to the lift handle, as
shown in Figure 2-5e. Attach on end of the spring
P#(J0176) to the lift handle and the other end of the
spring to the handle mount bracket as shown in Figure
2-5f. Adjust the ball joint up or down on the latch rod
threads until the latch hook closes completely. After
adjusting the latch hook, secure the latch rod to the lift
handle using (1) cotter pin P#(K0094).
Insert (1) 3/8”-16 x 2”
HHCS Into The Lift Handle
Secure With
(1) 3/8”-16 Flange Nut
Figure 2-5a
Slide Lift Handle Through
Handle Mount Bracket And
Fasten To Box Frame
Use (1) 3/8”-16 Flange Nut
On The Inside Of The
Grass Container
Figure 2-5b
Figure 2-5c
Ball Joint
Latch Rod
Latch Hook (1) 5/16”-24 Hex Nut
(1) 5/16” Lock Washer
Figure 2-10d
Attach Latch Rod
To Lift handle
Secure With
(1) Cotter Pin
Attach Spring To
Lift Handle And To
Handle Mount Bracket
Figure 2-5e
Figure 2-5f

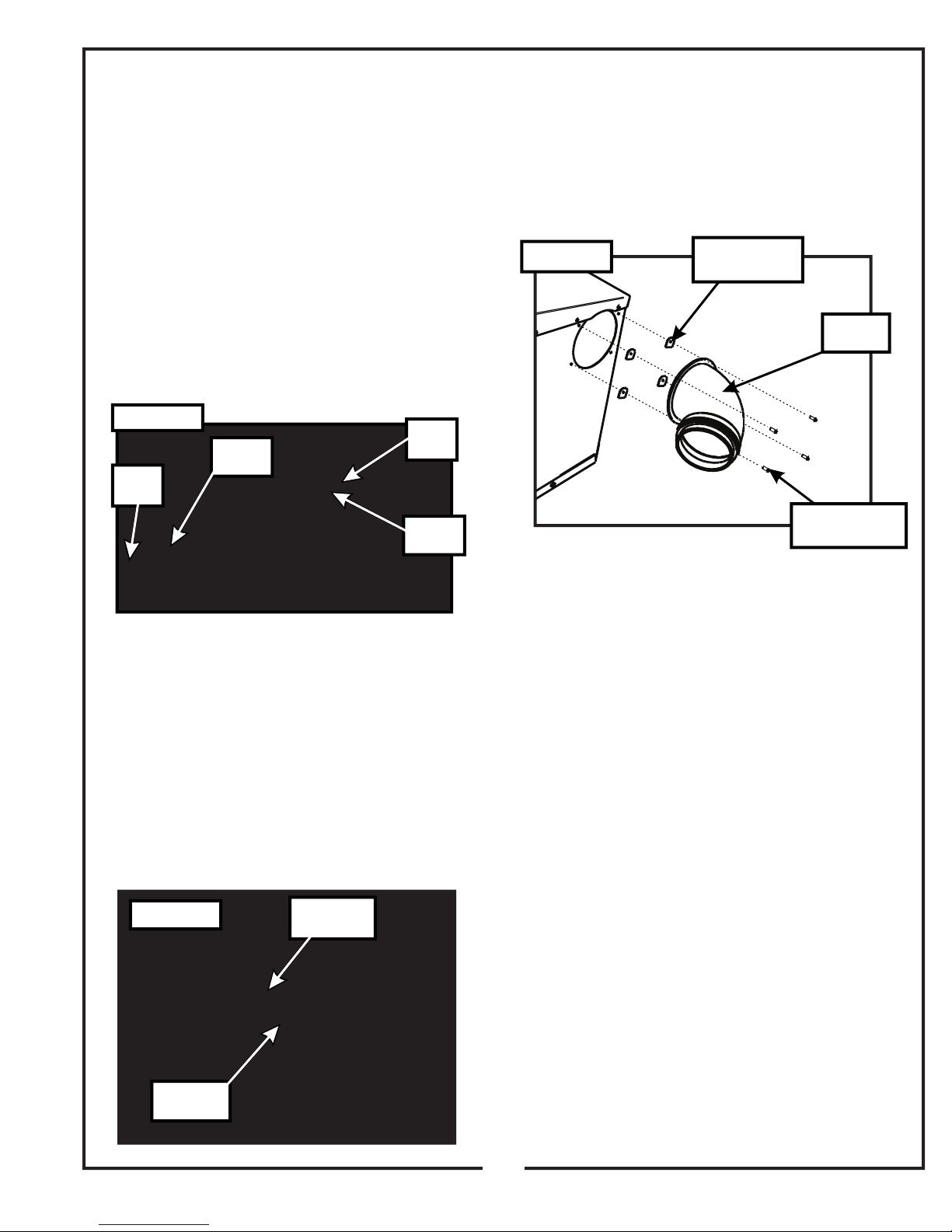

2-6 Aluminum Grass Container
Installation
NOTE: It is recommended that (3) people assist in
mounting the container. With three people available, two
can lower the container onto the frame while the third
person inserts the pivot pins P#(K0172) through the
holes. Insert the pins from the outside to the inside.
Secure with (1) 5/8” washer P#(K0058) and (1) 5/32” x
2-5/8” hair pin clip P#(K0088) per pivot pin (Figure 2-6).
Reattach the bottom ends of the door opening linkages
to the main frame by using (1) Rue-Ring cotter pin
P#(K1437) per side. To test the functionality of the dump
mechanism, pull the lift handle away from the unit, and
lift upward. The door of the container should open and
the box should pivot clockwise towards the ground.
2-7 Dump Mechanism Adjustment
The linkage may be adjusted in two places, at the
adjusting screw P#(K1435) and the latch assembly
items. See page 13 for visual clarification. To change the
door closure tightness, screw the adjusting screw
(Figure 2-7) in or out. To adjust the latch, change the
length of the latch rod by screwing the latch adjusting
ball joint in or out. The latch hook pivot should be in the
middle of the slot in the latch hook pivot plate. Slide the
pivot back or forth and then re-tighten.
2-8 Inlet Installation
Remove the (4) tinnerman screws P#(K1092) and (4)
inlet clamp plates P#(B1668) from the inlet opening on
the aluminum box. Insert the plastic inlet from the inside
of the aluminum box, through the inlet opening. Secure
the inlet with (4) tinnerman screws and (4) inlet clamp
plates. Refer to Figure 2-8.
9
9
Rue-Ring
Cotter Pin
Adjustment
Screw
Figure 2-7
Figure 2-6
Hair Pin
Clip
Pivot
Pin
Hair Pin
Clip
Pivot
Pin
Figure 2-8 (4) Inlet Clamp
Plate
(4) Tinnerman
Screw
Plastic
Inlet

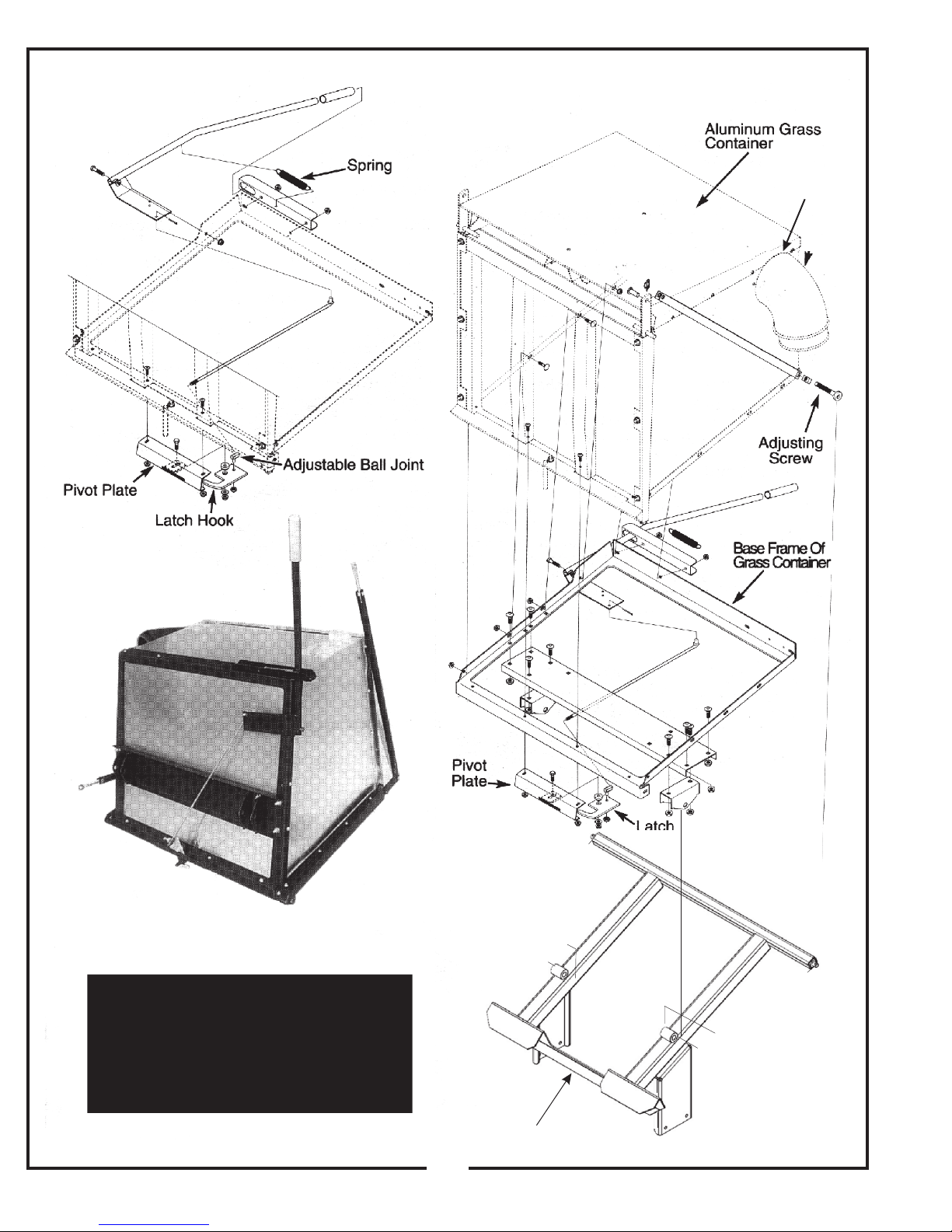

Lift Handle Assembly
Aluminum Grass Container
With Handle Attached
Latch Hook Mechanism Assembly
Aluminum Grass Container Assembly
Inlet
MAIN FRAME
10

11
Exploded Parts View
A0794 Aluminum Grass Container

2-9 PTO Mount Plate Installation
PTO MODELS ONLY
Secure the right PTO mount plate P#(B0787) and left
PTO mount plate P#(B0788) to the right frame bracket
using (3) 3/8”-16 x 1” HHCS P#(K1191) and (3) 3/8”-16
nylon flange locknuts P#(K2038). Secure the PTO stop
plate P#(B0736) to the left and right PTO mount plate
using (4) 1/4”-20 x 3/4” HHCS P#(K1222) and (4) 1/4”-
20 nylon flange locknuts P#(K0124). Refer to Figure 2-
9a and 2-9b.
2-10 PTO Assembly Installation
PTO MODELS ONLY
Insert the PTO assembly P#(A0623) into the mounting
slots on the PTO mount plates and secure using (1)
PTO mount pin P#(B0274) and (1) hair pin clip
P#(K0086). Attach the PTO handle assembly P#(A1142)
to the PTO assembly using (3) 1/4”-20 x 3/4” HHCS
P#(K1222) and (3) 1/4”-20 nylon flange locknuts
P#(K2014). Refer to Figure 2-10a.
Slide the handle grip P#(J0522) onto the end of the PTO
handle. Refer to Figure 2-9b.
9
12
(4) 1/4”-20 x 3/4” HHCS
(4) 1/4”-20 Locknuts
(3) 3/8”-16 x 1” HHCS
(3) 3/8”-16 Locknuts
Figure 2-9a
Figure 2-9b
Left PTO
Mount Plate
Right PTO
Mount Plate
PTO Stop
Plate
Existing
Hardware
Figure 2-9a
(3) 1/4”-20 x 3/4” HHCS
(3) 1/4”-20 Locknuts
Hair Pin
Clip
PTO Mount
Pin
PTO Handle
Assembly
Figure 2-9b
PTO Handle
Assembly
Black Handle
Grip

2-11 Belt Installation and Adjustment
PTO MODELS ONLY
Loosen the (4) bolts P#(K1191), (2) on each side, that
secure the gear box assembly to the PTO assembly
P#(A1803) (Figure 2-11a and 2-11b). Remove the belt
guard and hardware.
Loosen the adjustment bolt P#(K0348) until the gear box
assembly is at its far left adjustment (the gear box is
moved toward the mower’s engine pulley). Refer to
Figure 2-11c.
Connect the kevlar cord belt A57K P#(M0256) from the
engine pulley to the lower gear box pulley as shown in
Figure 2-11d.
To tension the drive belt, turn the adjustment bolt
clockwise (Figure 211e) until there is 1” of deflection,
with 10-11 lbs. of pressure, at the center of the belt
between the engine pulley and the gear box pulley.
Once the correct tension of the belt is achieved, tighten
the (4) bolts that secure the gear box assembly. Refer to
Figures 2-11f and 2-11g. Replace the belt guard and
hardware.
Loosen Bolts
Figure 2-11a
Figure 2-11b
Loosen Bolts
Figure 2-11c
Loosen The
Adjustment Bolt
Slide Gear Box
Towards The
Engine Pulley
Connect Belt
To Both Pulleys
Figure 2-11d
Figure 2-11e
Figure 2-11f
Figure 2-11g
Tighten Bolts
Tighten Bolts
13
Tighten The Adjustment
Bolt To Tension The Belt
Remove Belt
Guard

2-12 Cam Assembly Adjustment
PTO MODELS ONLY
The cam assembly P#(A0422), which controls the
blower belt tension, comes from the factory pre-adjusted.
If the belt is too tight or becomes too loose, remove the
hair pin clip P#(K0099) from the belt tension rod
P#(K0326) and pull the “L” end of the rod out of it’s hole
in the cam assembly. The tension rod may then be
screwed out to tighten the belt or screwed in to loosen
the belt. Replace the “L” end into the top hole in the cam
and replace the hair pin clip. Adjust the cam stop bolt
P#(K1159) to allow the cam to rotate slightly over center
when the blower is disengaged (Figure 2-12).
2-13 Outer Engine Mount Tube
Installation
Secure the outer engine mount tube P#(B1117) to the
rear frame bracket using (2) 3/8”-16 u-bolts P#(K1119)
and (4) 3/8”-16 nylon flange locknuts P#(K2038). Leave
the locknuts finger tight until the blower assembly has
been installed. Refer to Figure 2-13.
2-14 Engine Mount Arm Assembly
Installation
Insert the engine mount arm assembly P#(A1824) into
the end of the outer engine mount tube and secure using
(1) detent pin P#(J0248). Refer to Figure 2-13.
2-15 Engine/Blower/Blade Assembly
Installation
Place the engine blower blade assembly on top of the
engine mount arm. Secure the assembly using (4) 5/16”-
18 x 1-1/2” HHCS P#(K1157) and (4) 5/16”-18 nylon
flange lock nuts P#(K2516). Refer to Figure 2-15. Adjust
the position of the blower assembly by sliding the engine
mount tubes left or right. There should be a minimum of
1” clearance between the blower housing and the rear
tire. Tighten all hardware in Section 2-13.
2-16 Blower Cone Installation
Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of
(2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially
thread the bolts into each of the two tabs located on the
blower housing. Place blower cone so the two tabs line
up with the bolts then tighten completely. See Figure 2-
16.
14
Cam Assembly
Figure 2-12
Tension Rod
Cam Stop
Hair Pin Clip
Outer Engine
Mount Tube
(2) 3/8”-16
U-Bolts
(4) 3/8”-16
Locknuts
Figure 2-13
Engine Mount
Arm Assy.
Detent
Pin
Blower
Cone Tabs
Blower
Cone
Figure 2-16
(2) 5/16”-18 x 2-1/2”
All Thread HHCS
(2) 5/16” Jam Nuts
Engine/Blower
Blade/Assembly
Engine Mount
Arm Assy. 5/16”
Locknuts
5/16”
Hex Bolts
Figure 2-15

3
2
4
5
1
3
5
6
7
8
9
10
12
13
11
14
9Taper-Lock Bushing
Enlarged View
Tips on removing impeller blade;
1 - Try carefully hitting the base of the impeller blade
(#1), between each vein (#12), with a rubber mallet to
loosen the taper-lock bushing hold.
2 - Spray break-free lubricant into the surrounding areas
of the taper-lock bushing (#9) and repeat Tip 1.
To Replace: First, place the impeller blade (#1) over the
drive shaft (#13). Next, slide the taper-lock bushing (#9)
on to the drive shaft and into the impeller blade, aligning
the non-threaded holes (#14) of the taper-lock bushing
to the threaded holes of the impeller blade. Then, fasten
by using two 1/4”-20 x 1” HHCS (#10), one spacer
bushing (#8) one taper lock bushing washer (#7), and
one 3/8”-16 x 1-1/2” HHCS (#6). Torque all bolts to the
specifications located in the chart towards the back of
this manual. Last, rotate the impeller blade to ensure
that the blade is clear of contact on all sides of the
blower housing.
2-17 Impeller Blade
Removal/Replacement
To gain impeller blade (#1) access, first remove the
blower cone (#2) from the blower housing, located on
the PTO assembly P#(A1821), by removing two blower
cone bolts and nuts (#3). Next, remove the blower
housing front (#4) by removing seven bolts and nuts (#5)
around the outer housing edge. Refer to Figure 2-17.
To Remove: First, remove one 3/8”-16 x 1-1/2” HHCS
P#(K1211) (#6), one taper-lock bushing washer
P#(K0278) (#7) and one spacer bushing P#(S3242) (#8)
from the taper-lock bushing (#9). See Figure 2-17. Next,
remove two 1/4”-20 x 1” HHCS (#10) and place them
into the threaded holes (#11) of the taper-lock bushing
P#(S4302). Last, gradually thread each bolt evenly into
the taper-lock bushing, forcing the blade to break-away
from the taper-lock bushing.
15
Figure 2-17

16

17

18

ISO VIEW
Exploded Parts View
A0623 PTO Assembly
M0256
A57K BELT (59”)
(INCLUDED IN H.W. BAG)
19
M0250
A30K BELT (32”)
7
12
1
11
31
32
23
10
29
30
8
39
36
20
16
40
3
9
15
27
14
2
4
13
5
6
19
33
21
34
28
22
26
18
17
37
38
25
24

Item
Number
Document
Number
Title Quantity
1 A0429 GEAR BOX ASSEMBLY 1
2 K0348 3/8"-16 x 2" ALL THREAD HHCS 1
3 K0047 3/8" FLAT WASHER 1.00 OD x .446 ID x .075 T 5
4 K0353 1/4"-20 x 1/2" HHSTS 8
5 K1159 5/16"-18 x 2" ALL THREAD HHCS 1
6 K1178 5/16"-18 FLANGE NUT 1
7 A0144 BLOWER MOUNT BRACKET ASSEMBLY 1
8 B1755 BLOWER PIVOT ROD 1
9 K0086 .125 OD x 2.50 HAIR PIN CLIP 2
10 B0121 BLOWER BELT GUARD 1
11 A0604 PTO HANDLE MOUNT ASSY 1
12 A0422 CAM BRACKET ASSEMBLY 1
13 K0356 3/8"-16 TAPERED SET SCREW 1
14 K0326 BELT TENSION ROD 3/8"-16 1
15 K0130 .091 OD x 1.625 L HAIR PIN CLIP 1
16 J0254 3/16" SQ. x 3/4" LONG KEYWAY 1
17 M0228 BLOWER PULLEY 1
18 K1446 1.187 OD x .380 ID x .187 WASHER 1
19 K1190 3/8"-16 x 3/4" HHCS 1
20 E4004A BLOWER HSG. ASSY. 1
21 K1193 3/8"-16 x 1-1/2" HHCS 4
22 K1215 3/8"-16 FLANGE NUT 12
23 A0645 SMALL 4-BLADE IMPELLER 1
24 S4302 TAPER-LOCK BUSHING 1
25 S3242 PLATED BUSHING 1
26 K1225 1/4"-20 X 1" HHCS GRADE 8 2
27 K0278 TAPER-LOCK BUSHING WASHER 1
28 K1211 3/8"-16 x 1-1/2" HHCS GRADE 8 1
29 B0269 GEAR BOX PULLEY GUARD 1
30 B0270 PTO ARM GUARD 1
31 A0622 PTO ARM ASSY. 1
32 A0624 BASE PLATE ASSY. 1
33 K1191 3/8"-16 x 1" HHCS 6
34 K1197 3/8"-16 X 2 1/2" HHCS 1
35* M0250 A30K KEVLAR BELT 1
36 E0121 PTO SHAFT HOUSING 1
37 N0147 BEARING 2.0472 OD, 0.9843 ID, 0.5906 W (6205RS PEER) 1
38 N0148 BEARING 1.625 OD, 0.75 ID, 0.4375 W (9R12 PEER) 1
39 B1758 PTO SHAFT 1
40 J0801 1/4"-28 ZIRC FITTING 1
PTO Parts List
A0623 PTO Assembly
20
