I. INTRODUCTION
Congratulations on selecting THE WEATHER PICTURE. To
take full advantage of its advanced features, please take a
few minutes to read through and follow this short booklet.
Its simple step-by-step instructions will speed you through
installation and help assure you many years of complete
satisfaction.
THE WEATHER PICTURE displays information it receives
from an ULTIMETER?Weather Station, continuously
providing and updating all the vital weather data you have
pre-selected, without having to press a single key.
In addition to the compass rose Wind Direction Display,
THE WEATHER PICTURE features up to seven red
illuminated Numeric Displays. Each Numeric Display is
easily pre-set by the user to display an individual item of
weather data collected by an ULTIMETER?Weather Station.
The displayed data is clearly labeled using easy-to-insert
labels (provided) for a totally customized, totally
professional display. Each Numeric Display can be set and
labeled to show the exact data item and measurement units
you desire.
THE WEATHER PICTURE is connected to the Serial Data
Output Port of an ULTIMETER?Weather Station. Weather
data sent to THE WEATHER PICTURE is constantly
updated (as often as two times per second) to provide up-to-
the-minute information on changing weather conditions.

3
II. PLANNING YOUR INSTALLATION
Please take a few minutes to plan the installation of your
WEATHER PICTURE. You'll help assure your long term
satisfaction with the installation and almost certainly save time
and effort in the process.
The cable included with THE WEATHER PICTURE connects to
the Keyboard/Display Unit of an ULTIMETER?Weather Station
and a 6-volt AC Adapter (included). The length of this cable is 15
feet, and the length of the AC Adapter cord is 6 feet, so plan to
hang THE WEATHER PICTURE on a wall within 15 feet of the
ULTIMETER?Keyboard/Display and within 6 feet of a 110v wall
outlet.
If your installation requires greater distance between THE
WEATHER PICTURE and the ULTIMETER?Keyboard/Display,
an Extension Cable (40 feet) may be obtained (see "Available
Accessories"). If no wall outlet is close enough to where you wish
to hang THE WEATHER PICTURE, then use a properly-rated
extension cord between the wall outlet and the AC Adapter.

4

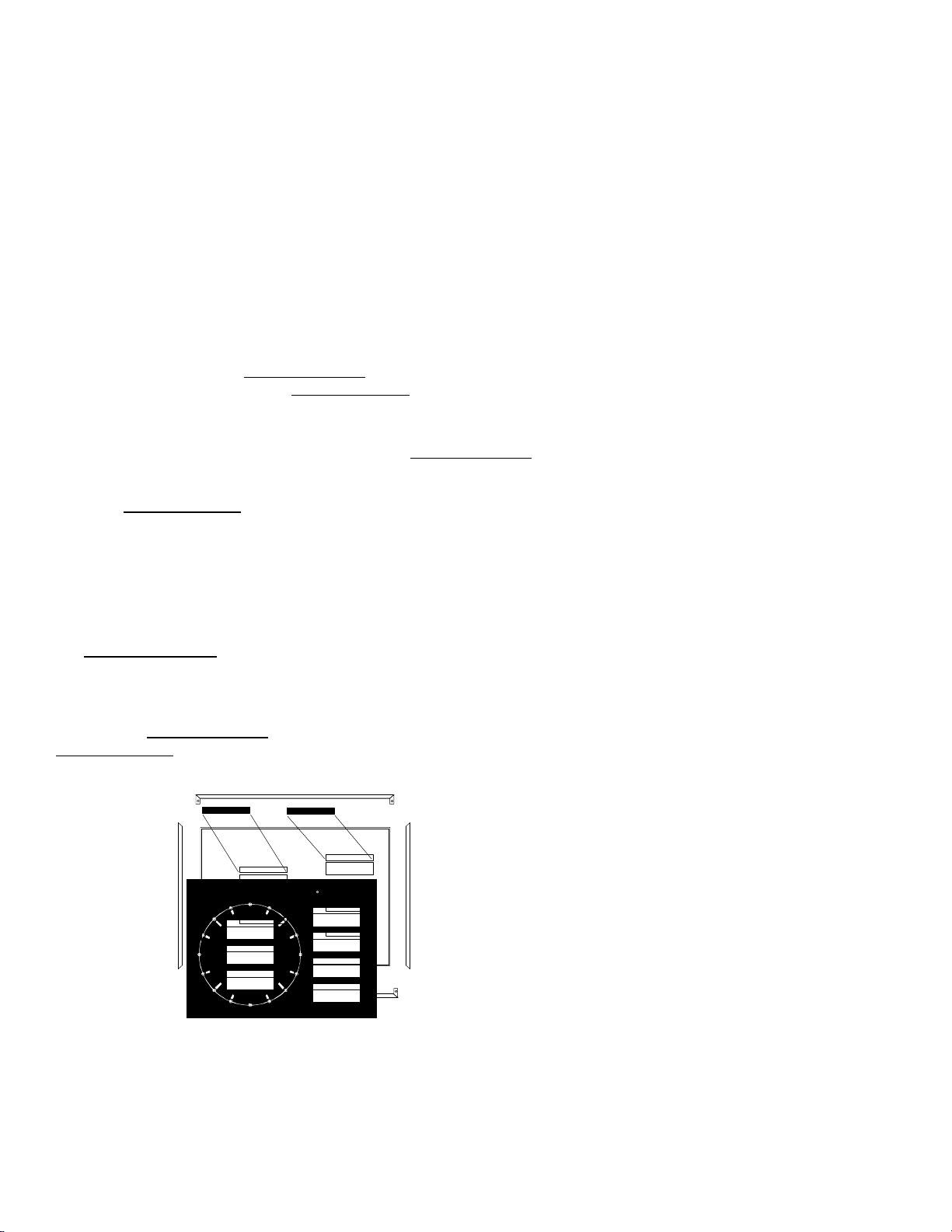

Getting Ready
1. Carefully remove all components from the shipping container
and place them all on a clear work area.
2. As shown below, identify the basic WEATHER PICTURE
components and any accessories (extension cables or additional
Numeric Display Modules) you have ordered.
AC Adapter
R
THE WEATHER PICTURE
PEET BROS.
W
S
E
N
2 4
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
WEATHER PICTURE
Wall Mounting Bracket
LONG TERM RAIN HUMIDITY %
RAIN YESTERDAY INDOOR RH%
HEAT INDEX DEW POINT
BAROMETER 3-HR BARO CHG.
WIND (knots) PEAK WIND (5 MIN)
DATE AVG. WIND (1 MIN)
AUX. TEMP
LO RH% TODAY PM HI RH% TODAY PM
LO % YESTERDAYPM HI % YESTERDAYPM
TIME PM HIGH TODAY PM
LOW TODAY PM LO CHILL TODAY PM
INDOOR TEMP
Display Function Labels
8.8.8.8.
8.8.8.8.
Additional Numeric Displays
(Optional)
Not shown: 2 screws + 2 wall anchors for Wall Mounting Bracket; and screws for any
additional Numeric Displays ordered.

5
III. INSTALLING YOUR WEATHER PICTURE
Refer to the proper Wiring Diagram and connect components by
plugging cables into receptacles as shown. Refer to your
ULTIMETER Weather Station Owner's Manual for more
information if needed.
Do not apply power to the WEATHER PICTURE until all other
connections have been made, and the proper serial data output
mode has been selected on the keyboard (see instructions at the
end of this section).

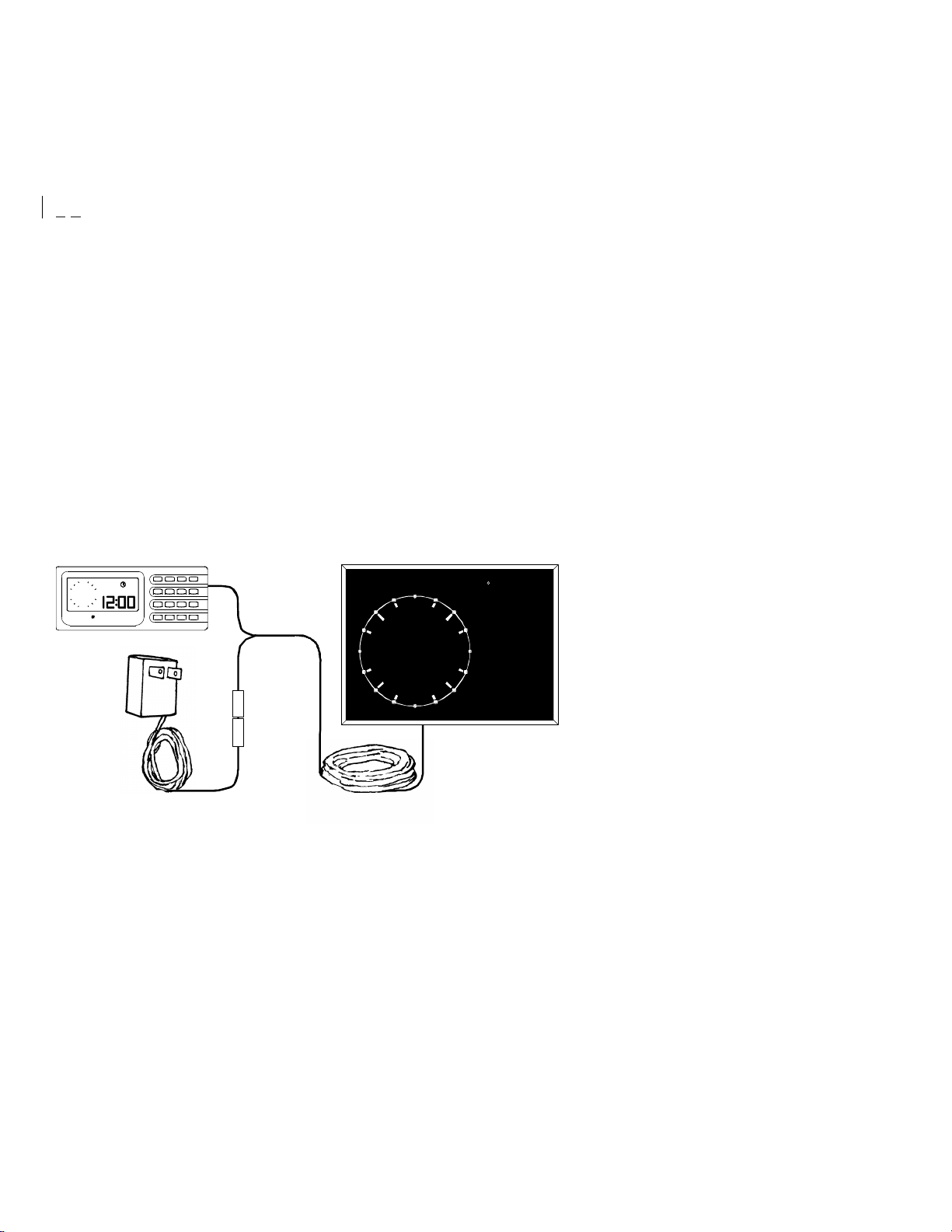

WIRING DIAGRAM A
If you have an ULTIMETER II, 100, 500, 800, or 2000 with no
other accessories connected to the keyboard's serial port,
connect components as shown in the following diagram.
Keyboard Display
AC Adapter
ULTIMETER
W
N
S
E
2000
R
R
THE WEATHER PICTURE
PEETBROS.
W
S
E
N
2 4
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
NOTE: BEFORE YOU INSTALL PLUGS IN RECEPTACLES, be
sure to check connectors as shown on p. 11.

6
WIRING DIAGRAM B
If you have an ULTIMETER II, 100, 500, 800, or 2000 with no
other accessories connected to the keyboard's serial port, but
need additional cable length to the keyboard's serial port or AC
wall outlet, connect components as shown in the following
diagram.
Keyboard Display
AC Adapter
ULTIMETER
W
N
S
E
2000
RR
THE WEATHER PICTURE
PEET BROS.
W
S
E
N
2 4
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAINTODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
Extension Cable
(Optional)
Extension Cord
(Optional)
NOTE: BEFORE YOU INSTALL PLUGS IN RECEPTACLES, be
sure to check connectors as shown on p. 11.

7

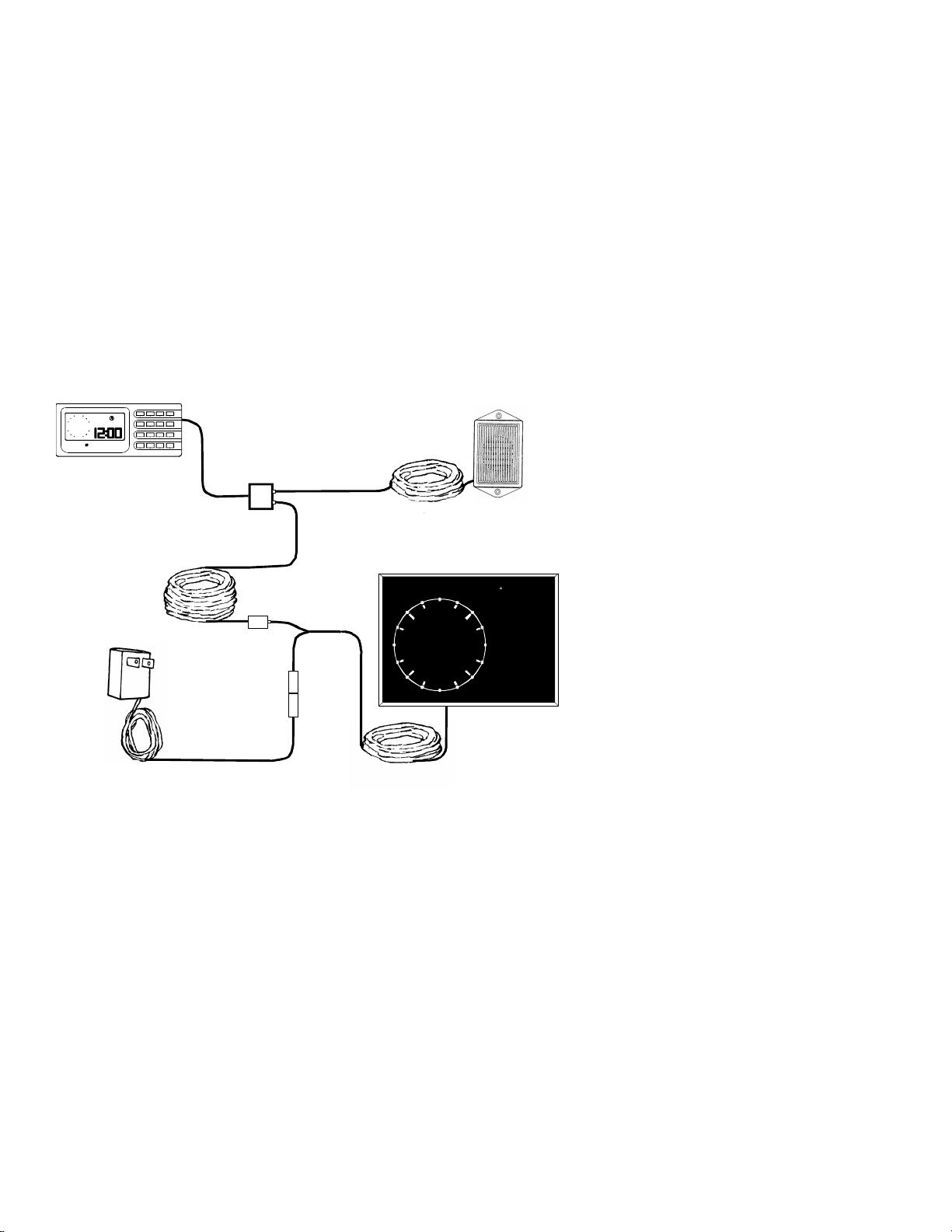

WIRING DIAGRAM C
If you have an ULTIMETER 800 or 2000 with an Indoor Humidity
Sensor connected to the keyboard's serial port, connect
components as shown in the following diagram. Use an
extension cable (shown) only if you require additional cable
length between WEATHER PICTURE and keyboard. A Modular
Duplex Cable is required for WEATHER PICTURE and Indoor
Humidity Sensor to share the keyboard's serial port.
Keyboard Display
(ULTIMETER 2000 & 800)
ULTIMETER
W
N
S
E
2000
R
Duplex Cable
(Optional)
Indoor Humidity Sensor
(Optional)
AC Adapter
R
THE WEATHER PICTURE
PEETBROS.
W
S
E
N
2 4
WINDCHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
Extension Cable
(Optional)
NOTE: BEFORE YOU INSTALL PLUGS IN RECEPTACLES, be
sure to check connectors as shown on p. 11.

8
WIRING DIAGRAM D
If you have an ULTIMETER 100 with an Indoor Temperature
Sensor connected to the keyboard's serial port, connect
components as shown in the following diagram. Use an
extension cable (shown) only if you require additional cable
length between WEATHER PICTURE and keyboard. A Modular
Duplex Cable is required for WEATHER PICTURE and Indoor
Temperature Sensor to share the keyboard's serial port.
Keyboard Display
(ULTIMETER 100)
Duplex Cable
(Optional)
AC Adapter
R
THE WEATHER PICTURE
PEETBROS.
W
S
E
N
2 4
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
Extension Cable
(Optional)
W
N
S
E
ULTIMETER 100
Indoor Temperature Sensor
(Optional)
NOTE: BEFORE YOU INSTALL PLUGS IN RECEPTACLES, be
sure to check connectors as shown on p. 11.

9
WIRING DIAGRAM E
If you have an ULTIMETER II, 100, 500, 800, or 2000 with PC
Data Logger Interface connected to the keyboard's serial port,
connect components as shown in the following diagram. Use an
extension cable (shown) only if you require additional cable
length between WEATHER PICTURE and keyboard. A Modular
Duplex Cable is required for WEATHER PICTURE and PC Data
Logger to share the keyboard's serial port.
Keyboard Display
ULTIMETER
W
N
S
E
2000
R
Duplex Cable
(Optional)
AC Adapter
R
THE WEATHER PICTURE
PEETBROS.
W
S
E
N
2 4
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
Extension Cable
(Optional)
PC Data Logger
(Optional)
NOTE: BEFORE YOU INSTALL PLUGS IN RECEPTACLES, be
sure to check connectors as shown on p. 11.

10
WIRING DIAGRAM F

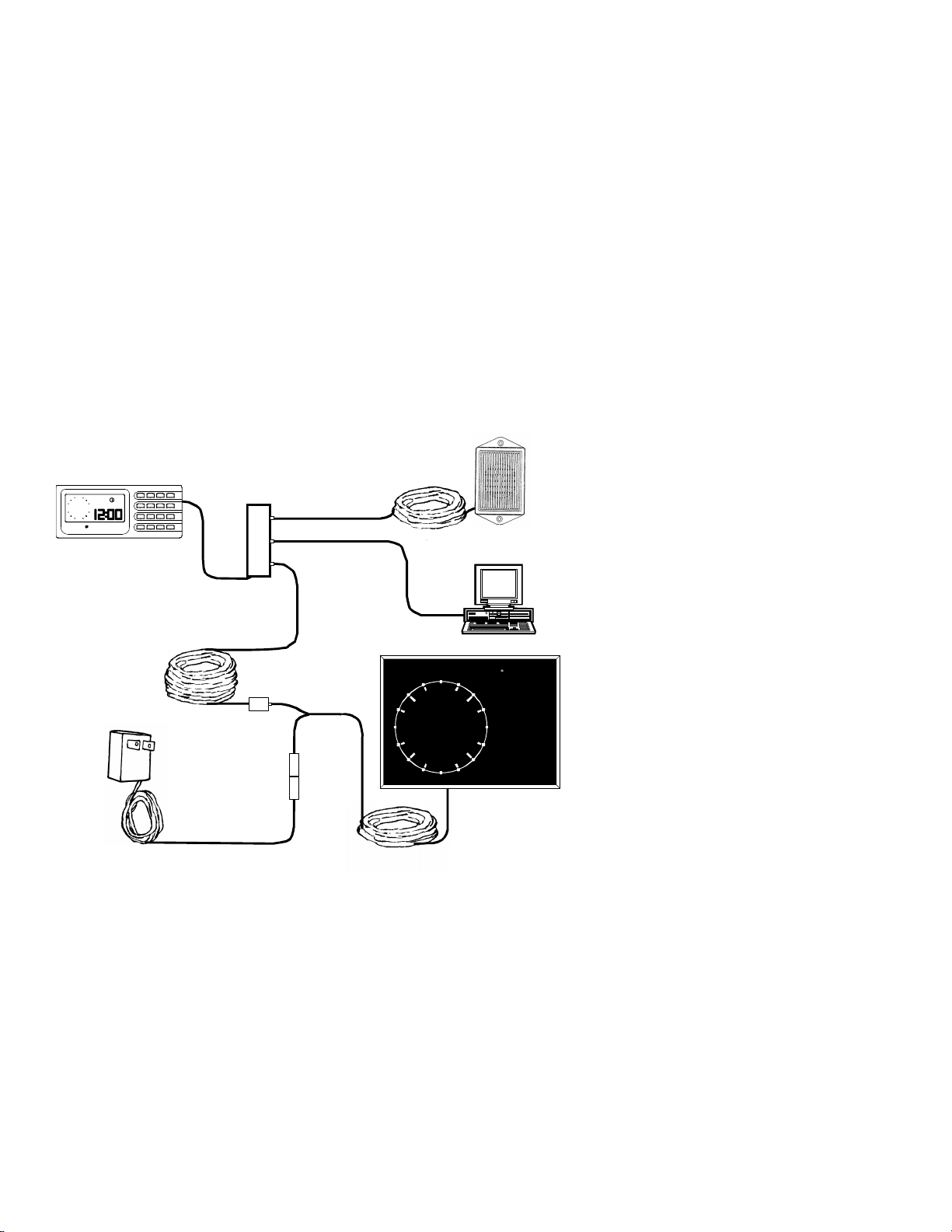

If you have an ULTIMETER 800 or 2000 with an Indoor Humidity
Sensor AND PC Data Logger Interface connected to the
keyboard's serial port, connect components as shown in the
following diagram. Use an extension cable (shown) only if you
require additional cable length between WEATHER PICTURE
and keyboard. A 5-Jack Extension Cable is required for
WEATHER PICTURE, PC Data Logger, and Indoor Humidity
Sensor to share the keyboard's serial port.
Keyboard Display
(ULTIMETER 2000 & 800)
ULTIMETER
W
N
S
E
2000
R
5-Jack Extension Cable
(Optional)
Indoor Humidity Sensor
(Optional)
AC Adapter
R
THE WEATHER PICTURE
PEETBROS.
W
S
E
N
2 4
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
9
6 4
7 6
7 0
5 4
0 0.2 8
Extension Cable
(Optional)
PC Data Logger
(Optional)
NOTE: BEFORE YOU INSTALL PLUGS IN RECEPTACLES, be
sure to check connectors as shown on p. 11.

11
Check all receptacles for crossed wires (see illustration below).
This can occur during plug-in and unplugging of the cables. It
can be corrected by using a pair of tweezers to gently lift the wire
back into the correct slot.
WRONG RIGHT
Installing the Wall Mounting Bracket
1. Using the mounting bracket as a template, use a pencil to
mark two holes 3.75 in. apart for the wood screws or drywall
anchors provided. Mount at a height slightly above eye level for
best viewing angle.
2. Install the mounting bracket using the two screws provided.
Do not overtighten.
3. Hang the WEATHER PICTURE from the two projecting nubs
on the mounting bracket.

12
TO ADJUST TIME, DATE, AND LEAP YEAR SETTING
The current time and date displayed on the WEATHER PICTURE
are set using the keyboard of the ULTIMETER Weather Station.
Refer to your Weather Station Owner's Manual for complete
information. The selection of 12-hr or 24-hr clock, however, is
made on the WEATHER PICTURE. See "Numeric Display
Function" section.
The ULTIMETER?Weather Stations feature a perpetual calendar.
For THE WEATHER PICTURE?to operate correctly, you must
adjust the leap year setting on the Keyboard/Display.
a) Press and release and simultaneously. The
clock and calendar symbols will appear on the screen and
the instrument will briefly display LP (for LeaP year). Then it
will display the leap year setting, which is initially 0.
b) Press and KEEP IT PRESSED until the leap year
setting begins to change. Then press or as
required until the leap year setting shows the number of
years until leap year, i.e. "3" for 1997, "2" for 1998, "1" for
1999, and "0" for 2000.
c) Press and release to set time or to set date.
d) Press and hold or as required until the displayed
value is close to correct, then press repeatedly until correct
setting is displayed. Press any data key to return to normal
operation.
NOTE: Adjust the leap year counter BEFORE you set the
date. If you have already set the date, check it after setting
the leap year counter, and adjust the date display as
necessary.

13
SELECTING SERIAL DATA MODE
The serial data output port on the ULTIMETER weather stations
has two different modes which are used with THE WEATHER
PICTURE. The mode can be selected by pressing and holding a
combination of two keys. The following is a brief description, to
provide an idea of the capabilities of each mode.
DATA LOGGING MODE
In Data Logging Mode, the instrument puts out a steady
stream of records, about one per second. Each record
includes all current readings, including time and date. Key
Combo: Press and hold and for 3 seconds to
enter this mode.
COMPLETE RECORD MODE
The ULTIMETER Weather Station must be in Complete
Record Mode for the WEATHER PICTURE to display
Today's or Yesterday's High or Low weather conditions. If
you have selected any such function to be displayed on the
WEATHER PICTURE, you must first enter Complete Record
Mode. Key Combo: Press and hold and for 3
seconds to enter this mode.
In Complete Record Mode, the instrument puts out a steady
stream of records, about twenty per minute. Each record
includes all current values, today's high and low values,
yesterday's high and low values, and long term rain values,
and current time and date.
NOTE: It is essential to make the correct Leap Year setting
(see previous section); otherwise, date data from the serial
port may be incorrect.

14
IV. SELECTING NUMERIC DISPLAY FUNCTIONS
The Numeric Displays of the WEATHER PICTURE are
individually set to display one of sixty different weather functions.
The desired function and the measurement units are selected by
setting a series of switches (DIP switch), inside the WEATHER
PICTURE on the Numeric Display modules.
To access the DIP switches, first remove power from the
WEATHER PICTURE by unplugging it from its AC adapter.
Then, remove the back plate by removing the 8 screws (the large
WEATHER PICTURE has 11 screws).
The DIP switches are numbered as follows (shown all "ON"):
12 3 4 5 6 7 8
ON WP
Switches 1-6 are used to select the desired data and
measurement units; switches 7 and 8 are used to select the
format for time and date displayed.
CAUTION: Remove power before adjusting switches. When you
first reapply power, be sure the correct "CHECK VALUE" is
displayed in the Numeric Display.
SETTING DATE FORMAT
1. If you prefer a MM/DD date display, turn switch 7 "ON" ?.
2. If you prefer a DD/MM date display, turn switch 7 "OFF" ?.
SET TIME FORMAT
1. If you prefer a 24-hr clock display, turn switch 8 "ON" ?.
2. If you prefer a 12-hr clock display (a.m. & p.m.) display,
turn switch 8 "OFF" ?.
SELECTING UNITS (US/Metric)
Units are selected for each weather function individually, by DIP
switch setting. Refer to the list of switch settings to display a
weather function using the desired units (Fahrenheit/Celsius,
Knots/MPH, inHg/mbar, etc.).

15
CHANGING NUMERIC DISPLAY LABELS
A sheet of additional function labels is provided for customizing the data
display of your WEATHER PICTURE. Use scissors to cut the labels (up
to the black edge). Labels are designed to remain in place when
installed, but double-sided tape may be used if desired to keep a
function label in position. To change a label:
1) Place the WEATHER PICTURE face down on a soft flat surface.
Laying a soft towel down first is recommended to help prevent
scratching the nameplate. On Metal Frames: Loosen the 8 screws in
the corner brackets of the frame. On Teak Frames: Loosen the
frame retaining clip screws and rotate the clips to allow removal of the
frame.
2) Turn the WEATHER PICTURE face up again. On Metal Frames:
Remove the metal frame from around the WEATHER PICTURE by
pulling the four frame parts away from the WEATHER PICTURE
housing. On Teak Frames: Lift frame up from the housing.
3) Carefully lift the nameplate out and set it aside.
4) Replace Display Function Labels as desired, using double-sided
tape to retain them if necessary.
5) Carefully replace nameplate in the slight recess of the housing
front.
6) Metal Frames Only: Install corner brackets in the two short frame
parts. Replace the long frame parts on their respective sides of the
housing. Then replace the short parts (with corner brackets).
7) Once again, place the WEATHER PICTURE face down on a soft
flat surface. On Metal Frames: Tighten the corner bracket screws.
On Teak Frames: Rotate the frame retaining clips and gently tighten
the screws. Do not overtighten.
PEETBROS.
HI WIND TODAY HI TEMP TODAY
TEMPERATURE
R
PEET BROS.
W
S
E
N
WIND CHILL
HI WIND TODAY
WIND SPEED
HI TEMP TODAY
TEMPERATURE
LO TEMP TODAY
RAIN TODAY
THE WEATHER PICTURE
FRAME
DISPLAY LABEL
NAMEPLATE
CORNER
BRACKET
HOUSING

16
SWITCH SETTINGS (?= ON, ?= OFF)
CHECK
FUNCTION & UNITS SWITCH:123456VALUE
TIME ??????0
DATE (EXCEPT DURING LEAP YEAR) ??????1
DATE (DURING LEAP YEAR) ??????61
CURRENT WIND SPEED (mph) ??????2
CURRENT WIND SPEED (kph) ??????3
CURRENT WIND SPEED (m/s) ??????4
CURRENT WIND SPEED (knots) ??????5
1 MINUTE WIND SPEED AVERAGE (mph) ??????7
1 MINUTE WIND SPEED AVERAGE (kph) ??????8
1 MINUTE WIND SPEED AVERAGE (m/s) ??????9
1 MINUTE WIND SPEED AVERAGE (knots) ??????10
PEAK SPEED OVER LAST 5 MINUTES (mph) ??????11
PEAK SPEED OVER LAST 5 MINUTES (kph) ??????12
PEAK SPEED OVER LAST 5 MINUTES (m/s) ??????13
PEAK SPEED OVER LAST 5 MINUTES (knots) ??????14
TODAY'S HIGH WIND SPEED (mph) ??????15
WITH TIME AND DATE
TODAY'S HIGH WIND SPEED (kph) ??????16
WITH TIME AND DATE
TODAY'S HIGH WIND SPEED (m/s) ??????17
WITH TIME AND DATE
TODAY'S HIGH WIND SPEED (knots) ??????18
WITH TIME AND DATE
CURRENT WIND CHILL TEMPERATURE (?F) ??????19
CURRENT WIND CHILL TEMPERATURE (?C) ??????20
TODAY'S LOW WIND CHILL TEMP (?F) ??????21
WITH TIME AND DATE
TODAY'S LOW WIND CHILL TEMP (?C) ??????22
WITH TIME AND DATE
CURRENT OUTDOOR TEMPERATURE (?F) ??????23
CURRENT OUTDOOR TEMPERATURE (?C) ??????24
TODAY'S LOW OUTDOOR TEMP (?F) ??????25
WITH TIME AND DATE
TODAY'S LOW OUTDOOR TEMP (?C) ??????26
WITH TIME AND DATE
TODAY'S HIGH OUTDOOR TEMP (?F) ??????27
WITH TIME AND DATE
TODAY'S HIGH OUTDOOR TEMP (?C) ??????28
WITH TIME AND DATE

17
CHECK
FUNCTION & UNITS SWITCH:123456VALUE
CURRENT BAROMETER (inHg) ??????29
CURRENT BAROMETER (mmHg) ??????30
CURRENT BAROMETER (mBar) ??????31
CURRENT BAROMETER (Hpa) ??????31
3 HOUR PRESSURE CHANGE (inHg) ??????32
3 HOUR PRESSURE CHANGE (mmHg) ??????33
3 HOUR PRESSURE CHANGE (mBar) ??????34
3 HOUR PRESSURE CHANGE (Hpa) ??????34
CURRENT OUTDOOR HUMIDITY (%) ??????35
TODAY'S LOW OUTDOOR HUMIDITY (%) ??????38
WITH TIME AND DATE
TODAY'S HIGH OUTDOOR HUMIDITY (%) ??????39
WITH TIME AND DATE
YESTERDAY'S LOW OUTDOOR HUMIDITY (%) ??????40
WITH TIME AND DATE
YESTERDAY'S HIGH OUTDOOR HUMIDITY (%) ??????41
WITH TIME AND DATE
CURRENT DEW POINT TEMPERATURE (?F) ??????36
CURRENT DEW POINT TEMPERATURE (?C) ??????37
TODAY'S RAIN TOTAL (inches) & DATE??????42
TODAY'S RAIN TOTAL (mm) & DATE??????43
YESTERDAY'S RAIN TOTAL (inches) & DATE??????44
YESTERDAY'S RAIN TOTAL (mm) & DATE??????45
LONG TERM RAIN TOTAL (inches) & DATE??????46
LONG TERM RAIN TOTAL (mm) & DATE??????47
CURRENT INDOOR TEMPERATURE (?F) ??????48
CURRENT INDOOR TEMPERATURE (?C) ??????49
TODAY'S LOW INDOOR TEMP (?F) ??????50
WITH TIME AND DATE
TODAY'S LOW INDOOR TEMP (?C) ??????51
WITH TIME AND DATE
TODAY'S HIGH INDOOR TEMP (?F) ??????52
WITH TIME AND DATE
TODAY'S HIGH INDOOR TEMP (?C) ??????53
WITH TIME AND DATE
CURRENT INDOOR HUMIDITY (%) ??????54
TODAY'S LOW INDOOR HUMIDITY (%) ??????55
WITH TIME AND DATE
TODAY'S HIGH INDOOR HUMIDITY (%) ??????56
WITH TIME AND DATE
CURRENT HEAT INDEX (?F) ??????57
CURRENT HEAT INDEX (?C) ??????58

18
AN IMPORTANT NOTE ABOUT WIND
For Large WEATHER PICTURES only: Wind speed
functions should be selected for display only in the Numeric
Displays located within the wind direction compass rose.
These Numeric Displays may also be used to display any
other desired data.
VII. INSTALLING ADDITIONAL NUMERIC DISPLAYS
Additional Numeric Displays are easily installed using only a small
Philips screwdriver.
1) First, remove power from the WEATHER PICTURE by
unplugging it from its AC adapter. Then, place the WEATHER
PICTURE face down on a soft flat surface. Laying a soft towel
down first is recommended to help prevent scratching the
nameplate. Remove the back plate by removing the 8 screws
(the large WEATHER PICTURE has 11 screws).
2) Note that the existing Numeric Displays are daisy-chained
together in a red+black+yellow wire harness. Open the Numeric
Display wire harness "loop" by unplugging the pair of white plastic
connectors in closest proximity to where you're installing the new
Numeric Display. Opening the wire harness "loop" allows you to
install a new module (which, when plugged in, will "close" the
loop.)
3) Install the new Numeric Display using the four screws
provided. Be careful not to pinch any wires under the Numeric
Display or screws. Plug the new Numeric Display's 7-WIRE plug
into the 4-WIRE plug of the connector pair you unplugged in Step
2. Likewise, plug the new Numeric Display's 4-WIRE plug into
the 7-WIRE plug of the connector pair you unplugged in Step 2.
The Numeric Display wire harness "loop" is now closed again.
4) Follow instructions of previous section for setting Display
Function DIP switches, and for installation of Display Labels.
5) Carefully replace the back plate, making sure all
red+black+yellow wires and connectors are positioned so that
they are not pinched, and replace the screws.

19
XIV. ROUTINE MAINTENANCE
Care of Nameplate
The large nameplate on the front side of the WEATHER
PICTURE should be cleaned with a soft damp cloth only. Use no
harsh or abrasive cleaners, as these will permanently scratch the
surface of the nameplate. Do not spray any liquids or cleaners
directly on the nameplate.
In Case of Non-Responsive WEATHER PICTURE
Sometimes an electrical storm or line power surge can cause the
weather station keyboard or WEATHER PICTURE to be disabled.
To correct this condition, unplug the WEATHER PICTURES
power cord from its AC adapter, and re-plug to power up again.
If this does not correct the problem, unplug the junction box cable
from the back of the weather station keyboard display and
remove the 9-volt battery (however, be advised that all memories
and initial settings will be lost). Install the battery again and
reconnect the junction box cable.
Error Codes
On occasion an error code may appear in a Numeric Display:
Code Meaning Corrective Action
Err1 Invalid DIP Switch Setting Correct DIP switch setting; see
Section IV "Selecting Numeric
Display Functions".
Err2 No Serial Input Check wiring diagram, cable
connections from Weather
Station keyboard, or Display
Module wire harness
connectors.
Err3 Keyboard in Packet Mode Change Serial Port to Complete
Record or Data Logger Mode.
Err4 Keyboard not in Complete Change Serial Port to Complete
Record Mode Record Mode.
Err5 Sensor Not Found Correct DIP switch setting or
add required weather sensor.
Err8 Unexpected Interrupt Call Technical Support.

20
XV. WARRANTY
In Case of aProblem
Your WEATHER PICTURE is designed to provide years of trouble
free operation. If the instrument completely stops operating, the
cause is probably inadequate power due to a faulty ac adapter, or
a faulty connection to the adapter.
Also, be sure to see page 11 (crossed wires in receptacles).
If a problem persists, please write or call our Technical Service
Department at [phone]. We will do everything possible to
assure your satisfaction.
Repair and Exchange Service
Any defective WEATHER PICTURE may be repaired or
exchanged for a factory reconditioned instrument of the same
type with like-new performance. Under warranty there is no
charge. Beyond warranty the charges are modest, depending
upon the condition of the instrument.
Copyright 1997 Peet Bros. Company, Inc. All Rights Reserved.
WARRANTY
Each WEATHER PICTURE carries a limited warranty against
defects of material or workmanship for a period of 1 year from the
date of initial purchase. Our responsibility under this warranty is
limited to the repair or replacement of instruments returned to us
postage paid, together with proof of purchase date. This
warranty shall not apply to instruments subjected to: improper
installation, any alterations, misuse, tampering, or unauthorized
service. It does not cover damage to the frame or nameplate, or
damage due to accidents, lightning, or other acts of God. Neither
we nor our representatives, distributors, nor dealers shall be
liable for any incidental or consequential damages. Some states
do not allow the exclusion or limitation of incidental or
consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to
state.
