Peg-Perego PRIMO VIAGGIO SIP ES 30.30 User manual

Do not install or use this infant restraint
until you read and understand all
instructions in this manual. To avoid
serious injuries to your baby, follow
the instructions carefully and be sure
to buckle your baby using the 5-point
harness.
WARNING: Child Requirements:
Weight limits: 30 pounds (13,5 kg)
Maximum height: 30 inches (76 cm)
FIUS1001I106
O W N E R ’ S M A N U A L
USA
Istructions for use EN
(IMMI)
Integrated
Side Impact Protection
PRIMO VIAGGIO SIP ES 30.30
PrimoViaggioSIP-ES_USA_30-30_FIU1 1 10-03-2010 14:44:43

2 © 2010 Peg Perego. All rights reserved.
Table of Contents
3 Before You Start
4 Customer Service
4 Registration Form
5 Safety
7 Safety Rules
8 Your Car Seat
9 Your Car Seat Base
10 Travel System
11 Serial Numbers
12 Installation Instructions
13 Installing the Base
14 How to Install the Base Using the
LATCH SYSTEM
17 How to install the Base Using your
VEHICLE SEAT BELT
19 Installing the Base with Different
Types of Seat Belts
21 How to Install the Locking Clip
22 Different Types of Vehicle Seat Belts
23 Installing the Car Seat on the Base
25 Installing the Car Seat without the Base
27 Installing the Seat with Different
Types of Seat Belts
28
How to Buckle Your Baby into the
Car Seat
33 How to Raise or Lower the Shoulder
Straps
36 Using the Car Seat Outside the
Vehicle
39 How to Use the Car Seat on Aircraft
without the Base
40 How to Use the Car Seat on Aircraft
with the Base
41 Cleaning and Maintenance
42 How to Wash the Chair Padding-
Cover removal
44 How to Wash the Chair Padding-
Refitting
45 Replacement Parts
PrimoViaggioSIP-ES_USA_30-30_FIU2 2 10-03-2010 14:44:44

3
1 Please read this manual carefully. Keep this manual in the plastic pocket on the
base of the infant car seat.
2 Review car seat parts and read through instructions. Also read the labels. Read and
understand all instructions before using this car seat.
3 Fill in and return the registration form (see page 4).
4 All assembly must be performed by an adult.
5 Do not use the car seat if damaged or parts are missing.
6 Use only the parts or accessories that come with the unit. Do not modify or
repair any part.
7 Remember: this car seat is to be installed rear facing only.
8 Peg Perego has the right to make changes to the product at any time without
notice.
Before You Start
PrimoViaggioSIP-ES_USA_30-30_FIU3 3 10-03-2010 14:44:44

4
Call Peg Perego USA customer service
at 1-800-671-1701 (toll free) for
information about repairs or spare
parts. If any part is missing or damaged,
replace with Peg Perego parts only. See
page 46 for a list of replacement parts.
If you want more than one base, you
can purchase it from your local dealer,
or you can call 1-800-671-1701
(toll free), or you can go to
www.pegperego.com.
Important! Child restraints could be
recalled for safety reasons. You must
register this restraint to be reached
in a recall. Send your name, address
and the restraint’s model number and
manufacturing date to:
Peg Perego U.S.A., Inc.
3625 Independence Drive
Fort Wayne, IN 46808
Or call 1-800-671-1701 (toll free)
For recall information, call the U.S.
Government’s Vehicle Safety Hotline at
1-888-327-4236
(TTY: 1-800-424-9153).
Or go to http://www.NHTSA.gov
Customer Service Registration Form
PrimoViaggioSIP-ES_USA_30-30_FIU4 4 10-03-2010 14:44:44

5
Warning
• This car seat meets or exceeds all
applicable Federal Motor Vehicle
Safety Standard 213 requirements for
use in motor vehicles and aircraft.
• Your child could be seriously injured
if you do not follow instructions and
warning labels correctly.
•
Use this car seat rear facing only. This
seat is not designed to face forward.
Serious injury or death can occur in an
accident if you install the seat facing
forward.

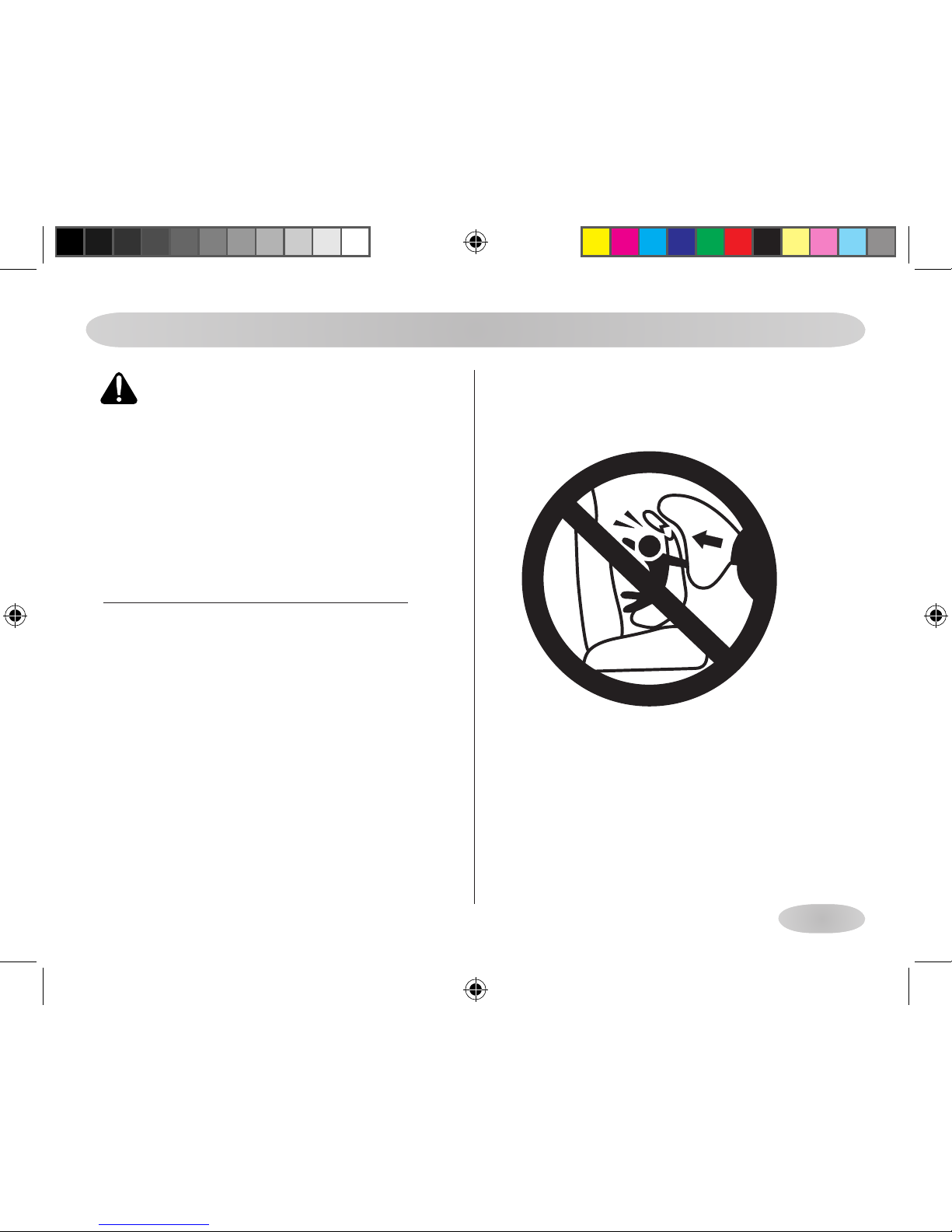

• Never use in a vehicle seat with an
active air bag. Read your vehicle
manual for instructions on how to
turn off the air bag.
• If your vehicle has air bags, do not
install this car seat on a seat with
an active air bags. Death or serious
injuries can occur if an air bag hits
the unit (read your vehicle owner’s
manual for instructions on where
to install an infant car seat in your
vehicle).
• This car seat is certified for use with
or without base. Use of the base is
highly recommended for ease of
proper installation. Install this car seat
without the base only if needed.
• Never install the car seat in the front
vehicle seat unless instructed by your
Safety
PrimoViaggioSIP-ES_USA_30-30_FIU5 5 10-03-2010 14:44:44

6
vehicle manual. According to accident
statistics, children are safer when
properly restrained in the rear seating
positions than in the front seating
positions.
•
Install this car seat on front facing
seats only. Do not use on rear facing
or side facing seats or in cars with
door-mounted or motorized shoulder
belts.
•If you use a lap belt or lap/shoulder
belt to install the base, you must use a
seat belt that locks in place. If it does
not lock in place, use the locking clip.
The seat belt must lock into place for
the car seat to be properly secured.
•Be sure the car seat or car seat base
are properly secured using a vehicle
seat belt or LATCH as shown in this
manual.
•Always buckle your baby into the car
seat with the harness. Be sure to latch
buckles correctly.
•When lifting the seat out of the base,
be sure you first secure the handle
into the carrying position.
•Keep fingers away from moving parts.
•Use only approved parts. Use of
unapproved parts can affect the safety
of the car seat and cause serious
injury or death in an accident.
•Complete and send in the registration
form right away.
•Always store the manual with car seat.
Keep it in the pocket on front of base.
•In case of accident: if this car seat
is involved in a car accident, it may
be no longer safe to use. You may
need to get a new unit. Call customer
service at 1-800-671-1701 (toll free)
for more information.
•Do not use Primo Viaggio Sip ES 30•30
with bases manufactured before July
2006.
PrimoViaggioSIP-ES_USA_30-30_FIU6 6 10-03-2010 14:44:44

7
•Use only with children who weigh
between 5 and 30 pounds (2.3 and
13,5 kg) and whose height is 30 inches
(76 cm) or less. If your baby was born
with low birth weight, ask your doctor
for special instructions on using an
infant car seat.
•Use this car seat in vehicles with
standard lap or lap/shoulder belts
or universal lower anchors. If your
vehicle has lower anchors, use those
to secure the car seat instead of the
standard seat belt. Read your vehicle
manual to locate the lower anchors.
•Be sure the car seat is properly
leveled. If the seat reclines too much,
your baby can be injured or ejected
from the seat. If the seat is too
upright, it can cause your baby to
have breathing problems, which could
lead to injury or death.
•Do not place car seat on countertop,
table, or soft surfaces.
•Never leave your baby alone in the
car seat. He/she could get tangled in
the straps and be seriously injured or
could move or tip the seat.
•Do not leave the car seat or base
unsecured in the vehicle, even if not
occupied. A loose car seat can injure
other passengers in a crash.
•Do not use this unit after five (5) years
from the date of production labeled
on the seat.
•Do not hang toys on handle of seat.
Safety Rules
PrimoViaggioSIP-ES_USA_30-30_FIU7 7 10-03-2010 14:44:44

8

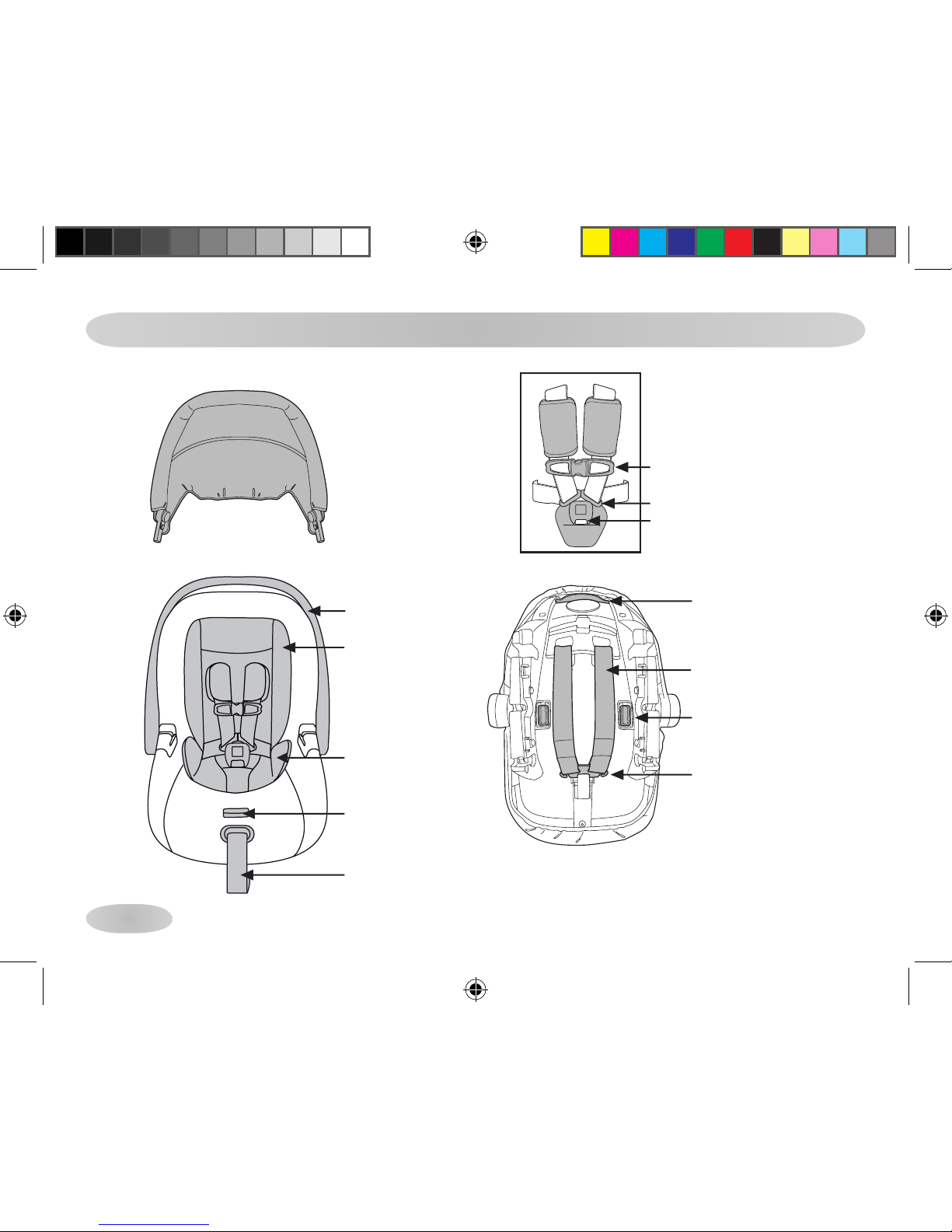

Your Car Seat
HOOD
BACK
Slide adjuster
Harness strap
Anchor buckles
Release lever
FRONT
Energy absorbing Expanded Polystyrene (EPS)
foam lined shell for added impact protection.
Chest harness clip
Harness buckle
Harness latch plate
5-POINT
HARNESS SYSTEM
Seat handle
Seat pad for infant
Side Impact
Head protection
Harness adjuster button
Harness adjuster strap
PrimoViaggioSIP-ES_USA_30-30_FIU8 8 10-03-2010 14:44:45

9
Your Car Seat Base
Belt slots with
anti-slip rubber pads
FRONT
Level knob
Locking clip
Anchor
latches
Lower connector
system hereinafter
referred to as
LATCH strap
Level indicator
SIDE LOCKING CLIP
STORAGE
BACK
Instruction
Manual
book pocket
PrimoViaggioSIP-ES_USA_30-30_FIU9 9 10-03-2010 14:44:46

10

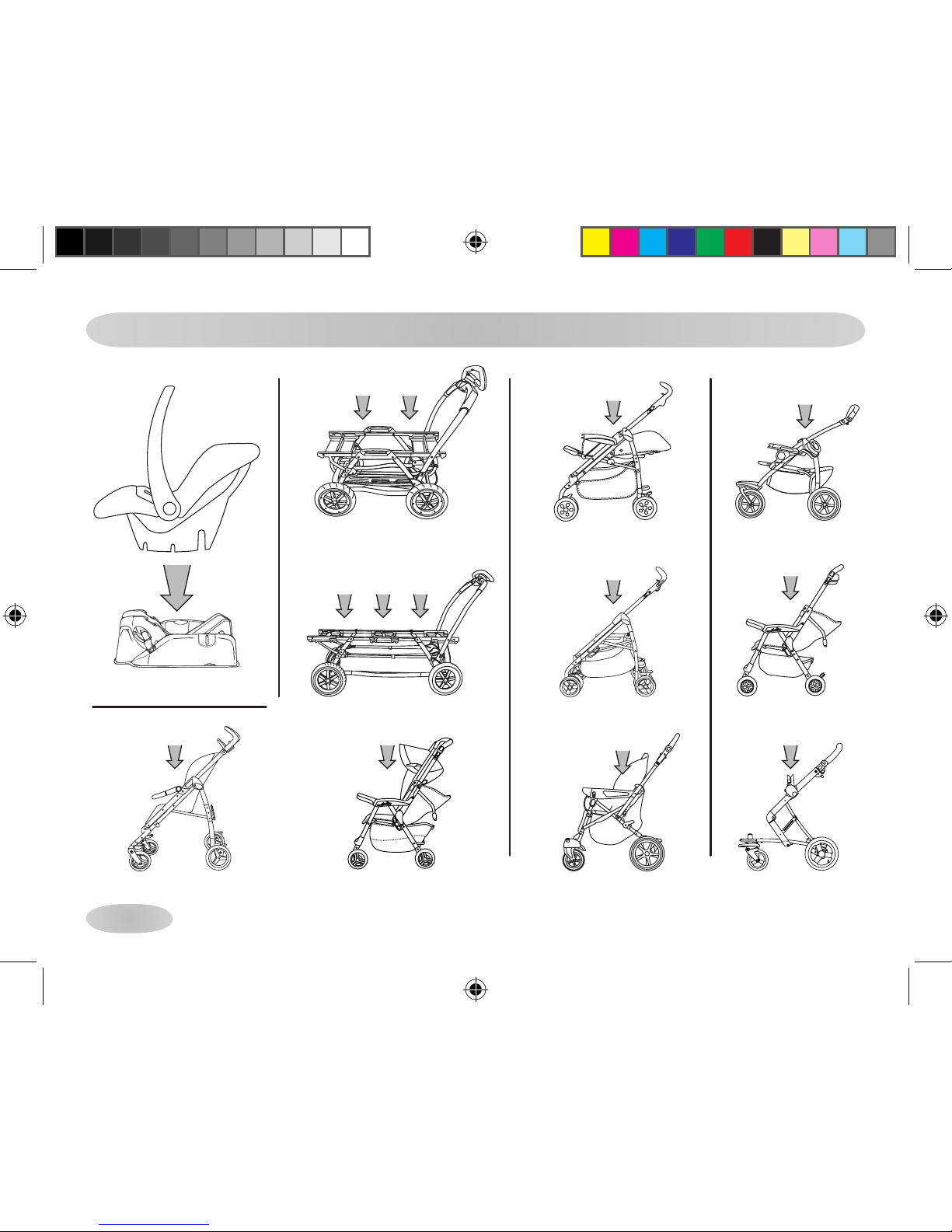

Travel System
Duette SW
Triplette SW
Aria Twin 6040
Pliko Switch Aria
Pliko P3
Uno
Sì Skate
GT3/GT3 ForTwo
Base
Seat
PrimoViaggioSIP-ES_USA_30-30_FIU10 10 10-03-2010 14:44:46

⇠
Serial Numbers
The following information can be found
under the front of the seat of the Primo
Viaggio Sip ES 30•30 : product name,
production date and serial number.
Buckle production date.
Harness production date.
In the event of problems with the
product, these details will be of use to
customers.
11
PrimoViaggioSIP-ES_USA_30-30_FIU11 11 10-03-2010 14:44:47

⇠12
Installation Instructions
Peg Perego Primo Viaggio Sip ES 30•30
is certified for use with or without
the base. Use of the base is highly
recommended because it makes
installation easier and therefore safer.
PrimoViaggioSIP-ES_USA_30-30_FIU12 12 10-03-2010 14:44:48

⇠13
IUSING THE LATCH
SYSTEM. If your car has
“universal lower anchors”,
you can install the infant
car seat using the LATCH
system instructions on page
14. The anchor is a bar located where
the seat back meets the seat bottom
(slide your hand down between the
seat back and seat bottom to locate
this bar).
Important! Also read your vehicle
manual for locating lower anchors
and instructions on using the LATCH
system.
II USING THE STANDARD LAP BELT/
SHOULDER STRAP. If your car does
not have universal lower anchors,
install the infant car seat using the
instructions for lap belt/shoulder
straps on page 17.

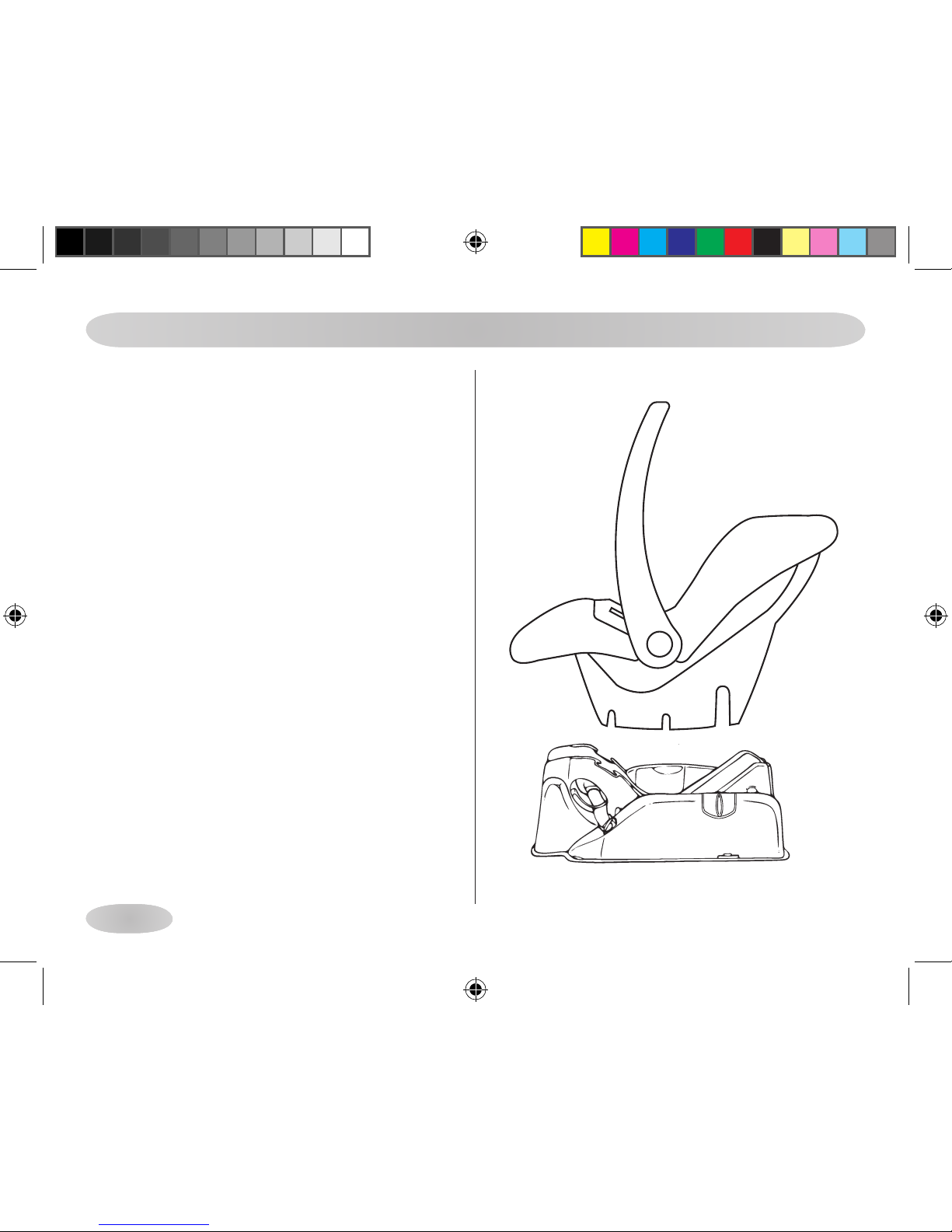

When using Primo Viaggio Sip ES 30•30 with its base, first you install the
base, and then you install the car seat on the base.
Important! Read your vehicle manual for instructions on where to best install an
infant car seat in your vehicle.
There are two ways to install the base:
Installing the Base
PrimoViaggioSIP-ES_USA_30-30_FIU13 13 10-03-2010 14:44:48

⇠14
Install the base with your vehicle parked
on level ground.

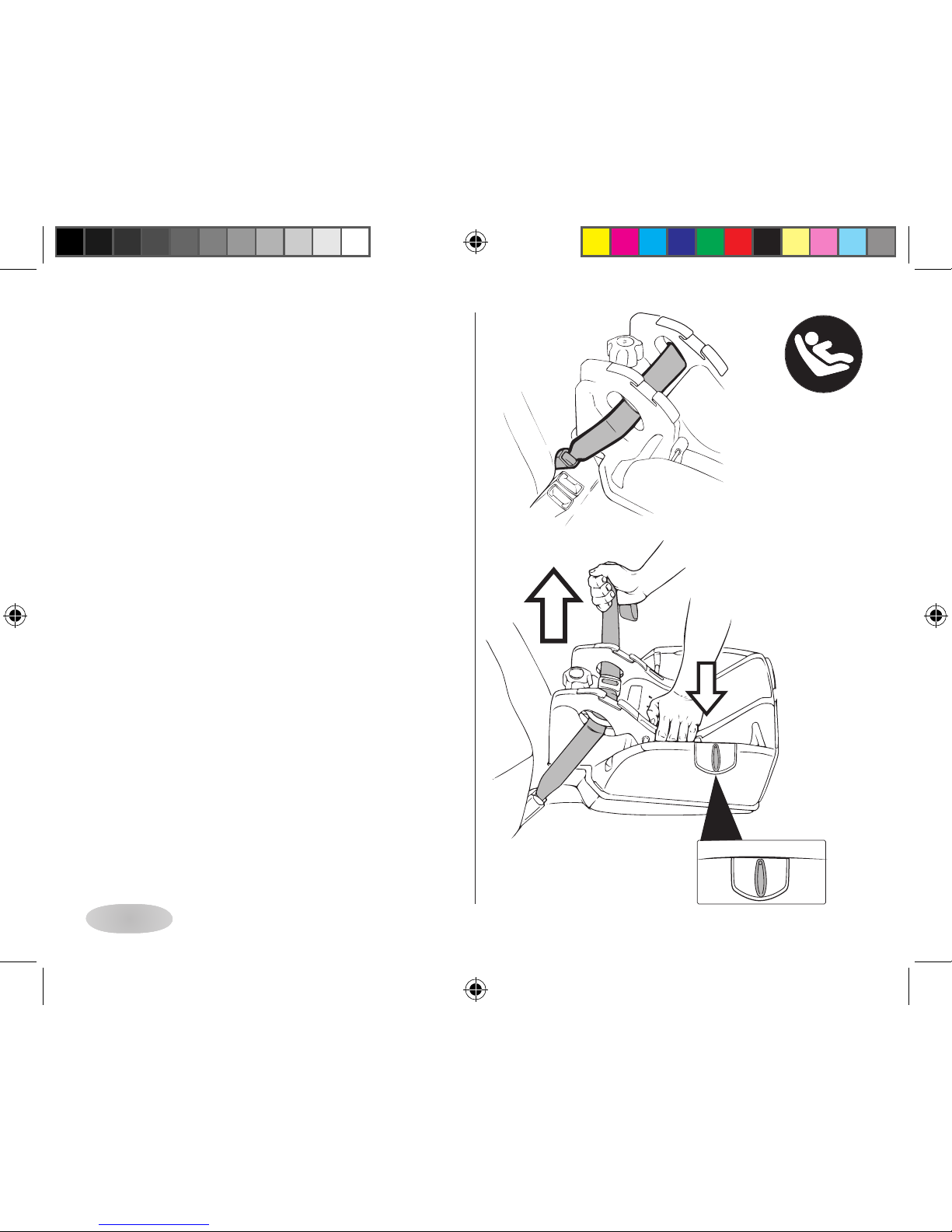

1• Take the car seat off the base by
moving the handle to the upright
position. Place your hand on the top
of the seat back and pull up on the
handle with your fingers.
Note: Pulling near the center of the
handle provides the easiest release.
2• Position the base rear facing in the
back seat of your vehicle. Check the
level indicator on the side of the
base to make sure that the pointer
is in the green area. If it is not, turn
the knob left or right until it is in the
correct position.
I - How to Install the Base Using the LATCH SYSTEM
PrimoViaggioSIP-ES_USA_30-30_FIU14 14 10-03-2010 14:44:49

⇠15
A
PUSH
B
A
PUSH
B

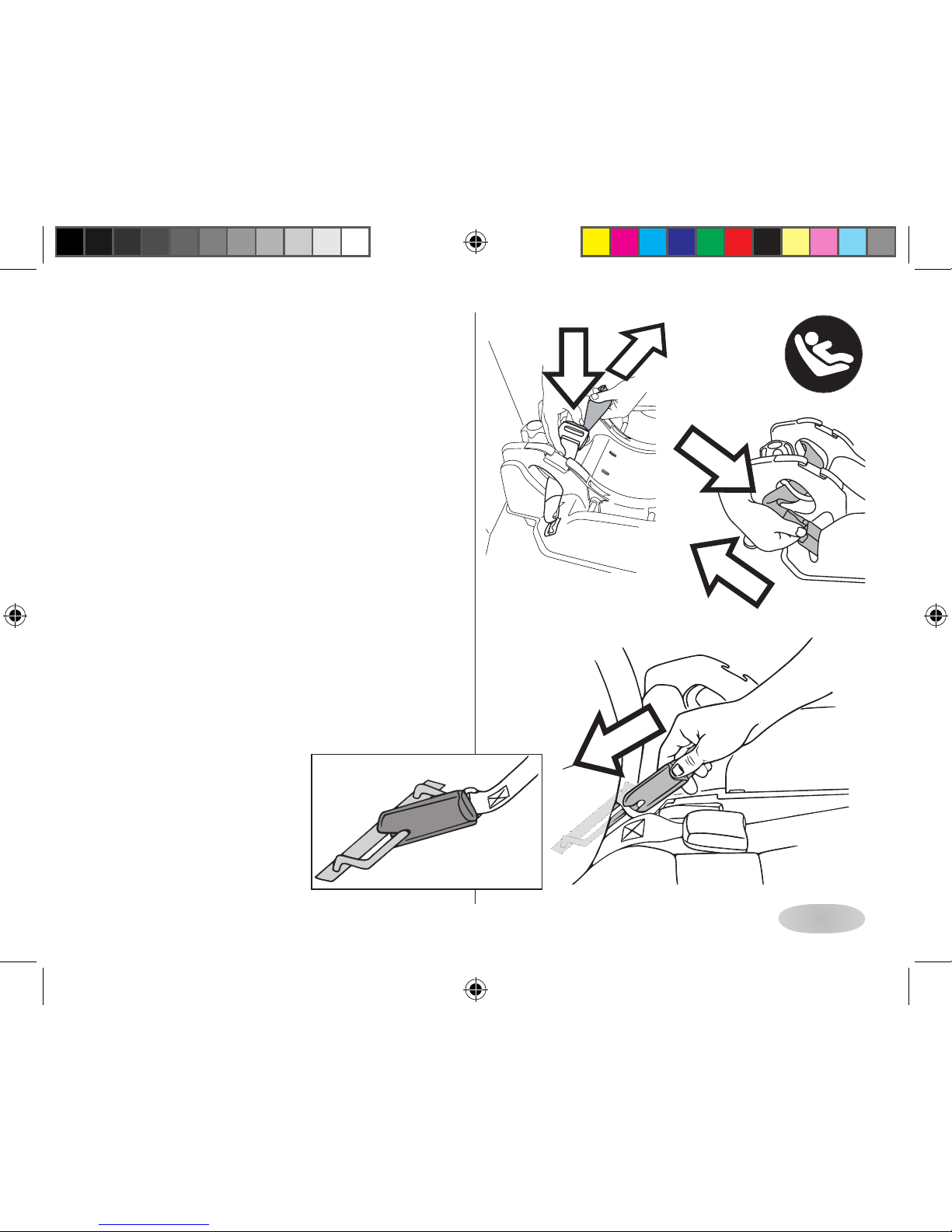

3•Remove the two anchor latches from
their housings. The latches are on
the sides of the base. First loosen
the latch strap by pressing on the
gray button and pulling the strap as
shown. Then press the red button
on top of the latch and pull the latch
out of its housing. Repeat on other
side.
4•Push each latch onto the anchor bar
located between your vehicle seat
back and seat bottom. Press until
you hear the click.
PrimoViaggioSIP-ES_USA_30-30_FIU15 15 10-03-2010 14:44:50

⇠16

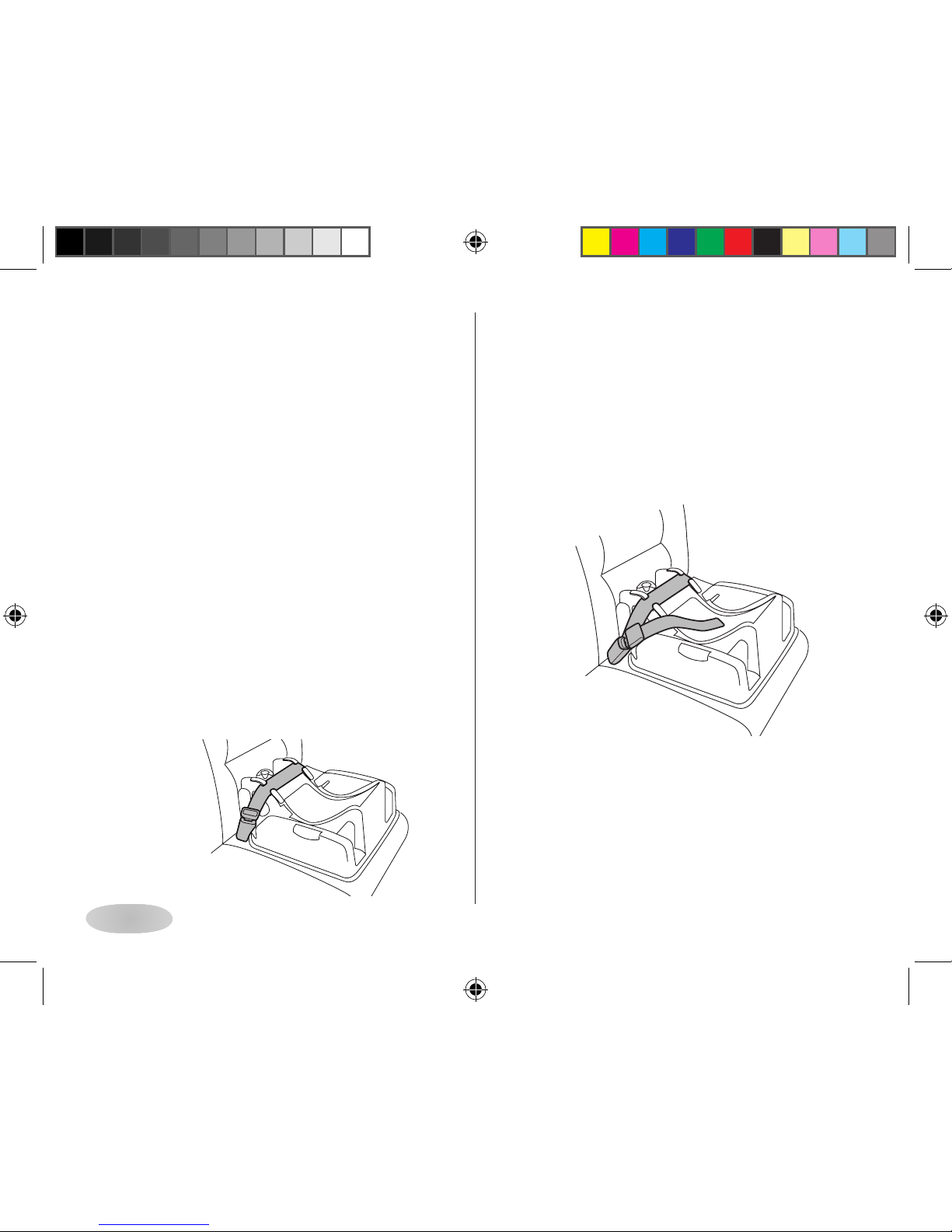

5• Make sure that the latch strap is
threaded flat against the base.
6• Tighten the base against the seat
by pulling the free end of the latch
strap. Press down on the base with
your body weight and tighten
further. Check the level indicator. If
the pointer has moved outside of the
green area, turn the knob until the
pointer is back within the green area.
You may need to loosen the strap
slightly to do this. Push and pull on
the base. If you can move it more
than 2,5 cm (1 inch), tighten the belt
further.
•Now that you have installed the
base, go to page 23.
PrimoViaggioSIP-ES_USA_30-30_FIU16 16 10-03-2010 14:44:51

⇠17
Important! Not all seat belts work
the same way. To make sure that the
infant car seat is properly installed
using your seat belts, read your vehicle
owner’s manual. It will suggest proper
placement of an infant car seat in your
particular vehicle.
Park your vehicle on level ground.
1• Take the car seat off the base by
moving the handle to the upright
position. Place your hand on the top
of the seat back and pull up on the
handle with your fingers.
Note: Pulling near the center of the
handle provides the easiest release.
2• Position the base rear facing in the
back seat of your vehicle. Check the
level indicator on the side of the
base to make sure that the pointer
is in the green area. If it is not, turn
the knob left or right until it is in the
correct position.
II - How to Install the Base Using Your VEHICLE SEAT BELT
PrimoViaggioSIP-ES_USA_30-30_FIU17 17 10-03-2010 14:44:51

⇠18
3• Thread the lap belt through the slots
on the base and lock the latch plate
into the buckle as shown.
4• Pull the strap to tighten the seat
belt. Press down on the base with
your body weight and pull the strap
tighter. Then push and pull on the
base. If you can move the base more
than 2,5 cm (1 inch), tighten the belt
further. Once the base is tight, check
the level indicator. If the pointer has
moved outside of the green area,
turn the knob until the pointer is
back within the green area. You may
need to loosen the strap slightly to
do this.
Warning! If you cannot get the belt
tight enough, refer to your vehicle
manual for instructions on how to
secure the base using the type of seat
belt in your vehicle. Your baby is not
safe riding in a loose car seat.
PrimoViaggioSIP-ES_USA_30-30_FIU18 18 10-03-2010 14:44:51

⇠19
Installing the Base with Different Types of Seat Belts
Primo Viaggio Sip ES 30•30 is designed
for use with lap or lap/shoulder seat belts.
Four of the most common types are listed
below. Please read your vehicle manual
for instructions on installing an infant car
seat using your vehicle seat belts.
I Lap/Shoulder belt with
Switchable Locking Retractor
If your vehicle has Switchable
Locking Retractor lap/shoulder belts,
pull the shoulder strap all the way
out, let it retract several inches, then
pull it out again. It should lock in
place to properly secure the base.
II Lap/Shoulder belt with
Emergency Locking Retractor
(ELR) and free sliding latch plate
This type of seat belt will only lock in
an emergency, so you must use the
locking clip (stored on infant seat
base) to properly secure this type of
seat belt (see page 21).
PrimoViaggioSIP-ES_USA_30-30_FIU19 19 10-03-2010 14:44:52

⇠20
III Lap/shoulder belt with a locking
latch plate
If you have a lap/shoulder belt with
a locking latch plate and the belt
comes loose after buckling, unbuckle
it, flip it over, and re-buckle. This will
usually keep the seat belt locked
in place. If not, read your vehicle
manual for specific instructions.
IV Different Types of Lap Belts
Lap belts with Emergency Locking
Retractors (ELR), Automatic Locking
Retractors (ALR), and Switching
Locking Retractors (SLR) look as shown.
Consult your vehicle owner's manual
to determine which style you have. Lap
belts with locking latch plates look as
shown.
V Lap belt only with an Emergency
Locking Retractor
If you have a lap belt (without shoulder
strap) that locks only in an emergency
(ELR), do not use it to secure the Primo
Viaggio Sip 30•30 car seat. Please
consult a certified Child Passenger Safety
Technician for other installation options.
To find a technician in your area, go to:
http://www.nhtsa.dot.gov/people/
injury/childps/contacts/index.cfm, or
call 1-888-327-4236.
PrimoViaggioSIP-ES_USA_30-30_FIU20 20 10-03-2010 14:44:53
