Peg-Perego VIAGGIO HBB 120 User manual

LUAS
CA
EN Instructions for use
FICA1202I145
WARNING: Weight limits:
18 – 54 kg
(40 – 120 lbs)
Height limits:
99 – 140 cm
(39 - 55 inches)
• Do not install or use this
booster seat until you read and
understand all the instructions
in this manual and the labels.
To avoid serious injuries to your
child, follow the instructions
carefully. Keep the instruction
manual in the dedicated
pocket for future reference.

2
Table of Contents
Introduction .....................................................................3
Warning ......................................................................5
Safety information .........................................................7
Registration form ..........................................................8
Your booster seat .............................................................9
Product assembly prior to use .................................10
Product features ............................................................13
Vehicle classes compatibility ....................................15
Vehicle seatbelts design and compatibility ........15
Vehicle seat design and compatibility...................17
Installing the booster seat in the vehicle ..............18
Securing the child in the booster seat .................. 22
Headrest height adjustment ....................................25
Backrest angle adjustment .......................................26
Using Viaggio HBB 120 without backrest .............27
Cleaning and maintenance ....................................31
Replacement Parts .......................................................38
© 2012 Peg Perego. All rights reserved.

3
Introduction
Thank you for choosing a Peg Perego Viaggio HBB 120
booster seat.
As with any other Peg Perego product, your Viaggio HBB
120 has been designed and certied by a dedicated
team of engineers inside Peg Perego Research and
Development Department.
Your Viaggio HBB 120 has been manufactured and
assembled in a Peg Perego plant under certied
quality procedures and using high quality materials
from certied suppliers. As with every booster seat,
Viaggio HBB 120 is used with a child inside a vehicle,
travelling fast on highways or slow in the chaotic trac
of today’s cities. This means that you need to use this
booster seat as a concerned parent, driving carefully
when you have a child on board but also, before this,
taking your time to explore the product, knowing
all the features it has, the dierent possible uses, the
proper and best installations. Go through this manual
entirely, keeping your new product in sight, checking
every point and understanding it. Install the product
in your vehicle taking the necessary time and making
tting trials before using it with your child. Once you
have read the manual, store it again in the backrest.

4
This will make you sure that everybody looking after
your child and using this seat will be able to look for
help in this manual.
Should you see any malfunctioning feature, after taking
the necessary familiarization or if you see broken parts,
do not hesitate to call Peg Perego Customer Service
@ 1-800-661-5050 for help. Now that you know your
new Viaggio HBB 120 , you are ready to enjoy safe and
happy journeys with your family and your children.
Introduction

5
Warning
• Do not install or use this booster seat until you read
and understand all the instructions in this manual and
the labels on the product. To avoid serious injuries to
your child, follow the instructions carefully. Keep the
instruction manual in the backrest for future reference.
• Your child could be seriously injured if you do not
follow instructions and warning labels correctly.
• Use only the vehicle's lap and shoulder belt system
when restraining the child in this booster seat. Snugly
adjust the belt around child's body making sure that
the belt lies at with no slack.
• This booster seat meets or exceeds all applicable
Federal Motor Vehicle Safety Standard 213.2
requirements for use in motor vehicles. This restraint
is NOT certied for aircraft use since aircraft seats are
normally equipped with lap belt only.
• Not all available models of seatbelts are approved for
use with this product. Refer to the dedicated section in
this manual for further details.
• Viaggio HBB 120 can be secured to your vehicle by
means of lower universal anchorage system (LUAS) for
added stability. Refer to the dedicated section in this
manual for installation details and check your vehicle
owner’s manual for further details.
• This booster seat is designed to be installed on front

6
facing vehicle seats only. Never use on seats looking
sideways or rearward facing. Do not use in cars with
door-mounted or motorized shoulder belts. Read your
vehicle owner’s manual for additional information.
• According to accident statistics, children are safer
when properly restrained in the rear seating positions.
• Complete and send in the registration form provided
with this product right away. In case of an accident: if
this car seat is involved in a car accident, it may be no
longer safe for use. You may need to get a new unit.
Call Peg Perego CANADA customer service at 1-800-
661-5050 (toll free) for information about repairs or
spare parts.
• Seat covers and pads provided in this product are
part of the product and the certication program. The
use of non approved covers or other accessories are
not recommended .
• EPS components (white soft foam located below the
upholstered covers) are integrated in the product as
safety related parts and should never be removed or
damaged.
• Secure this booster seat in the car even when not
occupied. This car seat is a heavy object that could cause
severe damage to other occupants in case of an accident.
• Keep ngers away from moving parts.
Warning

7
Safety Information
•
Use Viaggio HBB 120 in forward facing mode with children
weighing in the range 18 – 54 kg (40 - 120 lbs) and whose
height is between 39 and 55 inches ( 99 – 140 cm ).
• When placing your child in the seat, make sure that
bulky jackets or covers are removed. This will make the
use of seatbelts easier and therefore correct.
• Do not leave your child unattended in the vehicle, even
for a short period. He/she could get tangled in the straps
and be seriously injured or could move or tip the seat.
• Do not leave the booster seat under direct sunlight
for a prolonged time. The seat may become very hot
and burn your child’s skin.
• When not in use, store the product in a proper place,
away from light, moisture, excessive heat or cold.
• Do not place this car seat on countertops, tables or
soft surfaces.
• Do not try to remove or add parts unless where
explained in this manual; do not try to repair this
product. In case of damage or defective components,
call customer service @ 1-800-661-5050 for help.
• Do not leave loose objects, bags or luggage in the
vehicle interior. In case of an accident they could
suddenly move causing the occupants to be injured.
• Do not use this unit after seven (7) years from the
date of production labelled on the seat.

8
Registration Form
Important! Child restraints could be recalled for safety
reasons. You must register this restraint to be reached
in a recall. Send your name, address and the restraint's
model number and manufacturing date to:
Peg Perego CANADA, Inc. 585 Granite Court
Pickering Ontario Canada L1W3K1
Or call 1-800-661-5050 (toll free)
For recall information, call Transport Canada’s Road
Safety Information Centre at 1-800-333-0371.
Model number, model name, date of manufacturing,
etc. are indelibly printed on a label located on the
seat under the upholstery
(as shown here).
Registration form is attached
to the product cover. Detach
the form, ll in and mail to
Peg Perego. No stamp is
needed. We have already
paid for it. Should the
registration form be missing,
please call Customer
Service @ 1-800-661-5050
for a replacement form.

9

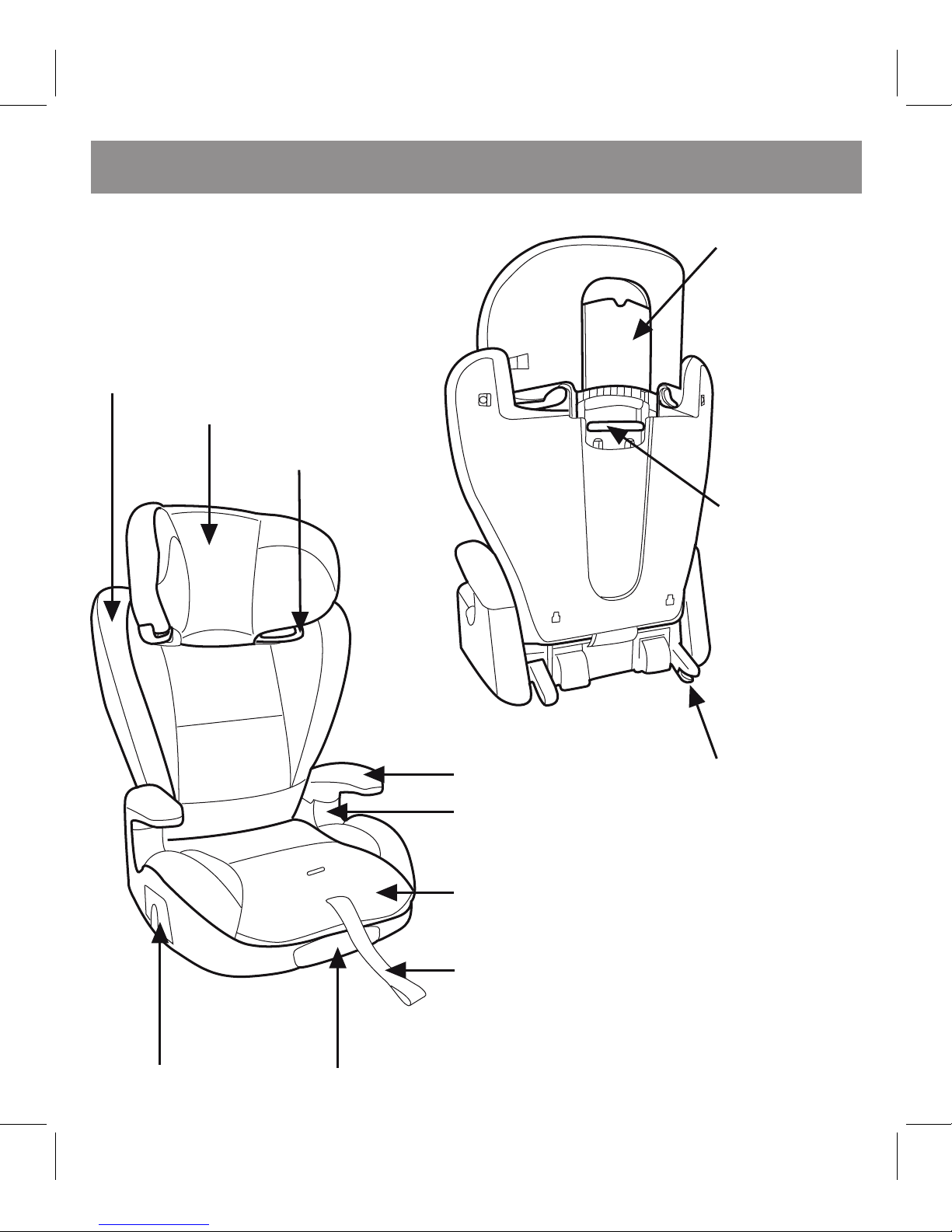

Your booster seat
Recline handleCup holder
Seat
Armrest
Lap belt router
Backrest
Instruction
manual
pocket
Shoulder
belt router
Headrest
adjustable
handle
LUAS
connectors
Headrest
LUAS strap

10
Product assembly prior to use
1. Always check the
product prior to assembly.
The product is composed
of an headrest (a) a
backrest (b) and a seat
(c). Backrest and headrest
are factory assembled. To
assemble correctly the
product please follow
the instructions carefully.
In case of missing or
malfunctioning parts,
please contact our
Customer Service @
1-800-661-5050 for help.

11
Product assembly prior to use
2. Rotate the red stops
in the open position and
slide the backrest in the
housings located behind
the seat as shown in the
picture.
3. Keeping the product
flat, close the red stops
until a click is heard.

12
Product assembly prior to use
4. Rotate the backrest in
the elevated position (a)
until a loud click is heard.
The backrest will be free
to rotate between the
two stops as shown in the
picture (b). The product is
now ready for use.
IMPORTANT NOTE:
Viaggio HBB 120 is a
High Back Booster. Its
headrest and backrest
have been designed on
the experience made
in side impact dynamic
testing. Being designed
to elevate the seating
surface of your child,
it becomes extremely
important that your
child’s head, which
would lean close to a
glass vehicle window
in a backless booster,
is protected from
injuries at all times.
We recommend using
the booster seat with
backrest and headrest
to offer maximum
protection.
A

13
Product features
1. The product is
equipped with two
integral cup holders,
located at the side of the
seat. To operate the cup
holder, simply pull /push
the part until it stops.
WARNING: never put
hot liquids in the cup
holder. Your child or a
nearby occupant may
become injured in case
of a turn or sudden stop.
2. The booster seat is
equipped with a movable
foot to adjust seat angle.
The foot is spring loaded.
To operate it, pull the
handle located in front
of the seat and rise the
seat at the same time. The
foot will pop out in the
reclined position.

14

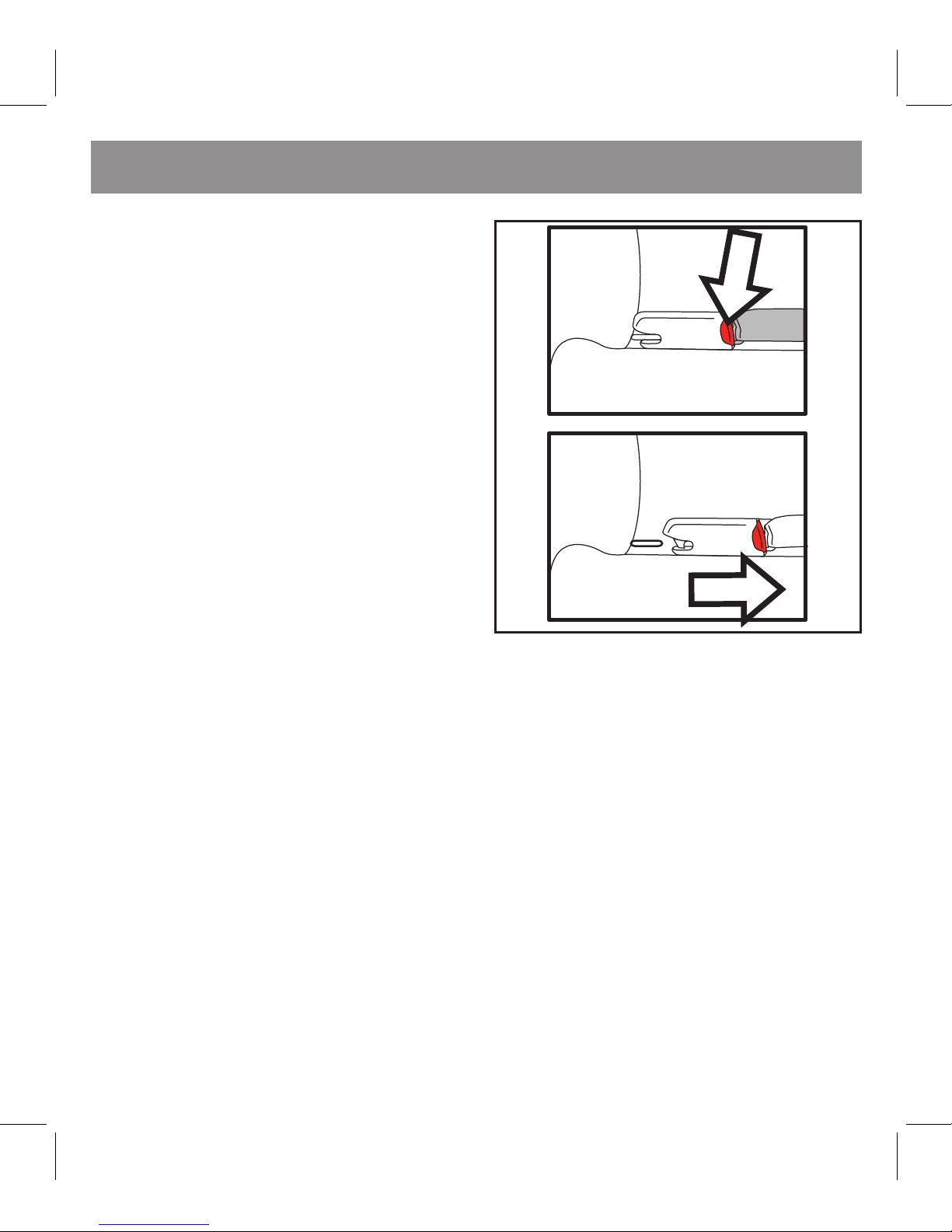

3. To return the foot to
the original position, pull
the lever again and push
the seat downward.
Product features

15
Vehicle classes compatibility
Viaggio HBB 120 is designed to be installed on the
following vehicle classes:
. multi-purpose passenger vehicle
. passenger car
Viaggio HBB 120 shall not be installed on the following
vehicle classes:
. buses
. motorcycles
. three - wheeled vehicle
. truck
Vehicle seatbelts design and compatibility
Viaggio HBB 120 is designed to be installed with lap and
shoulder vehicle belts commonly fitted on most of the
available cars. However, in the market there are several
different types of vehicles manufactured in different
periods. As a result, there are many different vehicle
belt designs. Unfortunately, some may be unsuitable
for a safe installation of Viaggio HBB 120. Please read
carefully the list below and in case of problems or
doubts, double check your vehicle owner’s manual or
call Peg Perego Customer Service @ 1-800-661-5050
for additional help.

16
Vehicle seatbelts design and compatibility
NON COMPATIBLE VEHICLE BELT DESIGNS
WARNING: do not use Viaggio HBB 120 with the
following vehicle belt design:
1. Lap/motorized
shoulder belts. Belts
mounted on the door
2. Lap belt only of any
kind.

17
NO
NO
NO NO
Vehicle seat design and compatibility
WARNING: do not use Viaggio HBB 120 with the
following vehicle seat design:
1. Side facing seats
2. Rear-facing seats or seats that rotate in dierent
positions
For your child’s safety, always read your vehicle owner’s
manual for further informations.

18
Installing the booster seat in the vehicle
1. Lean the booster seat
on the selected vehicle
seat in forward facing
mode.
2. Primo Viaggio HBB 120
is equipped with LUAS
connectors to be used
with your vehicle’s lower
anchors.
Connectors are stored in
the back side of the seat.
To use the connectors,
push the central adjuster
in the front of the seat and
pull the connectors by
hand out of the housing
at the same time.

19
3. Attach the connectors
to the vehicle’s lower
anchors. An audible click
is heard when the product
is attached to the lower
anchors. Pull the central
strap (b) and push the
booster seat against the
seat (c). Check that the
booster seat is attached
by moving it sideways.
Attaching the booster
seat with latch connectors
to the vehicle seat means
that it is possible to leave
it in place even when not
occupied.
4. To detach the booster
seat, push on the central
adjuster to release the
booster seat and move it
away from the vehicle seat.
Expose the connectors
red button and push the
B
C
A
Installing the booster seat in the vehicle

20
button in order to release
the booster seat.
IMPORTANT NOTE:
use of LUAS connectors
are recommended by
Peg Perego to achieve
the best stability of the
product in case of sudden
stops or steep turns.
Also, using the LUAS
will give guarantee that
the product is located in
the correct position with
respect to the vehicle
belt attachment points.
PUSH
Installing the booster seat in the vehicle
