EN Instructions for use EN 3 - EN 30
Pictograms used
Important information
Tip

EN 3
CONTENTS
Your oven
Introduction 4
Control panel 5
Desciption 6
Guide rails/Telescopic guide rails 6
Accessories 6
Door 8
Cooling fan 8
First use
What to do first 9
‘Settings menu’ 9
How to open the ‘Settings menu’ 10
Operation
How to operate the oven 11
Use
Using the oven 14
Functions table 14
Steam cooking 17
Using the timer 18
Selecting additional functions 20
Cleaning
Cleaning your oven 22
The Steam clean function 22
Cleaning the steam system (descaling) 23
Cleaning the water reservoir filter 24
Removing and cleaning the wire guides 24
Removal and reinsertion of the oven door 25
Removal and reinsertion of the oven door glass 26
Replacing the oven light bulb 27
Troubleshooting
General 28
Your oven and the environment
Disposing of the appliance and the packaging 30

EN 4
Introduction
Congratulations on choosing this Pelgrim steam oven.
This product is designed to offer simple operation and optimum
user-friendliness. The oven has a wide range of settings, enabling you
to select the correct cooking method every time.
This manual shows how you can best use this oven. In addition to
information about operating the oven, you will also find background
information that may be useful when using the appliance.
Please read the separate safety instructions
carefully before using the appliance!
Read this manual before using the appliance and keep it in a safe
place for future use.
Installation instructions are supplied separately.
YOUR OVEN

EN 5
YOUR OVEN
Control panel
1. Off
2. Fast preheat
3. Top + bottom heat
4. Grill
5. Grill + fan
6. Hot air + bottom heat
7. Hot air
8. ECO Hot air
9. Steam clean
10. Defrosting
11. Combi steam + Hot air
12. Steam
13. Display (cooking information and timer clock)
14. Child lock
15. Oven lighting on/off
16. Temperature
17. Timer
18. Start / stop
19. Multi-function selector
Note:
The keys respond best if you touch them with a large area of your
fingertip. Every time you press a key during use, a short acoustic signal
will sound.
7 6 5 48910 1914 15 16 17
131 2 31211
18
Mode selector

EN 6
YOUR OVEN
Description
1. Control panel
2. Water reservoir cover
2. Oven levels
3. Oven door
4. Door handle
Guide rails/Telescopic guide rails
• The oven has four or five guide rails (Level 1 to 4/5), depending on
the model. Level 1 is mainly used in combination with bottom heat.
The two upper levels are mainly used for the grill function.
• Place the oven rack, baking tray or steam dish in the gap between
the guide rail sliders.
• A number of shelf levels can have fully-retractable telescopic guide
rails, depending on the model.
▷Pull the telescopic guide rails out of the oven cavity completely
and place the oven rack / baking tray / steam dish on them.
Then slide the oven rack / baking tray / steam dish on the
telescopic guide rails, back into the oven cavity.
▷Only close the oven door when the telescopic guide rails have
been returned completely back into the oven cavity.
Accessories
Your appliance is accompanied by a range of accessories, depending
on the model. Only use original accessories; they are specially suited
toyour appliance.
1
4
3
5
2
Level 1
Level 2
Level 3
Level 4

EN 7
Note: not all accessories are suitable/available for every appliance
(itmay also differ by country). When purchasing, always provide the
exact identification number of your appliance. Please see the sales
brochures or check online for more details about optional accessories.

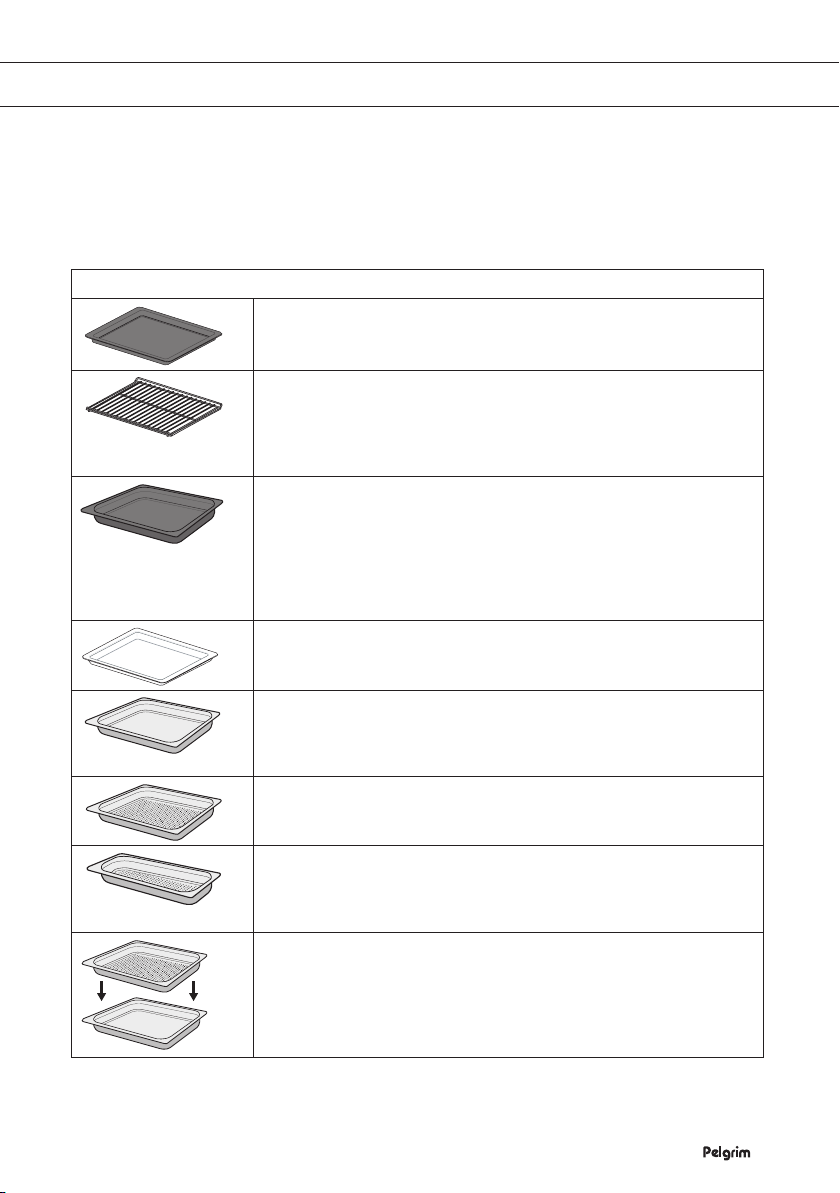

Accessories that can be supplied with your appliance (depending on the model)
Enamelled baking tray; to be used for pastries and cakes.
• Do not use the enamelled baking tray for microwave functions!
• Suitable for pyrolysis cleaning.
Oven rack; mainly used for grilling. A steam dish or pan with food
can also be placed on the oven rack.
• The oven rack is equipped with a safety peg. Lift the rack slightly
at the front to slide it out of the oven.
• Do not use the oven rack for microwave functions!
Deep enamelled baking tray; to be used for roasting meat and
baking moist pastry. It can also be used as a drip tray. Place
the deep baking tray into the first level for use as a drip tray
duringgrilling.
• Do not use the deep enamelled baking tray for microwave
functions!
• Suitable for pyrolysis cleaning.
Glass baking tray; for microwave and oven use.
• NOT suitable for pyrolysis cleaning.
Non-perforated steam dish; 40 mm deep (useful for collecting
moisture during steaming).
• Note: discolouration may occur at temperatures above 180 °C!
Thiswill not influence the proper function of the oven.
Perforated steam dish; 40 mm deep (useful for steam settings).
• Note: discolouration may occur at temperatures above 180 °C!
Thiswill not influence the proper function of the oven.
Perforated steam dish; 1/3GN.
Perforated steam dish; 1/2GN.
• Note: discolouration may occur at temperatures above 180 °C!
This will not influence the proper function of the oven.
• The steam dishes can be used simultaneously on two levels
(i.e.,the non-perforated steam dish on Level 1 and the perforated
steam dish on Level 2).
• For steaming you can place the perforated steam dish in the non-
perforated steam dish. They can only be used together on a level
with telescopic guide rails.
YOUR OVEN

EN 8
YOUR OVEN
Door
• The door switches interrupt the operation of the oven when the door
is opened during use. The oven continues operating when the door
is closed.
• This oven has a ‘Soft close door system’. When closing the oven
door, this system dampens the movement, from a certain angle, and
silently closes the oven door.
Cooling fan
• The appliance is equipped with a cooling fan that cools the casing
and control panel.

EN 9
What to do first
Remove all equipment, accessories, and utensils from the cavity and
clean them with warm water and regular detergent. Do not use any
abrasive cleaners.
▷When the appliance heats up for the first time, the characteristic
smell of a new appliance will be emitted. Ventilate the room
thoroughly during the first use.
‘Settings menu’
When the appliance is first plugged in, the ‘display’ lights up. After
three seconds, the Clock symbol appears and ‘12:00’ blinks in the
display. You have automatically entered the ‘Settings menu’.
Setting the current time of day
You can set the current time of day.
1. Turn the ‘Multi-function selector’ to set the time of day.
2. Confirm the setting by pressing the ’Start / stop’ key.
If nothing is pressed, the setting is stored automatically after three
seconds.
Setting the brightness level
You can adjust the brightness of the display backlight (low, medium or
high).
1. Turn the ‘Multi-function selector’ to set the brightness level.
2. Confirm the setting by pressing the ’Start / stop’ key.
Setting the sound level
You can adjust the sound level (low, medium, high or off).
1. Turn the ‘Multi-function selector’ to set the sound level.
2. Confirm the setting by pressing the ’Start / stop’ key.
Setting the water hardness
A water hardness test should be carried out before first use. Change
the value if your water is softer or harder.
▷You can measure the water hardness using the supplied ‘test
paper strip’. Information on the hardness of the water in your
area can also be obtained from the local water board.
FIRST USE

EN 10
▷Soak the test paper strip for 1 second in water. Wait 1 minute
and observe the number of stripes on the paper. Check the table
for appropriate water hardness setting.

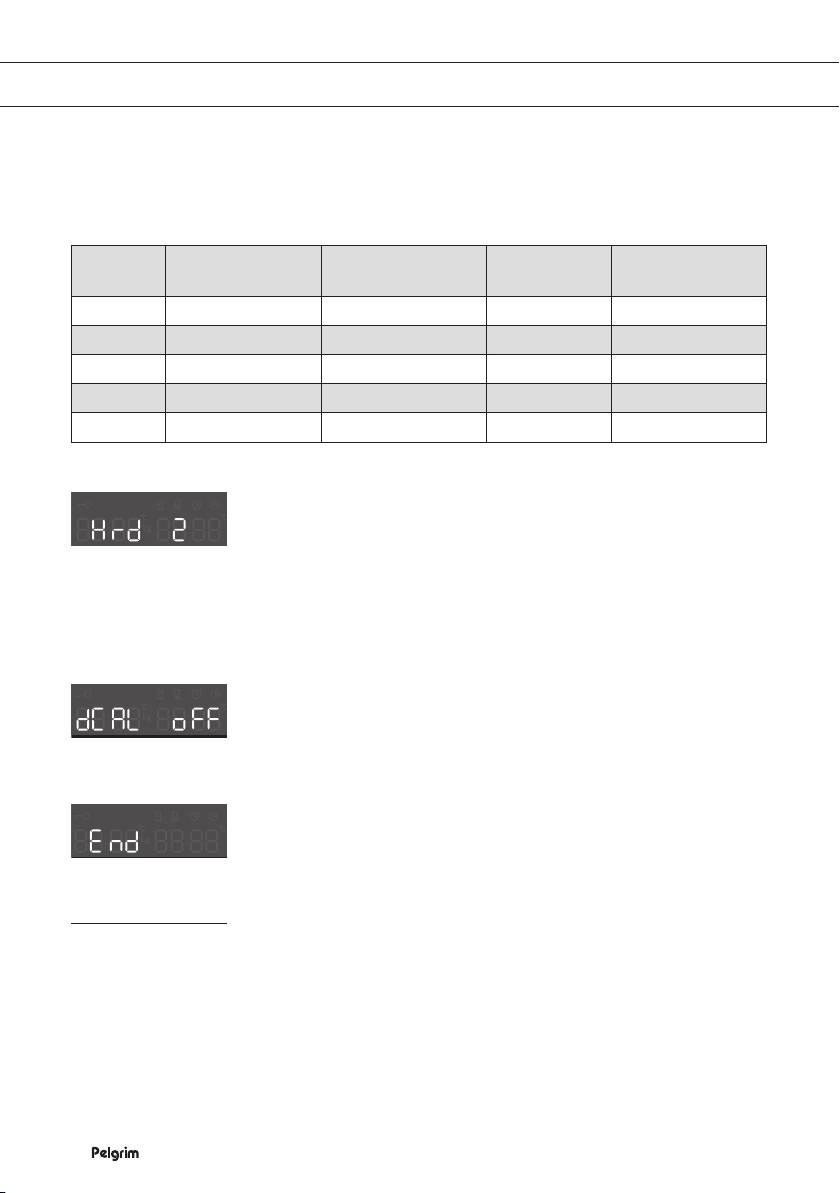

Display Test strip number/
color of stripes Type French deg.
(°df) German deg. (°dH)
1 4 green stripes Very soft water 0 - 9 0 - 5
2 1 red stripe Soft water 9 - 18 5 - 10
3 2 red stripes Medium hard water 18 - 26 10 - 15
4 3 red stripes Hard water 26 - 35 15 - 20
5 4 red stripes Very hard water >35 > 20
1. Turn the ‘Multi-function selector’ to set the appropriate water
hardness (see table).
2. Confirm the setting by pressing the ’Start / stop’ key.
Setting the descaling process
You can activate or deactivate the descaling process by selecting ‘on’
or ‘off’. You do not have to descale your appliance immediately. You get
a note in the display when you need to descale your appliance.
1. The descaling setting must be ‘off’.
2. Confirm the setting by pressing the ’Start / stop’ key.
End
You can leave the ‘Settings menu’.
1. Confirm the setting by pressing the ’Start / stop’ key.
How to open the ‘Settings menu’
You can open the ‘Settings menu’ at any time by rotating the ‘Multi-
function selector’ to the right and hold it there for three seconds. The
‘Mode selector’ must be in position ‘0’.
• Press the ’Start / stop’ key to scroll through the settings.
• To change a setting, turn the ‘Multi-function selector’.
• Rotate the ‘Mode selector’ to the right or left and rotate it back to
‘0’ to leave the ‘Settings menu’.
FIRST USE

EN 11
How to operate the oven
In this chapter you can read about the steps of the cooking process
you have to follow.

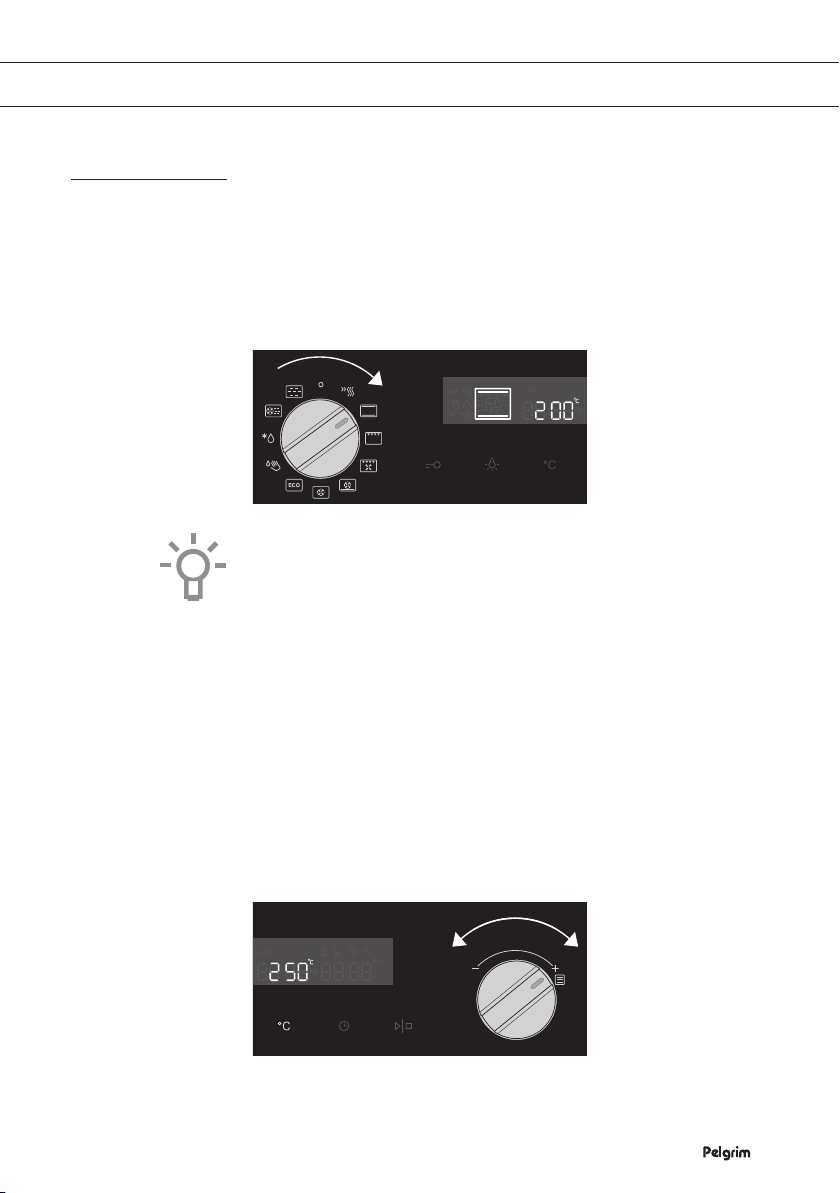

1. Select an oven function.
• Rotate the ‘Mode selector’ to select an oven function.
The symbol and default settings of the selected function appear in
the display.
See chapter ‘Use/Functions table’ for more information about the oven
functions.
• When you select a steam function, always fill the water reservoir
with fresh water.
▷Steaming is a natural cooking mode that preserves the full
flavour of the food.
▷See chapter ‘Use/Steam cooking’ for more information about
steam cooking.
2. Adjust the settings if necessary (temperature/time/steam
intensity).
• Press the ‘Temperature key’ and turn the ‘Multi-function selector’ to
change the temperature.
• Confirm the setting by pressing the ’Start / stop’ key.
OPERATION

EN 12
As long as a setting is blinking in the display, it is possible to adjust it
by rotating the ‘Multi-function selector’.
If you do not press the ’Start / stop’ key to confirm, the setting is stored
automatically after three seconds.
• If required, press the ‘Timer key’ several times to select the correct
symbol (cooking time/end time/minute minder) and turn the ‘Multi-
function selector’ to set the time.
• Confirm the setting by pressing the ’Start / stop’ key.
See chapter ‘Use/Timer functions’ for more information about the timer.
• If you have selected the combi steam program, you have to set
the steam intensity. After setting the temperature and/or time, you
confirm the settings by pressing the ’Start / stop’ key. In the display
‘Int’ and three level bars appear (low, medium and high). Use the
‘Multi-function selector’ to choose between the different levels.
• Confirm the setting by pressing the ’Start / stop’ key.
See chapter ‘Steam cooking’ for more information about the steam
intensity.
OPERATION

EN 13
3. Start the cooking process.
• Press the ’Start / stop’ key.
The oven will start the oven function set and heat the oven to the
selected temperature. The temperature symbol in the display will
flash. When the oven has reached the selected temperature, you will
hear an acoustic signal and the temperature symbol in the display
will remain illuminated.
Attention; for most dishes the oven has to be preheated first. Please
do not insert your food in the oven yet, but wait until the preheating is
complete.
4. Switching off the oven.
• Rotate the ‘Mode selector’ to position ‘0’.
• If you have set a cooking time/end time, the oven will stop
operating automatically. You will hear an acoustic signal. Press any
key to stop the acoustic signal.
▷The display will show the current time and the declining
temperature of the oven cavity (down to 80 °C) alternately.
After every steam function the oven empty’s the water system. This will
produce some noise. This is not a malfunction and you do not need to
worry about this.
OPERATION

EN 14
USE
Using the oven
The oven has 10 oven functions and 1 cleaning function. Consult the
table to select the appropriate oven function to prepare a dish. Also
consult the instructions for preparation on the dish packaging.
Remarks
• Each oven function features basic or default settings which can
be adjusted. If it is not possible to adjust the setting, you will be
alerted by a sound signal.
• For certain dishes, the oven should be preheated.
• Please ensure that glass baking dishes are suitable for 230 °C
cooking temperatures.
Functions table

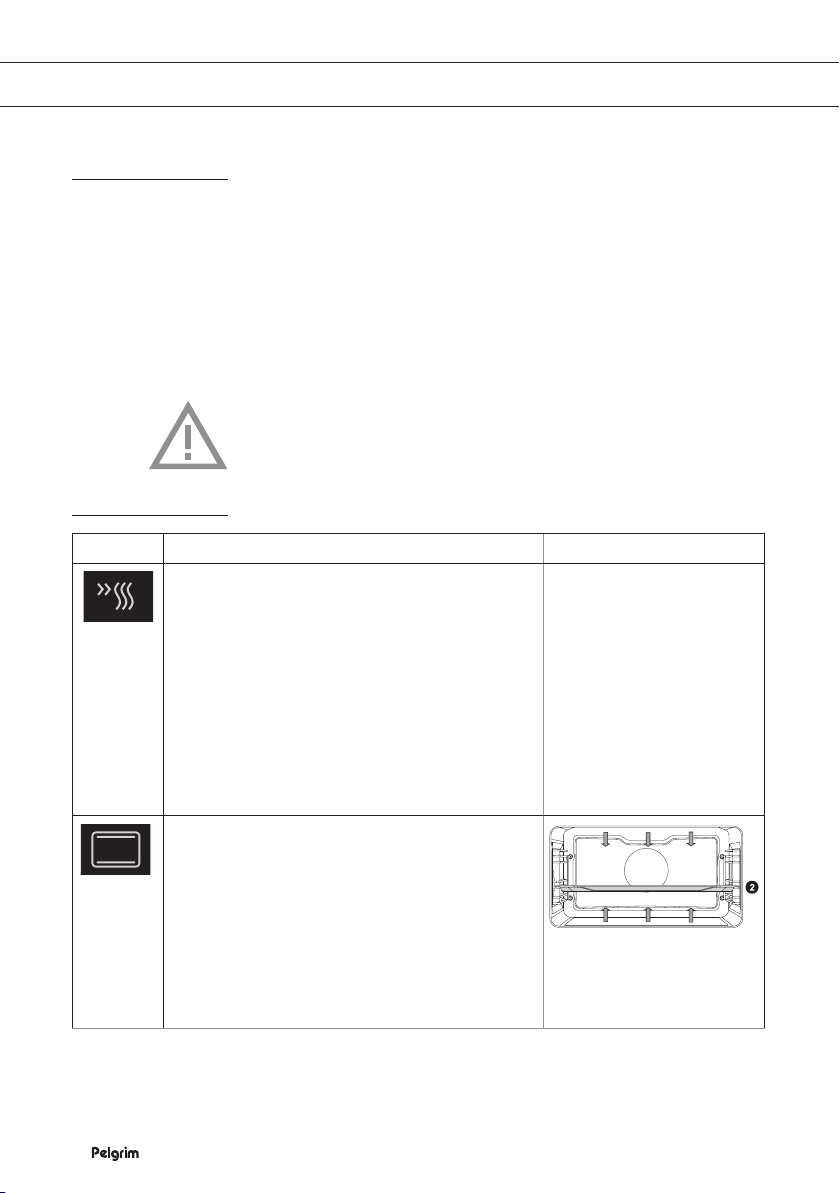

Function Description
Fast preheat
• Use this function to heat the oven to the desired
temperature as quickly as possible.
• This function is not appropriate for cooking
food!
• When the oven is heated up to the desired
temperature, the heating process is completed.
• When ‘Fats preheat’ is started, the oven will
begin to heat up. The symbol °C will flash in the
display. When the set temperature is reached,
preheating is completed and you will hear an
acoustic signal.
Top + Bottom heat
• Heating by means of the upper and lower
heating elements.
• This mode can be used for traditional baking
and roasting.
• Pastry or meat can only be baked/roasted at one
height level (in one guide).
• Place the baking tray or oven rack on level 2.
• Suggested temperature: 200 °C.
• Preheating is recommended.

EN 15
Function Description
Grill
• Heating by means of the upper element and grill
element.
• This mode can be used with dishes and baked
goods that require a distinctive bottom crust or
browning. Use just before the end of the baking
or roasting time.
• Place the oven rack on level 4 or 5 and the
baking tray on level 2.
• Maximum allowed temperature 230 °C.
• Monitor the cooking process at all times.
The dish may burn quickly due to the high
temperature.
• Preheat for 5 minutes.
Grill + fan
• Heating by means of the top heating elements.
The heat is distributed by the fan.
• This mode can be used for grilling meat, fish and
vegetables.
• Place the oven rack on level 4 or 5 and the
baking tray on level 2.
• Suggested temperature: 170 °C.
• Monitor the cooking process at all times.
The dish may burn quickly due to the high
temperature.
• Preheat for 5 minutes.
Hot air + Bottom heat
• Heating by means of hot air from the back of the
oven and the bottom heating element.
• This mode can be used to bake pizza, moist
pastry, fruitcakes, leavened dough and short
crust.
• Place the baking tray or oven rack on level 2.
• Suggested temperature: 200 °C.
• Preheating is recommended.
2
Hot air
• Heating by means of hot air from the back of the
oven.
• This mode provides uniform heating and is ideal
for baking.
• Place the tray on level 2.
• Suggested temperature: 180 °C.
• Preheating is recommended.
2
USE

EN 16
Function Description

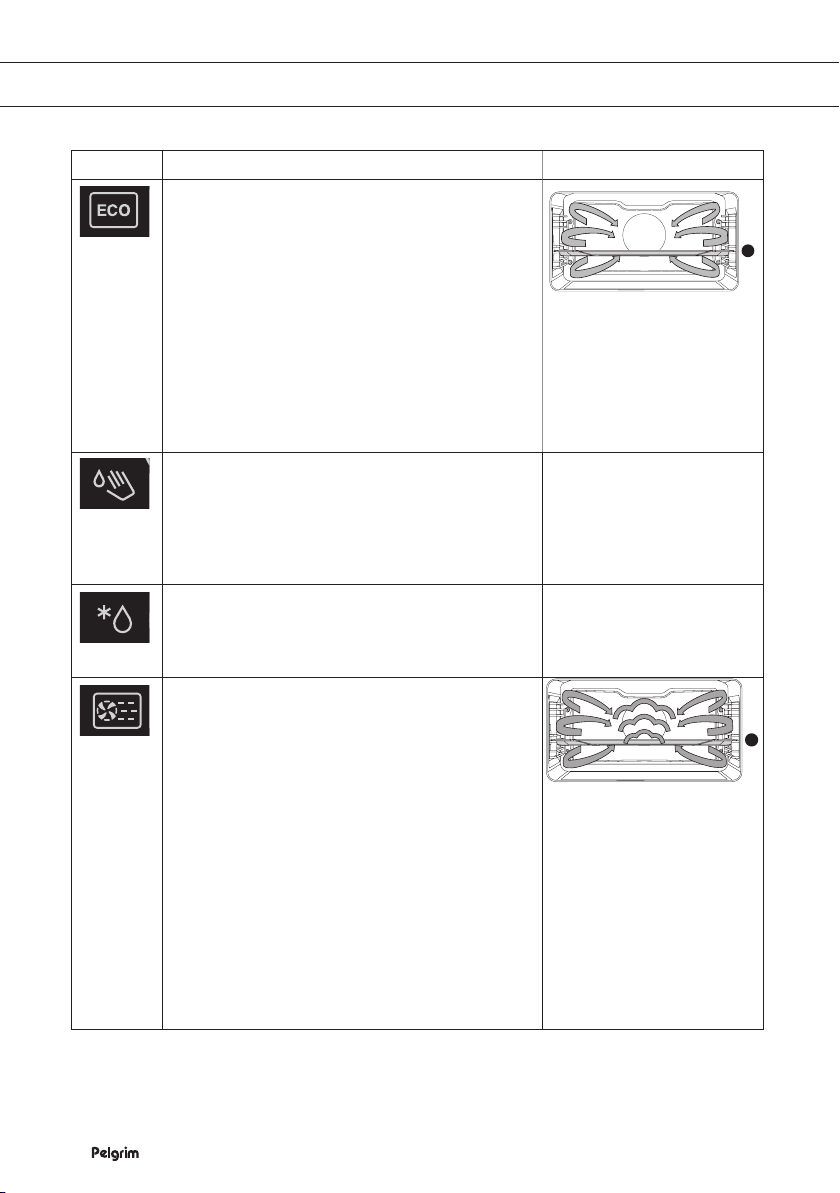

ECO Hot air
• Heating by means of hot air. ECO hot air uses
less energy but gives the same result as the hot
air setting. Cooking takes a few minutes longer.
• This mode can be used for roasting meat and
baking pastry.
• Place the tray on level 2.
• Suggested temperature: 180 °C.
• This setting makes use of the residual heat
(heating is not on the whole time) to achieve low
energy consumption (in accordance with energy
class EN 60350-1). In this mode the actual
temperature in the oven is not displayed.
2
Steam clean
• By the help of hot steam the surface of the oven
cavity will be soaked and you can easily clean
your oven.
• The Steam clean programme takes only 30
minutes.
Defrosting
• The air circulates with no heaters activated. Only
the fan will be activated.
• This is used to slowly thaw frozen food.
Hot air + Steam level High/Medium/Low
• Heating by means of hot air in combination with
steam.
• The steam is provided by the steam generator
and injected into the cavity by interval.
• High: cooking escalopes, steaks and smaller
chuncks of meat.
• Medium: reheating cool/frozen meals, cooking
fish fillets and vegetables au gratin.
• Low: cooking large chuncks of meat (roast,
whole chicken), baking risen dough (bread and
rolls), cooking lasagna etc.
• Place the baking tray/oven rack on the first/
second shelf level.
• Suggested temperature: 180 °C.
• For this mode always make sure that the water
reservoir is filled with fresh water.
2
2
USE

EN 17
Function Description
Steam
• Food is cooked by steam. The steam is provided
by the steam generator and injected into the
cavity by interval.
• This mode is suitable for steaming food like
vegetables, fish, eggs, fruits and rice.
• Place the perforated steam dish in the non-
perforated steam dish on the second shelf level.
• Suggested temperature: 100 °C.
• For this mode always make sure that the water
reservoir is filled with fresh water.
2
2
Steam cooking
Healthy and natural, steam cooking retains the colour and taste of
the dish. No odors are released using this cooking method. It is not
necessary to add salt or extra herbs to the water in the reservoir.
When you select a steam function, always fill the water reservoir with
fresh water.
After every steam function the oven empty’s the water system. This will
produce some noise. This is not a malfunction and you do not need to
worry about this.
Advantages of steam cooking
• Steam cooking (stewing, cooking, roasting) starts before the oven
cavity temperature reaches 100 °C.
• Slow cooking (stewing, cooking, roasting) is also possible at lower
temperatures. It is healthy: vitamins and minerals are preserved as only
a small proportion of these dissolve in the hot moisture of the dish.
• It is not necessary to add any form of fat or oil during steam cooking.
• Steam retains the taste of the dish.
• Steam does not distribute smell or taste, enabling meat or fish to
be cooked together with vegetables.
• Steam is also suitable for blanching, defrosting and warming or
keeping a dish warm.
USE

EN 18
Filling the water reservoir
Always fill the reservoir prior to using a steam function. Use clean and
cold tap water, bottled water without added minerals or distilled water
suitable for consumption.
1. Open the water reservoir cover.
2. Use the handle to remove the reservoir from the oven.
3. Remove the water reservoir lid and clean the water reservoir with
clean water.
4. Fill the reservoir with water up to the ‘MAX’ mark on the reservoir.
5. Push the water reservoir back in the oven until a click is heard.
6. Close the water reservoir cover.
Consult the steam tables to select the appropriate steam function to
prepare a dish. Also consult the instructions for preparation on the dish
packaging.
Any water remaining in the steam system after cooking will be pumped
back into the water reservoir. Empty, clean and dry the water reservoir
after using the steam function. Only fill the reservoir just prior to using it!
Using the timer
The timer can be used in three different ways. Press the ‘Timer key’
(several times) to select the correct timer function.
A. Cooking time symbol
B. End time symbol.
C. Minute minder symbol.
All timer functions can be cancelled by setting the time to ‘00:00’.
A B C
USE

EN 19
USE
Setting the ‘cooking time’
In this mode, you can define the duration of the oven operation
(cooking time).
1. Select an oven function with the ‘Mode selector’ and set the
temperature.
2. Press the ‘Timer key’ (several times) to select a timer function.
The icon for the selected timer function will light up and ‘00:00’ will
flash in the display.
3. Rotate the ‘Multi function selector’ to set the time.
4. Press the ‘Start / stop key’ to start the cooking process.
The elapsed cooking time will be displayed.
Setting the ‘delayed start’
You can program the oven to turn on and off automatically by setting a
duration and end time. The oven will calculate the start time and switch
off automatically after the end of the cooking time.
• Make sure the clock is accurately set to the current time.

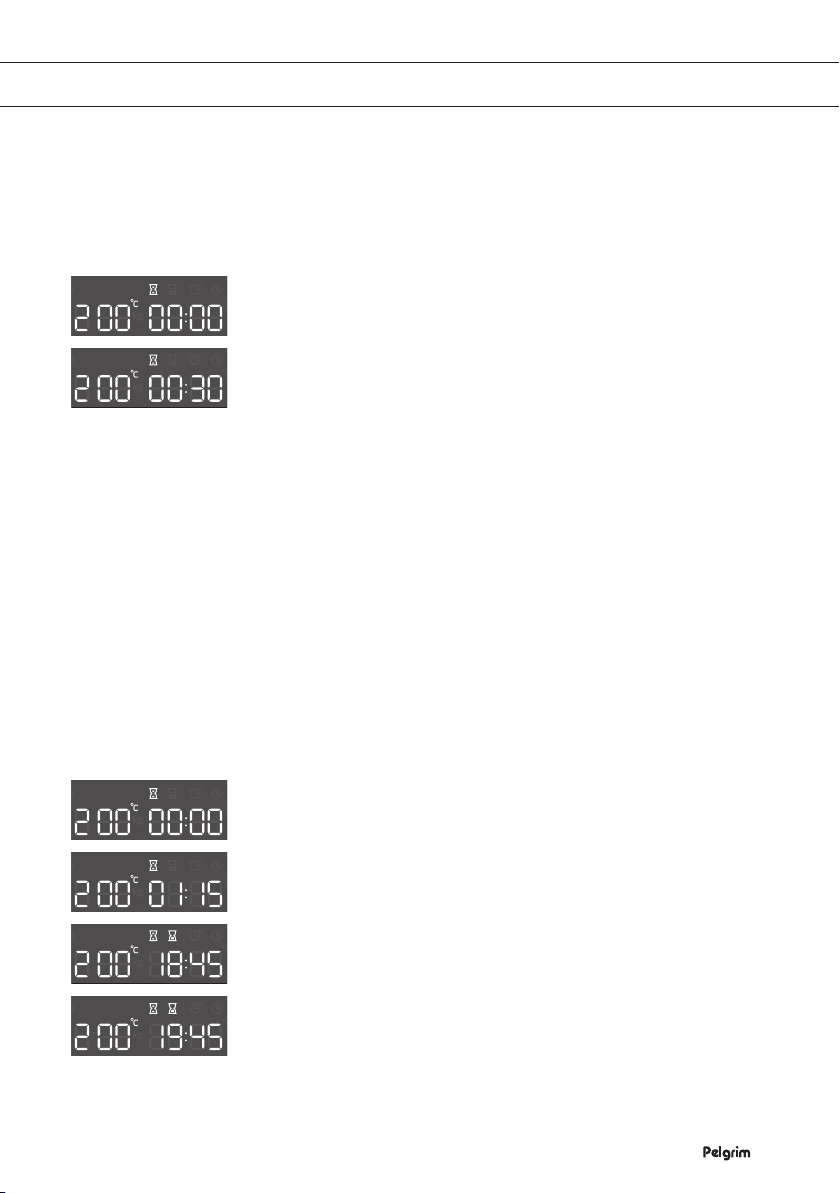

Example:
Current time: 17:30, the set duration of the baking process: 1 hour and
15 minutes, the set end time of the baking process: 19:45. The oven
will start the baking process at 18:30 with the preset temperature and
function and will stop at 19:45.
1. Select an oven function with the ‘Mode selector’ and set the
temperature.
2. Press the ‘Timer key’ (several times) to select a timer function.
The icon for the selected timer function will light up and ‘00:00’ will
flash in the display.
3. Rotate the ‘Multi function selector’ to set the time.
4. Press the ‘Timer key’ (several times) to select a timer function.
The sum of the current time and cooking time is automatically
displayed (18:45).
5. Rotate the ‘Multi function selector’ to set the end time.

EN 20
6. Press the ‘Start / stop key’ to start the cooking process.
The display will show the cooking time and end time alternately and
the end time symbol will flash in the display.
When the oven starts operating, the end time symbol will disappear
and the elapsed cooking time will be displayed.
Setting the minute minder
The minute minder can be used independently of the oven operation
(the ‘Mode selector’ is in position ‘0’).
1. Touch the ‘Timer key’ several times to select the minute minder.
2. Set the time by turning the ‘Multi function selector’.
▷The longest possible setting is 23:59 hours.
3. Press the ‘Start / stop key’ to start the minute minder.
▷During the last minute, the minute minder is displayed in
seconds.
▷The minute minder will not switch off the oven.
Selecting additional functions
Child lock
Lock the control panel to protect the oven against unintended use.
• You can activate the child lock by holding down the ‘Child lock key’
for a few seconds.
A lock symbol appears in the display, indicating that all functions
are locked.
• To deactivate the child lock, press the key for a few seconds again.
The lock symbol disappears in the display, indicating that all
functions are unlocked.
Note:
• Once the child lock is activated and no timer function has been set
(only the clock is displayed), the oven will not work. If the child lock
is activated after a timer function has been set, the oven will work;
however, the settings cannot be changed.
• When the child lock is activated, oven functions or additional
functions cannot be changed. The cooking process can only be
ended by turning the ‘oven function dial’ to ‘0’.
USE
