Product Operation and Specifications
Important Information
If this or any other system is installed in a metal (conductive) plumbing system, i.e. copper or
galvanized metal, the plastic components of the system will interrupt the continuity of the
plumbing system. As a result any errant electricity from improperly grounded appliances
downstream or potential galvanic activity in the plumbing system can no longer ground
through contiguous metal plumbing. Some homes may have been built in accordance with
building codes, which actually encouraged the grounding of electrical appliances through the
plumbing system. Consequently, the installation of a bypass consisting of the same material
as the existing plumbing, or a grounded "jumper wire" bridging the equipment and re-
establishing the contiguous conductive nature of the plumbing system must be installed prior
to your systems use.
CAUTION:
When adding a filtration/softening system to homes/buildings supplied by well water, the system should be
installed following the pressure tank. DO NOT USE this system for pneumatic or hydro pneumatic
applications. If you are using a booster pump, then install this system following the booster
pump. If you have questions, please call customer service.
Specification Description PAC 3 PAC 6
Max Flow Rate 10 GPM 15 GPM
Minimum Working Pressure 25 PSI
Maximum Working Pressure 80 PSI
Maximum Vacuum 5 inch/127 mm Hg
Operating Temperatures 36°F – 100°F
pH Range 6.5 - 11
WARNING:
Read these instructions carefully and determine the location of all system components before
beginning installation.
Check all applicable plumbing, building, and electrical codes for installation compliance.
Install the system on the main water supply.
Turn Electricity to Water Heater off.
Systems that contain electronic components cannot be installed outside in uncovered areas.
The use of Teflon Tape and/or Pipe Thread Seal Paste will be needed on all threaded connections.
Rev B

Pelican PAC3/PAC6 Premium Whole House Water Filter &
Advantage Series Salt Free Softener Combo
© 2019 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Page 5
www.pelicanwater.com
[phone]
Complete Parts List
Note: Pelican supplies the parts below to accommodate a variety of water supply lines.
Table 1: Parts List
Note: Drawings are not to scale.
Additional fittings will be needed to adapt to your plumbing.
Part Description Qty. Part Description Qty.
1" Plastic Male NPT
Assembly:
V3007-04 WS1 Fitting 1"
Plastic Male NPT Assembly
(2): O-Rings (2), Split Rings
(2), and Connectors (2)
1Bypass Valve:
In/Out Bypass Valve with Red
Arrow Handles
1
Sediment Filter System:
Blue Sediment Filter Housing,
Mounting Bracket, Phillips
Head Screws (4), Bolt Head
Screws (4), and Washers (4)
1Hose Bib Assembly 1
Sediment Filter:
5 Micron Poly-Spun
Sediment Filter
1Pelican Whole House
Water Filter:
Model - PC600 or PC1000
1
Sediment Filter Wrench 1
1
Non-Abrasive Auto Wax
4 oz. Bottle
1
WAX
Softener Tank
M
EN
U
T
SE
Brine Tank
Bypass Valve for Electronic
Head
Electronic Head
PVC Tubing Drain Line
(50 ft.)
1" PVC Tail Adaptor for
Electronic Head Bypass
90 degree 1" PVC Tail Adaptors
also included
Rev B

CONNECTION SIZE: 1"
MAX PRESSURE OPERATING: 80 PSI
MAX TEMPERATURE: 100°
DO NOT SCALE DRAWING





PPelican
Water Systems
  
 
  
 5

0
0
BYPASS
SHUT OFF VALVES
INSTALLATION OVERVIEW
PAC 3/6
**
**BACKWASH LINE TO BE PLUMBED TO A DRAIN
HOSE SPIGOTS
MENU
SET
WATER
FILTER
SALT
SOFTENER
SEDIMENT FILTER
BRINE TANK

Pelican PAC3/PAC6 Premium Whole House Water Filter &
Advantage Series Salt Free Softener Combo
© 2019 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Page 6
www.pelicanwater.com
[phone]

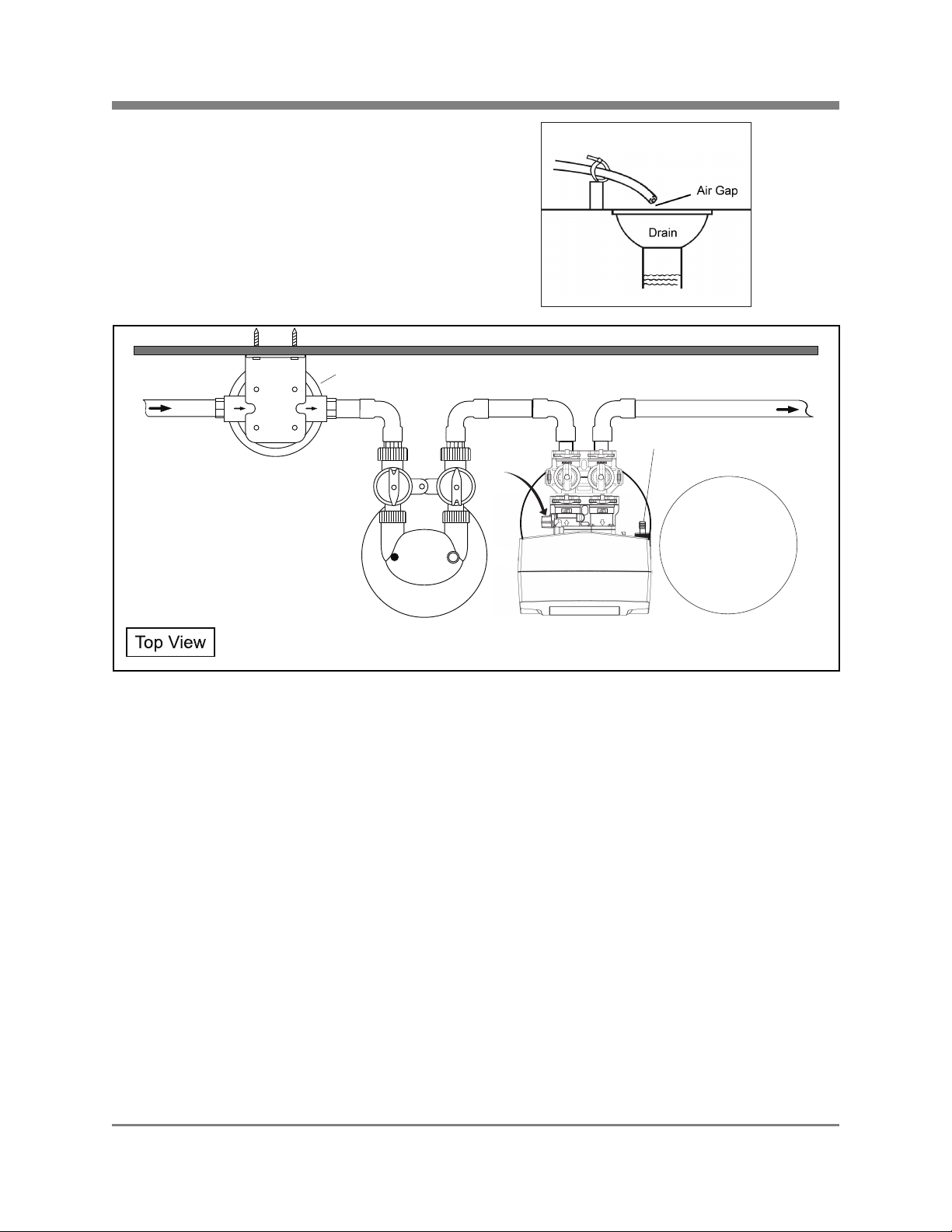

Installation Overview
Figure 1
Pre-Installation
Bypass Valve Installation
Figure 2
The Bypass Valve comes pre-assembled and ready to install with the O-Rings, Split Rings, and Quick
Connect Nuts. Push the Bypass Valve into the head of both the Pelican Whole House Water Filter and Salt
Free Water Softener/Conditioner with the unthreaded ends oriented toward the tanks and hand-tighten
the Quick Connect Nuts.
IN
OUT
Outgoing
Water
To House
Incoming
Water
Supply
Wall Wall
Whole House Water Filter
Sediment Filter
INLET
OUTLET
Brine Tank
Salt Softener
Drain Line Barb
Quick
Connect Nut
Red Arrow
Water Filter
Head
Whole House
Iron & Manganese Filter
Whole House
Water Filter
Electronic
Head
Bypass
Valve
INLET
OUTLET
Red
Clip
Front View
Rev B

Pelican PAC3/PAC6 Premium Whole House Water Filter &
Advantage Series Salt Free Softener Combo Page 7
© 2019 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
www.pelicanwater.com
[phone]
Notice:
The Bypass Valve on the Electronic Head can be set to Bypass or Service by turning the knobs on the
top of the valve. The valves can be difficult to turn by hand until the seals become saturated. Use the
supplied Bypass Allen Wrench to turn the knobs if necessary.
Note: The Red Arrows on the Whole House Carbon Filter Bypass may be pointing in a different direction
then shown. If this is the case, remove the Red Arrows by pulling them straight up. Turn them around
and reposition correctly onto the Bypass Valve so they are positioned as shown in the service posistion
below.
The Bypass Valve on the Whole House Water Filter can be set to Bypass or Service by turning the Red
Arrows on the top of the valve.
Bypass Operation
SERVICE BYPASS
SERVICE BYPASS
Bypass Allen Wrench
Rev B

Pelican PAC3/PAC6 Premium Whole House Water Filter &
Advantage Series Salt Free Softener Combo
© 2019 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Page 8
www.pelicanwater.com
[phone]
Water Filter - Carbon Soak
!IMPORTANT!
Your system will not be ready for use for a minimum of 48 hours while the Carbon Soak process takes
place. Please plan your installation accordingly.
Notice:
Water will flow out of the outlet side of the Bypass Valve during this process. Be sure you perform this
series of steps in a location suitable for water flow.
Figure 3
1. Attach a garden hose to the Hose Bib Assembly
2. Connect the Hose Bib Assembly to the inlet side of the Bypass Valve and hand tighten
3. Fill the Whole House Water Filter full until water comes out of outlet side of the Bypass Valve
4. Turn the water off.
5. Remove the garden hose from the Hose Bib Assembly. Do not remove the fitting.
6. Allow the carbon tank to soak for a minimum of 48 hours prior to installation.
Garden
Hose
Hose Bib
Assembly
Water
Bypass Valve
Whole House Water Filter
INLET
OUTLET
Rev B

Pelican PAC3/PAC6 Premium Whole House Water Filter &
Advantage Series Salt Free Softener Combo
© 2019 Enviro Water Solutions, Inc.
3060 Performance Circle, Suite 2, DeLand, FL 32724
Page 9
www.pelicanwater.com
[phone]
Water Filter - Carbon Flush
!IMPORTANT!
Do not perform the Carbon Flush until the Carbon Soak process is complete.
Notice:
Water will flow out of the outlet side of the Bypass Valve during this process. Be sure you perform this
series of steps in a location suitable for water flow.
Figure 4
1. Reattach the garden hose to the Hose Bib Assembly.
2. Slowly turn on the water 1/4 turn for this process.
3. Run water through the inlet side of the Bypass Valve for 30 minutes to expel the carbon fines.
4. Turn off the water.
5. Remove the Hose Bib Assembly from the inlet side and attach it to the outlet side of the Bypass
Valve.
6. Slowly, fully open the hose spigot.
7. Run the water through the outlet side for 3 minutes to reset the carbon.
8. Turn off the water.
9. Remove the Hose Bib Assembly from the Bypass Valve and disconnect the garden hose.
Note: Please save the Hose Bib Assembly as this will be used in the future for the carbon
exchange.
Water
Whole House Water Filter
Garden
Hose
Hose Bib
Assembly
INLET
OUTLET
INLET
Water
Whole House Water Filter
Garden
Hose
Hose Bib
Assembly
OUTLET
Carbon Reset
Carbon Flush
