Certification Test Report
Hearth and Home Technologies
Pellet-Fired Free Standing Room Heater
Model: PP130-B
Prepared for: Hearth and Home Technologies
352 Mountain House Road
Halifax, PA 17032
Prepared by: OMNI-Test Laboratories, Inc.
13327 NE Airport Way
Portland, OR 97230
[phone]
Test Period: March 26, 2018
Report Date: June 2018
Report Number: 0135PS041E
All data and information contained in this report are confidential and proprietary to Hearth
and Home Technologies. Its significance is subject to the adequacy and representative
character of the samples and to the comprehensiveness of the tests, examinations, or surveys
made. The contents of this report cannot be copied or quoted, except in full, without specific,
written authorization from Hearth and Home Technologies and OMNI-Test Laboratories, Inc.
No use of the OMNI-Test Laboratories, Inc. name, logo, or registered mark (O-TL) is
permitted, except as expressly authorized by OMNI-Test Laboratories, Inc. in writing.
1 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
AUTHORIZED SIGNATORIES
This report has been reviewed and approved by the following authorized signatories:
Evaluation Decision:
__________________________
Bruce Davis, Technician
OMNI-Test Laboratories, Inc.
Evaluation Decision:
__________________________
Ken Morgan, Testing Manager
OMNI-Test Laboratories, Inc.
______________
Issue Date
2 of 112
June 7, 2018

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
TABLE OF CONTENTS
PREFACE...............................................................................................................(3 pages)
1. SAMPLING PROCEDURES AND TEST RESULTS ...................................................p. 4
Introduction......................................................................................................................p. 5
Sampling Procedure .........................................................................................................p. 5
Summary of Results.........................................................................................................p. 6
Summary Tables
Table 1.1 –Particulate Emissions....................................................................................p. 7
Table 1.2 –Efficiency and CO ........................................................................................p. 7
Table 1.3 –Test Facility Conditions................................................................................p. 8
Table 1.4 –Fuel Measurement Summary ........................................................................p. 8
Table 1.5 –Dilution Tunnel and Flue Gas Measurements ..............................................p. 9
Table 1.6 –Heater Configuration ....................................................................................p. 9
2. PHOTOGRAPHS/APPLIANCE DESCRIPTION/DRAWINGS..................................p. 10
Photographs....................................................................................................................p. 11
Appliance Description ...................................................................................................p. 12
3. TEST DATA BY RUN..................................................................................................p. 13
Run 1..............................................................................................................................p. 16
4. QUALITY ASSURANCE/QUALITY CONTROL ......................................................p. 30
Sample Analysis............................................................................................................ p. 32
Calibrations....................................................................................................................p. 40
Example Calculations ....................................................................................................p. 56
5. LABELING & OWNER’S MANUAL(S).....................................................................p. 71
3 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Section 1
Sampling Procedures and Test Results
4 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
INTRODUCTION
Hearth and Home Technologies retained OMNI-Test Laboratories, Inc. (OMNI) to perform
U.S. Environmental Protection Agency (EPA) certification testing on the PP130-B. The PP130-
B is a freestanding, pellet-fired room heater.
The testing was performed at OMNI’s testing facility in Portland, Oregon. The altitude of the
laboratory is 30 feet above sea level. The unit was received in good condition and logged in at
the OMNI’s testing facility on March 22, 2018. It was assigned and labeled with OMNI ID
#2266. OMNI representative Bruce Davis conducted the certification testing and completed all
testing by March 26, 2018.
This report is organized in accordance with the EPA-recommended outline and is summarized in
the Table of Contents immediately preceding this section. The results in this report are limited to
the item(s) submitted.
SAMPLING PROCEDURE
The PP130-B was tested in accordance with the U.S. EPA 40 CFR Part 60, Subpart AAA –
Standards of Performance for New Residential Wood Heaters using ASTM E2515 and ASTM
E2779. The fuel used for certification testing was Lignetics pellet fuel; this fuel was graded as
Premium by the Pellet Fuels Institute and was produced at registered mill # 03208. Particulate
emissions were measured using dual sampling trains consisting of two sets of filters (front and
back). The results of the integrated test run indicate an average particulate emission rate of 0.53
g/hr. The PP130-B results are within the emission limit of 2.0 g/hr for affected facilities
manufactured on or after May 15, 2020 or sold at retail after December 31, 2020.
The model PP130-B was tested for thermal efficiency and carbon monoxide (CO) emissions in
accordance with CSA B415.1-10. The heater has a demonstrated an average HHV thermal
efficiency of 81.9% when tested with a 3” to 6” connector pipe adaptor as allowed by
manufactureres installation instructions. The calculated CO emission rate was 0.161 g/min.
5 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
SUMMARY OF RESULTS
The average particulate emission rate over the complete, integrated test run was measured to be
0.53 g/hr.
The average particulate emission factor for the complete, integrated test run was measured to be
0.50 g/dry kg of fuel.
The average thermal efficiency for the complete, integrated test run was measured to be 81.9%.
The particulate emission rate calculated from the one-hour filter was 0.96 g/hr.
The proportionality results and sample train agreement for the test run was acceptable. Quality
check results for each test run are presented in Section 3 of this report.
6 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
SUMMARY TABLES
Table 1.1 –Particulate Emissions
One-Hour Filter
Integrated Total
Emission Rate
(g/hr)
0.96
0.53
Emission Factor
(g/dry kg)
0.38
0.50
Table 1.2 –Efficiency and CO
Burn Rate Segment
Integrated
Total
Maximum
Medium
Minimum
Time
(minutes)
60
120
180
360
Burn Rate
(dry kg/hr)
2.53
1.03
0.60
1.06
Heat Output Rate
(BTU/hr)
40,637
15,929
9,605
16,968
Heat Input Rate
(BTU/hr)
49,207
20,017
11,676
20,712
Efficiency
(%, HHV)
82.6
79.6
82.3
81.9
CO Emission Rate
(g/min)
0.0383
0.150
0.215
0.160
7 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Table 1.3 –Test Facility Conditions
Initial
Final
Room Temperature
(°F)
71
69
Barometric Pressure
(in Hg)
30.40
30.44
Air Velocity
(ft/min)
< 50
< 50
Induced Draft
(in H2O)
0.0
0.0
Table 1.4 –Fuel Measurement Summary
Segment
Time
(min)
Burn Rate
(dry kg/hr)
Consumed
Fuel Weight
(lbs)
Fuel Moisture
Content
(dry basis - %)
Pretest
60
2.48
5.8
5.91
Maximum
60
2.53
5.9
5.91
Medium
120
1.03
4.8
5.91
Minimum
180
0.60
4.2
5.91
Integrated Total
360
1.06
14.9
5.91
8 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Table 1.5 –Dilution Tunnel and Flue Gas Measurements
Segment
Average
Flue Draft
(in H2O)
Average Dilution Tunnel Gas Measurements
Velocity
(ft/sec)
Flow Rate
(dscf/min)
Temperature
(°F)
Integrated Total
-0.034
14.69
167.4
84
Table 1.6 –Heater Configuration
Segment
Heat Setting
(Control
Knob)
Trim Setting
Power Level
(Shown in
Program)
Pretest
Hi
+4
5
Maximum
Hi
+4
5
Medium
3
+3
2
Minimum
Lo
0
1
9 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Section 2
Photographs
Appliance Description
Drawings
10 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Hearth and Home Technologies
PP130-B

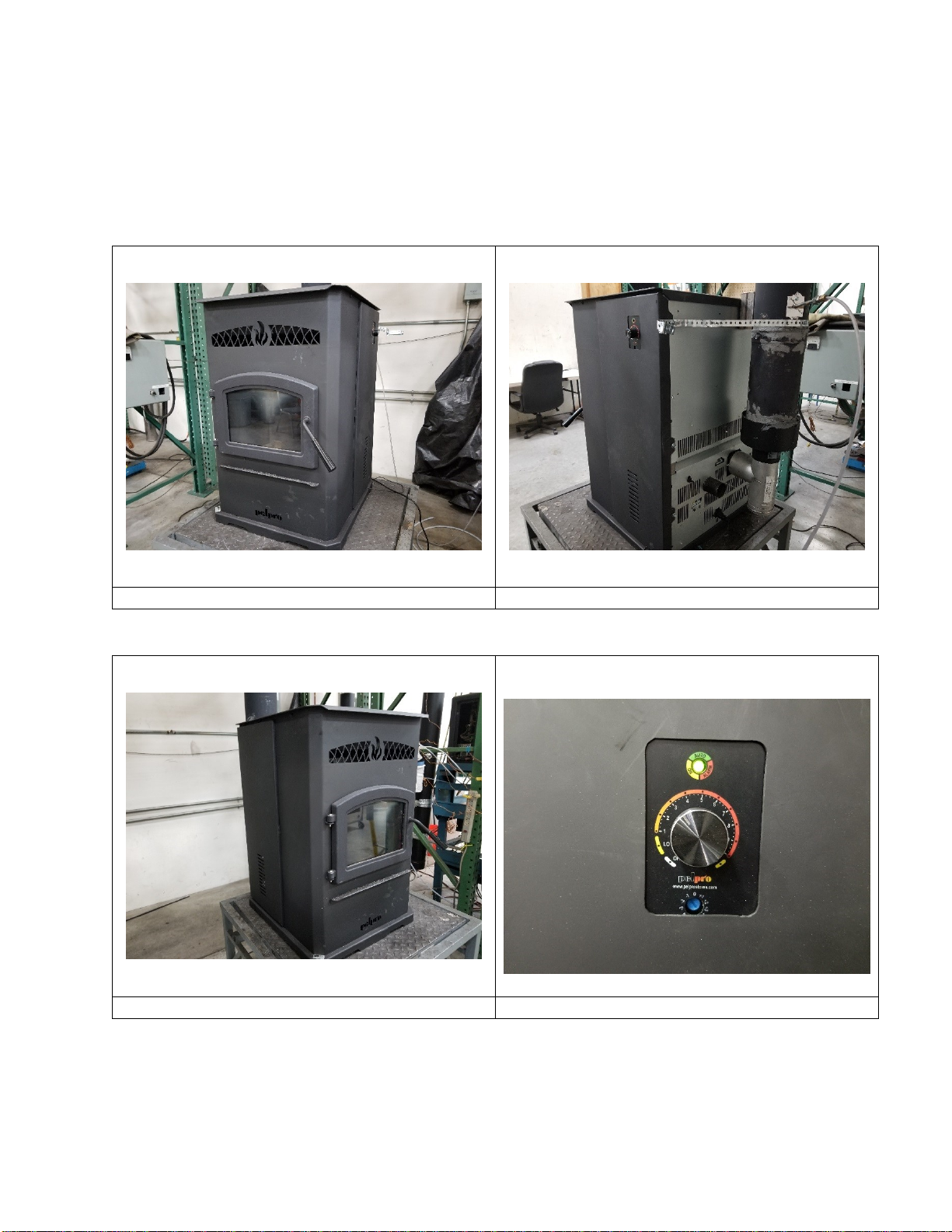

PHOTOGRAPHS
PP130-B Front
PP130-B Back
PP130-B Left

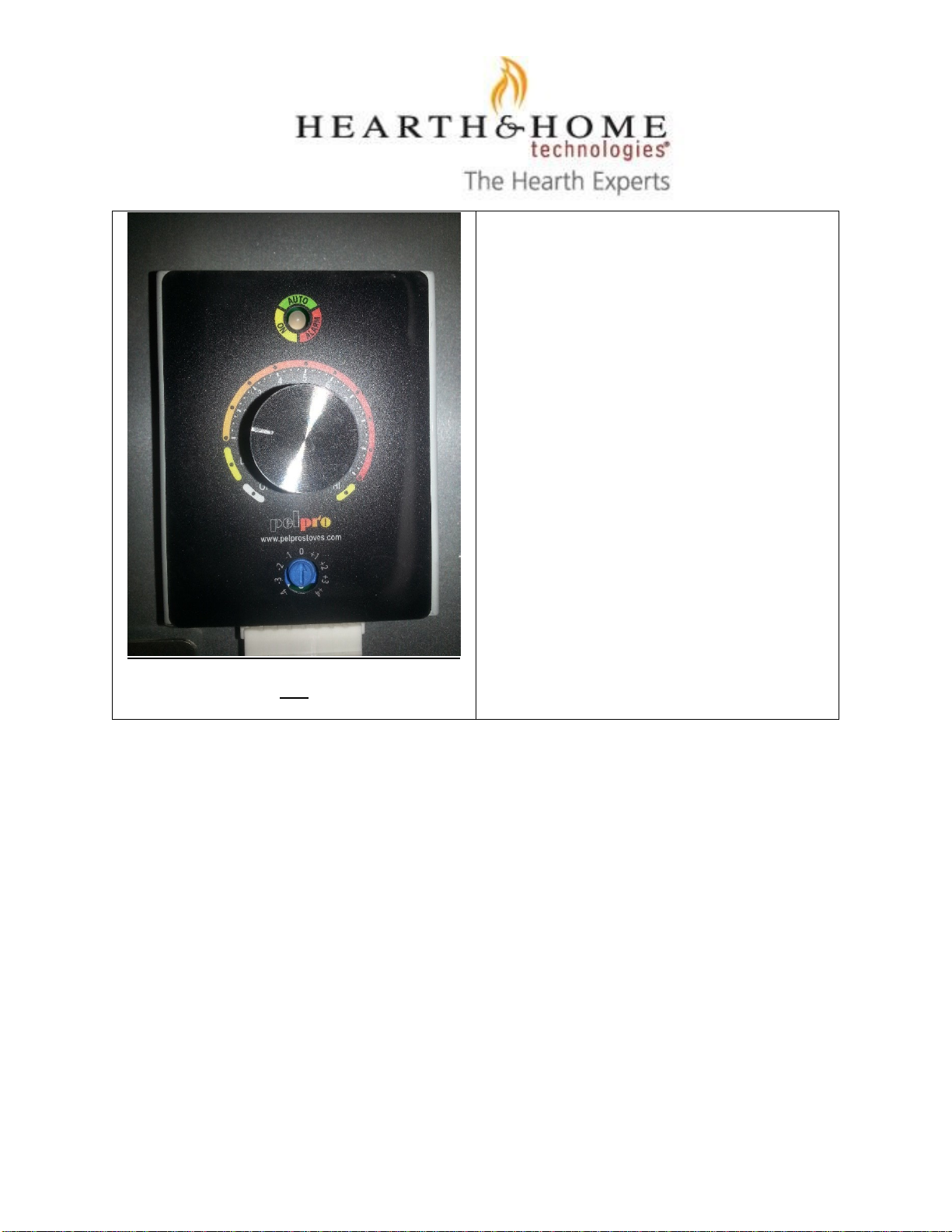

PP130-B Control Knob
11 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
APPLIANCE DESCRIPTION
Appliance Manufacturer: Hearth and Home Technologies
Pellet Stove Model: PP130-B
Type: Freestanding, air-circulating type, pellet-fired room heater.
The PP130-B’s principle elements include a fuel hopper, mild steel firebox chamber,
Stainless Steel burn pot, and electrical fuel feed, combustion air, and convection air
supply systems.
Air is drawn by the combustion air blower through a stainless-steel burn pot, holes are
located on the sides and bottom that allows air to mix with the fuel from all sides.
Combustion products are routed out of the firebox chamber through a 3-inch diameter
flue outlet located on the rear of the unit.
Fuel is supplied from the hopper to the burn pot via an auger that carries pellets up from
the hopper to a drop tube that routs pellets into the burn pot. Fuel supply rate is varied by
cycling the auger motor on/off time as needed for desired heat output settings.
A door located on the front of the appliance is used primarily for cleaning and servicing
the fire pot. A 5mm thick ceramic glass panel is utilized for viewing the fire, the door is
sealed when closed by use of a ¾” diameter rope gasket.
The electrical systems are regulated by a user-operated control board. On this board
settings such as [insert settings] can be adjusted to achieve desired heat output. The unit
is not designed to be controlled by an external thermostat system.
More detailed information is shown in the manufacturer’s design drawings, Appendix C
of this report. This information is considered confidential business information (CBI) by
the manufacturer and is not included in the non-CBI version of this report.
12 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Section 5
Test Data by Run
13 of 112

1445 North Hwy, Colville, WA 99114; 800-234-2508
Test Instruction Recommendations: PP130-B
Created on/by: 03/20/18; C. Winslow Howe –HHT Design Engineer
Purpose: To create repeatability in test protocol of the stove.
Hopper Fuel: Hopper of the unit should be loaded up with a full 3 bags of fuel (Each bag weighing 40lb)
Test Settings: Unit should be set up using a 6in flue and 115VAC power source,
High: Dial should be set to 10 and the trim pot should be set to +4. When the unit is set and running at
this setting the light above the dial control will Flash 5 times with a pause between each sequence
Medium: Dial should be set to 3 and the trim pot should be set to +3 When the unit is set and running at
this setting the light above the dial control will flash 2 times with a pause between each sequence.
Low: Dial should be set to 1 and the trim pot should be set to 0. When the unit is set and running at this
setting the light above the dial control will flash once with a pause between each flash.
High
Medium
14 of 112

1445 North Hwy, Colville, WA 99114; 800-234-2508
Low
15 of 112

Model: PP 130-B
Hearth & Home Technologies
352 Mountain House Road
Halifax, PA 17032
Run 1
16 of 112

OMNI-Test Laboratories, Inc
Pellet Heater Conditioning Data - ASTM E2779
Operation Category:
Elapsed Time
(hours)
Scale
Reading (lbs)
Stack (°F)
0
13.4 183
23.4 210
33.3 207
43.3 204
53.3 203
63.4 204
73.4 203
83.3 203
93.4 202
10 3.4 203
11 3.4 202
12 3.4 202
13 3.4 199
14 3.4 209
15 3.3 204
16 3.4 200
17 2.9 132
18 5.5 144
19 5.8 261
20 5.9 264
21 5.7 262
22 5.9 261
23 5.9 258
24 5.9 260
25 5.9 258
26 6.0 260
27 5.9 259
28 5.8 258
29 5.8 258
30 5.7 258
31 5.8 258
32 5.8 258
33 5.7 257
34 5.7 272
35 6.1 211
36 5.9 293
37 6.1 291
38 5.9 286
39 6.0 284
40 6.1 285
41 6.0 284
42 6.0 282
43 6.0 284
44 6.0 283
45 6.0 284
46 6.0 283
47 6.0 282
48 5.9 280
49 5.8 278
50 5.7 279
Project No.:
0135PS041E
Test Date:
March 2018
II - III - IV
Manufacturer:
Hearth & Home
Model:
PP130B
Tracking No.:
2266
Control No. P-SFDK-0003, Effective Date 5/6/16 File - 135PS041E PP130 Run 1, Tab - Conditioning
17 of 112

OMNI-Test Laboratories, Inc.
Pellet Heater Preburn Data - ASTM E2779
PB Length:
60 min
Recording Interval: 5 min
289 71 0 9 0
Elapsed
Time (min)
Scale
Reading
Weight
Change
Stack (F)
Ambient
(F)
Draft
("H2O)
CO2 (%) CO (%)
026.6 -231 69 -0.04 8.48 0.00
1526.1 -0.5 265 69 -0.04 9.36 0.00
210 25.6 -0.5 285 70 -0.05 10.59 0.00
315 25.1 -0.5 293 70 -0.05 11.12 0.01
420 24.6 -0.5 298 70 -0.05 10.38 0.00
525 24.1 -0.5 302 71 -0.05 9.31 0.00
630 23.7 -0.4 294 72 -0.05 10.49 0.00
735 23.2 -0.5 294 70 -0.05 11.19 0.01
840 22.7 -0.5 297 71 -0.05 0.96 0.09
945 22.2 -0.5 302 71 -0.05 11.30 0.02
10 50 21.7 -0.5 299 71 -0.05 9.35 0.00
11 55 21.2 -0.5 301 72 -0.05 10.26 0.00
12 60 20.8 -0.4 293 71 -0.05 9.00 0.00
13
14
15
Averages:
Hearth & Home
PP130B
2266
0135PS041E
3/26/2018
Manufacturer:
Model:
Tracking No.:
Project No.:
Test Date:
Control No. P-SFDK-0003, Effective Date 5/6/16 File - 135PS041E PP130 Run 1, Tab - Pre burn
18 of 112

OMNI-Test Laboratories, Inc.
Pellet Heater Test Data - ASTM E2779 / ASTM E2515
Run: 1
Hearth & Home High Burn End Time: 60 PM Control Modules: 335,336
PP130B Medium Burn End Time: 180 Dilution Tunnel MW(dry): 29.00 lb/lb-mole
Avg. Tunnel Velocity:
14.69 ft/sec.
2266 360 min Dilution Tunnel MW(wet): 28.78 lb/lb-mole Intial Tunnel Flow: 162.3 scfm
0135PS041E
Recording Interval:
5min Dilution Tunnel H2O: 2.00 percent
Average Tunnel Flow:
167.4 scfm
Dilution Tunnel Static: -0.200 "H2O Post-Test Leak Check (1): 0.000 cfm @ 5in. Hg
11:57 Background Sample Volume: 54.966 cubic feet Tunnel Area: 0.19635 ft2 Post-Test Leak Check (2): 0.000 cfm @ 5in. Hg
Pitot Tube Cp: 0.99 Fuel Moisture: 5.91 Dry Basis %
Meter Box Y Factor: 0.977 (1) 0.979 (2) 1(Amb)
Barometric Pressure:
Begin Middle End
Average
Pt.1 Pt.2 Pt.3 Pt.4 Pt.5 Pt.6 Pt.7 Pt.8 Center
30.40 30.44 30.42 "Hg Initial dP 0.048 0.052 0.052 0.038 0.036 0.050 0.054 0.046 0.060 "H2O
OMNI Equipment Numbers: Temp: 97 97 98 98 98 98 98 98 98 °F
Vstrav 14.83 ft/sec Vscent 16.56 ft/sec Fp0.896
Particulate Sampling Data
Elapsed
Time
(min)
Gas
Meter 1
(ft3)
Gas
Meter 2
(ft3)
Sample
Rate 1
(cfm)
Sample
Rate 2
(cfm)
Orifice
dH 1
("H2O)
Meter
Temp 1
(°F)
Meter
Vacuum 1
("Hg)
Orifice
dH 2
("H2O)
Meter
Temp 2
(°F)
Meter
Vacuum 2
("Hg)
Dilution
Tunnel (°F)
Dilution
Tunnel
Center
dP
Pro.
Rate 1
Pro.
Rate 2
Scale
Reading
Weight
Change
Stack Filter 1 Filter 2 Ambient
Draft
("H2O)
CO2(%) CO (%)
00.000 0.000 0.03 74 1.74 0.12 75 198 0.060 20.8 293 69 70 71 -0.050 8.76 0.00202
50.813 0.771 0.16 0.15 1.38 74 2.01 1.08 75 1.1 97 0.060 102 99 20.3 -0.5 296 71 72 71 -0.050 9.96 0.00338
10 1.634 1.551 0.16 0.16 1.32 75 1.97 1.09 76 1.1 98 0.058 104 102 19.8 -0.5 298 72 72 71 -0.051 9.27 0.00257
15 2.442 2.333 0.16 0.16 1.32 75 1.96 1.08 77 1.1 98 0.059 102 101 19.2 -0.6 302 72 73 71 -0.052 11.64 0.03132
20 3.249 3.114 0.16 0.16 1.32 76 1.96 1.07 77 1.1 98 0.060 101 100 18.8 -0.4 299 73 73 72 -0.052 8.2 0.00335
25 4.056 3.895 0.16 0.16 1.32 77 1.95 1.07 78 1.1 98 0.058 102 102 18.3 -0.5 299 73 74 72 -0.052 9.66 0.01784
30 4.863 4.675 0.16 0.16 1.31 78 1.95 1.07 79 1.1 98 0.059 101 101 17.9 -0.4 293 74 74 71 -0.051 8.46 0.00232
35 5.673 5.458 0.16 0.16 1.32 79 1.95 1.07 80 1.1 98 0.058 102 102 17.4 -0.5 294 74 74 72 -0.052 9.86 0.00491
40 6.481 6.240 0.16 0.16 1.31 79 1.97 1.07 81 1.1 98 0.059 101 101 16.9 -0.5 299 74 74 72 -0.052 9.84 0.00335
45 7.289 7.019 0.16 0.16 1.31 80 1.97 1.06 81 1.1 98 0.058 102 101 16.4 -0.5 297 74 75 73 -0.052 10.23 0.00656
50 8.098 7.799 0.16 0.16 1.31 80 1.97 1.06 82 1.1 98 0.059 101 100 15.9 -0.5 301 75 74 72 -0.053 10.72 0.00526
55 8.907 8.579 0.16 0.16 1.32 81 1.98 1.05 82 1.1 99 0.056 104 103 15.4 -0.5 302 75 75 72 -0.053 10.69 0.00461
60 9.717 9.359 0.16 0.16 1.31 81 1.96 1.06 82 1.1 98 0.060 100 99 14.9 -0.5 300 75 75 72 -0.052 5.24 0.00854
65 10.533 10.138 0.16 0.16 1.32 82 1.94 1.06 83 1.1 95 0.061 100 98 14.6 -0.3 264 76 75 71 -0.047 4.62 0.01395
70 11.347 10.918 0.16 0.16 1.32 82 1.94 1.05 83 1.1 92 0.060 100 99 14.4 -0.2 239 75 74 72 -0.042 3.63 0.01334
75 12.163 11.699 0.16 0.16 1.32 82 1.95 1.05 83 1.1 91 0.061 99 98 14.3 -0.1 222 75 74 72 -0.039 4.21 0.01368
80 12.983 12.492 0.16 0.16 1.36 82 1.98 1.12 83 1.2 89 0.060 100 100 14.1 -0.2 214 74 74 71 -0.038 3.5 0.0331
85 13.810 13.297 0.17 0.16 1.35 82 1.98 1.12 83 1.2 88 0.061 100 101 13.9 -0.2 209 74 74 71 -0.037 4.59 0.00776
90 14.636 14.102 0.17 0.16 1.35 82 1.98 1.11 83 1.2 90 0.058 103 103 13.7 -0.2 220 74 73 71 -0.040 3.21 0.05694
95 15.462 14.906 0.17 0.16 1.35 82 1.98 1.11 83 1.2 88 0.060 101 101 13.5 -0.2 207 74 73 71 -0.036 4.1 0.00468
100 16.288 15.712 0.17 0.16 1.36 82 1.99 1.11 83 1.2 87 0.059 102 102 13.3 -0.2 203 73 73 71 -0.035 3.1 0.05796
105 17.115 16.516 0.17 0.16 1.36 82 1.98 1.11 83 1.2 87 0.059 102 102 13.2 -0.1 200 73 73 70 -0.035 4.13 0.00711
110 17.942 17.321 0.17 0.16 1.36 82 1.98 1.12 83 1.2 87 0.059 102 102 13.0 -0.2 199 73 73 71 -0.034 4.7 0.00799
115 18.769 18.127 0.17 0.16 1.36 82 1.99 1.11 83 1.2 87 0.059 102 102 12.8 -0.2 201 73 73 71 -0.035 4.2 0.00753
120 19.596 18.932 0.17 0.16 1.35 82 1.99 1.12 83 1.2 87 0.060 101 101 12.6 -0.2 203 73 73 71 -0.036 4.73 0.00536
125 20.423 19.738 0.17 0.16 1.36 82 1.98 1.11 83 1.2 87 0.060 101 101 12.4 -0.2 206 73 73 71 -0.035 3.56 0.05313
130 21.250 20.542 0.17 0.16 1.36 83 1.99 1.11 83 1.2 87 0.060 101 101 12.2 -0.2 202 73 73 71 -0.036 3.07 0.04823
135 22.078 21.348 0.17 0.16 1.36 83 1.99 1.11 83 1.2 86 0.059 102 102 12.0 -0.2 202 73 73 71 -0.035 2.54 0.104
140 22.903 22.149 0.17 0.16 1.36 82 1.99 1.11 83 1.2 86 0.061 100 100 11.8 -0.2 201 73 73 71 -0.035 4.46 0.00394
145 23.730 22.955 0.17 0.16 1.36 83 1.99 1.11 83 1.2 87 0.059 102 102 11.6 -0.2 206 73 73 72 -0.036 4.65 0.00896
150 24.558 23.759 0.17 0.16 1.35 83 1.99 1.11 83 1.2 87 0.060 101 101 11.4 -0.2 205 73 73 71 -0.036 4.03 0.02147
155 25.384 24.564 0.17 0.16 1.35 83 1.99 1.11 83 1.2 88 0.061 100 101 11.2 -0.2 208 73 73 71 -0.036 4.28 0.02176
160 26.211 25.368 0.17 0.16 1.36 83 2 1.10 83 1.2 87 0.059 102 102 11.0 -0.2 203 73 73 71 -0.035 4.86 0.01449
165 27.038 26.173 0.17 0.16 1.36 83 1.99 1.11 83 1.2 87 0.060 101 101 10.8 -0.2 201 73 73 71 -0.035 3.31 0.04513
170 27.866 26.977 0.17 0.16 1.37 83 2 1.10 83 1.2 87 0.060 101 101 10.6 -0.2 203 73 73 72 -0.036 4.96 0.01486
Total Sampling Time:
Project No.:
Test Date:
26-Mar-18
Stack Gas Data
Velocity Traverse Data
Fuel Weight (lb)
Temperature Data (°F)
Manufacturer:
Model:
Tracking No.:
Beginning Clock Time:
Raw Data
Export to
Control No. P-SFDK-0003, Effective Date 5/6/16 File - 135PS041E PP130 Run 1, Tab - Data Entry
19 of 112

OMNI-Test Laboratories, Inc.
Pellet Heater Test Data - ASTM E2779 / ASTM E2515
Run: 1
Hearth & Home High Burn End Time: 60 PM Control Modules: 335,336
PP130B Medium Burn End Time: 180 Dilution Tunnel MW(dry): 29.00 lb/lb-mole
Avg. Tunnel Velocity:
14.69 ft/sec.
2266 360 min Dilution Tunnel MW(wet): 28.78 lb/lb-mole Intial Tunnel Flow: 162.3 scfm
0135PS041E
Recording Interval:
5min Dilution Tunnel H2O: 2.00 percent
Average Tunnel Flow:
167.4 scfm
Dilution Tunnel Static: -0.200 "H2O Post-Test Leak Check (1): 0.000 cfm @ 5in. Hg
11:57 Background Sample Volume: 54.966 cubic feet Tunnel Area: 0.19635 ft2 Post-Test Leak Check (2): 0.000 cfm @ 5in. Hg
Pitot Tube Cp: 0.99 Fuel Moisture: 5.91 Dry Basis %
Meter Box Y Factor: 0.977 (1) 0.979 (2) 1(Amb)
Barometric Pressure:
Begin Middle End
Average
Pt.1 Pt.2 Pt.3 Pt.4 Pt.5 Pt.6 Pt.7 Pt.8 Center
30.40 30.44 30.42 "Hg Initial dP 0.048 0.052 0.052 0.038 0.036 0.050 0.054 0.046 0.060 "H2O
OMNI Equipment Numbers: Temp: 97 97 98 98 98 98 98 98 98 °F
Vstrav 14.83 ft/sec Vscent 16.56 ft/sec Fp0.896
Particulate Sampling Data
Elapsed
Time
(min)
Gas
Meter 1
(ft3)
Gas
Meter 2
(ft3)
Sample
Rate 1
(cfm)
Sample
Rate 2
(cfm)
Orifice
dH 1
("H2O)
Meter
Temp 1
(°F)
Meter
Vacuum 1
("Hg)
Orifice
dH 2
("H2O)
Meter
Temp 2
(°F)
Meter
Vacuum 2
("Hg)
Dilution
Tunnel (°F)
Dilution
Tunnel
Center
dP
Pro.
Rate 1
Pro.
Rate 2
Scale
Reading
Weight
Change
Stack Filter 1 Filter 2 Ambient
Draft
("H2O)
CO2(%) CO (%)
Total Sampling Time:
Project No.:
Test Date:
26-Mar-18
Stack Gas Data
Velocity Traverse Data
Fuel Weight (lb)
Temperature Data (°F)
Manufacturer:
Model:
Tracking No.:
Beginning Clock Time:
Raw Data
Export to
175 28.694 27.781 0.17 0.16 1.35 83 1.99 1.11 83 1.2 87 0.062 99 100 10.3 -0.3 206 73 73 71 -0.037 4.89 0.02766
180 29.521 28.586 0.17 0.16 1.36 83 1.99 1.11 83 1.2 87 0.059 102 102 10.1 -0.2 207 73 73 71 -0.037 4.27 0.02154
185 30.348 29.389 0.17 0.16 1.35 83 2 1.11 83 1.2 87 0.060 101 101 10.0 -0.1 208 73 73 72 -0.034 3.22 0.04535
190 31.175 30.193 0.17 0.16 1.36 83 1.99 1.10 83 1.2 82 0.058 102 102 9.9 -0.1 172 73 73 72 -0.029 2.91 0.05147
195 32.002 30.995 0.17 0.16 1.36 83 1.99 1.10 83 1.2 80 0.059 101 101 9.8 -0.1 161 73 73 72 -0.028 2.46 0.05105
200 32.829 31.799 0.17 0.16 1.36 83 1.99 1.10 83 1.2 78 0.060 100 100 9.7 -0.1 154 73 73 72 -0.027 3.02 0.0332
205 33.657 32.601 0.17 0.16 1.36 83 2 1.10 83 1.2 77 0.061 99 99 9.6 -0.1 151 72 72 71 -0.027 3.66 0.02066
210 34.485 33.404 0.17 0.16 1.36 83 2 1.10 83 1.2 76 0.062 98 98 9.4 -0.2 150 72 72 70 -0.026 3.01 0.04753
215 35.313 34.207 0.17 0.16 1.36 83 2 1.10 83 1.2 79 0.062 99 99 9.3 -0.1 174 72 72 70 -0.033 2.09 0.104
220 36.141 35.011 0.17 0.16 1.35 83 2 1.10 83 1.2 76 0.063 97 98 9.2 -0.1 155 72 72 70 -0.027 3.5 0.02591
225 36.969 35.813 0.17 0.16 1.36 83 2 1.10 83 1.2 75 0.062 98 98 9.1 -0.1 149 72 71 70 -0.025 2.18 0.06103
230 37.797 36.617 0.17 0.16 1.36 82 1.99 1.09 82 1.2 75 0.062 98 99 9.0 -0.1 148 71 71 70 -0.026 3.04 0.0411
235 38.625 37.420 0.17 0.16 1.36 82 1.99 1.10 82 1.2 74 0.062 98 98 8.9 -0.1 146 71 71 70 -0.025 4.09 0.01687
240 39.453 38.223 0.17 0.16 1.37 82 2 1.09 82 1.2 74 0.061 99 99 8.8 -0.1 146 71 71 69 -0.025 4.18 0.0099
245 40.280 39.025 0.17 0.16 1.36 82 2 1.10 82 1.2 74 0.064 97 97 8.6 -0.2 145 71 70 69 -0.025 2.84 0.04341
250 41.109 39.828 0.17 0.16 1.37 82 2 1.09 82 1.2 74 0.061 99 99 8.5 -0.1 154 71 70 69 -0.028 2.2 0.09088
255 41.937 40.630 0.17 0.16 1.36 81 2 1.10 82 1.2 74 0.063 98 98 8.4 -0.1 151 70 70 69 -0.027 2.87 0.03562
260 42.764 41.433 0.17 0.16 1.37 81 2.01 1.10 81 1.2 74 0.063 98 98 8.3 -0.1 148 70 70 69 -0.026 2.78 0.04288
265 43.592 42.236 0.17 0.16 1.35 81 2 1.09 81 1.2 73 0.064 97 97 8.1 -0.2 148 70 70 69 -0.026 4.53 0.01071
270 44.419 43.038 0.17 0.16 1.36 81 2 1.10 81 1.2 73 0.063 97 98 8.0 -0.1 146 70 70 69 -0.026 2.56 0.05925
275 45.246 43.840 0.17 0.16 1.37 81 2 1.09 81 1.2 73 0.063 97 98 7.9 -0.1 145 70 69 69 -0.025 2.25 0.104
280 46.073 44.641 0.17 0.16 1.36 81 2 1.10 81 1.2 74 0.063 98 98 7.8 -0.1 154 70 69 69 -0.028 2.07 0.104
285 46.900 45.443 0.17 0.16 1.37 81 2.01 1.09 81 1.2 73 0.064 97 97 7.7 -0.1 147 70 69 69 -0.026 3.2 0.04107
290 47.728 46.244 0.17 0.16 1.36 80 2.01 1.09 80 1.2 74 0.061 99 99 7.6 -0.1 144 69 69 69 -0.025 2.46 0.104
295 48.554 47.045 0.17 0.16 1.35 80 2 1.09 80 1.2 74 0.061 99 99 7.5 -0.1 144 70 69 69 -0.024 4.03 0.01382
300 49.380 47.846 0.17 0.16 1.35 80 2.01 1.09 80 1.2 75 0.061 99 99 7.4 -0.1 145 70 69 69 -0.024 2.21 0.104
305 50.205 48.645 0.16 0.16 1.36 80 2.01 1.09 80 1.2 76 0.061 99 99 7.2 -0.2 147 70 70 70 -0.025 3.12 0.02792
310 51.031 49.445 0.17 0.16 1.36 80 2.01 1.08 80 1.2 77 0.060 100 100 7.1 -0.1 159 70 70 70 -0.026 1.99 0.104
315 51.856 50.244 0.17 0.16 1.36 81 2.01 1.08 81 1.2 77 0.060 100 100 7.0 -0.1 148 70 70 70 -0.025 3.42 0.04457
320 52.681 51.042 0.16 0.16 1.36 81 2.01 1.08 81 1.2 77 0.060 100 100 6.9 -0.1 149 70 70 70 -0.025 3.43 0.0295
325 53.505 51.841 0.16 0.16 1.36 81 2.01 1.08 81 1.2 76 0.062 98 98 6.8 -0.1 148 70 70 70 -0.026 3.12 0.02387
330 54.330 52.640 0.16 0.16 1.36 81 2.01 1.08 81 1.2 74 0.061 99 99 6.6 -0.2 146 70 70 69 -0.025 3.01 0.03756
335 55.156 53.437 0.17 0.16 1.36 81 2.02 1.08 81 1.2 74 0.058 102 101 6.5 -0.1 146 70 70 69 -0.026 3.43 0.02986
340 55.981 54.236 0.17 0.16 1.35 81 2.02 1.08 81 1.3 77 0.059 101 101 6.4 -0.1 175 70 70 70 -0.030 2.29 0.07308
345 56.805 55.035 0.16 0.16 1.36 81 2.02 1.07 81 1.2 74 0.062 98 98 6.3 -0.1 151 70 70 69 -0.028 3.74 0.01487
Control No. P-SFDK-0003, Effective Date 5/6/16 File - 135PS041E PP130 Run 1, Tab - Data Entry
20 of 112
