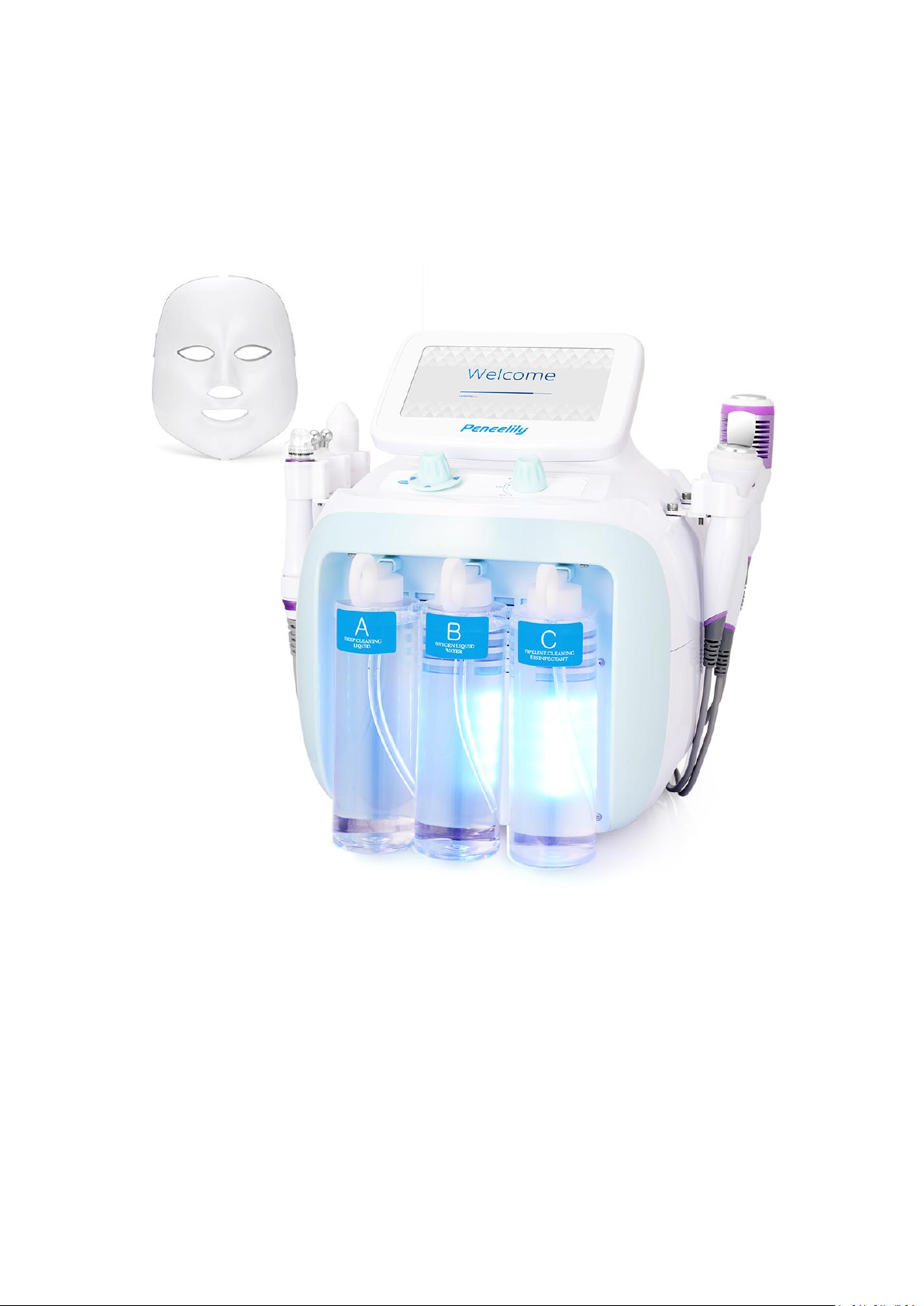

Peneelily SR-AF1328 User manual

Product: SR-AF1328

Product positioning: a multifunctional facial beauty machine
Packing list
Machine Body*1
Power Cord*1
Accessory Holder*2
Hydro Handpiece*1
Spray Handpiece*1
BIO Handpiece*1
Ultrasound Handpiece*1
Scrubber*1
Hot&Cold Handpiece*1
Photon Therapy Face Mask*1
Dos and Don’ts
1. The plug with grounding pin must be used before the instrument is used and the
power socket of the instrument is properly grounded.
2. Ensure that the voltage of the instrument is suitable. If the voltage of the local
power supply is not stable, we suggest that the user add a voltage regulator with
matching power between the mains and the instrument.
3. In order to ensure the treatment effect and normal service life of the instrument,
please use the specified parts provided or suggested by the original manufacturer.
4. The instrument should not be placed in damp places or near water sources, and
should not be directly exposed to sunlight.
5. Do not place the instrument near a strong heat source, as this may affect the life
and normal use of the instrument.
6. Before treatment, please remove all metal objects from the body first, so as to
avoid unexpected conditions and influence the curative effect.
7. Please do not use the instrument on eyes, thyroid, parathyroid, testicles, abdomen
of pregnant women, and pacemakers.
8. Patients who are suffering from illness should consult a doctor and get permission
from the doctor before using.
9. Please turn off the power switch of the device, and ensure that the total power
supply of the device is turned off before the staff leaves after daily use, so as to
ensure the safety of the electrical products.
10. Set the energy at lowest level at the beginning and slowly raise it after the
customer adapts to it.
11. The handle can be used alone. Better results will be delivered if one handle works
in conjunction with other handles.
12. Make sure the handpiece is in full contact with skin during operation in case skin is
heated unevenly.

13. The treatment area should be kept moisturized during the operation and do not
perform the treatment on dry skin.
14. When the knob for adjusting suction level can work properly but there is
weakened suction or no suction at all if you turn it, please check whether the
rubber seal has been put in place in the handpiece.
15. When you use the cold&hot function, keep your hands away from the steam
outlet to avoid discomfort.
16. Use machine or train machine operators in strict accordance with instructions in
the user manual.
17. Clean the instrument with normal saline after operation to ensure its cleanliness
to guarantee its service life.
Control panel
After all are connected properly, the following loading interface will appear when
power switched is pressed.
then there is home interface

1. Main function buttons
home button(press this to go to the home interface
start/stop button
reset button(press this to restore the default settings of the current
interface)
energy level（range：0—10）
time（range：00:00—60：00）
button for decreasing time or lowering energy level
button for increasing time or raising energy level

Liquid Waste, there will be an alert or the handpiece will stop working when
the Liquid Waste bottle is full.

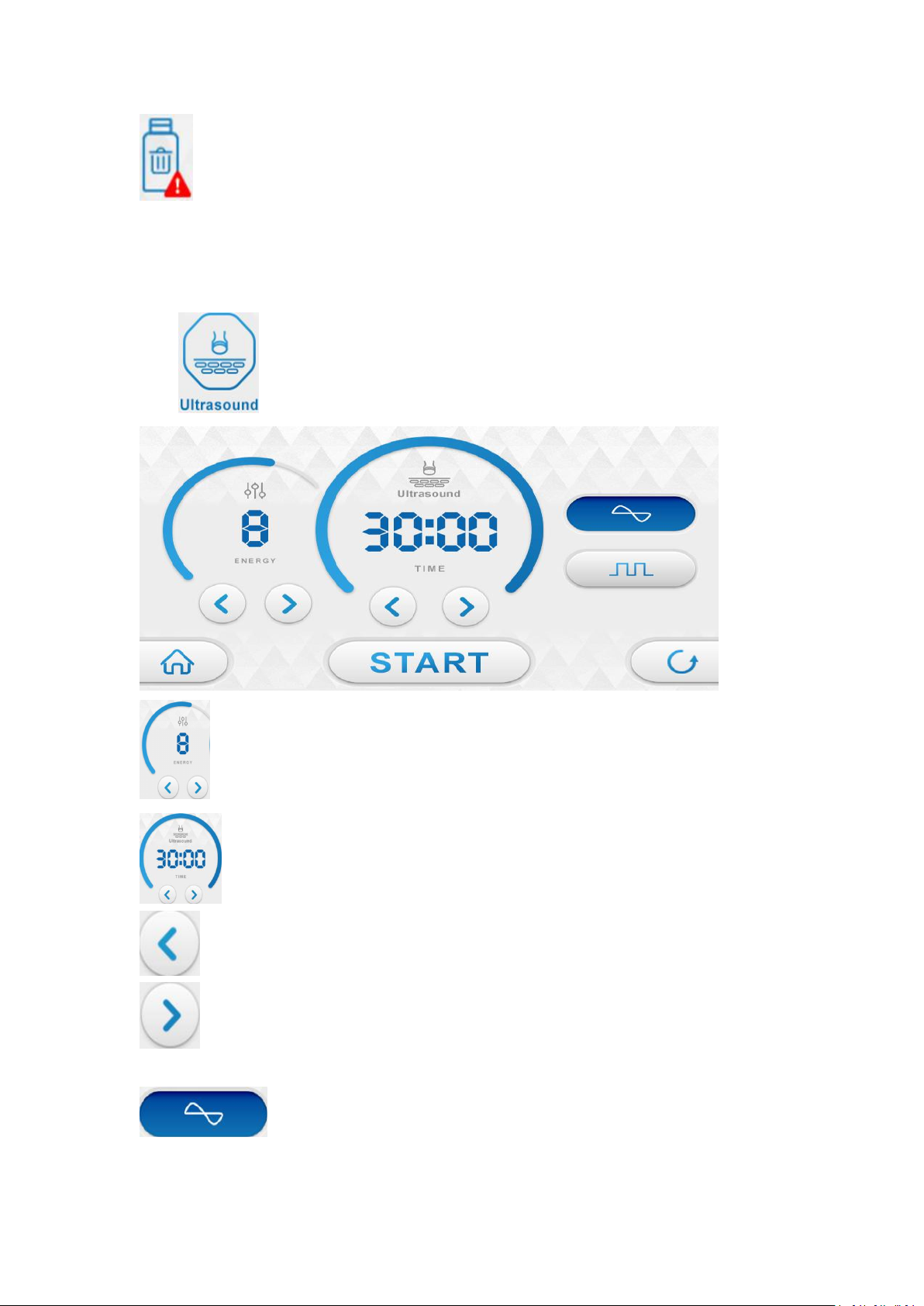

2. Detailed Operation of Face Ultrasound
press button to go to the following interface
energy level and its adjusting buttons
time and its adjusting buttons
button for decreasing time or lowering energy level
button for increasing time or raising energy level
Two working modes
constant working mode

discontinuous working mode
After setting energy level, time and working mode, press button
to begin the treatment.
3. Detailed Operation of Scrubber
press button to go to the following interface
energy level and its adjusting buttons
time and its adjusting buttons
button for decreasing time or lowering energy level
button for increasing time or raising energy level
two working modes
constant working mode

discontinuous working mode
how to use the button on the handpiece
1. One press to clean pores. During treatment, let the bevelled side of the handpiece
face outwards and meanwhile wipe the target area with a damp tissue.
2. Two presses to promote skin’s absorption. During treatment, let the bevelled side of
the handpiece face inwards and meanwhile apply essence.
3. Three presses to help tighten skin, During treatment, let the bevelled side of the
handpiece face outwards and meanwhile apply essence.
After setting energy level, time and working mode, press button
or long press the button on the handpiece for 3 secs to begin the
treatment.
4. Detailed Operation of BIO
press button to go to the following interface

energy level and its adjusting buttons
time and its adjusting buttons
button for decreasing time or lowering energy level
button for increasing time or raising energy level
two working modes
constant working mode
discontinuous working mode
After setting energy level, time and working mode, press button
to begin the treatment.
5. Detailed Operation of Spray
press button to go to the following interface

time and its adjusting buttons
start/stop button of the handpiece(you can press the button here or or the
button on the machine body.)
After setting the working time, press or to begin
the treatment.

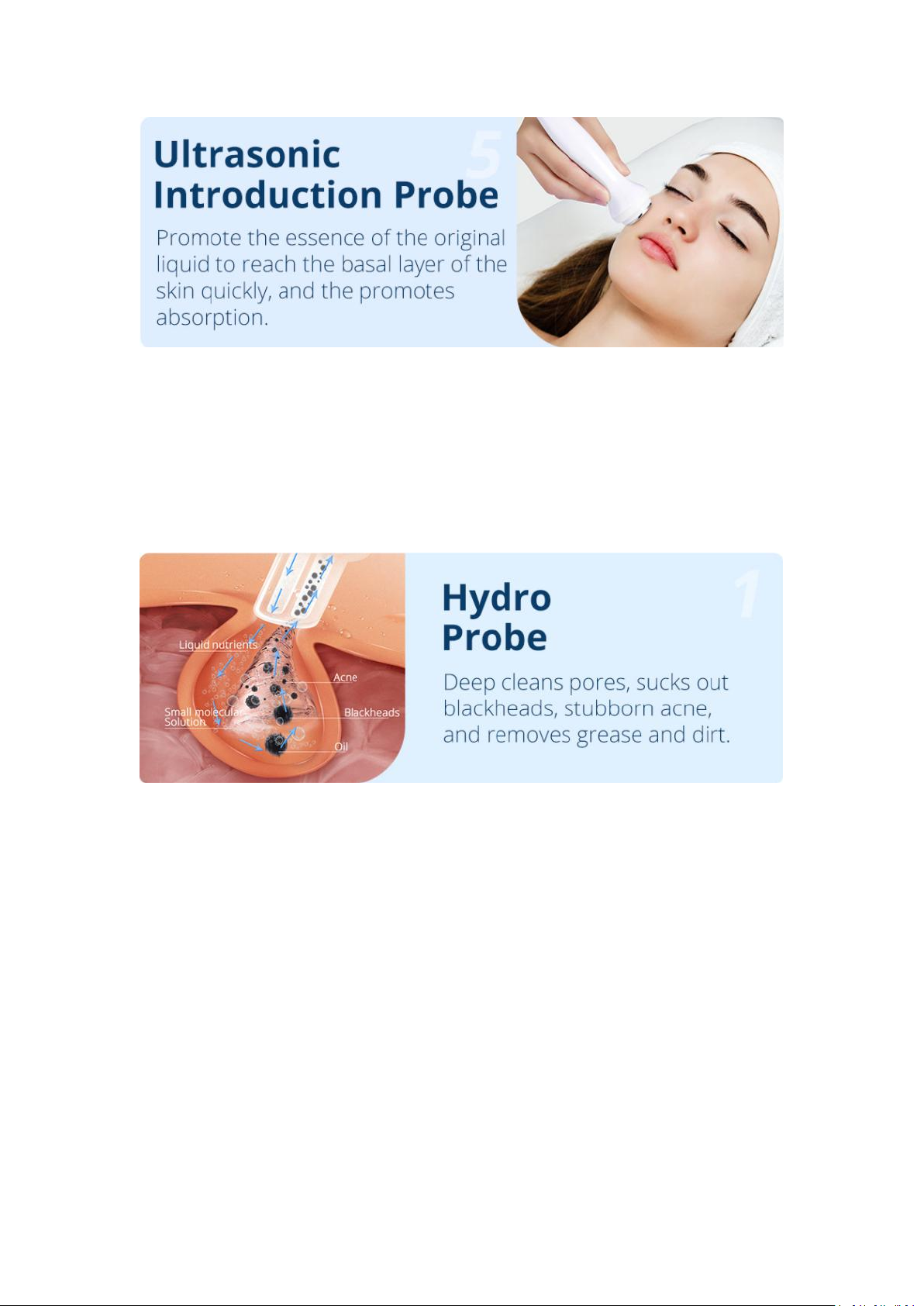

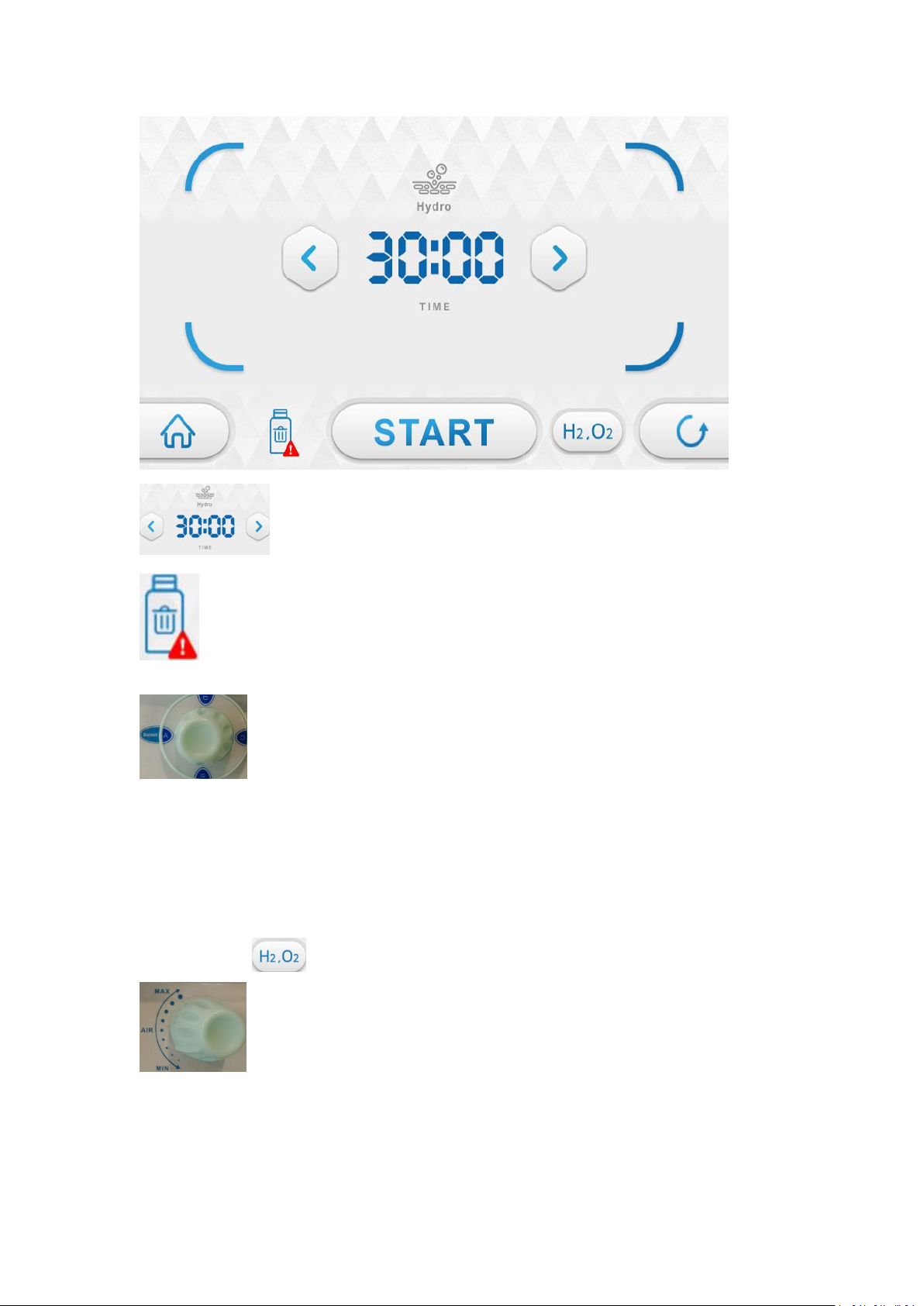

6. Detailed Operation of Hydro
press button to go to the following interface

time and its adjusting buttons
Liquid Waste, there will be an alert or the handpiece will stop working when
the Liquid Waste bottle is full.
there are four bottles(turn the knob to select the bottle you want to
use)
the purposes of the four bottles
bottle A: remove corneum and whiten skin
bottle B: remove blackheads and dirt in pores
bottle C: supply moisture and infuse nutrients into skin
bottle D: H2, O2 liquid. When you want to use the bottle D, turn the knob to select
bottle D,press button and wait for 3 min before using it.
knob for adjusting suction level. Adjust suction level based on the
situation of skin and individual endurance. Turning it clockwise is to increase suction
and turning anticlockwise is to decrease suction.

this rotating part at the end of handpiece can be used to adjust the
volume of water coming out. Turning it clockwise is to increase water volume and
turning it anticlockwise is to decrease water volume.
After setting working time and choosing the bottle you want to use,
press button first to check the the water volume and the suction
level. If adjustments are needed, make adjustments accordingly.

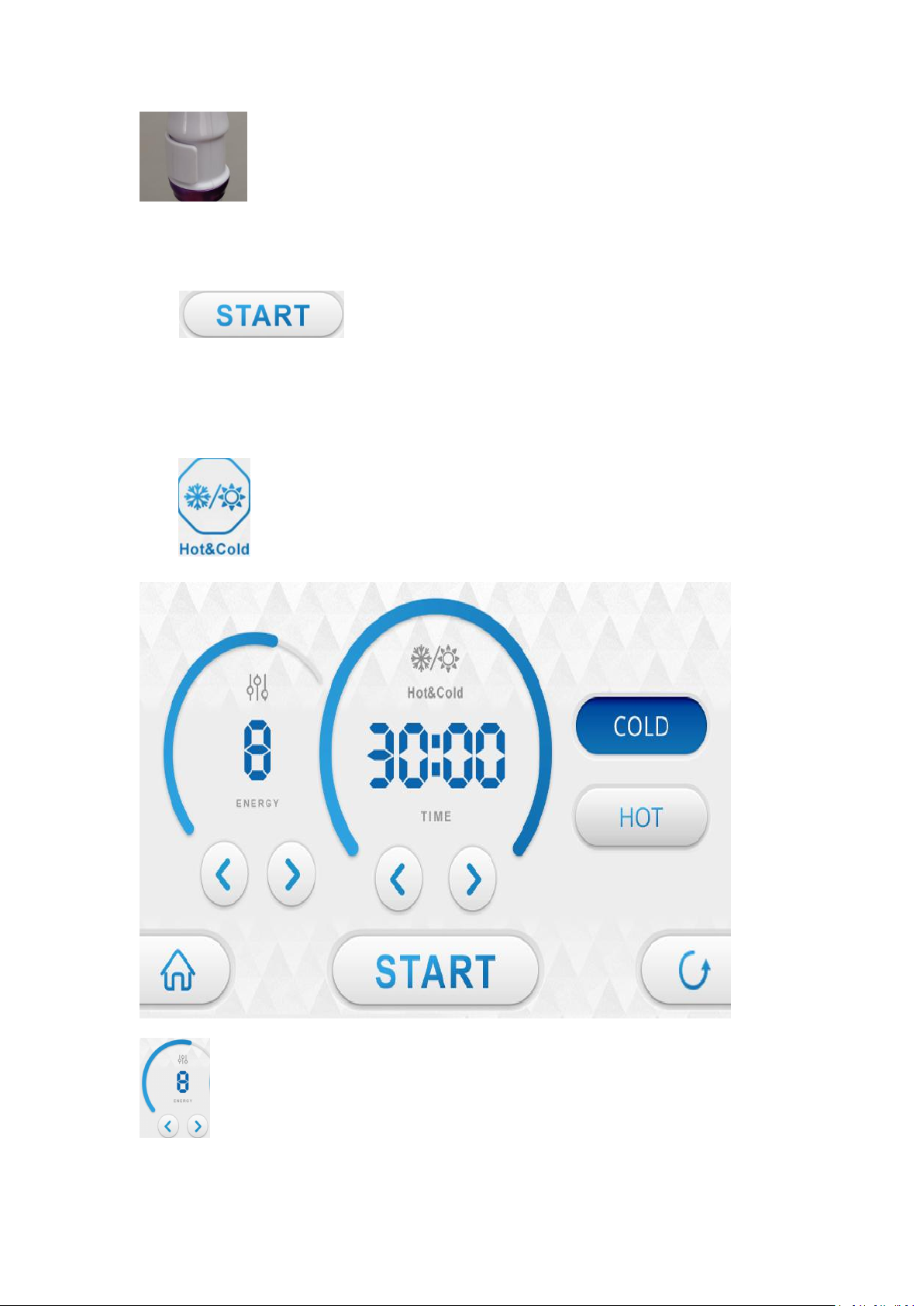

7. Detailed Operation of Hot&Cold
press button to go to the following interface
energy level and its adjusting buttons

time and its adjusting buttons
button for decreasing time or lowering energy level
button for increasing time or raising energy level
two working modes
Cold mode, suitable for those with sensitive skin and redness-prone
skin to soothe&calm skin.
Hot mode, suitable for those who want to help with nutrient
introduction and promote skin’s absorption.
After setting energy level, time and working mode, press button
to begin the treatment.

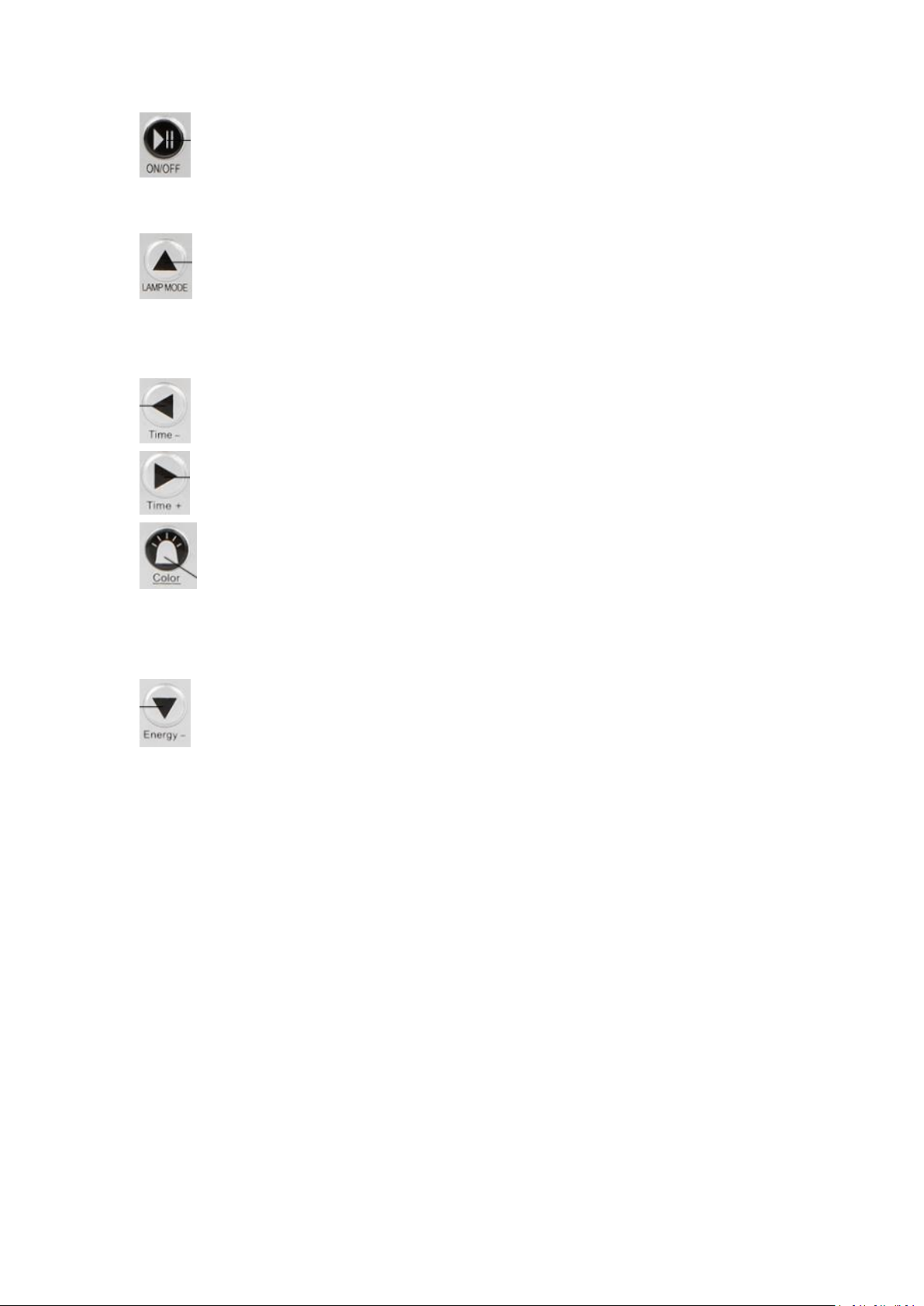

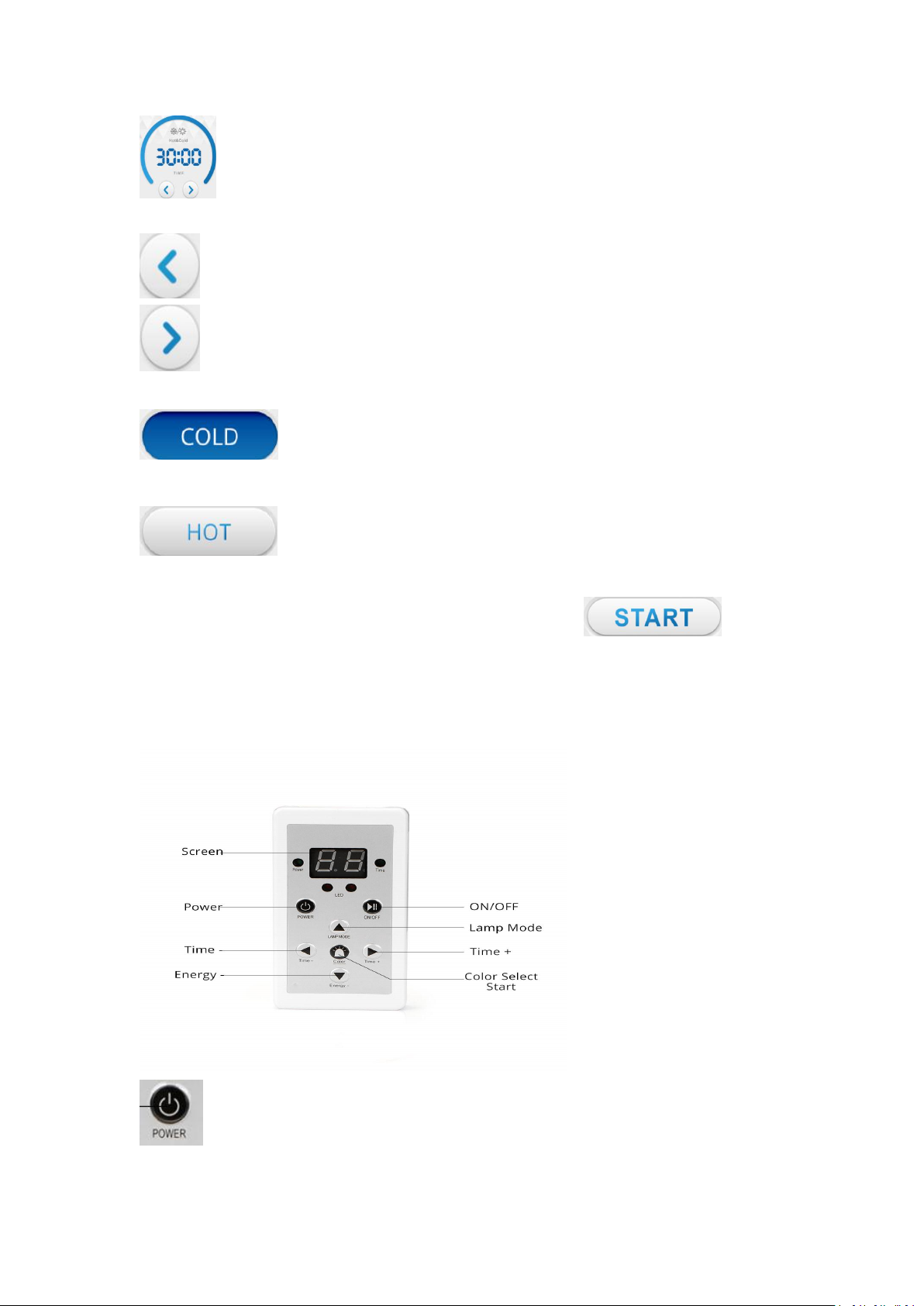

8. Detailed Operation of Photon Therapy Face Mask
power button

ON/OFF button
After pressing POWER button and ON/OFF button, making adjustments by pressing
the following buttons.
LAMP MODE
There are five modes, which range from mode1 to mode 5. In Mode 1, the lamps have
the least strong lights.The brightness of light will gradually increase if you choose a
higher mode.
button for decreasing time(minimum:30 secs)
button for increasing time(max:6 min)
the color of light
There are Red light, Blue light, Green light, Yellow light, Purple light, White light and
Turquoise light (detailed information is in the “the Science behind the Treatments”
part)
Button for lowering energy level（range: 5-1, max: 5, min: 1）
The science behind the treatments
Spray
It uses high pressure to make oxygen and water smaller than 80 μm work on skin in
the form of spray, which can lead the molecules of water and oxygen into deep skin to
accelerate nutrient absorption. It directly and quickly provides nutrients for skin by
making them penetrate through pores and skin crevice from epidermis to deep skin
through high pressure to accelerate cell regeneration and remove deep waste.
Moreover, the oxygen and nutrients can stimulate the regeneration of fiber tissue in
dermis and accelerate metabolism to deliver the results of hydrating&rejuvenating
skin and removing skin yellowness.
Physical effects
Putting the advanced technology of Pressure Swing Adsorption(PSA) into practice, the
8-kilogram built-in high-pressure oxygen pump can quickly separate highly pure
oxygen from air and then transport the mixture of 80% pure oxygen and 0.9% water

molecules to deep cells to replace waste and toxin, by which it can promote
metabolism to make skin have cleanliness, clarity and glow.
Hot&Cold
It is based on thermal expansion and cold contraction. Our skin reduces the metabolic
rate at 5 degrees Celsius, slows down the movement of cells and slows down the
sensitivity of nerve endings, which inhibits pain and swelling of skin for allergic
reactions. Due to thermal expansion and cold contraction, the temperature of 5
degrees Celsius causes the blood vessels to contract, resulting in pore contraction to
restrain thick pores and firm the skin. Therefore,it can smooth facial wrinkles and
crow's feet.
Physiological effects of 5℃:
1. It can constrict blood vessels, resulting in tightening of pores, which can greatly
improve the size of pores.
2. It can strengthen myofibril, make the skin firm and elastic, and smooth the wrinkles
and crow's feet.
3. It can constrict blood vessels, and reduce varicose veins and red veins effectively.It
is easier to purify and detoxify venous blood in terms of harmful substances, and it
has a significant effect on reduction and elimination of spots.
4. It can reduce the metabolic rate, inhibit and slow down the cell activity, reduce the
sensitivity of the peripheral nerve to play a calming and soothing effect, and relieve
skin swelling and pain, especially for skin suffering from allergic reactions.
Physiological response of 40℃treatment :

1. 40℃makes people feel warm and comfortable, which will be able to relax
muscles,keep the balance of vegetative nervous system and relieve pain and soreness.
It can promote blood circulation, increase the oxygen content in the blood,and open
pores and extend blood vessels to make skin absorb nutrients quickly, which is a
milder and more comfortable absorbing way.
2. It can increase the metabolic rate of the skin, increase the heat energy content of
the tissue, and make skin naturally eliminate the waste and toxins, which has a certain
effect on the elimination of bags under the eyes and dark circles.
BIO
It stimulates the energy contained in the ATPs of cells to restore the normal operation
and function of cells after its imitating human biological current enters into muscle
cells through skin to provide energy for muscle and body. It can improve cell
permeability to make it 30%-40% higher than usual. It can help the body better
absorb nutrition, water, oxygen etc., and eliminate wastes, toxins and retained liquids
as soon as possible. It can promote the synthesis of muscle fibers to make it 68%
higher than usual, keep the skin moisturized, soft, firm and shiny, and increase
collagen synthesis by 73% to reduce wrinkles and leave the skin softer, shinier and
more elastic.

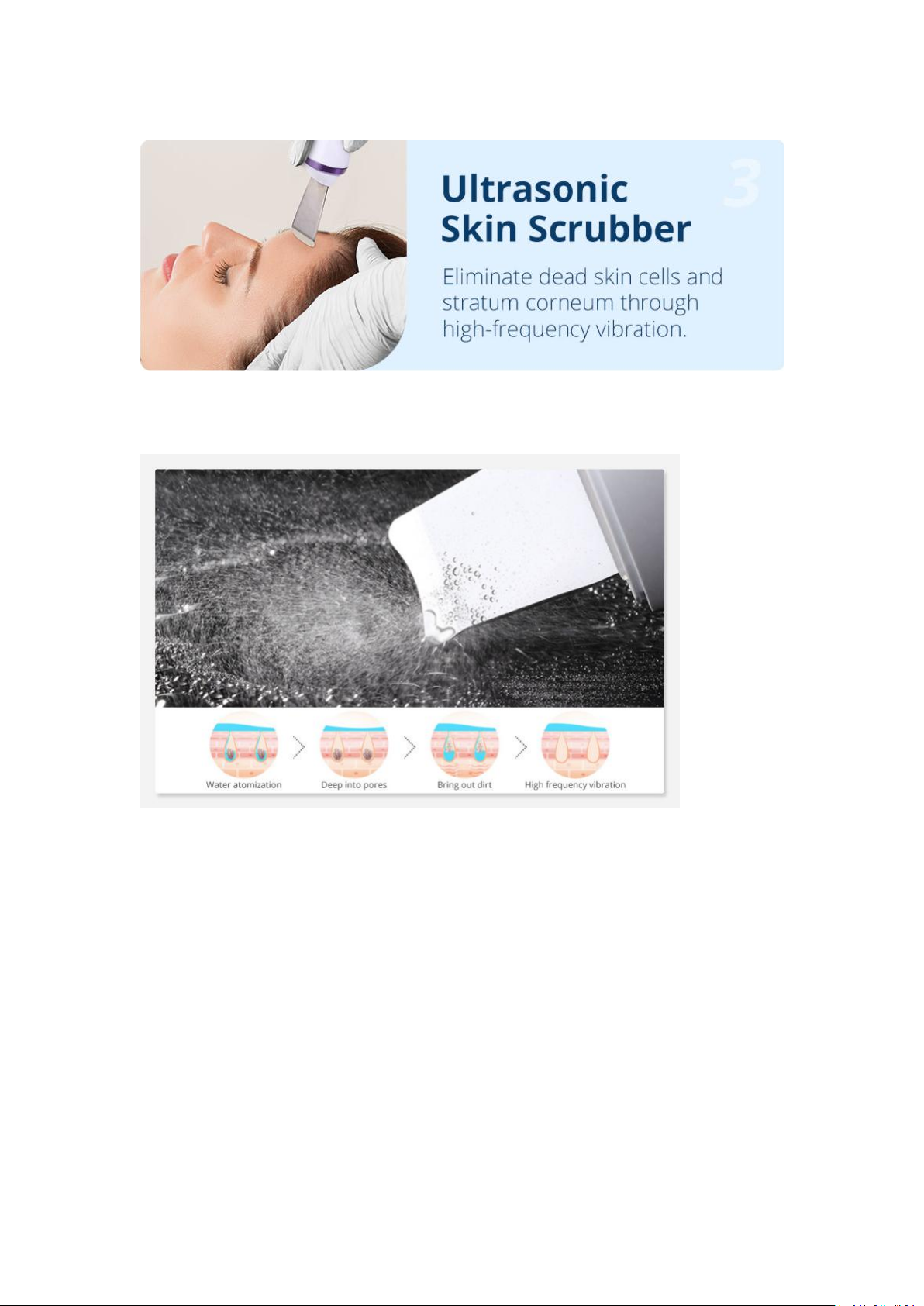

Scrubber
Based on ultrasonic waves, this machine can produce up to 28,000HZ mechanical
vibration, the energy of which has great penetrating ability on skin. The ultrasonic
cavitation can make many bubbles forms in the water. After those bubbles come into
pores, harmful substances like blackheads can be destroyed into smaller particles,
which then will be moved to skin surface by the high-frequency vibration of ultrasonic
waves. Sebum and other skin secretions which cause pore blockage will be emulsified.
The purpose of killing bacteria can be also achieved at the same time. In this way, this
machine can unblock pores, minimize pore size and smooth skin.
Physical effects
The high-frequency sound waves can work together with the use of softening
products or exfoliating creams, in which corneum will be softened, sound waves can
open up pores and then the high-frequency vibration will help get rid of harmful

substances inside.
The 3MHz ultrasonic vibration produced by the cleansing spatula(scrubber)has the
ability to reduce nutrients into very small fragments, which can effectively help with
skin’s absorption and make skin full of glow and elasticity.
Ultrasound
It makes high-frequency ultrasonic wave of 28,000 HZ/ second penetrate into the
subcutaneous tissue at a depth of 4~6mm. Ultrasonic wave has high energy and
strong permeability, which can drive facial cells to vibrate accordingly. It can not only
drive pore grease out, but also change the volume of cells to improve blood
circulation, which can stimulate cell regeneration and make the skin shiny and elastic.
Secondly, because of the heat effect caused by its high-frequency vibration, it also has
the function of quickly introducing nutrition into the skin, which can make the skin
better absorb the nutrients of the skin care products.

Hydro
Hydro facial treatment can convert some water molecules into hydrogen ions and
oxygen anions, which can make nutritional liquids enter skin more efficiently. In this
way, skin will be rejuvenated with clarity. Based on traditional hydro treatment, this
machine creatively adds rotating cleansing tip to the handpiece, thus having greater
cleansing abilities. This treatment can effectively remove free radicals and slow down
ageing process.
Photon Therapy Face Mask
Based on photodynamics, it activates deep cells and boosts skin metabolism. After the lights are
absorbed by the skin, the light energy is converted into cellular energy, , which can relax and
strengthen the micro vessels and produce photochemical--enzymatic reactions with the skin to
increase the content of glycogen and protein. In this way, it promotes the metabolism and
synthesis of cells, accelerate cell growth and blood circulation, and stimulate fiber cells to
produce collagen to increase skin elasticity. It plays an important role in skin care such as
repairing the aging skin and acne skin, fading spots, firming skin and alleviating sunburns.
Red Light:635NM. Red LED light of specific wavelength heats up skin bottom,
promote collagen regeneration, accelerates skin’s micro circulation, and increase skin
elasticity, leaving skin rosy and smooth and making skin look younger and have less
wrinkles.
Promote the regeneration of skin cells and activate active ingredients.

Blue Light:462NM. Blue LED light of specific wavelength shrinks pores, removes skin
grease, calm skin, fight acne, quickly lock in moisture and essence, leaving skin more
elastic.
Relieve skin inflammation, kill bacteria, get rid of acne.
Green Light:527NM. Green LED light of specific wavelength helps to calm, repair skin,
relieve pain, and promote blood circulation. It is suitable for those with thin corneum,
and who are prone to allergy and redness.
Purple Light: 600NM, dual frequency of red and blue LED lights. It combines the
efficacy of two kinds of phototherapy and has a particularly good repairing effect
especially for the treatment of acne and acne marks.
Yellow Light:590NM. It can add energy to skin cells, promote the role of glands, assist
digestion, treat skin diseases, enhance immunity, accelerate blood circulation,
effectively repair red marks, red spots, and relieve swelling and pigmented spots, and
is suitable for removing spots and brightening.
White Light:670NM. It reaches deep into skin, accelerates metabolism of active cells,
decomposes pigments, reduces fine lines and tights skin. It can also relax skin, balance
sebum production and control oil secretion.
Turquoise Light:610NM, dual frequency of green and blue LED lights. It gradually
enhances cell energy, and has positive impact on metabolism.
Applicable Range
1. Those with fine line, wrinkles or dry skin.
2. Those with large pores and rough&dark-toned skin.
3. Those with poor absorption of skin.
4. Those with uneven-toned skin.
5. Those with oily skin or excessive grease secretion.
6. Those who lack elasticity of skin and improper skincare routine.
7. Those with saggy skin.
8. Those who have saggy skin and suffer from edema after childbirth.
9. Those who work in office for a long time and expose themselves to ultraviolet rays.
Inapplicable Range
1. Those who have severely sensitive skin or are having allergic reactions.
2. Those who have prostheses in their noses.
3. Those who have large lesions on the face.
4. Pregnant women or patients with severe heart diseases, severe hypertension,

hyperglycemia, hyperlipemia, major diseases and so on.
5. Those who have skin diseases or contagious diseases.
6. Those who have just taken skin booster, and micro-needle treatment or who have
incisions on skin.
7. Those who have metal implants in body such as stent and pacemaker or who are
sensitive to metals.
After-treatment reactions
You may feel uncomfortable sensation of tightness on some areas for several days. It is
normal. At that time, skin needs to be nourished in part due to RF stimulation for
collagen regeneration so you can see better skin’s absorption if using face mask, eye
mask and neck mask. Those with sensitive skin may experience redness and swelling.
Do not worry about that. Keeping a good skincare routine can help you out very soon.
FAQs
1. Q: Can I put on makeup after operating this instrument?
A: Absolutely you can. After treatment, the skin is moisturized and plump, and putting
on make-up will see better effect at that time. This is a non-invasive skin care, which is
safe, healthy, fast and effective.
2. Q: How long can I see the effect after taking the treatment?
A: After one treatment, you will find your skin will be clear with clarity. Taking more
treatments can help deliver more noticeable effects. Skin problems such as dryness,
darkness, fine lines and other ageing conditions can be dramatically relieved.
3. Q: Is there any dependence on taking this treatment?
A: No dependence. This is aimed at refining and cleaning the skin, which belongs to
the maintenance product that helps skin avoid problems caused by other factors, help
the skin absorb nutritional products, relieve skin dullness, dryness and roughness and
wrinkles. If you do not take this treatment in the later stage, skin will just return to
previous secretion and aging process, and that will not cause dependence.
4. Q: Can this ultrasonic cleansing spatula be used on dry skin?
A: No. Medium should applied on skin. Only when face is kept moistened and pores
are opened will the better effects be delivered. It is recommended that you should
apply skincare liquid or liquid nutrient so that those substances can be absorbed by
skin.
5. Q: Does ultrasound treatment have side effects for human body?
A: It is non-surgical and non-invasive treatment without anaesthesia. Generally
speaking, it is not harmful to human body. Though it releases some energy, the energy
is not high enough to do harm to body. Contrarily, it has accumulative effects that are

good for the body.
6. Q: Does the ultrasonic introduction help relieve acne scarring?
A: ultrasonic introduction can take advantage of the high-frequency vibration of the
sound waves to introduce whitening nutrients into skin, inhibit the production of
melanin and fade spots, thus effectively relieving the dark tone of skin and
pigmentation spots caused by acne to restore skin’s fairness. This treatment is safe
and reliable without side effects. After-treatment care is simple and outdoor activities
are allowed.
7. Q: Will the Hydro treatment make pores become larger?
A: No. There are three stages in this treatment. The first stage is the liquid softens
corneum and the second stage is the bubble liquid plays its role to remove dirt and
impurities. The last stage is to moisturize skin. So this treatment is suitable for all kinds
of skin types and it will make smooth skin and minimize pore size instead of making
pores become larger.
Treatments:
Thorough Cleaning
Skin Tightening&Rejuvenation
General Skin Care
Skin Soothing&Repairing
Neck Care
Consultation between treatment candidate and the treatment practitioner: to know
what the problems and the customer has and the expectations he/she has about the
treatment results. Then recommend proper treatment to them.
Case 1: Thorough Cleaning
A: I’d like to take cleansing treatment to relieve the condition of large pores and dry
skin.
B: Well, I’m gonna give you a cleaning treatment first and then recommend proper
treatment to you according to your skin condition.
Something needed before treatment:
Washing basin, disposable bag, small glass bowl, makeup remover, cotton pad,
washcloth, face cleanser, face mask, toner, essence, lotion, ace cream, and suncream.
