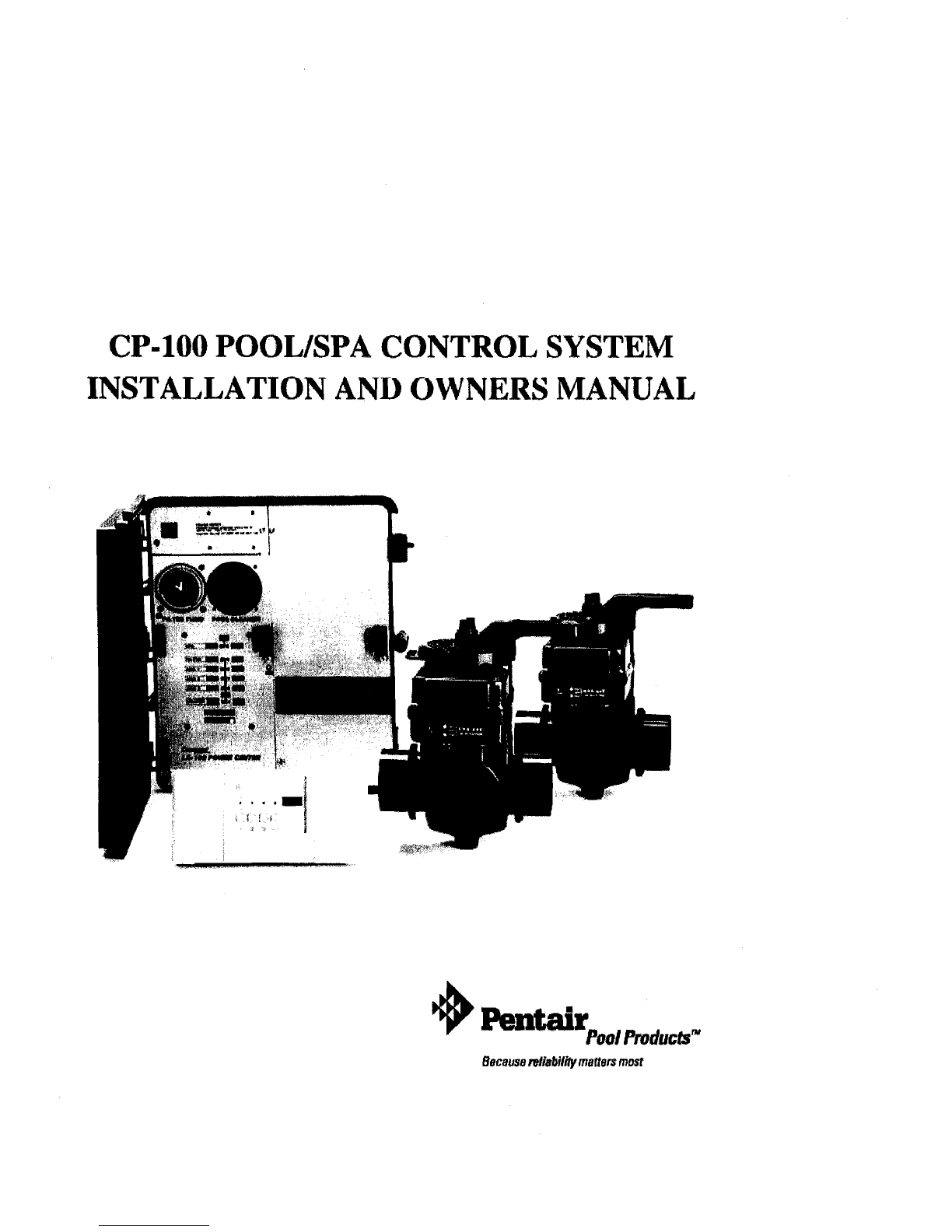

CP-100POOLISPA CONTROL SYSTEM
INSTALLATION AND OWNERS MANUAL
$hemtd11' Pool Products"
Because mliabiliry maftem most

INSTALLATION MANUAL
IMPORTANT SAFETY INSTKUCT1QNS
SYSTEM INCLUDES
TOOLS
REQUlRED
EQlJlPMENT LOCATION
RECOMMENDED HYDRAULIC SCHEMATIC
PLUMBING REQtlI REMENTS
LX-100 POWER CENTER
HIGH VOLTAGE WIRING
GENERAL
SYSTEM POWER
EQUIPMENT POWER
LOW VOLTAGE CABLES
LOW VOLTAGE WIRING
CP- 100 INDOOR CONTROLLER
USING THE CRIMPING TOOL
VALVE ACTIJATORS
WATER TEMPERATURE SENSOR
HEATER CQNNECTIONS
DUAL THERMOSTAT GAS kIEA1'EK
SINGLE THERMOSTAT GAS HEATER
ELECTRIC HEATER OK HEAT PUMP
SYSTEM OPTIONS
SPA-SIDE llEMOTE CONTROL
POOL CLEANER
AUXILlARY VALVE
SPA WATERFALL CONTROL
FREEZE PROTECTION
SYSTEM START-UP

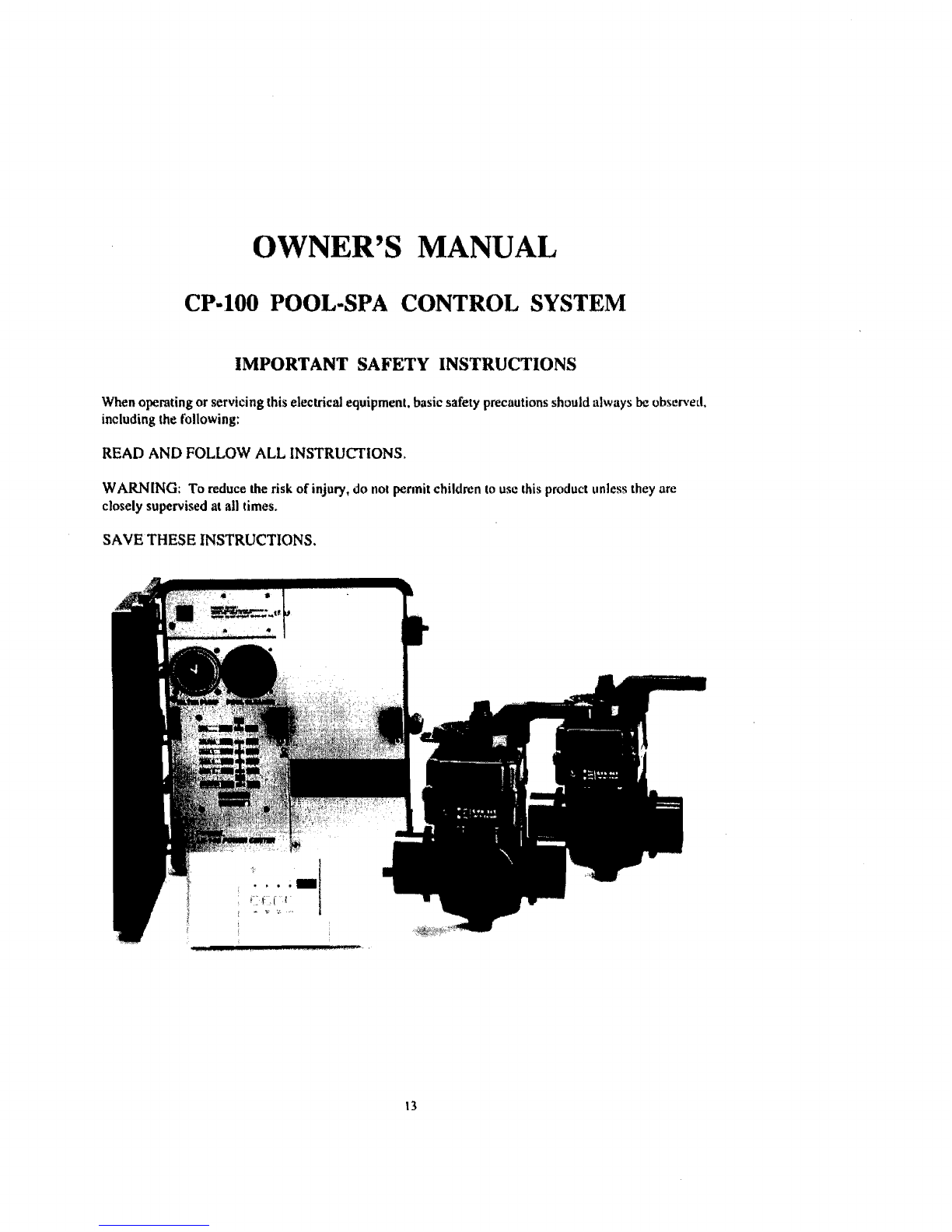

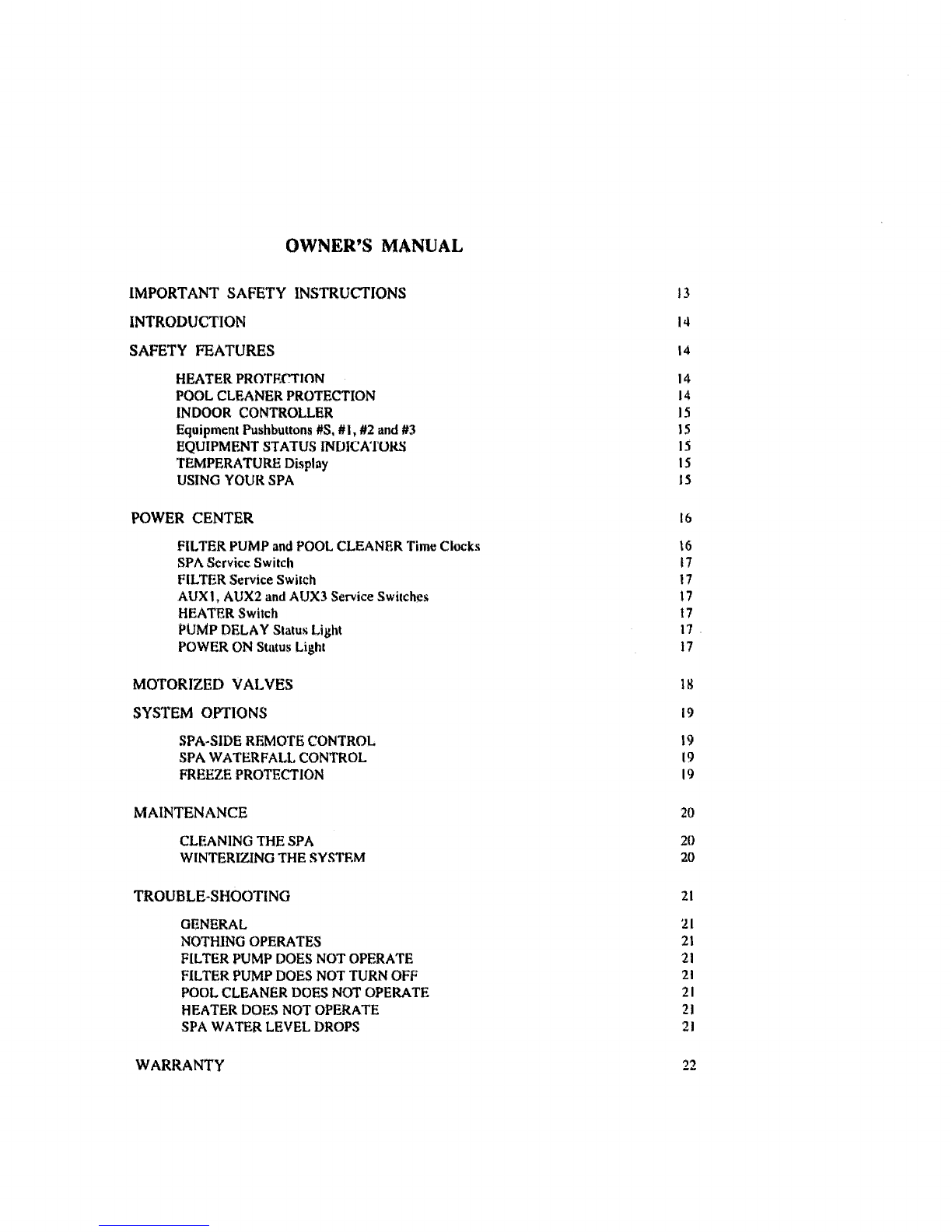

OWNER'S MANUAL
IMPORTANT SAFETY INSTRUCTIONS
SAFETY FEATURES
HEATER PROTECTICIN
POOL CLEANER PROTECTION
INDOOR CONTROLLER
Equipment
Pushbuttons #S, #I, #2 and #3
EQUIPMENT STATUS INDICA'I'UKS
TEMPERATURE Display
USING YOUR
SPA

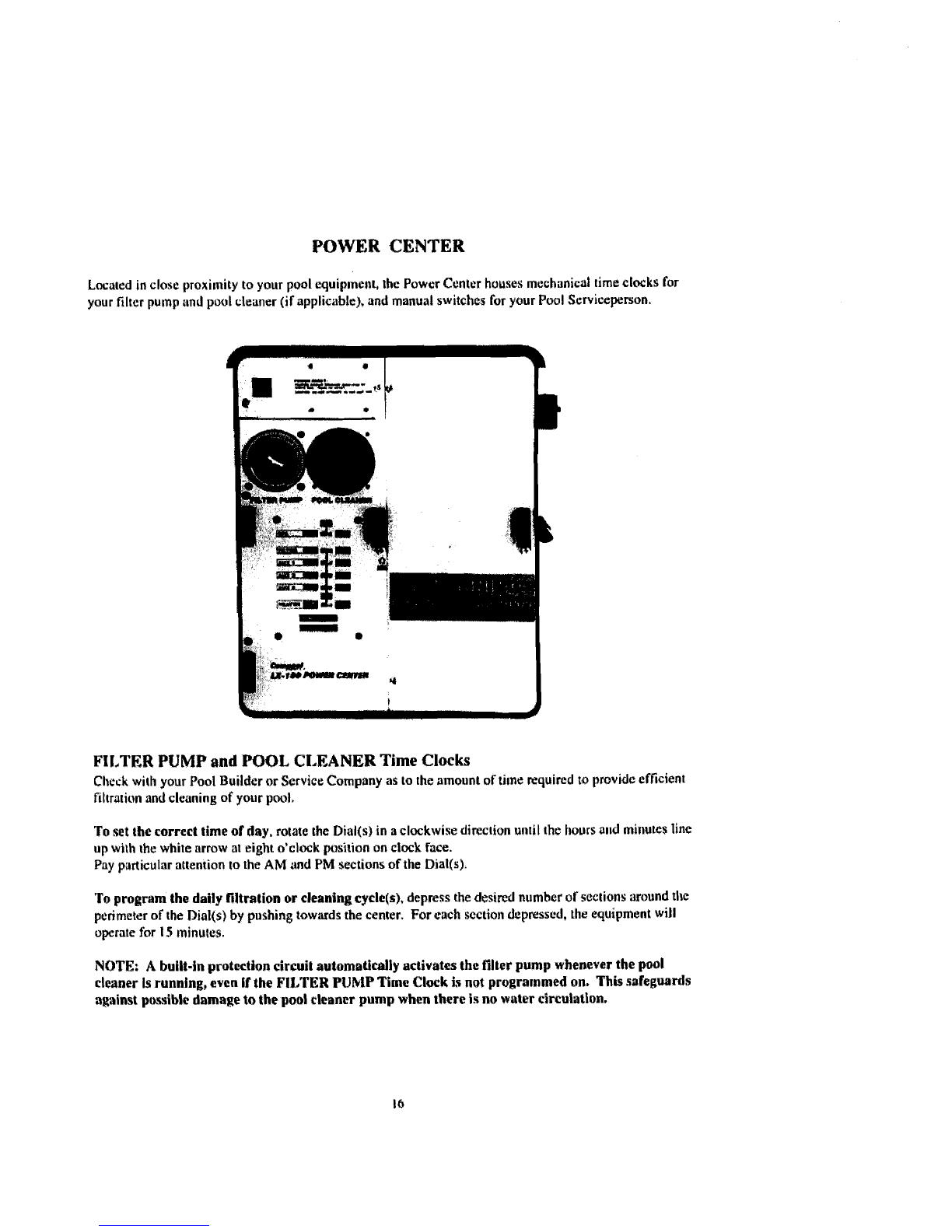

POWER CENTER
FILTER PUMP and POOL CLEANER Time Clocks
SPA Scrvicc Switcl~
FILTER Service Switch
AUXI, AUXZ and AUX3 Service Switches
HEATER
Switch
PUhdP DELAY Slatus Light
POWER ON Stutus Light
MOTORIZED VALVES
SYSTEM OPTIONS
SPA-SIDE REMO'rfi CONTROL
SPA WATERFALL CONTROL
FREEZE PROTECTION
MAINTENANCE
CLEANING THE SPA
WINTERIZINGTHE
SYSTEM
TROUBLE-SHOOTING
GENERAL
NOTHING OPERATES
FILTER PUMP DOES NOT OPERATE
FILTER PUMP DOES NOT TIJRN OFF
POOL CLEANER DOES NOT QPEMTE
HEATER DOES NOT OPERATE
SPA WATER LEVEL DROPS

INSTALLATION MANUAL
CP-100 POOL-SPA CONTROL SYSTEM
IMPORTANT SAFETY INSTRUCTIONS
All wiring must be performedby rr qualified elech-icisn.
Basic safetyprecautionsand locd codes should always be followed when installing and using this electri-
cal equipment.
REAP AND FOLLOW ALL INSTRUCTIONS.
WARNING: To reduce the risk of injury,do not permit children to use this product unlessthey arc closely
supervised at all limes,
SAVE THESE INSTRUCTIONS.
SYSTEM INCLUDES
CPlOO Conmller.
LXlOO Power Centeror LXlUOL Load Cenler.
CVAZQTValve Actuators, P/N 263045 (2qty).
TSSL Water TemperatureSensor.
2COND flook-up Cable (25fl spuul).
6COND Cornmu~ricationCable (2qty 150n sppnls).
Modular Connectorsfor Comnlunicalion Cable.
MountingHnrdwarc for CP- 100.
TOOLS REQUIRED
3/16" dia. DdII (for mounting CP- LOO Uon~ller).
5/16" dia, Drill (for mounting TS-5L WaterTempralure Sensor).
Crimping
Twl for mounting ModularConnectorsto Communication Cable: (modal TOOL-6)
EQUIPMENT LOCATION
With theexception of the Spa-side Remote Control (which is UL listed for ins~allntion right at the tile-line
of the spa), all equipmentmust be located five feet or more from the water's cdge.
1.
LX-100 Pawer Center at the equipment site.
2.
CP-IN (Inntroller inside the hvuse or other weather-pmtectd arm.
3.
CVA-24 Valve Actlurtors at valves to bc motorized.
4.
TS-5L Water lkmperature Sensor at the fitterpump,
5.
Spa-sidc Rcmote Control (optional)a1 spa wall ordecking.

RECOMMENDED HYDRAULIC SCHEMATIC
Refer for "PLUMBING REQUIREMENTS" on page 3

PLUlVIBING REQUIREMENTS
Plumbsystem inaccordance with "RECOMMENDED HYDRAULIC SCHEMATIC" on page 2, lmal
cdesund the followingguidelines.
Bring all lines back to the equip~nentpad.
1.
Spa should be at or above the level of the pool.
If
spa isattached to pool, provide adam bctwcenthe bwo bodiesofwilter to allow spa overflow
intopool,
If spa is not attachedto pwl, an overflow. sufficient insizetocarry full pump-flow,
must
bt: installedat water level in tlie spa.
2.
Plurnha three-portIntake Valve onthe suction-sideolthe filter pump, sothat cearer portofvnlvr
isconnectedto the pu111pinlet.
Connect spa suction to one
side ofIntakeValve, andpool suction to the othcr side.
3. Plurnh a three-port Return Valve on thereturn-side of the heater, so tllot rcturt~walcr will cnlcr
valve through the center pon,
Conncct spa returntoone sideofReturnValve, andpoolreturn to the other side.
4.
A W spa make-up line (incot-prating a H" manualgateorball valve and, forelevatedspis, a '/I".
check'valvc) may bc providedtobypassthe pool return line. l'his willenable somealthe chemi-
cally-balanced water from
the poolto cycle through die spa. The manualvalve will allow lhe
amount ofbypasto be adjusted,
5. If the spa is to be constructedinconcrete, specialprovision should be madeut this time for the.
installationof the Spa-side Remote Control.
Select n convenient location in the deck orabovewater levelinthe spa wall (wheretheSpa-side
Ru~norewillnot be submergedby the spa water). and install n 6" to 12" length of I-'/)'" pvc pipe to
pmvide r receptaclefor the Spa-side Reniorc. The pipeshould belevelandprotrudebeyond the
finished surfilcc ofthe spa. It will be cut back n later date.
Reducepipsize downto $5'' or %iV conduit, andrun to proposed LX-IOU locationat equipment
pad. Use swcep elbows for turns.
The Spa-ride Remotewlllnot be installed until spa construction is iwmplclc.
6.
Forsystems which incorporate a skimmer. it ispossibletobalance the amount ofsuctionbetween
the skimmer andmaindrainfor maintenance purposes.
This
is uasily accomplished by installing a manual three-port mixingvalve at the suction linc.
Plumbonc port to the skimmer and the other to the maindnin.
7. If a "non-booster pun~p"pressure-sidepoolcleaner is beingused, plumb a manualthree-port valve
betweenthefilter pumpandfilter, with the third portplumbed to thepoolcleanerlinc. and install a
motorizedtwo-porz PoolCleaner Vaive at this line. The motorized valve will autr~~naticallyopen
wl~encvcrtlie ControlSystem activates Ihe pool clmna.
8.
Ifa boosterpump poolcleaner is beingused. plumbthe booster pump so that its suction-side is
connectedto the pool return, after the heater and as close to the ground as praaicnl.

Select a col~venientlocation tomount the LX-100 PowerCenter. Ensure ht the location is greikr than 5
frrt from the water's edge and no hurther than 15 feet from any motorized valves (otherwiseValve Actua-
tor cableswill need lobe extended).
Mount the
1.X-100 on a flat surfaceusing appropriatescrews lhrough the three cxtenlal mounting paints
located on the side
of the enclosure, Do not drill and mount from inside the enclosure.
Looscn LOCK SCREW of hinged faceplate in left-side of LX-100, and swingopen to expose the low-volt-
age compirtment. All low-voltageconnections are made tothe circuit board, in accordancewith wiring
diagram lucated insidedoor.
The high-vottage wiring compnrtment is located behind service panel in right-side of LX-100.
HIGH VOLTAGE WIRING
GENERAI,
At khe equip~nentsite, install an electricalsub-panel wbh separatebreakers for each load,
Circuit breakers should
be readily accessibleto the spa user, but installed at least 5 feet froin the water's
cdgu.
Make sure that the rnolor(s)on the equipment have built-in thermal protection.
At the LX-100, remove the
service panel (at left)to expose the high-voltagecompariment, and knock-out
the appropriate l~oles at bottom of enclosureto facilitate condui~mounting. Screw terminals are pmvidcd
for high-voltagecorrncctions.
SYSTEM POWER
Provide a repiirate circuitb~akerto power the system. Either 1 15 or 23OVAC cnn be used [ I 15V is pref-
erable). System dnwsless than I-Amp. The breaker will open all ungrounded supply conductors to com-
ply with section
422-20 of theNational Electrical Code,ANSVNFPA 70-1987.
Run approprialo wires from circuit breaker to high-voltagecompartmentof LX-100, and connectto top
renninal black in iiccordince wilh wiring label, which is marked SYSTEM IDOWER,
Install twojumper wires for 11 SV, or onejumper for 230V, accordingto wiring label.
EQUIPMENT POWER
Provide independent circuit breakers for R1 (FLTR), It2 (AUXI), TW (AUX2)and R4 (AUX3).
Run opproprii~tewires from breiersto high-voltagecompartlnentof LX-100. and connect to LINE1 and
LINE2 sscrcw terminalsat each terminal block.
Connect pumps and other high-voltageequipment 10 LOAD1 and LOAD2terminals.
Each individual terminal block can
be wircd foreithcr 115V or 230VAC.
Note: For 11 5V cquiprnent. only half of the terminal block will bt. used (ic: LINE1 rmd LOADI).

LOW VOLTAGE CABLES
Install cnble betwccn the low vokage colliparrment of the LX-100 PowerCe~lterilnd Ihc various pieces uT
equipmnent. Provideplastic or me~nllicconduit where cables run underground. through concrete, etc.
Note: Never installlow voltage and high voltage wires in the sumc conduit. It is advisable to main-
tain s minimum dlsrance of 12" between parallel runs of low voltap snd AC currcnt-cnrryingwlrcs.
1. 2 qty. separate I50 foot spools a# 6-conductor 26 AWG conrtnunication cable arc providd (w1e
black and one silver) to connect to he CP-100 Controller.
Nore: Cable lubricant must be uscd when pullingthese cables through tke condult.
2. 25 feet of Zconductor 22 AWG cable is provided ro conncct the Warcr Tempcralurc Sensor.
3.
CVA-24 Valvc Actuators are provided with 15 feet of 3-condactor cable.
4.
The optio~~al Spa-side ILnioleControl is provided with necessnry ci~ble attached.
LOW VOLTAGE WIRING

CP-100 INDOOR CONTROLLER
Select iI cunvc~rictillecatiunirraiduthe houseorathcr weather-protcctcdarea to nlount theCP-I00Con~rul-
Irr. The overall wiclth oftlic Controller {withdoors open) is I I -W. The locarior~ofthe 6-conductorconi-
munic:~tioncables (onthr cunterlineof theenclosure) shoultl thcrcfore bc? at least 5-'A" fro111 any door
jamb, wnll corncr or otheroblrti~cle.
Removebilckplatc fromController. Temporarily pullcables through largehole Inhrekplate, and position
backplate on surface ofwall, Make sure that backplutc is level andthat ''TOP nomenclature is oriented
comctly,undmark the thrw rnounlingpointsonthe surfiice ofthe wall. Withthe backplateremovedfrom
the wall. drill 3/16" diilrneterholesand insertmountioganchors (included) into
the three holes. Pullcables
through lurgc hole inhnckplate, and use the three 14" screws to mount backplate to wall.
Usethe
CrimpingTool (model 'TOOL-6) toattnch modularconncctoa at each end ofboth cables. See
1ISING THE CRIMPING '~O'OOL., below,
At the CP-100Contmlter, plugthe kilccrcable (with modulitrconllcctar attached) intothecircuit board at
Socket #I (SII,VI?H), and plugthe black cable into Socket#Z,
Use ttrc f~~trr W screw>(included) lo srotlnt CP- 100Controller tothe bickplate.
At the 1.X- 100PowerCcntcr, plugthe silvercable(with n~oduliwconnector attached) intothe circuit bond
31 Socket #I (SLLVER). ;~nd plt~gthe black cable into Socket #2.
USING THE CRlMPlNC TOOL
Make sure thilt the end ofthe cnhle is cut squsmly (not diagonully).
Insert thc cable hetwccn the stripper hlades ofthe tool untilittouche$thc stop, Squeem the handlesand
prrllthe tool, maklngsure ihiit the cablestays perprndiclrlar to i~. If this is done correctly, the outerjnclct
of the cubic will hc re~novcdwithsi~tdamaging the insirlation on the individualcondtictors.
Pl;tcc anrudt~lurconnccror in ihr tloldcr portion of the tool so that the fron~ofthe connectorisagainst the
\top and the gold co~ltuctsbcc the crimper. Oricnt thu pwparcd cable so that the blue conductor is closcsb
to the tool liantllcs. :tnti insencable intoconnector. Makecerti~inthat theconductors are tlush with Lhe tip
oftltc connector and di~ctlyunderthe gold contacts.
Squeeze thc hancllcs firmly to set the contacts i~nd
wcurc tlir cuhlc,
Note: It is important that thc!orientation (blue conductor closest to tool handles) is identical at all
four cable cnds.

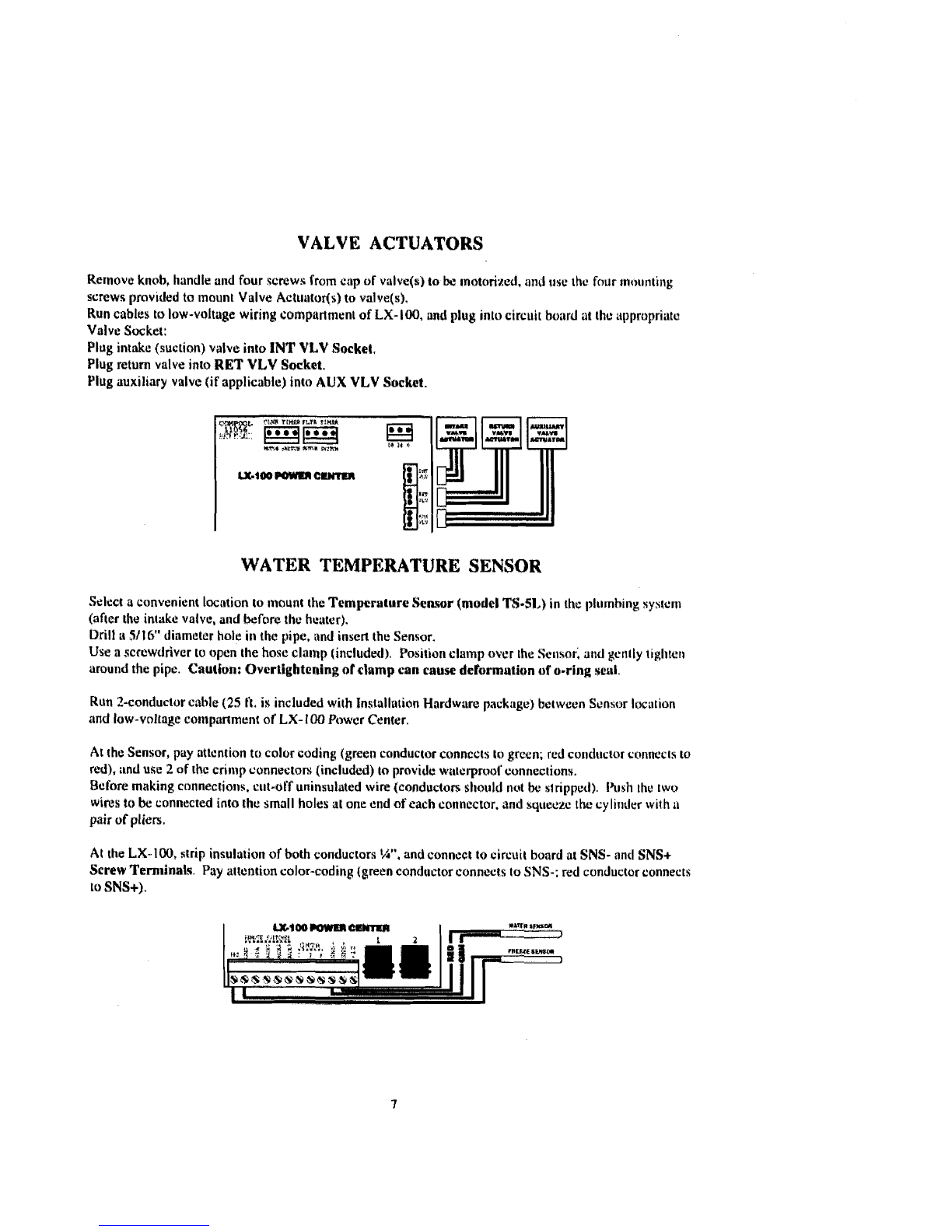

VALVE ACTUATORS
Reniovc knob, handle and four $crew?;from c;ip of valvc(r) to bc matorixcd, and rase thc four mounting
screws provided to mount Valve Actuntods) to valve(s).
Runcables to low-voltage wiring uompartn~entof LX- 100, ond plugintocircnit board at thc uppropriatc
Valve Socket:
Plugintake(suction) vslva into
INT VLV Socket.
Plugreturnvalve inta RET VLV Socket.
Plugauxiliary valvc (if applicable) inta AUX VLV Socket.
WATER TEMPERATURE SENSOR
Select a convenientlocationto mount thc Temperature Sensor (model TS-51,) inihc plumbingsyarcni
(after the intake valve, and before the hcatur).
Drill r 5/16" diamelcr hole in ihc pipe, irnd insertthe Sensor.
Use
n screwdriver to open the hosecln~i~p(includrtl). Posi~ionclamp over the Senaar, antl gcntly tighten
around
the pipe. Caution: Ovcrtightening of clamp can cause deformation uf u-ring sci~l.
Run 2-conductor cable (25 R. ix includedwithInslallrbtianHardware package) betweenScnsor Iociition
mdlow-vollagc conlpartmcnt of LX- 100 PowerCenter.
At theSensor, p;ay atlcntion to color coding (greencaiiductor conncctslogrecn; redconductorconnecls lo
red), and
use 2 of the cnnrpconnectors(inclutlcd) to provide wl~crpmol'connectionu,
Bcfore makingconnectic~ns,c~~l-orfuninsultrted wire (conductorssl~or~ltl not be s! ripped). I'r15h the twu
wires to be connectedintothe small holesat oneend of each conncctor, andsqueczc the cyli11dr.r with ;I
pair ofpliers.
At the LX-100, strip insula~ion of bothconductors $5". andconnect to circuit board 81 SNS- and SNS+
Screw Terminals. Pay attention color-coding(greenconductorconnectsto SNS-; redconductor connects
to
SNS+).

HEATER CONNECTlONS
DUAL THERMOSTAT GAS HEATER
Inside the gas heater, connect three 18 AWG wCrm in parallel with the heater toggle switch,
Do not dlscunnect or bypass the flow, pressure or high IImlt switches,
Place the heater toggle switch in the "'OFF' position, md set hethermostats to desired pool and spn tern-
pemtures.
Run hethree wires to low-voltagecompartment of LX-100 Power Center.
Strip insulation !A", and connect to circuit board at GMTR Screw Terminals, in accordancewith wiring
diagram located inside the LX-100cover:
Connect "High" of heaterthermostatto
Terminal #S.
Connect"Low" of heater thcnnostatto Tkrminal #P.
Connect "Commnn" of heater thermostat to Terminal #C.
SINGLE THERMO$TAT GAS HEATEmEAT PUMP
inside the heater, connect two 18 AWG wires in serieswith the heater circuitry,
Do not disconnect or bypass the flow, pressure or hJgh limit switch&
Place the heater toggle switch in thc "ON position, and set the thermlmtttto the desired temperature.
Run the two wires to low-voltagecompmmentof LX-180 Powerhad Center.
Stripinsulation W, md connect to GHTR Screw 'Rrminab at Terminals #P and #C.
Make a jumper wire and connect Terminds #P and #S together.
ELECTRIC HEATER
For systemswhich utilize nn electricheater, a 20=Amp Relay Kit (model RLYI,X) should be udded at the
WL- 100 PowerILond Center.
1nst;tllRL-LX in accordoncewith instructions provided, md plug ontocircuit hard at the EHTR relay
socket.
The relay is captrble of controllingan clecuic hcatcr (rated up to 3KVA), or the magnetic contactor of a
Larger electric heater.
hide the heater, connect two 14 AWG wires in series with the heater thermostat circuitry. Placethe
heater to~gleswitch in the
"'ON" position, and sa the lhcrmostalto the desiredtemperature.
Run
the rwo wirev to the high-voltagecompartmentof the LX-100 Power/LodCenter, and connecr Lo
LINE1 and LOAD1 terminals of heclectric heater relay.

SYSTEM OPTIONS
SPA-SIDE REMOTE CONTROL
The optional Spa-sideRcmote Control is a double-insula~cddevice which is UL-listed ror instiillation
within 5 feet of the wuter's edge. 11 is typically inslallcd at the tiIe-line of the spa wall (above wntcr level).
or in thc deck within arm's reach of thc spa.
If the Sp-side Remote is to be installed into the wall of a gunitespa, provision should bc lnade while the
spa
is king plumbed. See "RECOMMENDED HYDRAULlCSCHEMATIC" on page 2.
When the spn constmctio~r is completed. cut back the 1-55'' dia, pvc receptacle flush with the Fpa wall fin-
ish or surface of deck.
See Fig. 1.
Screw Mounting Adapter onto Spa-sideHemole,and finger-tighten. Do not use wrench.
Threadcable through conduit to low-voltagecompmment of LX- 100Powcr Ccntcr.
Carefully glue Mounting Adapter into
I -U" pvc reccptaele using pvc cement. For aestheticpurposes, it is
suggested that the Spa-sideRcl~tole be instiillcd with the red pushbutton in the 12 o'clock position. See
Fig. 2.
I-%" PCV PIPE
SWITCH I11 (RED WIRE)
H #2 (YELLOW WIRE)
SUPERSWITCH
MOUNTING ADAPTER
M #3 (GREEN WIRE)
CH #4 (BLUE WIRE)
Fig. I Pig. 2
At the LX-100. identify he 6-conductorcahll: from thc Spa-sideRemote, and cut-offexcesscable as nec-
essary. Strip insulation of ench conductor ',4", and connect to REMOTE SWlTCHESScrew Terminnls
at bottom of circuitboard in accordancewith wiring diagram:
Black conductor(SwilchCommon)
LO GND screw terminal.
Red condk~ctor(Red Pushbuttan) to SPA screw terminal.
Yellow conductor (Yellow Pushbutton) to AUXI scrcw terminal.
Grecn conductor (Grrcn Pushbutton) to AUX2 scrtw terminal.
Blue conductor(Blue Pushbutton)to AUX3 scrcw terminal.
There is no connection for the orangeconductor.
A set of adhesivelabels is provided for custom identification of individual Spa-sideReniote pushbuttc~ns.
Use il pair nf fine-dptweezcrs to carefullyadhere thc appropriate label at each button.

POOL CLEANER
For sy~tctii~wlllch i~icorporirte iI hnoarcrpumpp(~olcleaner. il is posbibls to ildd a ~nech;rnic;~ltiliic clock
for prugrunitnlag the di~ilydlcunil~gcyclch,
Inatall 24-flour TimeClock {model TMH-1.X) lnreLX-100f;~ceplntent the POOI, C1,EANER locat~on,
and plugrntutop of circuit boildikt CLNH TIMER socket, Inaccordancewith instnlctions prov~dcd,
1nat;:H D 20-Amp Relay Kit (model RLY-LX) at the LX-100Power Center inwoordanre with instruc-
11unsprovided, undplugInto cIrcirIt board
CLNRrelaysockcl.
AUX1LIAHY VALVE
It is prr\sihle to t~dd il Valve Actuator (model CVA-24) to rhcsystem to motorize a two-port or three-port
vnlvr: for it cualomhydraulic feetun. (silch ils n poolclermer, fountain, waterfall. etc.). The Valve Actuator
C~II hc il~ttvi~tctlrrt.\~lteithcr the poolcleilncr or ituxiliary 3 circuit.
Ktmuve knob, handleslid four screws rrorncap ofvalve to he motorized, and use the Ibur moilnling
\crew* prouidcctlostollnt Velvc Actuator to valve. Runcabkto low-voltage compartnicnt of LX-100, and
plug intt9circuit ho.~rtl 111 AllX VI,V Valve Socket,
ItIc~iliiy lll~ I-ptn~ti~ri AtfX VI,V Program Switch, whrch is locatedat bottom right of L,X-t(H) circuit
hoiird. i11td (IN thc curncr of il ur~iilll sc.~wdrrv~.rototherblulit instrumentto adjust !lie Swilchaccordingly:
I To JCI~VJ~C V;IIVC in3111 the pc>o1 clenriercircuit, [urn Switch #1 ON and Switch #2 OFF.
2. 'To ;lrtlvatc valve fro111tlrr auxiliary 3 circuit, ltrnr Switch #I OFF iind Swltch #2 ON,
SPA WA'I'ERYALL CON'I'HOL,
Itor systc~iiawlicre spa water Icvel 1s l~igllerthat1 that orthe pool, it is possiblc to use the sl~xiliary 1 circuit
to roti~tethe return vitl~e to ?iPilreturn poGtiun. {hub crciit~ng ,111 ovcrtlow (watcrf;lll effect) Frt~rnlhe spa
Infir the pocrl, This featurc will cease whenevcr the spa is beingcirculnted
7'0 rnnhlc this f~i~tii~,it is lacessary lo~tljustthe 7-position WTHPL-AUXl I'rognm Swiith, which is
loci~t~datccntcr right of LX-100circuit boi~rd.the the corner elf a mill screwtlrivar orotlier blunt instru-
luc~itto \lrdc Switch #I and Switch 112 to the ON pmition.
FREEZE PROTECTION
A Rccircubting Freeze Serrsor (niodel FPS-C) mity headded lothe system. ft will protect thc plr~~nh~ng
.at4 eqt~~pllle~tth111ptrxaiblc frec~e d;i~ni~gc hy runnlng the filler pump whenever the ternpereltitcfall\ to
'rpprnr. J I OF.
Insti111 FPS-C III uccurd;lncc I\. 1111 in~rructiun\provided, and connect to LX-100circuit board at FRZ and
GND +crew tcniiiltnls.
An Auxiliary FreezeSctwor (model FPS-AUX) moy illso be iddd to the system t uctivatc it~~ili~fy
eqiripnicnt (\itch as a jct pump)during potent~rtlfreez~ngconditions.
InsdlFPS-AUX Inascordirnce with insiructians provided.
Note: It is udvisitblc to inspccland test Freeze Sensors at leastonce s year, preferably prior lo the
onset d thc freezing season. Testing can be done by immersing Sensor inice water.

SYSTEM START-UP
s rtem.
Apply power to th~ y
At the PowerCenter, verify that the POWERON sbtus light is illu~ninated,and makesun: that ;ill of thc
ServiceSwitches are inthe "AUTO" position.
If the stitluslight isnot on, check the J wrnp circuit brcokcr which is located abavc !he faceplate. Ifthe cir-
cuit breakerhas tripped
(indicated by i\ white tab), pushto rcsct.
At the IndoorController, verify that there is a TEMPERATURE Display and check Ihi~lrhc EQIIIP-
MENT STATUS INDICATORS are functioning when the IDushbuttons are activated.
Irtheru is nostatusdisplay, check the connectionsat eachendofthe communication cables very carefully.
If necessary, crimp new modularconnectors tothe cables.
If
the TEMPERATUREDisplay indicatesthree dashes (- - -) ar a very hightemperature (400 dcgrcesor
more), check tho connectionsto the TemperatureSensor,
At the Indoor
Controller, pressirppropriate Pwhbuttonfs) so ~hnt noneofthe EQUIIDMENTSTATUS
1NDlCATORS arc illuminated.
At the intake and Rclurn Vrrlvcs, Flip toggle switchon rearofA~Iui~tor(s)between "ONI" i~nd "ON2"
positions as nicessaryso that volvcs have rotated to poolcircul;itinn.
At the PowerCenter, ver~fy[hut tho FILTER PUMP Time Clock is operitting.
Toset the time ofday, rotatcthedial in a clockwisc directiorruntilthe hours irnd ~ni~~utesline up w~th the
white amow at eight o'clock position on clock face.
To progmrndaily opcrzlting cycle(s), depress the desired numbcr ofsections aroundthe perilnt.,
r~l ll~c
dial by pushingtowards thecenter. Foreach sectiondepressed, the filter pumpwilloporutefor 15 roinules.
If the systemlias a POOL CLEANER Timc Clock, verify that it is operating, and check thi~titalsoact!-
vates the filter pu~ripwhcn the FILTER PLJMP Timc Clock isnot programmed on.
At the Power Center, slidc the SPA Service Switch to "FILL. "1)KAIN" and hack to "AIlTO" posrlion,
and verify that the Valvc Actuators arc?rotatingaccordingly.
If oneof the Valve Actuators is 180 degrees out ofphase, fliptoggle switch on rearofAcltiator bctwcen
"ON1 " and "UN2" position,
At the PowerCenter, verify thirt the filter pump is being activatedfrom the "QN" i~nd "OFF" posltlons or
the FILTER Service Switch.
Verify that thc auxiliary equipment is being activatedfmmthe
"ON" and "OFF' posi~ionuoi' the AUXI,
AUX2 and AUX3 Service Switches.
Slide FlLTER Scrvica Switch to the "ON" positionand the HEATER Service Switch tothc "SPA X!
POOL" position, and ver~fythat thc hratzr hiis fired.
Ifthe heatcr doesn't
fin.. check the controls inside the healerand also the wiring conrtvctions.

At dio Powcr Ccnrcr, rcturn lho 11EATFaR Service Switchto tlic "SPA ONLY" position and all the other
Service Swilches to [he "BUTO" pcaition.
At thc Ind<~orContrullcr, prrbb Pushbuttan #S tcr turn rhr spa on.
Verify that the Valve Acluators have rotated to spi circulnt~on. rhc filter pump has been activatedand the
heater ha5 fired.
PressP~shhultons #I. #2 und #3. end check that appropriateequipment is beinguctivnkd.
A set uf irdhesive I:tbcls is provided fur custom identification of equipmenl.
Usc ii pairof fine-tip tweezers toadhcn, the appmpriirte labcl(s) bclow the Pushhutton(s) on the Indoor
Controller.
Calihn~tiun of the I'KMPERATURE Display has ken preset at the factory, However, fine adjustn~ent
con bt: accrrrnplihhcd if necessary.
trrwrt il srni~ll1l;lt-blndc screwdrivur through thc ADJUST hale which IS Imucd hehindthe rightdoor of
Ihc Indoor C~~ermllcr.ilndtotatu thc Ad-iustn~ent Screw accordingly.
Thesystem is now lrndy to bc operated as desired.

OWNER'S MANUAL
CP-100 POOL-SPA CONTROL SYSTEM
IMPORTANT SAFETY INSTRUCTIONS
When operating or servicing this electrical equipment. basic safety precautionsshuuld always be obscwetl,
including the following:
READ AND FOLLOW ALL INSTRUCTIONS.
WARNING: To reduce the risk of injury, do not pnit children to usc this product unless they are
closely supervised at all times.
SAVE THESE INSTRUCTIONS.

INTRODUCTION
The CP-100isanelectronic control systemwhich isdesignedtocoordinate and operateall ofthe equip-
ment associutedwithyour swimmingpoolendspa.
The system is comprised
of thrcc principle components:
I. Indoor Controller.
2. Power Center,
3. Motoriacd Valves (3qly).
The Controller providespushbuttonconlrol of the equipment fromtheconvenience of your home; the
Power Center automatically controls the timing of your filter pumpand poolcleaner (if i~pplicable) and
provideseasy mnintennnce for your PoolServiceperson; md the Motorized Valves switch the filterand
hestorfroni poolto spa
Additionally, the Control Systeniincorporatesilnpctrcantsafety features which protect your pool aluip.
ment from ;rccidentaldamage.
Yoi~rsyslernmay also includeaddirional Retnott: Controls end special options which further add to the
cnnvcniencu. siifety andeconomy ofoperating your pool equipment.
SAFETY FEATURES
HEATER PROTECTION
A built-in clwtrotiicdelay circuit auromaticnlly runs the filter pumpfor an addi~ional 5 mitlutes whcncvrr
thespa
is rumcd off. This featureenables the heatertocool down, so thatthe healcxchunger andplumbing
are not diltlr~gedfmni ovcrhen~ing.
POOL CLEANERPROTECTION
Ifyour system incorporiitesctn :rutomatic poolcleaner, it willhave lrecn plumbedinconjunction with the
filter pump
so that it must have water circulationinorder to operate.
The CP-IOO incorporateslhc fi~llowingprotectionfeatures againstpossiblepump damage ifthem is no
watercirculn~ion:
I.
The filter putnp willautomntically be itctivitedwhenever thc pool cleaneris tunning. cven
if thc filter pun111 isn't programmedon.
2.
Your poolcleaner will ai~tomaticdly be switchedoffwhenever water is being circulated to
the Spa.

INDOOR CONTROLLER
Installed in a convcnicnt locationinside your house. the Conlrollergivesyou fingertip co~itrul of all the
equipmentassociated
with your swimming pooland spa
Equipment Pushbuttons #S, #I, #2 and #3
Four Pushbuttonsarc provided for activating the various piecesof cquipmenr. Your Pool Rtrildcr should
havecustom-labeledeachPushbuttonfor your specific application.
EQUIPMENT STATUS INDICATORS
Slalus Lightsare locatedahvc each Pushbunon. The presenceof a light indicntcs that thc equipmenlis
running.
The absence of a light indicatesthat equipmen! is turned off-
TEMPEUTUR E Display
A digitaldisplay indicatesthe precise water temperature. Spa tempcritturc ic displayed during <pacic.cula-
tion, undpool temperature is displayedduringpoolcirculation.
Note: The filter pumpmust
be running to provide accurate tempemluredisplay.
USING YOUR SPA
To turn your spa on. simply press Pushbutton 6.
The motorizedvalves will rotate to spacircularion, thc filterpump willturn on and the hcalrr will lire
The TEMPERATURE Display willlet you know when the spi~ is ready for use.

POWER CENTER
Lnca~ed in close proximity to your pool equipmc~rl,the Powcr Centtr housas mcchonical time clocks for
your filter
pump trnd pool ciemer (if applicilble),and manual switches for your Pool Servicepenon.
FI1,TER PUMP and POOL C1,EANER Time Clocks
Check with your Pool Builderor ServiceCompany as to the nmounl of tilnc rcquircd to proviclc efficient
filtraticm and cleaningof your pwl.
To set thc correct time of day, rotate the Dial(s)in a clockwise direc~ionu~~til rhc hours n~~dmirlules line
up wikh the white arrow at eight o'clock puskion on clock face.
Pny particular attention to the AM and PM sections of the Dialts).
To program the daily filtration orcleaningcyclc(s), depress the desired number of sections around tl\c
perimeter of the Dial(s) by pushing towards the center, For each sectio~rdzpwssud, the equipmentwill
operate for 15 minutes.
NOTE: A built-in protection circuit automalirally ndivates the filter pump wheneverthe pool
rlcaner Is running, even if the FILTER PUhIP Time Clock is not prograslmed on. This safegwrds
against pwiblc damage to the pool cleaner pumpwhen there is no water circulation.

SPA ServiceSwitch
fwr normal systemopemtion, keep this Switch in the "AUTO" position.
The
"FILL" and "BRAIN' positionswe used when cleaning the spa,
FILTER Service Switch
For normal system operdtion keep this Switch in the "AUTO" position.
The 'DFFkd
"ON" positions allow your Pool Servicepersonto ovorridc the FILTER PUMP Time
Clock without alteringthe program.
CAUTION: V your system incorporates s POOL CLEANER Time Clock, pump damage will occur
if the pool cleaner is activated whilethe FILTER Service Sw-itch is in the OFF position.
AUXP, AUX2 and AUX3 Service Switches
For normal systemoperation,keep these Switches in the "AUTO" position.
The
"OFF' and "ON positionsoverride the Indoor Controller, and provide convenient manual control at
the equipmentsite,
HEATER Switch
The "SPA ONLY" position will enableheating only when the spa isbeing circulated.
The
"OW' position will disable the heater.
The "SPA
& POOL" position willenable heating wheneverthe spaorpool is being circulated.
For Dual Thermoslat Heaters: At theheatersetpool and spa lhenaoutatb:to desired temperatures. Verify
at
the haterthat the 3-position "ONIOFF' switch was set to "OFF' duringinstallation.
For Single Thermostat Heaiers:To heat the spaonly set the spa tempmatureat the heater ilnd set the
LX- I00 PowerlLoadCenterHeater swilch to "SPA ONLY". I pool heating is desired, it is necesslvy to
turn
the heater thermostat down to pool temperature and set the LX-100 PowerbdCenter Heater
switchto"SPA
t 8001,".
Verify at the heaterthat the "ONIOFF' switch was setto "ON during installation.
The
"SPA ONLY" position will enableheating only when the Spa is being circuloltad.
The "OFF position" will disablethe heater.
The "SPA t POOL position" will enableheating wheneverthe filterpump is running.
PUMP DELAY Status Light
A built-in electronicdelay circuit will autometically run the filterpump for an additional 4 minutes when-
everthe Spa is
turned off. This enables the heater to cool down, so that the heat exchanger and plumbing
are not damagedfrom overheiiting.
The PUMP DELAY Light indicatesthat the delay is in effect.
POWER ON Status Light
Indicates that power hasbeen connectedto the system.
If this light
is not on, consultyour Pool Serviceperson.
