LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Installation Guide
Pressure Side Pool Cleaner

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
Customer Service
If you have questions about ordering Pentair replacement parts, and pool products,
please use the following contact information:
Customer Service, USA (8 A.M. to 5 P.M. — Eastern and Pacific Times)
Phone: [phone]
Fax: [phone]
Technical Support, USA
Sanford, North Carolina, USA (8 A.M. to 5 P.M. — Eastern Time)
Phone: [phone]
Fax: [phone]
Moorpark, California, USA (8 A.M. to 5 P.M. — Pacific Time)
Phone: [phone] (Ext. 5591)
Fax: [phone]
Web site
visit www.pentairpool.com and www.staritepool.com to find information about our products
© 2006 Pentair Water Pool and Spa, Inc. All rights reserved.
This document is subject to change without notice.
1620 Hawkins Ave., Sanford, NC 27330 • [phone]
10951 West Los Angeles Ave., Moorpark, CA 93021 • [phone]
Trademarks and Disclaimers. The Pentair Water Pool and Spa logo and the Legend Platinum II logo are registered trademarks of Pentair Water Pool
and Spa, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their
products. Pentair Water Pool and Spa, Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
P/N 370260 Rev. A 7/31/06
Pentair Water Pool and Spa Europe
Industriepark Wolfstee
Toekomstlaan 30
B-2200 Herentals
BELGIUM
Phone : [phone]
Fax : [phone]

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
Important Information:
The Legend®Platinum II automatic pool cleaner comes ready to connect into a female threaded 1-1/2"
dedicated return line. Other connections are possible, but they require additional fittings. For more information,
please contact our Technical Support Department at 1-800-831-7133. Also, if you have a chlorinator, solar
system or other air inducing equipment, please contact our Technical Support Department before you install
the Legend®Platinum II.
The following are important facts to remember before installing and operating the Legend®Platinum II.
1. Always disconnect the Legend®Platinum II from the pool wall when cleaning or back washing the pool filter.
2. After cleaning or back washing, let the filtration system run for at least five minutes before reconnecting the
Legend®Platinum II.
3. New plumbing lines should be flushed out before installing the Legend®Platinum II.
4. The Legend®Platinum II should not be used to remove plaster dust in new pools.
5. Always remove the Legend®Platinum II before swimmers enter the pool.
6. Always handle the Legend®Platinum II with care. Do not let children or pets play with the unit: it is not a toy.
7. Always pick up the Legend®Platinum II by the Vacuum Tube especially when lifting the unit out of the water.
8. Unless checking the wheel RPM, do not handle the Legend®Platinum II while it is operating.
9. Always remove the Legend®Platinum II from the pool before chemical shock treatments. As a rule, any pool
water that is unsafe for swimming is unsafe for the Legend®Platinum II.
10. Carefully cut the feed hose following the instructions on Page 3.
By following these simple guidelines, you can help protect against injury and prolong the life of
your Legend®Platinum II.
Before the Legend®Platinum II is installed, please take a moment to record the serial number. This number
is located on the back of the Legend®Platinum II near the rear jet. You will be asked this number when you
contact our Technical Support Department.
SERIAL #__________________________________
LX 2000PMEU

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
TABLE OF CONTENTS
I. Introduction ...................................................................................................................... 1
A. Thank You for Choosing the Legend®Platinum II ................................................... 1
B. What to Expect from the Legend®Platinum II ......................................................... 1
II. Installation Instructions .................................................................................................... 2
A. Legend®Platinum II Components ........................................................................... 2
B. Pool Connections ................................................................................................... 2
C. Installing the Twist Lock Pressure Relief Valve (Wall Fitting) .................................. 2
D. Pressure Testing Instructions ................................................................................. 3
E. Cutting the Feed Hose............................................................................................ 3
F. Hooking Up the Legend®Platinum II ....................................................................... 4
G. Checking Operation ............................................................................................... 4
H. Fine Tuning the Legend®Platinum II ....................................................................... 5
1. Thrust Jet Adjustment ....................................................................................... 5
2. Sweep Hose Adjustment ................................................................................... 5
3. Checking Wheel RPM ....................................................................................... 5
III. Operation & Periodic Maintenance ................................................................................... 7
A. Connecting/Disconnecting the Legend®Platinum II ................................................ 7
B. Turning the Legend®Platinum II On/Off .................................................................. 7
C. Cleaning the Sand & Silt Bag ................................................................................. 7
D. Periodic Maintenance ............................................................................................. 7
1. Wall Fitting Screen ............................................................................................ 7
2. Tires & Bearings ............................................................................................... 8
3. Roller Rings ...................................................................................................... 8
4. Debris Bags ...................................................................................................... 8
5. Sweep Hose ...................................................................................................... 8
6. Debris Valve...................................................................................................... 8
E. Back Washing the Pool Filter.................................................................................. 8
F. Storage and Winterizing ......................................................................................... 9
G. Accessories ........................................................................................................... 9
1. Leaf Bag ........................................................................................................... 9
2. Step Adapter ..................................................................................................... 9
IV. Troubleshooting and Performance Tips ...................................................................... 10-12
Legend®Platinum II Parts List .............................................................................. 13-14
Legend®Platinum II Exploded View ........................................................................... 15

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II

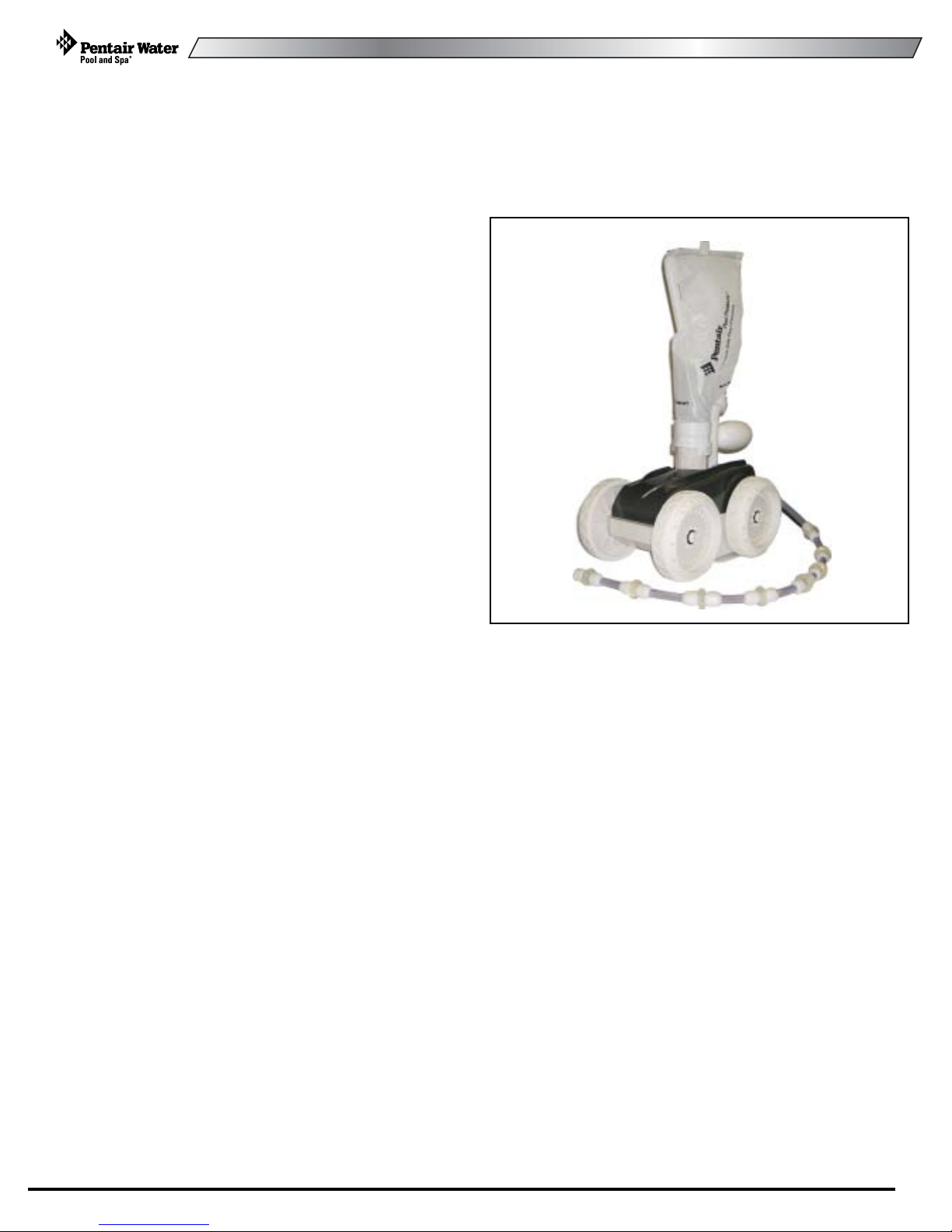

I. Introduction
A. Thank You for Choosing the
Legend®Platinum II Pool Cleaner
Congratulations on the purchase of your new
automatic pool cleaner. The Legend®Platinum II is
designed to give you years of dependable and
efficient service. With the Legend®Platinum II, you
and your family will spend more time relaxing and
enjoying your pool and less time cleaning it.
The Legend®Platinum II has been designed and built
with time proven features and patented innovations
to create an automatic pool cleaner that will give you
years of dependable service. The Legend®Platinum
II is built with pride in the U.S.A., by people who care
about the product using state of the art materials and
backed by a limited warranty that protects against
defects in parts and construction.
Like any mechanical device, the Legend®Platinum II
requires some preventative maintenance and the
replacement of certain working parts. We
recommend that you have your Legend®Platinum II
checked annually. For best results have your
Legend®Platinum II installed by a qualified
swimming pool professional.
For pool owners with plumbing and mechanical
experience, installation instructions are included in
this manual.
Please put safety first! Be sure to take your
Legend®Platinum II out of your pool and store it
carefully in a shaded area before anyone enters the
pool.
B. What to Expect from the
Legend®Platinum II
When operating correctly, the Legend®Platinum II
will travel randomly throughout the pool, vacuuming
and sweeping the bottom. The climbing ability of the
Legend®Platinum II is dependent on the pools shape.
It will climb better in pools without sharp angles or
curves in the transition from the pool floor to the pool
wall.
The Legend®Platinum II comes equipped with a Wall
Fitting (Part# LXW22) that features a Twist Lock
Automatic Pressure Relief Valve. If the Legend®
Platinum II is receiving too much water pressure to
the unit, the relief valve will automatically reduce
water pressure.
Approximately every three minutes and 30 seconds
the Legend®Platinum II will go into a back up mode.
At this time the Back Up Valve will pull the Legend®
Platinum II away from problem areas.
Occasionally some vinyl pools have steps installed
so the unit may not climb and remains stationary until
the Back Up Valve pulls the unit away from the steps.
When this occurs you need to use the optional
Step Adapter (Part# EU13) to prevent wearing the
vinyl liner.
The Sweep Hose operates in a gentle sweeping
motion to prevent debris from becoming trapped in
hard to reach corners of the pool.
1

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
II. Installation Instructions

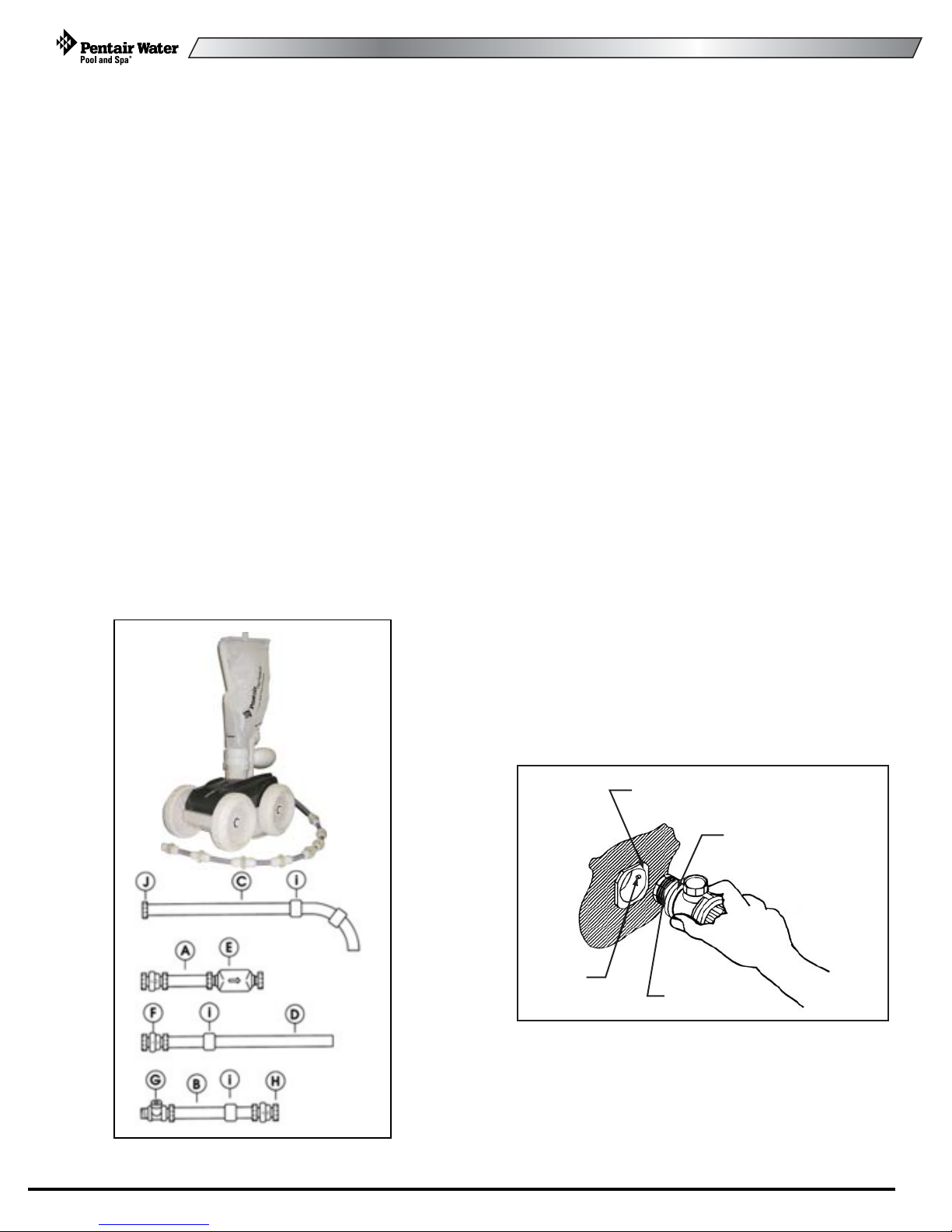

A. Legend®Platinum II Components
The Legend®Platinum II Box Contains:
1. Cleaner Head
2. Sand & Silt Bag
3. Sweep Hose
4. Complete Feed Hose
a. 1 - 18 in. hose
b. 1 - 2 ft. hose
c. 1 - 4½ ft. hose
d. 3 - 6 ft. hoses
e. 1- Back-Up Valve
f. 4 - Swivels
g. 1 - Wall Fitting
h. 12 - Mender Nuts
i. 7 - Hose Floats
j. 1 - Pressure Tester
B. Pool Connections
The Legend®Platinum II comes equipped to connect
to a female threaded 1-1/2" dedicated return line. An
adjustable gate valve with a pressure gauge should
be installed to allow a regulated amount of water flow
from your pool system to the Legend®Platinum II.
For more information contact our Technical Support
Department at 1-800-831-7133.
Also, if the pool doesn't have a dedicated cleaner
line please contact our Technical Support
Department also.
C. Installing the Twist Lock Pressure
Relief Valve (Wall Fitting)
1. Take out any existing pool cleaner and/or wall
fitting.
2. Turn on the filtration pump and flush out the
plumbing line.
3. Turn off filter pump.
4. Remove the Wall Adapter from the Wall Fitting
and screw Adapter by hand into the dedicated
line. Turn until tight.
WALL ADAPTER
INSTALLED
QUICK
LOCK
PEG
QUICK DISCONNECT
O-RING
2
5. Take the Wall Fitting and Twist Lock the Wall
Fitting into the Wall Adapter 1/4 turn; to a snug fit.
Once the Wall Adapter is secure, you can now
twist lock and unlock to remove Wall Fitting with
ease from the Wall Adapter.

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
D. Pressure Testing Instructions
1. Make sure the pool filter is clean before
conducting this pressure test.
2. Twist lock the Wall Fitting with Feeder Hose into
the Wall Adapter.
3. Have someone hold the Pressure Tester end of
the Feed Hose beneath the water while you turn
on the pool pump. Continue holding the hose
under the water and cover the large hole of the
pressure tester.
4. Reach down and feel around the Pressure Relief
Valve on the Wall Fitting to see if the Relief Valve
is releasing any water pressure. If valve is
releasing water pressure go on to Section E.
If it is not, the pool filtration pump may not have
sufficient amount of water pressure to operate
the Legend®Platinum II.
BEFORE YOU GO TO THE NEXT STEP,
CONTACT OUR TECHNICAL SUPPORT
DEPARTMENT AT: 1-800-831-7133
E. Cutting the Feed Hose

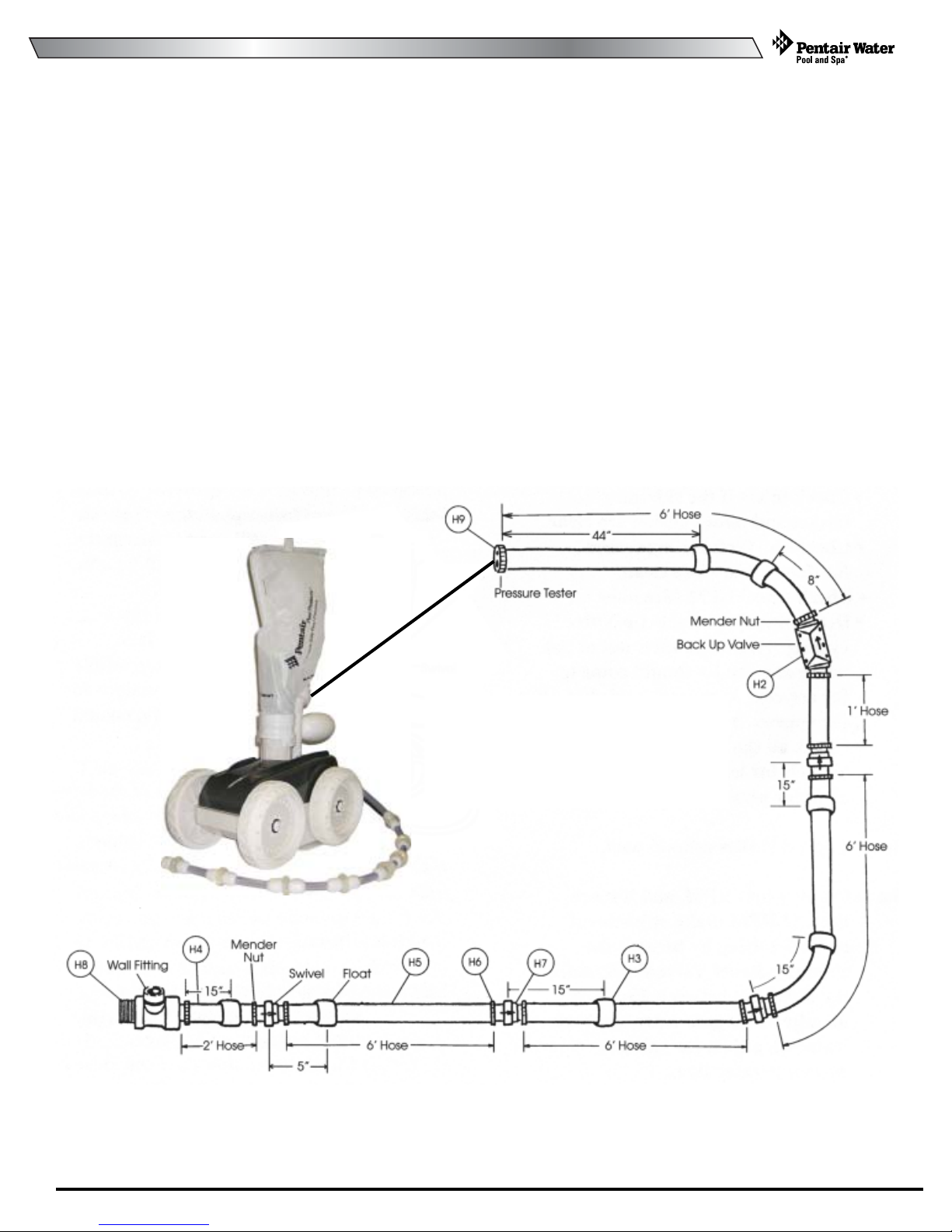

(See Hose Diagram on Page 11)
The Hose assembly comes in 6 sections covering
approximately 30 ft. of the pool, which provides ample
hose for most residential pools. For larger or smaller
pools see Page 12 for instructions for Adding or
Deleting Additional Feeder Hose.
1. Take Feeder Hose out of box and lay the hose
straight in the sun for one day if possible, (this
will take any memory out of the hose due to being
coiled up in the box).
2. With the pool pump on, hold the free end of the
Feeder Hose underwater. Gently pull the hose
to the farthest end of the corner of the pool, do
not stretch the hose. (The Legend®Platinum II
usually will not climb the top step, so you do not
need to include it in the measurement.) If the
hose just reaches the farthest point of your pool,
and without any excess hose hanging over the
deck, then go to Section F.
3. If the Feeder Hose extends past the farthest end
of the pool, mark the excess hose hanging over
the deck, turn off your pool pump, and cut first 6
ft. section of hose, closest to the wall, the length
of excess.
4. IMPORTANT: Please double check the hose
length to insure you will be getting the maximum
performance from your pool cleaner. The hose
lengthens when under pressure (when your
pump is on).
3

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
F. Hooking up the Legend®Platinum II
1. Remove the Pressure Tester from the free end of
the Feeder Hose by unscrewing the Hose Nut.
Left hand thread (reverse), (see illustration,
previous page).

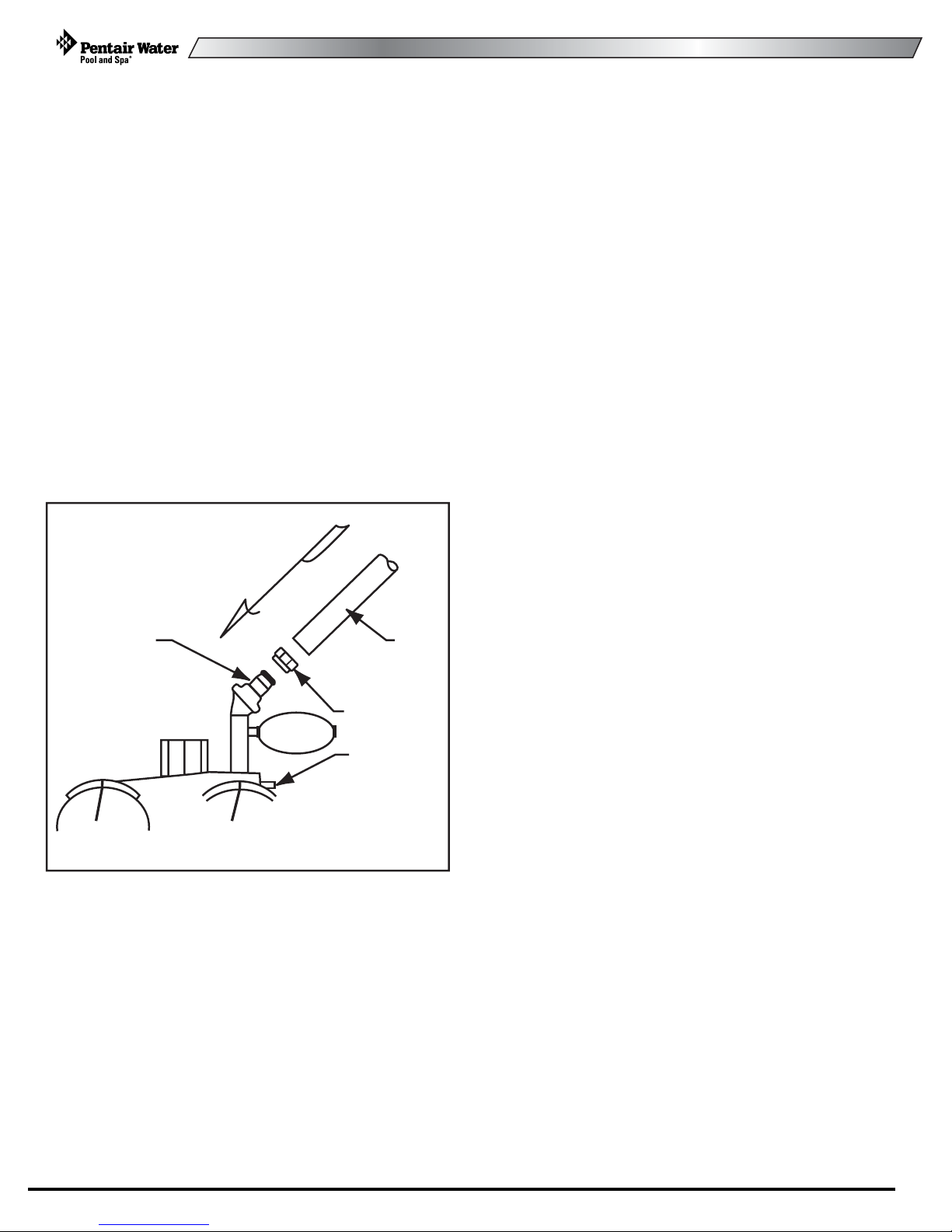

2. Place mender nut on Legend®Platinum II Swivel
Mast. Connect the open end of the Feed Hose
to the top of the Legend®Platinum II Swivel Mast
and secure with the mender nut. The arch of the
Feed Hose should align in the same direction
as the Swivel Mast, there should be no twist in
the Feed Hose after connection. (See illustration
below.)
3. Carefully twist lock the Sand & Silt debris bag
onto the top of the Legend®Platinum II Vacuum
Tube. Make sure there is a Rubber Debris Valve
attached to the top of the Vacuum Tube before
locking on the Sand & Silt bag, (this valve is
similar to a check valve to help keep debris
inside the bag when the water pressure is off).
FEED
HOSE
MENDER
NUT
THRUST
JET
HEAD FLOAT
FEED MAST
SWIVEL
4. Gently place the Legend®Platinum II in the pool.
Turn on the pool filtration pump.
5. Check to make sure the wheel RPM is between
25-32. See page 5 for instructions on wheel
RPM.
G. Checking Operation
When operating correctly, the Legend®Platinum II
will travel in a random pattern throughout the pool,
vacuuming and sweeping the bottom. The climbing
ability of the Legend®Platinum II is dependent on
the pools structure and water flow coming into the
pool. It will perform more efficiently in pools without
sharp angles or curves in the transition from the floor
of the pool to the wall.
The Legend®Platinum II comes with a Twist Lock
Pressure Relief Valve (Wall Fitting). If the Legend®
Platinum II is receiving too much water pressure, the
Pressure Relief Valve in the Wall Fitting will release
the excess water pressure.
Approximately every three minutes and 30 seconds
the Legend®Platinum II will go into a back-up mode.
The Back-Up Valve cycle time, while in the back-up
mode, is approximately 30 seconds, pulling the
Legend®Platinum II from problem areas.
The Sweep Hose operates in a gentle sweeping
motion to prevent debris from becoming trapped in
hard to reach corners of the pools.
If the Legend®Platinum II does not travel to all areas
of the pool, turn off the pool filtration pump and make
the necessary adjustments from the instructions on
the next page.
4

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
H. Fine Tuning the Legend®Platinum II
1. Thrust Jet Adjustment
There are two Thrust Jets located in the back of the
Legend®Platinum II. These Thrust Jets alter the
direction of the cleaner. The factory standard position
for the jets is set slightly to the right. (See illustration
below.)
In certain pools, altering the thrust jets can increase
performance of the Legend®Platinum II. Moving the
thrust jets up can increase climbing, and moving them
down can decrease climbing. Moving the thrust jets
to the left pushes the unit left and moving them to the
right pushes the unit right.
2. Sweep Hose Adjustment
The Sweep Hose operates in a gentle sweeping
motion. To increase or decrease the motion of the
Sweep Hose, adjust the screw located on the Swivel
Mast Barb below the Ballast Float. Turning the screw
clockwise will decrease the motion and counter
clockwise to increase the motion of the Sweep Hose.
Patents Pending
3. Checking Wheel RPM
To determine whether the Legend®Platinum II is
receiving the proper water pressure, turn off the pool
pump, and carefully remove the Legend®Platinum II
from the pool.
Mark the front drive Tire/Wheel with a marker, or use
the Logo located on the side of tire as a marker to
count the rotations of the wheel per minute.
Have someone turn on pool pump while you place
the Legend®Platinum II in the pool just beneath the
water surface. (Be sure to hold onto the Sweep Hose
to avoid getting wet.)
Count the rotations of the marked wheel for exactly
one minute. (Be sure the Back-Up Valve isn't cycling
at this time.) The rotations will give you the
Revolutions Per Minute, (RPM).
For proper performance, the Legend®Platinum II
operates between 25-32 RPM. If the RPM is below
25 then closely follow the instructions on the next
page.
5

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
3. Checking RPM - (cont.)
1. Clean the Screen located inside the Wall Fitting.
A small amount of debris will significantly affect
the performance of the cleaner.
2. Clean the skimmer basket, pump basket and
pool filter.
3. If an adjustable Gate (3-way) Valve has been
installed, adjust the valve to increase water flow
to the Legend®Platinum II.
4. If the RPM is more than 32, at the Wall Fitting,
unscrew the Pressure Relief Valve slowly until
the RPM falls between 25-32. Again, if an
adjustable gate (3-way) valve has been installed,
adjust the gate valve to decrease water flow to
the Legend®Platinum II.
5. If you continue to have problems with either the
water flow or obtaining the specified water
pressure to operate the Legend®Platinum II, call
your Professional Pool Dealer. If you have any additional questions, please
contact Pentair Water Pool and Spa, Inc.,
Technical Support Department at:
1-800-831-7133 (USA),
Monday through Friday.
6

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
III. Operation/Periodic Maintenance
A. Connecting/Disconnecting the
Legend®Platinum II
Turn off pool pump. Then take the Wall Fitting and
twist lock the Wall Fitting clockwise into the Wall
Adapter. To disconnect the Legend®Platinum II,
unlock and twist counter clockwise. The Wall Adapter
should remain in the pool wall.
B. Turning On/Off the
Legend®Platinum II
The Legend®Platinum II operates off a filtration pump
coming from the equipment pad, and can be turned
on or off by merely turning on/off your pump time
clock.
C. Cleaning the Sand & Silt Bag
Carefully unlock the debris bag from the vacuum tube
and open the Velcro®Brand fastener at the top of
debris bag and dump debris.
If you have a lot of debris in your pool, especially
after a storm, you can run your Legend®Platinum II
in two shorter cycles per day and empty the debris
bag between cycles.
Reconnect the debris bag to the vacuum tube.
Do NOT over turn.
If the Velcro®Brand fastener on top of the debris bag
does not stay secure, rinse well, let it dry and clean
with a stiff brush.
A Helpful Hint: It is easier to empty the debris bag
when it is dry. A second bag may be used while the
full debris bag is drying.
It's best to empty the debris bag when it becomes
half full. The Legend®Platinum II will have better
performance if the bag is not overloaded.
D. Periodic Maintenance
The following parts are wear items that should be
checked, maintained or replaced as needed. Wear
items are considered any working or moving part(s)
being worn due to the use of the cleaner. Wear items
are not covered under warranty.

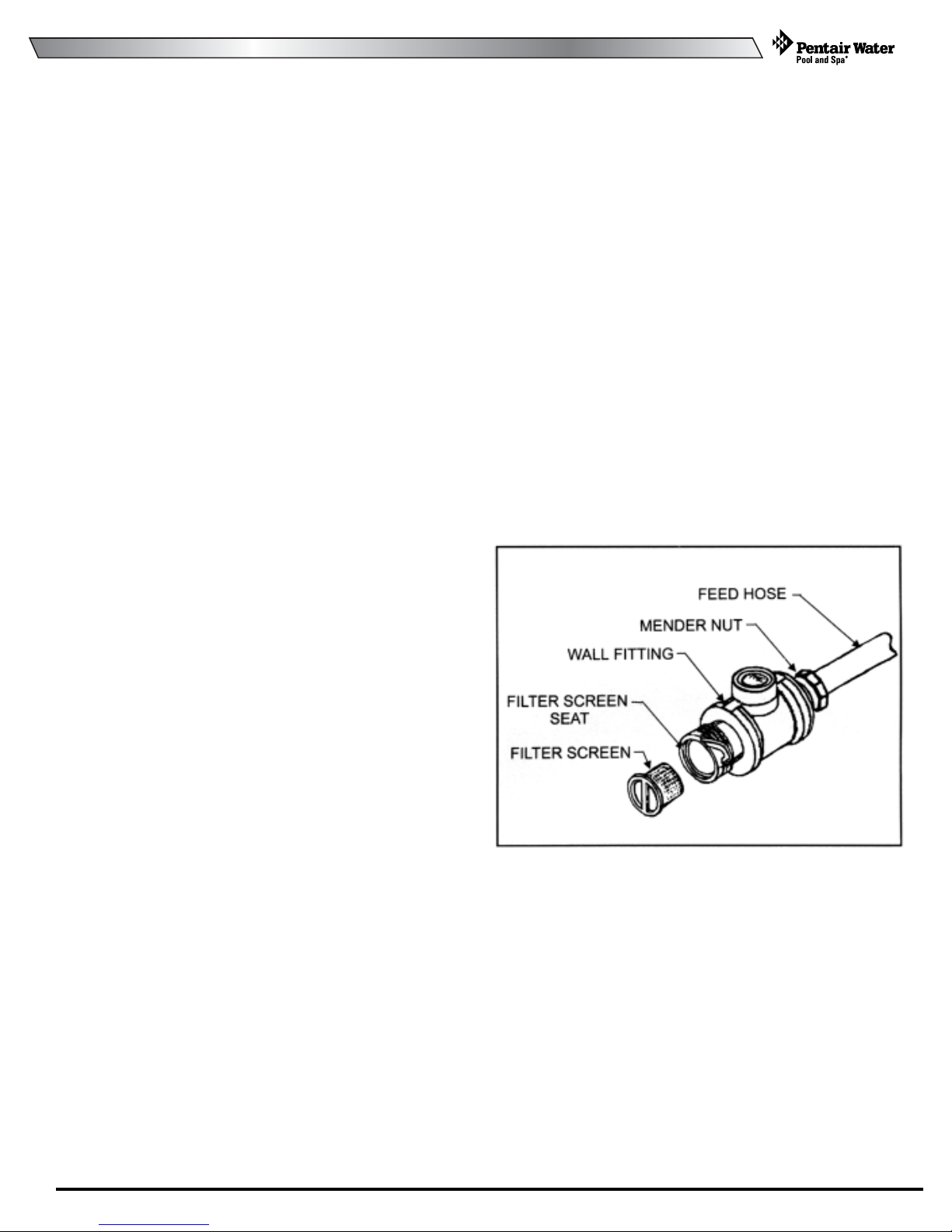

1. Wall Fitting Screen
Inside the wall fitting is a filter screen that acts as a
secondary filter. This screen is to keep debris that is
passed by the pool filter out of the Legend®Platinum II.
Running the Cleaner without the filter screen can
damage the Legend®Platinum II and will void the
warranty.
A continuous plugged or dirty screen is a sign of
problems in your pool filtration system and you need
to contact your local pool professional.
To clean the filter screen, pull the screen out from
inside the Wall Fitting and rinse thoroughly and push
back inside the wall fitting.
Whenever cleaning, back washing or repairing filter,
remove the wall fitting and flush out the dedicated
line before using the Legend®Platinum II.
7

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
III. Operation/Periodic Maintenance -
(cont.)
2. Tires & Bearings
The tires are designed to protect the bottom of your
pool and provide better traction. You need to rotate
the tires once per year.
The Wheel Bearings are warranted free of defects
when shipped from Pentair Water Pool and Spa, Inc.,
and are considered a wear item. A good bearing
will spin freely.
3. Roller Rings
Your Sweep Hose has a series of Roller Rings to
protect the Sweep Hose. Replace the rings as
needed. You can rotate the Roller Rings to prevent
flat spots.
4. Debris Bags
Fine Mesh Sand & Silt Bag
The Legend®Platinum II comes with a Sand & Silt
bag for general use in all pools. We do not
recommend using the fine mesh bag to pick up leaves
and twigs or other large debris for they have sharp
points and edges that can poke holes and eventually
rip the bag.
Optional Leaf Bag
The leaf bag is a larger mesh bag made to pick up
heavier debris such as leaves. twigs, acorns, etc.
This bag can be helpful especially after a storm.
A Helpful Hint: To prolong the life of bags, remove
cleaner from pool before adding chemicals.
5. Sweep Hose
The Sweep Hose is provided to help keep the bottom
and sides of your pool clean. The Sweep Hose is
warranted free of defects when shipped from the
factory, and is considered a wear item.
6. Debris Valve
This valve is located under the Debris Bag, it is
designed to keep the debris inside the bag. It
functions like a check valve to allow the debris to
only enter through the bag one way. Replacement is
needed when valve begins to stiffen.
E. Back Washing the Pool Filter
Always disconnect the Legend®Platinum II from the
pool wall before cleaning or back washing the pool
filter. After cleaning or back washing, let the pool
filtration system run for a minimum of five minutes to
flush out the return lines before reconnecting the
Legend®Platinum II.
8

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
III. Operation/Periodic Maintenance -
(cont.)
F. Storage and Winterizing
Never leave or store the Legend®Platinum II in direct
sunlight. When storing the Legend®Platinum II for
the winter, be sure to drain all the water from it. This
is important since freeze damage is not covered
under the warranty. Also, remove the Wall Fitting.
G. Accessories
1. Leaf Bag
(See previous page)
2. Step Adapter
This adapter is designed for vinyl liner pools that
have steps installed in such a way that the unit may
not climb and remains stationary until the Back-up
Valve comes on. The adapter acts as a bumper to
turn the cleaner away from the steps and continue
on cleaning your pool.
It's easy to install: Simply slide the Step Adapter into
one of the slots (either side) located in the front of
your Legend®Platinum II and adjust to the
appropriate height.
(Part # for Step Adapter is EU13)
9

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
To insure the best performance from your cleaner,
follow the troubleshooting guide listed below.
IV. TROUBLESHOOTING AND PERFORMANCE TIPS
Problem: Legend®Platinum II will not back up.
Solution: 1. Determine if the Back-Up Valve is
cycling. (Hold the valve out of the
water and the jet should come on for
approx. 30 seconds, and shut off for
approx. 3 minutes and 30 seconds.)
2. Check the wheel RPM, (see pages 5-6).
3. Empty the debris bag if full or half full.
Problem: Legend®Platinum II will not climb.
Solution: 1. Even if your pool doesn't show algae
you still need to brush the sides of the
pool wall.
2. Check the wheel RPM, (see pages 5-6).
3. Reposition the Thrust Jet. Loosen the
two screws to adjust the Thrust Jet.
A reminder: The climbing ability of the Legend®
Platinum II is dependent on the pool's shape and
available water pressure. It will climb better in pools
without sharp angles or curves in the transition from
the pool floor to the pool wall.
Problem: Hoses tangling.
Solution: 1. Check the length of the Feed Hose,
they may be to long. (See pages 3-4.)
2. Check to see that the Feed Hose is
floating on top of surface. Check hose
floats for even spacing.
3. Twist the Hose Swivels to see if they
spin freely and replace any that will not.
4. Lay out the Feed Hose straight in the
full sun to remove any memory.
A. PROBLEMS & SOLUTIONS
Problem: Legend®Platinum II doesn't move or
moves sluggishly or hangs up on steps.
Solution: 1. Be sure filter and filter pump are on
and working properly. (You may need
to clean your pool filter system.)
2. Check to see if the skimmer and
basket are clean.
3. Check the Wall Fitting screen for debris
and rinse clean.
4. Check wheel RPM, (see pages 5-6).
5. Determine if the Back-Up Valve is
cycling. (Hold the valve out of the
water and the jet should come on for
approx. 30 seconds and shut off for
approx. 3 minutes and 30 seconds.)
6. Check all the Hose connections and
Swivels for leaks that can cause loss
of water pressure.
7. Check debris that may be jammed in
the gear teeth on one of the front drive
wheels. Gently rotate the front wheels
backward to dislodge debris.
Problem: Legend®Platinum II flies around pool.
Solution: 1. Check wheel RPM, and if more than
32 RPM make adjustment at Wall
Fitting by turning the Pressure Relief
Valve slowly until RPM falls between
25-32; or if an adjustable gate valve
has been installed, adjust the valve to
decrease water flow.
2. Air in system, see a Pool Professional.
10

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
IV. TROUBLESHOOTING AND PERFORMANCE TIPS
A. PROBLEMS & SOLUTIONS - (cont.)
Problem: Sweep Hose is sucked into the cleaner.
Solution: 1. Adjust the Sweep Hose using the
Adjustment Screw located on the
bottom of the Swivel Mast. Turn
Adjustment Screw clockwise until the
Sweep Hose is in a gentle sweeping
motion.
Problem: Sweep Hose breaks surface and sprays
nearby windows, patio decks and
bystanders.
Solution: 1. Adjust Sweep Hose to a gentle
sweeping motion.
11

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
1. Tips on Hose Cutting for Larger Pools.
If the hose is short of the farthest end of the pool,
add an additional section of hose (Part # LX17), one
Swivel (Part # LX19), two Mender Nuts w/O-Rings
(Part # LX20), and one Hose Float (Part # LXD10).
See diagram below. Re-measure and follow guides
on pages 3-4.
TIPS FOR CUTTING HOSE IN A SMALL POOL,
AND FOR ADDING HOSES FOR LARGE POOLS
2. Tips on Hose Cutting for Smaller Pools.
If the hose hangs over the deck more than 9 ft. or the
pool is less than 6 ft. deep and narrow, cut 36 in. off
the 5 ft. section hose at the end of the feed hose and
remove one float. Then remove one 6 ft. hose (see
diagram), 1 swivel and 2 mender nuts. Re-measure
and cut hose according to the guides on pages 3-4.
12

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
Part #
LLU5PM
LXU145N
EU10N
LXU6
EC86
EC83
EC80
EA40
LXC110
EX120
EC120
EC120
EB5L
EB10
EB25
EB20
EA20
EH07
EU15
EU16
EU9
EU7
E18
EC130
EC135
EC65
EC70
EC45
LLC6PM
EC60
EC55
LLC1PM
Diagram #
1
2
3
4
5
6
7
8
9
10A
10B
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Description
Top Cover
Main Frame
Bottom Cover
Feed Mast w/O-Ring & Swivel
Turbine Drive Shaft - Complete
Turbine Spacers
Turbine Bearings
Turbine Shaft Shield
Turbine Cover w/Elbows
Turbine Cover Hose 9"
Turbine Cover Hose 7 3/4"
Venturi Jet Hose 7 3/4"
Sweep Hose - Complete
Sweep Hose - Wear Ring
Sweep Hose - Jet w/Collar
Sweep Hose - Adjustment Screw
Ballast Float
Sweep Hose - Hose Sleeve
Coarse Mesh Bag (Optional)
Fine Mesh Bag
Debris Valve
O-Ring for Feed Mast
O-Ring for Thrust Jet
Thrust Jet
Thrust Jet - Plate
Axle - Large Wheels
Axle Plate
Axle - Lock Washer
Wheel w/out Bearings
Wheel Bearings Only
Wheel - Plastic Washer
Wheel - Rubber Tire
Quantity
1
1
1
1
1
1-set
2
1
1
1
1
1
1
9
1
1
1
15
1
1
1
1
2
2
2
4
4
8
4
8
4
4
LEGEND®PLATINUM II PARTS LIST
13

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
LEGEND®PLATINUM II PARTS LIST
Part #
EB15
EA40
EA40
EC64
EH09C
EC131
EA30
EU76
EU147
EU79
LXU8
EU80
LLU81PM
LX10
LX11
E12
E13
E14
E15
LX16
LXD10
LX17
LX18
LX20
LX19
LXW22
E21
E23
E24
E25
LX26
Diagram #
32
33
34
35
36
37
38
39
40
41
42
43
44
H2
H2
H2
inside H2
inside H2
H2
inside H2
H3
H5
H4
H6
H7
H8
Inside H8
inside H8
inside H8
inside H8
H9
Description
Hose Clamp
Screw for Turbine Bearings, Thrust Jet
Screw for Bottom Cover
Wheel - Plastic Washer
Sweep Hose Weight (optional)
Thrust Jet Repair Kit, includes:
E18, EC130, EC135
Screw for LXC110
Axle Bolt
Snap Fit Vac Tube Posts
Nut & Bolt - Feed Mast to Vac Tube
Venturi Jet
Screw - Cover to Frame
Front Bumper - White
Back Up Valve - Low Pressure
Back Up Valve - Housing
Back Up Valve - Top Cover
Back Up Valve - Housing O-Ring
Back Up Valve - O-Ring Gear Assembly
Back Up Valve - Screw Housing Body
Back Up Valve - Gear Assembly
Feed Hose Float
Feed Hose - 6 ft. Section
Feed Hose - 2 ft. Section
Feed Hose Mender w/O-Ring #0252
Feed Hose Swivel
Wall Fitting - Complete
Wall Fitting Adapter
Wall Fitting O-ring
Wall Fitting Screen
Wall Fitting - Valve Assembly
Pressure Tester
Quantity
7
8
2
4
1
1
5
8
2
1-set
2
2
1
1
1
1
1
1
6
1
7
4
1
12
4
1
1
1
1
1
1
14
SEE PAGE 11 FOR DIAGRAM (H2 - H9)

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
LEGEND®PLATINUM II
EXPLODED VIEW
SAVE THESE INSTRUCTIONS.
15
1
30
35
31
44
31
35
30

LEGEND® PLATINUM II INSTALLATION MANUAL • MANUEL D’INSTALLATION LEGEND® PLATINUM II
P/N 370260 Rev. A 7/31/06
© Pentair Water Pool and Spa, Inc. All rights reserved.
Printed in the USA.
