Pentair Everpure Oxidice Operating instructions
OXIDICE ICE MACHINE DISINFECTION
INSTALLATION AND OPERATION GUIDE
Part No.CD385
WARNING
Read all instructions and warnings before installing or operating
this product - Call 805-549-9724 for additional free copies of this
manual.
IMPORTANT - PLEASE READ
• This installation and operation guide is written to assist in the
installation, operation, and maintenance of the Oxidice product.
• Please read this manual carefully and in its entirety before
proceeding with any installation, operation, or maintenance
procedure associated with this equipment. Failure to follow
these instructions could result in personal injury, damage to the
equipment, or reduced product performance.
• In an ongoing effort to improve reliability and operating
changes to its products. Therefore, the information contained
in this manual may not conform in every respect to earlier
TABLE OF CONTENTS
SAFETY...........................................................................................2
THEORY OF OPERATION..................................................................3
INSTRUCTIONS ...............................................................................3
.........................................................4
............................................5
.......................................5
OPERATING INSTRUCTIONS............................................................6
............................6
.......................................................................6
SERVICING......................................................................................6
APPENDIX A - SPECIFICATIONS.......................................................7
..........9
SAFETY
This Pentair® Everpure® Oxidice system must be installed by a
licensed professional in accordance with all applicable codes and
standards for the jurisdiction in which it is installed. In addition,
all plumbing attached to or used with the Oxidice system must be
installed by a licensed, professional plumber.
This section of the manual contains safety warnings
and must be read, understood, and applied during
installation, operation, and maintenance of the Oxidice
system. Failure to obey the warnings and instructions
herein may present potential health and safety hazards
resulting in death or serious bodily injury to personnel
and damage to the equipment. The safety information
contained in this manual is intended to be read
thoroughly.
rupture failure. If the damage is found, immediately
shut down the system until the damage has been
thoroughly inspected and repaired. Do not continue to
operate the system.
Ozone is a colorless gas with a strong odor. Ozone can
be hazardous and can cause severe respiratory toxicity.
Breathing ozone can damage the lungs and cause
headaches, chest pain, coughing, shortness of breath,
buildup in the lungs (pulmonary edema). Ozone can also
worsen chronic respiratory diseases such as asthma
air immediately.
Ensure any cleaning, repair, or ozone equipment is
GROUNDING INSTRUCTIONS: This system must be
a path of least resistance for electric current. This
system is equipped with a cord having a system-
grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet installed
and grounded in accordance with all local codes and
ordinances.
Improper connection of the system-grounding
you doubt whether the system is properly grounded. Do
Children should be supervised to ensure that they do
not play with the system.
2 • Pentair® Everpure® Oxidice Installation and Operation Guide
WARNING:
WARNING:
DANGER:
WARNING:
Pentair® Everpure® Oxidice Installation and Operation Guide • 3
INSTRUCTIONS
1. Save these instructions. Before using, please read the owner's
manual carefully.
2. Disconnect power before servicing.
3.
horizontally (see installation instructions). Do not mount to a
wall vertically or at any angle. The system may also be placed on
4. Do not operate the system with the cover removed.
5. Do not use an extension cord.
6. Oxidice should be cleaned with a damp cloth. Avoid using harsh
chemicals, abrasives, or cleaners.
The system has only been evaluated for mechanical,
ozone release or the effectiveness of the water
treatment has not been investigated.
7. This system is not intended for use by persons with reduced
8. If the supply cord is damaged, it must be replaced by the
order to avoid a hazard.
SPECIFICATIONS
• System (Model/Part No.)
CD385
• Ozone Output
150 mg/hr @ 2.0 SCFH on ambient air
• Outlet
3/16" barb
• Ambient Requirements
32° - 90°F; (0° - 32°C) 10 - 75% RH non-condensing
• Dimensions
(14.2 cm x 25.4 cm x 8.6 cm)
• Air Flow
• Power
90-265VAC/50-60Hz
• Power Consumption
6' (1.8m) 3-prong cord
• Mounting
Z-bar
• Weight
FEATURES
•
•
• Fast and simple installation
• Microprocessor controlled
• Treats both the water and surfaces in the ice machine
• Unique application method
• Automated service timer
•
• Only byproduct is oxygen*
THEORY OF OPERATION
Pentair® Everpure® Oxidice is a disinfection system that treats
the ice machine's water supply using dissolved ozone. It supports
the reduction of the growth of bacteria, molds, yeast, and other
contaminants by disinfecting the air, water and surfaces within the
machine.
and converts it into ozone (O3), a very powerful natural oxidizer cre-
ated by sunlight, and then bubbles that ozone into the water sump
inside the ice machine.
Since ozone is created using only oxygen and electricity, any
chemicals into the water. As a result, the taste of the water and
subsequent ice produced is not impacted.
This system will adapt to any sized ice machine via a simple ozone
delivery line into the water reservoir. The system delivers ozone
through a single hole in the ice machine to a diffuser in the sump.
As the ozone passes through the diffuser it transforms into small
bubbles. The small bubbles allow some of the ozone to become
dissolved in the water, providing a sanitizer in the water.
Any ozone that does not dissolve will mix with the air inside the ice
machine, thus sanitizing all of the remaining internal
surfaces.
F. In air, half of the unused ozone
F.
WARNING:
INSTALLATION PROCEDURES
Clean Ice Maker
still appear dirty.
Unpacking
process. In addition to this manual, you should have (1) Oxidice
system, (1) z-bar mount, (1) 10 ft tube, (1) rubber grommet, and (1)
diffuser.
Find a Mounting Location
Before beginning the installation, locate a suitable location for
Please consider the following when selecting a mounting location:
1. Never install the system in an area where water may freeze.
Freezing water will damage the internal components.
2. Mount horizontally. Do not mount vertically or at an angle.
Always use a level when installing this unit.
3. The system should be close enough to a power outlet, so an
extension cord is not necessary.
4. Mount the system no further than 10 feet from the point of
use and above the entry point of the ozone line into the ice
Mounting the System
1. Use the appropriate tools and mounting hardware (not
provided) for the existing wall's construction and install the
2. Place the system onto the z-bar.
CONNECT DIFFUSER
1. Drill
the water reservoir. Install grommet provided into the hole.
2. Attach one end of the supplied tubing to the ozone outlet of
the system.
3.
Attach the opposite end of the tubing to the diffuser’s barbed
4 • Pentair® Everpure® Oxidice Installation and Operation Guide
TYPICAL INSTALLATION - FIGURE 2
Cooling Fan
Z-Bar Mounting Rail
Ozone Outlet
Power Button
Mode Selection
Oxidice
• No more than 10 ft from the ice machine
• Above sump water line
• Do not use an extension cord
9/16" Hole for Grommet
FEATURE CALLOUT - FIGURE 1
Pentair® Everpure® Oxidice Installation and Operation Guide • 5
OPERATING INSTRUCTIONS
• Once installed, the Pentair® Everpure® Oxidice system is ready
to use. Press the mode select button to cycle through different
•
integrated timer triggers, the system will automatically turn on
the internal pump.
• In the event of power loss, the Oxidice system will remember
receives power again. If the system is turned off in the middle
of producing ozone or once a cycle completes, the system
will leave the pump and fan on for approximately 10 seconds
to purge ozone from the system and cool down the ozone
generator.
LED INDICATORS
The ozone production time can be increased or decreased based
the corresponding mode number.
Mode Selection
TROUBLESHOOTING
Light Does Not Come On
1. Verify the system has power.
2. Push the mode select button to see if the unit will cycle through
different modes.
Bubbles Do Not Come Out of Diffuser
1. Make
for another ozone cycle to occur.
2. Clean the diffuser (see servicing for details).
SERVICING
Note
• Disconnect power from the system before performing any
maintenance procedures.
As Needed
• Clean
re-install.
• Clean diffuser: Submerse diffuser in vinegar for 2 hours and
rinse clean.
Red Light Illuminated
• The light on the Oxidice system will turn red after the ozone cell
between 1 and 3 years, depending on which mode the system is
in. At this time, the system needs to be serviced.
• Servicing includes replacing the ozone generator and barbed
• Once the system has been serviced, the service light will need
to be manually turned off. To do this, with the unit powered,
press and hold the push button until the red service light turns
off (approximately 10 seconds).
LIGHT
COLOR
NUMBER
OF BLINKS
24 HOUR ICE
YIELD, NORMAL
ENVIRONMENT
24 HOUR ICE
YIELD,
EXTREME
ENVIRONMENT*
AIR
FLOW
(SCFH)
REPEATING
RUN TIME
(MINUTES)
Off Off
Yellow 1< 400 lbs NA 0.5 1 On/ 9 Off
Green 2400-600 lbs < 400 lbs 1.0 2 On/ 8 Off
Blue 3600-1000 lbs 400-600 lbs 1.5 4 On/ 6 Off
Purple 4< 1000+ lbs < 600+ lbs 2.0 7 On/ 3 Off
Red Service Required
microbreweries, and more.
6 • Pentair® Everpure® Oxidice Installation and Operation Guide

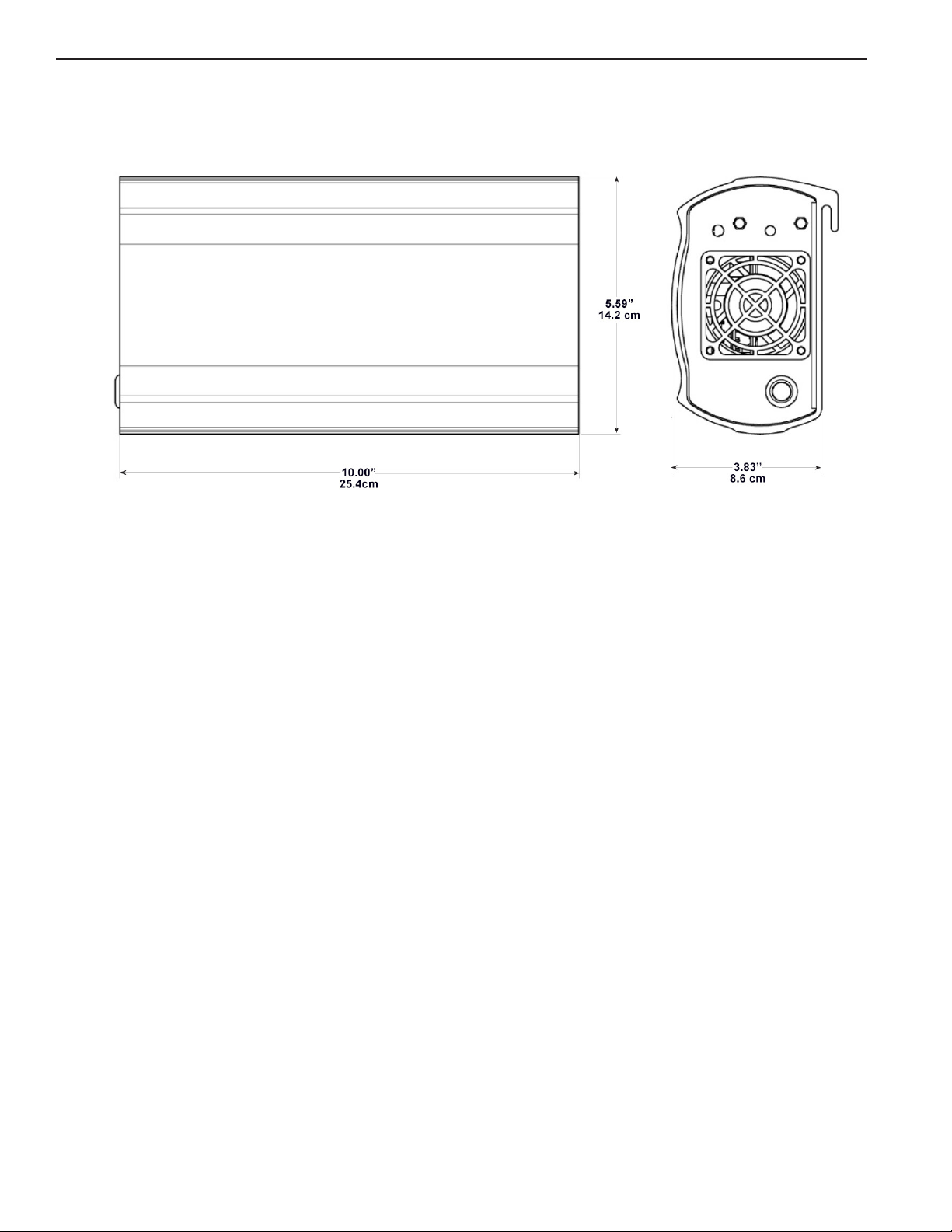

APPENDIX A - SPECIFICATIONS
Pentair® Everpure® Oxidice Installation and Operation Guide • 7
Ozone Generator
Power Supply Ozone Cell Ozone Outlet
Power Cord
Air Compressor Fan
Control Board
APPENDIX A - SPECIFICATIONS
8 • Pentair® Everpure® Oxidice Installation and Operation Guide
