FLECK 2900S
SERVICE MANUAL

2• FLECK 2900S Service Manual
TABLE OF CONTENTS
JOB SPECIFICATION SHEET 2
INSTALLATION 3
START-UP INSTRUCTIONS 3
3200 TIMER SETTING PROCEDURE 4
3210 & 3220 TIMER SETTING PROCEDURE 4
3200, 3210, 3220, 3230 REGENERATION CYCLE SETTING
PROCEDURE 5
3200 TIME CLOCK TIMER ASSEMBLY 6
3210 METER DELAYED TIMER ASSEMBLY 8
3220 METER IMMEDIATE TIMER ASSEMBLY 10
3230 REMOTE START TIMER ASSEMBLY 12
UPPER ENVIRONMENTAL POWERHEAD ASSEMBLY 14
LOWER ENVIRONMENTAL POWERHEAD ASSEMBLY 16
CONTROL VALVE ASSEMBLY 18
CONTROL VALVE SIDE MOUNT ADAPTER 21
1600 SERIES BRINE SYSTEM 22
1650 BRINE SYSTEM ASSEMBLY 24
1700 BRINE SYSTEM ASSEMBLY 26
1710 BRINE SYSTEM ASSEMBLY 28
2” BRASS METER ASSEMBLY 29
2” PLASTIC METER ASSEMBLY 30
1600 SERVICE VALVE OPERATOR (NEW STYLE) 31
2300 SAFETY BRINE VALVE 32
2310 SAFETY BRINE VALVE 33
2350 SAFETY BRINE VALVE 34
GENERAL SERVICE HINTS FOR METER CONTROL 35
TROUBLESHOOTING 36
WATER CONDITIONER FLOW DIAGRAMS - DOWNFLOW 37
WATER CONDITIONER FLOW DIAGRAMS - UPFLOW 38
FLOW DATA & INJECTOR DRAW RATES - DOWNFLOW 39
ENVIRONMENTAL BACKPLATE DIMENSIONS 40
SYSTEM #4 41
SYSTEM #5 INTERLOCK 41
SYSTEM #6 & #7 42
SYSTEM #4 WIRING 43
SYSTEM #5 WIRING 45
SYSTEM #6 WIRING 46
SYSTEM #7 WIRING 47
1600/1700 SYSTEM NOZZLE & THROAT CHART 49
SERVICE ASSEMBLIES 50
JOB SPECIFICATION SHEET
Job Number:______________________________________________
Model Number:____________________________________________
Water Hardness: __________________________________ppm or gpg
Capacity Per Unit:__________________________________________
Mineral Tank Size: ___________ Diameter: ________Height:________
Salt Setting per Regeneration: _______________________________
1. Type of Timer:
A. 7 Day or 12 Day
B. Meter Initiated
2. Downflow: Upflow Upflow Variable
3. Meter Size:
A. 3/4-inch Std Range (125 - 2,100 gallon setting)
B. 3/4-inch Ext Range (625 - 10,625 gallon setting)
C. 1-inch Std Range (310 - 5,270 gallon setting)
D. 1-inch Ext Range (1,150 - 26,350 gallon setting)
E. 1-1/2 inch Std Range (625 - 10,625 gallon setting)
F. 1-1/2 inch Ext Range (3,125 - 53,125 gallon setting)
G. 2-inch Std Range (1,250 - 21,250 gallon setting)
H. 2-inch Ext Range (6,250 - 106,250 gallon setting)
I. 3-inch Std Range (3,750 - 63,750 gallon setting)
J. 3-inch Ext Range (18,750 - 318,750 gallon setting)
K. Electronic ____Pulse Count ___ Meter Size ____________
4. System Type:
A. System #4: 1 Tank, 1 Meter, Immediate, or Delayed Regenera-
tion
B. System #4: Time Clock
C. System #4: Twin Tank
D. System #5: 2-5 Tanks, Interlock Mechanical
2-4 Tanks, Interlock Electronic
Meter per unit for Mechanical and Electronic
E. System #6: 2-5 Tanks, 1 Meter, Series Regeneration, Mechanical
2-4 Tanks, 1 Meter, Series Regeneration, Electronic
F. System #7: 2-5 Tanks, 1 Meter, Alternating
Regeneration,Mechanical
2 Tanks only, 1 Meter, Alternating
Regeneration, Electronic
G. System #9: Electronic Only, 2-4 Tanks, Meter per Valve, Alternating
H. System #14: Electronic Only, 2-4 Tanks, Meter per Valve.
Brings units on and offline based on flow.
5. Timer Program Settings:
A. Backwash:______________________________ Minutes
B. Brine and Slow Rinse:_____________________ Minutes
C. Rapid Rinse: ____________________________ Minutes
D. Brine Tank Refill: ________________________ Minutes
E. Pause Time: ____________________________ Minutes
F. Second Backwash: _______________________ Minutes
6. Drain Line Flow Control: gpm
7. Brine Line Flow Controller: gpm
8. Injector Size#:
9. Piston Type:
A. Hard Water Bypass
B. No Hard Water Bypass
CALIFORNIA PROPOSITION 65 WARNING
WARNING:
This product contains chemicals known to
the State of California to cause cancer or
birth defects or other reproductive harm.

FLECK 2900S Service Manual • 3
INSTALLATION
Water Pressure
A minimum of 20 pounds (1.4 bar) of water pressure is
required for regeneration valve to operate effectively.
Electrical Facilities
An uninterrupted alternating current (A/C) supply is required.
NOTE: Other voltages are available. Please make sure your
voltage supply is compatible with your unit
before installation.
Existing Plumbing
Condition of existing plumbing should be free from lime and
iron buildup. Piping that is built up heavily with lime and/
or iron should be replaced. If piping is clogged with iron,
a separate iron filter unit should be installed ahead of the
water softener.
Location Of Softener And Drain
The softener should be located close to a drain to prevent air
breaks and back flow.
Bypass Valves
Always provide for the installation of a bypass valve if unit is
not equipped with one.
CAUTION
Water pressure is not to exceed 125 psi (8.6 bar),
water temperature is not to exceed 110°F (43°C),
and the unit cannot be subjected to
freezing conditions.
Installation Instructions
1. Place the softener tank where you want to install the unit
making sure the unit is level and on a firm base.
2. During cold weather, the installer should warm the valve
to room temperature before operating.
3. All plumbing should be done in accordance with local
plumbing codes. The pipe size for residential drain line
should be a minimum of 1/2-inch (13 mm). Backwash
flow rates in excess of 7 gpm (26.5 Lpm) or length in
excess of 20 feet (6 m) require 3/4-inch (19 mm) drain
line. Commercial drain lines should be the same size as
the drain line flow control.
4. Refer to the dimensional drawing for cutting height of the
distributor tube. If there is no dimensional drawing, cut
the distributor tube flush with the top of the tank.
5. Lubricate the distributor o-ring seal and tank o-ring seal.
Place the main control valve on tank.
NOTE: Only use silicone lubricant.
6.
IMPORTANT:
For valves equipped with
electromechanical timers and stainless steel meters,
refer to the Meter Dome and Union Orientation section.
7. Solder joints near the drain must be done prior to
connecting the Drain Line Flow Control fitting (DLFC).
Leave at least 6 inches (15 cm) between the DLFC and
solder joints when soldering pipes that are connected on
the DLFC. Failure to do this could cause interior damage
to the DLFC.
8. Plumber tape is the only sealant to be used on the drain
fitting. The drain from twin tank units may be run through
a common line.
9. Make sure that the floor is clean beneath the salt storage
tank and that it is level.
10. Place approximately 1 inch (25 mm) of water above the grid
plate. If a grid is not utilized, fill to the top of the air check
(Figure 1) in the salt tank. Do not add salt to the brine tank
at this time.
11. On units with a by-pass, place in by-pass position. Turn on
the main water supply. Open a cold soft water tap nearby
and let run a few minutes or until the system is free from
foreign material (usually solder) that may have resulted
from the installation. Once clean, close the water tap.
12. Slowly place the by-pass in service position and let water
flow into the mineral tank. When water flow stops, slowly
open a cold water tap nearby and let run until the air is
purged from the unit.
13. Plug unit into an electrical outlet.
NOTE: All electrical connections must be connected according
to local codes. Be certain the outlet is uninterrupted.
60002 Rev E
Figure 1 Residential Air Check Valve

4• FLECK 2900S Service Manual
STARTUP INSTRUCTIONS
The water softener should be installed with the inlet,
outlet, and drain connections made in accordance with the
manufacturer’s recommendations, and to meet applicable
plumbing codes.
1. Turn the manual regeneraton knob slowly in a clockwise
direction until the program micro switch lifts on top of the
first set of pins. Allow the drive motor to move the piston
to the first regeneration step and stop. Each time the
program switch position changes, the valve will advance
to the next regeneration step. Always allow the motor to
stop before moving to the next set of pins or spaces.
NOTE: For electronic valves, please refer to the manual
regeneration part of the timer operation section.
If the valve came with a separate electronic timer
service manual, refer to the timer operation section
of the electronic timer service manual.
2. Position the valve to backwash. Ensure the drain line flow
remains steady for 10 minutes or until the water runs
clear (see above).
3. Position the valve to the brine / slow rinse position.
Ensure the unit is drawing water from the brine tank (this
step may need to be repeated).
4. Position the valve to the rapid rinse position. Check the
drain line flow, and run for 5 minutes or until the water
runs clear.
5. Position the valve to the start of the brine tank fill cycle.
Ensure water goes into the brine tank at the desired
rate. The brine valve drive cam will hold the valve in this
position to fill the brine tank for the first regeneration.
6. Replace control box cover.
7. Put salt in the brine tank.
NOTE: Do not use granulated or rock salt.
Meter Dome and Union Orientation
Control valves outfitted with an electromechanical timer and
stainless steel water meter include a special male x female
threaded stainless steel union to insure proper installation
and operation of the water meter.
The location of this union in relation to the
control valve and water meter is critical for
proper operation. DO NOT omit or substitute
this special union; it positions the meter
dome at the correct distance from the control
valve and allows re-positioning the water
meter dome for proper operation.
1. Apply a suitable thread sealant to the male threads of the
union and meter body.
2. Thread the union into the OUTLET port of the control
valve, then thread the meter into the union. See
illustrations below.
3. Rotate the water meter body so the meter dome is at
the 12 o’clock position. Loosen the nut on the union to
facilitate this if required. Once in position, tighten the
union nut.
4. Connect the meter cable to the open port in the center of
the meter dome.
5. Continue with the installation of the control valve.
Position
Meter Dome
at 12 o’clock
orientation
Meter
Union
Valve Body
Powerhead Assembly
INSTALLATION CONTINUED

FLECK 2900S Service Manual • 5
3200 TIMER SETTING PROCEDURE
How To Set Days On Which Water Conditioner Is To
Regenerate (Figure 2)
Rotate the skipper wheel until the number “1” is at the red
pointer. Set the days that regeneration is to occur by sliding
tabs on the skipper wheel outward to expose trip fingers.
Each tab is one day. Finger at red pointer is tonight. Moving
clockwise from the red pointer, extend or retract fingers to
obtain the desired regeneration schedule.
How To Set The Time Of Day
1. Press and hold the red button in to disengage the
drive gear.
2. Turn the large gear until the actual time of day is at the
time of day pointer.
3. Release the red button to again engage the drive gear.
How To Manually Regenerate Your Water Conditioner At
Any Time
1. Turn the manual regeneration knob clockwise.
2. This slight movement of the manual regeneration knob
engages the program wheel and starts the
regeneration program.
3. The black center knob will make one revolution in the
following approximately three hours and stop in the
position shown in the drawing.
4. Even though it takes three hours for this center knob to
complete one revolution, the regeneration cycle of your
unit might be set for only one half of this time.
5. In any event, conditioned water may be drawn after rinse
water stops flowing from the water conditioner drain line.
How to Adjust Regeneration Time
1. Disconnect the power source.
2. Locate the three screws behind the manual regeneration
knob by pushing the red button in and rotating the 24 hour
dial until each screw appears in the cut out portion of the
manual regeneration knob.
3. Loosen each screw slightly to release the pressure on the
time plate from the
24-hour gear.
4. Locate the regeneration time pointer on the inside of the
24 hour dial in the cut out.
5. Turn the time plate so the desired regeneration time
aligns next to the raised arrow.
6. Push the red button in and rotate the 24 hour dial. Tighten
each of the three screws.
7. Push the red button and locate the pointer one more time
to ensure the desired regeneration time is correct.
8. Reset the time of day and restore power to the unit.
61502-3200 Rev A
Figure 2
3210 & 3220 TIMER SETTING PROCEDURE
Typical Programming Procedure
Calculate the gallon capacity of the system, subtract the
necessary reserve requirement and set the gallons available
opposite the small white dot on the program wheel gear
(Figure 3).
NOTE: Drawing shows 8,750 gallon setting. The capacity
(gallons) arrow (15) shows zero gallons remaining.
The unit will regenerate tonight at the set
regeneration time.
How To Set The Time Of Day
1. Press and hold the red button in to disengage the drive gear.
2. Turn the large gear until the actual time of day is opposite
the time of day pointer.
3. Release the red button to again engage the drive gear.
How To Manually Regenerate Your Water Conditioner At
Any Time
1. Turn the manual regeneration knob clockwise.
2. This slight movement of the manual regeneration knob
engages the program wheel and starts the regeneration
program.

6• FLECK 2900S Service Manual
3. The black center knob will make one revolution in the
following approximately three hours and stop in the
position shown in the drawing.
4. Even though it takes three hours for this center knob to
complete one revolution, the regeneration cycle of your
unit might be set for only one half of this time.
5. In any event, conditioned water may be drawn after rinse
water stops flowing from the water conditioner drain line.
Immediate Regeneration Timers
These timers do not have a 24 hour gear. Setting the gallons
on the program wheel and manual regeneration procedure
are the same as previous instructions. The timer will
regenerate as soon as the capacity gallons reaches zero.
NOTE: The program wheel to the left may be different than
the program wheel on the product.
NOTE: To set meter capacity rotate manual knob one - 360°
revolution to set gallonage.
61502-3200 Rev A
Figure 3
3200, 3210, 3220, 3230 REGENERATION
CYCLE SETTING PROCEDURE
How To Set The Regeneration Cycle Program
The regeneration cycle program on your water conditioner
has been factory preset, however, portions of the cycle or
program may be lengthened or shortened in time to suit local
conditions.
3200 Series Timers (Figure 4)
1. To expose cycle program wheel, grasp timer in upper
left-hand corner and pull, releasing snap retainer and
swinging timer to the right.
2. To change the regeneration cycle program, the program
wheel must be removed. Grasp program wheel and
squeeze protruding lugs toward center, lift program wheel
off timer. Switch arms may require movement to facilitate
removal.
3. Return timer to closed position engaging snap retainer in
back plate. Make certain all electrical wires locate above
snap retainer post.
Timer Setting Procedure
How To Change The Length Of The Backwash Time
The program wheel as shown in the drawing is in the service
position. As you look at the numbered side of the program
wheel, the group of pins starting at zero determines the length
of time your unit will backwash.
For example, if there are six pins in this section, the time of
backwash will be 12 min. (2 min. per pin). To change the length
of backwash time, add or remove pins as required. The number
of pins times two equals the backwash time in minutes.
How To Change The Length Of Brine And Rinse Time
1. The group of holes between the last pin in the backwash
section and the second group of pins determines the length
of time that your unit will brine and rinse (2 min. per hole).
2. To change the length of brine and rinse time, move the rapid
rinse group of pins to give more or fewer holes in the brine
and rinse section. Number of holes times two equals brine
and rinse time in minutes.
How To Change The Length Of Rapid Rinse
1. The second group of pins on the program wheel determines
the length of time that your water conditioner will rapid
rinse (2 min. per pin).
2. To change the length of rapid rinse time, add or remove pins
at the higher numbered end of this section as required. The
number of pins times two equals the rapid rinse time
in minutes.
How To Change The Length Of Brine Tank Refill Time
1. The second group of holes in the program wheel determines
the length of time that your water conditioner will refill the
brine tank (2 min. per hole).
2. To change the length of refill time, move the two pins at the
end of the second group of holes as required.
3. The regeneration cycle is complete when the outer
microswitch is tripped by the two pin set at end of the brine
tank refill section.
4. The program wheel, however, will continue to rotate until
the inner micro switch drops into the notch on the
program wheel.
61502-3210 Rev A
Figure 4
3210 & 3220 TIMER SETTING
PROCEDURE
CONTINUED

FLECK 2900S Service Manual • 7
[ THIS PAGE LEFT INTENTIONALLY BLANK ]

8• FLECK 2900S Service Manual
37
615023200 Rev A

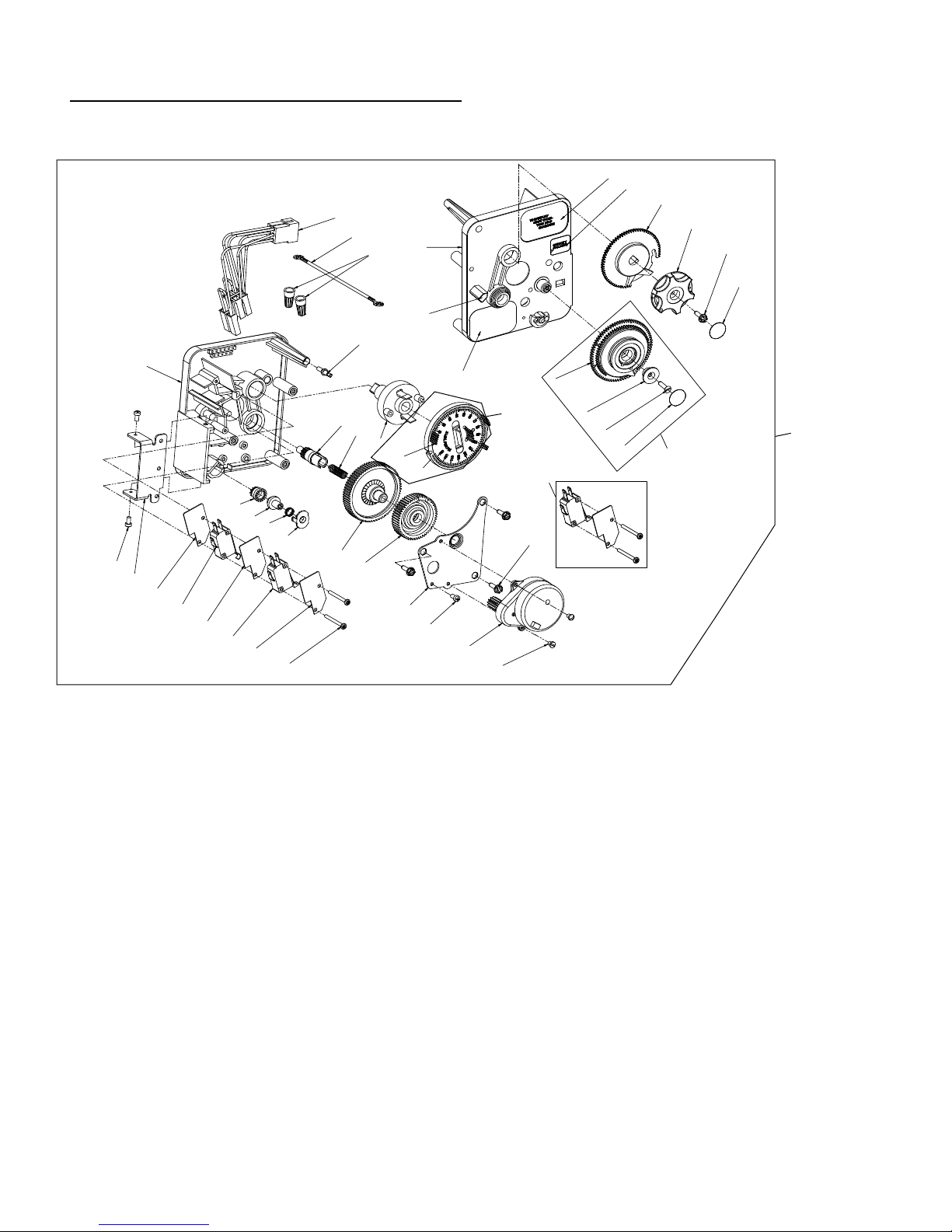

3200 TIME CLOCK TIMER ASSEMBLY
36
38

FLECK 2900S Service Manual • 9
Item No. QTY Part No. Description
1 ..............1...... 13870..............Housing, Timer, 3200
2 ..............1...... 14265..............Clip, Sping
3 ..............3...... 14087..............Insulator
4 ..............1...... 10896..............Switch, Micro
5 ..............1...... 15320..............Switch, Micro, Timer
6 ..............2...... 11413..............Screw, Pan Hd Mach,
4-40 x 1-1/8
7 ..............1...... 13886..............Knob, 3200
8 ..............5...... 13296..............Screw, Hex Wsh, 6-20 x 1/2
9 ..............1...... 11999..............Label, Button
10 ............1...... 13018..............Pinion, Idler
11 ............1...... 13312..............Spring, Idler Shaft
12 ............1...... 13017..............Gear, Idler
13 ............1...... 13164..............Gear, Drive
14 ............1...... 13887..............Plate, Motor Mounting
15 ............1...... 18743-1 ..........Motor, 120V, 60Hz,
1/30 RPM
....... 18752-1 ..........Motor, 100V, 50Hz,
1/30 RPM
....... 18824-1 ..........Motor, 230V, 50Hz,
1/30 RPM
....... 18826-1 ..........Motor, 24V, 50Hz, 1/30 RPM
....... 19659-1 ..........Motor, 24V, 60Hz, 1/30 RPM
....... 19660-1 ..........Motor, 230V, 60Hz,
1/30 RPM
16 ............2...... 13278..............Screw, Sltd Fillister Hd
6-32 x .156
17 ............1...... 15424..............Spring, Detent, Timer
18 ............1...... 15066..............Ball, 1/4-inch, Delrin
19 ............1...... 15465..............Label, Caution
20 ............1...... 19210..............Program Wheel Assy
21 ............1...... 13911..............Gear, Main Drive, Timer
22 ...........17 ..... 41754..............Pin, Spring, 1/16 x 5/8 SS,
Timer
23 ............1...... 13011..............Arm, Cycle Actuator
24 ............1...... 13864..............Ring, Skipper Wheel
25 ............2...... 13311..............Spring, Detent, Timer
26 ............2...... 13300..............Ball, 1/4-inch, SS
27 ............1...... 14381..............Skipper Wheel Assy, 12 Day
1 ...... 14860..............Skipper Wheel Assy, 7 Day
28 ............1...... 13014..............Pointer, Regeneration
29 ............1...... 40096-24.........Dial, 12 AM Regen Assy,
Black
....... 40096-02.........Dial, 2 AM Regen Assy, Black
30 ............1...... 13881..............Bracket, Hinger Timer
31 ............2...... 11384..............Screw, Phil, 6-32 x 1/4 Zinc
32 ............1...... 13902..............Harness, 3200
33 ............2...... 40422..............Nut, Wire, Tan
34 ............1...... 15354-01.........Wire, Ground, 4 inches
35 ............1...... 14007..............Label, Time of Day
36 ............1...... *......................Complete 3200 Time Clock
Timer Assembly
37 ..................... 60320-02.........Switch Kit, 3200/9000 Timer
Auxiliary, Optional
38 ..................... 61420-03.........Program Wheel, Gear Assy,
Filter 2 Min Per Pin
....... 61420-04.........Program Wheel, Gear Assy,
Softener, 2 Min Per Pin
*Call your distributor for Part Number
Item No. QTY Part No. Description
3200 TIME CLOCK TIMER ASSEMBLY
CONTINUED

10 • FLECK 2900S Service Manual

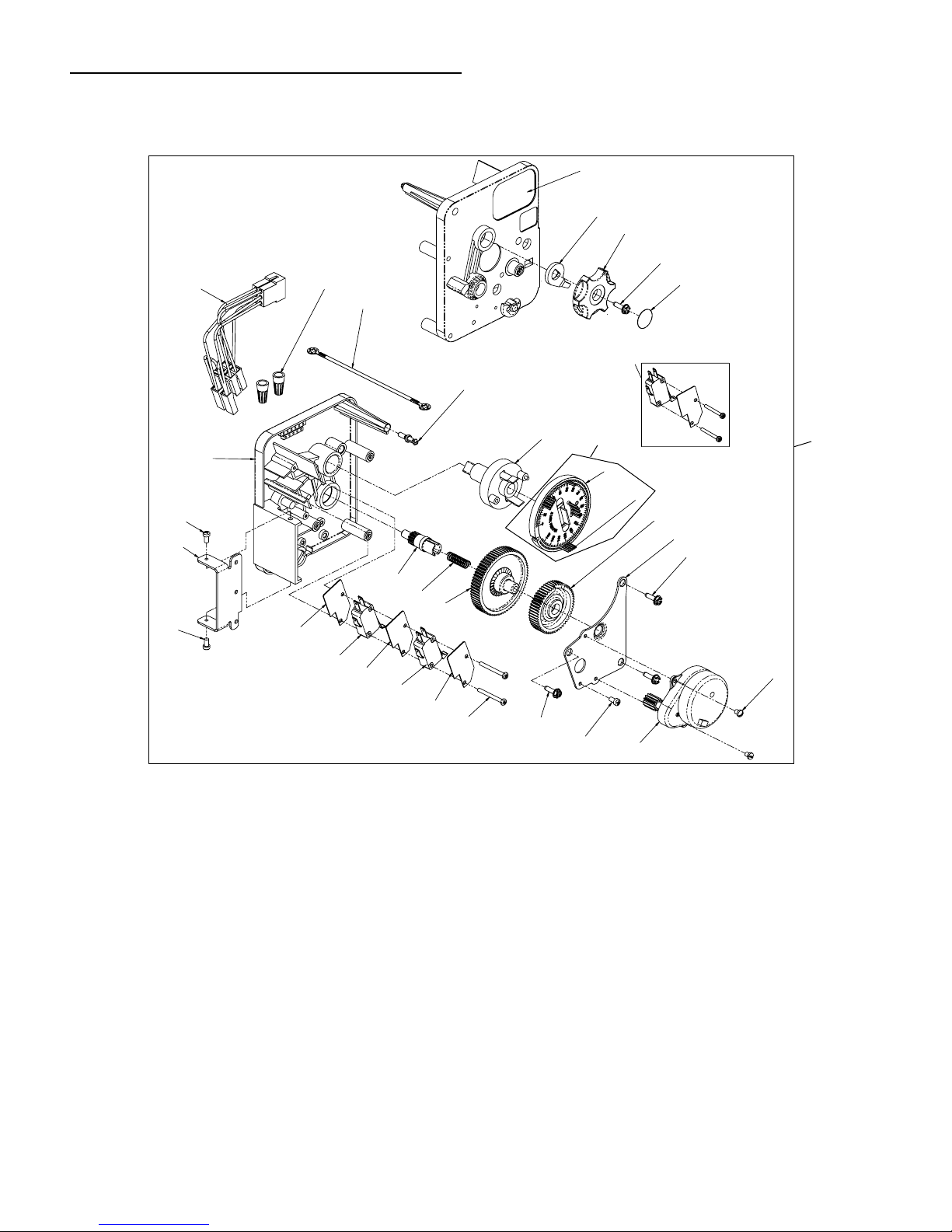

3210 METER DELAYED TIMER ASSEMBLY
41
42
61502-3210 Rev A
40
43

FLECK 2900S Service Manual • 11
Item No. QTY Part No. Description
1 ..............1...... 13870..............Housing, Timer, 3200
2 ..............1...... 13802..............Gear, Cycle Actuator
3 ..............1...... 40096-02.........Dial 2 AM Regen Assy,
Black
4 ..............1...... 13886..............Knob, 3200
5 ..............4...... 13296..............Screw, Hex Wsh, 6-20 x 1/2
6 ..............2...... 11999..............Label, Button
7 ..............1...... 13803..............Gear, Program Drive Wheel
8 ..............1...... 13806..............Retainer, Program Wheel
9 ..............1...... 13748..............Screw, Flat Head St,
6-20 x 1/2
10 ............1...... 14265..............Clip, Spring
11 ............1...... 15424..............Spring, Detent, Timer
12 ............1...... 15066..............Ball, 1/4-inch Delrin
13 ............1...... 13018..............Pinion, Idler
14 ............1...... 13312..............Spring, Idler Shaft
15 ............1...... 13017..............Gear, Idler
16 ............1...... 13164..............Gear, Drive
17 ............1...... 13887..............Plate, Motor Mounting
18 ............1...... 18743-1 ..........Motor, 120V, 60Hz 1/30
RPM
....... 18752-1 ..........Motor, 100V, 50Hz,
1/30 RPM
....... 18824-1 ..........Motor, 230V, 50Hz,
1/30 RPM
....... 18826-1 ..........Motor, 24V, 50Hz, 1/30 RPM
....... 19659-1 ..........Motor, 24V, 60Hz, 1/30 RPM
....... 19660-1 ..........Motor, 230V, 60Hz,
1/30 RPM
19 ............1...... 13278..............Screw, Fillister Hd,
6-32 x .156
20 ............1...... 13830..............Pinion, Program Wheel
Drive
21 ............1...... 13831..............Clutch, Drive Pinion
22 ............1...... 14276..............Spring, Meter, Clutch
23 ............1...... 14253..............Retainer, Clutch Spring
24 ............3...... 11384..............Screw, Phil, 6-32 x 1/4
25 ............1...... 13881..............Bracket, Hinge Timer
26 ............3...... 14087..............Insulator
27 ............1...... 10896..............Switch, Micro
28 ............1...... 15320..............Switch, Micro, Timer
29 ............2...... 11413..............Screw, Pan Hd Mach,
4-40 x 1 1/8
30 ............1...... 14198..............Label, Indicator
31 ............1...... 15465..............Label, Caution
32 ............1...... 14007..............Label, Time of Day
33 ............1...... 14045..............Label, Instruction
34 ............1...... 13902..............Harness, 3200
35 ............2...... 40422..............Nut, Wire, Tan
36 ............1...... 15354-01.........Wire, Ground, 4 inches
37 ............1...... 19210..............Program Wheel Assy
38 ...........17 ..... 41754..............Pin, Spring, 1/16 x 5/8 SS,
Timer
39 ............1...... 13911..............Gear, Main Drive, Timer
40 ............1...... *......................Complete 3210 Meter
Delayed Timer Assembly
41 ..................... 60405-50.........Program Wheel, w/2-inch STD
Label 0-21,000 gal
....... 60405-60.........Program Wheel, w/2-inch EXT
Label 0-100,000 gal
.........60405-61.......... Program Wheel, w/2-inch EXT
Range 375 m3
42 ..................... 60320-02.........Switch Kit, 3200/9000 Timer
Auxiliary, Optional
43 ..................... 61420-03.........Program Wheel, Gear Assy,
Filter 2 Min Per Pin
....... 61420-04.........Program Wheel, Gear Assy,
Softener, 2 Min Per Pin
*Call your distributor for Part Number
Item No. QTY Part No. Description
3210 METER DELAYED TIMER ASSEMBLY
CONTINUED

12 • FLECK 2900S Service Manual
3220 METER IMMEDIATE TIMER
ASSEMBLY
1
2
3
4
5
6
7
8
9
10 11
12 13
14
15
16
17 18 19 20
21 22 23
24
25
26
27
28
29
30
31
32
33
34
35
36 5
1
23
23
21
4
38
39
61502-3220 Rev B
37
40

FLECK 2900S Service Manual • 13
Item No. QTY Part No. Description
1 ..............1...... 13870..............Housing, Timer
2 ..............1...... 15431..............Gear, Cycle Actuator,
System #5
3 ..............1...... 13886..............Knob, 3200
4 ..............4...... 13296..............Screw, Hex Wsh, 6-20 x 1/2
5 ..............2...... 11999..............Label, Button
6 ..............1...... 13807..............Gear, Program Drive Wheel
7 ..............1...... 13806..............Retainer, Program Wheel
8 ..............1...... 13748..............Screw, Flt Hd St, 6-20 x 1/2
9 ..............1...... 14265..............Spring Clip
10 ............1...... 13018..............Pinion, Idler
11 ............1...... 18563..............Idler Shaft Spring
12 ............1...... 13017..............Gear, Idler
13 ............1...... 13164..............Drive Gear
14 ............1...... 13887..............Plate, Motor Mounting
15 ............1...... 18743-1 ..........Motor, 120V, 60 Hz,
1/30 RPM
....... 18752-1 ..........Motor, 100V, 50Hz,
1/30 RPM
....... 18824-1 ..........Motor, 230V, 50Hz,
1/30 RPM
....... 18826-1 ..........Motor, 24V, 50Hz, 1/30 RPM
....... 19659-1 ..........Motor, 24V, 60Hz, 1/30 RPM
....... 19660-1 ..........Motor, 230V, 60Hz,
1/30 RPM
16 ............2...... 13278..............Screw, Sltd Fillister Hd
17 ............1...... 14502..............Pinion, Program Wheel
18 ............1...... 14501..............Clutch, Drive Pinion
19 ............1...... 14276..............Meter Clutch Spring
20 ............1...... 14253..............Retainer, Clutch Spring
21 ............3...... 11384..............Screw, Phil, 6-32 x 1/4 Zinc
22 ............1...... 13881..............Bracket, Hinge Timer
23 ............3...... 14087..............Insulator
24 ............1...... 15414-00.........Micro Switch
25 ............1...... 15320..............Switch, Micro, Timer
26 ............2...... 11413..............Screw, Pan Hd Mach,
4-40 x 1-1/8
27 ............1...... 14198..............Label, Indicator
28 ............1...... 15465..............Label, Caution
29 ............1...... 14007..............Label, Time of Day
30 ............1...... 15148..............Label, Instruction
Item No. QTY Part No. Description
31 ............1...... 40617..............Harness, 3220
32 ............2...... 40422..............Nut, Wire, Tan
33 ............1...... 15354-01.........Wire, Ground, 4 inches
34 ............1...... 19210-05.........Program Wheel Assembly,
9000/3230
35 ...........17 ..... 41754..............Pin, Spring, 1/16 x 5/8
Stainless Steel, Timer
36 ............1...... 15055..............Gear, Main Drive
37 ............1...... *......................Complete 3220 Meter
Immediate Timer Assy
38 ..................... 60405-50.........Program Wheel, w/2-inch STD
Label 0-21,000 gal
....... 60405-60.........Program Wheel, w/2-inch EXT
Label 0-100,000 gal
.........60405-61.......... Program Wheel, w/2-inch EXT
Range 375 m3
39 ..................... 60320-02.........Switch Kit, 3200/9000 Timer
Auxiliary, Optional
40 ..................... 61420-06.........Program Wheel, Gear Assy,
Softener Immediate 2 Min
Per Pin
....... 61420-42.........Program Wheel, Gear Assy,
Filter Immediate 2 Min Per
Pin
*Call your distributor for Part Number
3220 METER IMMEDIATE TIMER
ASSEMBLY
CONTINUED

14 • FLECK 2900S Service Manual
3230 REMOTE START TIMER ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
20
8
8
3
3
24
24
24
23
21
25 26
27
22
61502-3230R REV A
30 29
28

FLECK 2900S Service Manual • 15
Item No. QTY Part No. Description
1 ..............1...... 13870..............Housing, Timer
2 ..............1...... 14265..............Spring Clip
3 ..............3...... 14087..............Insulator
4 ..............1...... 15314..............Micro Switch
5 ..............1...... 15320..............Switch, Micro, Timer
6 ..............2...... 11413..............Screw, Pan Hd Mach,
4-40 x 1-1/8
7 ..............1...... 13886..............Knob, 3200
8 ..............4...... 13296..............Screw, Hex Wsh,
6-20 x 1/2
9 ..............1...... 11999..............Label, Button
10 ............1...... 13018..............Pinion, Idler
11 ............1...... 18563..............Idler Shaft Spring
12 ............1...... 13017..............Gear, Idler
13 ............1...... 15055..............Drive Gear
14 ............1...... 13887..............Plate, Motor Mounting
15 ............1...... 18743-1 ..........Motor, 120V, 60 Hz,
1/30 RPM
....... 18752-1 ..........Motor, 100V, 50Hz,
1/30 RPM
....... 18824-1 ..........Motor, 23V, 50Hz,
1/30 RPM
....... 18826-1 ..........Motor, 24V, 50Hz,
1/30 RPM
....... 19659-1 ..........Motor, 24V, 60Hz,
1/30 RPM
....... 19660-1 ..........Motor, 230V, 60Hz,
1/30 RPM
16 ............2...... 13278..............Screw, Sltd Fillister Hd
17 ............1...... 15313..............Label, Caution
18 ............1...... 19210-05.........Program Wheel Assembly,
3200
20 ............1...... 15055..............Main Drive Gear
21 ...........17 ..... 41754..............Pin, Spring, 1/16 x 5/8
Stainless Steel, Timer
22 ............1...... 13011..............Cycle Actuator Arm
23 ............1...... 13881..............Bracket, Hinge Timer
24 ............3...... 11384..............Screw, Phil, 6-32 x 1/4 Zinc
25 ............1...... 16336..............Harness, 3230R
26 ............2...... 40422..............Nut, Wire, Tan
27 ............1...... 15354-01.........Wire, Ground, 4 inches
28 ..................... 60320-02.........Switch Kit, 3200/9000 Timer
Auxiliary, Optional
29 ..................... *......................3230 Timer Assy
30 ..................... 61420-06.........Program Wheel, Gear Assy,
Softener Immediate 2 Min
Per Pin
....... 61420-42.........Program Wheel, Gear Assy,
Filter Immediate 2 Min Per
Pin
*Call your distributor for Part Number
Item No. QTY Part No. Description
3230 REMOTE START TIMER ASSEMBLY
CONTINUED

16 • FLECK 2900S Service Manual
35
36

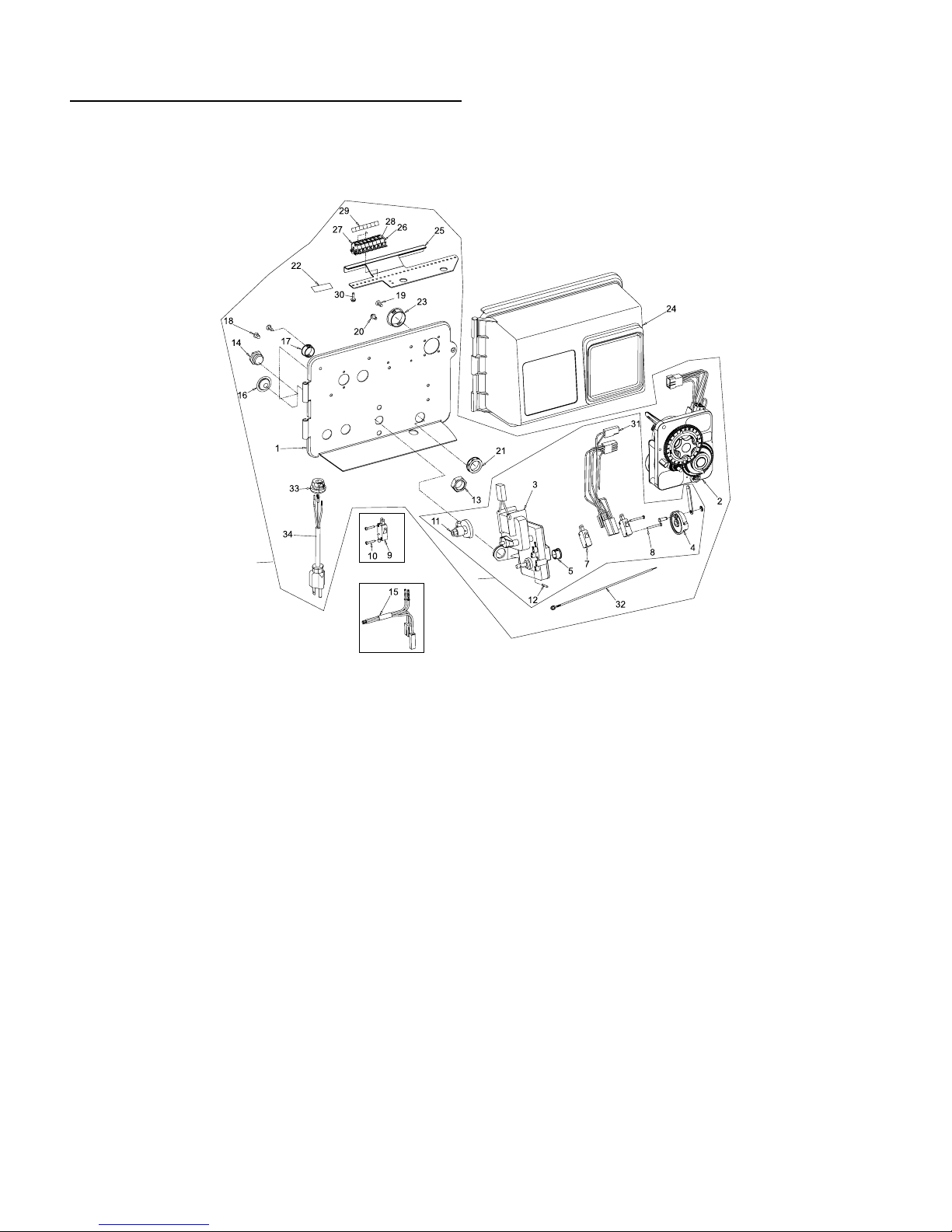

UPPER ENVIRONMENTAL POWERHEAD
ASSEMBLY
61501-2900 Rev G

FLECK 2900S Service Manual • 17
Item No. QTY Part No. Description
1 ..............1...... 18697-15.........Backplate, Hinged
2 ..............1...............................3200 Clock Timer Assembly
................................3200 Meter Timer
Assembly
3 ..............1...... 41543..............Motor, Drive, 115V, 50/60
Hz
....... 42579..............Motor, Drive, 24VAC/DC,
50/60 Hz
....... 41545..............Motor, Drive, 230V, 50/60
Hz
4 ..............1...... 60160-15.........Drive Cam Assembly, STF,
Blue, 2900
....... 60160-30*.......Drive Cam Assembly,
Upflow
....... 60160-31*.......Drive Cam Assembly,
Upflow, Variable
5 ..............1...... 17904..............Bushing, Heyco 1/2, Heyco
#2073
7 ..............2...... 10218..............Switch, Micro
8 ..............2...... 14923..............Screw, Pan Hd Mach, 4-40
X 1 MS Steel Zinc
9 ..............1...... 10896..............Switch, MIcro
10 ............2...... 11805..............Screw, Rd Hd, 4-40 X 5/8
TYPE 1 Steel Zinc
11 ............1...... 12472..............Cam Assy, Tri-Stack, After
RR
....... 12777..............Cam, Shut-Off Valve
....... 15770..............Cam Assy, Special Tri-
Stack, After Brine Fill
....... 15805..............Cam, SVO
....... 19887* ............Cam, Brine, 2750 U/F, Std
12 ............2...... 10338..............Pin, Roll 3/32 x 7/8
13 ............1...... 10269..............Nut, Jam, 3/4-16
14 ............1...... 43560..............Fitting, Brine Valve
15 ............1...... 14822..............Harness, 2900
16 ............2...... 19691..............Plug, .750 Dia Recessed,
Black
17 ............1...... 15806..............Plug, Hole, Heyco #2693
18 ............1...... 19801..............Plug, .190 Dia, White Heyco
0307
19 ............7...... 19800..............Plug, .140 Dia, White Heyco
0304
20 ............4...... 10300..............Screw, Slot Hex Wsh, 8-18
X 3/8 Type “B” RC 44-47
21 ............1...... 18691-02.........Nut, Conduit Fitting 1/2-
inch
22 ............1...... 40038-03.........Label, Voltage, 120V,
3200ET
23 ............1...... 17421..............Plug, 1.20 Hole Heyco
#2733
24 ............1...... 60219-02.........Cover Assembly,
Environmental, Black w/
Clear Window
25 ............1...... 19772..............Bracket, Terminal Block
26 ............1...... 40174..............Terminal Block, Green/
Yellow Commercial, 809-
260/141
27 ............6...... 41084..............Terminal Block, Segment,
Gray
28 ............1...... 41085..............Endplate, Terminal Block,
Gray
29 ............2...... 15250..............Label, Terminal Strip
30 ............2...... 13296..............Screw, Hex Wsh, 6-20 6-20 x
1/2 Type 25 Steel Zinc
31 ............1...... 40400..............Harness, Drive, Designer/
Environmental
32 ............1...... 40175-01.........Wire, Ground, Commercial
Valves
33 ............1...... 13547..............Strain Relief, Flat Cord
Heyco #30-1
....... 13547-01.........Strain Relief, Euro Round
Cord
....... 13547-02.........Strain Relief, U.S. Round
34 ............1...... 11545..............Powercord, 4-foot European,
Black
....... 19303..............Powercord, 8-foot, Australian
....... 40084-12.........Powercord, 12-foot
US, Round, 120V,Sys
5,6,7&2900/3150/3900
....... 40085-12.........Powercord, 12-foot US,
Round, 240V
35 ..................... 60050-23.........Drive Assy, 2750, STF, 24V
50/60 Hz, Downflow Less
Lower Drive Brine Cam
Switch, Item 9 & 10
....... 60050-22.........Drive Assy, 2750, STF, 220V
50/60 Hz, Downflow Less
Lower Drive Brine Cam
Switch, Item 9 & 10
....... 60052-21.........Upper Drive Assy, 2900, STF
120V, Downflow
....... 60052-217.......Upper Drive Assy, 2900, STF
120V, System 7, Downflow
36 ..................... ** ....................Upper Powerhead Assembly
Not Shown:
1 ...... 15216..............Meter Cable Assembly,
15.25 inch long,
2 inch Brass Meter
1 ...... 15513..............Meter Cable Assembly,
17.5 inch long
2 inch Stainless Steel Meter
1 ...... 15879..............Cable Guide Assembly, 2900
*Upflow Only
**Call your distributor for Part Number
Item No. QTY Part No. Description
UPPER ENVIRONMENTAL POWERHEAD
ASSEMBLY
CONTINUED

18 • FLECK 2900S Service Manual
LOWER ENVIRONMENTAL POWERHEAD
ASSEMBLY
61501-2900 Rev G
15
6
2
4
5
1
18
3
13
19 914
12
17
11
10
8
7
16
20
21
22

FLECK 2900S Service Manual • 19
Item No. QTY Part No. Description
1 ..............1...... 18709..............Backplate, Lower
2 ..............2...... 11224..............Screw, Slotted Hex Head
3 ..............2...... 16346..............Nut, Hex, Jam, 5/16-18,
18-8-SS (only used for
shipping)
4 ..............1...... 40387..............Motor, Drive, 115V, 60 Hz,
SP FAM
....... 42580..............Motor, Drive, 24 Vac/Dc,
50-60 Hz, Fam 2
....... 40389..............Motor, Drive, 220V,
50/60 Hz, SP
5 ..............1...... 14769..............Bracket, Motor, 2900
6 ..............1...... 10302..............Insulator, Limit Switch
7 ..............1...... 10218..............Switch, Micro
8 ..............2...... 19849..............Screw, Pan HD, 4-40 x 5/8
9 ..............1...... 14775..............Cam, Main Drive, 2900
Lower
10 ............1...... 41022..............Pin, Roll 2900 Lower
11 ............1...... 14759..............Link, Piston Rod
12 ............1...... 18725..............Indicator, Service/Standby
13 ............1...... 18726..............Spacer, Indicator
14 ............6...... 10872..............Screw, Hex WSH,
8-32 x 5/16
15 ............1...... 60217-02.........Cover Assy, 2900, Lower,
Black
16 ............1...... 42979..............Bearing, Connecting
Rod
17 ............1...... 42980..............Ring, Retaining
18 ............1...... 42446..............Harness, Lower Drive
SYS4, ENV
....... 40405..............Harness, Lower Drive, Sys
4 Remote Start
....... 40406..............Harness, Lower Drive,
Sys 5 & 6, Duplex,
Enviromental
....... 40405..............Harness, Lower Drive Syst
5 Multiple, Enviromental
....... 40405..............Harness, Lower Drive
Syst 6 Multiple, Lead,
Enviromental
....... 40406..............Harness, Lower Drive, Sys
6, Multiple, Middle/Lag,
Enviromental
....... 40407..............Harness, Lower Drive,
Syst #7, Duplex, Lead,
Enviromental
....... 40408..............Harness, Lower Drive, Syst 7,
Duplex, Lag, Enviromental
....... 40398..............Harness, Lower Drive, Syst
#7, Multiple, Enviromental
19 ............1...... 18727..............Washer, Curved Spring, /265
ID
20 ..................... 60160-22.........Drive Cam Assy, Link,
Enviromental, 2900 Lower
Drive
21 ..................... 60055-53.........Lower Drive Assy, 2900,
24/60, System #4
....... 60055-51.........Lower Drive Assy, 2900, 120,
System #4
....... 60055-52.........Lower Drive Assy, 2900, 220,
System #4
....... 60255-51.........Lower Drive Assy, 2900, 120,
System #5 and #6, Lead/Lag
....... 60056-51.........Lower Drive Assy, 2900, 120,
System #7, Lead
....... 60056-61.........Lower Drive Assy, 2900, 120,
System #7, Lag
22 ..................... *......................2900 Lower Powerhead
Assembly
Not Shown:
1 ...... 14044..............Tie, Cable, HeyCo VNT # 4-18
1 ...... 43062..............Grease, Lubriplate, 630-2
....... 60320-11.........Switch Kit, 2900 Lower Drive,
Adding Second Switch
....... 60320-08.........Switch Kit, 2900 Lower Drive,
Adding Third Switch
*Call your distributor for Part Number
Item No. QTY Part No. Description
LOWER ENVIRONMENTAL POWERHEAD
ASSEMBLY
CONTINUED

20 • FLECK 2900S Service Manual
31
22
21
1
14
15
16
17
18
19
20
5
6
9
10
7
8
13
11 12
32
31
2
3
4
23
1
Upflow
1
Downflow
23
25
33
34
35
36
CONTROL VALVE ASSEMBLY
Item No. QTY Part No. Description
1 ..............1...... 41428-01.........Valve Body, 2900s, Machd,
NPT U.S. Tap
....... 41428-09.........Valve Body, 2900s,
Machined, w/Soft Water
Adapter
....... 41428-01NP....Valve Body, 2900s, MCHD,
NPT, NP, U.S. Tap, Top
Coll
....... 41428-03.........Valve Body, 2900s,
MACHD, NPT, U.S. Tap,
Aux Tap, Top Coll
....... 41428-03NP....Valve Body, 2900s, MCHD,
NPT, NP, U.S. Tap, Aux
Tap, Top Coll
....... 41428-05.........Valve Body, 2900s, NPT,
U.S. Tap, SVO, Top Coll
....... 41428-07.........Valve Body, 2900s,
MACHD, NPT, U.S. Tap,
Aux Tap, SVO, Top Coll
....... 41428-09.........Valve Body, 2900s,
MACHD, NPT, U.S. Tap,
Soft ADAPT, Top Coll
....... 41428-09NP....Valve Body, 2900S, MCHD,
NPT, NP, U.S. Tap, Soft
ADAPT, Top Coll
....... 41428-11.........Valve Body, 2900S, NPT, U.S.
Tap, Aux Tap, SFT ADPT, Top
Coll
....... 41428-13.........Valve Body, 2900S, MACHD,
NPT, U.S. Tap, SVO, Soft
ADAPT, Top Coll
....... 41428-15.........Valve Body, 2900S, MACHD,
NPT, U.S. Tap, SVO, SFT
ADPT, AX TP Top
....... 41428-21.........Valve Body, 2900S, MACHD,
BSP, Metric Tap, Top Coll
....... 41428-21NP....Valve Body, 2900S, MCHD,
BSP, NP, Metric Tap, Top
Coll
2 ..............1...... 10757..............Spacer, End
....... 10757B............Spacer, End, Brass, HW
3 ..............7...... 10545..............Seal, Piston
....... 10545-01.........Seal, Piston, Viton
....... 10545-02.........Seal, Piston, Silicone
Item No. QTY Part No. Description
61500-2900 Rev F
