OWNER’S MANUAL
Should you the installer or owner be unfamiliar with the correct installation or
operation of this type of equipment you should contact the distributor/manufacturer
for the correct advice before proceeding with the installation or operation of this
product.
For the installation, operation and service of
PCFE40P12
PCFE54P12

Copyright© Pentair
2
_________________________________________________________________________________________________________________________________________
Contents
________________________________________________________________________________________________________________________________________
1. Precautions and General Notes....................................................................................3
2. Parts Included...............................................................................................................4
3. Product Information......................................................................................................5
3.1. Product Features ...................................................................................................5
3.2. Specifications.........................................................................................................5
3.3. Schematic Diagrams .............................................................................................6
3.4. Introduction to Main Parts.....................................................................................8
4. Installation Instructions................................................................................................9
4.1 Precautions.............................................................................................................9
4.2 Installation Preparation..........................................................................................11
4.3 Installation Steps....................................................................................................11
5. Operating Instructions..................................................................................................14
5.1. Commissioning and Setting ..................................................................................14
5.2. Accessing History Values.......................................................................................19
5.3. Error Diagnosis and Troubleshooting ...................................................................20
6. Terms and Conditions of Warranty ...............................................................................22
7. Maintenance Records ...................................................................................................23

Copyright© Pentair 3
_________________________________________________________________________________________________________________________________________
1. PRECAUTIONS AND GENERAL NOTES
________________________________________________________________________________________________________________________________________
General Warnings and Safety Information Electrical
There are no user-serviceable parts in the AC adapter, motor, or controller. In the event of a
failure, these should be replaced.
• All electrical connections must be completed according to local codes.
• Use only the power AC adapter that is supplied.
• The power outlet must be grounded.
• To disconnect power, unplug the AC adapter from its power source.
Mechanical
• Do not use petroleum based lubricants such as Vaseline, oils, or hydrocarbon based
lubricants. Use only 100% silicone lubricants.
• All plastic connections should be hand tightened. Teflon* tape may be used on connections
that do not use an O-ring seal. Do not use pliers or pipe wrenches.
• All plumbing must be completed according to local codes.
• Soldering near any plastic fittings should be done before connecting fittings to the valve.
Excessive heat will cause interior damage to the valve.
• Observe drain line requirements.
• Do not use lead-based solder for sweat solder connections.
• Do not support the weight of the system on the control valve fittings, plumbing, or the bypass.
• It is not recommended to use sealants on the threads. Use Teflon* tape on all threaded
connections.
*Teflon is a trademark of E.I. duPont de Nemours.
General
• Observe all warnings that appear in this manual.
• Keep the unit in the upright position. Do not turn on side, upside down, or drop. Turning the
tank upside down or laying the tank on its side will cause media to enter the valve.
• Operating ambient temperature is between 35.6°F (2°C) and 120°F (49°C).
• Operating water temperature is between 39.2°F (4°C) and 100°F (38°C).
• Working water pressure range is 0.14 to 0.35 MPa (20 – 50 PSI).
• Use only salts designed for water softening. Do not use ice melting, block, or rock salts.
• This system is not intended to be used for treating water that is microbiologically unsafe or
of unknown quality without adequate disinfection before or after the system.
• Do not allow this water conditioning system to freeze. Damage from freezing will void this
water conditioning system’s warranty.
• The materials used will fade or discolor over time in direct sunlight. The integrity of the
materials will degrade to cause system failures.
• The carbon filter removes organic pollutants (such as oxygen demand and
trichloromethane), odor (chlorine smell, etc.) and particulate matters. It does not remove
salt or viruses. Hence the treated water is not recommended for direct drinking.
• Do not leave the filter system unused for an extended period. Please turn off the water
supply valve if the filter system is not used for an extended period. After an extended
period of non-usage, please rinse the filter system thoroughly before use.

Copyright© Pentair
4
_________________________________________________________________________________________________________________________________________

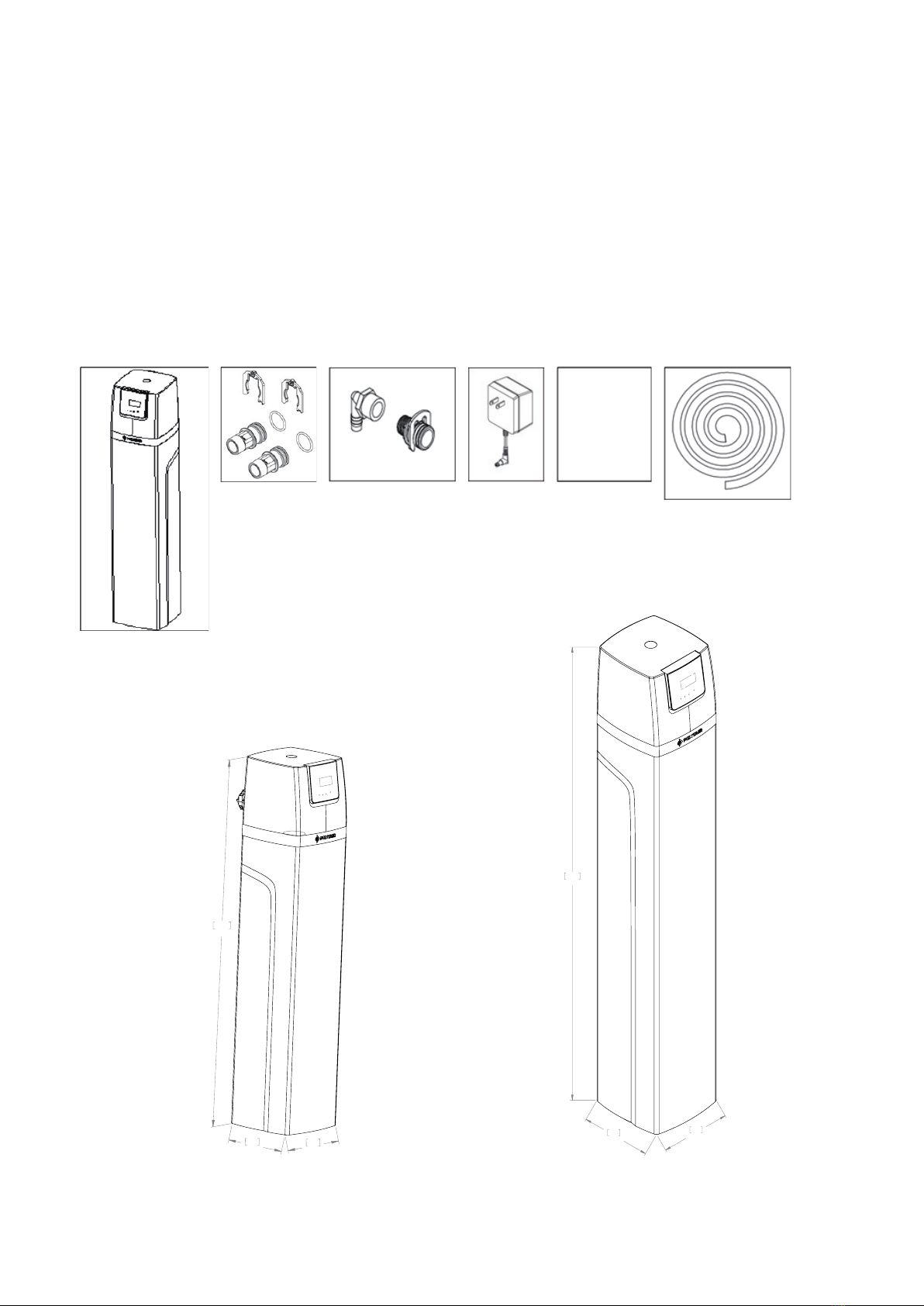

2. PARTS INCLUDED
________________________________________________________________________________________________________________________________________
Open the package and ensure that all parts are provided. All models of carbon filter contain
the following parts:
1. Carbon filter with automatic control valves
2. Inlet and outlet connector kit
3. Drain connector kit
4. Power adapter
5. Owner’s Manual
6. Drain tubes
1
2 3 4 5
6
Owner’s
Manual
PCFE40P12 Installation Schematic (Unit: mm) PCFE54P12 Installation Schematic (Unit: mm)
1250
49.61
280
11.02
280
11.02
280
11.02
280
11.02
1620
62.99

Copyright© Pentair 5
_________________________________________________________________________________________________________________________________________
3. PRODUCT INFORMATION
________________________________________________________________________________________________________________________________________
3.1. Product Features
The Pentair PCFE40P12 and PCFE54P12 carbon filters use chlorinated city water as the inlet
water and effectively remove organic pollutants and residual chlorine content. Since these
carbon filters use Chlorinated city water as the inlet water, they are suitable for filtration
treatment of potable water in places with high daily water demand such as homes, hotels,
guesthouses and restaurants.
3.2 Specifications
Model PCFE40P12 PCFE54P12
Inlet Water Condition Chlorinated City Water
Inlet Water Max. Turbidity < 5 NTU
Inlet/Outlet Pipe Size 1” BSP (25.4mm) 1” BSP (25.4mm)
Operating Pressure 20～50 PSI 20～50 PSI
Power Supply 220V/50Hz 220V/50Hz
Power 6W 6W
Flowrate 2 m³/h 2.7 m³/h
Backwash Cycle 5 m³ 9.5 m³
System Capacity 35 m³ 60 m³
Inlet Water Temp 5-38°C 5-38°C
Ambient Temp 2-49°C 2-49°C
Dimensions (L X W X H) 280*280*1250mm 280*280*1620mm
Height from bottom to Filtered
Water Outlet (Approx.) 1080mm 1450mm
Drain Line Diameter 1/2” 1/2”

Copyright© Pentair
6
_________________________________________________________________________________________________________________________________________

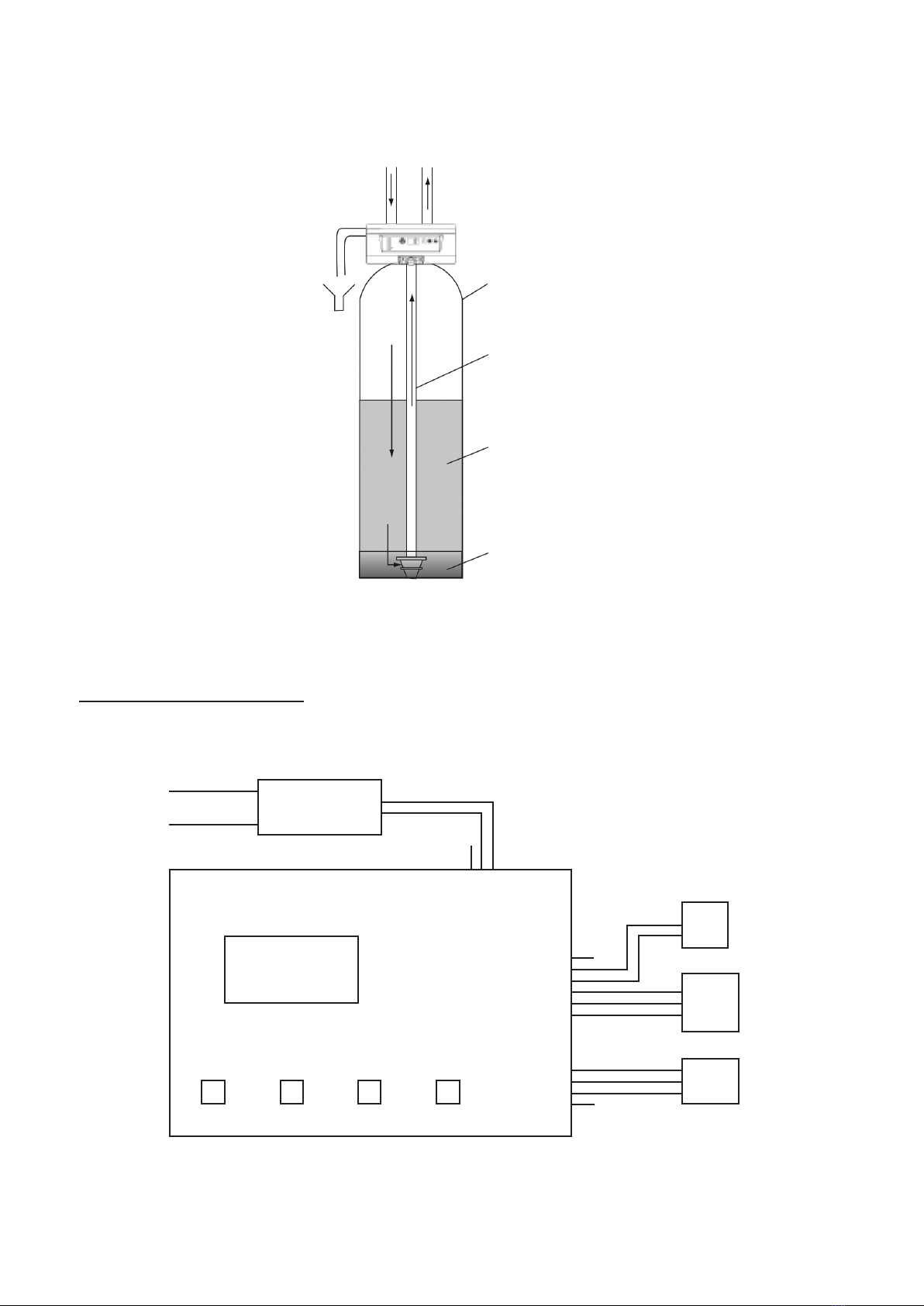

3.3. Schematic Diagrams
Electrical Control Diagram
Drain
Inlet Outlet
Media Tank
Riser Tube
Activated Carbon
Gravel
Optical
Sensor
220VAC 12VAC
Socket 1
Socket 2
Motor
Flow
Meter
Socket 3
Button 1 Button 2 Button 3 Button 4
NA
NA
NA
Power
Transformer
LCD Display

Copyright© Pentair 7
_________________________________________________________________________________________________________________________________________

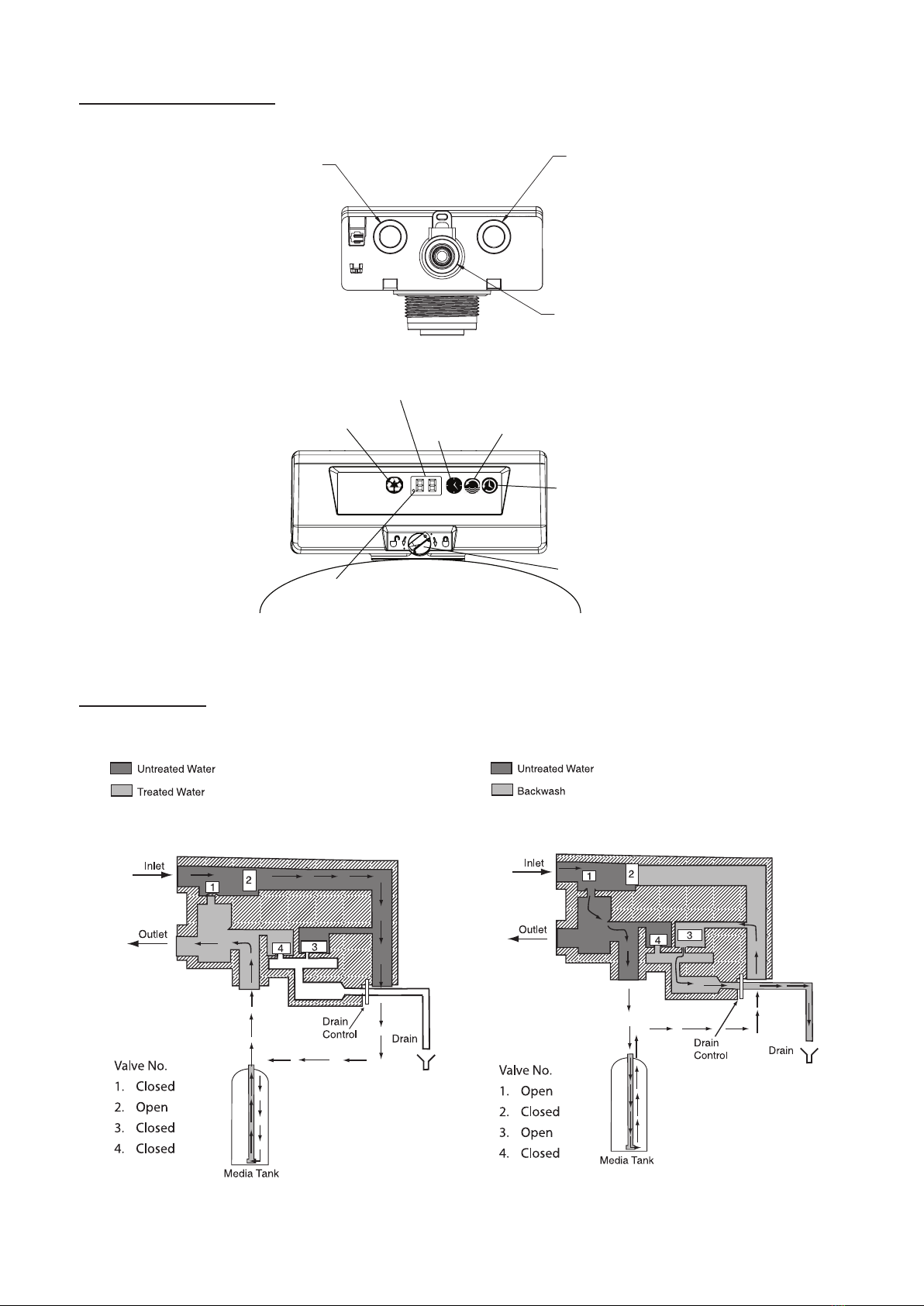

VALVE LAYOUT – 363TC
Flow Diagrams
SERVICE BACKWASH
Recycle
Button Time
Button
Remove
Cover
Backwash
Duration
Button
Cleaning Cycle
Interval/Days
Button
Delayed
Cleaning Cycle
Indicator
Display
Outlet
1” BSP
Inlet
1” BSP
Drain
1/2”

Copyright© Pentair
8
_________________________________________________________________________________________________________________________________________

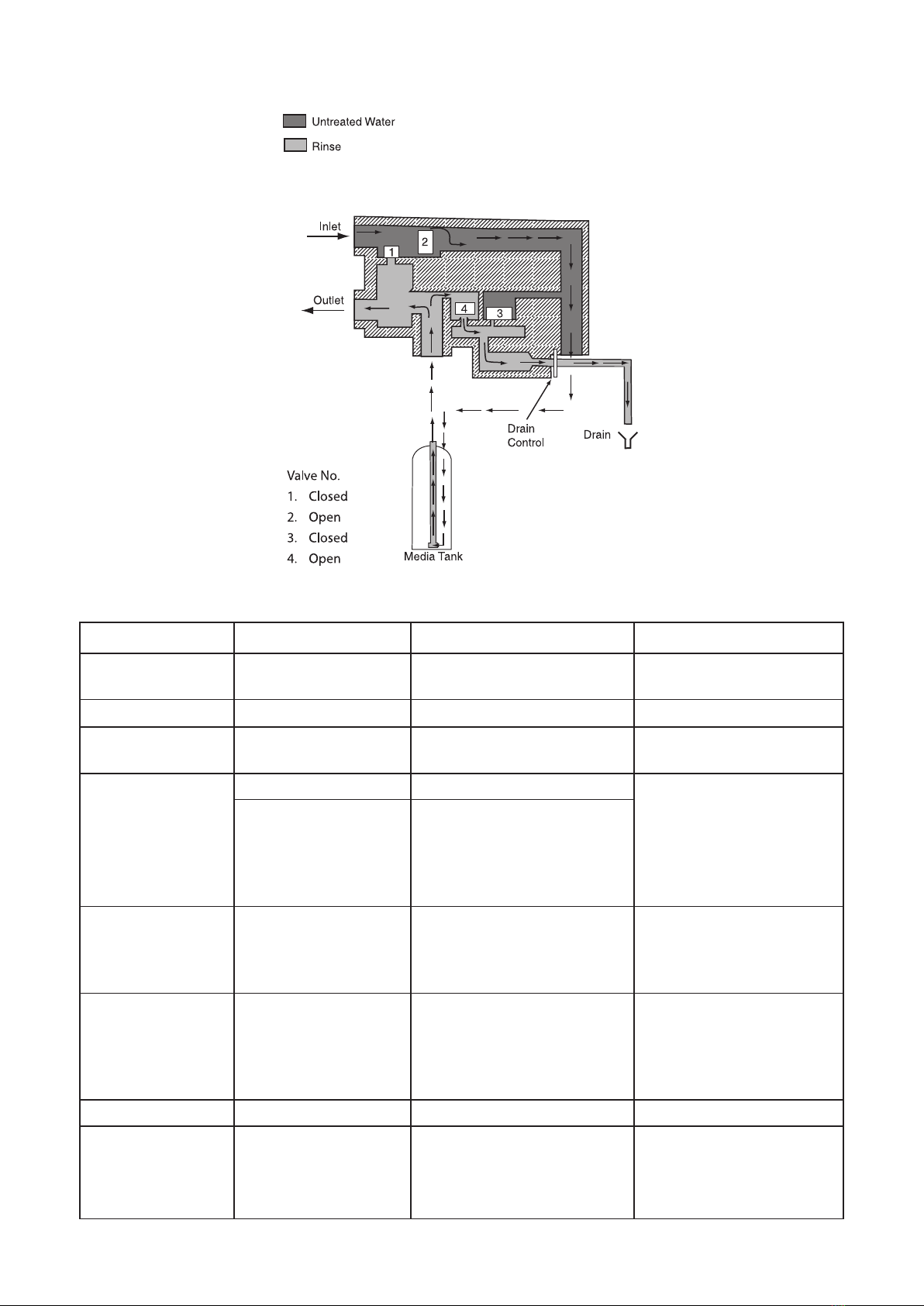

3.4. Introduction to Main Parts
Part Name Material Specification Quantity
Granular
Activated Carbon
Black granular
activated carbon
3 ~ 400 mesh PCFE40P12 Model: 10kg
PCFE54P12 Model: 16kg
Gravel Gravel 3 ~ 5 mm 8kg
KDF Copper-zinc alloy Diameter: 0.149-2mm PCFE40P12: 500g
PCFE54P12: 600g
Polyethylene (PE)
Media Tank
Lining: Polyethylene Diameter: 250mm 1 piece
Housing: Fiberglass Height:
PCFE40P12
Model: 1020mm
PCFE54P12
Model: 1372mm
Polyphenylene
Oxide (PPO) Water
Inlet and Outlet
Control Valves
30% fiberglass +
polyphenyl ether
222mm x 222mm x 119mm 1 piece
KDF Container ABS Diameter: 62mm
PCFE40P12
Model: 350mm
PCFE54P12
Model: 480mm
1 piece
Water Distributor ABS Φ 25mm 1 set
Riser Tube PVC PCFE40P12
Model: Φ 25 x 880mm
PCFE54P12
Model: Φ 25 x 1265mm
1 tube
FAST RINSE

Copyright© Pentair 9
_________________________________________________________________________________________________________________________________________
4. INSTALLATION INSTRUCTIONS
________________________________________________________________________________________________________________________________________
4.1 Precautions
The following conditions are required for the installation of the carbon filter system:
• Installation and working space : Not less than 350x 350 mm, 170 cm high
• Distance between centers of inlet and outlet: 10.2cm
• Distance between power source and carbon filter: No greater than 2m.
• Level platform or floor.
• Constant electrical supply to operate the controller.
• Total minimum pipe run to water heater of ten feet (three meters) to prevent backup of hot
water into system.
• Local drain or tub for discharge as close as possible.
• Water line connections with shutoff or bypass valves.
• Must meet any local and state codes for site of installation.
• Valve is designed for minor plumbing misalignments. Do not support weight of system on
the plumbing.
• Be sure all soldered pipes are fully cooled before attaching plastic valve to the plumbing.
• Room to access equipment for maintenance and adding media to tank.
• After some maintenance work on pipe network, the initial effluent from the faucet often
contains a lot of rust and pollutants. Therefore, after each occasion of water supply
stoppage, please open the bypass valve or bypass pipe to drain out dirty water; or install a
filter before this filter system to ensure that only clean water will enter the water filtration
system. Generally, influent turbidity should be controlled at less than 5NTU.
• Generally, the carbon filter is installed after the water meter at the entrance of indoor tap
water; the water meter can then be used as a gauge for determining the amount of water
treated.
• Hot water can cause damage to the internal processing system of the carbon filter. Users
who connect hot water boiler or instant water heater after the carbon filter must install a
check valve between the carbon filter and their water heating system, and ensure that their
water heating system is equipped with temperature and pressure control safety devices.
• When installing carbon filter in newly renovated premises where water has not been
used before, first open the water faucet to discharge the water for at least 10 minutes to
completely flush away any construction debris, corrosion rust and dirt. This will prevent
dirt from entering the connected carbon filter during installation and cause damages to
internal filter materials.
• A manual valve should be installed just before the inlet and outlet respectively. A bypass
valve or bypass pipe should be installed between the inlet and outlet to facilitate normal
water usage during maintenance of the carbon filter, or to enable direct usage of non-
treated water when needed.
• It is recommended that a pre-filter be installed before the inlet to prevent contaminated
water from entering the carbon filter system, thus affecting its operation.
• As much as possible, reduce the length and curvature of the drain line. Always allow an
air gap between the drain line and the wastewater to prevent the possibility of wastewater
being back-siphoned into the carbon filter. No valve of any type should be installed along
the drain line.

Copyright© Pentair
10
_________________________________________________________________________________________________________________________________________
• All pipes must have their own support brackets, the weight or stress exerted by such pipes
must not be carried by the controllers of the carbon filter.
• Inlet or outlet pipes can be hard piping or flexible hose depending of the user’s specific
need and situation.
• The system comes with a power transformer; the user needs to provide a stable 220V/50Hz
AC power supply. The automatic control feature of this product requires a continuous and
stable power supply. In the event of power outage when the system is in use, the system’s
original setting will be maintained by data protection feature of the built-in electronic
controller, and the system can continue to operate for 8 hours. Information related to volume
processed will also be maintained for 8 hours. If power outage exceeds 8 hours, you will need
to reset the system time to enable it to operate in accordance with its original setting.
• It is recommended that the user operate the system below its rated system flowrate.
Exceeding the rated system flowrate will result in overloading. In no circumstances should
the system be operating beyond 1.5 times the rated system flowrate.
• If the carbon filter will not be used and is not connected to the power source for an
extended period of time (for more than one month), one should try to reconnect the power
and water supply every week (the shorter the better) to perform a backwash for several
hours. This is to ensure optimal performance of the filtration system when restarted.
• In the event of occasional water stoppage or power outage, one should turn off both the
inlet and outlet valves and disconnect the power supply.
• Under normal circumstances, it is recommended that KDF, granular activated carbon and
gravel be replaced when the rated system capacity for treatment of chlorinated city water
is reached. Please contact your local Pentair authorized distributor for replacement of
KDF, granular activated carbon and gravel.
Part Name Replacement Period (Recommended)
Granular Activated Carbon 6 months
Gravel 5 years
KDF 2 years
• After prolonged periods of non-use, it is recommended that the carbon filter system be
flushed for 5 minutes before it is used.
• It is recommended that the equipment be installed indoors. When the water conditioning
system must be installed outdoors, below conditions must be considered:
• Moisture —The system is not designed to withstand extreme humidity or water spray
from below. Examples are: constant heavy mist, near corrosive environment, upwards
spray from sprinkler.
• Direct Sunlight — The materials used will fade or discolor over time in direct sunlight.
The integrity of the materials will not degrade to cause system failures.
• Temperature — Extreme hot or cold temperatures may cause damage to the valve or
controller. Freezing temperatures will freeze the water in the valve. This will cause
physical damage to the internal parts as well as the plumbing.
• Keep the media tank in the upright position. Do not turn upside down or drop. Turning the
tank upside down or laying the tank on its side can cause media to enter the valve.

Copyright© Pentair 11
_________________________________________________________________________________________________________________________________________
4.2 Installation Preparation
Typical Tools and Materials Required
• Pipe Cutter
• Tubing Cutter
• File
• Pliers
• Tape Measure
• Soldering Tools
• Lead Free Solder
• Bucket
• Towel
• Plumbers Tape
• Adjustable Wrench
• Tube 100% Silicone Grease
4.3 Installation Steps
The Carbon filter has three openings: the inlet, the outlet and drain.
Open the water supply tap and flush the water pipe network to ensure water pipes are clean
and free of debris. then, turn off the main water supply incoming valve.
Determine the installation position of the carbon filter and lay the connecting pipes to match
the various diameters of the three openings of the carbon filter.
Outlet
1” BSP
Inlet
1” BSP
Drain
1/2”
4.00” (101.60 mm)
.75” (19.05 mm)
2.00” (50.80 mm) 2.00” (50.80 mm)

Copyright© Pentair
12
_________________________________________________________________________________________________________________________________________
Equipment Installation
If you are also installing a water softener, the softener should be installed downstream of
this system.
Grounding the Plumbing
It is important that the plumbing system be electrically grounded. When a water treatment
system is installed a nonmetallic bypass valve may interrupt the grounding. To maintain
continuity, a grounding strap can be purchased at a hardware store. When it is installed the
strap will connect the plumbing into the system to the plumbing leaving the system.
Water Line and Bypass Connection
Once you have selected your location check the direction of the water flow in the main pipe.
A bypass valve system should be installed on all water conditioning systems. The bypass
valve system isolates the filter from the water supply and provides untreated water to service
during routine maintenance and servicing procedures.
Normal Operation
• Valves 1 and 3 open
• Valve 2 closed
Bypassed Position
• Valve 2 open
• Valves 1 and 3 closed
Connect the connector kit to the water supply system: Wrap the ends of the connector kit with
Teflon tape; attached the connector kit to the incoming pipe; the carbon filter system is then
connected to the other end of connector kit; the connection is secured with the supplied U-clip.
B
1
2
3
Connector kits

Copyright© Pentair 13
_________________________________________________________________________________________________________________________________________
Precaution before connecting the carbon filter system to the connector kit:
• Check to ensure that all O-rings are in perfect condition.
• Lubricate the O-rings and contact surfaces with 100% silicone grease.
When removing the securing clip:
• Turn off the water supply and relieve the internal pressure on the valve.
• Push the connector kit towards the control valve to help loosen the sealing ring which may
be seated tightly.
• Place a screwdriver under the top end of the U-clip to help lift and remove the clip.
Installation of drain pipe
Drain pipe connection and installation instruction are as shown in the figure below:
• Wrap the threaded end of the flow controller with Teflon tape.
• Tighten the two components of drain connector kit by hand.
• Insert the drain connector kit onto the drain opening of the carbon filter.
• Insert the drain connector clip to secure the connection.
• Cut a suitable length of ½” flexible hose and connect it to the drain secure it with a cable tie.
• Secure the discharge end of the drain line to prevent it from moving.
NOTE: Waste connections or drain outlet shall be designed and constructed to provide for
connection to the sanitary waste system through an air gap of two pipe diameters or one
inch (22 mm), whichever is larger.
WARNING: Never insert drain line directly into a drain, sewer line, or trap (Figure above
Drain Line Connection). Always allow an air gap between the drain line and the wastewater
to prevent the possibility of sewage being back-siphoned into the filter.
Drain pipe connector
Drain pipe connector clip
Drain Line Connection
Right Way

Copyright© Pentair
14
_________________________________________________________________________________________________________________________________________
5. OPERATING INSTRUCTIONS
________________________________________________________________________________________________________________________________________
5.1. Commissioning and Setting
DIRECTIONS
Commissioning and setting
Control Valve panel
Description of Control Valve panel display
Display Icons
1. Indicates water flow when displayed. Arrows alternate faster as flow increases.
2. When “MIN” is displayed, the value in minute increments. “MIN” is displayed during
Backflush; the value displayed is the minutes of Backflush remaining.
3. Colon (double dots) flashes as part of the time display. It Indicates normal operation.
4. Four digits used to display the time or program value. It also used for error codes.
5. The Backflush sign is displayed (flashing) when a next Backflush has been called for. Also
displays (continuously) when in Backflush.
6. When “x2” is displayed, a second Backflush has been called for.
7. The hourglass is displayed when the motor is running.
NOTE: During normal operation (Service mode) the display will show the current time of the
day with the colon (double dots) blinking. This will alternate with a display of the – filtered
water volume.

Copyright© Pentair 15
_________________________________________________________________________________________________________________________________________
Display Icons
1 Time of Day: Press “Time of day” to display the current time value in hours. The time value
is displayed as a number from 0 to 23, with 0 representing midnight and 23 representing
11:00 PM. While the value is being displayed, press the button to increase the value. Press
and hold the button to rapidly advance the value. Release the button when the desired value
is displayed. The value will be stored in the memory after five seconds.
Range: 0 - 23 hours
NOTE: The lapsed minutes will reset to zero when the hours are changed.
2 Backwash Duration: Press “Backwash Duration” to display and set the current backwash
cycle steps. The value in minutes will be displayed for five seconds. While the value is being
displayed, press the button to increase the value. Press and hold the button to rapidly
advance the value. Release the button when the desired value is displayed. The value will be
stored in the memory after five seconds.
Range: 2 - 50 minutes
NOTE: The Rapid Rinse cycle step adjusts automatically based on the Backwash Duration
value. See table below.
Backwash Time Rinse Time
2 - 5 minutes 1 minute
6 - 9 minutes 2 minutes
10 -13 minutes 3 minutes
14 -17 minutes 4 minutes
18 - 21 minutes 5 minutes
22 - 25 minutes 6 minutes
26 - 29 minutes 7 minutes
30 - 35 minutes 8 minutes
36 - 40 minutes 9 minutes
41 - 50 minutes 10 minutes

Copyright© Pentair
16
_________________________________________________________________________________________________________________________________________
3 Cleaning Cycle Interval: Press “Cleaning Cycle Interval” to display the current cleaning
cycle interval setting. The value in cubic meters (metric units) to treat between cleaning
cycles will be displayed for five seconds. While the value is being displayed, press the button
to increase the value. Press and hold the button to rapidly advance the value. Press and
hold the button to rapidly advance the value. Release the button when the desired value is
displayed. The value will be stored in memory after five seconds.
Range: 0.4 - 9.5 cubic meters
Default: 1.0 cubic meters
4 Backflush:
• Press and release “Backflush” to program a delayed cleaning cycle. The system will
backwash at the next scheduled cleaning cycle. Repeat procedure to disable the scheduled
cleaning cycle. The display indicator dot blinks when a delayed cleaning cycle is scheduled.
• Press and hold for three seconds to initiate an immediate cleaning cycle. The control cycles
to the backwash cycle step. The control will proceed through a complete cleaning cycle. A
cascading symbol (- -) will be displayed until the cycle is complete.
NOTE: If a button is not pushed for five seconds, the controller returns to normal operation
mode.
Pushing the Backflush button immediately returns the controller to normal operation.
Quick Cycling
Press and hold for three seconds “Backflush” to initiate an immediate cleaning cycle. The
control will cycle to the backwash cycle step.
1. Press and release “Backflush” to display “C1” (backwash).
2. Simultaneously press then release “Backflush” and “Time of day” to move the control to
the next cycle step, “C2” (rinse).
NOTE: The time may be displayed for 5 seconds.
3. Repeat steps 2 and 3 to cycle through each position.
Quick Cycle to Service Position
Simultaneously press “Backflush” and “Time of day” and hold for three seconds during any
cleaning cycle step. The control will skip the remaining cycle steps and return to the service
position. The time of day will be displayed when the control reaches the service position.
Calendar Override: To set time duration between cleaning cycles to ensure proper
functioning of the filter in the event of a flow sensor malfunction, press and hold “Backflush”
and “Cleaning Cycle Interval” for three seconds. The value in days between cleaning cycles
will be displayed for five seconds. While the value is being displayed, press the button to
increase the value. Press and hold the button to rapidly advance the value. Release the
button when the desired value is displayed. The value will be stored in memory after five
seconds.
Range: 8 hours (0.3 days) - 30 days; 0 to disable
Default: 0 (disabled)

Copyright© Pentair 17
_________________________________________________________________________________________________________________________________________
Controller Initial Power-Up
• The water supply valve should be off or be in by-pass
• At initial power-up, the camshaft may need to rotate to the HOME (in service) position.
• Camshaft may take 1 to 2 minutes to return to HOME position.
• Err 3 will be displayed until the camshaft returns to HOME position (Initial Power-Up
Display).
• If more than 2 minutes lapse, verify that the motor is turning the camshaft. If not, check
the “Troubleshooting” section.
Initial Power-Up Display
When the camshaft has reached the HOME (service) position the display will show “- -:- -”.
If the time of day alternating with filtered water volume is displayed, then the controller
has used its short term memory to load settings. Short term memory will hold settings for
approximately eight hours.
Initial Startup settings
The description above guides the system parameters.
• Time of day: current time
• ’Backwash Duration’ and ‘Cleaning Cycle Interval’ be set according below table.
PCFE40P12
TSS(NTU) Cleaning Cycle Interval(t) Backwash Duration(min)
<1 5 8
1.0-2.0 5 12
>2 5 20
PCFE54P12
TSS(NTU) Cleaning Cycle Interval(t) Backwash Duration(min)
<1 9 8
1.0-2.0 9 12
>2 9 20
Notes: if - TSS value, suggest setting 20 min for backwash duration.

Copyright© Pentair
18
_________________________________________________________________________________________________________________________________________
Programming is completed.
If no button is pressed within 5 seconds, the controller will commence normal operation.
In normal operation (operating mode), the display will show the current time and a flashing
colon sign; the display will change alternately to show the amount of water filtered.
Start up & Commissioning
Upon completion of the above initial power up steps, the carbon filter needs to be put into
operation. Please follow the following procedures strictly to perform commissioning. (This
process is to be performed by the Pentair authorized distributor):
• Set the “Time of Day”, “Backwash Duration” and “Cleaning Cycle Interval” in accordance
with actual requirements. The control panel will return to operating mode with alternating
display of current time and amount of water filtered. Confirm that the bypass valve is
turned off and other external devices (connectors, valves, faucets) are connected securely
and are in proper operating condition. This should avoid any inconvenience during use.
SYSTEM STARTUP
The system will now need to be placed into operation. Please review MANUALLY INITIATING
A CLEANING CYCLE before attempting startup.
1. With the supply water for the system still turned off, position the bypass valve to the “not
in bypass” (normal operation) position.
2. Press and hold the “Backflush” button on the controller for three seconds. This will
initiate a manual cleaning cycle, and cycle the valve to the backwash position.
3. Filling the media tank with water:
A. With the system in backwash, open the water supply valve very slowly to approximately
the 1/4 open position. Water will begin to enter the media tank. Air will begin to be
purged to drain as the media tank fills with water.
WARNING: If opened too rapidly or too far, media may be lost out of the tank into the valve
or the plumbing. In the 1/4 open position, you should hear air slowly escaping from the
valve drain line.
B. When all of the air has been purged from the media tank (water begins to flow steadily
from the drain line), open the main supply valve all of the way. This will purge any
remaining air from the tank.
C. Allow water to run to drain until the water runs clear from the drain line. This purges
any debris from the media bed.
D. Turn off the water supply and let the system stand for about five minutes to allow any
trapped air to escape from the media tank. Turn on the water supply after five minutes.
Check for leaks.
The system is now fully operational.

Copyright© Pentair 19
_________________________________________________________________________________________________________________________________________
Quick Cycling the Control
Refer to the table below, press the “Time of Day” and “Backflush” buttons simultaneously to
move to the next step of the cleaning cycle.
Cycle Step Description Cleaning Cycle standard
1 Backwash Cycle Until the effluent water is clear or until preset backwash
duration is reached, then proceed to the next cycle step.
2 Fast Rinse Cycle Until the effluent water is clear or until preset fast rinse
duration is reached, then proceed to the next cycle step.
3 Back to normal
operation
Another cycle is performed if effluent water is not clear,
until the effluent is clear.
INSTALLATION CHECKLIST
• Read the owner’s/installation manual?
• Follow all safety guidelines in the manual?
• If metal pipe was used, did you restore the electrical ground?
• Securely install drain hose to an approved drain?
• Perform a leak test?
• Move the bypass valve to service?
• Start a cleaning cycle?
5.2. Accessing History Values
The control features a review level that displays the operation history of the system. This is a
great troubleshooting tool for the control valve.
To access history values, press “Backflush” and ”Backwash Duration” simultaneously and
hold for three seconds to view the diagnostic codes.
NOTE: If a button is not pushed for 30 seconds the controller will exit the history values
table.
Press ”Time of Day” to advance through the table. When the desired diagnostic code is
reached,
Press ”Backwash Duration” to display the value.
Some history values may have up to four digits. Press ”Backwash Duration” to display the
first two digits of the value. Press “Cleaning Cycle Interval” to display the last two digits.

Copyright© Pentair
20
_________________________________________________________________________________________________________________________________________
Code Description
H1 Days since last regeneration
H2 Current day of week (Displayed as 0 – 6)
H3 Amount of water filtered since 2.00am today
H4 Amount of water filtered since last regeneration
A0 Average amount of water filtered in Day 0
A1 Average amount of water filtered in Day 1
A2 Average amount of water filtered in Day 2
A3 Average amount of water filtered in Day 3
A4 Average amount of water filtered in Day 4
A5 Average amount of water filtered in Day 5
A6 Average amount of water filtered in Day 6
5.3. Error Diagnosis and Troubleshooting
System Error Codes
Problem Possible Cause Solution
Flowing or dripping
water at drain after
cleaning cycle.
Debris is preventing #3 or #4
valve disc from closing.
Remove debris.
Worn #3 or #4 valve disc. Replace valve discs.
Control will not
complete a cleaning
cycle automatically.
AC adapter or motor not
connected.
Connect power.
Debris is preventing camshaft
from rotating.
Remove debris.
Defective motor. Replace motor.
Backwashes or
purges at excessively
low or high rate.
No drain line flow control. Install drain line flow control.
Restricted drain line. Remove restriction.
The flow meter on the
flow controller fails
to show the operating
flowrate
The system is in bypass state. Cancel the bypass state.
The meter cable is detached from
the valve.
Reconnect the meter cable to
the valve.
The meter is blocked by debris. Disassemble and clean the
meter.
