OWNER’sMANUAL
“ED”, “EDD”, and “EEDD” SERIES
ENGINE DRIVEN SELF-PRIMING
CENTRIFUGAL PUMPS
© 2012 Pentair, Inc. All Rights Reserved. S91 (11/27/12)
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM
PH: 888-782-7483

California Proposition 65 Warning
This product and related accessories contain
chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
MODEL EEDD-29 PUMP UNIT ONLY
To mount pump to your engine, proceed as follows:
1. Loosen clamp assembly (Key No. 4C) on shaft extension. Position
pump adapter on motor; insert engine shaft into shaft extension.
BE SURE pump adapter pilot fits pilot bore in engine.
2. Attach pump adapter to engine using (4) 5/16 x 3/4” capscrews
and lockwashers–(5/16-24 capscrews are required for engines with
aluminum blocks, and 5/16-18 capscrews are required for engines with
cast iron blocks).
3. Push shaft extension toward pump until fibre spacer will not rotate
freely on shaft. Tighten clamp assembly on shaft extension. Hold the
shaft extension with a screwdriver in one of the slots while tightening
the nut.
4. As the fibre spacer is used to establish impeller clearance only, it
will burn out shortly after pump is put into operation and need not be
replaced.
NOTICE: If engine is removed, a new fibre washer should be obtained
to re-establish clearance before replacing engine.
5. Use one of the following engines:
(a) Briggs and Stratton
(b) Kohler
(c) Tecumseh
Refer to engine manufacturer’s service manual for parts or service to
engine.
BE SURE to fill crankcase with recommended grade of oil.
Do NOT run pump until it has been primed, as this could ruin the
seal.
NOTICE: MODEL EDG-105 IS BUILT FOR USE WITH SWIMMING
POOLS.
MODEL EDG-105 IS SHIPPED WITH A 1-1/2” SUCTION FLANGE
ASSEMBLY.
* These parts are not furnished. Order Strainer Fittings Package C298-9,
which includes these parts.
PLACING THE PUMP
This pump is portable, and should be placed on a level foundation or firm
level ground as near the water source as possible, for efficient operation.
Model EEDD-29 can be mounted on an available gasoline engine. It
must have the engine supported to the same level as the pump mount,
to avoid placing strain on the pump adapter or engine. All suction and
discharge piping should also be supported independently near the pump,
to avoid strain on the unit. Standard piping can be used, or as the pump
is portable, reinforced suction hose can be used on the suction inlet. This
hose must have the equivalent capacity of 2” iron pipe. A strainer should
be used on the end of the suction pipe or hose. See Figures 1 and 2 for
typical installations.
PRIMING THE PUMP
Install pipe tee in the discharge opening of the pump with a nipple.
Provide a priming plug in the top opening.
See Figure 2.
Fill the pump with water and tighten the priming plug. Start the engine,
and the pump will prime, with priming time depending upon the suction lift
and the horizontal distance to water.
OPERATING SPEED
Models With Engine
These pumps leave the factory with a gas engine set to operate at 3500
rpm when pumping, which is the correct speed for maximum efficiency.
Model EEDD-29 must be provided with an engine which will operate at
approximately the same speed (3500 rpm).
Always start the unit at full speed until unit is primed and pumping water.
It can be throttled to lower the pump’s capacity while pumping.
Figure 1
Figure 2
2

PUMP SERVICE
Due to the simple, rugged construction of the pump, it should require little
service. However, if it should be necessary to replace a part, the following
procedure should be used.
1. Remove the capscrews, Key No. 8, which hold the pump body to the
engine adapter.
2. The pump body can now be removed.
3. A tap on the volute diffuser, Key No. 18, will enable you to remove it,
exposing the impeller.
4. Remove the impeller from the engine shaft by turning counter-
clockwise.
5. Seal replacement. The shaft seal consists primarily of two parts, a
rotating member and a floating seat.
The highly polished and lapped faces of this seal are
easily damaged. Read instructions and handle the seal with care.
Some models are equipped with an impeller screw, which has a left hand
thread. Before unscrewing the impeller, remove the impeller screw.
Removal of Old Seal
1. After unscrewing impeller, carefully remove rotating part of seal by
prying up on sealing washer, using two screwdrivers (see Figure 3A,
below). Use care not to scratch motor shaft.
2. Remove seal plate from motor and place on flat surface, face down.
Use a screwdriver to push ceramic seat out from seal cavity (see
Figure 3B, below).
Installation of Floating Seat (Figure 3C)
1. Clean polished surface of floating seat with clean cloth.
2. Turn seal plate over so seal cavity is up. Clean cavity thoroughly.
3. Lubricate outside rubber surface of ceramic seat with soapy water and
press firmly into seal cavity with finger pressure. If seat will not locate
properly in this manner, place cardboard washer over polished face
of seat and press into seal cavity using a 3/4” socket or 3/4” piece of
standard pipe.
4. Dispose of cardboard washer. Be sure polished surface of seat is free
of dirt and has not been damaged by insertion.
Installation of Rotating Part of Seal Unit (Figure 3D)
1. Reinstall seal plate.
2. Inspect shaft to make sure that it is clean.
3. Clean face of sealing washer with clean cloth.
4. Lubricate inside diameter and outer face of rubber drive ring with soapy
water and slide assembly on motor shaft (sealing face first) until rubber
drive ring hits shaft shoulder.
5. Screw impeller on shaft until impeller hub hits shaft shoulder. This will
automatically locate seal in place and move the sealing washer face
up against seat facing. Reinstall impeller screw (if used).
MAINTENANCE
Be sure to drain pump during freezing weather to prevent damage from
frost. To drain, remove drain plug directly below the suction inlet of the
pump; also remove the priming plug. Drain the suction pipe at a point
below the frost line. All pipe exposed to freezing temperatures should
also be drained. Before restarting pump, replace all connections and
plugs and reprime.
For service and maintenance to the engine, see the booklet which comes
with the engine.
Seal Plate
Mechanical seal
rotating half
Mechanical seal
stationary half

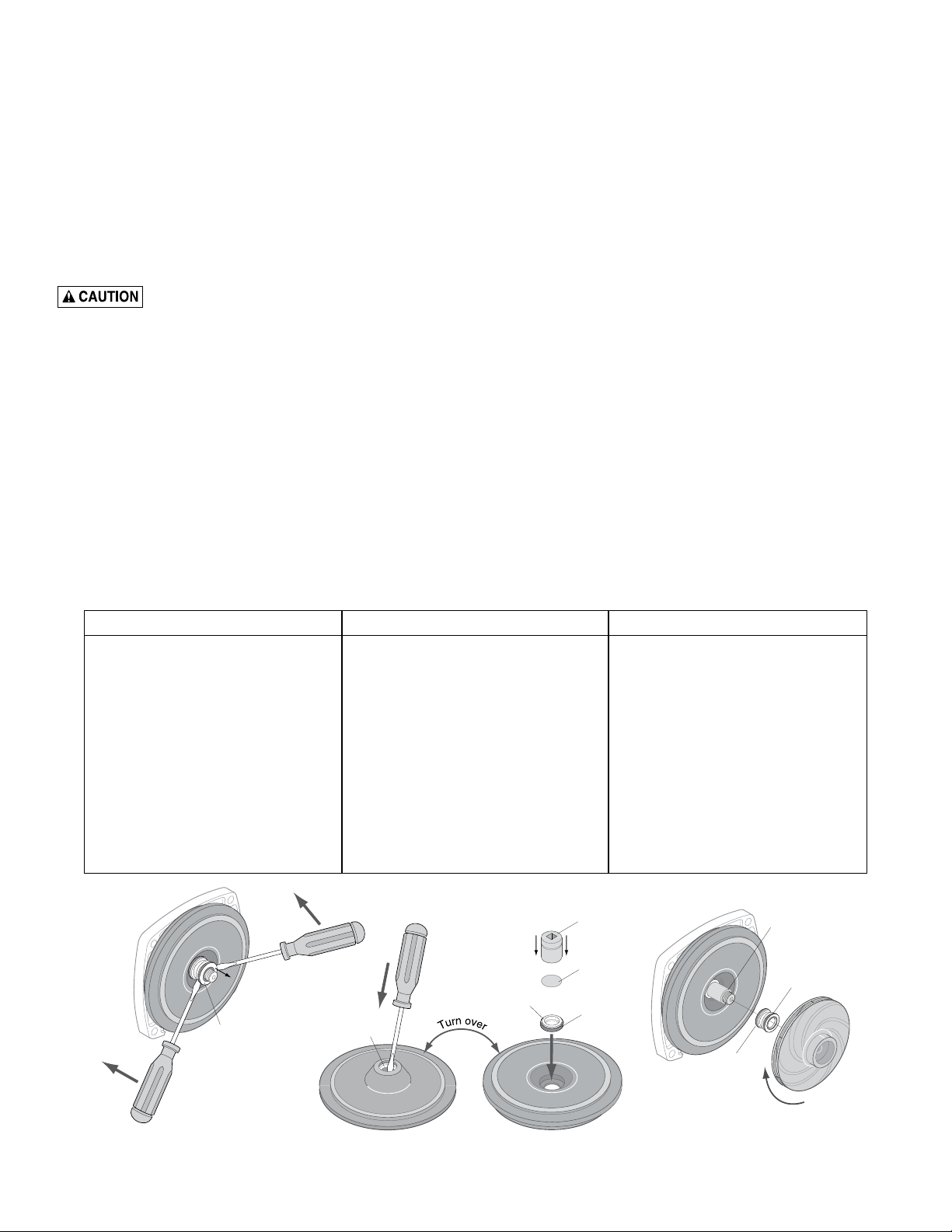

A-Seal removal-rotating half B-Seal removal-stationary half C-Stationary half installation D-Rotating half installation
Polished
surface Rubber
surface
Cardboard
washer
(supplied w/seal)
3/4" socket
or pipe
Sealing
face
Rubber drive
ring
Impeller
Shaft
shoulder
685 0294
Figure 3
TROUBLE – CAUSES AND REMEDY
Trouble
No water delivered or not enough
water delivered.
Probable Cause
Pump not primed
Speed too low
Suction line clogged
Suction lift too high
Air leak in suction line
Impeller plugged
Suction end not submerged deep
enough
Remedies
Fill pump body with water
Pump should operate about 3500 RPM
- Check engine
Clean suction screen
Put pump closer to water
Tighten connections or replace with
new hose or pipe
Use pipe compound to seal all male
threads
Clean impeller
Submerge suction hose or piping
enough so that no air enters while
pump is operating
3

13
44A
4B
4C
20
19
16
17
18
15
14 10
9
8
7
6
4
5
32
12
21
22
11
1
25
24
23
25
28
27
26
4
EXPLODED VIEW
EEDD-29*
EEDDH-29R EDDH-29R EDG-105 EDPH-29R
Key Part No. 3-1/2 HPPump 3-1/2 HP Pump 2 HP Pump 3-1/2 HP Pump
No. Description Used w/ or w/oEngine w/Engine w/Engine w/Engine
1 Gas Engine 1 U277-29BR U277-29R U277-10 U277-29R
2 Grease Seal - Shaft 1 — — U9-42 —
3 Water Slinger 1 — 17351-0009 C69-2 17351-0009
4 Adapter 1 C2-49 C2-14B C2-14F C2-14B
4A Spacer 1 C43-37 — — —
4B Shaft Extension 1 C10-22 — — —
4C Clamp Assembly 1 C111-1 — — —
5 Capscrew - 3/8 - 16 x 3/4” Lg. 2 U30-72SS U30-72SS U30-72SS U30-72SS
6 Gasket 1 C20-21 C20-21 C20-21 C20-21
7 Shaft Seal 1 U109-106SS U109-93SS U109-106SS U109-106SS
8 Impeller 1 C5-60 C5-60 C5-60H C5-60
9 Diffuser 1 C1-51 C1-51 C1-51 C1-51
10 Diffuser Ring 1 C21-2 C21-2 C21-2 C21-2
11 Capscrew - 3/8 - 16 x 7/8” Lg. 2 U30-73SS U30-73SS — —
11 Cap Screw 3/16-16x1” Long 2 — — U30-74C U30-74C
12 Lock Washer 3/8” 2 — — U43-12C U43-12C
13 Handle 1 C54-29 C54-29 C54-9B C54-9B
14 Pump Body 1 C76-52 C76-52F C176-1D C176-1
 • 1-1/2”SuctionFlangeAssembly 1 — — C203-22 —
15 Valve Plate (1) — — C61-5SS —
16 Gasket – Flange (1) — — C20-15 —
17 Valve Washer (1) — – C43-15SS —
18 Cap Screw – 1/4-20x1/2” Long (1) — — U30-50SS —
 • HexNut–1/4-20 (1) — — U36-36SS —
19 Pipe Plug – 1/4” NPT (1) — — U78-57SST —
20 Suction Flange (1) — — C3-22 —
21 Cap Screw – 5/16-18x3/4” Long (4) — — U30-60SS U30-60SS
22 Pipe Plug - 1/4” NPT 1 U78-57SS U78-57CT U78-57SST U78-57SST
23 Base 1 C104-9 C4-73 C104-9 C104-9
24 Capscrew - 5/16 - 18 x 7/8” Lg. 4 U30-777C U30-777C U30-777C U30-777C
25 Lockwasher - 5/16” 8 U43-11C U43-11C U43-11C U43-11C
26 Capscrew - 5/16 - 18 x 1-3/4” Lg. 4 U30-66C U30-65C U30-665C U30-665C
27 Engine Pads 4 C43-20 — C43-20 C43-20
28 Nut - 5/16” - 18 4 U36-37C U36-37C U36-37C U36-37C
 • PipePlug-3/4”NPT 1 U78-60S U78-60S — —
REPAIR PARTS LIST
* Model EEDD-29 is identical to Model EEDDH-29R except that it does not include engine or engine hardware (Key Nos. 1, 23-28).
 • Notillustrated.
NOTICE: The appearance of
your pump’s engine may differ
from the drawing.
