Pepperl+Fuchs KFD2-HLC-Ex1.D Series User manual

HART Loop Converter
KFD2-HLC-Ex1.D(.**)
ISO9001
PROCESS AUTOMATION
MANUAL

With regard to the supply of products, the current issue of the following document is applicable:
The General Terms of Delivery for Products and Services of the Electrical Industry,
published by the Central Association of the Electrical Industry
(Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version
as well as the supplementary clause: "Expanded reservation of proprietorship"
HART Loop Converter KFD2-HLC-Ex1.D(.**)

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Contents
315702 2018-01
EN - 1
EN
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Content of this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Target Group, Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Symbols Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Device Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Mounting and Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 DIN Mounting Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Power Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.1 Configuration via Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2 Configuration via Keypad on the Device . . . . . . . . . . . . . . . . . . 26
5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
5.1 Indicators during Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
5.2 Fault Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
6 Dismounting, Maintenance, and Repair . . . . . . . . . . . . . . . 56
7 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
7.1 Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
HART Loop Converter KFD2-HLC-Ex1.D(.**)

315702 2018-01
2 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Introduction
EN
1Introduction
1.1 Manufacturer
1.2 Content of this Document
This document contains information that you need in order to use your product throughout
the applicable stages of the product life cycle. These can include the following:
• Product identification
• Delivery, transport, and storage
• Mounting and installation
• Commissioning and operation
• Maintenance and repair
• Troubleshooting
• Dismounting
• Disposal
Pepperl+Fuchs GmbH
Lilienthalstraße 200, 68307 Mannheim, Germany
Internet: www.pepperl-fuchs.com
Note!
This document does not substitute the instruction manual.
Note!
For full information on the product, refer to the instruction manual and further
documentation on the Internet at www.pepperl-fuchs.com.
HART Loop Converter KFD2-HLC-Ex1.D(.**)

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Introduction
315702 2018-01
EN - 3
EN
The documentation consists of the following parts:
• Present document
• Instruction manual
• Datasheet
Additionally, the following parts may belong to the documentation, if applicable:
• EU-type examination certificate
• EU declaration of conformity
• Attestation of conformity
• Certificates
• Control drawings
• Additional documents
1.3 Target Group, Personnel
Responsibility for planning, assembly, commissioning, operation, maintenance, and
dismounting lies with the plant operator.
Only appropriately trained and qualified personnel may carry out mounting, installation,
commissioning, operation, maintenance, and dismounting of the product. The personnel
must have read and understood the instruction manual and the further documentation.
Prior to using the product make yourself familiar with it. Read the document carefully.
1.4 Symbols Used
This document contains symbols for the identification of warning messages and of
informative messages.
Warning Messages
You will find warning messages, whenever dangers may arise from your actions. It is
mandatory that you observe these warning messages for your personal safety and in order
to avoid property damage.

315702 2018-01
4 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Introduction
EN
Depending on the risk level, the warning messages are displayed in descending order as
follows:
Informative Symbols
Action
This symbol indicates a paragraph with instructions. You are prompted to perform an action
or a sequence of actions.
Danger!
This symbol indicates an imminent danger.
Non-observance will result in personal injury or death.
Warning!
This symbol indicates a possible fault or danger.
Non-observance may cause personal injury or serious property damage.
Caution!
This symbol indicates a possible fault.
Non-observance could interrupt the device and any connected systems and plants, or
result in their complete failure.
Note!
This symbol brings important information to your attention.

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Product Specifications
315702 2018-01
EN - 5
EN
2 Product Specifications
2.1 Device Versions
The following device versions described in this manual:
•HARTLoopConverterKFD2-HLC-Ex1.D
• HART Loop Converter KFD2-HLC-Ex1.D.2W
• HART Loop Converter KFD2-HLC-Ex1.D.4S
2.2 Function
General
The HART Loop Converter is an isolated barrier suitable for intrinsically safe applications.
The device supplies field devices and can be connected in parallel to existing HART circuits.
The device analyzes up to four HART variables (PV, SV, TV, QV). Three HART variables
can be transformed into varying current signals from these four HART variables. These
signals are used to display the values via the analog inputs of the process control system.
The device is easily configured by the use of keypad or with the PACTware configuration
software.
KFD2-HLC-Ex1.D.2W
In addition to the current outputs, the device has two changeover contacts. These
changeover contacts can be programmed so that the changeover contacts function as
limit values for the HART variables.
KFD2-HLC-Ex1.D.4S
In addition to the current outputs, the device has four NO contacts. These NO contacts can
be programmed so that the NO contacts function as limit values for the HART variables.
HART Loop Converter KFD2-HLC-Ex1.D(.**)

315702 2018-01
6 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Product Specifications
EN
2.3 Assembly
Figure 2.1 Example front view KFD2-HLC-Ex1D.4S
Operating and indicating elements
ESC
OK
KFD2-HLC-
Ex1.D.4S
RS232
PWRERR
12
34
OUT
19 21
15
9
13
7
20
14
8
22 24
18
12
16
10
23
17
11
13 24
6
5
3
1
2
6
7
8
9
4
5

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Product Specifications
315702 2018-01
EN - 7
EN
1Removable terminals, blue
2LC display Display for showing
•themeasuredvalues
• the current output values
• the fault messages
• the parameterization mode
3Keypad


ESC
OK
Four keys for selecting the displayed values, the current output
values and for setting the parameters of the device
Up
Down
Escape
Confirmation
4Place for labeling
5Removable terminals, green
6Programming socket Interface for connecting a computer for parameterization and
diagnostics of the device with the PACTware operating
software, using the K-ADP-USB adapter
7yellow LEDs Outputs Out 1 to 4, indicating relay status
8red LEDs Indicating faults
9green LEDs Indicating power supply

315702 2018-01
8 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Product Specifications
EN
2.4 Dimensions
Figure 2.2
Number of terminal blocks max. 10
• Dimension drawing with screw terminals
• When using screw terminals with test sockets the device is 124 mm (4.9 inch) in height.
• When using spring terminals the device is 131 mm (5.16 inch) in height.
Housing Type C2
40 mm (1.6 inch) 115 mm (4.5 inch)
46 mm (1.82 inch)58 mm (2.28 inch)
119 mm (4.7 inch)
104 mm (4.1 inch)

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
315702 2018-01
EN - 9
EN
3 Mounting and Installation
3.1 DIN Mounting Rail
The devices are mounted on a 35 mm DIN mounting rail according to EN 60715.

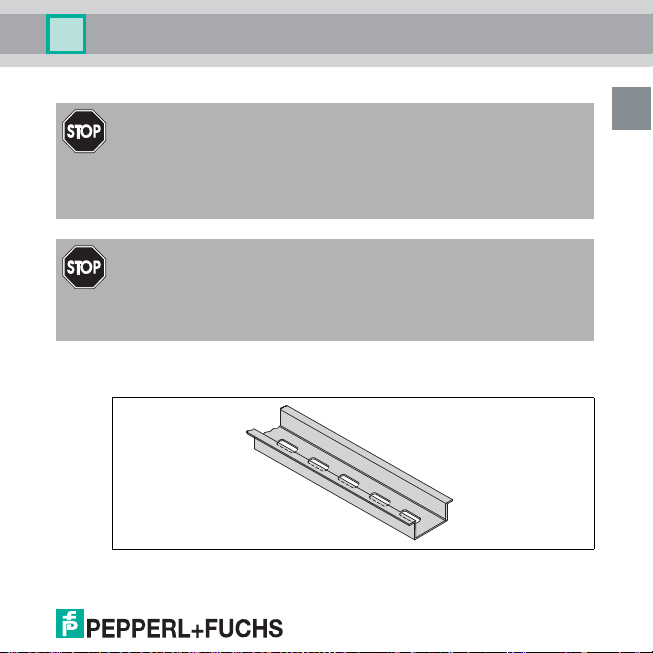

Figure 3.1 Example: DIN mounting rail UPR-MR (35 mm x 15 mm)
Danger!
Explosion hazard from damaged electronic components
Premature wear of electronic components in a device that was previously used in a 
general electrical installation can cause sparks that can ignite the surrounding potentially
explosive atmosphere.
Never install devices that have already been operated in general electrical installations in
electrical installations used in combination with hazardous areas!
Danger!
Explosion hazard from pollution
An excessively polluted surface of the device can become conductive and consequently
ignite a surrounding potentially explosive atmosphere.
Ensure that you install the device only in environments with a pollution degree 2 or better
according to IEC/EN 60664–1.
HART Loop Converter KFD2-HLC-Ex1.D(.**)

315702 2018-01
10 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
EN
3.2 Power Rail
To reduce wiring and installation costs, Power Rail is the optimum solution. The Power Rail
is a DIN mounting rail with plastic insert, that delivers power to the devices (24 V DC) and
transfers bus signals and a collective error message.
The Power Rail is factory-equipped with cover and end caps. These parts cover empty and
open segments of the Power Rail. Thus, the Power Rail is protected from contamination.
Additionally the cover and end caps prevent that electrically conductive parts come in
contact with the Power Rail.
Power Rail UPR-03
The Power Rail UPR–03 has 3 conductors.
• 2 conductors for power
• 1 conductor for collective error messaging

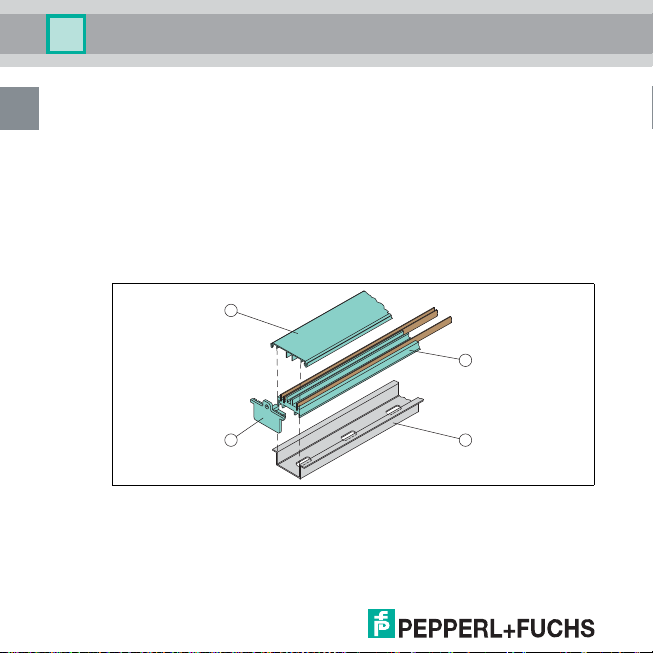

Figure 3.2 Example: Power Rail UPR-03
1Cover UPR-COVER
2Insert UPR-INS-03
3DIN mounting rail UPR-MR (35 mm x 15 mm)
4End cap UPR-E
1
2
34

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
315702 2018-01
EN - 11
EN
3.3 Mounting
Mounting in the Non-Hazardous Area
Mounting the Device
Snap the device onto the DIN mounting rail in a vertical downward movement. 
See figure below.
Mounting in Areas that Require the Equipment Protection Level Gc
Danger!
Danger to life from electric shock
Absent or insufficient insulation can result in electric shock.
Only connect supplies that provide protection against electric shock to power feed
modules (e. g. SELV or PELV).
Caution!
Property damage from use of isolators for Power Rail supply
Using the isolators for Power Rail supply can damage the isolators and make the
Power Rail fail.
Do not supply the Power Rail via isolators.
Danger!
Explosion hazard from live wiring of non-intrinsically safe circuits
If you connect or disconnect energized non-intrinsically safe circuits in a potentially
explosive atmosphere, sparks can ignite the surrounding atmosphere.
Only connect or disconnect energized non-intrinsically safe circuits in the absence of a
potentially explosive atmosphere.

315702 2018-01
12 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
EN

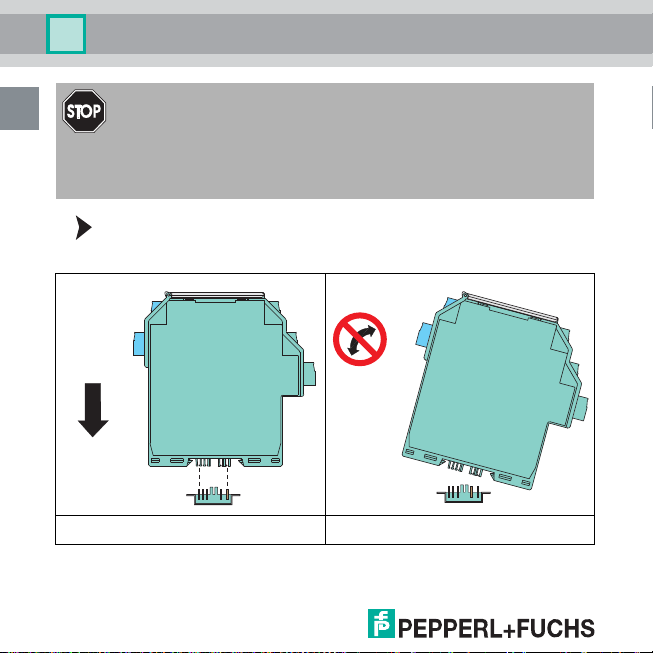

Mounting the Device
Snap the device onto the DIN mounting rail in a vertical downward movement. See figure
below.
Danger!
Explosion hazard from wrong mounting
The device safety can be impaired by external environmental influences and by
mechanical stress. This can lead to sparking that can ignite a surrounding potentially
explosive atmosphere.
Mount the device in a surrounding enclosure that complies with IEC/EN 60079–0and that 
is rated with the degree of protection IP54 according to IEC/EN 60529.
CORRECT: Device snapped on vertically. INCORRECT: Device snapped on from the side.
Can damage the contacts and cause the device to fail.
Figure 3.3


HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
315702 2018-01
EN - 13
EN
Mounting the Terminal Blocks
Connect the terminal blocks or disconnect the terminal blocks.
3.4 Connection
Danger!
Danger to life from incorrect installation
Incorrect installation of cables and connection lines can compromise the function 
and the electrical safety of the device.
• Observe the permissible core cross section of the conductor.
• When using stranded conductors, crimp wire end ferrules on the conductor ends.
• Use only one conductor per terminal.
• When installing the conductors the insulation must reach up to the terminal.
• Observe the tightening torque of the terminal screws.
Danger!
Explosion hazard from live wiring of non-intrinsically safe circuits
If you connect or disconnect energized non-intrinsically safe circuits in a potentially
explosive atmosphere, sparks can ignite the surrounding atmosphere.
Only connect or disconnect energized non-intrinsically safe circuits in the absence 
of a potentially explosive atmosphere.

315702 2018-01
14 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
EN
Danger!
Explosion hazard from wrong separation distances
If you do not observe the minimum separation distances between intrinsically safe circuits
of associated apparatus and non-intrinsically safe circuits, this can lead to added currents
or voltages. This can result in a current/voltage flashover generating sparks. The sparks
can ignite the surrounding potentially explosive atmosphere.
Ensure that you observe the compliance of the separation distances to all non–intrinsically
safe circuits according to IEC/EN 60079–14.
Danger!
Danger to life from electric shock
Absent or insufficient insulation can result in electric shock.
• Maintain sufficient distance between the connection lines, terminals, housing, and the
environment.
• Insulate connection lines, terminals, and the housing from the environment.
Danger!
Danger to life from electric shock
Absent or insufficient insulation can result in electric shock.
Only connect supplies that provide protection against electric shock (e. g. SELV or PELV).

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
315702 2018-01
EN - 15
EN
The removable terminal blocks simplify connection and control cabinet construction
significantly. These terminal blocks offer adequate space for the connection of leads with
core cross-sections of up to 2.5 mm2(14 AWG). The terminal blocks are coded with red
coding pins so misconnection of terminal blocks are eliminated.
Connecting Circuits
1. Connect the field circuit.
2. Connect the control circuit.
Danger!
Danger to life from electric shock
Working on live parts at voltages higher than 50 V AC or 120 V DC can result in electric
shock.
1. De-energize the device.
2. Secure the circuit against reconnection.
3. Verify that the device is de-energized at all poles.
4. Provide protection from adjacent live parts, if present.

315702 2018-01
16 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
EN
3.4.1 Input Connection (Field Circuit)
Connecting the Field Circuit
1. Connect the field circuit to the blue terminals.
2. Observe the tightening torque of the terminal screws. The tightening torque is
0.5 Nm to 0.6 Nm.
The intrinsically safe field circuit may be routed in the hazardous area with connection lines
in accordance with DIN EN 60079-14. You can connect the following field devices:
1. any separately supplied HART current circuit with transmitter or positioner connected in
parallel
Connection to terminals 2 and 3
2. a HART-capable active current source, e. g., a separately supplied HART measuring
transmitter
Connection to terminals 2 and 3 with bridge between terminals 5 and 6
3. a 2-wire HART measuring transmitter, e. g., HART measuring transmitter with an analog
output signal of 4 mA to 20 mA
The HART measuring transmitter is supplied by the isolated barrier
Connection to terminals 1 and 3 with bridge between terminals 4 and 5
Danger!
Explosion hazard from wrong separation distances
If you do not observe the minimum separation distance between 2 intrinsically safe circuits,
this can lead to added currents or voltages. This can result in a current/voltage flashover
generating sparks. The sparks can ignite the surrounding potentially explosive
atmosphere.
Ensure that you observe all separation distances between 2 adjacent intrinsically safe
circuits according to IEC/EN 60079-14.

HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
315702 2018-01
EN - 17
EN
Figure 3.4
Power Rail
24 V DCFault
Zone 0, 1, 2
Div. 1, 2
HART
+
-
HART
+
-
+
-
HART
mA
1+
2+
3-
4
5
6
250 Ω

315702 2018-01
18 - EN
HART Loop Converter KFD2-HLC-Ex1.D(.**)
Mounting and Installation
EN
3.4.2 Output Connection (Control Circuit)
Connecting the Control Circuit
1. Connect the control circuit to the green terminals.
2. Note the tightening torque of the terminal screws. The tightening torque is
0.5 Nm to 0.6 Nm.
Connection KFD2-HLC-Ex1.D
The following connections are available:
• Terminals 7 to 9: output I, current output as source (7/8) or sink (7/9)
• Terminals 13 to 15: output II, current output as source (13/14) or sink (13/15)
• Terminals 19 to 21: output III, current output as source (19/20) or sink (19/21)
• Terminals 22/24: connection of HART handheld
• Terminals 23/24: power supply 24 VDC
Figure 3.5
KFD2-HLC-Ex1.D
7
8+
9-
14+
15-
13
20+
21-
19
Zone 2
Div. 2
24 V DC
23+
24-
22
Power Rail
24 V DCFault
HART
II
III
I
mA
mA
mA
+
-
V
+
-
V
+
-
V
250 Ω
