Perfect Prime IR0005 User manual

1
Thermal Imaging
Camera
Instruction Manual: IR0005
www.perfectprime.com

2
Contents
1. Overview---------------------------------------------------------------------------------------3
2. Considerations and Safety Maintenance---------------------------------------------------4
3. Performance Index----------------------------------------------------------------------------5
4. Product features-------------------------------------------------------------------------------6
5. Initial Operation-------------------------------------------------------------------------------8
6. Introduction to “Setting” Sub-menu--------------------------------------------------------9
7. Color Palette----------------------------------------------------------------------------------10
8. Application of Color Palette and Image Check/Deletion-------------------------------11
9. Time Setting----------------------------------------------------------------------------------12
10. Capture Thermal Points-------------------------------------------------------------------12
11. Measure Objects----------------------------------------------------------------------------13
12. Emissivity-----------------------------------------------------------------------------------14
13. The Table of Emissivity Value-----------------------------------------------------------14

3
1. Overview
IR0005 is an infrared camera that integrates surface temperature measurement and
real-time thermal image. With this product, potential problems can be identified on
the color display screen which is helpful for users to locate the source problem, take
readings and solve the issue.
The product has a visual camera integrated for comparing images. The thermal
images and full vision images can be stored in the device and can be obtained through
USB or transferred to a computer to generate reports and printing.
The following are the major features of IR0005:
High accuracy: The adjustable radiation coefficient increases the measurement
accuracy of reflective surfaces.
Time-saving : The traditional infrared thermometer needs to measure every
component one by one, this is not necessary for IR0005.
Easy to use : Turn on the device and start measuring temperatures straight
away.
User-friendly : The thermal point and cold point temperature automatically
marks the area with highest or lowest temperature in real time.
Adjustable: Five types of color palettes and emissivity values provided.
The product can be utilized in many fields, for instance:
1. Detect spills and leaks of chemicals which have different thermal signatures
to the surroundings,
2. Fire fighting: Vision can be obscured by smoke and debris in the event of a fire,
thermal imaging can see through this and locate victims or fire spots.
3. Locate the source of abnormal leaking of heat of a house or a machine, find out
the problem area and fix it.
4. Enable drug-enforcement units to locate cannabis plants by detecting abnormal
amount of heat spot in buildings.
5. Moisture detection: Areas with lower temperatures to its uniform surroundings
can be a source of moisture staining or damage.
6. Measure body temperatures: Point the thermal imaging camera at a person to
find their surface body temperature.
7. Night vision: Measuring the electromagnetic energies given off when objects
emit heat, the IR0005 translates those energies into visible light for users to see
them in the dark.
8. Building inspection: Check that heat is retained uniformly in a building.
IR0005 is the ideal selection for electrician, maintenance personnel, technicians and
even the emergency personnel.

4
2. Considerations and Safety Maintenance
Please read the instructions carefully so as to ensure accurate measurement results and
safety:
Do not use the device in explosive, flammable or corrosive environments.
Since the product is a precision electronic and sensitive optical device. Do not
drop it or allow impacts to occur to prevent damage.
Do not dismantle the product, doing so can damage it and revoke the warranty.
When the product works, there is a tiny clicking sound every several seconds.
This is a normal phenomenon as the lens captures images to produce electronic
noises.
It is suggested to use the attached USB cable.
Please use a damp cloth or gentle soap to clean the enclosure of the device. Do
not use abradant, isopropanol or solvent to clean. Special optical lens cleaner
should be used to clean the screen.

5
3. Performance Index
Display screen
3.2” full angle TFT display screen
Infrared image resolution
220 ×160 (35,200 pixels)
visible image resolution
640 x 480
Field angle/shortest focus length
35° x 26°/4.0mm
Thermal sensitivity
0.07°C
Temperature measurement range
-20~300°C (-4°F~572°F)
Test and measurement precision
±2°C or ±2%
Emissivity
Adjustable from 0.01 to 1.0
Image capture frequency
9 Hz
Wavelength coverage
8-14um
Focus mode
Fixed
Color palette
Rainbow, iron oxide red, cold color,
black & white, white & black
View option
Full infrared and full vision Visible
image with 25% step length
Storage medium
Built-in 3G(above 2 million image stored)
Image format
JPG
Power supply
Built-in chargeable battery
USB
Micro USB 2.0
Automatic power-off time
Selectable: 5 minutes/20 minutes/ do not
power off automatically
Product size (length × width × height)
140 mm× 80 mm× 28 mm
Product Weight
208g
Work temperature
0°C - 45°C
Storage temperature
-20°C - 60°C
Relative humidity
< 85％RH
Wavelength coverage of
thermal infrared radiation
of IR0005
LWIR: thermal infrared
radiation

6
4. Product Description
4.1. Instruction to structure
Infrared imaging sensor
LED lighting lamp
Image capture key
Visible light camera
Micro USB
Back

7
4.2. Key description
1. Central point temperature cursor
This pointer will always remain at the centre of the screen and allow the user to move
the camera to identify the temperature of where they point.
2. Hot point temperature cursor
This pointer will automatically locate and display the highest temperature on the
screen.
3. Cold point temperature cursor
This pointer will automatically locate and display the lowest temperature on the
screen.
4. Color code
Used to mark the color corresponding to the relative temperature from low to high in
the field of version.
Central point temperature
Cold point temperature cursor
Hot point temperature cursor
Maximum /minimum value
of field temperature
Battery power
Current emissivity
Color code
Temperature cursor at
central point
Time

8
4.3. Key description
5. Initial Operation
1. Charging: When the battery power is empty or low, please charge it through the
micro USB interface.
2. Power on/off the instrument: hold down “ /MENU” key for several seconds.
3. Change imaging mode: press “ ” and “ " keys to switch between the mode of
infrared thermal imaging and full vision images.
---> The degree of fusion is 0%, 25%, 50%, 75% and 100%.
4. Image capture: press the image capture key, then the screen will display “store
photo?”:
--->If “yes”, please press “ /MENU” key to save the image.
--->If “no”, press “SELECT/ENTER” key to not to save the image.
5. Exhibit and hide the bottom bar: press “ ” to hide the bottom bar of the screen
which shows the maximum /minimum value and time of the field temperature.
Press “ ” again to display the bottom bar.
6. Image export: use the Micro USB cable to connect the IR0005 to a computer to
transfer the files.

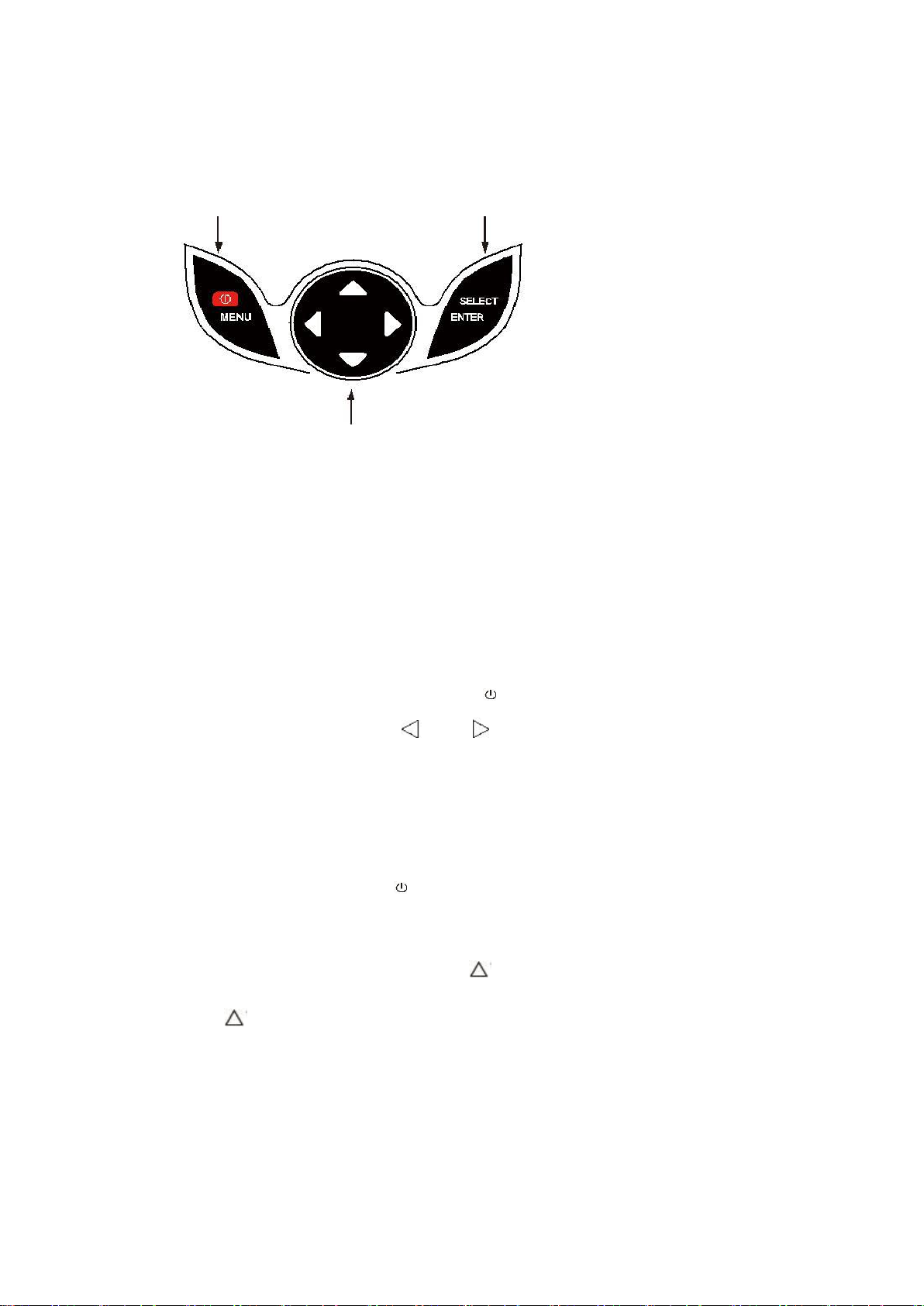

On/off /Menu key Select/Enter key
Navigation key: Up, down, left and right

9
6. Introduction to “Setting” Sub-menu
Auto shutdown
Display intensity
Language
Unit
Time format
Set time
Spot

10
7. Color Palette
The menu of color palette can change the false color on the display screen or capture
infrared image. There are five types of color palettes provided: rainbow, iron oxide
red, cold color, black & white and white & black.
Suitable selection of color palette displays the details of the target objective better:
1. Rainbow, iron oxide red and cold color
-Focus on display of color
-suitable for high heat contrast
-improving the color contrast between high and low temperature
2. Black & white and white & black color
-provide even linear color.
The following is the image of the same object with selection of different color
palettes:
Rainbow Iron oxide red Cold color
White heat Black heat

11
8. Application of Color Palette and Image
Check/Deletion
8.1. Application of color palette
. Press “ /MENU” key to enter the main menu.
. Select “color palette”and press “ ” to enter the color palette list.
. Press “ ” and “ ” to select color palette.
. Press “SELECT/ENTER ” to confirm the choice.
. Press “ ” to return.
. Press “ /MENU” to exit from the menu.
8.2. Check images/Delete images
1. Select the image menu and press “ ” to enter the image menu.
2. Press “ ”/“ ” to adjust the selected items.
3. Press “SELECT/ENTER” key to view the image.

12
4. Press “ ”/“ ” to check the previous/next image.
5. Press “SELECT/ENTER” key to return. Press “ /MENU” key to exit.
6. Image deletion: during image checking, press “ ” key and the deletion mode
appears. Press “ /MENU” key to delete images or press “SELECT/ENTER”
key to cancel deletion.

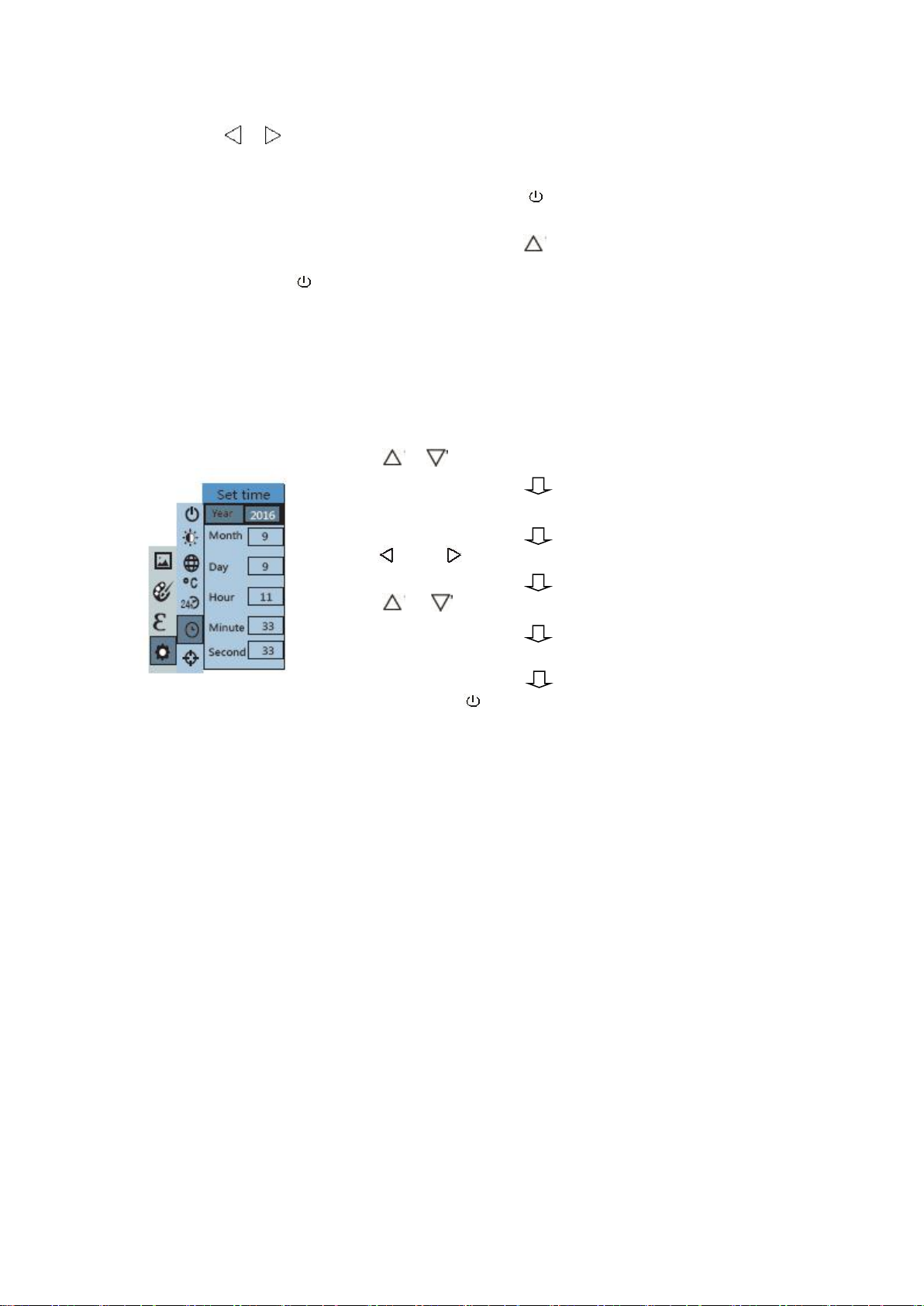

9. Time Setting
10. Capture Thermal Points
Capture thermal points are the three different cursors which measure the temperatures
( The central, highest and lowest temperature points).
Find the “Capture thermal points” under the “setting” menu to enable and disable the
function.
1. Press “ ”/“ ” to select year/month/day/hour/minute.
2. Press “SELECT/ENTER” to enter edit.
3. Press“ ” and “ ” to select the figure to be changed.
4. Press “ ” /“ ” to adjust the selected items.
5. After editing, press “SELECT/ENTER”to confirm.
6. Press left key or “ /MENU” key to return and complete
the setting.

13
11. Measure Objects
According to the characteristics of the objects and surfaces to be measured, users may
select corresponding measurement modes or enter “advanced” option to adjust the
value of emissivity (please refer to the table of “emissivity of common materials”).
The operating step is as the following:
2. Press “ ” and “ ” to select the emissivity.
3. When the item is chosen, press “SELECT/ENTER” to confirm.
4. If “self-defined” emissivity is chosen, press “SELECT/ENTER” key to enter the
edit state.
5. Press “ ” and “ ” keys to select the number to be changed.
6. Press “ ”/“ ” to adjust the value.
7. Press “SELECT/ENTER” to confirm after editing.
8. Press “ /MENU” key to exit.
1. Select the “measure objects”; press “

”
key to enter the sub-menu.

14
12. Emissivity
The emissivity of the surface of a material is its effectiveness in emitting energy as thermal
radiation. The emissivity of the product can be adjusted from 0.10 to 1.00 with the default
value of 0.95. Many common objects and materials (such as timber, water, skin and textile
fabric) can reflect the heat energy effectively, so it is easy to obtain high accuracy.
Choosing the correct setting of the emissivity value of different objects and materials is very
important for achieving accurate temperature measurement. The surface emissivity will
greatly affect the measured temperature and therefore adjusting the emissivity value to match
it is essential.
13. The Table of Emissivity Value
The product is provided with four types of object measurement modes:
1. Coarse object (easy to give out energy)(0.95);
2. Semi-matte object (0.80);
3. Semi-shiny object (0.60);
4. Shiny object (0.30);
Substance
Thermal radiation
Substance
Thermal radiation
Bitumen
0.90-0.98
Black cloth
0.98
Concrete
0.94
Human skin
0.98
Cement
0.96
Foam
0.75-0.80
Sand
0.90
Charcoal dust
0.96
Earth
0.92-0.96
Paint
0.80-0.95
Water
0.92-0.96
Matte paint
0.97
Ice
0.96-0.98
Black rubber
0.94
Snow
0.83
Plastic
0.85-0.95
Glass
0.90-0.95
Timber
0.90
Ceramics
0.90-0.94
Paper
0.70-0.94
Marble
0.94
Chromium
hemitrioxide
0.81
Gypsum
0.80-0.90
Copper oxide
0.78
Mortar
0.89-0.91
Ferric oxide
0.78-0.82
Brick
0.93-0.96
Textile
0.90
