SGBS 400/SGBS kiosk.
2D Barcode Scanner
Setting Manual
2DBarcodeScannerSettingManual V1.2
3/92
Revision History
Version Description Data
V1.0 Initial Version 2015-06-07
V1.1 Add Rate 2016-01-05
V1.2 Add Comand Table 2017-10-06
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
4/92
Table of Contents
Chapter1 System Settings................................................................................................7
Introduction ............................................................................................................ 7
Restore Defaults ...................................................................................................... 8
version .................................................................................................................... 8
Reading mode selection ........................................................................................... 9
Good Read Beeper ................................................................................................. 11
Good Read Beeper Volume .................................................................................... 11
Good Read Beeper Duration ................................................................................... 11
Good Read Beeper Tone ......................................................................................... 12
Trigger Mode Reread Delay .................................................................................... 12
Sense Mode Reread Delay ...................................................................................... 12
Aiming .................................................................................................................. 13
Data transmission speed ........................................................................................ 14
Inverse color .......................................................................................................... 14
Different national language transmission In QR Code .............................................. 15
Chapter2 Communication setting................................................................................19
Introduction .......................................................................................................... 19
USB Interface ......................................................................................................... 19
USB-COM .............................................................................................................. 22
TTL/RS232 mode ................................................................................................... 23
Data Bit & Parity Check & Stop Bit .......................................................................... 25
Chapter3 Data Editing.....................................................................................................26
Introduction .......................................................................................................... 26
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
5/92
Add Custom Prefix ................................................................................................. 27
Add Custom Suffix ................................................................................................. 28
Clear All Prefix and Suffix ....................................................................................... 28
Suffix setting ......................................................................................................... 29
Character conversion ............................................................................................. 30
Chapter4. BarCode Parameter Settings......................................................................31
Introduction .......................................................................................................... 31
Global setting ........................................................................................................ 31
UPC-A ................................................................................................................... 33
UPC-E ................................................................................................................... 36
EAN-8 ................................................................................................................... 39
EAN-13 ................................................................................................................. 41
Code 128 ............................................................................................................... 44
GS1-128 ................................................................................................................ 45
Code 39 ................................................................................................................ 46
Code 93 ................................................................................................................ 48
Code 11 ................................................................................................................ 49
Interleaved 2 of 5 ................................................................................................... 50
Matrix 2 of 5 .......................................................................................................... 52
Industrial 2 of 5 ..................................................................................................... 53
Standard 2 of 5(IATA) ............................................................................................. 54
Codabar（NW-7） ................................................................................................. 55
MSI Plessey ........................................................................................................... 57
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
6/92
GS1 DataBar Limited（RSS Limited） ................................................................... 59
GS1 DataBar Omnidirectional（RSS Omnidirectional） ......................................... 59
GS1 DataBar Expanded（RSS Expanded） ........................................................... 59
GS1 Composite ..................................................................................................... 60
China Postal Code（Datalogic 2 of 5） ................................................................... 60
Telepen ................................................................................................................. 60
QR Code ............................................................................................................... 61
Data Matrix ........................................................................................................... 63
PDF 417 ................................................................................................................ 64
Aztec Code ............................................................................................................ 65
MaxiCode .............................................................................................................. 66
Hanxin Code .......................................................................................................... 67
Chapter5serialcommunicationinstruction..........................................................................68
Introduction .......................................................................................................... 68
Command format .................................................................................................. 68
Trigger instruction ................................................................................................ 68
Instruction sending example ................................................................................. 69
Chapter5 Appendix..........................................................................................................70
Appendix – Digit Barcodes ..................................................................................... 75
Appendix – Command Table ................................................................................... 76
Appendix - ASCII Table ........................................................................................... 87
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
7/92
Chapter1 System Settings
Introduction
The user can set the function of the barcode reader by scanning one or more setting
barcodes。

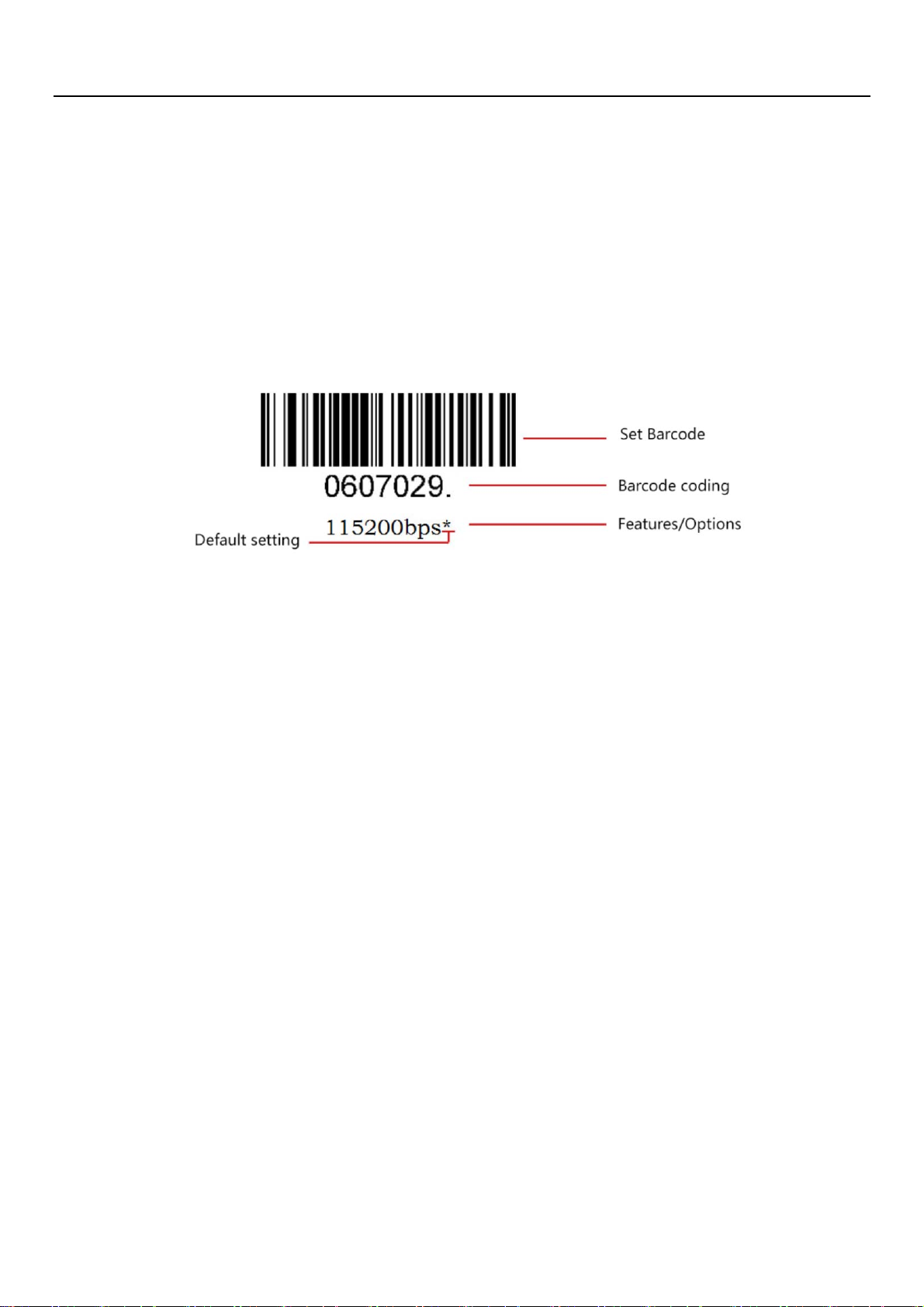

Scanning Instructions
In the Trigger Mode, the scanning barcode operation steps are as follows
1. Hold down the trigger key of the barcode reader, the line of sight is activated, red red
line of sight appears。
2. Align the red line of sight with the bar code center, move the bar code reader and adjust
the distance between it and the bar code to find the best reading distance。
3. After hearing the successful prompt sound, and the red lighting line is extinguished, the
reading is successful, and the barcode reader transmits the decoded data to the host.。
Note: During the reading process, you will find the distance between the barcode reader
and the barcode within a certain range for the barcode of the same batch, and the reading
success rate will be very high. This distance is the best reading distance.
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
8/92
Restore Defaults
All barcode readers have a factory default setting. Reading the "Restore default
settings" barcode will restore all barcode reader property settings to the factory state.
You are most likely to use this bar code in the following situations：
1、Error in barcode reader settings, such as barcode not recognized.
2、You have forgotten what settings were made for the barcode reader before, and you
do not want to use the previous settings。
3、The bar code reader is set to use some infrequently used features and is used after
completion。
Restore default settings
version
Use the scanner to scan the version number bar code, you can view the current bar coder
version number information
version
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
9/92
Reading mode selection
Trigger Mode
If the Trigger Mode is enabled, you could activate the scanner by providing an external
hardware trigger, or using a serial trigger command. When in manual trigger mode, the
scanner scans until a barcode is read, or until the hardware trigger is released. When in
serial mode, the scanner scans until a barcode has been read or until the deactivate
command is sent.
Manual Trigger Mode – Normal* Manual Trigger Mode – Cellphone
Serial Trigger Command:
Command Trigger: [0x02][0xF4][0x03]
Command Untrigger: [0x02][0xF5][0x03]
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
10/92
Sense Mode
This set the scanner to work in Sense mode.
Sense Mode – Normal Sense Mode - Cellphone
Sense Mode – Continue Scan
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
11/92
Good Read Beeper
Enable or disable all sounds and scan the corresponding bar code below
Enable* disable
Good Read Beeper Volume
There are three levels of volume levels to choose from, default: Loud
Loud* Medium
Low
Good Read Beeper Duration
Normal * Short
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
12/92
Good Read Beeper Tone
Low Frequency Medium Frequency*
Medium High Frequency High Frequency
Trigger Mode Reread Delay
No Dela
y
*Dela
y
500 MS
Dela
y
2000 MS
Sense Mode Reread Delay
Dela
y
500 MS * Dela
y
750 MS
Dela
y
1000 MS
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
13/92
Illumination
Manual Trigger Mode Illumination setting
Illumination Level 4(High) * Illumination Level 3
Illumination Level 2 Illumination Level 1(Low)
Aiming
When scanning/capturing image, the engine projects an aiming pattern which allows
positioning the target barcode within its field of view and thus makes decoding easier.
Normal: The engine projects an aiming pattern only during barcode scanning/capture.
OFF: Aiming pattern is OFF all the time.
Normal* OFF
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
14/92
Data transmission speed
Fast Slow*
Inverse color
Normal*
Only Inverse ON Inverse And Normal Both ON
www.perimatic.eu
2DBarcodeScannerSettingManual
V1.2
15/92
Different national language transmission In QR Code
Scan Chinese In QR Codes
Application
environment
QR coding rule
UTF8\GB2312 Big5 Shift-JIS
word
documents
Excel or
notepad
system
languages:CH
Sample Code
（GB2312）
采菊东篱下，悠然见南山。
（UTF8）
鳳凰臺上鳳凰遊
鳳去臺空江自流
關關雎鳩，在河之洲。
窈窕淑女，君子好逑。
123 あいうえ ABC かき
くけこ 456
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
16/92
Scan Japanese In QR Codes
Application
environment
QR coding rule
UTF8\GB2312 Shift-JIS
word documents
Excel or notepad
system
languages:JP
Sample Code
こんにちは 123 あいうえ ABC かきくけこ 456
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
17/92
Scan Korean In QR Codes
application
environment
QR coding rule
UTF8 CP949
word documents
Excel or notepad
system
languages:Korean
Sample Code
안녕하세요
www.perimatic.eu
2DBarcodeScannerSettingManual
V1.2
18/92
Scan Thai in QR codes?
Application
environment
QR coding rule
UTF8 CP874
word
documents
Excel or
notepad
system
languages:Thai
Sample Code
แบบทดสอบภาษาไทยบารโคด
12345678 ห ฟ ด ดาสกหฟร้ํา แสส KTB
CO.,LTD
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
19/92
Chapter2 Communication setting
Introduction
When using this barcode to communicate with different hosts, you need to set the
barcode reader to the corresponding communication interface mode.
The user can set the barcode scanner function by scanning one or more setting barcodes.
Users can choose to use USB-KBW, USB-COM, TTL / RS232 serial communication interface
mode.
USB Interface
Before using USB Communication interface, scanner must be set as USB cable.
USB Cable
USB-KBW Mode
When you connect the engine to the Host via a USB connection, you can enable the USB-
KBW feature by scanning the barcode below. Then engine’s transmission will be
simulated as USB keyboard input. The Host receives keystrokes on the virtual keyboard. It
works on a Plug and Play basis and no driver is required.
USB-KBW Mode
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
20/92
Country/language keyboard layout selection
Different national languages correspond to the keyboard keys arrangement, symbols, etc.
are different, the barcode scanner can be virtual according to the actual needs of different
countries keyboard.
1 – U.S. * 2 – UK
3 – Denmark 4 – France
5 – Finland 6 – Turkey_F
7 – Italy 8 – Norway
9
–
Albania
10
–
Belgium
11 – Bosnia 12 – Brazil
www.perimatic.eu
2DBarcodeScannerSettingManual V1.2
21/92
13 – Croatia 14 – Czech
15 – Dutch 16 – Estonia
17 – Germany 18 – Greek
19 – Hungary 20 – Irish
21 – Latvia 22 – Lithuania
23 – Macedonia 24 – Spain
25 – Poland 26 – Portugal
www.perimatic.eu
This manual suits for next models
1
Table of contents
