Perko 1094 Series User manual

Figs. 1094/1095 Series
FOLD OVER EDGE OF DOOR
2” Drill 2-1/2 Inch hole
C t. No. 1094 Series Locks
C t. No. 1095 Series L tches
MOUNTING INSTRUCTIONS
These locks or latches are designed to be mounted through surfaces from 1/8* inch to 3/4 inches thick. The
cam bars are adjustable to a maximum of 3 inches from the mounting surface.
1). Cut out the template below. Fold on dotted line. Place on mounting surface at desired location with
folded tab overlapping edge.
2). Mark center of hole for drilling.
3). Drill a 2-1/2 inch hole through the mounting surface.
4). Insert lock or latch through the hole in the surface and attach mounting ring, tighten screws to lock
body. Use #8 screws to fasten ring to underneath of mounting surface.
5). Attach cam bar with proper adjustment. Tighten set screw. Slide o-ring on shaft, behind the cam bar.
6). For locks’ continued ease of operation, periodically apply a lock cylinder lubricant.
* Note: On thinner ounting surfaces, insure enough support for ounting screws
(see instruction #4).
PE KO, Inc.
16490 N.W. 13th Avenue
Miami, FL 33169-5707
www.perko.com
(SEE OVER)
9/04
1094INS1

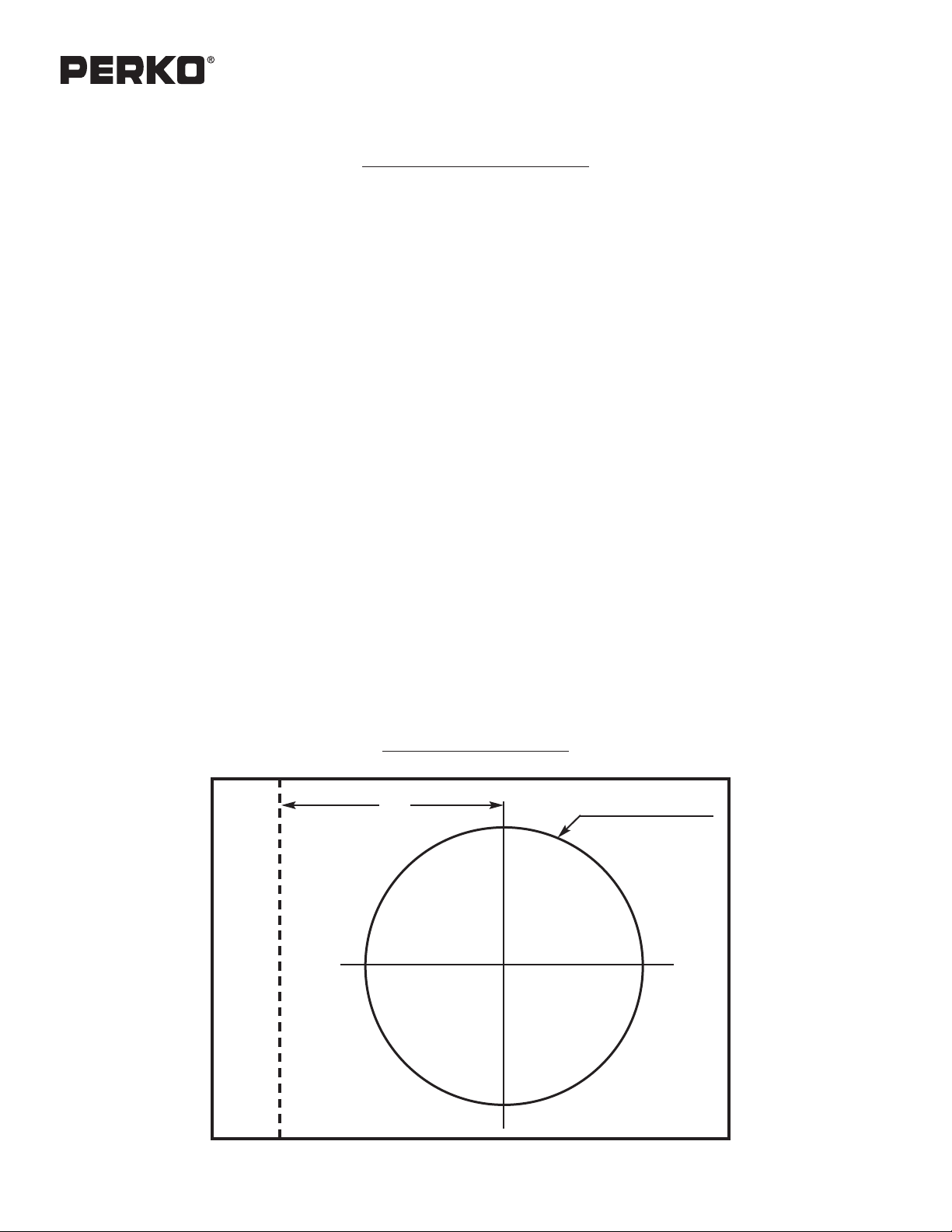

MOUNTING TEMPLATE

Fig. 1094/1095 Series Lock/L tch Sets
No. 1
Offset C m B r
No. 4 Extr Long
Offset C m B r
No. 5 Extr Long
Str ight C m B r
No. 3
Str ight C m B r
#8 Mounting Screws
Not Included
Mounting Ring
O-Ring
