Perlegear PGMFK6 User manual

Model:PGMFK6
TV Wall Mount
Instruction Manual (C)
English ------------------------ 01-11
Deutsch ------------------------ 12-22
Français ------------------------ 23-33
Español ------------------------ 34-44
Italiano ------------------------ 45-55
Manufacturer: BESTQI INNOVATION (HONG KONG) TECHNOLOGY CO., LIMITED
Address: RM 21 UNIT A 11/F TIN WUI IND BLDG NO 3 HING WONG ST TUEN MUN NT HONG KONG
AMZLAB GmbH
Laubenhof 23,45326 Essen
THEMIS AR support ltd.
85 Great Portland St, London, United Kingdom.
Thank you for choosing this Perlegear product! At Perlegear, we strive to
provide you with the best quality products and services in the industry. Should
you have any issues, please don't hesitate to contact us.
Technical Support:
(US / CA) 1-800-456-5231 Mon-Fri 8am - 8pm (CST)
(UK) 44-808-196-4165 Mon-Fri 2pm - 10pm (UTC)
Other Info: [email protected]

Weight Restrictions
DO NOT exceed the maximum weight indicated. This mounting
system is intended for use only within the maximum weights
indicated. Use with products heavier than the maximum
weights indicated may result in failure of the mount and its
accessories, causing possible damage and or injury.
WARNING
MAX
88 lbs
(40 kg)
If your TV weighs more, this
mount is NOT compatible.
Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete block
and brick walls - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Check the VESA Pattern of Your TV before the Installation
IMPORTANT SAFETY INFORMATION
If your TV VESA is greater than 400 x 400mm / 15.7 x 15.7” or less than
VESA 75 x 75mm / 3 x 3”, this mount is NOT compatible.
If this mount is NOT compatible, please contact customer service at
[email protected] to find a compatible mount.
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
Verify Your Wall Construction
If you are not sure the wall
construction, please
contact customer service
For VESA hole pattern:
3 x 3” (75 x 75mm)
3.9 x 3.9” (100 x 100mm)
7.9 x 3.9” (200 x 100mm)
7.9 x 7.9” (200 x 200mm)
11.8 x 7.9” (300 x 200mm)
15.7 x 7.9” (400 x 200mm)
11.8 x 11.8” (300 x 300mm)
15.7 x 11.8” (400 x 300mm)
15.7 x 15.7” (400 x 400mm)
MAX: 400mm / 15.7”
MAX: 400mm / 15.7”
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

Warning: This product contains small items that could be a choking hazard if swallowed.Before
starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts.
lf you require replacement parts, please contact our customer service at
• Please Note: Not all hardware included in this package will be used.
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
02 x 2 03 x 2
Extender Brackets
Supplied Parts and Hardware for Step 2
Note: The washers and spacers are shown in accordance with the actual size.
Bolt
M6 x 12mm G
M6 Nut H
x 8
x 8
Faceplate
01A x 1
1/2” (13mm)
Socket Wrench
04
Washers
[If necessary]
05 Spacers
[If necessary]
[B1] x 4
M4 / M5
[B2] x 4
M6 / M8 [F1] x 8
L2.5mm
[F2] x 4
L10mm
[F3] x 4
L22mm
Tools Needed for Wood Stud Installation Tools Needed for Solid Concrete,
Concrete Block and Brick Walls Installation
Tape Measure Pencil Electric Drill
5/32" (4mm)
Wood Drill Bit
3/8” (10mm)
Concrete Drill Bit
7/16” (11mm)
Socket Wrench
Phillips
Screwdriver
Hammer
Stud Finder Awl
OR
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

TV Bolts
06
[Only one bolt fits your TV]
Note: The bolts are shown in actual size.
Wall Anchor
φ10mm
x 4
A2
This anchor is for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
Supplied Parts and Hardware for Step 3
Note: The lag screw is shown in actual size.
Lag Screw
ST1/4 x 2-3/4”
x 4
A1
Arm Assembly / Wall Plate
01B x 1 Level
07 x 1
M6
M4
M8
M4 x 12mm
[C1] x 4
M6 x 15mm
[D1] x 4
M8 x 50mm
[E2] x 4
M8 x 25mm
[E1] x 4
M6 x 35mm
[D2] x 4
M4 x 30mm
[C2] x 4
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

G
7/16” (11mm)
Socket Wrench
(Not Included)
Step 1 Choose the Combination that Applies to Your VESA Hole
Pattern
200mm
200mm
75mm
75mm
100mm
100mm
For VESA hole pattern:
3 x 3” (75 x 75mm)
3.9 x 3.9” (100 x 100mm)
7.9 x 3.9” (200 x 100mm)
7.9 x 7.9” (200 x 200mm)
400mm
300mm
300mm
300mm
400mm
For VESA hole pattern:
11.8 x 11.8” (300 x 300mm)
15.7 x 11.8” (400 x 300mm)
15.7 x 15.7” (400 x 400mm)
400mm
200mm
300mm
200mm
For VESA hole pattern:
11.8 x 7.9” (300 x 200mm)
15.7 x 7.9” (400 x 200mm)
Option A No Need to Attach Extender Brackets [02] and [03] to Faceplate
Option B Need to Attach Extender Brackets [02] and [03] to Faceplate
03
03
02
02
H
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

Select TV Bolts
M6M4 M8
Only one bolt size fits your TV.
Secure the Faceplate [01A] or Faceplate [01A] with Extender
Brackets [02] and [03] to TV
Bolt length: Verify adequate thread engagement with bolts or bolts /spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
PLEASE NOTE: When using the spacers, it is important to note that they can be used in
multi-layers (meaning stacked). If you have any difficulty understanding how to install
Too Short Too Long Correct Correct
CAUTION: Ensure the faceplate [01A] or
faceplate [01A] with extender brackets [02]
and [03] is EQUALLY CENTERED on your TV
and securely fastened in place.
UP
Option A (For Flat Back TV)
Step 2
Alternate Setups Spacer
Please Note: The bolt hole locations on
your TV may vary in accordance qith the
manufacturer's design of the TV. We are only
illustrating possible locations of the bolt holes.
05
(If needed)
F1
04
06 C1 / D1 / E1
B1 / B2
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

Option B (For Round Back TV)
Option C (For TV with A “Bump”)
Option D
For cable interference or inset holes, use
spacers to create extra space between the
TV and TV brackets.
05
Alternate Spacer Setups
B1 / B2
C2 / D2 / E2
06
04
F1 / F2 / F3
05
Alternate Spacer Setups
Alternate Spacer Setups
B1 / B2
C2 / D2 / E2
06
04
F1 / F2 / F3
05
B1 / B2
C2 / D2 / E2
06
04
F1 / F2 / F3
05
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

X
●Avoid potential personal injury or property damage! Do not use a drill for tightening the
lag screws! Only use a socket wrench. DO NOT over-tighten the lag screws [A1]. Tighten
the lag screws [A1] only until they are pulled firmly against the wall plate.
●DO NOT USE ANCHOR [A2] FOR THIS STEP!
●Ensure the arm assembly / wall plate [01B] is securely fastened
to the wall before continuing on to the next step.
● Any material covering the wall must not exceed 5/8”(16mm)
● Nominal wood stud size: common 2 x 4”(51 x 102mm) minimum 1½ x 3½”(38 x 89mm).
● Stud center must be verified.
WARNING:
Step 3 Attach the Arm Assembly / Wall Plate [01B] to Wall
For wood stud installation, follow STEP 3A
For concrete installation, follow STEP 3B
Step 3A Wood Stud Option
5/32” (4mm)
2 3/4” (70mm)
3A-1
3A-2
3A-3
Position the arm assembly / wall
plate [01B] at your desired height
and line up the holes with your
stud center line. Level the wall
plate and mark the holes.
Drill 3 pilot holes using a 5/32” (4mm)
diameter drill bit. Make sure the depth
is not less than 2 3/4” (70mm).
Use a stud finder (not included) to
locate wood studs or use an awl
(not included) to verify the edges.
Mark the edge and center locations.
UP
1
2
3
OR
Stud Finder
(Not lncluded) Awl
(Not lncluded)
OR
Electric Drill
(Not lncluded)
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

WARNING:
●Avoid potential personal injury or property damage! Do not use a drill for
tightening the lag screws! Only use a socket wrench. DO NOT over-tighten
the lag screws [A1]. Tighten the lag screws [A1] only until they are pulled
firmly against the wall plate.
●Ensure the arm assembly / wall plate [01B] is securely
fastened to the wall before continuing to the next step.
● Any material covering the wall must not exceed 5/8” (16mm).
● Mount the arm assembly / wall plate [01B] directly onto the concrete surface.
● Minimum solid concrete thickness: 8” (203mm).
● Minimum concrete block size: 8 x 8 x 16” (203 x 203 x 406mm).
● Never drill into the mortar between blocks.
Step 3B Solid Concrete or Concrete Block Option
3A-4
Position the arm assembly /
wall plate [01B] at your
desired height, level the wall
plate and mark the 4 pilot
hole locations.
3B-1
7/16” (11mm)
Socket Wrench
(Not Included)
UP
1
3
4
2
Wall
Anchor
A2
Install the arm assembly / wall plate
[01B] using lag screws [A1]. Tighten the
lag screws [A1] only until they are pulled
firmly against the wall plate.
A1
01B
UP
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

3/8” (10mm)
3” (75mm)
Drill 4 pilot holes using a 3/8” (10mm)
diameter drill bit. Make sure the depth is
not less than 3” (75mm). Never drill into
the mortar between blocks.
3B-2
Use the hammer to knock anchors [A2]
into the wall. Be sure the anchors [A2]
are seated flush with the concrete
surface.
3B-3
3B-4
Install wall plate using lag screws [A1] and
anchors [A2]. Tighten the lag bolts [A1]
only until they are pulled firmly against the
wall plate. DO NOT over-tighten the lag
screws [A1].
7/16” (11mm)
Socket Wrench
(Not Included)
HEAVY! You may need
assistance with this step.
A2
UP
A1
Step 4 Verify Wall Mount Installation by Putting Pressure on Wall Mount
Before attaching the TV to the mount, please try to pull down the TV wall mount with
your hands to check whether it is firmly secured.
Electric Drill
(Not lncluded)
Hammer
(Not lncluded)
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

Step 5 Secure the TV onto the Arm Assembly / Wall Plate [01B]
5-1 Loosen the preassembled bolt [S1] and keep it for use in step 5-3.
5-2 Hang the TV to the arm assembly / wall plate [01B], making sure the upper nut hangs
on the hook on the arm assembly / wall plate [01B]. Then tighten the upper nut using a
socket wrench.
5-3 Tighten the bolt [S1] to secure the TV to the arm assembly / wall plate [01B].
HEAVY! You may need
assistance with this step.
Phillips
Screwdriver
(Not Included)
1/2” (13mm)
Socket Wrench
(Not Included)
S1
5-1
5-2
S1
11mm
5-3
7/16” (11mm)
Socket Wrench
(Not Included)
OR
13mm
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55

Loosen
Tighten
T
Loosen
Tighten
S1

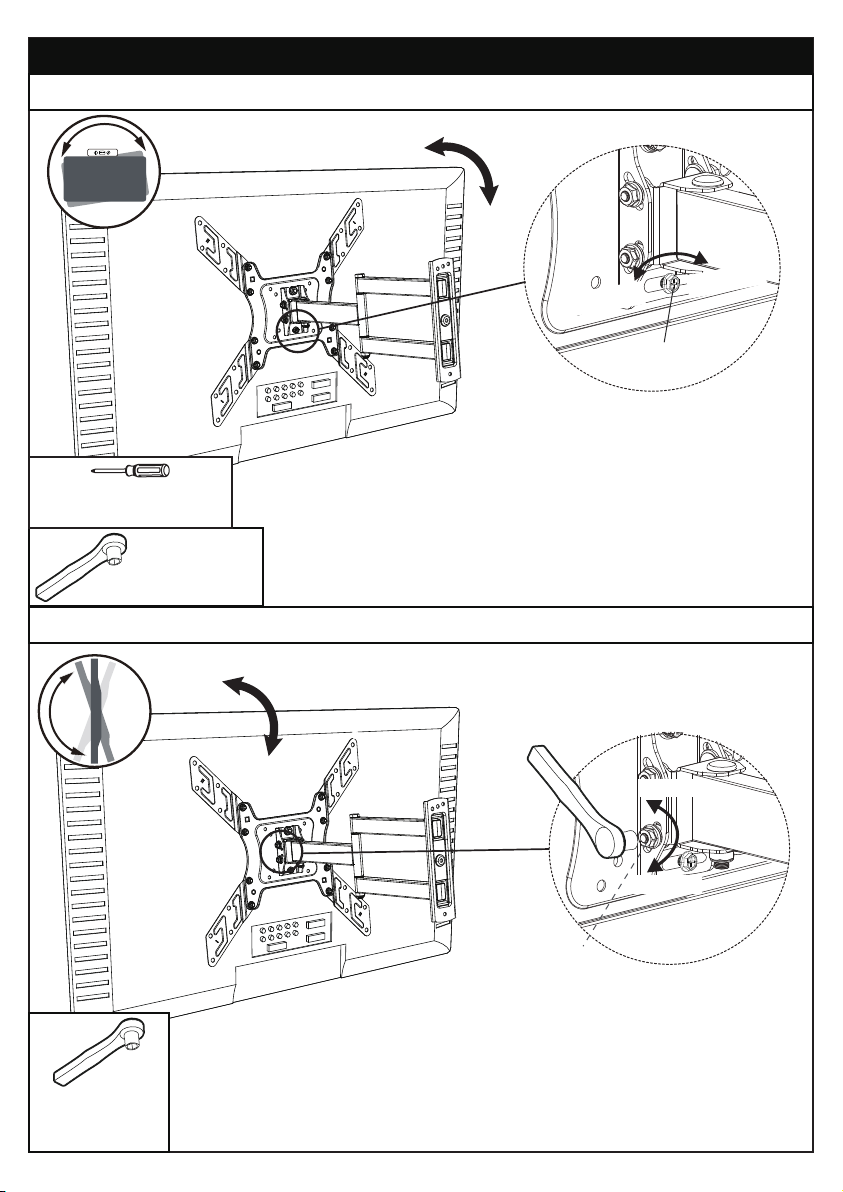

Step 6 Adjustments
6-1 Level Adjustment
6-2 Tilt Adjustment
1. Slightly loosen the tilting nuts [T].
2. Adjust TV to your desired tilt angle.
3. Retighten the tilting nuts [T] to fix the tilt angle.
If needed, the TV can be levelled.
7/16” (11mm)
Socket Wrench
(Not Included)
7/16” (11mm)
Socket Wrench
(Not Included)
1. Slightly loosen the bolt [S1].
2. Level your TV.
3. Retighten the bolt [S1] to hold TV in place.
Phillips Screwdriver
(Not Included)
01 02 03 04 05 06 07 08 09 10 11
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
45 46 47 48 49 50 51 52 53 54 55
Table of contents
Other Perlegear TV Mount manuals
