PERSEE T3 Administrator Guide

Compatible Visible Spectrophotometer
T3/T3M
Operation Instruction Manual


T3 / T3M Instruction Manual
1
Introduction
Thanks for your purchase of the Persee Analytics Inc. T3
spectrophotometer.
UV-Visible Spectrophotometer is a well-accepted, documented technique
with many applications. The technique is extensively used for the analysis of
agricultural products and is widely used in public health, environmental
protection, life sciences industries and many other organic and biochemical
applications.
For obtaining maximum performance and trouble-free operation, we give
you the following suggestions:
◆ Upon receiving your instrument, please check all the items listed in
the packing list are included and install the instrument according to
the instruction manual.
◆ The spectrophotometer is a precise electronic instrument. Please

T3 / T3M Instruction Manual
2
read the instruction manual carefully before operation. If the
equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
◆ Avoid collision and handle the instrument carefully during
transportation.
◆ If the tested solution is harmful to humans, please wear gloves or
use other protection methods.
◆ Please keep the accessories in a safe place for the use in future
maintenance.
For more information, please visit www.perseena.com

T3 / T3M Instruction Manual
3
Notice:
The light source of the instrument must be preheated for 10 minutes. It
can start measurement after preheating.
Please ensure that the battery is charged amply before using the
instrument. The charging time should not be too long.
Using the touch pen to operate on the touch screen, avoid using edge tool
to destroy the touch screen, avoid pressing the touch screen forcibly.
Avoid blocking the exhaust fan, avoid working in the high temperature
environment.
In order to avoid destroying the instrument, strong impact should be
avoided.
Instrument should be placed in a stable working platform. Strong vibration
source should be avoided during the measurement.
Take some safety measure arrest the thunder when installing antenna in
the wild.
It’s forbidden to absorb the magnet of the antenna on the object with
electricity.
Instrument should not work in that environment where the humidity is
higher than 85%.

T3 / T3M Instruction Manual
4
Instrument should be avoided working in strong electromagnetic
environment.
Balance the energy after changing measurement assembly.

T3 / T3M Instruction Manual
5
Contents:
Chapter 1 Introduction
1.1 Uses
1.2 Structures
1.3 Characters
1.4 Functions and configuration
1.4 Specifications and performance

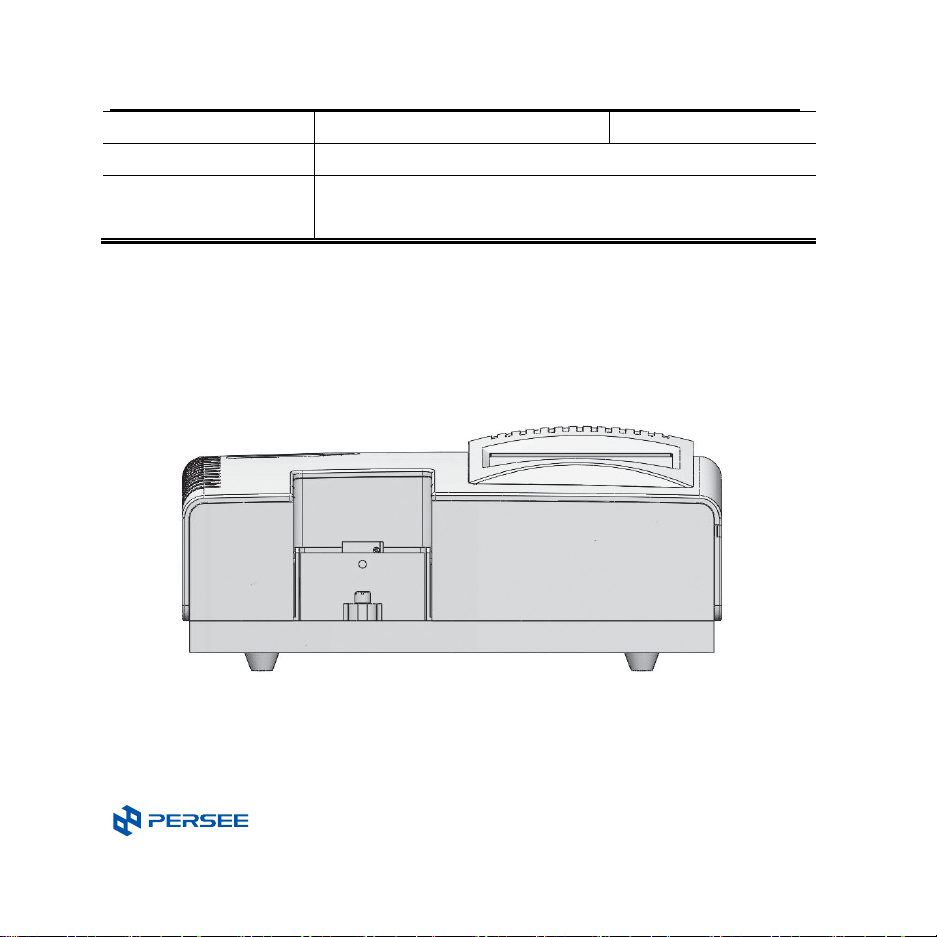

Chapter 2 Main units
2.1 Main unit configuration
2.2 Test tube holder accessory
2.3 Cell holder accessory
2.4Main unit and interface introduction
2.5 Connection between the main unit and PC/Accessories
2.6 Power supply monitor and battery charging
Chapter 3 Measurement accessories instruction
3.1 Fiber probe
3.2 Using method
Chapter 4 Operation
4.1 Instruction before using

T3 / T3M Instruction Manual
6
4.1.1 Interface introduction
4.1.2 Auto zero
4.1.3 Sample measurement
4.2 Operation
4.2.1 Main interface
4.2.2 Food analysis
4.2.3 Water analysis
4.2.4 Quantitative measurement
4.2.5 Photometric measurement
4.2.6 Kinetics
4.2.7 Spectrum scanning
4.2.8 System settings
4.3 Video
Chapter 5 T3 Data Viewer software installation and Operation
5.1 Software installation
5.1.1
T3 Data Viewer Installation steps
5.1.2 Installation of Microsoft. Net Framework 2.0
5.1.3 Installation of Windows Mobile Device Center
5.1.4 Installation of USB drivers
5.2 Software operation

T3 / T3M Instruction Manual
7
Chapter 6 Instrument maintenance
6.1 Maintenance cautions
6.2 Replacement of battery
6.3 Replacement of fiber probe and reflection mirror
Chapter 7 Troubleshooting
Chapter 8 Instrument Configuration

T3 / T3M Instruction Manual
8
Chapter 1 Introduction
1.1 Uses
T3 is a small portable quick-test instrument, whose measurement speed is very
fast. The dimension of the instrument is small, and it’s light. It is convenient for
carrying and manually operation. It can not only be used in the lab, but also
special for the wild environment monitor and on-site real time detection. The
instrument is provides with the function of spectrum scanning, kinetics,
quantitative measurement and photometric measurement, so the application
field of it is so wide.
The measuring method is based on the Lamber-Beer’s Law, which is found on
the absorption to light of the material.
1.2 Structures
The T3 system is consist of main unit, cell holders, test tube holders and fiber
probe.
1.3 Characters
ARM11 high-speed embedded processor and embedded real-time operational
system WINCE6.0 are used for the core control part of the T3, which provides

T3 / T3M Instruction Manual
9
perfect software and hardware platform for the functions implementations of
the instrument. For the convenience of user's operation, extra large display
touch-screen is used for display.
The monochrometer adopts concave plate holographic grating made by French
JY company integrated with CCD ILX511 detector made by Japanese Sony
Company featuring with high wavelength accuracy and low stray light.
The light source adopts gathering micro tungsten lamp with the characteristics
of small volume, stable illumination and long life time, which can meet the
special requirements for portable devices.
1.4 Functions and configuration
Spectrum Scanning, Photometric Measurement, Kinetics, food analysis,
water analysis, video player and other user-defined functions (quantitative
measurement).
The main unit can be operated stand alone, save and read the data and
print directly.
High-Lattice touch screen. It can be operated by touch pen or mouse.
Communicate by the USB and RS232 port, LAN communication is reserved.
Equipped with GPRS/GPS module.
Support video play function.

T3 / T3M Instruction Manual
10
The optical structure support multi kinds of sampler holders changeable
and the light source energy can be adjust automatically.
Built-in chargeable battery, it can work for 5 hours with one charging. (with
full loaded, it can do precision measurement for 4-5 hours )
Configure with 100-240V/50Hz-60Hz charging power supply, it can offer
power for the main unit and charge the battery.
Offering micro printer. (optional configuration)
Offering box for carrying the instrument conveniently.
1.5 Specification and performance
Light Source Convergent tungsten lamp, the life time is 7000 hours.
Measurement Mode
Spectrum
Quantitative
Kinetics
Photometric
Monochromator Concave plate holographic grating
Detector CCD ILX511 2048 Pixels

T3 / T3M Instruction Manual
11
Measurement parts Immerging fiber probe, 10mm pathlength, 20mm
Pathlength (Exchange); cell holders; test tube holders
Power supply
Built-in chargeable battery and one charging for 5
hours work.
Charger
Printer Micro printer (optional)
Operating system Embedded operation system, integration 2G-Flash
memorizer. With timing function.
Input/display Large touch-screen, 320×240 lattice
Specifications
Wavelength range 380nm-800nm
Data resolution 0.4nm
Spectral bandwidth 4±0.8nm
Wavelength accuracy ±1.0 nm
Wavelength repeatability ≤0.1nm
Baseline flatness ±0.005Abs
Noise ≤0.5%
Drift ≤1.0%
Stray light ≤0.5%
Photometric accuracy ±1.0%

T3 / T3M Instruction Manual
12
Photometric repeatability ≤0.3%
Dimension 280×170×110mm
Environmental
temperature
Operation environment 5-30℃
Store environment -20-55℃
Chapter 2 Main units
2.1 Main unit configuration
Figure 2-1 Main unit
2.2 Test tube holder accessory

T3 / T3M Instruction Manual
13
There are two kinds of test tube holder:
1. φ25 test tube holder: shown as figure 2-2.
Loose the fixed screws off the hole, insert theφ25 test tube into the test tube
holder, and the test tube is fixed by the spring.
Figure 2-2 φ25 Test tube holder accessory
2. φ16 test tube holder: shown as figure 2-3.
Insert the small test tube adapter into the test tube holder, tighten the screws.
Insert theφ16 test tube into the adapter, and the test tube is fixed by the
spring.

T3 / T3M Instruction Manual
14
Figure 2-3φ16 Test tube holder accessory
Cautions:
If choosing the special test tube with arrow label it’s necessary to rotate for
location after inserting the test tube into test tube holder. The two arrows on
test tube and test tube holder should be matched as figure 2-4 shown.
Figure 2-4 Test tube location

T3 / T3M Instruction Manual
15
2.3 Cell holder accessory
Shown as figure 2-5.
Figure 2-4 Cell holder
The cell holder is consist of holder, baffle and spring.
It supports 10mm, 20mm, 50mm cuvettes.
The baffle and spring work together to fix the position of cuvettes, assure the
precision of measurement.
Installation:
1. Put the cell holder into the sample compartment.
2. Tighten the fixed screw.
3. Insert the baffle and spring into the cell holder as the cuvettes dimensions.
4. Clean the cuvettes after finishing measurement.
5. Loose the fixed screw, and remove the cell holder.

T3 / T3M Instruction Manual
16
Figure 2-6 Installation of cell holder

T3 / T3M Instruction Manual
17
2.4 Main unit and interface introduction
Figure 2-2 Main unit and interface
Power switch (ON/ OFF): Turn on the main unit and the instrument is
running.
AC Plug: Connecting with the charging power supply, power for the main
unit and charge the battery.
Charging indicator: The indicator is lit when charging the main unit, it is off
Charger indicator
AC plug
SIM Card RS23
USB main
interface
Power switch
USB slave interface
LAN
GPS interface

T3 / T3M Instruction Manual
18
when the charging is finished.
RS232: The interface is connected with printer and accessories through
special communication cable.
USB main interface: Support the flash memory, saving the data into the
flash memory. Also can connect with the USB printer.
USB slave interface: Connect with the PC. Download, view, export and print
the data by the special software T3 data viewer.
SIM card: Insert the SIM card for GPRS communication.
Here is the insert method of the SIM card as figure 2-8 shown.
Figure 2-8 SIM card insert method
LAN: Connect with the LAN for internet communication.
GPS interface: Connect with the GPS antenna to acquire GPS data.
