PET Bigfoot User manual

Table of Contents
Technical Information-----------------------------------1
Warning Statement--------------------------------------2
Read Before Riding-------------------------------------3
List Of Parts-----------------------------------------------4
Front Bar---------------------------------------------------6
Tool Kits In The Tool Bag------------------------------7
Assembling The Bigfoot-------------------------------8
Charging The Batteries--------------------------------9
Using The Alarm----------------------------------------10
Riding The Bigfoot -------------------------------------12
Maintenance---------------------------------------------14
Wiring Diagram-----------------------------------------15
Trouble Shooting Guide------------------------------17
Warranty--------------------------------------------------19

1
T
Te ec ch hn ni ic ca al l I In nf fo or rm ma at ti io on nBigfoot
Model No.
PET Bigfoot
Product size
67.7 L x 41 W x 32.7 H inch
(172 L x 105 W x 83 H cm)
Type of motor
DC brushless motor
Motor power
60 V 1000W
Battery type
Li battery
Battery capacity
60V 12Ah
Charger
110V-240V, UL approved
Charging time
5-6 hours
Max. speed
Up to 22.8 MPH (38 km/h)
Single charge
Up to 30 MILES (50 km)
Max capacity
440 LBS (200 kg)
Net weight
121 LBS (55 kg)
Package size
69.3 L x 15 W x 34.3 H
inch (176 L x 38W x 87 H cm)
Brake
Front: Hydraulic disc,
rear: Hydraulic disc

2
W
Wa ar rn ni in ng g S St ta at te em me en nt t Bigfoot

3
R
Re ea ad d B Be ef fo or re e R Ri id di in ng g Bigfoot
C
Ch he ec ck k i if f a al ll l t ti ir re es s a ar re e p pr ro op pe er rl ly y i in nf fl la at te ed d. .

4
L
Li is st t O Of f P Pa ar rt ts s Bigfoot

5
L
Li is st t O Of f P Pa ar rt ts s Bigfoot

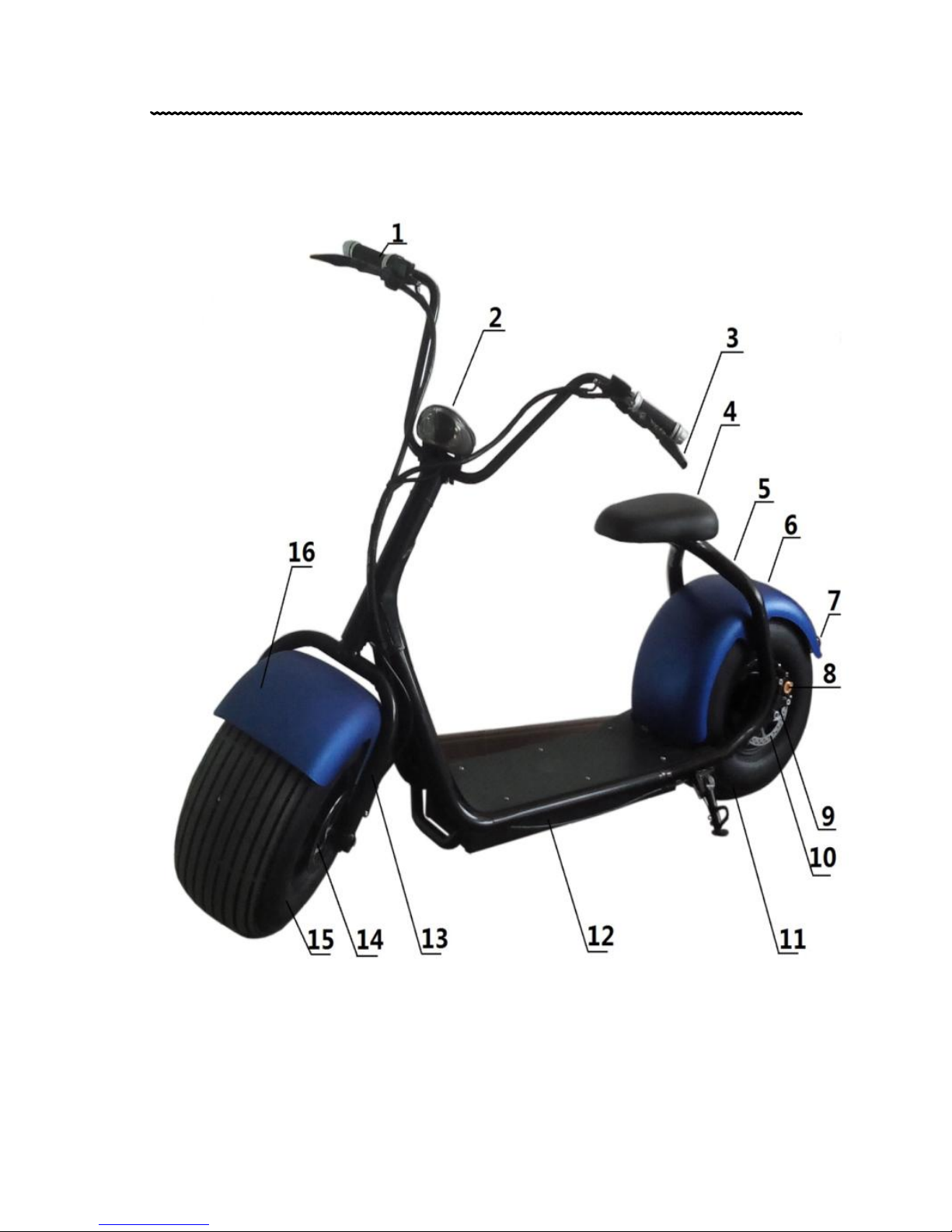

1 Throttle
2 Multi-function Instrument
3 Brake lever
4 Seat
5 Frame
6 Rear fender
7 Brake lamp
8 Rear brake assembly
9 Motor
10 Rear brake plate
11 Rear tire
12 Battery
13 Front fork
14 Front brake assembly
15 Front tire
16 Front fender

6
F
Fr ro on nt t B Ba ar r Bigfoot
1 Rear brake lever
2 Horn switch
3 Multi-function Instrument
4 Key switch
5 Front brake lever
6 Throttle

7
T
To oo ol l K Ki it ts s I In n T Th he e T To oo ol l B Ba ag g Bigfoot
1 Screwdriver
2 Allen wrench （8mm）
3 Wrench (12 x 14mm)
4 Charger

8
A
As ss se em mb bl li in ng g T Th he e B Bi ig gf fo oo ot t Bigfoot
1. Unpack the PET Bigfoot carefully so that you
do not misplace any of the parts.
2. Place the PET Bigfoot on a flat level surface.
Remove the bolts in the front stem. Place the
handle bar(A) into the front stem(B). After
aligning the holes, place the bolt through the
handle bar assembly. Twist the bolts, do not
hammer them through. Tighten the bolt with
the tool provided.
