PEUGEOT BIPPER User manual

This new vehicle has been designed to satisfy
all your requirements in terms of practicality,
comfort, safety and aesthetics. In order to get
the most out of your vehicle, we suggest that
you take a tour with the "Handbook" in front of
you. The handbook presents the operation of
the equipment available on board in detail.
PEUGEOT thanks you for your confidence and
wishes you very happy motoring.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on its trim level, version and the
specification for the country in which it was
sold.
Key
directs you to additional information.
indicates important information relating to the use of a system.
alerts you to the safety of individuals and the use of vehicle systems.

Contents
2. TECHNICAL DATA
58-67 4. EASE OF USE and
COMFORT 95-112
Dimensions 58
Engines 64
Weights 66
Exterior 4
Access 5
Interior 6
Instruments and
controls 7
Load space 8
Rear fittings 9
Sitting comfortably 10
Seeing clearly 12
Ventilation 13
Monitoring 14
Passenger safety 15
Driving safely 16
Starting 18
Eco-driving 19
FAMILIARISATION
4-20
Front seats 95
Retractable
passenger seat 97
Rear bench seat 98
De-icing and
demisting 102
Air conditioning 103
Front fittings 106
Load space
fittings 108
Rear layout 110
Interior lighting 112
3. TECHNOLOGY
on BOARD 68-94
Trip computer/
Configuration -
Personailsation
of the vehicle 68
Rear parking
sensors 72
Audio equipment 73
Steering mounted
controls 74
Bluetooth hands-free
system 77
1. READY TO SET OFF
21-57
Instrument panels 21
Warning lamps 22
Fuel gauge 29
Coolant
temperature 29
Service indicator
and engine oil
warning lamp 30
Lighting dimmer 30
Remote control 31
Key 33
Confidential card 34
Alarm 35
Opening 36
Closing 39
Lighting stalk 41
Wipers stalk 43
Cruise control 44
Fixed speed
limiter 45
Mirrors 46
Electric windows 47
Steering wheel
adjustment 48
Manual gearbox 48
Gear shift
indicator 49
Electronic
gearbox 50
Hill start assist 54
Stop & Start 55

CONTENT
S
Contents
5. SAFETY
113-130 6. ACCESSORIES
131-134
Parking brake 113
Hazard warning
lights 113
Horn 114
Braking assistance
systems 114
Trajectory control
systems 115
Seat belts 118
Airbags 120
Child seats 124
ISOFIX
mountings 129
Towing a trailer,
caravan, etc... 131
Roof rack and
roof bars 133
Other
accessories 133
7. QUICK HELP
135-166
Battery 135
Changing
a wheel 138
Temporary puncture
repair kit 141
Changing a bulb 143
Changing a wiper
blade 148
Changing a fuse 149
Being towed 154
Identification
features 155
Filling with fuel 156
Opening
the bonnet 159
Levels 162
Checks 164
8. VISUAL SEARCH
167-174
Exterior 167
Interior 169
Instruments and
controls 172
Technical data -
Maintenance 174

4
Familiarisation
EXTERIOR
Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.
133
Opening the hinged rear doors to 180°
Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading/loading operations easier.
37
Rear parking sensors
This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.
72
Stop & Start
This system puts the engine temporarily into standby
during stops in the traffic (red lights, traffic jams, etc...). The
engine restarts automatically as soon as you want to move
off. Stop & Start reduces fuel consumption and exhaust
emissions, and gives the comfort of total silence when
stationary.
55

5
FAMILIARISATIO
N
Familiarisation
ACCESS
Remote control key
A. Unfolding/Folding the key.
B. Unlocking the front doors only (Light van)
or of all of the doors (Combi)
(two flashes of the direction indicators).
C. Central locking the vehicle
(one press; one flash of the direction
indicators).
or
Deadlocking the vehicle
(two consecutive presses; one flash of the
direction indicators).
D. Unlocking the load space (Light van) or
of the hinged rear doors or tailgate only
(Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by three
flashes of the direction indicators.
31
Fuel tank
1. Opening the fuel filler flap.
2. Opening and hooking the filler cap.
Capacity of the tank: approximately 45 litres.
156
Opening the rear doors to 180°
Press the catch while opening the side-hinged
door.
37
Opening/Closing windows using the
remote control
Press button Bfor more than three seconds
to start opening the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
Press button Cfor more than three seconds
to start closing the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
These operations can also be carried out by by
inserting and turning the key in the front door
lock barrels.
32

6
Familiarisation
INTERIOR
Trip computer
Using the MENU button, this system
allows you to see the setting of various
vehicle configurations/information, such
as deactivation of the passenger's airbag,
automatic door locking, language, etc.
68
Folding multifunction passenger seat
This passenger seat can be placed in one of
three configurations:
- a seat for carrying a passenger,
- a table to accommodate your various
documents... ,
- folded for transporting long objects.
97
Audio system
These systems benefit from the latest
technology: MP3 compatible audio system
and Bluetooth®hands-free kit with steering
mounted controls.
73
Cruise control
This system maintains the speed of the vehicle
at the programmed value.
44

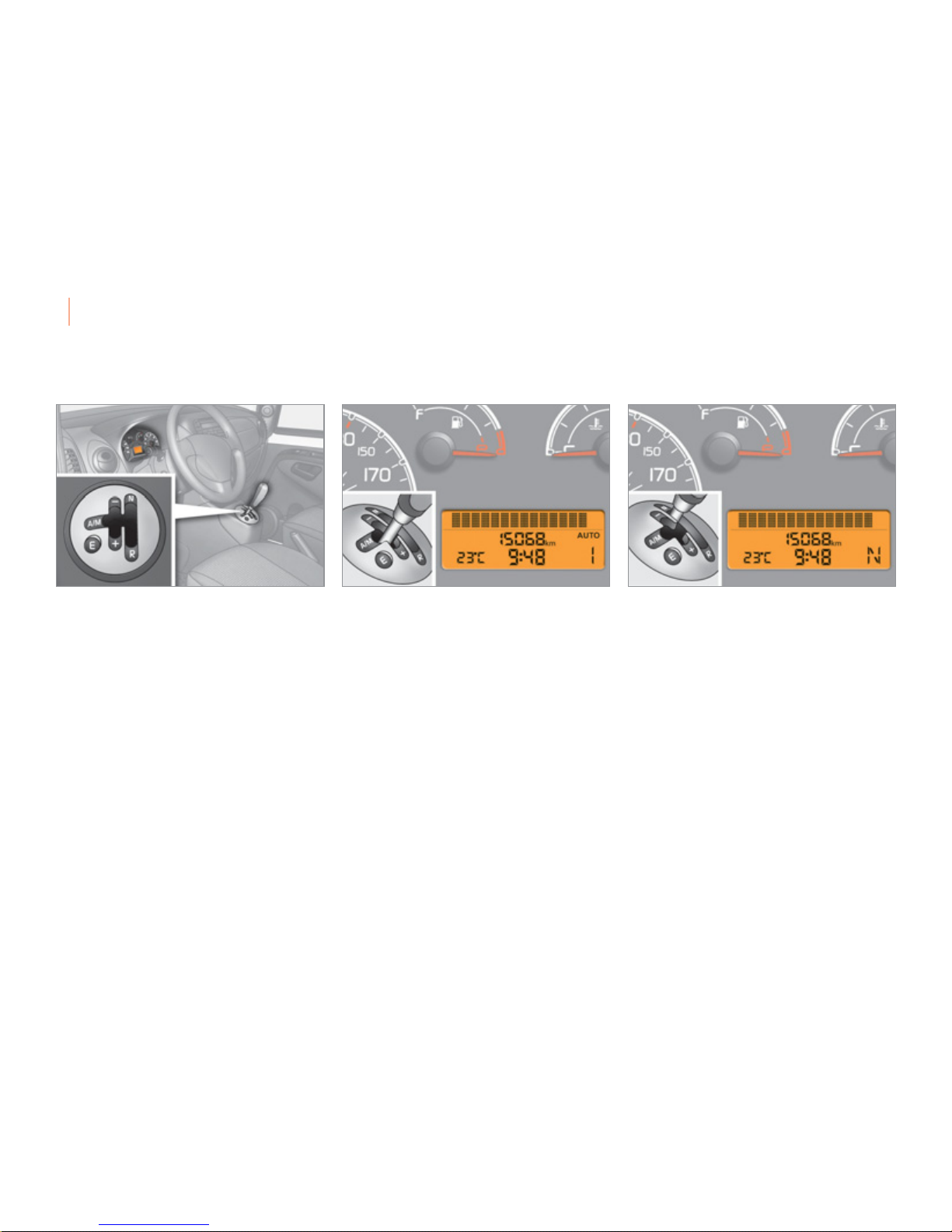

Electronic gearbox
This system provides perfect driving by
combining a fully automatic mode and a
manual mode.
50

7
FAMILIARISATIO
N
Familiarisation
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Lighting and direction indicator control
stalk.
3. Instrument panel.
4. Audio system steering mounted controls.
Bluetooth hands-free system.
5. Driver's airbag.
Horn.
6. Cruise control switches.
7. Gear lever.
8. Parking brake.
9. Bonnet release.
10. Door mirror controls.
11. Fusebox.
12. Manual headlamp height adjustment.
13. Side adjustable air vent.
14. Front side window demisting vent.
15. Electric window controls.
16. Windscreen demisting vent.
17. Wipers/screenwash/trip computer control
stalk.
18. Steering lock and ignition.
19. Central adjustable air vents.
20. Passenger's airbag.
21. MENU button.
22. Glove box.
23. 12 V accessory socket.
24. Cigar lighter.
25. Ashtray.
26. Heating/air conditioning controls.
27. Audio system.

8
Familiarisation
LOAD SPACE
(
LIGHT VAN
)
1. Stowing rings.
2. Storage tray.
3. Torch.
4. Partition.
5. Modular vertical grille.
6. Spare wheel.
108
It is advisable to immobilise the load
by fixing it securely using the stowing
rings 1on the floor.

9
FAMILIARISATIO
N
Familiarisation

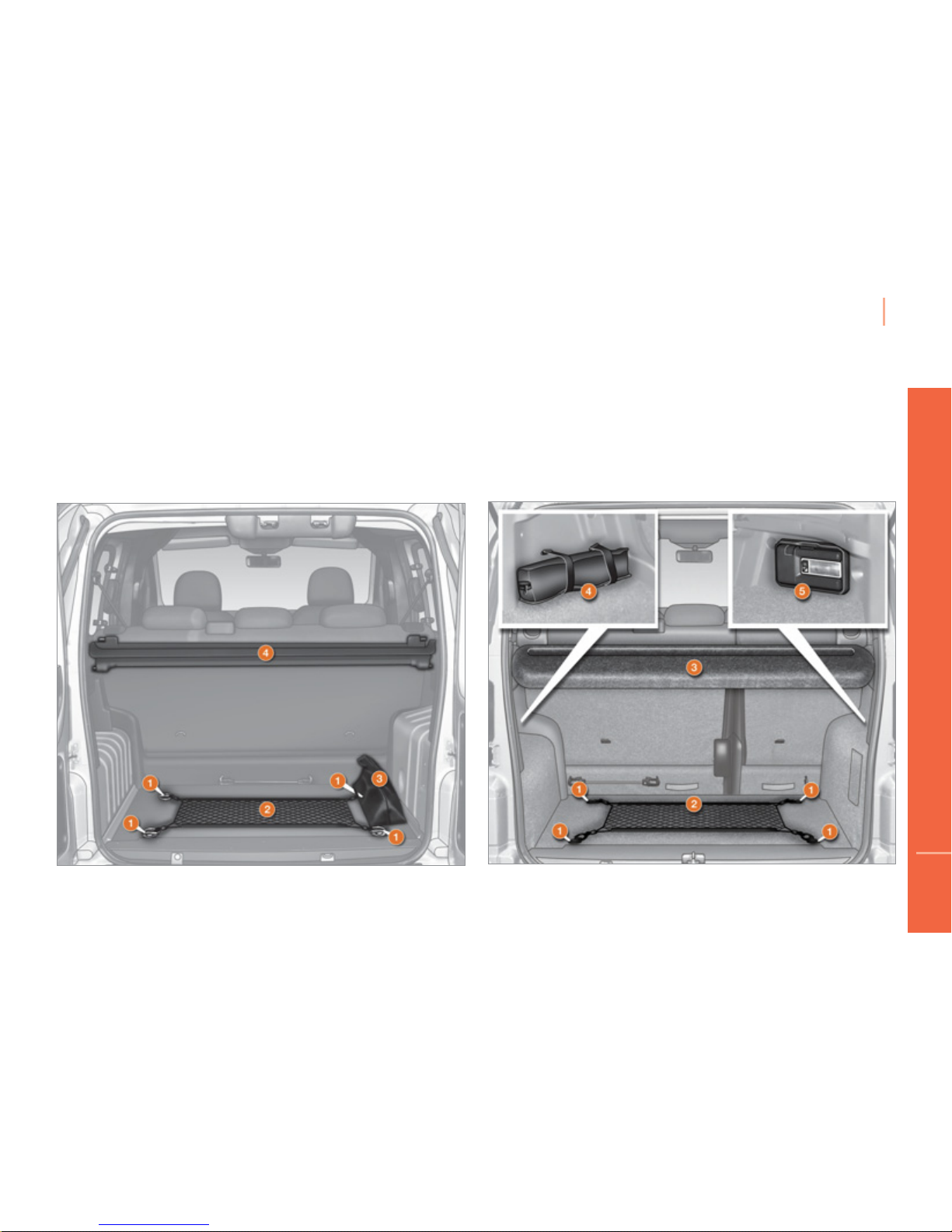

REAR FITTINGS
(
COMBI
)
110
With side-hinged rear doors
1. Stowing rings.
2. Luggage retaining net.
3. Tool kit.
4. Rear parcel shelf.
With tailgate
1. Stowing rings.
2. Luggage retaining net.
3. Rear parcel shelf.
4. Retaining straps/Tool kit.
5. Torch/Boot lamp.

1
0
Familiarisation
SITTING COMFORTABLY

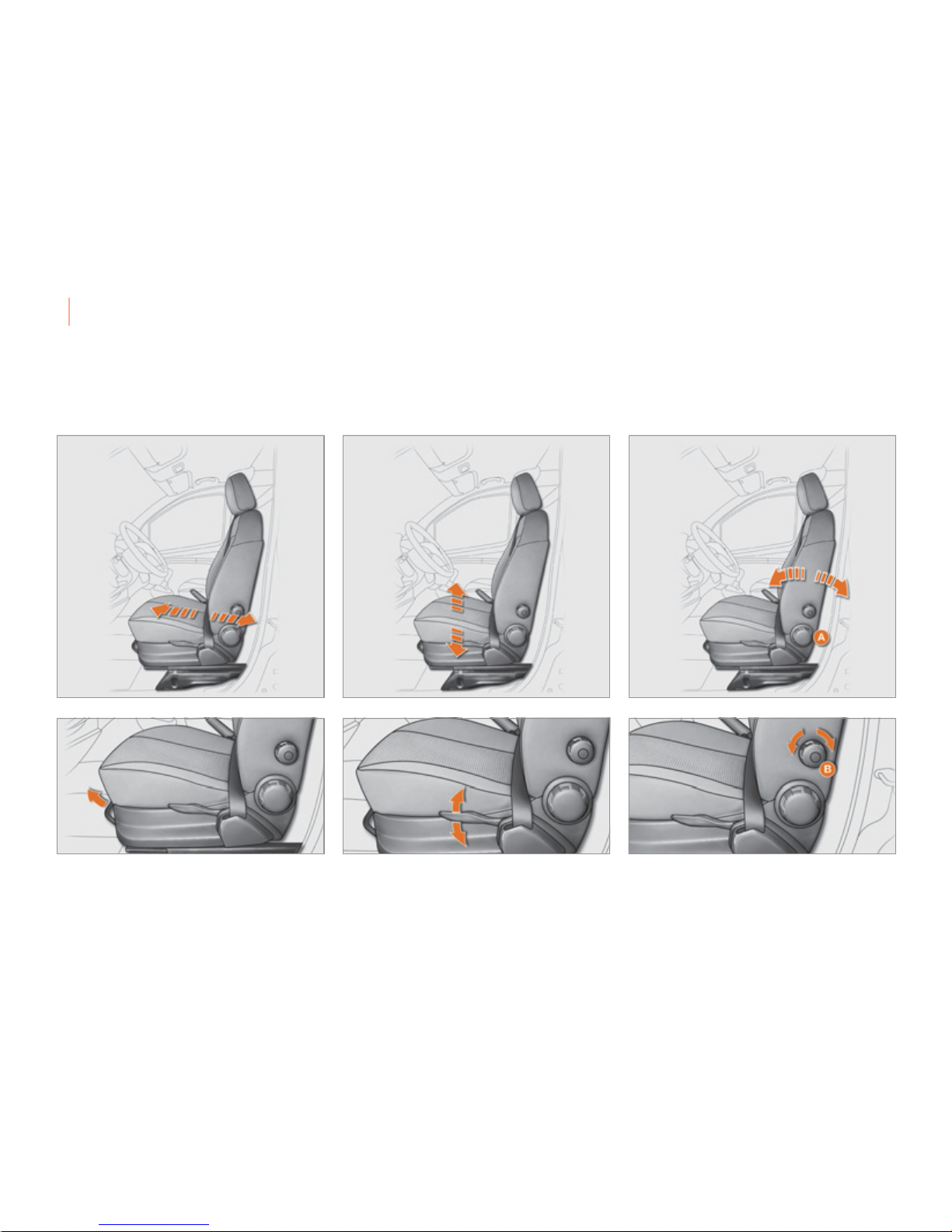

Driver's seat adjustment
Forwards-backwards Height Seat back angle (A)
Lumbar support (B)
95

1
1
FAMILIARISATIO
N
Familiarisation
Front seat belts
A. Fastening.
118
SITTING COMFORTABLY
Steering wheel adjustment
1. Release the adjustment mechanism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
As a safety precaution, these operations
must only be carried out while
stationary.
48
Electric door mirror adjustment
A. Selection of the driver's mirror.
B. Selection of the passenger's mirror.
C. Adjustment of the position of the mirror.
46
Rear view mirror adjustment
1. Selection of the "day/night" position of the
mirror.
2. Adjustment of the mirror.
46

12
Familiarisation
SEEING CLEARLY
Ring
Lighting off.
Sidelamps.
Dipped/main beam headlamps.
Foglamps
Rear foglamp.
or
Front and rear foglamps.
41
Direction indicators
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times.
41
Wipers
Ring A: windscreen wipers
43
Ring B: rear wiper
43
Single wipe.
Intermittent wipe.
Screenwash.
Screenwash.
Park.
Lighting
Park.
Intermittent.
Slow continuous.
Rapid continuous.
Raise or lower the lighting stalk passing the
point of resistance; the corresponding direction
indicators will flash until the lighting stalk is
moved out of this position.

1
3
FAMILIARISATIO
N
Familiarisation
103
V
ENTILATION
Recommended interior settings
I require...
Heating or Manual Air Conditioning
Air distribution Air flow Air recirculation/
Intake of outside air Temperature Manual A/C
HOT
COLD
DEMISTING
DEFROSTING

14
Familiarisation
MONITORING

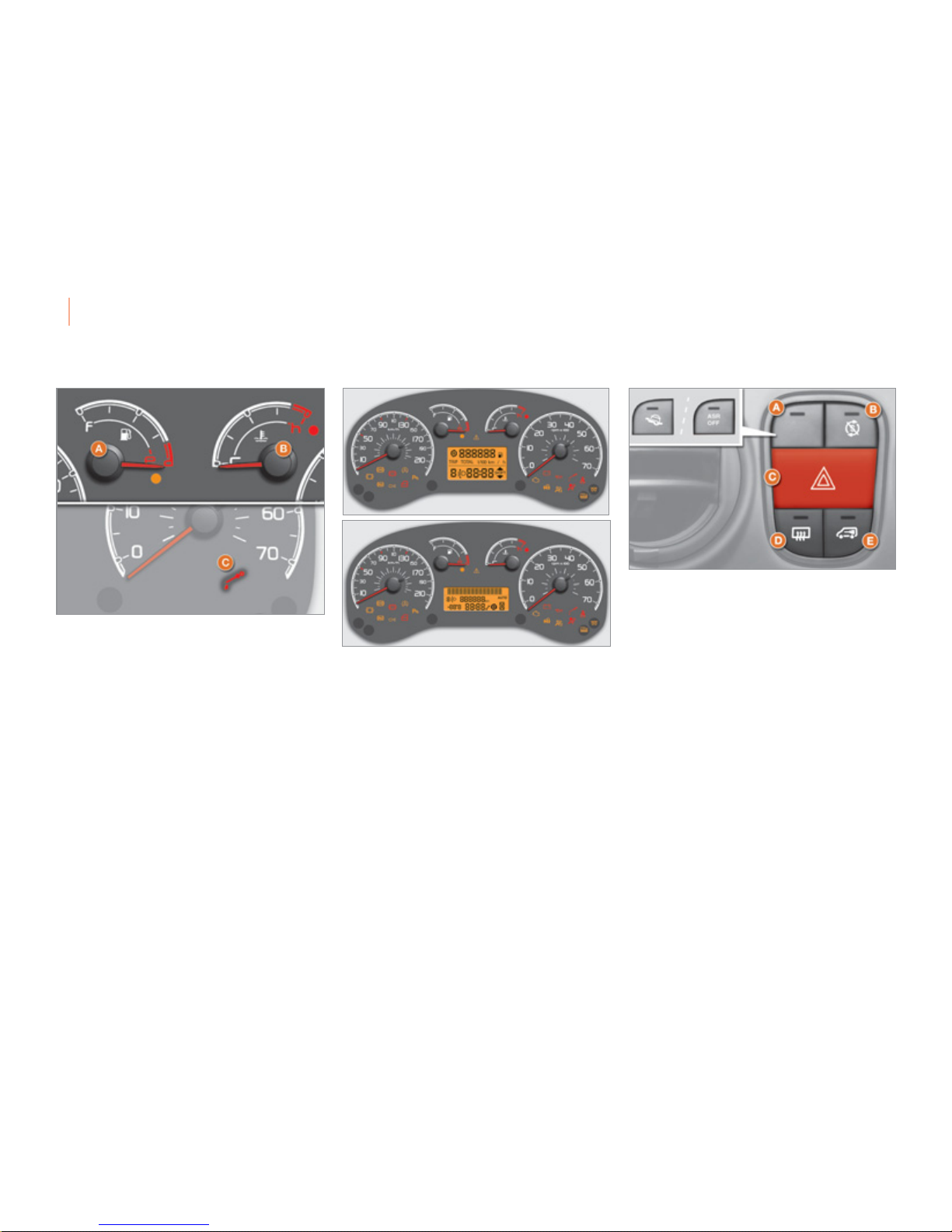

Instrument panel Switch panel
A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.
B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning lamp goes off.
C. With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Intelligent traction control.
117
1. With the ignition on, the orange and red
warning lamps come on.
2. With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.
Warning lamps
29
or
Anti-slip regulation.
115
B. Stop & Start.
55
C. Hazard warning lamps.
113
D. Rear screen and mirrors demisting.
102
E. Locking/Unlocking the load space
(Light van).
39
22

FAMILIARISATIO
N
Familiarisation
PASSENGER SAFETY
Passenger's front airbag
The passenger's front air bag is deactivated by
means of the MENU button, located to the left
of the steering wheel.
Seat belt not fastened
A. Driver's seat belt not fastened warning
lamp.
118 122
Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.
108
1. Press the MENU button.
2. Select "Bag" and confirm by pressing the
MENU button.
3. Select "OFF" and confirm by pressing the
MENU button.
4. Select "YES" and confirm by pressing the
MENU button.

1
6
Familiarisation
DRIVING SAFELY
Electronic gearbox
Display in the instrument panel Moving off
50
This five-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.
N. neutral.
R. reverse.
M +/-. sequential mode.
A. automated mode.
E. economy programme.
The gear and the driving mode selected
appear in the instrument panel screen.
N: neutral.
R: reverse gear.
1 2 3 4 5: gears engaged.
AUTO: automatic mode.
E: economy programme.
Select position Nand press the brake pedal
firmly while starting the engine.
Start the engine.
Select the manual or automated mode (move
to the middle position, then long press to the
left) or reverse (position R) using the gear
lever.
Release the parking brake.
Release the brake pedal, then move off.

1
7
FAMILIARISATIO
N
Familiarisation
Going into engine STOP mode
Stop & Start
- with a manual gearbox; press the clutch
pedal,
- with an electronic gearbox;
●gear lever in position Aor M, release
the brake pedal,
●or gear lever in position Nand the brake
pedal released, move the gear lever to
position Aor M,
●or engage reverse.
Going into engine START mode
DRIVING SAFELY
Deactivation/Reactivation
- with a manual gearbox; with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,
- with an electronic gearbox; with the
vehicle stationary, maintain pressure on
the brake pedal or put the gear lever in
position N.
You can deactivate the system at any time by
pressing the "S - OFF" button; the warning
lamp in the button comes on, accompanied by
a message in the instrument panel screen.
The system is automatically reactivated every
time the engine is started with the key.
In certain circumstances, START mode may be
invoked automatically; a message appears in
the instrument panel screen, accompanied by
the "S" warning lamp, which flashes for a few
seconds then goes off.
Before refuelling, before doing anything
under the bonnet or before leaving the
vehicle, you must switch off the ignition
with the key.
In certain circumstances, STOP mode may
not be available; a message appears in the
instrument panel screen, accompanied by the
"S" warning lamp, which flashes for a few
seconds then goes off.
55 56 57
The "S" warning lamp comes on in
the instrument panel and the engine
goes into standby:
The "S" warning lamp goes off and
the engine restarts:
Automatic stopping of the engine is only
possible after a speed of about 6 mph
(10 km/h) has been exceeded, to avoid
repeated stopping of the engine when
driving slowly.

1
8
Familiarisation
DRIVING SAFELY
Cruise control
1. Cruise control mode Selection/Off.
2. Decreasing of the programmed value.
3. Programming of a speed/Increasing of the
programmed value.
4. Cruise control off/resume.
In order to be programmed or activated, the
speed of the vehicle must be higher than
18 mph (30 km/h), with at least second gear
engaged in the gearbox.
44
1. STOP position - Off.
2. MAR position - Ignition on.
3. AVV position - Start.
Ignition switch
The cruise control mode appears in the
instrument panel when selected.
Display in the instrument panel
Cruise control
STARTING
Avoid attaching heavy objects to the
key which could weigh on the key when
in the ignition switch; this could cause
malfunctions.
34
