WINE COOLER
USER GUIDE
PeVino – PNG88S-HHB PeVino – PNG120S-HHB
PeVino – PNG88D-HHB PeVino – PNG120D-HHB
(Dansk version: side 17)
www.pevino.com

2
THANK YOU FOR PURCHASING A PEVINO WINE COOLER.
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
WARNING
The information in this document is subject to modification without any prior notice.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions.
To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out
of the rail compartment.
The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to
its final location. Do not move your cabinet while loaded with wine.
If the power cord is damaged, it must be replaced by the manufacturer’s service agent or a similarly qualified
person in order to avoid a hazard.
This wine cooler is only for storage of wine.
For safety reasons and to ensure the optimum functionality of the wine cooler it’s important that you connect
your wine cooler using an earth/ground connection plug and keep the wine cooler perfectly plumb and level.
The wine coolers in this instruction manual are suitable for freestanding and built-in installation. Don’t place a
built-in wine cooler on a heated surface such as heated flooring, as this will affect the cooling function.
DANGER / WARNING
Discarded or abandoned appliances are dangerous. Even if they will “just sit in the garage a few days”.
Before discarding your old wine cooler: remove the door completely. Never allow children to operate, play with,
or crawl inside the appliance.
Never clean appliance with flammable fluids. The fumes can create a fire hazard or explosion. Do not store or
use any other flammable liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
KEEP THESE INSTRUCTIONS FOR ANY FUTURE USE

3
BEFORE LOADING AND PLUGGING IN THE WINE COOLER
Before using your wine cooler
• Remove the exterior and interior packaging.
• Before connecting the wine cooler to power source, let it stand upright for approximately 6 hours. This
will reduce risk of a malfunction in the cooling system from handling during transportation.
• Clean interior surface with lukewarm water by using a soft cloth.
• When replacing the illuminating lamp, please select a lamp similar to the original. Shut off the power
supply before replacing the lamp.
Installation of your wine cooler
• Place your wine cooler on a surface strong enough to support it when fully loaded. Level your wine
cooler by adjusting the levelling legs at the bottom front of the wine cooler.
• Place the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct
sunlight may affect the acrylic coating and heat sources may increase energy consumption.
• Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the wine cooler into a properly installed wall outlet with an earth/ground connection plug. Any
questions concerning power should be directed toward a certified electrician or an authorized products
service center.
Pay attention to this
• Store wine in sealed bottles.
• Do not overload the wine cooler.
• Do not open door unless needed.
• Do not cover shelves with aluminium foil or any other material that may prevent air circulation.
• Should the wine cooler be stored unused for a longer period of time, it is advised, after a good cleaning,
to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formation of
condensation, mold or odours.
• The carbon filter should be cleaned and dried at least once a year.
LEVELLING THE WINE COOLER
ALL wine coolers must be levelled before loading with wine. Your wine cooler is equipped with four adjustable
feet to facilitate easy levelling. It is recommended that you tighten the back feet to the maximum and adjust the
front feet to level the wine cooler.

4
INSTALLATION INSTRUCTIONS FOR WINE COOLER:
1. Please follow the installation diagram when installing the wine cooler. No less than the minimum installation
dimension.
2. The wine cooler draws air from the right side of the ventilation frame and expel through the left side of the
ventilation frame under the front door.
3. The wine cooler has a power switch located on the control panel.
4. The wine cooler requires a standard 240 volt/10 A. power supply. (Or accordingly to different countries
specifications).
5. The power cord is 200 cm. in length and fixed on the right side at the back.
6. As with most appliances of today, the wine cooler has sensitive electronic components which are susceptible
to damage through lightning and electricity supply faults. It is therefore advised to use a power surge protector
to avoid problems of this nature.
In warm climate zones, an air vent or grid, with a minimum ventilation size of 200mm x 50mm MUST be cut
out at the rear top of the back cabinet or at the top of either side of the cabinet, allowing cool fresh air full
access to flow into the 30mm gap located at the rear of the cabinet.
This air vent or grid must not be open towards the same side as other appliances such as ovens. Nor can an
opening be towards an area that is sealed and without access to fresh cool air. Failing to comply with the above
specifications will result in WARRANTY void.
NOTE: The appliance must be positioned so that the outlet and plug is accessible after installation.

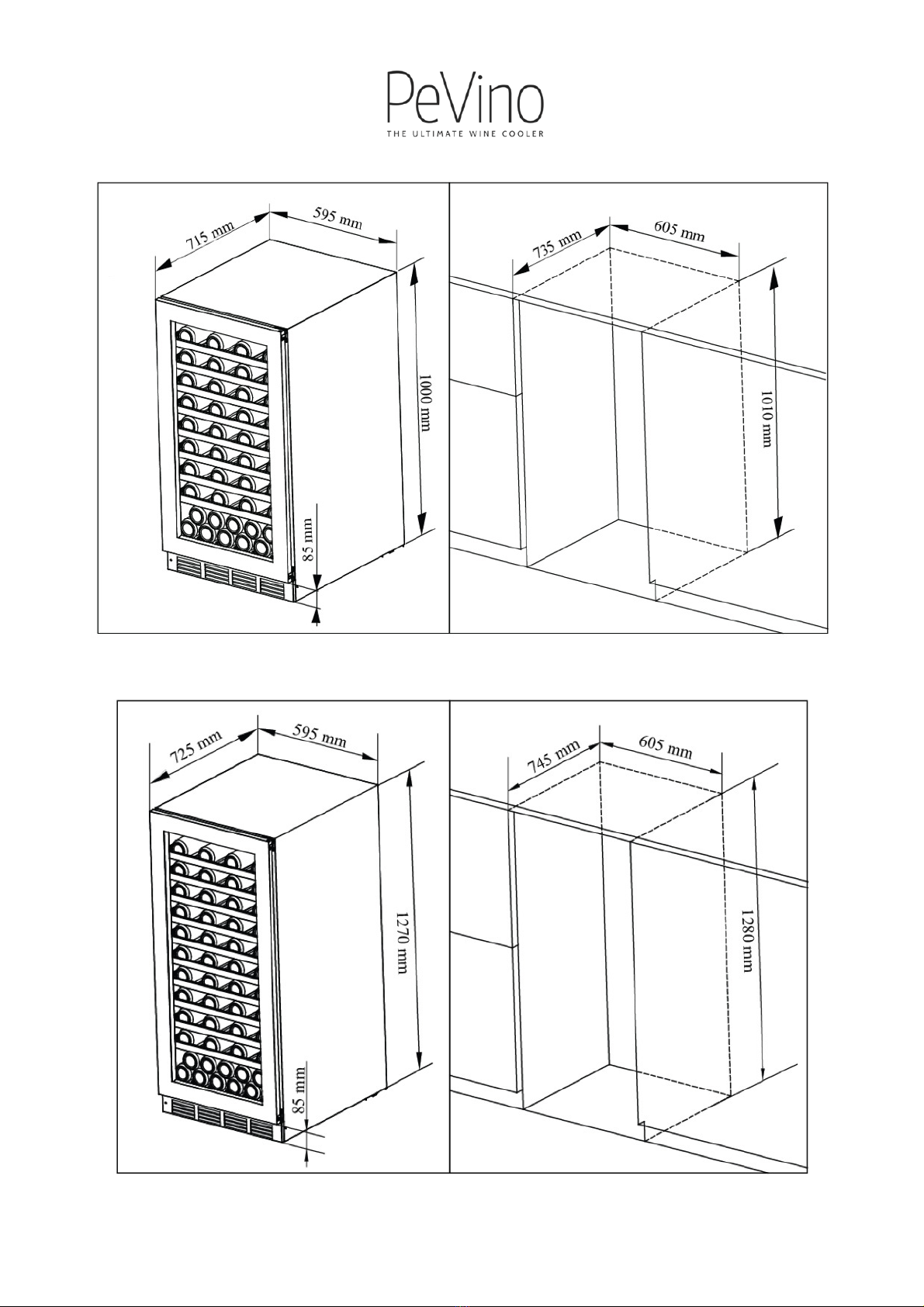

INTALLATION DIAGRAM
This is a wine cooler for free standing or to be installed inside a cabinet. The cabinet must be with good
ventilation space and no back panel, otherwise it will affect the wine cooler’s ability to function normally. Please
follow the installation diagram.

5
PNG88S-HHB & PNG88D-HHB&
PNG120S-HHB & PNG120D-HHB

6
DOOR OPENING ANGLE AND DIMENSIONS
PNG88S-HHB & PNG88D-HHB & PNG120S-HHB & PNG120D-HHB
TURNING ON YOUR WINE COOLER
Plug in and switch on the unit by pressing the power button for a few seconds.
When you use the wine cooler for the first time (or restart the wine cooler after having it shut off for a long
period), there will be a few degrees variance between the temperature you have selected and the one indicated
on the LED display. This is normal and it is due to the length of the activation time. Once the wine cooler is
running for a few hours everything will stabilize.
Important: If the unit is unplugged, power is lost, or turned off, wait 3 to 5 minutes before restarting the
unit. The wine cooler will not start if you attempt to restart before this time delay.

7
OPERATING NOISES
The noise level is very low. Both the compressor and the fan has a very low noise level during normal operation.
The compressor can run at different speeds. This saves energy. Higher compressor speed is used to increase the
cooling capacity, for example at initial switch on, the thermostat’s set point is lowered, or if the door has been
open. When the correct temperature is reached or wine bottles are cooled the compressor will again run at
reduced speed and have a very low noise level. During start-up, the compressor will always run with maximum
speed. This provides a higher level of noise until the set temperature has been reached.
To obtain the desired temperature settings, this wine cooler, like all wine coolers operating with compressors
and fans, may produce the following types of noises.
The noises are normal and may occur as follows:
Gurgling and hissing sound - caused by the refrigerant flowing through the appliance’s pipes and nozzles.
Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant gas to produce cold.
Fan operating sound - to circulate the air inside the wine cooler.
Opening door alarm: If the door opening more than 5 minutes, the display panel will show “0000”, and the wine
cooler will have ”DIDI” sound.
LOADING YOUR WINE COOLER
You may load your wine bottles in single or double rows while taking the following into consideration: If you do
not have enough bottles to fill your wine cooler entirely, it is better to distribute the load evenly throughout the
wine cooler so as to avoid “all on top” or “all below” type loads.
You can remove or relocate adjustable wooden shelves to accommodate larger type of bottles or increase the
capacity of the cabinet by stacking the bottles up when necessary. (See: Removing shelves)
Keep smalls gap between the interior walls and the bottles to allow air circulation. Like an underground cellar air
circulation is important to prevent mould and for a better homogeneous temperature within the cellar.
Do not overload your wine cooler.
Avoid obstructing the internal fans (located inside on the back panel of the wine cooler).
Avoid pulling the shelves outwards beyond the fixed position due to risk of the bottles from falling.
Do not pull out more than one loaded shelf at a time as this may cause the wine cooler to tilt forward.
Do not cover the wooden shelves with aluminium foil or other materials, as it will obstruct air circulation.
Do not move your wine cooler while it is loaded with bottles. This might distort the cabinet of the wine cooler.
After the first loading
Please note that depending on the loading and settings chosen it takes about 24 hours for the wine cooler to see
the temperature stabilizing.
During this time the LED-temperature display seems to move erratically. This is normal and this process occurs
whenever the setting is modified and/or whenever a large number of bottles are added to the cellar.

8
TEMPERATURE SETTINGS
Important: The LED-display indicates by default the actual internal air temperature.
The electrical circuit board of all models comes with memory function. All settings will return to the pre-set
temperature after power is restored.
NOTICE!
It is important to understand that there is a difference between the air temperature inside the wine cooler and
the actual temperature of the wine.
Once the temperature is set, it is strongly advised to let it settle and not adjusting it frequently. You will need to
wait approximately 24 hours before noticing the effects of temperature adjustment due to the mass, volume and
density of a full wine cooler.
The thermostat will maintain the temperature inside the wine cooler within a +/- 2.5ºC range. But the thermal
inertia of the wine and the glass is such that within this temperature range, the actual temperature of the wine
will only fluctuate 0.5ºC to 1ºC.
DISPLAY BOARD - OPERATING INSTRUCTIONS
SINGLE TEMPERTURE DISPLAY BOARD OPERATING INSTRUCTION
From left to right:
Ø ①Energy Saving Mode:
Press the button for 3 seconds into the energy-saving mode. The temperature will automatically
be set at 16 degrees celsius. Press ⑥⑦ out of energy-saving mode.
Ø ②ON/OFF the power button:
In the standby mode: press 3 seconds, the power is turned on, the whole machine starts.
In the power-on state: press the power button, window 4 shows the countdown 3 2 1, the
power is turned off, the machine is turned off (show 3 2 1 process, the hand cannot leave the
button).

9
Ø ③Lamp button:
Press the button, lights on / off switch. Press this button to cycle through the different internal
light settings. There are three light settings: Orange, White and Blue.
Open and close the door to check the lamp color and whether the lights stay on with the door
closed (Display Mode) or illuminate only when the door is open (Automatic Mode).
Display Mode:
The internal lights will stay constantly illuminated whether the door is open or closed
Automatic Mode:
The internal lights will illuminate each time the door is opened and fade off once the door is
closed.
To change to between Display Mode and Automatic Mode, press and hold this lamp button for
1 seconds.
Ø ④Display Window:
Displays the setting temperature
Ø ⑤Window: Displays the actual temperature
Ø ⑥Temperature setting up button:
Press one time, window ④the set value will increase 1 degree Celsius in the original setting
temperature, the setting range according to customer requirements.
Ø ⑦Temperature setting down button:
Press one time, window ④the set value will reduce 1 degree Celsius in the original setting
temperature, the setting range according to customer requirements.
Ø ⑧C/F display conversion function keys:
Set the conversion degrees Celsius / Fahrenheit display, each press this button, the display
window will be into degrees Celsius or Fahrenheit.

10
DUAL TEMPERTURE DISPLAY BOARD OPERATING INSTRUCTION
From left to right:
Ø
①
“ON/OFF” the power button:
Press the button 3 seconds to power off (Window ④digital countdown displays 3, 2, 1,). Press
again (without delay), the power turns on.
Ø
②
Upper zone temperature setting up button:
Press one time, window ④the set value will increase 1 degree Celsius in the original setting
temperature, the setting range according to customer requirements.
Ø
③
Upper zone temperature setting down button:
Press one time, window
④
the set value will reduce 1 degree Celsius in the original setting
temperature, the setting range according to customer requirements.
Ø
④
Window:
Display upper zone temperature.
Ø
⑤
Window:
Display lower zone temperature
Ø
⑥
Lower zone temperature setting up button:
press one time, window ⑤the set value will increase 1 degree Celsius in the original setting
temperature, the setting range accordingly to customer requirements.
Ø
⑦
Lower zone temperature setting down button:
press one time, window ⑤the set value will reduce 1 degree Celsius in the original setting
temperature, the setting range accordingly to customer requirements.
Ø
⑧
Lamp button:
Press the button, lights on / off switch. Press this button to cycle through the different internal
light settings. There are three light settings: Orang, White and Blue.

11
Open and close the door to check the lamp color and whether the lights stay on with the door
closed (Display Mode) or illuminate only when the door is open (Automatic Mode).
Display Mode:
The internal lights will stay constantly illuminated whether the door is open or closed
Automatic Mode:
The internal lights will illuminate each time the door is opened and fade off once the door is
closed.
To change to between Display Mode and Automatic Mode, press and hold this lamp button for
1 seconds.
Ø
⑧
C/F display conversion function keys:
Set the conversion degrees Celsius / Fahrenheit display, press this button 3 seconds, the display
window will be into degrees Celsius or Fahrenheit
IMPORTANT ABOUT WINE STORING TEMPERATURE
Your wine cooler is designed to guarantee optimum conditions for storing and/or serving your wines. Fine
wines require long and gentle developments and need specific conditions in which to reach their full potential.
All wines mature optimally at the same ideal temperature, which is a constant temperature set between 12ºC to
14ºC. This being said and as it is for natural cellars used by wine producers for long period of storage, it is not
the exact temperature that is important, but its consistency. In other words, as long as the temperature of your
wine cooler is constant (12ºC - 14ºC) your wines will be stored in perfect conditions.
Not all wines will improve over the years. Some should be consumed at an early stage (2 to 3 years) while others
have tremendous ageing capability (50 years and beyond). All wines have a peak window of maturity. Check with
your wine merchant to get the relevant information.
DEFROSTING - CONDENSATION - VENTILATION
This wine cooler is designed with an “Auto-cycle” defrost system. During “Off-cycle” the refrigerated surfaces
of the wine cooler defrost automatically.
Defrost/condensation water from the storage compartment drains automatically and part of it goes into a
drainage container, which is located at the back of the wine cooler next to the compressor. The heat is
transferred from the compressor and evaporates any condensation that has collected in the container.
The wine cooler is equipped with a double-glazed door that has a third internal acrylic layer to minimize
condensation on the glass door. The wine cooler is not totally sealed; fresh air admission is permitted through
the drainpipe. Air is circulated through the cellar by means of a fan/fans and the hollow shelves.
Note: During the refrigeration cycle, heat is given off and disperses through the external surfaces of the wine cooler. Avoid touching
the surfaces during those cycles.

12
ADJUSTABLE WOODEN SHELVES
For easy access to the stored content, pull the shelves approximately 1/3 of its depth out of the rail
compartment. These wine cabinets, however, are designed with a notch on each side of the shelf tracks to
prevent bottles from falling.
When removing any of these shelves out of the rail compartment, tilt the shelf as per the diagram and simply
pull out, or push in the shelf until it sits on the support brackets securely.
Shelf installation and removal:
Shelf taking: According to below instruction drawing to pull out the shelf to support bracket ①, press two sides
of sliding roller buckles and pull out the shelf following the arrow mark ②.
Shelf installation: According to below instruction drawing to push in the shelf alignment with two sides of sliding
roller following the arrow mark ③.
To prevent damaging the door gasket, make sure that the door is fully opened when pulling out the shelves.
VENTILATION FRAME INSTALLATION METHOD
1.Take out Ventilation frame from cabinet, then take out 4 pcs 4 * 12 screws from accessory bag.
2. Open the door, align the ventilation frame to the four screw holes in the bottom of the cabinet and tighten
the screw with Phillips screwdriver.

13
REVERSIBILITY OF THE DOOR
Warning: To avoid accidents during the process of changing the door, we recommend that you get assistance.
The glass door is heavy and may cause injury if dropped.
1. To put the cabinet on open operation place, the door opened to the maximum angle
2. Use small knife (2) to take off the decorative nail (1) on opposite side (Drawing 1);
3. Use the inner six angle screwdriver (Tool 5) to disassemble the screws (4) of drop-proof device (3), then
remove the drop-proof device. (Drawing 1)
4. Hold the door, use six angle screwdriver (Tool 5) to screw out the door shaft core (6) from the two
ends of the top of the door. Take out the door and set aside. (Drawing 2)
5. Discharge the upper and lower door hinge (7)(8) by M5 inner six angle screwdriver (Tool 5), then to
assemble the door hinge on the opposite side. (Drawing 3 and 4)
6. Remove the decorative cover (9)(10) and plastic gasket of drop-roof device (11) on the left side of the
door and install it on the right side of the door., then Install the door on the left side of the cabinet.
(Drawing 5)
7. Finally, install the decorative nail and drop-proof device at the opposite side. (Drawing 6)

14
1.Decorative nail
2. Knife
3. Drop-proof device
4. M5 six angle screws
5. M5 six angle screwdriver
6. Door spindle core
7. Upper door hinge
8. Lower door hinge
9. Decorative cover of hinge
10. Decorative cover
11.Plastic gasket of drop-proof device

15
OPERATION ANOMALIES
Ensure and verify that there is power to the electrical supply plug by connecting another electrical appliance.
Check fuse, if any. Make sure that the door is closed properly.
If your wine cooler appears to be malfunctioning, unplug it and contact you our after-sales service provider. Any
intervention on the cold circuit should be performed by a certified refrigeration professional who must carry out
an inspection of the circuit sealing system. Similarly, any intervention on the electrical must should be performed
by a qualified electrician.
Notes: Any intervention performed by a non-authorized person may lead to the warranty being annulled and void.
POWER FAILURES
In the event of a power interruption, all previous temperature settings are automatically preserved, and the
system will revert to a pre-set temperature setting.
Most power failures are corrected within a short period of time. Loss of power for an hour or two will not affect
the temperatures in the wine cooler. To avoid sudden change of temperature while the power is off, it is advised
to avoid opening the door. For longer period of power failure, take steps to protect your wine.

16
TROUBLE SHOOTING GUIDE
Common problems may easily be solved, saving you the cost of a possible service call. Please read carefully the
instruction manual and revert to troubleshooting guide chart.
PROBLEM
POSSIBLE CAUSE
Wine cooler does not
operate.
Not plugged in.
The appliance is turned off.
Current circuit breaker (RCD) activated, or the fuse is broken.
Wine cooler is not
cold enough.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off
frequently.
Room temperature is warmer than normal.
Door is opened too often.
Door is not closed completely.
Temperature control is not set correctly.
Door gasket does not seal properly.
The light does not
work.
Not plugged in.
Current circuit breaker (RCD) activated, or the fuse is broken.
Bulb is out of order.
The light button is “OFF”.
Vibrations.
Check to assure that the wine cooler is level.
The wine cooler
seems to make too
much noise.
The rattling noise may come from the flow of the refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in
the wine cooler.
Contraction and expansion of the refrigerant gas may cause popping and crackling
noises.
The wine cooler is not level.
The door will not
close properly.
The wine cooler is not level.
The door was reversed and not properly installed.
Gasket is faulty. (Magnet or rubber is damaged)
Shelves are out of position.

17
VINKØLESKAB
BRUGSANVISNING
PeVino – PNG88S-HHB PeVino – PNG120S-HHB
PeVino – PNG88D-HHB PeVino – PNG120D-HHB
www.pevino.com

18
TAK FOR DIT KØB AF ET VINKØLESKAB FRA PEVINO.
VENLIGST LÆS OG FØLG ALLE SIKKERHEDSREGLER OG
BETJENINGSINSTRUKTIONER FØR BRUG.
BEMÆRK
Ændringer i dette dokument kan ske uden forudgående varsel.
VIGTIGE SIKKERHEDSINSTRUKSER
For at mindske risikoen for brand, elektrisk chok eller skader, når du bruger dit apparat, bedes du følge disse
basale forholdsregler.
For at undgå at skade dørtætningen skal du sikre, at døren er helt åben, når hylderne trækkes ud på skinnerne.
Apparatet skal være placeret således, at stikket er tilgængeligt. Frigør ledningen. Flyt dit skab til dets endelige
placering. Flyt ikke dit skab, mens det er fyldt med vin.
Hvis ledningen er beskadiget, skal den udskiftes af producenten eller en autoriseret elinstallatør.
Dette vinkøleskab er kun beregnet til opbevaring af vin.
Af sikkerhedsmæssige årsager og for at sikre vinkøleskabets optimale funktion skal alle vinkøleskabe have
jordforbindelse og stå i perfekt vater på alle ledder og kanter.
Vinkøleskabet i denne manual er egnet til fritstående og indbygget installation. Vær opmærksom på, at du ikke
bør indbygge et vinkøleskab på gulv med gulvvarme, da dette kan påvirke vinkøleskabets funktionalitet.
ADVARSEL
IKKE børnevenligt! Kasserede eller efterladte apparater kan være farlige for børn, og du bør derfor bortskaffe
det forsvarligt efter endt brug.
Før du smider dit gamle vinkøleskab væk: Tag døren af, så børn ikke nemt kan klatre inde i det. Tillad aldrig
børn at betjene, lege med, eller kravle ind i apparatet.
Rengør aldrig dele af apparatet med brændbare væsker. Dampene kan udgøre en brand- eller eksplosionsrisiko.
Opbevar eller brug ikke brændbare væsker i nærheden af dette eller andre apparater. Dampene kan udgøre en
brand- eller eksplosionsrisiko.
GEM DENNE MANUAL TIL EVENTUELT SENERE BRUG

19
INDEN TILSLUTNING OG OPFYLDNING AF VINKØLESKABET
Før du bruger dit vinkøleskab
• Fjern den ydre og indre emballage.
• Før du tilslutter vinkøleskabet til strømkilden, skal du lade det stå lodret i cirka 6 timer. Dette vil
reducere muligheden for en funktionsfejl i kølesystemet.
• Rengør de indre overflader med en blød klud og lunkent vand.
• Ved udskiftning af lyskilden, vælg en lyskilde som passer med samme fatning, watt og mærkespænding
som den eksisterende lyskilde. Sluk strømforsyningen, før du skifter lyskilden.
Installation af dit vinkøleskab
• Placér dit vinkøleskab på et gulv eller overflade, der er stærkt nok til at bære det, når det er fuldt læsset.
Sørg for at vinkøleskabet står helt i vater, ved at justere benene under bunden.
• Placér vinkøleskabet væk fra direkte sollys og varmekilder (brændeovn, varmeapparat, radiator, osv.).
Direkte sollys kan påvirke akrylovertrækket, og varmekilder kan forøge det elektriske forbrug.
• Ekstremt kolde omkringliggende temperaturer kan også forårsage, at enheden ikke virker ordentligt.
• Undgå at placere enheden i fugtige områder.
• Tilslut vinkøleskabet til en stikkontakt med jordforbindelse. Ethvert spørgsmål angående el bør rettes til
en autoriseret elinstallatør.
Vær opmærksom på følgende:
• Opbevar vin i lukkede flasker.
• Overbelast ikke skabet.
• Åbn ikke døren, medmindre det er nødvendigt.
• Tildæk ikke hylder med aluminiumfolie eller andre hyldematerialer, som kan forhindre luftcirkulation.
• Skulle vinkøleskabet stå ubrugt i længere perioder, foreslås det, efter en grundig rengøring, at lade døren
stå på klem for at lade luften cirkulere indeni skabet for at undgå mulige dannelser af dug, mug eller lugt.
• Det medfølgende filter med aktivt kul (fjerner mug- og lugtgener), bør afmonteres mindst en gang om
året og lægges til tørring / udluftning og gerne i solen.
AT STILLE VINKØLESKABET I VATER
ALLE vinkøleskabe skal stå i perfekt lod og vater, inden de fyldes med vinflasker. Dette vinkøleskab er udstyret
med fire justerbare ben, som gør det nemt at stille skabet i perfekt niveau. Det anbefales at skrue de bagerste ben
helt ind, og så justere de forreste ben til et perfekt lod og vater er opnået.

20
INSTRUKSER FOR INSTALLERING AF VINKØLESKABE:
1. Vinkøleskabe er frontventileret.
2. Følg installationsdiagrammet når vinkøleskabet skal installeres. Gå aldrig under minimumskravene for
dimensioner.
3. Vinkøleskabet trækker luft ind i højre side af ventilationsristen under døren og puster ud i venstre side samme
sted.
4. Vinkøleskabet har en tænd/sluk knap på kontrolpanelet (Power on/off).
5. Vinkøleskabet skal tilsluttes standard 240 volt/10 A stikkontakt med jord.
6. Ledningen er 200 cm. lang og tilsluttet i højre side bagpå.
7. I varme klimazoner skal en udluftningskanal eller et gitter med en minimumsventilationsstørrelse på 200 mm
x 50 mm skæres ud på bagsiden af kabinettet eller øverst i hver side af kabinettet. Dette sikrer tilgang af frisk luft
ind til det 30 mm dybe mellemrum bag på kabinettet. Denne luftudluftning eller gitter må ikke være åben mod
samme side som andre apparater som ovne eller lignende. Der må heller ikke åbnes mod et område, der er uden
adgang til frisk, kølig luft.
HUSK: Vinkøleskabet skal placeres så der er adgang til strømudtag efter installeringen.
INSTALLATIONSDIAGRAMMER
Dette vinkøleskab er beregnet til at stå frit eller indbygges i et skabselement. Skabselementet skal være med gode
ventilationsforhold og uden bagplade, ellers vil det påvirke vinkøleskabets evne til at fungere normalt. Følg
installationsdiagrammet.
Husk: stik og kontakt bør være mulige at nå, efter installationen
