Pfannenberg DTS User manual

08.2001
Operating- and Installation
Instructions
DTS . . . .
Keep This Manual With Air Conditioner
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

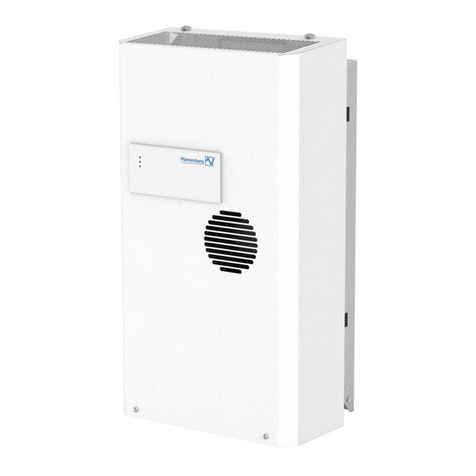

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 2
Contents
1 Unpacking and andling.......................................................................................... 3
2 General Information..................................................................................................3
3 Technical Data and ID Plate.................................................................................... .3
4 Application and Function.......................................................................................... 4
5 Installation instructions............................................................................................. 5
6 Installation instructions, recessed mounting frame (optional)................................... 6
7 Start-up and operation............................................................................................. 6
8 Maintenance.............................................................................................................7
9 Shutdown................................................................................................................. 8
10 Warranty Policy...................................................................................................... 9
11 Applicable Standards and Regulations................................................................. 10
12 Trouble-Shooting.................................................................................................. 11
Sales Organisations...................................................................................................12
! W A R N I N !
Read this manual thoroughly before you
attempt to install or test the air conditioner.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 3
1 Unpacking and Handling
Burr caused by production may be present on the metal edges of the unit.
Always wear protective gloves when carrying out maintenance work and
installation.
Before and while you are unpacking the Enclosure Air Conditioner, you have to
conduct a visual inspection to determine whether the equipment has suffered
any damage during transport. Please pay close attention to loose parts, dents,
scratches, visible signs of oil loss, etc.
Any damage must be reported without fail to the transport carrier and not to
Pfannenberg Inc. (follow the Warranty policy,item 10).
Before disposing of the packing material, make sure that it does not contain any
loose components.
To facilitate warranty-claim settlement, please supply us with precise details of
the defect (with photo, if possible) together with details of model designation and
the unit serial number.
Do not place the unit directly on the floor as otherwise the condensate
drainage connection may be damaged.
In order to protect it against damage, the equipment may only be
transported and stored in its normal upright position. Failure to observe
this instruction will render the provisions of this warranty null and void.
2 eneral Information
In the event that is necessary to transport the complete enclosure with Air
Conditioner attached, we recommend that you detach the Air Conditioner and
transport it separately. When handling the unit, please grip only the housing or
the housing frame. Any work necessary on the unit may only be carried out by a
suitable qualified specialist. Compliance with applicable safety and
environmental regulations is imperative.
The Air Conditioner contain neither silicone compounds, PCB, PCT, asbestos,
formaldehyde, cadmium nor anti-wetting substances.
Every unit is checked to ensure that it is tight according to the provisions
of UVV-V B 20.
We hereby declare that, prior to leaving the factory, the unit was subjected to an
electrical safety check. This means that, in accordance with UVV-VBG 4, §5 (4),
the operating company is released from the obligation to arrange for a test of the
electrical part of the unit before taking the equipment into operation for the first
time.
3 Technical Data and ID Plate
When carrying out installation and maintenance work, observe the data printed
on the ID plate located on the right-hand side of the Air Conditioner .
The technical details applicable to the unit are marked in supplement.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 4
4 Application and Function
The Air Conditioner are designed to abduct heat from sealed switch cabinets.
Any other use shall be deemed as a deviation from the design use.
The units operate according to the principles of a heat pump with two airflow
circuits mutually isolated by mechanical means. The "internal airflow circuit"
draws off heat from the electrical and electronic components into the Air
Conditioner. The thus heated air is cooled and dehydrated inside the cooling unit
and then blown back into the switch cabinet interior.
The "external airflow circuit" makes use of the ambient air to cool the condenser
and thus expel the system's inherent heat into the atmosphere.
The fan in the "internal airflow circuit" is always in operation whenever voltage is
applied to the Air Conditioner. The thermostat in this circuit regulates the
compressor and the fan in the "external airflow circuit".
The air conditioner has been provided with an internal condensation removal
system (depending on the model, supplements). The enclosure air is drawn
across the evaporator pipes, it is cooled and dehumidified before it is blown back
into the enclosure. The condensation has been removed from the air and the
ambient air stream evaporates. The heat of the condenser pipes aids this
evaporation.
Although the unit has been designed to remove the small amount of the
condensation that will develop due to air infiltration into the sealed enclosure,
care must be taken to provide the proper drainage for the overflow drain of the
air conditioner. An overflow may occur if the air conditioner is operated for a
period of time with the enclosure unsealed, allowing moisture laden ambient air
to enter the evaporator section.
If water if found to be draining continuously from the overflow drain during
normal operating, this means that a significant quantity of moisture laden outside
air is entering the enclosure. Care should be taken to seal the enclosure against
such infiltration.
CAUTION :
Any effective cooling operation can produce condenser water. Therefore,
the Air Conditioner should only be fitted to sealed enclosures and only
operated with closed doors.
We recommend that you install a contact switch on the door of the
enclosure to cut out the cooling unit whenever the enclosure door is
opened.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 5
5 Installation Instructions
WARNIN : To avoid possible personal injury or property damage when the
Air Conditioner is to be mounted on door of cabinet, be sure that hinges
will support the added weight of Air Conditioner. Also be certain Air
Conditioner does not over-balance the electronic cabinet causing it to tip
over when the door is opened. Weight of the unit can be found on the ID
plate. Use all mounting holes to insure stability and efficient seal.
It is not necessary to remove the unit cover prior to installing the unit or setting it
into operation. The unit is operable immediately after applying the operating
voltage.
5.1 Place the drilling template included in the scope of supply onto the outside
installation surface of the enclosure.
5.2 Drill the holes, and cut out the openings required for air transfer.
CAUTION:
Prevent steel filings from entering the switch cabinet.
5.3 Drive two stud bolts, included in the accessories, into both upper fixing
points next to the notice sticker with the instructions of the depth, at the
backside of the unit.
5.4 Place sealing strips around the cutouts of the enclosure.
5.5 Thread power and control leads through the air supply opening into the
enclosure.
5.6 Suspend the cooling unit on the enclosure by using the stud bolts.
5.7 Affix the cooling unit from the inside of the enclosure using the M6 bolts
included in the accessory package.
CAUTION:
The sealings have to be pressed to a thickness of 2mm / 0.08 inch.
5.8 Connect the cooling unit to the power supply.
5.9 An additional 5-core signal line is supplied on several units (circuit
diagram, supplement) and is used for wiring a door contact and floating contact
that opens whenever certain faults occur (e.g. excessive pressure in the cooling
system, power failure, cable breakage in the signal line). Max. load on contact:
5A.
CAUTION:
Both mains voltage and frequency must correspond to the ratings printed
on the cooling unit's ID plate. Work on electrical systems may only be
carried out by qualified personal, who are to observe the applicable safety
regulations.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 6
6 Installation Instructions, recessed mounting frame (optional)
6.1 Place the drilling template included in the scope of supply on the outside
surface of the enclosure to which you intend to attach.
6.2 Drill the holes, and cut out the openings.
CAUTION:
Prevent steel filings from entering the switch cabinet.
6.3 Place the mounting frame in the cutout and fix it in place using the washers
and nuts supplied.
6.4 Fix the Air Conditioner in place in the mounting frame; see the installation
in-structions, items 5.3 to 5.8 .
7 Start-up and Operation
As soon as the Air Conditioner has been successfully installed and connected to
the electric supply, it may be set into operation. The ambient air must have a
minimum temperature of +8°C / 46°F to operate the Air Conditioner correctly.
CAUTION:
As soon as the operating voltage is applied, the fan in the "internal airflow
circuit" begins to turn.
The thermostat is preset at the factory at approx. +35°C / 95°F, i.e. the
compressor and the fan in the external airflow circuit" are not cut in until the
temperature of the indrawn air exceeds this value. The overlap is fixed at approx.
4 K.
CAUTION:
When the unit is cut in, the fan in the "external airflow circuit" begins to
turn.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 7
8 Maintenance
• Before commencing with any maintenance and/or cleaning work on the Air
Conditioner, disconnect it from the electrical power supply.
• Do not place the unit directly on the floor as otherwise the condensate
drainage connection may be damaged.
• Apart from the occasional cleaning required on the condenser/ evaporator
assembly, the unit is virtually maintenance-free. The cleaning interval
depends entirely on the operating conditions (air pollution) and should by
determined by the user.
• You can clean the condenser/ evaporator either with a soft-bristled brush,
compressed air or, especially if it accumulates oily residues, with a high-
pressure cleaner. Please do not use any pointed or sharp-edged objects.
When cleaning, make sure that you do not press against the louvres or
damage them in any other way.
• Filter: The filter mat has to be cleaned (and, if necessary, replaced) at
regular intervals to be determined by the operating company solely in
accordance with ambient conditions (degree of air pollution).
Avoid wringing out the filter mat or aiming powerful jets of water at it!
You can rinse the filter mat out using water heated to 40°C and commercially
available mild detergent. It is possible to remove any dry dirt by knocking it
out, vacuum cleaning it or blowing it out.
150 g/m²
replace when oily or greasy
40° C
104° F
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 8
• Compressor: The compressor requires no maintenance. It is hermetically
sealed, properly lubricated at the factory and should provide long time of
satisfactory operating service.
• Fans: Blower motors require no maintance. All bearings, shafts, etc. are
lubricated during manufacturing for the life of the motor.
CAUTION:
Operation of the Air Conditoners in areas containing airborne caustics
or chemicals can rapidly deteriorate filters, condenser coils, blowers
and motors, etc. Contact Pfannenberg Inc. for special
recommendations.
• Refrigerant Loss: The Air Conditioner was carefully tested before leaving the
factory to insure against refrigeration leaks. Leaks may require repair and
recharging of the system. This work should be qualified professionals only,
generally available in any reputable air conditioning repair or service company
in your local area.
Refer to the data on your ID plate which specifies the type of refrigerant and
the charge size in ounces.
Before recharging, make sure there are no leaks and that the system has
been properly evacuated by deep vacuum.
Please be advised: In accordance with Section 608 of the Clean Air Act, no
person maintaining, servicing, repairing, or dispossing of appliances may
knowingly vent or otherwise release into the environment any class I or II
substance used as refrigerant.
• Thermostat Control: The thermostat controls the compressor and condenser
fan which starts the cooling cycle. The evaporator fan will operate at all times
as long as power is supplied to the unit.
All units equipped with thermostats leave the factory set at 35°C / 95°F.
CAUTION:
Operation with lower settings might cause higher quantities of
condensate.
Proper use of the equipment for its intended purpose includes
regular checks and appropriate maintenance.
9 Shutdown
Should the cooling unit not be required for a protracted period, you only need to
disconnect it from the power supply. Protective measures must be adopted to
ensure that unauthorized persons are unable to tamper with the unit and restart
it.
If the unit is to be scrapped, disposal must be carried out by a competent person
in accordance with the current regulations pertaining to environmental protection.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 9
10 Warranty Policy
Pfannenberg Inc. warrants that all material and workmanship are free of defects
in quality which impair the usefulness of the Air Conditioner for a period of five
(5) years for non-operating parts, except for the filter; for 2 ½ years for the air
moving devices, and for one (1) year for the hermetic system components when
installed and operated under the following conditions:
1 Voltage variation no greater than ± 10% from ID plate rating.
2 Frequency variation no greater than ± 3 z from ID plate rating.
3 Ambient temperature must not exceed 52°C / 125°F.
4 Maximum cooling capacity not to exceed (BTU/ R) rating, including any
heat sink, as indicated on the ID plate.
5 The unit must not be restarted for a period of three (3) minutes after
international or accidental shut-off.
6 Compliance to all other installation, maintenance and operating
instructions, as supplied.
Pfannenberg Inc. assumes no liability beyond the repair or replacement of its
own product, returned transportation prepaid.
This warranty does not cover:
• Labor or reimbursement for labor for removal or installation of any warranted
part, except at a Pfannenberg Inc. facility
• Use of equipment for other than its designed purpose or operating conditions
• Operation in harsh, oily,corrosive or other abnormal environmental conditions,
without the proper filtration, sealing, protective coatings and/or weather
protection
• Damage to hermetic system resulting from continuous operation with dirty /
clogged air filters
• Use of refrigerant other than designated
• Customer modification or abuse
• Shipping damage or other accident
• Any and all conditions resulting from noncompliance with the preceding
operating conditions
Should any part prove defective within the above warranty period, the customer
may return the defective air conditioner that is under warranty to Pfannenberg
Inc. for repair at no charge.If return for repair is requires a Return Authorization
Number must be obtained.
Please contact Pfannenberg Inc. for detailed informations.
Pfannenberg Inc. assumes no liability beyond the repair or replacement of its
own product. Customer modification of any Pfannenberg Inc. product voids this
warranty.
The purchaser assumes the responsibility of grounding the unit and installing it
in accordance with local electrical and safety codes, as well as the National
Electric Cide (NEC) and OS A.
This express warranty constitutes the entire warranty with respect to the
PRODUCT and IS IN LIEU OF ALL OT ERS, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY OF MERC ANTABILITY AND WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS Pfannenberg
Inc. RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY
NATURE W ATSOEVER.
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 10
11 Applicable Standards and Regulations
The Air Conditioner were developed, designed, installed and subjected to final
inspection in accordance with the following European and North American
standards and regulations:
SA 10300 UL / cUL file number
DIN EN 292 Safety of machinery, devices and systems
DIN EN 294 Safety of machinery
DIN EN 60 204-1 Electrical equipment for industrial machines
EN 55 014 Radio interference and its effect on electrical
appliances
EN 50 081-2 Electromagnetical compatibility
EN 50 082-2 Electromagnetical compatibility
EN 60 335 Safety of electrical appliances
prEN 814-5 Air conditioners; switch cabinet cooling units
UVV-VBG 4 Electrical systems and machinery
UVV-VBG 20 Refrigeration systems
DIN 3168 Switch cabinet cooling units
DIN 8975 Technical requirements pertaining to the safety of
refrigeration systems
DIN 31 001 Safety devices
DIN 45 635 Measuring noise levels at machinery
89/392/EEC Machine Directive
91/368/EEC
93/44/EEC
93/68/EEC
89/336/EEC EMC Directive
91/263/EEC
92/31/EEC
93/68/EEC
72/23/EEC Low Voltage Directive
93/68/EEC
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

Operating and Installation Instructions DTS Air Conditioner
08.2001 085 408 022 11
12 Trouble-Shooting
If the Air Conditioner should require service, we have compiled a trouble-shooting chart to assist your
service personnel. If additional assistance is required contact Pfannenberg Inc.
Problem Possible Cause(s) Solution
Unit not cooling No Power Check Power Source and
Electrical Connections
Loss of Refrigerant Locate and repair leak
Evaporator or Condenser Fan
not operating
Replace motor, Capacitor or
entire Assembly
Filter clogged Clean or replace Filter
Dirty Evaporator or Condenser Clean Device
Thermostat improperly set Lower setting until unit starts
Thermostat defective Replace Thermostat or Relay
Failed Compressor Replaced Compressor
Ice on Evaporator Coil Insufficent eat Load or Unit
Oversized for Application
Contact Pfannenberg Inc.
Failed Evaporator Fan Replace Evaporator Fan Motor
or Assembly
Dirty Evaporator Clean Device
Condensate draining
continuously
Enclosure not properly sealed Check and seal all openings
Excessive opening of Enclosure Eliminate the frequency of door
opening
Thermostat improperly set Setting on 35°C / 95°F
Condensate fails to drain
off
Malfunction on condensate
overflow
Clean overflow and/or check that
hose is connected without kinks
Excessive vibration Defective Fan Replace Fan
Compressor Loose Tighten Mounting Bolts
Compreesor Inoperative Low line Voltage Check Nameplate Voltage
Loss of Compressor Oil Replace Compressor
Loss of Refrigerant Locate and repair leak
Failed Compressor Capacitor Replace Capacitor
Thermal Overload Contact ammond
Manufacturing
Power interruptions Allow Compressor time to reset
Refrigerant or Oil leaks Crack or pin hole in tubing or
brazed joints
Replace tubing or rebraze joint
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn

08.2001 085 408 022
International Support Channels
AFRICA
 South Africa
RAD Interface (Pty) Ltd
5 Bundo Road, Sebenza
P.O. Box 193
1610 Edenvale
Phone: 011 / 452 19 30
Telefax: 011 / 452 64 55
ASIA
 Israel
ATEKA LTD.
23, ayetzira St., Kiryat Aryeh
Petach-Tikva 49512
Phone: [phone]
Telefax: 03 924 3273
e-mail: mar[email protected]l
 Japan
Naigai Energering Inc.
4-1-1 Takaida hon-dori
577-8551 igasi-Osaka, City
Osaka
Phone: 06 / 6782 0570
Telefax: 06 / 6782 0511
e-mail: overse[email protected].jp
 Malaysia
EITA Electric SDN. B D.
Subang Jaya Industrial Estate
Block A, Lot 4, Jalan SS 13/7
47500 Petaling Jaya
Phone: 03 / 737 80 88
Telefax: 03 / 735 47 19
 Singapore and rest of Asia
Pfannenberg Gmb
Asian Branch Office
371 Beach Road, # 14-02
Keypoint
Singapore 199597
Phone: [phone]
Telefax: 0065 234 10 19
e-mail:[e-mail]
AUSTRALIA
 Australia
agemeyer Electrical Group
456 Lower eidelberg Road
eidelberg, Victoria 3084
Phone: 03 / 95 01 80 00
Telefax: 03 / 95 01 80 29
EUROPE
 Austria
Otto Pfannenberg Gmb
Austria Branch Office
Am Kaisermühlendamm 65/1
1220 Wien
Phone: 01 / 269 95 95
Telefax: 01 / 269 95 95 23
e-mail:[e-mail]
 Belgium
Electro-Flandria n.v.-s.a.
Begoniastraat 6
9810 Nazareth - Eke
Phone: 09 / 385 51 11
Telefax: 09 / 385 64 30
e-mail:[email protected]
 Czech Republic
Weidmüller, s.r.o.
Vídenská 340
252 42 Vestec
Phone: 02 / 44 00 14 00
Telefax: 02 / 44 00 14 99
e-mail: [email protected]z
 Denmark
CARLO GAVAZZI ANDEL A/S
Over adstenvej 42
8370 adsten
Phone: [phone]
Telefax: 86 98 15 30
e-mail: [email protected]k
 Finland
Oy Klinkmann AB
Fonseenintie 3
00371 elsinki
Phone: 09 / 540 49 40
Telefax: 09 / 541 35 41
e-mail: [e-mail]
 France
Pfannenberg France S.A.
4, Impasse Joliot Curie - BP 16
64110 Jurancon
Phone: 05 / 59 98 31 20
Telefax: 05 / 59 98 31 21
e-mail:[e-mail]
 ermany (Headquarters)
Otto Pfannenberg Gmb
Werner-Witt-Str. 1
D-21035 amburg
Phone: 040 / 73412 -0
Telefax: 040 / 734 12 - 101
e-mail:
[e-mail]
 reat Britain
Pfannenberg (UK) Ltd.
Impress ouse
Mansell Road . Acton
London W3 7Q
Phone: 0208 / 743 88 80
Telefax: 0208 / 740 42 00
e-mail: [e-mail]
 reece
DIRAK- ELLAS E.P.E.
Ipsilantou Str. 93-95
18532 Piräus
Phone: 01 / 422 62 72
Telefax: 01 / 411 89 59
e-mail: [e-mail]
 Hungary
Trendelektro Kft.
Ulászló u. 19
1114 Budapest
Phone: 01 / 209 30 29
Telefax: 01 / 209 30 29
e-Mail: [e-mail]
 Italy
Pfannenberg Italia s.r.l.
Via La Bionda, 13
43036 Fidenza (PR)
Phone: 524 / 33 52 88
Telefax: 524 / 52 49 22
e-mail: [e-mail]
 Netherlands
Elan Nederland
Fahrenheitstraat 42-44
3846 BN arderwijk
Phone: 0341 / 43 25 25
Telefax: 0341 / 42 52 57
e-mail: e[email protected]
 Norway
ydro Aluminium ydal AS
4265 avik
Phone: [phone]
Telefax: 52 84 81 60
 Poland
Automatech Sp.z o.o.
ul. Ryzowa 84
05-815 Opacz Kolonia
Phone: [phone]
Telefax: 022-723 06 06
e-mail:[e-mail]
 Sweden
Weidmüller AB
1) Skebokvarnsvägen 370
12450 Bandhagen
Phone: 08 / 727 23 00
Telefax: 08 / 727 24 80
2) Ebbe Lieberathsgatan 19
Box 16026
412 21 Göteborg
Phone: 031 / 706 37 00
Telefax: 031 / 706 37 15
3) Axel Danielssons v. 271
Box 31025
200 49 Malmö
Phone: 040 / 37 48 00
Telefax: 040 / 37 48 60
4) Fridhemsgatan 124
854 62 Sundsvall
Phone: 060 / 67 14 50
Telefax: 060 / 17 59 08
e-mail: Stockhol[email protected]e
 Switzerland
Carl Geisser AG
Industriestraße 7
8117 Fällanden Z
Phone: 01 / 806 65 00
Telefax: 01 / 806 65 01
e-mail: [e-mail]
 Turkey
DIRAK ENDAKS
Endüstryel Aksesuarlar LTD. STI
Perpa Ticaret Merkezi
80270 Okmeydani - Istanbul
Phone: 90 / 212 222 22 75
Telefax: 90 / 212 220 10 47
e-mail: [e-mail]
NORTH AMERICA
 Canada, Mexico and
United States
Pfannenberg Inc.
4087 Walden Avenue
Lancaster, N.Y. 14086
Phone: 716 / 685-68 66
Telefax: 716 / 681-15 21
SOUTH AMERICA
 Argentina
XANIVOR ELECTROEQUIPOS
S.R.L.
Calle Gutenberg 1930
(1870) Avellaneda
Phone: 54 11 / 4228 4883
Telefax: 54 11 / 4228 4894
 Brazil
TASCO LTDA.
1) Av.Veread. José Angelo
Biagioni,850
18550-000 Boituva - SP
Phone: 015 / 263 - 14 93
Telefax: 015 / 263 - 26 66
2) R. Américo Brasiliense,
2171-Cj.709
Chácara Santo Antonio
04715-005 Sao Paulo - SP
Phone: 011 / 5183 - 59 95
Telefax: 011 / 5183 - 40 86
e-mail: ta[email protected].br
Pfannenberg Inc.
4087 Walden Avenue
Lancaster, NY 14086
716-685-6866
716-681-1521 FAX
http://www.Pfannenberg.com
e-mail:[e-mail]
gpd.sunwayinfo.com.cngpd.sunwayinfo.com.cn
