PHANTOM INTERNATIONAL Iris R User manual

Iris R and F
User Manual
www.phantom-international.com

TOOLS:
Parts:
EXPLODED:
Torx
Key
8
M6x25 M8x22 M6x20
Torx
Key
6
Anti-Corrosion
Grease*
Not
Included
1 2 3
33
M6x14
4
X6
Wing
5Fuselage 6Mast 7Stab 8
X1 X2 X1
*Corrosion settles mainly in the zones where carbon and
aluminum are in contact.

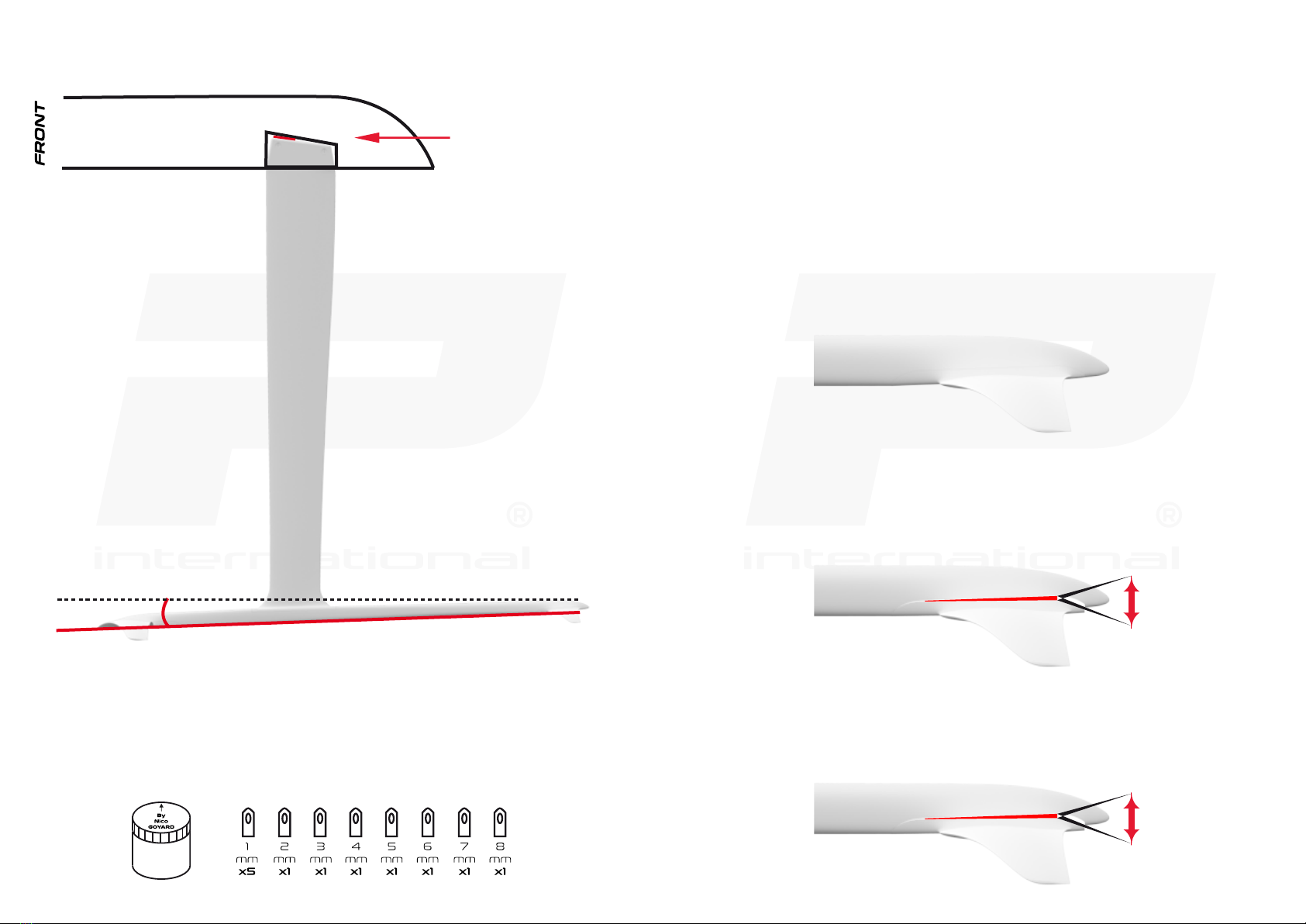

MAST SETUP: STAB SETUP:
3°
The fuselage angle should be 3 ° greater than the
parallel between the bottom of the cassette and the
fuselage to get the perfect axis.
Use the Shims for your setup.
1 mm
- Fuselage 90 cm & 110 cm
Standard Trimming
2 mm
Setting shims box by Nico GOYARD: includes
- Fuselage 90 cm
Trim with the shims to limit the flight power
- Fuselage 110 cm
Trim with the shims to limit the flight power
Shims
by Nico Goyard
Board
All windsurfing gear and windsurfer levels are different.
It is possible to adjust the flying power of your foil
according to your feeling.
The standard setup without any shim is the max power
you can get for large sails and heavy sailors.
We recommand the use of shims to reduce the power.
Please find a small plastic sachet containing shims to
adjust the stab.
Max
Power
Reduced
Power
Reduced
Power
