Phantom PHOTOBIO VP User manual

USER MANUAL
PHOTOBIO•VP

USER MANUAL
PRODUCT OVERVIEW
PHOTOBIO•VP
PHOTOBIO•VP

PHOTOBIO•VP



-














VE SPECTRUM
380
0.0
0.2
0.4
0.6
0.8
1.0
480580680780

ELECTRICAL SPECIFICATIONS
Item code PTB1130VEPX
Model PHOTOBIO•VP
Spectrum VE
Application Vegetative & Leafy Greens
Photon Flux (µmol/s) 73.6
Power (W) 32W
Ecacy (µmol/J) 2.1 @ 120V
IP IP65
Net Weight 3.09 lbs/1.4 kgs
Voltage 100–277V
Lifetime to L90 ≥50,000 hr
PhantomBio.com 1

USER MANUAL

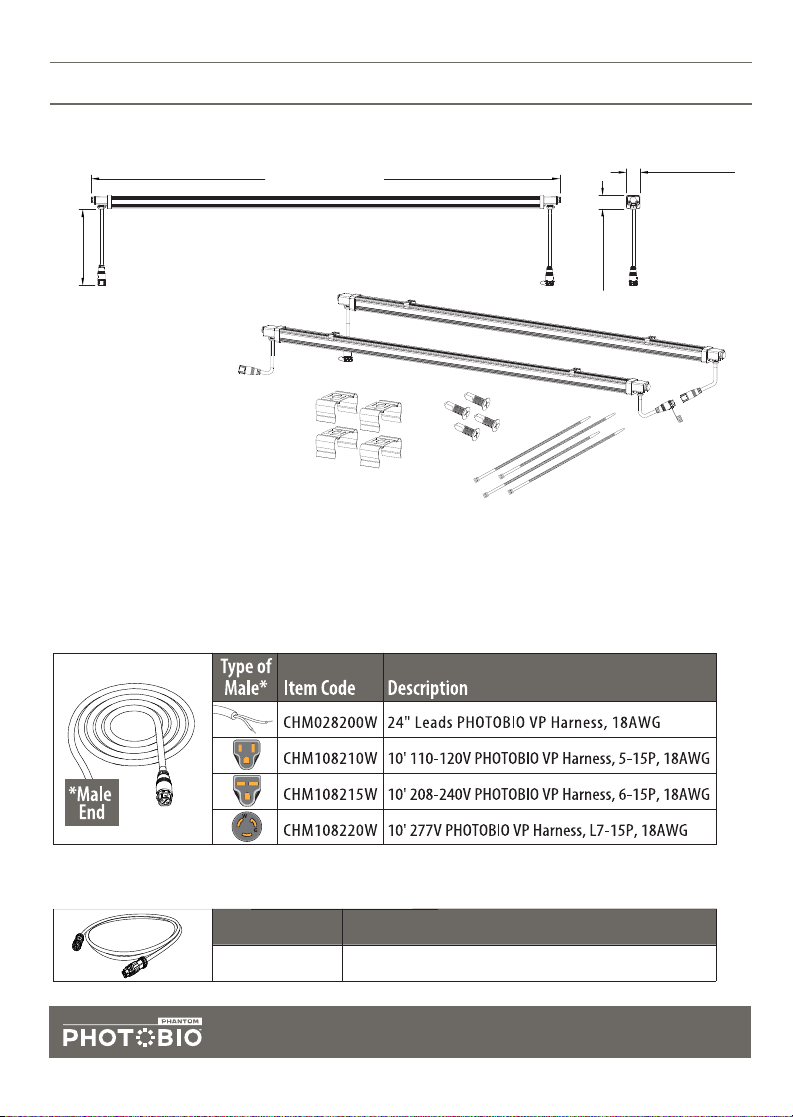

PARTS LIST






PRODUCT DIMENSIONS






POWER CABLE HARNESSES (sold separately)

PHOTOBIO VP Power Link Cable (sold separately)

Item Code Description
PTBVPJ18W 18" PHOTOBIO VP Power Link cable, 18AWG
A
  
Items not
shown to scale.
PhantomBio.com 2

USER MANUAL
WARNING – POSSIBLE RISK OF INJURY TO EYES AND SKIN
Hazardous optical UV, HEV, and IR radiation may be emitted from the light
source. Always wear personal protective equipment ensuring complete
shielding of skin and eyes. Avoid prolonged exposure and looking
directly at light source.
WARNINGS
Please read these installa�on instruc�ons carefully and keep them on hand.
Before installing, servicing, or performing rou�ne maintenance, follow these
general precau�ons:















-



-

PhantomBio.com 3

USER MANUAL
Addi�onal safety warnings:




-





-



IMPORTANT:


Voltage Max. Fixtures
 
 
 
Voltage Max. Fixtures
  
  







PhantomBio.com 4

USER MANUAL
INSTALLATION – SURFACE MOUNTING
1.-


Fig. 1
Fig. 2
2.

3.


Female end
Male end
Fig. 3
Fig. 4
PhantomBio.com 5

USER MANUAL
Fig. 7 Fig. 8
Fig. 5
Fig. 6
4

INSTALLATION – VERTICAL FARM & WAREHOUSE RACK MOUNTING
-



PhantomBio.com 6

USER MANUAL







Fig. 10 Fig. 11
Fig. 9
PhantomBio.com 7

USER MANUAL

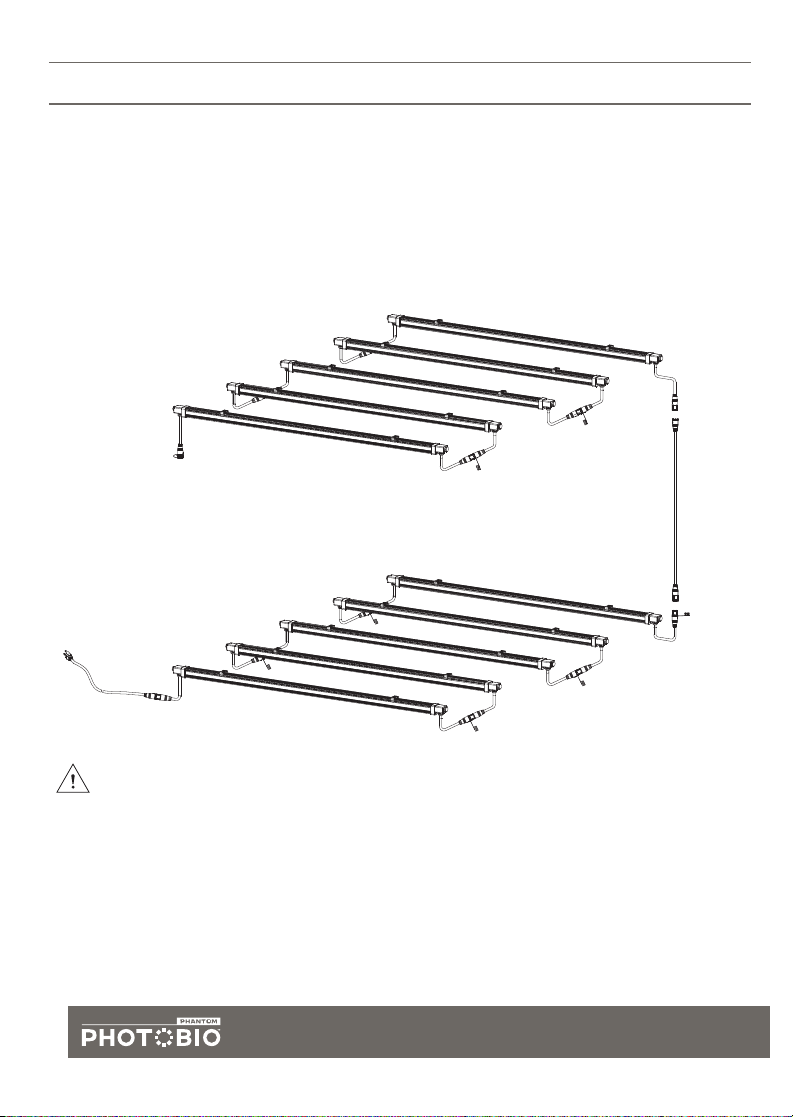

DAISY-CHAIN CONNECTION (OPTIONAL)





PTBVPJ18W
(sold separately)
IMPORTANT:


Voltage Max. Fixtures
 
 
 
Voltage Max. Fixtures
  
  
Fig. 12
PhantomBio.com 8

USER MANUAL
LIMITED WARRANTY
PHOTOBIO•VP









PHOTOBIO•VP
PHOTOBIO•VP,
















PhantomBio.com 9
PTB1130VEPX instructions | rev. 5/3/2021
