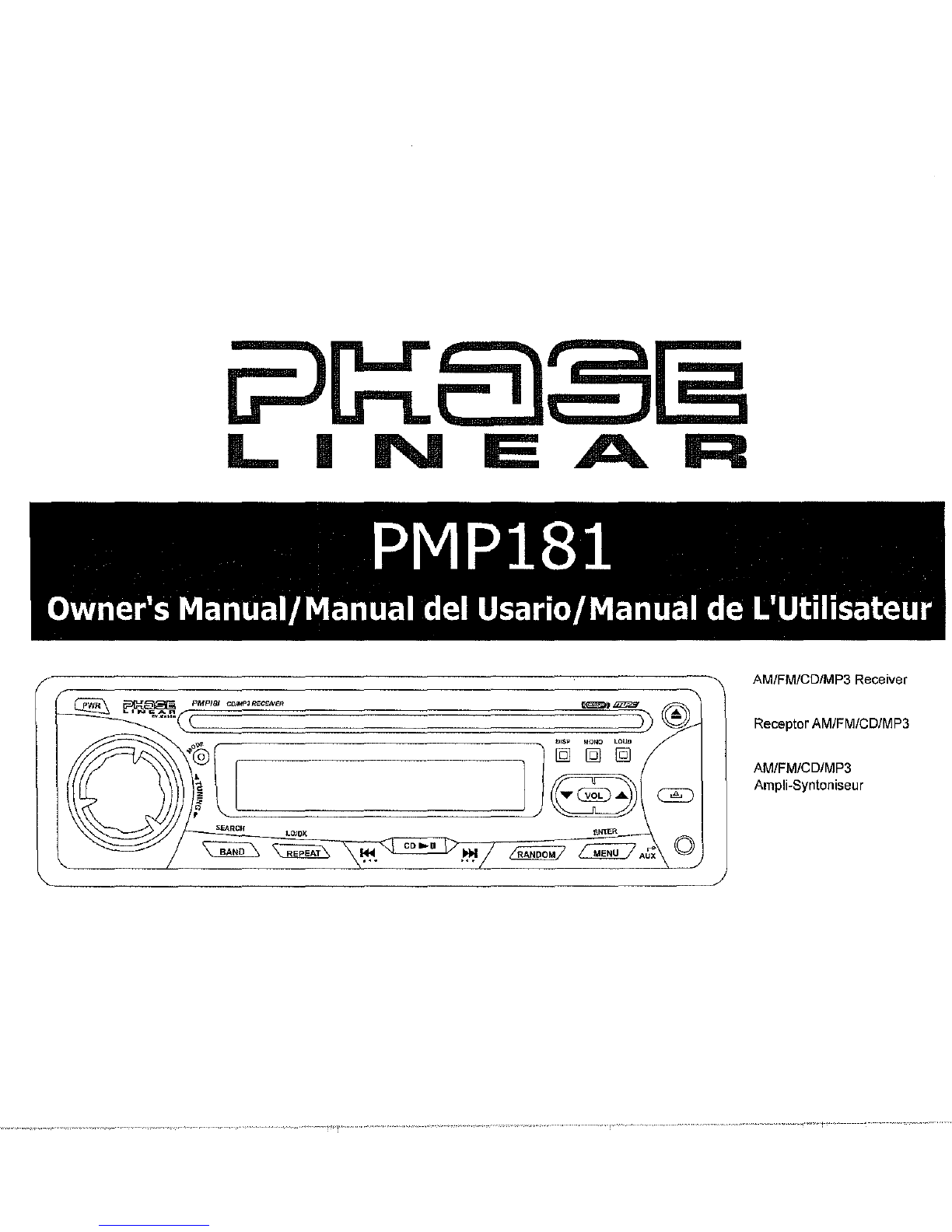

Phase Linear PMP181 User manual

AM/FM/CD/MP3 Receiver
Receptor
AM/FM/CD/MP3
AM/FM/CD/MP3
Ampli~Syntoniseur

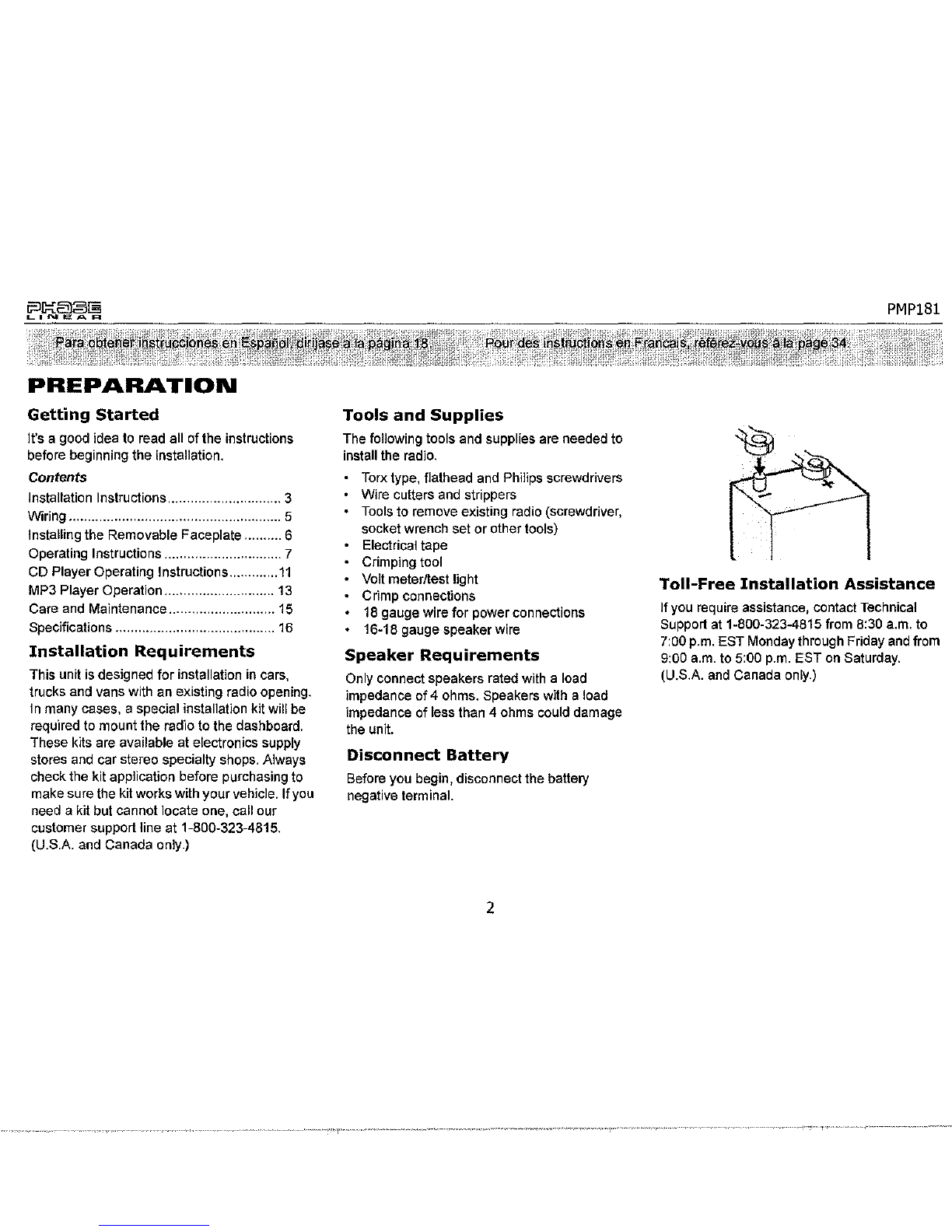

PREPARATION
Getting
Started
It's a good idea to read all
of
the
instructions
before beginning
the
installation.
Contents
Installation Instructions............................ 3
Wiring................................... ....... 5
Installing the Removable Faceplate ......... 6
Operating Instructions.......... ....... 7
CD
Player Operating Instructions...
..11

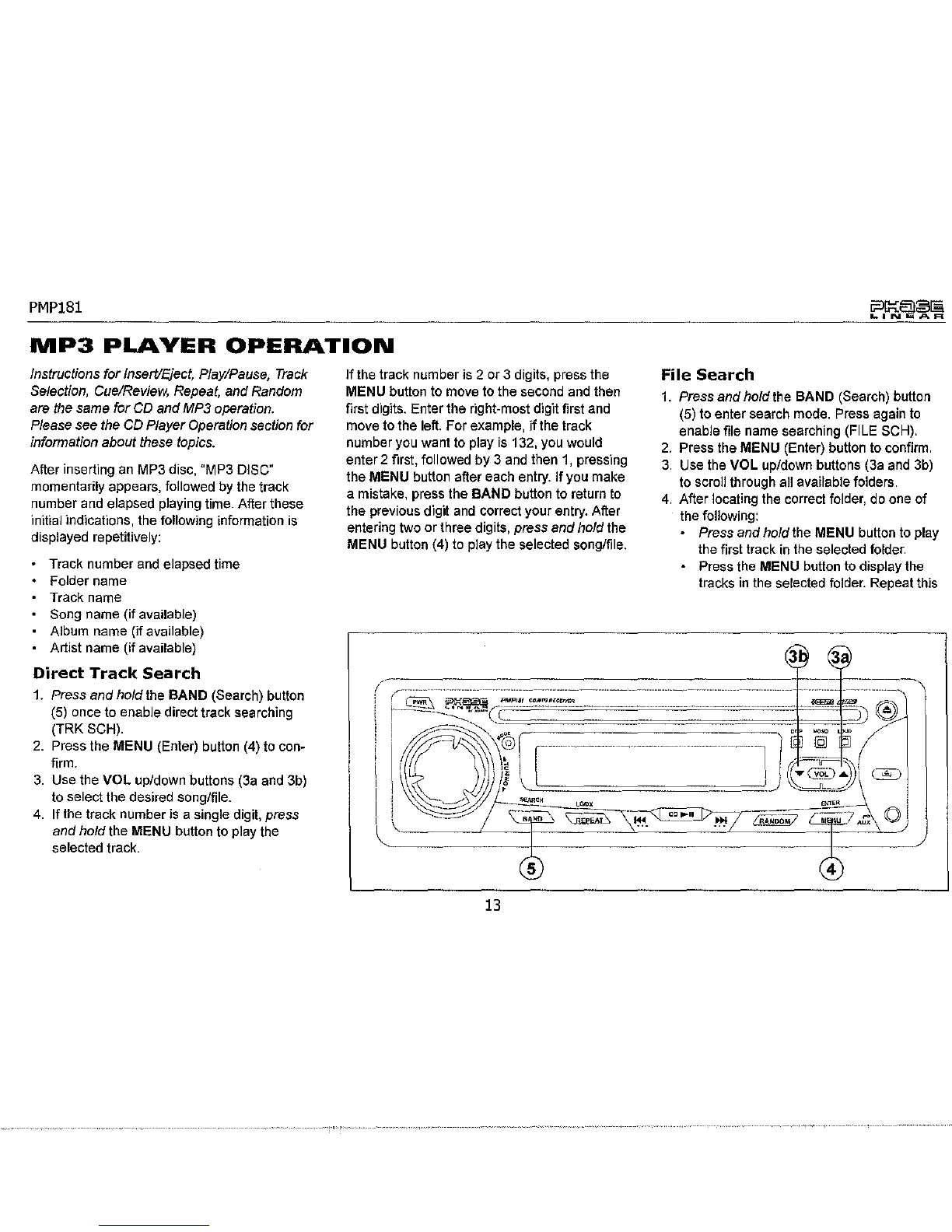

MP3
Player Operation.......
13

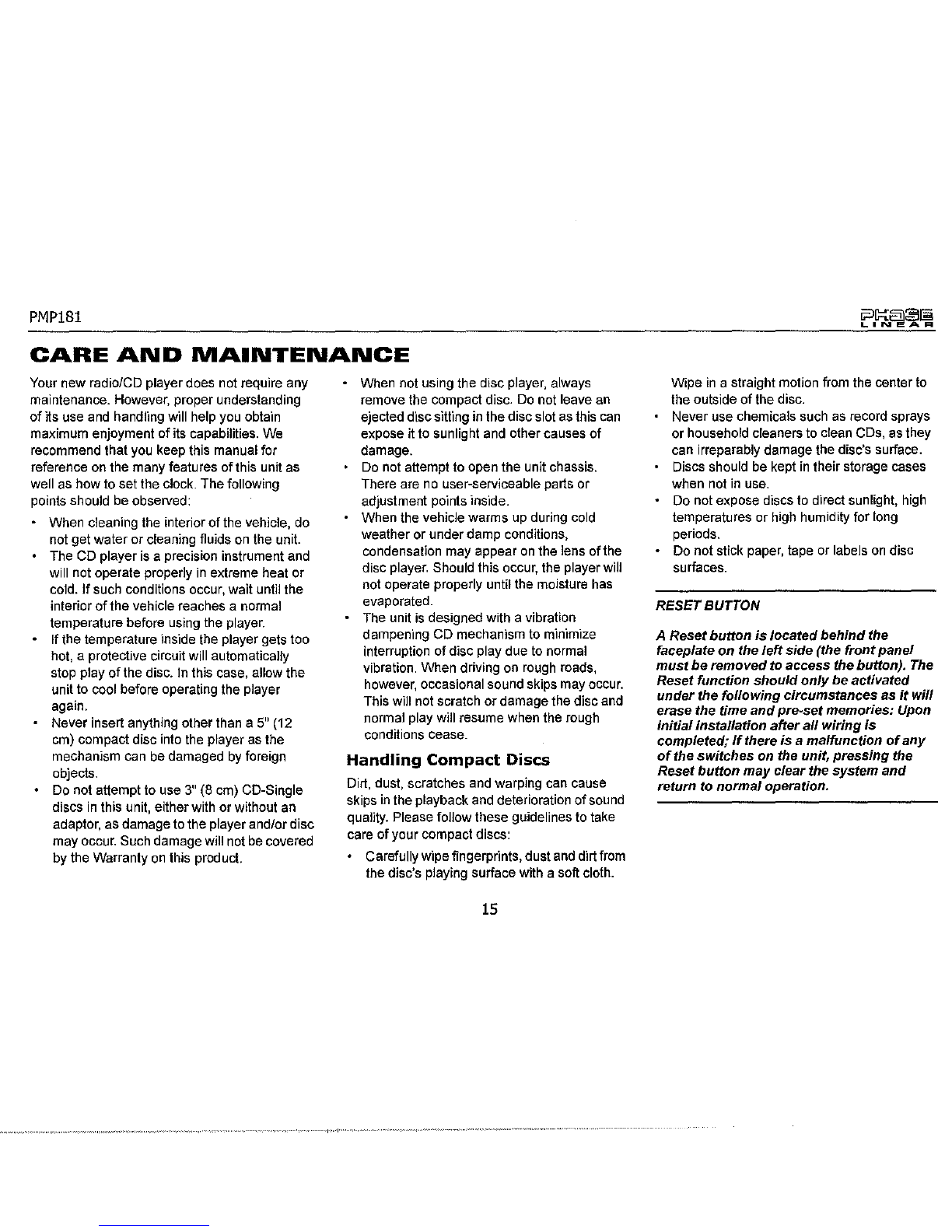

Care and Maintenance..... .............. 15
Specifications ......... .
...
16
Installation
Requirements
This unit is designed
for
installation in cars,
trucks and vans with an existing radio opening.
In many cases, a special installation kit will be
requ'lred to mount
the
radio to the dashboard.
These kits are available at electronics supply
stores and car stereo specialty shops. Always
check the kit application before purchasing to
make sure the kit works with
your
vehicle.
If
you
need a kit but cannot locate one, call
our
customer support line
at
1-800-323-4815.
(U.S.A. and Canada only.)
Tools
and
Supplies
The following tools and supplies are needed to
install the radlo.
Torx type, flathead and Philips screwdrivers
Wire cutters and strippers
Tools to remove existing radio (screwdriver,
socket wrench set
or
other tools)
Electrical tape
Crimping tool
Volt meter/test light
Crimp connections
18 gauge wire
for
power connections
16-18 gauge speaker wire
Speaker
Requirements
Only connect speakers rated with a load
impedance
of
4 ohms. Speakers with a load
impedance
of
less than 4 ohms could damage
the unit.
Disconnect
Battery
Before you begin, disconnect
the
battery
negative terminal.
2
PMP181
Toll-Free
Installation
Assistance
If
you require assistance, contact Technical
Support at 1-800-323-4815 from 8:30 a.m. to
7:00 p.m. EST Monday through Friday and from
9:00 a.m. to 5:00 p.m.
EST
on Saturday.
(U.S.A. and Canada only.)

PMP181

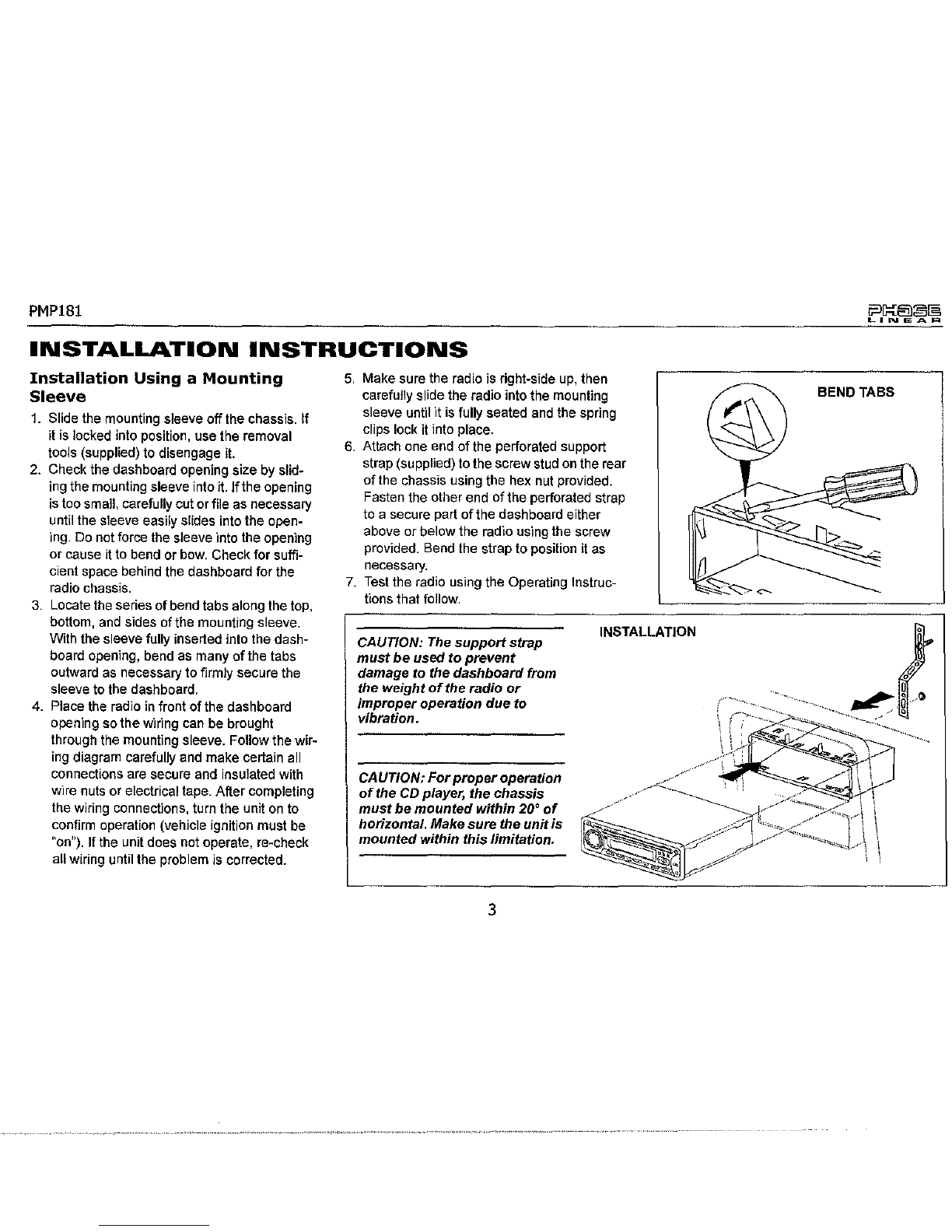

INSTALLATION
INSTRUCTIONS
Installation
Using
a
Mounting
Sleeve
1.
Slide the mounting sleeve off the chassis. If
it
is
locked into position, use the removal
tools (supplied) to disengage
it.
2.
Check the dashboard opening size by slid-
ing
the mounting sleeve into it. Ifthe opening
is
too small, carefully cut or file
as
necessary
until the sleeve easily slides into the open-
ing. Do not force the sleeve into the opening
or cause it to bend or
bow.
Check for suffi-
cient space behind the dashboard for the
radio chassis.
3.
Locate the series ofbend tabs along the top,
bottom,
and
sides of the mounting sleeve.
With the sleeve fully inserted into the dash-
board opening, bend
as
many ofthe tabs
outward as necessary to firmly secure
the
sleeve to the dashboard.
4.
Place
the
radio
in
front ofthe dashboard
opening
sothe
wiring
can
be
brought
through
the
mounting sleeve. Follow the wir-
ing diagram carefully
and
make certain
all
connections
are
secure
and
insulated with
wire
nuts
or electrical tape. After completing
the wiring connections, turn the unit
on
to
confirm operation (vehicle ignition must
be
"on").
If
the
unit does not operate,
re~check
all wiring until the problem
is
corrected.
5.
Make sure the radio
is
right-side
up,
then
carefully slide the radio into the mounting
sleeve until it
is
fully seated
and
the spring
clips lock it into place.
6.
Attach
one
end
of
the
perforated support
strap (supplied) to the screw
stud
on
the rear
ofthe chassis using the hex nut provided.
Fasten the other end ofthe perforated strap
to a secure part ofthe dashboard either
above or below the radio using the screw
provided.
Bend
the strap to position
it
as
necessary.
7.
Test
the radio using the Operating Instruc-
tions that
follow.
CAUTION: The
support
strap
must
be
used to prevent
damage to the dashboard from
the weight
of
the radio
or
improperoperation due to
vibration.
CAUTION:
For
proper
operation
of
the
CD
player, the chassis
must
bemounted within 20°
of
horizontal. Make surethe
unit
is
mounted within this limitation.
3
INSTALLATION
BEND TABS

INSTALLATION
INSTRUCTIONS

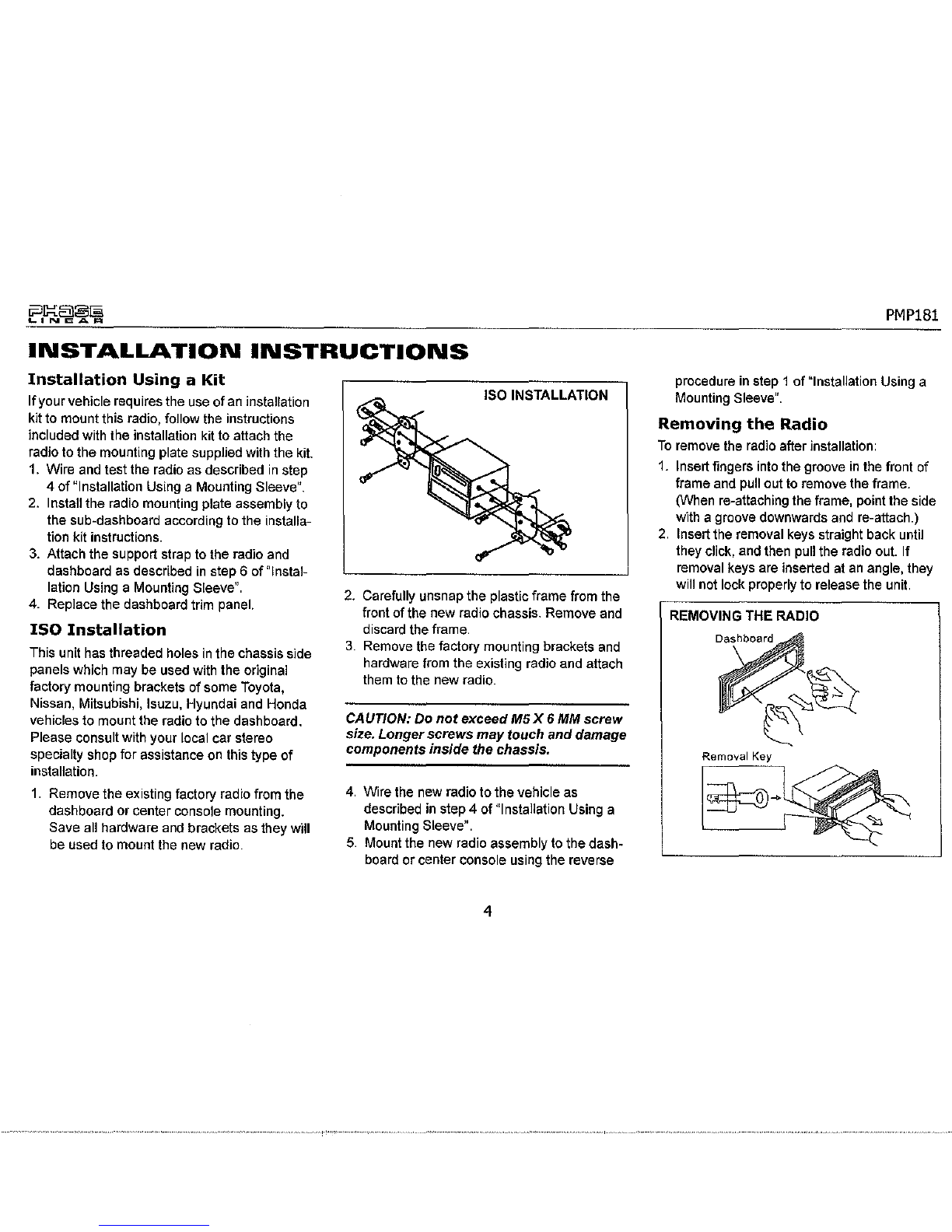

Installation
Using
a
Kit
If
your
vehicle requires the
use
of
an
installation
kit to mount this radio, follow the instructions
included with the installation kit to attach the
radio to the mounting plate supplied with the
kit.
1.
Wire
and
test the radio
as
described
in
step
4 ofUlnstallation Using a Mounting Sleeve",
2.
Install the radio mounting plate assembly to
the
sub~dashboard
according to the installa-
tion kit instructions.
3.
Attach
the
support strap to the radio and
dashboard
as
described
in
step 6 of"Instal-
lation Using a Mounting Sleeve",
4. Replace the dashboard trim panel.
ISO
Installation
This unit has threaded holes
in
the chassis side
panels which may be used with the original
factory mounting brackets
of
some Toyota,
Nissan, Mitsubishi, Isuzu, Hyundai
and
Honda
vehicles to mount the radio to the dashboard.
Please consult with your local car stereo
specialty shop for assistance
on
this type of
installation.
1.
Remove the existing factory radio from the
dashboard or center console mounting.
Save all hardware
and
brackets
as
they will
be
used to mount the new radio.
150
INSTALLATION
2.
Carefully unsnap the plastic frame from the
front of the new radio chassis. Remove
and
discard the frame.
3.
Remove
the factory mounting brackets
and
hardware
from
the existing radio
and
attach
them
to the new radio.
CAUTION:
Do
not
exceed
M5
X 6
MM
screw
size. Longerscrews
may
touch
and
damage
components inside the chassis.
4.
Wire
the
new
radio to the vehicle
as
described
in
step 4 of "Installation Using a
Mounting Sleeve".
5.
Mount the new radio assembly
to
the
dash~
board or center console using the reverse
4
PMP181
procedure
in
step 1 of"Installation Using a
Mounting Sleeve".
Removing
the
Radio
To
remove the radio after installation:
1.
Insert fingers into the groove
in
the front of
frame
and
pull out
to
remove the frame.
(When
re-attaching the frame, point the side
wUh
a groove downwards
and
re~attach.)
2.
Insert the removal
keys
straight back until
they click,
and
then
pull the radio
out.
If
removal
keys
are
inserted
at
an
angle, they
will not lock properly to release the unit.
REMOVING THE RADIO
Removal Key

PMP181

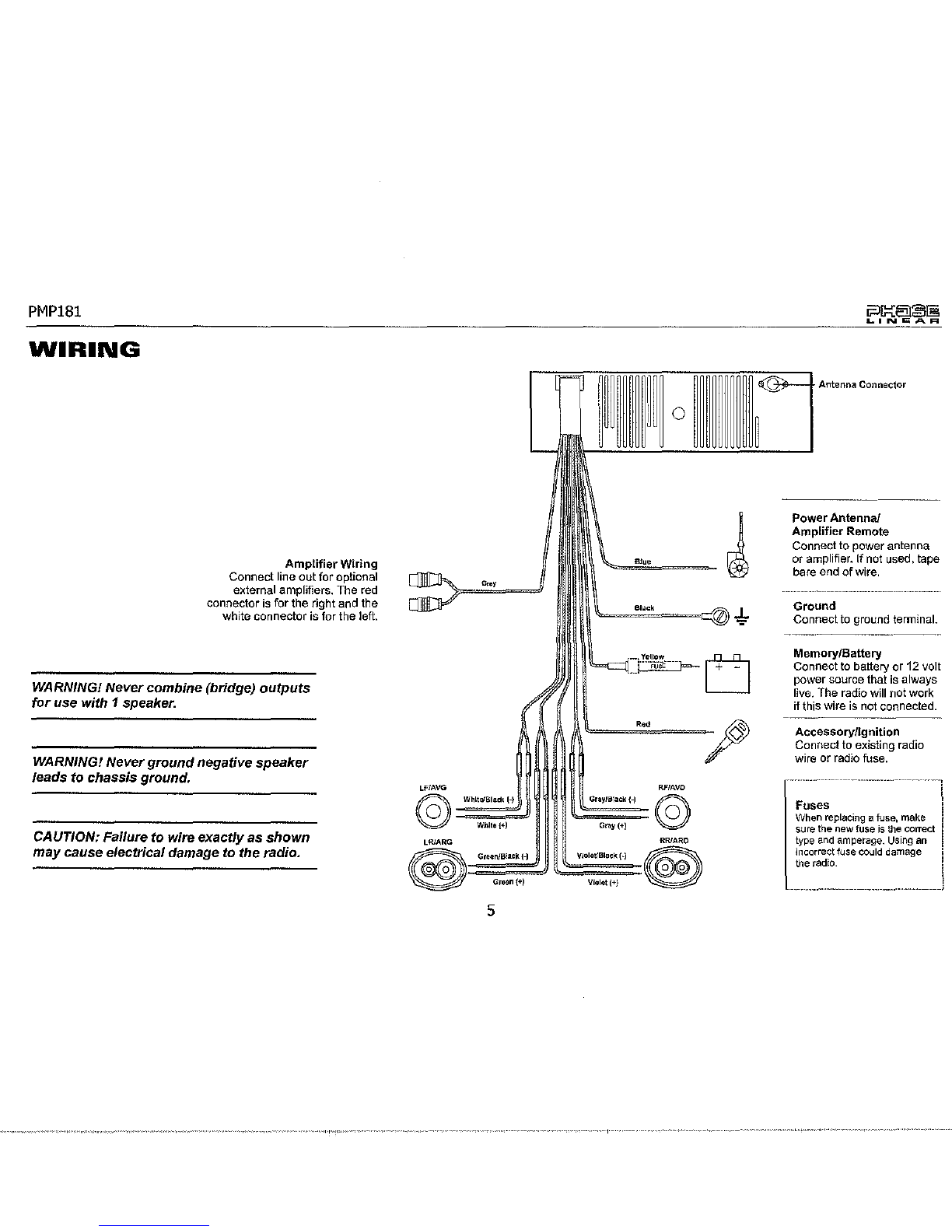

WIRING
Amplifier Wiring
Connect line out for optional
external amplifiers. The
red
connector
is
for the right
and
the
white connector is for the left.
WARNING/ Nevercombine (bridge)
outputs
for
use with 1 speaker.
WARNING! Never
ground
negative
speaker
leads to chassis ground.
CAUTION: Failure
to
wire exactly
as
shown
may
cause electricaldamage to the radio.
LFIAVG
©~~
LRIARG
G,oen/Blackj-)
areon(+)
5
Violet/Black
(.)
VIQI$I(+)
"''7'"-T
Antenna Connector
--------
Power
Antenna!
Amplifier
Remote
Connect to power antenna
or amplifier. If
not
used,
tape
bare
end
of
wire.
Ground
Connect to ground tennina!.
Memory/Battery
Connect to battery or
12
volt
power source that
is
always
live. The radio
will
not work
if
this wire
is
n01
connected.
Accessoryllgnition
Connect to existing radio
wire or radio fuse.
Fuses
When
replacing a
ruse,
make
sure
the new fuse
is
the
correct
type
and
amperage.
Using
an
incorrect fuse
could
damage
the
radio.

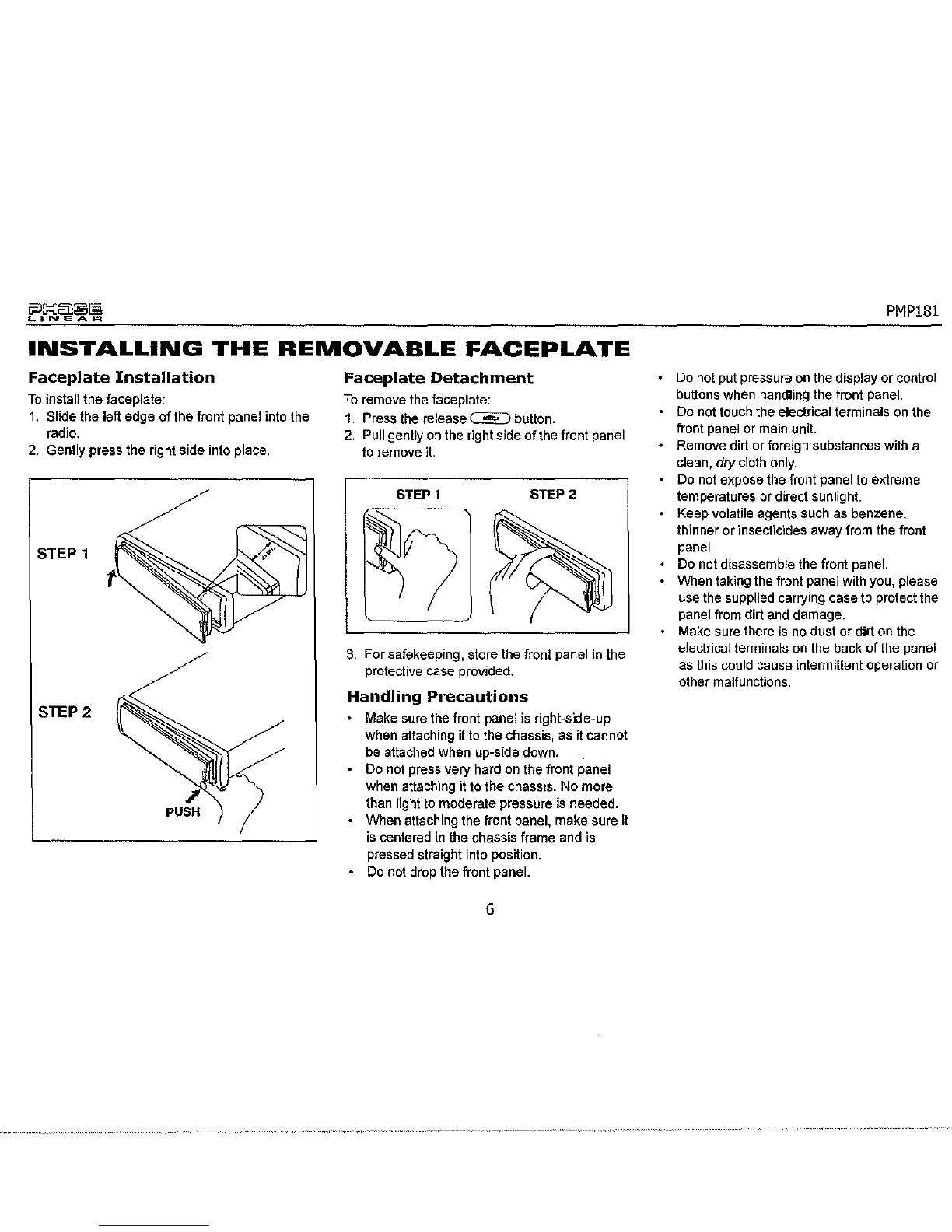

INSTALLING
THE
REMOVABLE
FACEPLATE
Faceplate
Installation
To
install the faceplate:
1.
Slide
the
left
edge
ofthe front panel into
the
radio.
2.
Gently press the right side into place.
STEP 1
STEP 2
PUSH
Faceplate
Detachment
To
remove
the
faceplate:
1.
Press the release (
~
)button.
2. Pull gently on the right side
of
the front panel
to
remove
it.
STEP 1 STEP 2
3.
For safekeeping, store
the
front panel in the
protective case provided.
Handling
Precautions
Make sure the front panel is
right~side~up
when
attaching
it
to
the
chassis,
as
it cannot
be attached when up-side down.
Do not press very hard on the front panel
when
attaching
it
to
the chassis.
No
more
than
light
to
moderate pressure
is
needed.
When
attaching
the
front
panel,
make
sure
it
is
centered
in
the
chassis frame
and
is
pressed
straight into position.
Do
not
drop
the
front
panel.
6
PMP181
Do
not
put
pressure
on
the
display
or
control
buttons
when
handling
the
front
panel.
Do
not
touch
the
electrical terminals
on
the
front
panel
or
main
unit.
Remove
dirt
or
foreign substances
with
a
clean,
dry
cloth
only.
Do
not
expose
the
front
panel
to
extreme
temperatures or direct sunlight.
Keep
volatile
agents
such
as
benzene,
thinner
or
insecflcides
away
from
the front
panel.
Do
not
disassemble
the
front
panel.
When
taking
the
front
panel
with
you,
please
use
the
supplied
carrying case
to
protect
the
panel
from
dirt
and
damage.
Make
sure
there
is
no
dust or dirt
on
the
electrical terminals
on
the
back
of
the
panel
as
this
could
cause
intermittent operation
or
other malfunctions.

PMP181

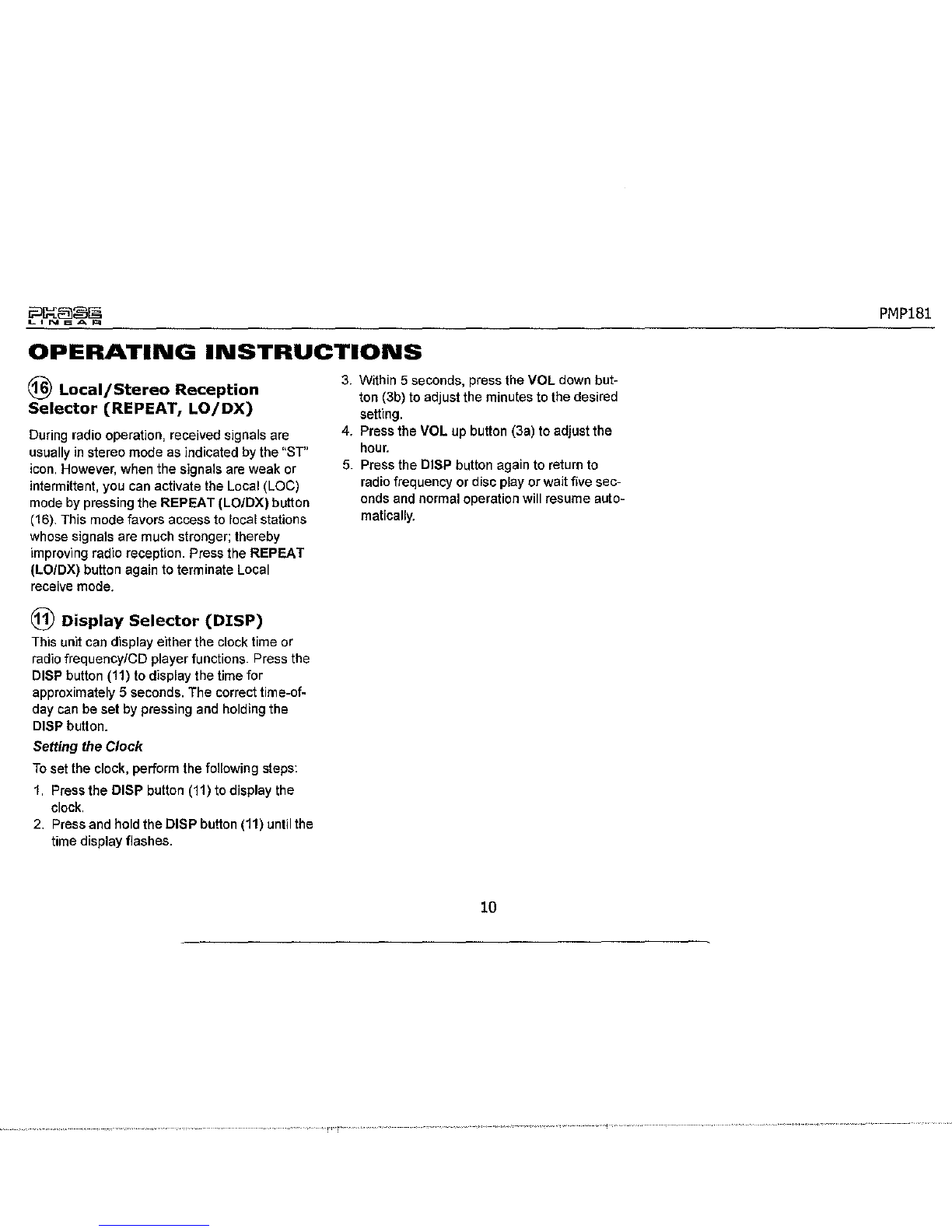

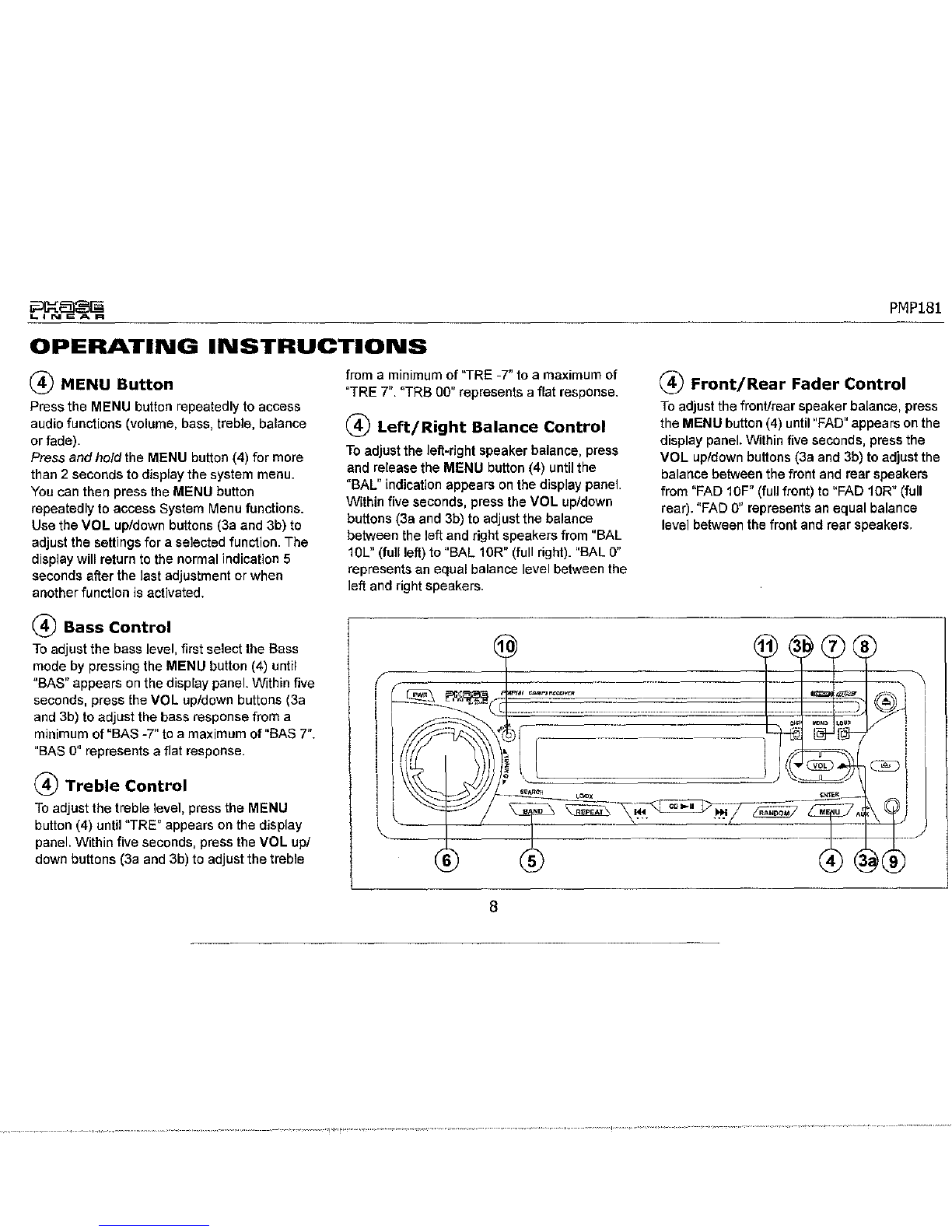

OPERATING
INSTRUCTIONS
CD
Power
On/Off
Button
(PWR)
Press the
PWR
button
(1)
to
turn
the
unit
on.
Press
and
hold
the
PWR
button
to
turn
the unit
off.
®
Liquid
Crystal
Display
Panel
The Liquid Crystal Display
(LCD)
panel
displays
the frequency, time and all activated functions.
Table
1:
LCD
Display
Indicators
1ST!
STEREO
Radio
stereo indicator
ad
ARTIST Artist
name
indicator
!
DlJ
I
ALBUM
Album
title indicator
0 TRACK
MP3
file
indicator
!-!
FOLDER
MP3
folder/directory
indicator
!ffl3!
MP3
MP3
disc playing
indicator
00 MUSIC
Song
title indicator
IEQ!
EQ4
Preset equalizer
indicator
NOTE:
It
is
a characteristic
of
LCD
panels
that,
if
subjected
to
cold
temperatures
for
an
extended
period
of
time, they
may
take
longer
to
illuminate
than
under
normal
conditions. In addition, the
visibility
of
the
numbers
on the LCD
may
slightly
decrease.
TheLCD read-out willreturn to normalwhen
the temperature
inside
the vehicleincreases
to a
normal
range.
7
®
Volume
Control
(VOL)
To
increase
the
volume
level,
press
the
VOL
(1\)
up
button
(3a).
To
decrease
the
volume
level,
press
the
VOL
(V)
down
button
(3b).
The
volume will increase/decrease
and
the
level
will
be
shown
on
display panel
from
a
minimum
of
"VOL
00"
to
a
maximum
of
"VOL
4T.
The
display will automatically
return
to
the
normal
indication 5 seconds after
the
last
volume
adjustment
or
when
another function
is
activated.

OPERATING
INSTRUCTIONS
@ MENU
Button
Press the MENU button repeatedly to access
audio functions (volume, bass, treble, balance
or fade).
Press
and
holdIhe
MENU
bullon
(4)
for more
than 2 seconds to display the system menu.
You
can
then press the MENU button
repeatedly to access System Menu functions.
Use the
VOL
up/down buttons (38 and 3b) to
adjust the settings for a selected function. The
display will return
to
the normal indication 5
seconds after the last adjustment or when
another function
is
activated.
@
Bass
Control
To
adjust the bass level, first select the Bass
mode by pressing the MENU button (4) until
"BAS" appears
on
the display panel. Within five
seconds, press
the
VOL up/down buttons
(3a
and 3b) to adjust the bass response from a
minimum ofuBAS -7"
to
a maximum of"BAS
7".
"BAS
0"
represents a flat response.
@
Treble
Control
To
adjust the treble level, press the MENU
button (4) until ''IRE'' appears
on
the display
panel. Within five seconds, press the VOL up!
down bullons
(3a
and
3b)
10
adjusllheIreble
from a minimum of
''IRE
-7"
to a maximum of
"TRE
7".
"TRB 00" represents aflat response.
@
Left/Right
Balance
Control
To
adjust the left-right speaker balance, press
and
release Ihe MENU bullon
(4)
unlillhe
"SAL" indication appears
on
the display panel.
Within five seconds, press the VOL up/down
buttons
(3a
and
3b)
to adjust the balance
between
the
left
and
right speakers from "SAL
10L" (full left)
10
"SAL 10R" (full righl).
"SAL
0"
represents
an
equal balance level between the
left
and
right speakers.
8
PMP181
@
Front/Rear
Fader
Control
To
adjust the fronUrear speaker balance, press
Ihe MENU bullon
(4)
unlil
"FAD"
appears
on
Ihe
display panel. Within five seconds, press the
VOL up/down bullons
(3a
and
3b)
10
adjusllhe
balance between the front
and
rear speakers
from
"FAD
10F" (full fronl)
10
"FAD
10R" (full
rear).
"FAD
0"
represents
an
equal balance
level between the front
and
rear speakers.

PMP181
OPERATING
INSTRUCTIONS
@
Preset
Equalizer
(DSP)
To
adjust the preset equalizer
(DSP
mode),
press
and
holdthe MENU button to access the
System Menu
and
then press the MENU button
repeatedly
to
navigate to the
DSP
option. The
preset equalizer applies preset sound effects to
the unit's audio output signal. Within five
seconds, press the VOL up/down buttons
(3a
and
3b)
to choose between the following
modes:
"POP",
"ROCK", "CLASSIC",
"FLAT"
or
"DSP
OFF".
@
Electronic
Anti-Skip
Protection
(ESP)
To
adjust the ESP function, press
and
holdthe
MENU button to access the System
Menu
and
then press the MENU button repeatedly to
navigate to the ESP option. Within five
seconds, press the VOL up/down buttons (3a
and
3b) to choose between the following
modes:
ESP
12: Normal
road
conditions
•
ESP
45: Rough, uneven
road
conditions
@
Audible
Beep
To
turn on/off the audible beep
heard
when
a
function
is
selected, press and hold the MENU
button to access the System Menu and
then
press the MENU button repeatedly
to
navigate
to the Beep option. Within five seconds, press
the VOL up/down buttons
(3a
and
3b)
to
choose between the following modes:
"BEEP
ON" or "BEEP
OFF".
®
AM/FM
Band
Selector
(BAND)
During radio
play,
each time the BAND button
(5)
is
pressed, the radio band changes. The
indications "AM" or
"FM"
will appear
on
the
display panel according to your selection.
®
Tuning
Control
Rotate the TUNING control
(6)
clockwise
to
tune the radio station higher or
counterM
clockwise to tune the station
lower.
(])
FM
Mono
Select
(MONO)
During
FM
radio operation, the
MONO
button
(7)
is
used
to select monaural or stereo
reception ofthe broadcastsignal. Under normal
reception conditions, the unit should
be
left
in
the stereo mode (indicated
by
the stereo icon
when tuned to
an
FM
stereo signal). Ifthe
9
signal
is
too noisy for comfortable listening,
press the MONO button; the "STEREO"
indication will disappear from the display
panel
and
"MONO" will
appear.
To
return to stereo
reception
mode,
press the button again.
®
Loudness
Control
(LOUD)
When listening to music at
low
volume levels,
this feature will boost the bass
and
treble
ranges
to
compensate for the characteristics of
human hearing. Press the LOUD button
(8)
to
activate this feature. "LOUD
ON"
appears
on
the display panel. Press the LOUD button
(8)
again to turn the
LOUD
function
off.
®
Aux
In
Jack
Use the Aux Injackto connect a portable
media
device for playback through the vehicle sound
system.
@
Mode
Selector
(MODE)
Press this
MODE
button (10) to select TUNER,
S-CDP,
MP3 orAux.

OPERATING
INSTRUCTIONS
@
Local/Stereo
Reception
Selector
(REPEAT,
LO/OX)
During radio operation, received signals
are
usually
in
stereo mode
as
indicated
by
the "ST"
icon.
However, when the signals
are
weak or
intermittent, you
can
activate the Local (LOC)
mode
by
pressing the REPEAT (LO/OX) button
(16).
This mode favors access to local stations
whose signals are much stronger; thereby
improving radio reception. Press the REPEAT
(LO/DX) button again to terminate Local
receive mode.
®
Display
Selector
(OISP)
This unit can display either the clock time or
radio
frequency/CD player functions. Press the
OISP
bulton
(11)
to display Ihe time for
approximately 5 seconds. The correct time-of-
day
can
be
set
by
pressing
and
holding the
OISP
bulton.
Setting the Clock
To
set the clock, perform the following steps:
1.
Press the OISP bulton
(11)
to display Ihe
clock.
2.
Press and hold the DlSP button
(11)
until the
time display flashes.
3.
Within 5seconds, press the VOL down
but~
ton (3b) to adjust the minutes to the desired
setting.
4.
Press the VOL
up
button (3a)
10
adjust the
hour.
5.
Press the
DISP
button again to return
to
radio frequency or disc play
or
wait five
sec~
onds
and
normal operation will resume
auto~
matically.
10
PMP181

PMP181
CD
PLAVER
OPERATING
INSTRUCTIONS
@
Disc
Slot
With the label surface facing
up,
gently insert
the disc into the slot until the soft-loading
mechanism engages
and
disc
play
begins. "S-
COP"
will appear momentarily. Once loaded,
the track number
and
elapsed time will appear
in
the display.
NOTE: The
unit
is
designed
for
play
of
standard
5"
(12 em.)
compact
discs
only.
Do
not
attempt
to use
3"
(8 em.) CD
singles
in
this
unit,
either
with
or
without
an adaptor,
as
damage
to
the
player
and/or
the
disc
may
occur.
Such
damage
will
not
be
covered
by
the
warranty
on
this
product.
@
Disc
Play/Pause
Select
Press the CD
"'/11
button (13) to freeze disc
play.
Press
CD
"/11
again
to
resume disc
play.
Press
and
holdthe
CD
"/11
button (13)
to
activate the First Track
fUnction
and
automatically play the first track
on
the
disc.
@,@
Track
Selector
(TUNE/
TRACK)
The Track Select functions
are
used
to quickly
access the beginning ofa particular track.
Each
time the track
up
(»1)
button (15)
is
pressed,
the next higher track number
is
selected,
as
shown
on
the display panel.
Each
time the track
down
(1«)
button (14) is pressed, the
next
lower track number
is
selected,
as
shown
on
the display panel.
@,@
Cue/Review
Functions
Press
and
hold
the track
up
(»1)
button (15) to
advance rapidly forward or the track down
(1«)
button (14) to advance rapidly backward.
During eitherfunction, the elapsed time of each
track will
be
shown
on
the display panel.
11
@
Track
Repeat
Play
Select
(REPEAT)
During disc
play,
press the REPEAT button
(16)
to repeat play of the selected track ("RPT
ON"
will appear
on
the display panel). Play ofthe
track will continue to repeat until REPEAT
is
pressed again
and
the "RPT
ON"
indication
disappears from the display panel. Repeat
Play
mode
can
also
be
canceled
by
activating the
Random Play (17) function.

CD
PLAVER
OPERATING
INSTRUCTIONS
@
Random
Play
Select
(RANDOM)
During disc play, press
the
RANDOM
button
(17) to play
the
tracks on the
disc
in a random,
shuffled order ("ROM ON" will
appear
on
the
display panel). In Random Play mode, you can
press the track
1«
or
»1
buttons (14 and
15)
to
select tracks in a random order instead
of
the
normal progression. Press
RANDOM
again
to
cancel Random Play mode.
Random
Play
mode can also
be
canceled
by
activating
the
Repeat Play (16) function.
@
Disc
Eject
Button
When the disc eject
~
button (18) is pressed,
disc play is stopped, the
disc
is ejected,
and
the
unit will change to radio operation.
If
the disc is
not removed from the unit within 15 seconds,
the disc will be
re~loaded.
NOTE:
To
preventa disc from accidentally
being damaged, a/ways remove the disc
from the
unit
when disc
play
is
finished.
12
PMP181

PMP181
MP3
PLAYER
OPERATION
Instructions for Insert/Eject, Play/Pause,
Track
Selection, Cue/Review, Repeat, and Random
are the
same
for
CD
and
MP3
operation.
Please see the
CD
PlayerOperation section for
information about these topics.
After inserting an
MP3
disc, "MP3 DISC"
momentarily appears, followed by the track
number and elapsed playing time. After these
initial indications, the following information is
displayed repetitively:
Track number and elapsed time
Folder
name
Track name
Song
name
(if available)
Album name (if available)
Artist name (if available)
Direct
Track
Search
1.
Press
and holdthe
BAND
(Search) button
(5) once to enable direct track searching
(TRK SCH).
2.
Press the MENU (Enter) button (4) to con-
firm.
3.
Use the
VOL
upldown buttons (3a and 3b)
to select the desired song/file.
4.
If the track
number
is a single digit, press
and hold
the
MENU button to play the
selected track.
If
the track number is 2
or
3 digits, press the
MENU button to move to the second and then
first digits. Enter
the
right-most digit first and
move to
the
left.
For
example,
if
the
track
number you want to play is 132, you would
enter2 first, followed
by
3 and then 1, press·lng
the
MENU button after each entry.
If
you make
a mistake, press
the
BAND button to return to
the
previous digit and correct
your
entry. After
entering two
or
three digits,
press
and hold the
MENU button (4) to play
the
selected songlfile.
13
File
Search
1. Press andholdthe
BAND
(Search) button
(5) to enter search mode. Press again to
enable file name searching (FILE SCH).
2.
Press the MENU (Enter) button to confirm.
3.
Use the
VOL
upldown buttons (3a and 3b)
to scroll through all available folders.
4.
After locating the correct folder, do one
of
the following:
Press andhold the MENU button to play
the first track in the selected folder.
Press the MENU button to display the
tracks
in
the selected folder. Repeat this

procedure to navigate through up
to
8
levels
of
folders.
Character
Search
1. Press
and
holdthe
BAND
(Search) button
(5)
to
enter search mode. Price twice more
to enable directory or file name searching
(CHARSCH).
2. Press the MENU (Enter) button to confirm.
Character "A" will flash on
the
screen.
3.
Use the
VOL
up/down buttons (3a and 3b)
to select the characters A-Z, *, and 0-9.
4.
Press the MENU button (4) to confirm entry
of
each character and move
to
the
next
space, up to eight characters.
5.
Press and hold the MENU button (4)
to
begin the search. If not found,
"NOT
FND"
will be displayed.
PMP181
14

PMP181
CARE
AND
MAINTENANCE
Your
new
radio/CD player
does
not
require any
maintenance. However, proper understanding
ofits
use
and
handling will help
you
obtain
maximum enjoyment of
its
capabilities.
We
recommend that
you
keep
this manual for
reference on the many features
of
this unit as
well
as
how
to
set the clock. The following
points should
be
observed:
When cleaning the interior
of
the vehicle,
do
not get water
or
cleaning fluids on the unit.
The
CD
player
is
a precision instrument
and
will not operate properly
in
extreme heat
or
cold. If
such
conditions
occur,
wait until the
interior ofthe vehicle reaches a normal
temperature before using the player.
If the temperature inside the player gets too
hot,
a protective circuit will automatically
stop
play ofthe disc.
In
this case, allow the
unit
to
cool
before operating the player
again.
Never insert anything other than a
5"
(12
cm)
compact disc into
the
player
as
the
mechanism
can
be
damaged
by
foreign
objects.
Do
not attempt
to
use
3"
(8
cm)
CD-Single
discs
in
this unit, either
with
or without
an
adaptor,
as
damage
to
the player and/or disc
may
occur.
Such
damage will
not
be
covered
by
the Warranty
on
this product.
When
not
using the disc
player,
always
remove the compact disc.
Do
not
leave
an
ejected discsitting
in
the disc slot
as
this
can
expose it
to
sunlight
and
other causes of
damage.
Do
not
attempt
to
open the unit chassis.
There are
no
user-serviceable parts or
adjustment points inside.
When the vehicle warms
up
during
cold
weather or under damp conditions,
condensation
may
appear
on
the lens ofthe
disc
player.
Should this
occur,
the player will
not
operate properly until the moisture
has
evaporated.
The
unit
is
designed with a vibration
dampening
CD
mechanism
to
minimize
interruption of disc play
due
to
normal
vibration. When driving
on
rough
roads,
however,
occasional sound skips
may
occur.
This will
not
scratch or damage the disc
and
normal play will resume when the
rough
conditions cease.
Handling
Compact
Discs
Dirt, dust, scratches
and
warping
can
cause
skips
in
the playback
and
deterioration of
sound
quality. Please follow these guidelines
to
take
care
ofyour compact discs:
Carefully wipe fingerprints, dust
and
dirt
from
the disc's playing surface
with
a soft
cloth.
15
Wipe
in
a straight motion
from
the center
to
the outside of the disc.
Never
use
chemicals
such
as
record sprays
or household cleaners
to
clean
CDs,
as
they
can
irreparably damage the disc's surface.
Discs
should
be
kept
in
their storage cases
when
not
in
use.
Do
not
expose discs
to
direct sunlight,
high
temperatures or
high
humidity for
long
periods.
Do
not stick
paper,
tape or labels
on
disc
surfaces.
RESETBUTTON
A Reset
button
is
located
behind
the
faceplate
on
the
left
side (the
front
panel
must
be
removed to access thebutton). The
Reset function
should
only
be
activated
underthe following circumstances as
it
will
erase the time
and
pre--set memories: Upon
initialinstallation
after
all
wiring
is
completed;
If
there
is
a malfunction
of
any
of
the
switches
on the unit, pressing the
Reset
button
may clearthe system
and
return to normal operation.

SPECIFICATIONS
CD-R
and
CD-RW
Capability
Depending
on
media type and method of
"recordinglburning", some
CD~R/RWs
may
be
incompatible with this unit. After "recording!
burning",
the
session
must
beclosed. Please
refer
to
your software's recommended
procedures for closing a disc/session. Review
your recording software to familiarize yourself
with
the
correct "recording/burning" procedures.
We
recommend using the latest versions of
ROXIO™
or
NEROTM burning software.
This unit will only recognize
the
CODA/CDC
and .MP3 formats "recorded I burned" onto a
CD-R/RW.
This unit does not support
,WAV,
.WMA, .OGG
or
other formats.
Technical
Specifications
CEA
Power
Ratings
Power Output: 7 watts
RMS
X 4 channels into
4-ohms
@<
1%THD+N
Signal to
Noise
Ratio:
70dBA below reference.
(Reference: 1watt, 4-ohms)
Frequency Response: 20Hz to 20kHz, -3dB
Reference Supply Voltage: 14.4VDC
CD
Player
Signal
to
Noise
Ratio:
>85dBA
Frequency Response: 20Hz
to
20kHz, -3d8
Channel Separation: > 55dB @ 1kHz
D/A
converter:
1BiUCh
FM
Tuner
Mono
Sensitivity: 18dBf
50d8 Stereo
QUieting
Sensitivity: 20d8f
Stereo Separation@ 1kHz: >30dB
Frequency Response: 30Hz to 12kHz, -3dB
AM
Tuner
Tuning
Range:
530kHz -1710kHz
16
PMP181
Sensitivity @ 20dB Signal
to
Noise: 30uV
Frequency Response: 30Hz -2kHz, -3dB
General
Power Supply:
11
to
16VDC,
negative ground
Fuses: 7 amp/AGC
Dimensions:
7"
X
7"
X
2"
(178mm x 178mm x
51mm)
Specifications subject
to
change
without
notice.
Table of contents
Other Phase Linear Car Stereo System manuals
Popular Car Stereo System manuals by other brands

JVC
JVC KW-AVX836 Installation & connection manual

Dual Electronics Corporation
Dual Electronics Corporation MXD254B Installation & owner's manual

Konig
Konig MP3-FMTRANS40 manual

Renegade
Renegade RXV1002 Operation guide

Sony
Sony CDX-GT565UP Installation/connections

JVC
JVC KD-G337 Installation & connection manual
