Phase Technologies Phase Perfect PT007 User manual

Digital Phase Converter
Operation & Installation Manual
•Single-Phase to Three-Phase
•Solid State Technology
•95 - 98.7% Efficient
240V & 480V

ii | P a g e
V2.1
Product Manual
2021 © Copyright.V2.1 All rights reserved. All contents are property of Phase Technologies, LLC.
No portion of this publication or its contents may be duplicated by any means, electronic or otherwise, without the
express written consent of Phase Technologies, LLC.
V2.1_06012021
Digital Phase Converter
222 Disk Drive
Rapid City, SD 57702
Phone: [phone]
Fax: [phone]
Toll Free: 866-250-7934
www.phasetechnologies.com

iii | P a g e
V2.1
INTRODUCTION
The Phase Perfect®Digital Phase Converter converts single-phase AC power to
three-phase AC power to operate a variety of electrical equipment. The Phase Perfect®
delivers unmatched, three-phase voltage balance and operates at 98.7% efficiency.
Output voltage is sinusoidal with low harmonic content, making it safe to operate
sensitive electronic equipment. The Phase Perfect®was designed to comply with IEEE
519 to meet utility regulatory standards.

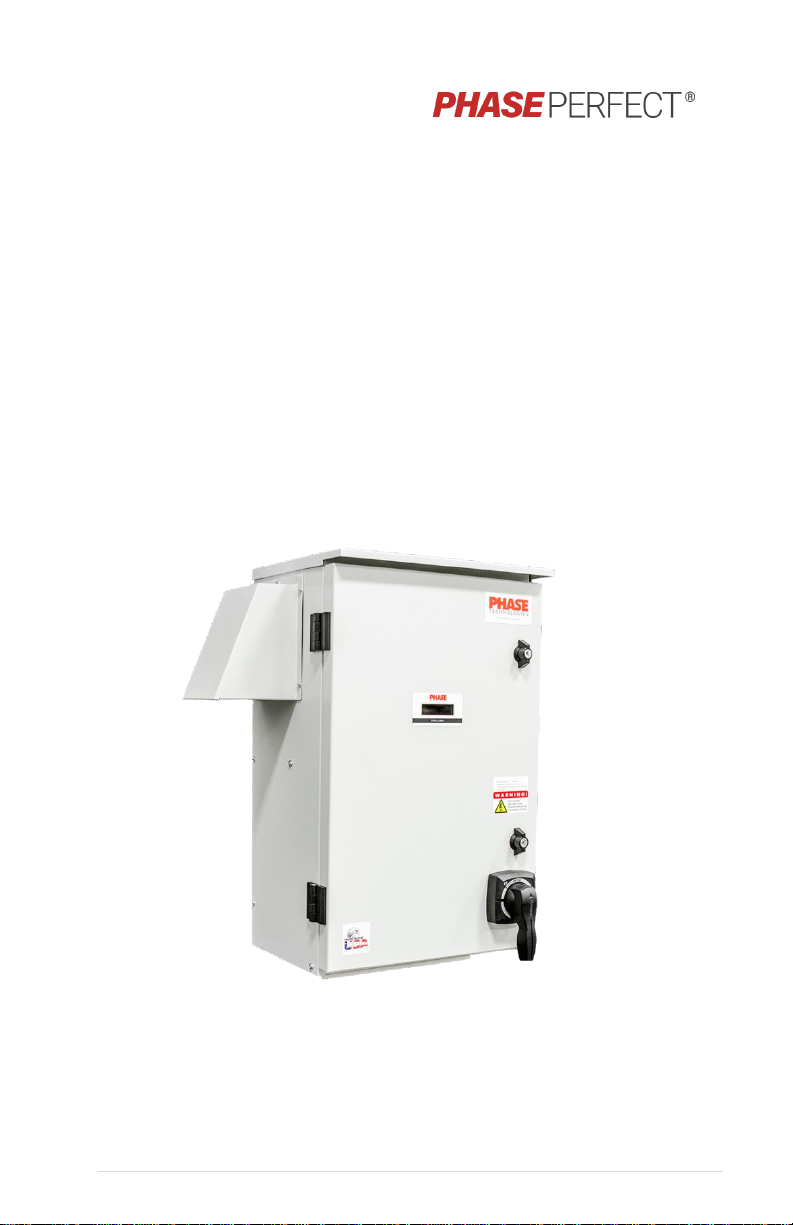

Phase Perfect®Digital Phase Converters are available in NEMA 1 indoor enclosures
and NEMA 3R outdoor enclosures with insect guards.
Digital Phase Converter

iv | P a g e
V2.1
SAFETY MESSAGES AND WARNINGS
To ensure safe and reliable operation of the Phase Perfect®, it is important to carefully
read this manual and to observe all warning labels attached to the unit before installing.
Please follow all instructions exactly and keep this manual with the unit for quick and
easy reference.
Definitions of Warning Signs and Symbols
CAUTION: Indicates a potentially hazardous situation that could result in injury or
damage to the product.
WARNING: Indicates a potentially hazardous situation that could result in serious
injury or death.
HIGH VOLTAGE: The voltage associated with the procedures referenced could
result in serious injury or death. Use caution and follow instructions carefully.
READ THESE WARNINGS BEFORE INSTALLING
OR OPERATING EQUIPMENT!
WARNING: Risk of electric shock. More than one disconnect switch may be
required to de-energize the equipment before servicing.
WARNING: Risk of electric shock. De-energize the unit by disconnecting all
incoming sources of power, then wait 30 minutes for internal charges to dissipate
before servicing the equipment.
HIGH VOLTAGE: This equipment is connected to line voltages that can create a
potentially hazardous situation. Electric shock could result in serious injury or death.
This device should be installed and serviced only by trained, licensed, and qualified
personnel. Follow instructions carefully and observe all warnings.
WARNING: Installation of this equipment must comply with the National Electrical
Code (NEC) and all applicable local codes. Failure to observe and comply with these
codes could result in risk of electric shock, fire, or damage to the equipment.
CAUTION: Circuit breakers, fuses, proper ground circuits, and other safety
equipment and their proper installation are not provided by Phase Technologies, LLC,
and are the responsibility of the end user.
CAUTION: Failure to maintain adequate clearance may lead to overheating of the
unit and cause damage or fire.

v | P a g e
V2.1
WARNING: Input power connections should be made by a qualified electrician
into circuit with adequate voltage and current carrying capacity for the model. Branch
circuit protection to the unit should be provided by appropriately sized fuses or a 2-pole
circuit breaker.
CAUTION: Use 600 V vinyl-sheathed wire or equivalent. The voltage drop of the
leads needs to be considered in determining wire size. Voltage drop is dependent on
wire length and gauge. Use only copper conductors.
CAUTION: Wires fastened to the terminal blocks shall be secured by tightening
the terminal screws to a torque value listed in Table 14 - Table 17.
CAUTION: The input wire gauge must be sized for the single-phase input current,
which will be significantly larger than the three-phase output current to the load. The
minimum wire gauge for the input terminals is listed in Table 13.
CAUTION: Never allow bare wire to contact metal surfaces.
CAUTION: Never connect AC main power to the output terminals T1, T2, and T3.
WARNING: Under certain conditions, the motor load may automatically restart
after a trip has stopped it. Make sure power to the converter has been disconnected
before approaching or servicing the equipment. Otherwise, serious injury may occur.

vi | P a g e
V2.1
TABLE OF CONTENTS
THEORY OF OPERATION ..........................................................................................1
BLOCK DIAGRAM........................................................................................................1
MODELS AND RATINGS ............................................................................................2
SPECIFICATIONS.......................................................................................................3
GENERAL SPECIFICATIONS .........................................................................................3
ELECTRICAL SPECIFICATIONS .....................................................................................3
MECHANICAL SPECIFICATIONS....................................................................................5
DIMENSIONAL DRAWINGS ...........................................................................................7
INSTALLATION.........................................................................................................12
MOUNTING YOUR NEW PHASE PERFECT ...................................................................12
MOUNTING BRACKET INSTALLATION ..........................................................................12
PROPER VENTILATION..............................................................................................12
SERVICE ENTRANCE EQUIPMENT ..............................................................................12
SOURCE BRANCH CIRCUIT PROTECTION....................................................................12
GROUNDING............................................................................................................13
WIRE SIZING ...........................................................................................................15
CONNECTING THE LOAD ...........................................................................................15
CONNECTING TO FIELD WIRING TERMINALS ...............................................................18
ROUTING POWER CABLES ........................................................................................20
ON/OFF CONTROL WIRING......................................................................................21
OPERATION..............................................................................................................23
LCD STATUS SCREEN..............................................................................................23
DIP SWITCH SETTINGS ............................................................................................23
DISABLE AUTO-RESTARTS........................................................................................24
BYPASS AUX INPUTS...............................................................................................24
ENABLE VFD MODE.................................................................................................24
TRANSFORMER MODE..............................................................................................25
ELEVATOR MODE.....................................................................................................26
VOLTAGE CALIBRATION ............................................................................................24
STARTUP DELAY......................................................................................................27
INFINITE RESTARTS..................................................................................................28
FAULT CODES .........................................................................................................29
FAULTS:MANUAL RESTART ......................................................................................29
FAULT LOG..............................................................................................................30
TROUBLESHOOTING TIPS......................................................................................31
ROUTINE INSPECTION AND MAINTENANCE.........................................................32
LINE FILTER CAPACITORS.........................................................................................32
FUSES ....................................................................................................................35
MOTOR STARTING/OVERLOAD CAPABILITIES ....................................................37
NOTES.......................................................................................................................40
WARRANTY POLICY................................................................................................41

1 | Page
V2.1
THEORY OF OPERATION
L1 and L2 of the single-phase input pass directly through the phase converter to provide
two legs of the three-phase output. The input module charges a DC bus from the input
lines. The output module uses power from the DC bus to generate the third leg of the three-
phase output. The third leg is generated to limit voltage imbalance between the three legs
to ≤ 2%. Voltage imbalance is calculated according to the NEMA MG1 standard.
 

Where:
   

  󰇛   󰇜
Block Diagram

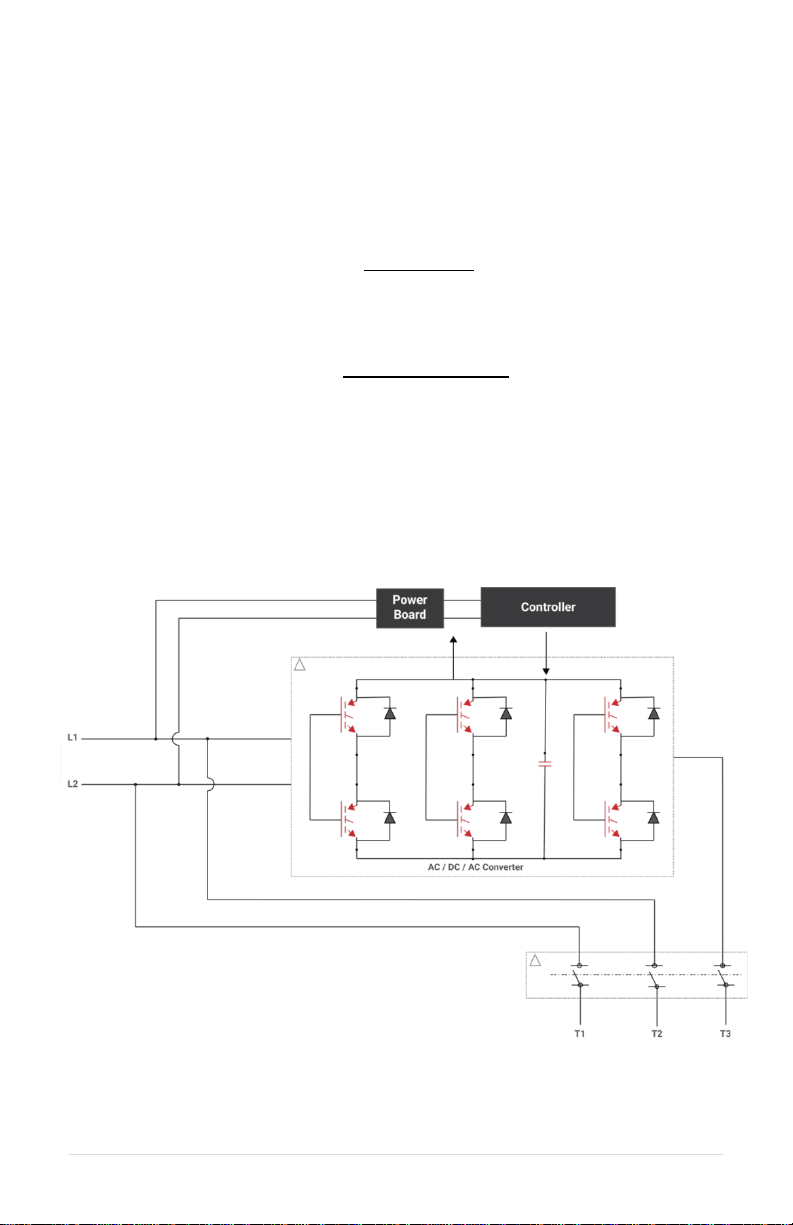

The diagram in Figure 1 illustrates the basic design schematic of the Phase Perfect Digital
Phase Converter.
Figure 1 –Phase Perfect Digital Phase Converter Schematic

2 | Page
V2.1
MODELS AND RATINGS
Figure 2 –Phase Perfect Nomenclature
Figure 3 –Phase Perfect Enterprise Nomenclature

3 | Page
V2.1
SPECIFICATIONS
General Specifications
Table 1 –General Specifications
Output Voltage –Standard Models
Appx. equal to input voltage
Output Voltage –Voltage Doubling Models
480 VAC
Output Voltage Imbalance
≤2%
Operating Temperature
-10°C (14°F) to 50°C (122°F)
Operating Temperature –PTE020 & PTE420QT
-10°C (14°F) to 40°C (104°F)
Storage Temperature
-20°C (-4°F) to 60°C (140°F)
Efficiency –Standard Models
98.7%
Efficiency –Voltage-Doubling Models
95.0%
Short Circuit Withstand Rating
10kA
Audible Noise –PT Models
80 dBA
Audible Noise –PTE Models
85 dBA
Audible Noise –PTE “QT” Models
75 dBA
Start Delay on Power Up
2 sec
Electrical Specifications
Table 2 –240 V PT Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current (AAC)
Input
Voltage
Range
(VAC)
Max AC
Input
Current (A)
Standby
Power/Energy,
(W/BTU/hr)
Full Load
Energy
Loss
(BTU/hr)
PT007
7.5
10.8
26
187-260
45
70/239
479
PT010
10
14.9
36
62
74/252
661
PT020
20
26.6
64
111
80/273
1180
PT030
30
39.4
95
165
175/597
1752
PT040
40
54.0
130
225
190/648
2395
PT050
50
68.5
165
286
235/802
3043
PT060
60
78.9
190
329
260/887
3500
PT075
75
99.7
240
416
300/1024
4427

4 | Page
V2.1
Table 3 –240 V PTE Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current
(AAC)
Input
Voltage
Range
(VAC)
Max AC
Input
Current (A)
Standby
Power/Energy,
(W/BTU/hr)
Full Load
Energy
Loss
(BTU/hr)
PTE007
PTE007QT
7.5
10.8
26
187-260
45
70/239
479
PTE010
PTE010QT
10
14.9
36
62
74/252
661
PTE015
15
21.6
52
90
77/263
958
PTE020
20
26.6
64
111
80/273
1180
Table 4 –Voltage Doubling PTE Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current (AAC)
Input
Voltage
Range
(VAC)
Max AC
Input
Current (A)
Standby
Power/Energy
(W/BTU/hr)
Full Load
Energy Loss
(BTU/hr)
PTE207
7.5
10.8
13
187-260
45
1938
PTE210
10
14.9
18
62
2685
PTE215
15
22.4
27
94
4029
PTE220
20
26.6
32
111
4777
Table 5 –480 V PT Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current (AAC)
Input
Voltage
Range
(VAC)
Max AC
Input
Current (A)
Standby
Power/Energy,
(W/BTU/hr)
Full Load
Energy
Loss
(BTU/hr)
PT407
7.5
10.8
13
440-520
22
52/177
479
PT410
10
14.9
18
32
68/232
661
PT415
15
22.4
27
47
71/242
994
PT420
20
26.6
32
55
74/252
1180
PT430
30
38.2
46
80
87/297
1694
PT440
40
50.7
61
105
180/614
2249
PT450
50
64
77
134
190/648
2839
PT460
60
75.6
91
157
220/751
3358
PT475
75
88.9
107
185
270/921
3992
PT4100
100
118
142
246
300/1024
5239
