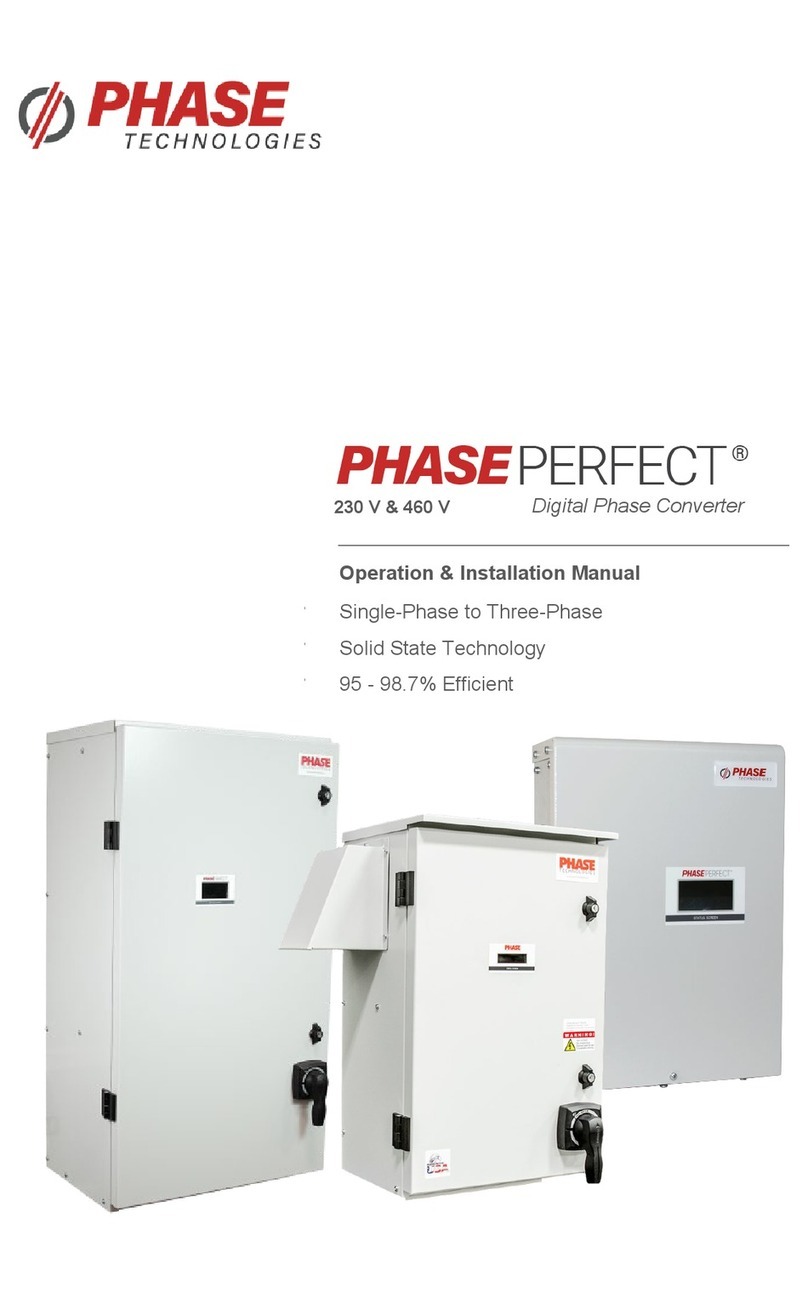

Phase Technologies Phase Perfect PT007 User manual

Digital Phase Converter
Operation & Installation Manual
•Single-Phase to Three-Phase
•Solid State Technology
•98.7% Efficient
240V & 480V

ii | P a g e
V2.0
Product Manual
2021 © Copyright.V2.0 All rights reserved. All contents are property of Phase Technologies, LLC.
No portion of this publication or its contents may be duplicated by any means, electronic or otherwise, without the
express written consent of Phase Technologies, LLC.
V2.0_04072021
Digital Phase Converter
222 Disk Drive
Rapid City, SD 57702
Phone: [phone]
Fax: [phone]
Toll Free: 866-250-7934
www.phasetechnologies.com

iii | P a g e
V2.0
INTRODUCTION
The Phase Perfect®Digital Phase Converter converts single-phase AC power to
three-phase AC power to operate a variety of electrical equipment. The Phase Perfect®
delivers unmatched, three-phase voltage balance and operates at 98.7% efficiency.
Output voltage is sinusoidal with low harmonic content, making it safe to operate
sensitive electronic equipment. The Phase Perfect®was designed to comply with IEEE
519 to meet utility regulatory standards.
Phase Perfect®Digital Phase Converters are available in NEMA 1 indoor enclosures
and NEMA 3R outdoor enclosures with insect guards.
Digital Phase Converter

iv | P a g e
V2.0
SAFETY MESSAGES AND WARNINGS
To ensure safe and reliable operation of the Phase Perfect®, it is important to carefully
read this manual and to observe all warning labels attached to the unit before installing.
Please follow all instructions exactly and keep this manual with the unit for quick and
easy reference.
Definitions of Warning Signs and Symbols
CAUTION: Indicates a potentially hazardous situation that could result in injury or
damage to the product.
WARNING: Indicates a potentially hazardous situation that could result in serious
injury or death.
HIGH VOLTAGE: The voltage associated with the procedures referenced could
result in serious injury or death. Use caution and follow instructions carefully.
READ THESE WARNINGS BEFORE INSTALLING
OR OPERATING EQUIPMENT!
WARNING: Risk of electric shock. More than one disconnect switch may be
required to de-energize the equipment before servicing.
WARNING: Risk of electric shock. De-energize the unit by disconnecting all
incoming sources of power, then wait 30 minutes for internal charges to dissipate
before servicing the equipment.
HIGH VOLTAGE: This equipment is connected to line voltages that can create a
potentially hazardous situation. Electric shock could result in serious injury or death.
This device should be installed and serviced only by trained, licensed, and qualified
personnel. Follow instructions carefully and observe all warnings.
WARNING: Installation of this equipment must comply with the National Electrical
Code (NEC) and all applicable local codes. Failure to observe and comply with these
codes could result in risk of electric shock, fire, or damage to the equipment.
CAUTION: Circuit breakers, fuses, proper ground circuits, and other safety
equipment and their proper installation are not provided by Phase Technologies, LLC,
and are the responsibility of the end user.
CAUTION: Failure to maintain adequate clearance may lead to overheating of the
unit and cause damage or fire.

v | P a g e
V2.0
WARNING: Input power connections should be made by a qualified electrician
into circuit with adequate voltage and current carrying capacity for the model. Branch
circuit protection to the unit should be provided by appropriately sized fuses or a 2-pole
circuit breaker.
CAUTION: Use 600 V vinyl-sheathed wire or equivalent. The voltage drop of the
leads needs to be considered in determining wire size. Voltage drop is dependent on
wire length and gauge. Use only copper conductors.
CAUTION: Wires fastened to the terminal blocks shall be secured by tightening
the terminal screws to a torque value listed in Table 12 - Table 15.
CAUTION: The input wire gauge must be sized for the single-phase input current,
which will be significantly larger than the three-phase output current to the load. The
minimum wire gauge for the input terminals is listed in Table 11.
CAUTION: Never allow bare wire to contact metal surfaces.
CAUTION: Never connect AC main power to the output terminals T1, T2, and T3.
WARNING: Under certain conditions, the motor load may automatically restart
after a trip has stopped it. Make sure power to the converter has been disconnected
before approaching or servicing the equipment. Otherwise, serious injury may occur.

vi | P a g e
V2.0
TABLE OF CONTENTS
THEORY OF OPERATION ..........................................................................................1
BLOCK DIAGRAM........................................................................................................1
MODELS AND RATINGS ............................................................................................2
SPECIFICATIONS.......................................................................................................3
GENERAL SPECIFICATIONS .........................................................................................3
ELECTRICAL SPECIFICATIONS .....................................................................................3
MECHANICAL SPECIFICATIONS....................................................................................5

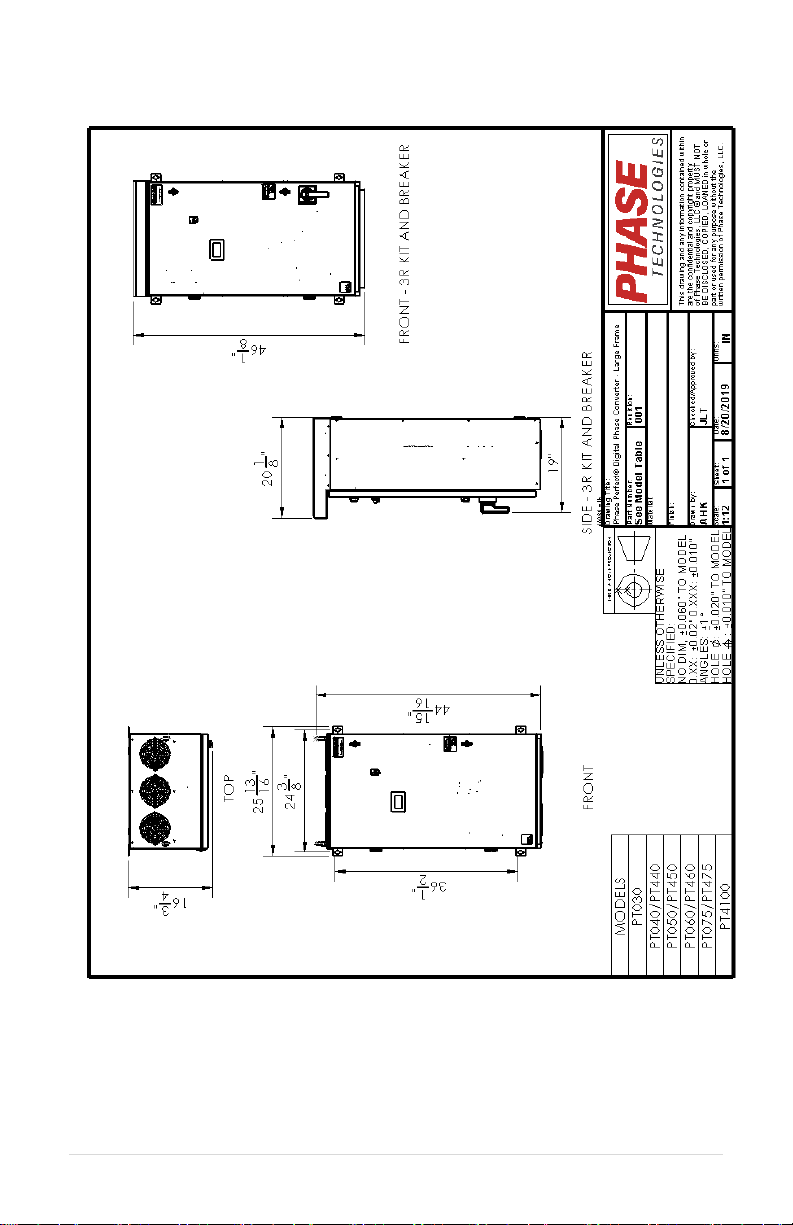

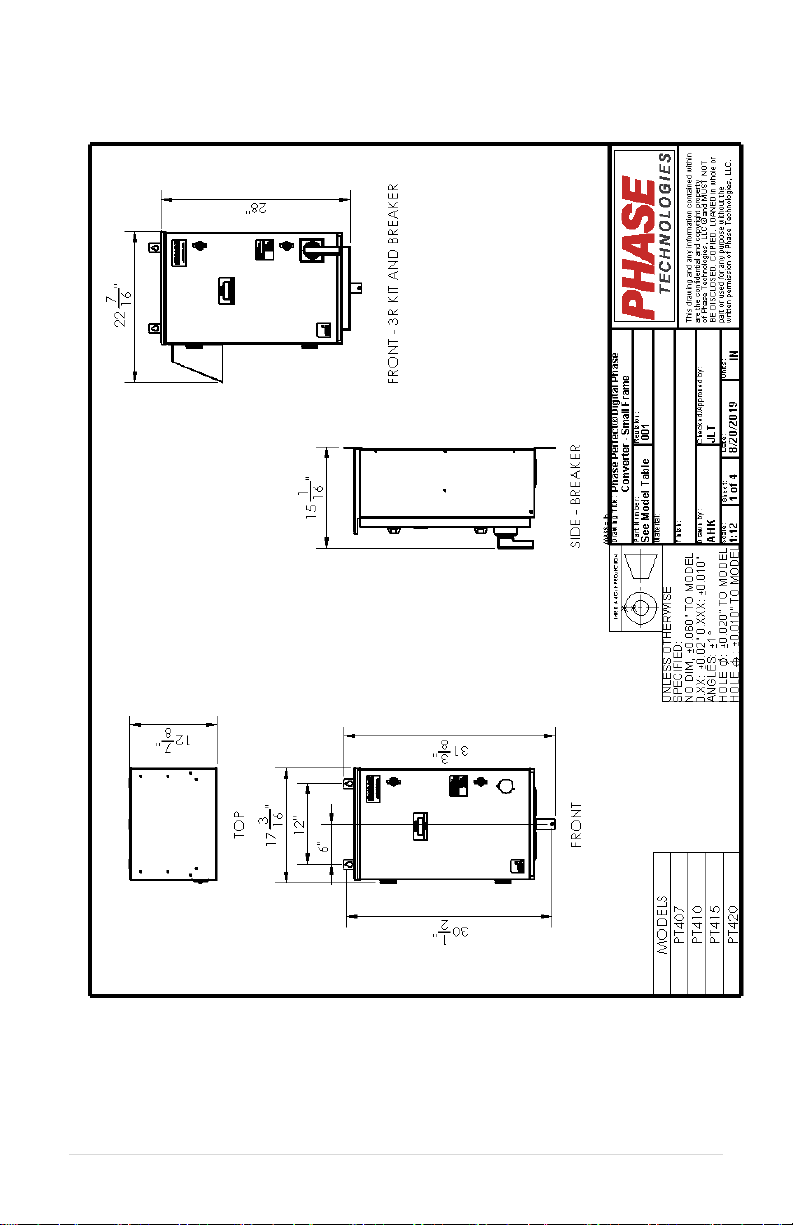

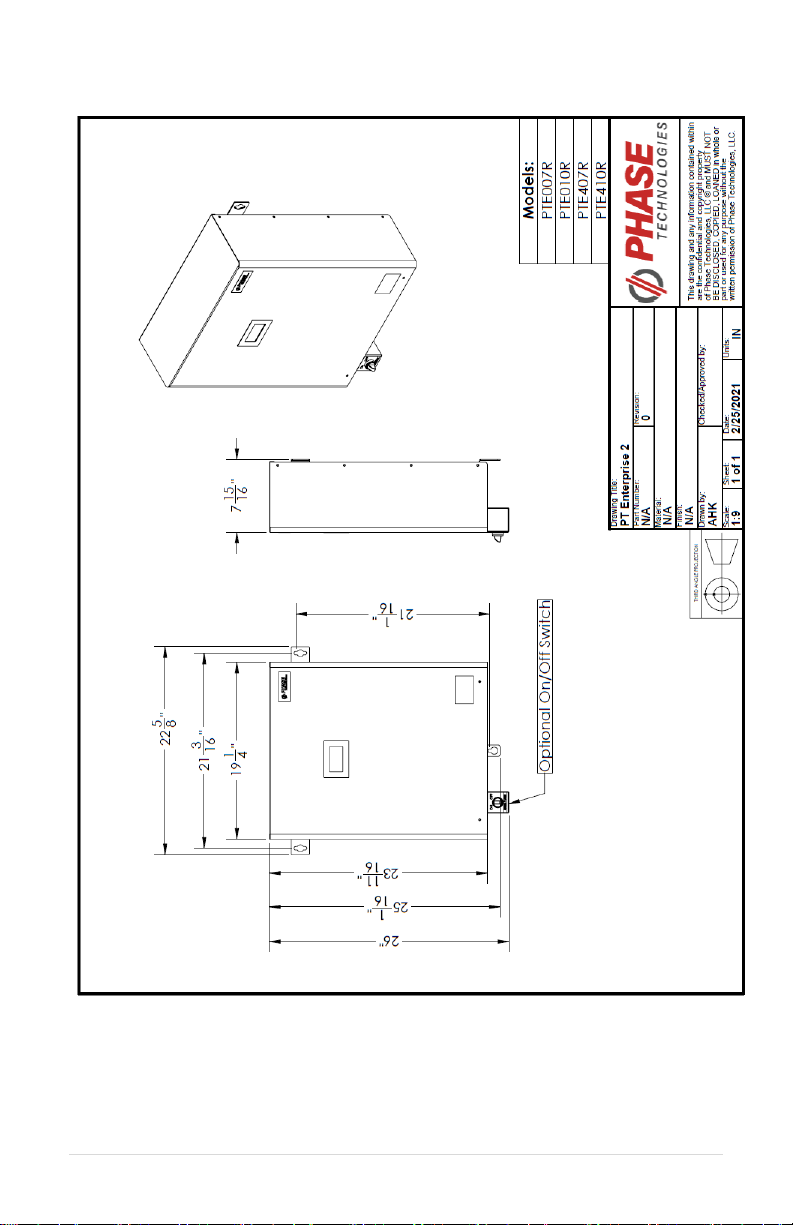

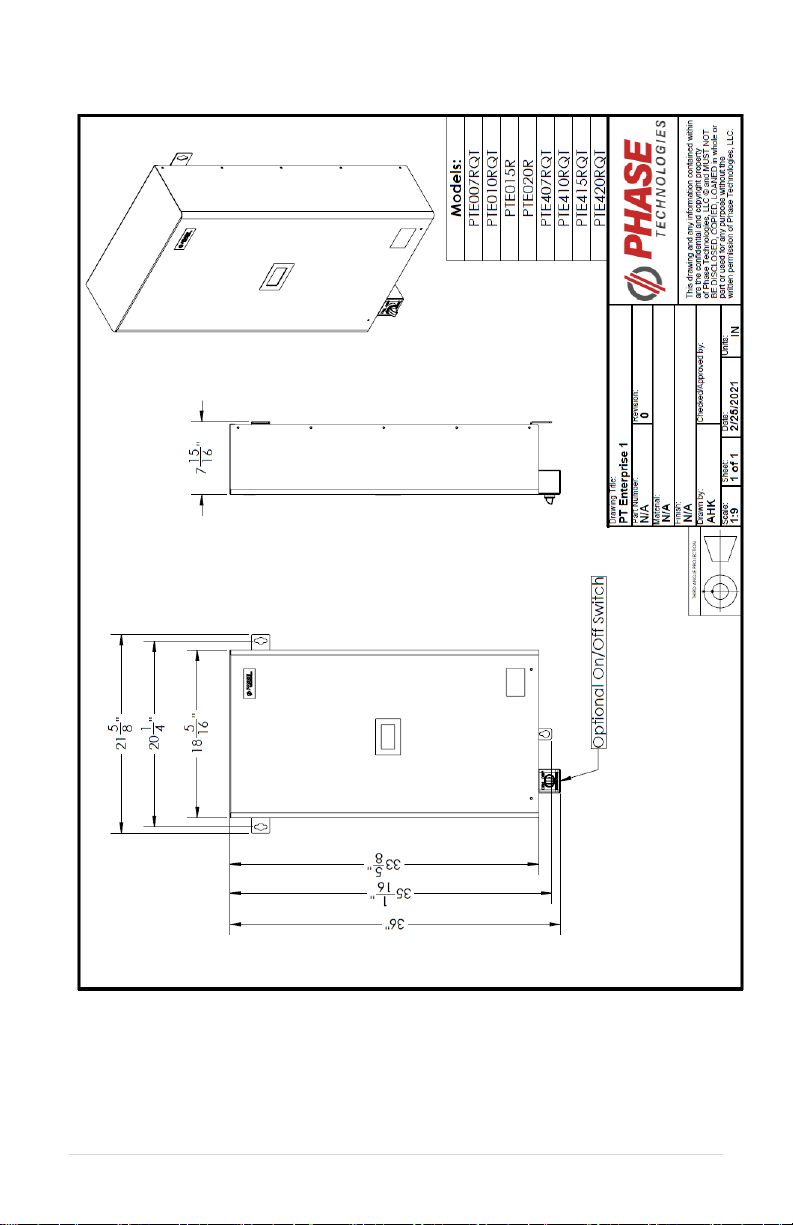

DIMENSIONAL DRAWINGS ...........................................................................................6
INSTALLATION.........................................................................................................11
MOUNTING YOUR NEW PHASE PERFECT ...................................................................11
MOUNTING BRACKET INSTALLATION ..........................................................................11
PROPER VENTILATION..............................................................................................11
SERVICE ENTRANCE EQUIPMENT ..............................................................................11
SOURCE BRANCH CIRCUIT PROTECTION....................................................................11
GROUNDING............................................................................................................12
WIRE SIZING ...........................................................................................................14
CONNECTING THE LOAD ...........................................................................................14
CONNECTING TO FIELD WIRING TERMINALS ...............................................................17
ROUTING POWER CABLES ........................................................................................19
ON/OFF CONTROL WIRING......................................................................................20
OPERATION..............................................................................................................22
LCD STATUS SCREEN..............................................................................................22
DIP SWITCH SETTINGS ............................................................................................22
DISABLE AUTO-RESTARTS........................................................................................23
BYPASS AUX INPUTS...............................................................................................23
ENABLE VFD MODE.................................................................................................23
TRANSFORMER MODE..............................................................................................23
ELEVATOR MODE.....................................................................................................24
VOLTAGE CALIBRATION ............................................................................................25
FAULT CODES .........................................................................................................25
FAULTS:MANUAL RESTART ......................................................................................26
FAULT LOG..............................................................................................................26
TROUBLESHOOTING TIPS......................................................................................28
ROUTINE INSPECTION AND MAINTENANCE.........................................................29
LINE FILTER CAPACITORS.........................................................................................29
FUSES ....................................................................................................................32
MOTOR STARTING/OVERLOAD CAPABILITIES ....................................................34
WARRANTY POLICY................................................................................................37

1 | Page
V2.0
THEORY OF OPERATION
L1 and L2 of the single-phase input pass directly through the phase converter to provide
two legs of the three-phase output. The input module charges a DC bus from the input
lines. The output module uses power from the DC bus to generate the third leg of the three-
phase output. The third leg is generated to limit voltage imbalance between the three legs
to ≤ 2%. Voltage imbalance is calculated according to the NEMA MG1 standard.
 

Where:
   

  󰇛   󰇜
Block Diagram

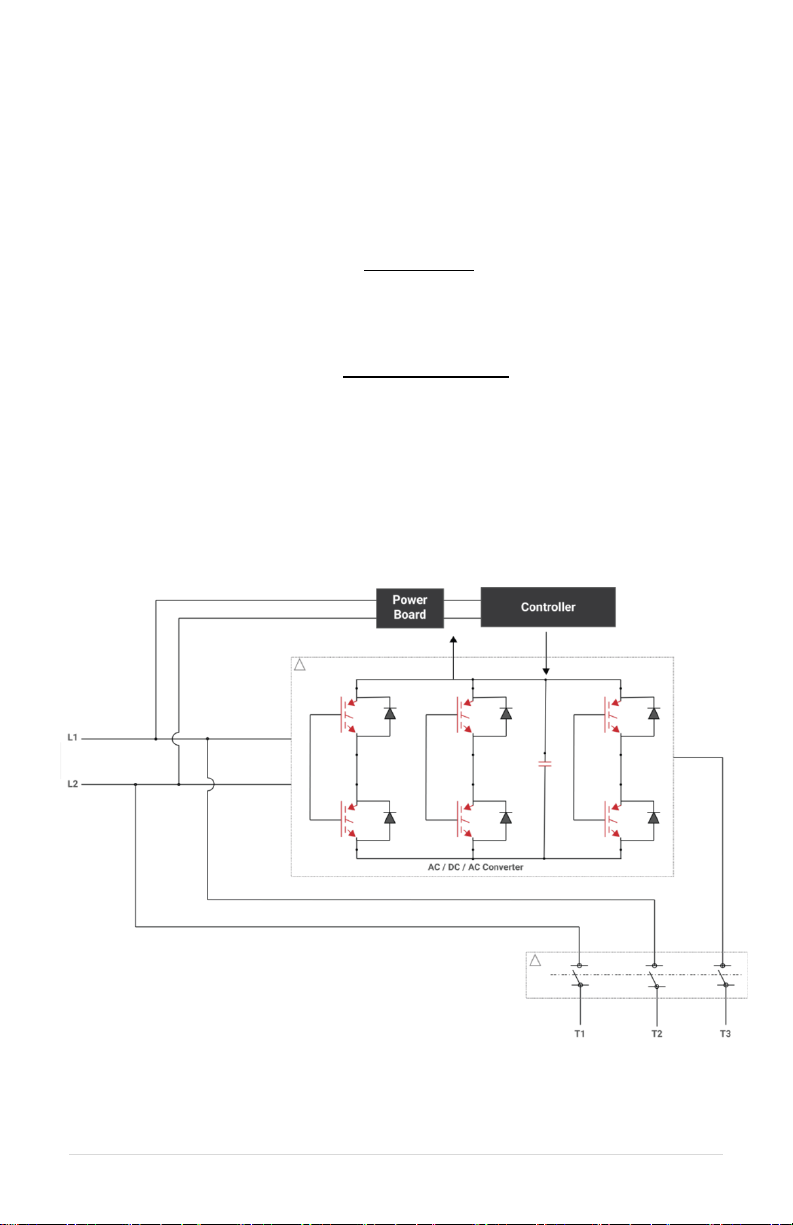

The diagram in Figure 1 illustrates the basic design schematic of the Phase Perfect Digital
Phase Converter.
Figure 1 –Phase Perfect Digital Phase Converter Schematic

2 | Page
V2.0
MODELS AND RATINGS
Figure 2 –Phase Perfect Nomenclature
Figure 3 –Phase Perfect Enterprise Nomenclature

3 | Page
V2.0
SPECIFICATIONS
General Specifications
Table 1 –General Specifications
Output Voltage
Appx. equal to input voltage
Output Voltage Imbalance
≤2%
Operating Temperature
-10°C (14°F) to 50°C (122°F)
Operating Temperature –PTE020 & PTE420QT
-10°C (14°F) to 40°C (104°F)
Storage Temperature
-20°C (-4°F) to 60°C (140°F)
Efficiency
98.7%
Short Circuit Withstand Rating
10kA
Audible Noise –PT Models
80 dBA
Audible Noise –PTE Models
85 dBA
Audible Noise –PTE “QT” Models
75 dBA
Start Delay on Power Up
2 sec
Electrical Specifications
Table 2 –240 V PT Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current (AAC)
Input
Voltage
Range
(VAC)
Max AC
Input
Current,
Typical (A)
Standby
Power/Energy,
Typical
(W/BTU/hr)
Preliminary
Full Load
Energy
Loss-
Typical
(BTU/hr)
PT007
7.5
10.8
26
187-260
45
70/239
479
PT010
10
14.9
36
62
74/252
661
PT020
20
26.6
64
111
80/273
1180
PT030
30
39.5
95
165
175/597
1752
PT040
40
54.0
130
225
190/648
2395
PT050
50
68.6
165
286
235/802
3043
PT060
60
78.9
190
329
260/887
3500
PT075
75
99.8
240
416
300/1024
4427

4 | Page
V2.0
Table 3 –240 V PTE Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current
(AAC)
Input
Voltage
Range
(VAC)
Max AC
Input
Current,
Typical (A)
Standby
Power/Energy,
Typical
(W/BTU/hr)
Preliminary
Full Load
Energy
Loss-
Typical
(BTU/hr)
PTE007
PTE007QT
7.5
10.8
26
187-260
45
70/239
479
PTE010
PTE010QT
10
14.9
36
62
74/252
661
PTE015
15
21.6
52
90
77/263
958
PTE020
20
26.6
64
111
80/273
1180
Table 4 –480 V PT Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current (AAC)
Input
Voltage
Range
(VAC)
Maximum
AC Input
Current,
Typical (A)
Standby
Power/Energy,
Typical
(W/BTU/hr)
Preliminary
Full Load
Energy
Loss-
Typical
(BTU/hr)
PT407
7.5
10.8
13
440-520
22
52/177
479
PT410
10
14.9
18
32
68/232
661
PT415
15
22.4
27
47
71/242
994
PT420
20
26.6
32
55
74/252
1180
PT430
30
38.2
46
80
87/297
1694
PT440
40
50.7
61
105
180/614
2249
PT450
50
64
77
134
190/648
2839
PT460
60
75.7
91
157
220/751
3358
PT475
75
90
107
185
270/921
3992
PT4100
100
118
142
246
300/1024
5239
Table 5 –480 V PTE Models and Ratings
Model
Power
(HP)
Output
(kVA)
Max Steady
State Output
Current (AAC)
Input
Voltage
Range
(VAC)
Maximum
AC Input
Current,
Typical
(A)
Standby
Power/Energy,
Typical
(W/BTU/hr)
Preliminary
Full Load
Energy
Loss-
Typical
(BTU/hr)
PTE407
PTE407QT
7.5
10.8
13
440-520
22
52/177
479
PTE410
PTE410QT
10
14.9
18
32
68/232
661
PTE415QT
15
22.4
27
48
71/242
994
PTE420QT
20
26.6
32
55
74/252
1180

5 | Page
V2.0
Mechanical Specifications
Table 6 –240 V PT Models –Enclosure Specifications
Models
PT007
PT010
PT020
PT030
PT040
PT050
PT060
PT075
Dimensions
Indoor: NEMA 1
(H x W x D)*
36 15/16” x 25 3/8” x 17 1/16”
44 15/16” x 25 13/16” x 19”
Dimensions
Outdoor: NEMA 3R
(H x W x D)*
37 7/16” x 25 3/8” x 19 5/16”
46 1/8” x 25 13/16” x 20 1/8”
Weight (lbs)
102
104
129
222
233
251
255
288
Table 7 –240 V PTE Models –Enclosure Specifications
Models
PTE007
PTE007QT
PTE010
PTE010
QT
PTE015
PTE020
Dimensions
Outdoor: NEMA 3R
(H x W x D)*
25 1/16" x 22 5/8"
x 7 15/16"
35 1/16" x 21 5/8"
x 7 15/16"
25 1/16" x
22 5/8" x
7 15/16"
35 1/16" x 21 5/8" x 7 15/16"
Weight (lbs)
51
60
51
65
71
72
Table 8 –480V PT Models - Enclosure Specifications
Models
PT407
PT410
PT415
PT420
PT430
PT440
PT450
PT460
PT475
PT4100
Indoor:
NEMA 1
(HxWxD)
31 3/8” x 17 3/16” x 15 1/16”
36 15/16”x
25 3/8”x
17 1/16”
44 15/16” x 25 13/16” x 19”
Outdoor:
NEMA 3R
(HxWxD)*
31 3/8” x 22 7/16” x 15 1/16”
37 7/16” x
25 3/8” x
19 5/16”
46 1/8” x 25 13/16” x 20 1/8”
Weight
(lbs)
70
74
80
80
141
242
246
256
268
305
Table 9 –480V PTE Models - Enclosure Specifications
Models
PTE407
PTE407QT
PTE410
PTE410QT
PTE415QT
PTE420QT
Dimensions
Outdoor: NEMA 3R
(H x W x D)*
25 1/16" x 22 5/8"
x 7 15/16"
35 1/16" x 21 5/8"
x 7 15/16"
25 1/16" x
22 5/8" x 7
15/16"
35 1/16" x 21 5/8" x 7 15/16"
Weight (lbs)
56
65
56
66
70
72
*Note: Dimensions are maximum measurements including mounting hardware and optional
MCCB handle, where applicable. Weights include MCCB

6 | Page
V2.0
Dimensional Drawings
Figure 4 –PT Small Frame Dimensions

7 | Page
V2.0
Figure 5 –PT Medium Frame Dimensions

8 | Page
V2.0
Figure 6 –PT Large Frame Dimensions

9 | Page
V2.0
Figure 7 –PTE Frame 1

10 | Page
V2.0
Figure 8 –PTE Frame 2

11 | Page
V2.0
INSTALLATION
Mounting Your New Phase Perfect
Proper installation of the unit is important to the performance and normal operating life of
the unit. The unit should be installed in a location free from:
•Corrosive gases or liquids
•Excessive vibration
•Airborne metallic particles
Mount the unit to a solid, non-flammable surface capable of bearing the weight using the
mounting brackets provided with the unit. Model weights are found in Table 6 –Table 9.
Mounting Bracket Installation
For shipping purposes, mounting brackets may be installed upside down, or shipped
separately in a bag. If the mounting brackets are not installed in an upright position,
remove the mounting screws, turn to an upright position, and then fasten the screws tightly.
Proper Ventilation
To maintain air circulation for adequate cooling, minimum clearance around the unit must
be maintained. Allow six inches on each side and top, and at least 18 inches below.
Ensure air intake and exhaust openings are not obstructed. If the unit is mounted in a small
room, cabinet, or building, ensure there is adequate ventilation to provide sufficient cooling.
Service Entrance Equipment
Phase Perfect phase converters are suitable for use as service equipment when the
molded case circuit breaker (MCCB)/disconnect, service ground conductor terminal, and
grounding electrode conductor are factory installed and the converter is labeled “Suitable
for use as Service Equipment.” Consult local electrical code for installation guidance.
Source Branch Circuit Protection
If a circuit breaker is not factory installed, branch circuit protection must be installed in the
circuit sourcing the phase converter. See Table 10 for recommended circuit breaker sizing.
Fuses may be used for circuit protection, consult local electrical code for proper sizing.
Installation of a disconnection means within sight of the phase converter is recommended.

12 | Page
V2.0
Grounding
•Properly ground the phase converter according to local electrical code.
•Connect the ground lug to the branch circuit or service ground conductor.
•Ground the phase converter with an adequately sized conductor according to
local electrical code.
•Ground wire recommendations based on solid to semi-rigid stranded copper
wire.
Table 10 –Ground Wire Specifications
Models
Recommended
Circuit Breaker (A)
Wire Range (AWG)
Min
Max
PT007/PTE007
60
10
2
PT010/PTE010
80
8
2
PTE015
125
6
2
PT020/PTE020
150
6
2
PT030
225
4
2
PT040
300
4
2
PT050
400
3
2/0
PT060
450
2
2/0
PT075
600
1
2/0
PT407/PTE407
30
10
2
PT410/PTE410
40
10
2
PT415/PTE415
60
10
2
PT420/PTE420
70
8
2
PT430
100
8
2
PT440
150
6
2
PT450
175
6
2
PT460
200
6
2
PT475
250
4
2
PT4100
400
3
2/0
See terminal markings for additional wire size and torque information.

13 | Page
V2.0
Connecting Source Power
Table 11 –Input Wiring
Wire size recommendations based on 600 VAC copper wire, rated either 60°C or 75°C.
Assuming 86°F (30°C) ambient and no more than 3 current carrying conductors in raceway
or earth (directly buried). If phase converter will be in warmer environments, consult NEC
Handbook for temperature correction factor.
Input Wiring Recommendations
Min. Wire
Gauge (60°C)
Min. Wire
Gauge (75°C)
PT007/PTE007
4 AWG
6 AWG
PT010/PTE010
3 AWG
4 AWG
PTE015
1/0 AWG
1 AWG
PT020/PTE020
-
1/0 AWG
PT030
300 kcmil
4/0 AWG
PT040
-
350 kcmil
PT050
2 x 250 kcmil
2 x 3/0 AWG
PT060
2 x 300 kcmil
2 x 250 kcmil
PT075
2 x 500 kcmil
2 x 350 kcmil
PT407/PTE407
10 AWG
10 AWG
PT410/PTE410
8 AWG
8 AWG
PT415/PTE415
4 AWG
6 AWG
PT420/PTE420
4 AWG
4 AWG
PT430
1 AWG
3 AWG
PT440
-
1/0 AWG
PT450
-
2/0 AWG
PT460
250 kcmil
3/0 AWG
PT475
350 kcmil
250 kcmil
PT4100
2 x 250 kcmil
2 x 3/0 AWG

14 | Page
V2.0
Wire Sizing
Use Table 11 to find minimum guidelines on properly sizing input conductors according to
local electrical code. The voltage drop from the supply to the converter should be limited to
3% to ensure proper starting and operation of motor loads. Increase the wire gauge to
provide adequate voltage to the load. Ensure the wire gauge is suitable to the terminal
block.
Use the following formula to calculate line voltage drop.
  
󰇛󰇜
Connecting the Load
Do not connect single-phase loads to the manufactured leg, T3. This places unnecessary
load on the phase converter and may violate electrical code in some areas. Apply overload
and short circuit protection to protect load side conductors, motors, and other attached
loads according to local electrical code. For some motor loads and wiring configurations
load side short circuit protection may not be required. Consult local electrical code for
guidance.
Important Note:
If the connected load requires a wye configured power source with a neutral connection,
the load must be connected to the phase converter using a delta-wye isolation transformer.
Figure 9 –Delta Wye Wiring Diagram
