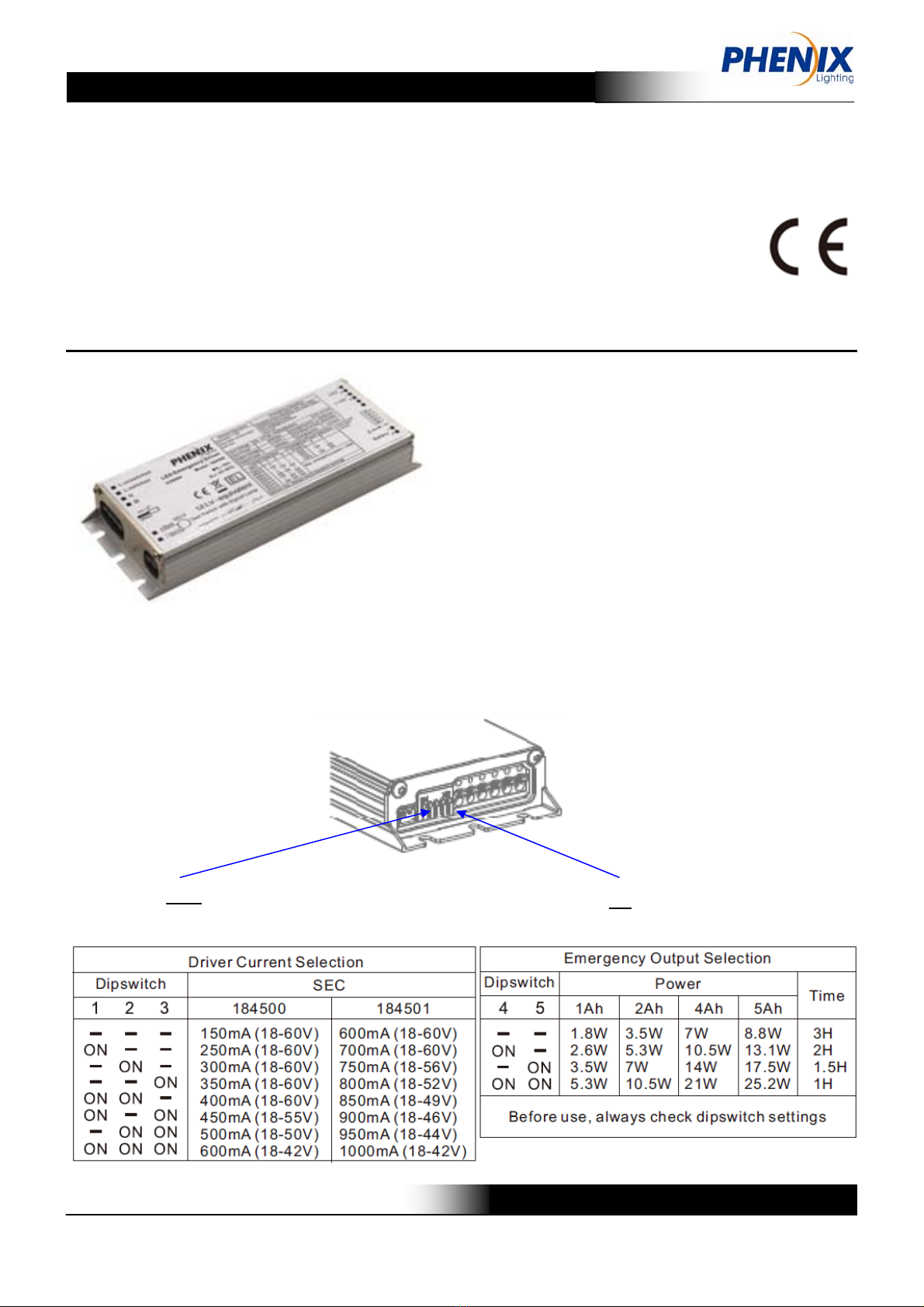

INTEGRATED LED AC + EMERGENCY DRIVER
18450X (184500/184501)
A1-EN
FEATURES
1. For normal and emergency operation of LEDs, no
need an extra AC LED driver
2. Constant current, multi-current selectable output
3. Normal mode LED soft start, emergency mode
conversion within 0.3 seconds
4. 1-10V dimmable
5. Emergency output (power and time) selectable
6. Auto Test
7. Slim aluminum housing
8. Suitable for indoor, dry and damp applications
Dipswitch 1/2/3: Setting LED working
current in normal mode
Dipswitch 4/5: Setting emergency output

Phenix Lighting (Xiamen) Co., Ltd
Create and share
14.04.2022
PDS
2/7
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: [phone] Fax: [phone] Web: www.phenixlighting.com
CHARACTERISTICS
Type 184500
Model 184500-A1-EN-8C1.0 184500-A1-EN-8C2.0 184500-A1-EN-8C4.0 184500-A1-EN-8C5.0
Rated voltage 120-2770VAC 50/60Hz
Rated current 0.15A 0.15A 0.16A 0.17A
Rated power 31W (Max.) 32W (Max.) 34W (Max.) 36W (Max.)
Emergency output
1.8W - 3 hours
2.6W - 2 hours
3.5W - 1.5 hours
5.3W - 1 hour
3.5W - 3 hours
5.3W - 2 hours
7W - 1.5 hours
10.5W - 1 hour
7W - 3 hours
10.5W - 2 hours
14W - 1.5 hours
21W - 1 hour
8.8W - 3 hours
13.1W - 2 hours
17.5W - 1.5 hours
25.2W - 1 hour
Output voltage 18-60VDC
Operation frequency 320kHz≥f≥50kHz
Power Factor ≥0.9
Battery 9.6V 1.0Ah, Ni-Cd 9.6V 2.0Ah, Ni-Cd 9.6V 4.0Ah, Ni-Cd 9.6V 5.0Ah, Ni-Cd
Charging time 24 Hours
Discharge time >90 Minutes
Charging current 0.05A 0.1A 0.2A 0.25A
Life time 5 years
Charging cycles >500
Operation
temperature 0-50℃(32°F-122°F)
Output current 150mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 600mA ±5%
Efficiency 75%
Abnormal protection Over load, Inrush current limiting, open circuit, short-circuit Protection with auto-reset
Wire 0.5-1.5mm2
EMC standard EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
Safety standard EN 61347-1, EN 61347-2-7, EN 61347-2-13,
Meas.module
mm [inch] L175 [6.89] x W65 [2.56] x H22 [0.87] Mounting Center: 167 [6.57]
Meas. battery pack
mm [inch]
9.6V 1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67] Mounting Center: 217 [8.54]
9.6V 2.0Ah: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] Mounting Center: 184 [7.24]
9.6V 4.0/5.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92]

Phenix Lighting (Xiamen) Co., Ltd
Create and share
14.04.2022
PDS
3/7
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: [phone] Fax: [phone] Web: www.phenixlighting.com
CHARACTERISTICS
Type 184501
Model 184501-A1-EN-8C1.0. 184501-A1-EN-8C2.0 184501-A1-EN-8C4.0 184501-A1-EN-8C5.0
Rated voltage 120-277VAC 50/60Hz
Rated current 0.24A 0.25A 0.26A 0.26A
Rated power 50W (Max.) 51W (Max.) 53W (Max.) 54W (Max.)
Emergency output
1.8W - 3 hours
2.6W - 2 hours
3.5W - 1.5 hours
5.3W - 1 hour
3.5W - 3 hours
5.3W - 2 hours
7W - 1.5 hours
10.5W - 1 hour
7W - 3 hours
10.5W - 2 hours
14W - 1.5 hours
21W - 1 hour
8.8W - 3 hours
13.1W - 2 hours
17.5W - 1.5 hours
25.2W - 1 hour
Output voltage 18-60VDC
Operation frequency 320kHz≥f≥50kHz
Power Factor ≥0.9
Battery 9.6V 1.0Ah, Ni-Cd 9.6V 2.0Ah, Ni-Cd 9.6V 4.0Ah, Ni-Cd 9.6V 5.0Ah, Ni-Cd
Charging time 24 Hours
Discharge time >90 Minutes
Charging current 0.05A 0.1A 0.2A 0.25A
Life time 5 years
Charging cycles >500
Operation
temperature 0-50℃(32°F-122°F)
Output current 600mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA ±5%
Efficiency 75%
Abnormal protection Over load, Inrush current limiting, open circuit, short-circuit Protection with auto-reset
Wire 0.5-1.5mm2
EMC standard EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
Safety standard EN 61347-1, EN 61347-2-7, EN61347-2-13
Meas.module
mm [inch] L195 [7.68] x W65 [2.56] x H22 [0.87] Mounting Center: 187 [7.36]
Meas. battery pack
mm [inch]
9.6V 1.0Ah: L228 [8.98] x W30 [1.18] x H17 [0.67] Mounting Center: 217 [8.54]
9.6V 2.0Ah: L195 [7.68] x W45.5 [1.79] x H24.5 [0.96] Mounting Center: 184 [7.24]
9.6V 4.0/5.0Ah: L263 [10.35] x W65 [2.56] x H35 [1.38] Mounting Center: 252 [9.92]

Phenix Lighting (Xiamen) Co., Ltd
Create and share
14.04.2022
PDS
4/7
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: [phone] Fax: [phone] Web: www.phenixlighting.com

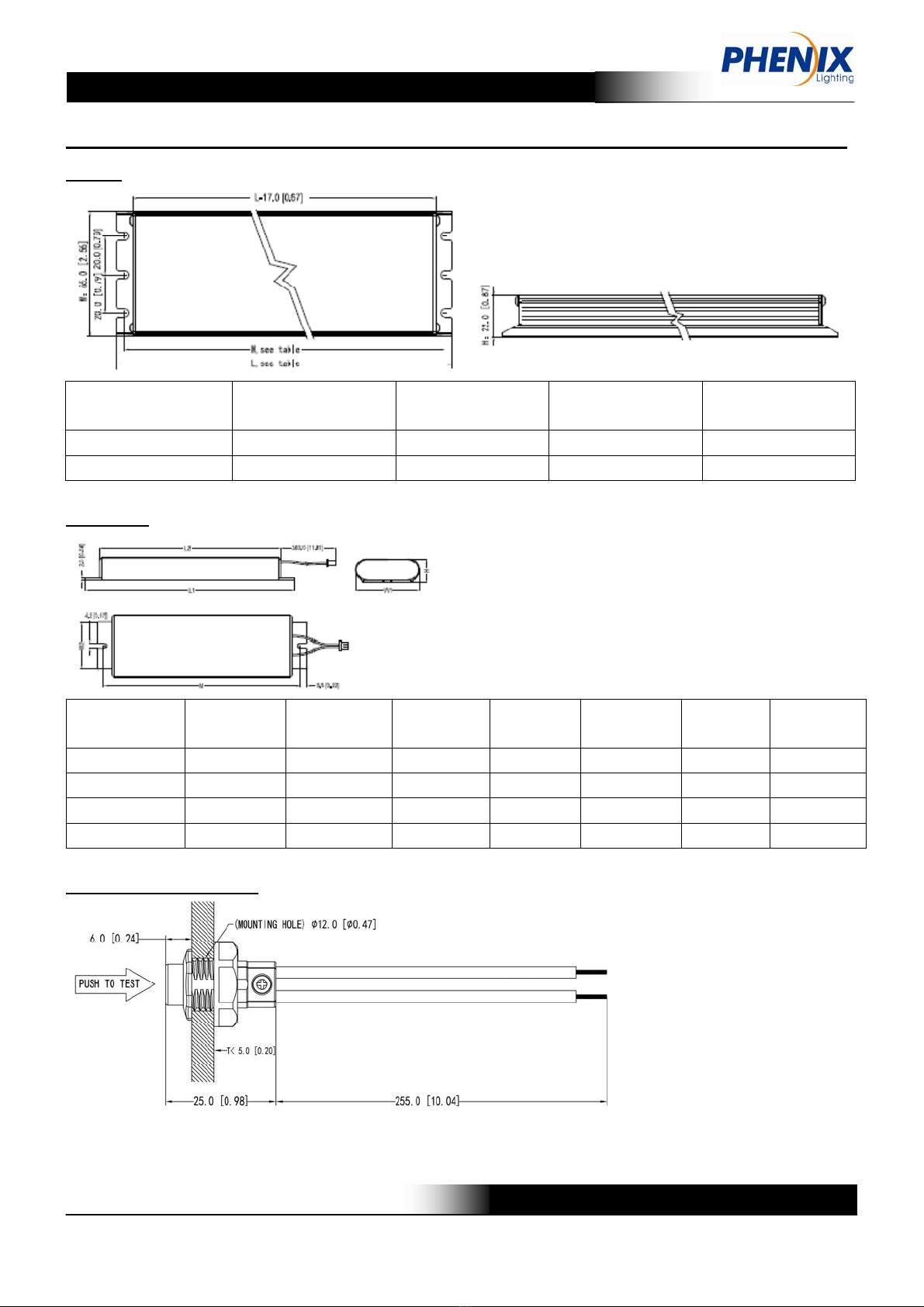

DIMENSIONS
18450X
BATTERY
Battery model Spec. L1
mm [inch]
L2
mm [inch]
M
mm [inch]
W1
mm [inch]
W2
Mm [inch]
H
mm [inch]
8C1.0 9.6V 1.0AH 228 [8.98] 195 [7.68] 217 [8.54] 30 [1.18] 20 [0.79] 17 [0.67]
8C2.0 9.6V 2.0AH 195 [7.68] 170 [6.69] 184 [7.24] 45.5 [1.79] 40 [1.57] 24.5 [0.96]
8C4.0 9.6V 4.0AH 263 [10.35] 236 [9.29] 252 [9.92] 65 [2.56] 40 [1.57] 35 [1.38]
8C5.0 9.6V 5.0AH 263 [10.35] 236 [9.29] 252 [9.92] 65 [2.56] 40 [1.57] 35 [1.38]
LED TEST SWITCH (LTS)
Dimension in millimetres [inches in brackets]
Tolerance:±1mm [0.04"]
Item No. L
mm [inch]
M
mm [inch]
W
mm [inch]
H
mm [inch]
184500 175 [6.89] 167 [6.57]) 65 [2.56] 22 [0.87]
184501 195 [7.68] 187 [7.36] 65 [2.56] 22 [0.87]

Phenix Lighting (Xiamen) Co., Ltd
Create and share
14.04.2022
PDS
5/7
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: [phone] Fax: [phone] Web: www.phenixlighting.com
WIRINGDIAGRAMS

Phenix Lighting (Xiamen) Co., Ltd
Create and share
14.04.2022
PDS
6/7
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: [phone] Fax: [phone] Web: www.phenixlighting.com
OPERATION/TESTING/MAINTENANCE
OPERATION
When AC power is applied, the LED test switch is illuminated, indicating that the batteries are being charged.
When AC power fails, the 18450X automatically switches to emergency power, operating the lighting load at
rated emergency power. During power failure, the LED test switch will be off. When the AC power is restored,
the emergency 18450X switches the system back to normal mode of operation and
resumes battery charging. The charging time for a full discharge is 24 hours.
TESTING AND MAINTENANCE
The following Periodic testing is recommended to ensure the system is working correctly.
1. Visually inspect the LED test switch (LTS) monthly. It should be illuminated when AC power is applied.
2. Conduct a 30-second discharge test by switching off the emergency breaker every month. The LTS will be
off.
3. Conduct a full discharge test once per year.
AUTO TEST
The 18450X has an Auto Test feature which saves cost by reducing the need for manual testing.
1. Initial Auto Test
When the system is connected properly and powered on, the 18450X will perform an initial Auto Test.
If any abnormal conditions exist, the LTS will blink quickly. Once the abnormal condition is corrected, the LTS
will function correctly.
2. Preprogrammed Scheduled Auto Test
a) The unit will conduct the first Monthly Auto Test after 24 hours and up to 7 days after initial power on. Then
monthly tests will be performed every 30 days.
b) Annual Auto test will occur every 52 weeks after initial power on.
- Monthly Auto Test
The Monthly Auto Test shall be executed every 30 days, and will test; Normal to emergency transfer
function, emergency, charging and discharging conditions are normal. Monthly test time is approximately
30 seconds.
- Annual Auto Test
Annual Auto Test will occur every 52 weeks after the initial 24 hours full charge, and will test; Proper initial
battery voltage, a full discharge operation and acceptable battery voltage at the end of the full discharge.
If the Auto Test is interrupted by a power failure, a full discharge Auto Test will occur again 24 hours after
the power is restored. If the power failure causes the battery to fully discharge, the product will restart the
Initial Auto Test and Preprogrammed Scheduled Auto Test.
MANUAL TEST
- Press the LTS one time to simulate emergency mode.
- Press the LTS 2 times continuously within 3 seconds to force a monthly test. After the test is completed, the
next (30-day) monthly test will count from this date.
- Press the LTS 3 times continuously within 3 seconds to force an annual test. After the test is completed, the
next (52-week) annual test will count from this date.
- During any manual test, press and hold the LTS for greater than 3 seconds to terminate a manual test. The
Preprogrammed Scheduled Auto Test time will not change.
LED TEST SWITCH CONDITIONS
- LTS Slow Blinking: Normal Charging
- LTS On: Battery Fully Charged - Normal Condition
- LTS Off: Power Failure
- LTS Gradual Change: In Testing Mode
- LTS Quickly Blinking: Abnormal Condition - Corrective Action Required

Phenix Lighting (Xiamen) Co., Ltd
Create and share
14.04.2022
PDS
7/7
No.89-3, Xiyuan Road, Xinyang Industrial Zone, Haicang, 361028 Xiamen, China.
Tel: [phone] Fax: [phone] Web: www.phenixlighting.com
SAFETYINSTRUCTIONS
1. To prevent electric shock, switch off the mains power supply until installation is complete and AC power is
supplied to this product.
2. This product requires an un-switched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National and any local regulations.
4.To reduce the risk of electrical shock, disconnect both normal and emergency power supplies and connector
of this product before servicing.
5. The product can operate with most LED lamps. For normal operation and emergency operation of LEDs, no
need an extra LED driver. The emergency power and time are selectable.
6. This product is suitable for use in dry or damp locations. Do not mount it near gas, heaters, air outlets or
other hazardous locations.
7. Use this product in 0°C minimum, 50°C maximum ambient temperatures.
8. Use caution when servicing batteries. Do not attempt to dismantle the batteries. Batteries'acid can cause
burns to skin and eyes. If acid is spilled on skin or in eyes, flush acid with fresh water and contact a physician
immediately.
9. As this product contains batteries, please be sure to store it in an indoor environment between -20°C ~
+30°C. It must be fully charged and discharged every 6 months from the date of purchase until it is officially put
into use, then recharged 30-50% and stored for another 6 months, and so on. If the battery is not used for
more than 6 months, it may cause excessive self-discharge of the battery, and the resulting reduction of battery
capacity is irreversible. For products with separate battery and emergency module, please disconnect the
connection between battery and module for storage. Due to its chemical properties, it is a normal situation for
the battery capacity to decline naturally during use. Users should take this into account when choosing
products.
10. The use of accessories equipment not recommended by the manufacturer may cause an unsafe condition.
11. Do not use this product for other than intended use.
12. The product should be mounted at locations and at heights where it will not be easily accessible to
unauthorized personnel.
13. Installation and servicing should be performed by qualified personnel.
14. Ensure product compatibility before final installation. Make sure the polarity is correct when connecting the
batteries. Wiring should be strictly in accordance with the wiring diagram, wiring errors will damage the product.
A case of safety accident or product failure caused by users' illegal operation does not belong to the scope of
customer complaint acceptance, compensation or product quality assurance.
