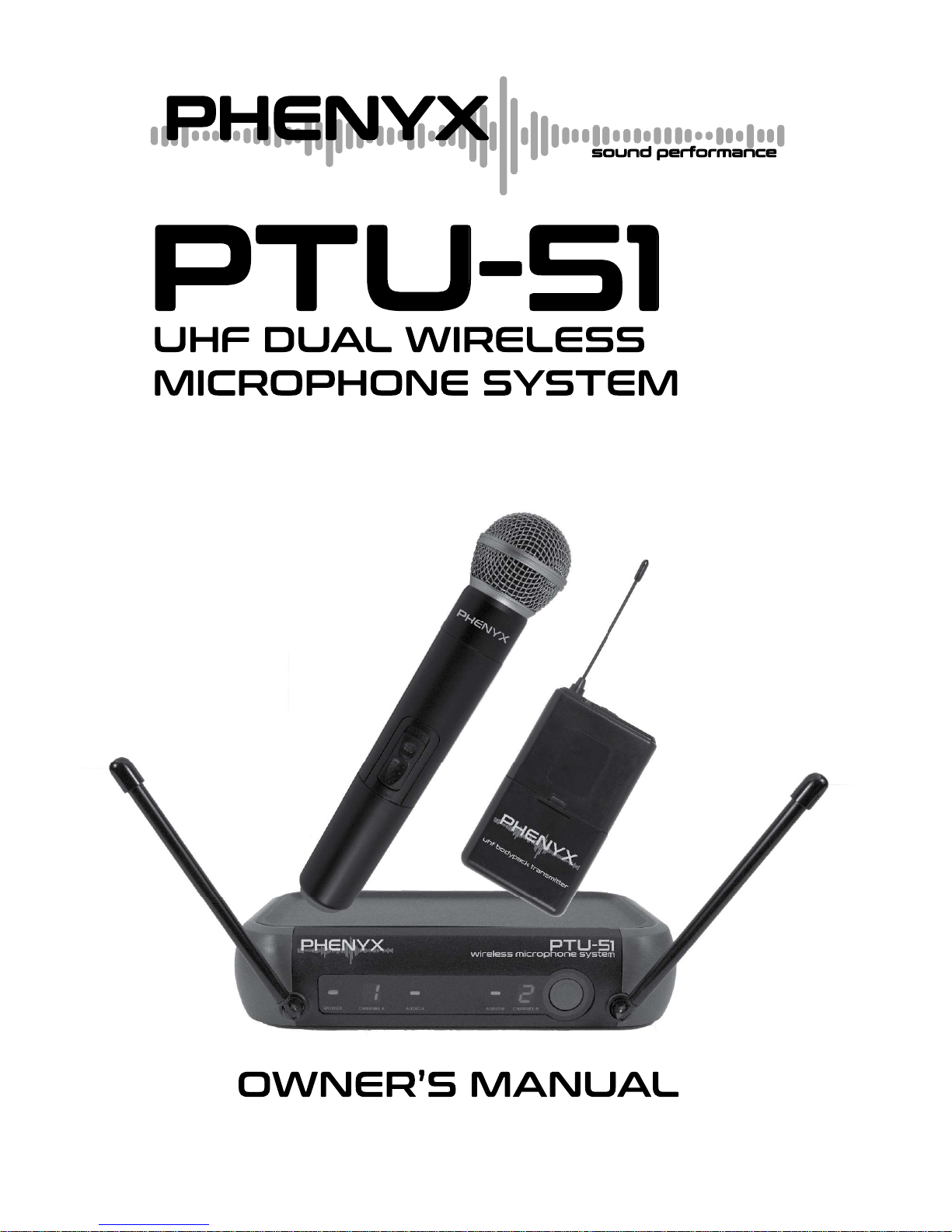

Phenyx PTU-51 User manual

Thank you for purchasing the PHENYX PTU-51 Dual Wireless Micro-
phone System. Please read this manual carefully to ensure proper use
and operation, and keep it for future reference.
System description
- Box Contents
- System Overview
- Receiver
- Transmitters
Operating instructions
- Set up
- Operation
Troubleshooting instructions
Specifi cations
Warranty Information & Technical Support
4
5
7
8
9
10
3

Dual UHF Wireless receiver with mixed XLR and ¼” outputs
2 Transmitters
3’ Audio Cable (¼” connectors)
AC adapter
Manual
The PTU-51 is a dual wireless microphone system designed to off er
great sound quality and ease of use in a compact package. It is very
simple to set up and operate, and it is the perfect choice for public
address, karaoke, live performances, interviews, sermons and many
more. The signal from the microphones (either handheld, lavalier or
headset, depending on the combination you purchased) is wirelessly
transmitted to the receiver, which is connected to your amplifi er, mixer
or powered speakers with the included ¼” cable or with a microphone
cable with an XLR connector (not included).
Antenna A
Antenna B
Power LED
Channel A display
Audio meter A
Audio meter B
Power switch
Channel B display
-
-
-
-
-
4
Box contents
System Overview
Receiver
Front Panel

Handheld Microphone
ON/MUTE/OFF switch
Battery power indicator
Battery compartment cover
Under normal operation, the battery power indicator (1) will
briefl y light up when powering on the microphone.
If the battery power indicator (1) stays continuously on
after powering on the microphone, the batteries must be
replaced. To replace the batteries, proceed as follows:
- Unscrew the battery compartment cover (3) and set it aside
- Lift the battery compartment door
- After removing the old batteries, insert new ones, making
sure to respect proper polarity
- Close compartment by gently pushing the compartment
door until it clicks
- Screw the battery compartment cover (3) back in place
Power Jack
Channel B volume control
Balanced XLR output
Unbalanced ¼” output
Channel A volume control
5
Transmitters
Back Panel

Bodypack
The Phenyx UHF bodypack is to be used with the Phenyx lavalier
microphones & headsets
Set Up:
Secure the bodypack to clothing, belt or pocket.
(a) For a lavalier microphone, clip the microphone to clothing about 1 foot
under the mouth.
(b) For a headset, install headset comfortably on head so the microphone can
be placed close to the mouth.
Connect the microphone audio connector to the bodypack microphone input
(4)
Turn the bodypack on by sliding the the ON/MUTE/OFF switch to the “ON”
position. The battery power indicator (2) will light up briefl y, indicating that the
batteries have suffi cient power.
If the battery power indicator (3) stays continuously on after powering
on the bodypack, the batteries must be replaced. To replace the batteries,
proceed as follows:
Open the battery compartment door by pushing on the door sides and pulling
it open
After removing the old batteries, insert new ones, making sure to respect
proper polarity
Close compartment by gently pushing the compartment door until it clicks
1-
2-
3-
4-
-
-
-
6
Antenna
Battery power indicator
ON/MUTE/OFF switch
Microphone input
Battery compartment
Side View Top View With battery com-
partment open
ON MUT E O FF
MUT E

Install fresh batteries in the transmitters (refer to the section relative
to the specifi c transmitter you are using).
Connect the AC power adapter to a wall outlet and to the back of
the receiver.
Position the antennas 60° apart from each
other as shown.
Connect one of the two outputs available at the back panel to the
next stage in your system. Typically, use the ¼” output to connect to
unbalanced equipment such as consumer level receivers, amplifi -
ers, and mixers. Connect to professional equipment using the XLR
output (cable not included).
Making sure the volume of your speakers is off , turn on the receiver
and the transmitters. The “CHANNEL” LED channel display turns
on, indicating that the corresponding transmitter is paired with the
receiver. Note that the number displayed (the channel number) is
fi xed and cannot be adjusted. The “AUDIO” LED indicates the pres-
ence of an audio signal coming from the transmitter.
Turn the volume of your speakers back on and start increasing the
volume of the transmitters until proper volume is achieved. The
balance between the two microphones can be adjusted with the
volume control trimmers in the back.
For better results, keep the transmitters at least 2’ away from the receiver
but within the transmitter’s range (150’). Keep the transmitters in a direct
line of sight with the receiver whenever possible.
Transmitters can be used one at a time or simultaneously.
Use the MUTE position on the transmitter switch to silence the micro-
phone without interrupting the pairing with the receiver, which could
cause unwanted popping sounds.
1-
2-
3-
4-
5-
6-
7
Set Up
Operation

ISSUE REASON SOLUTION
Transmitter battery indi-
cator is rapidly fl ashing
or continuously ON
The batteries are low Replace with fresh
batteries
A howling noise (also
known as “feedback”)
can be heard from the
speakers
The microphone is too
close to the speaker
Increase the dis-
tance between the
microphone and the
speaker
Avoid pointing the
microphone directly at
the speaker
No sound coming to the
receiver
(AUDIO LED does not
light up)
The wireless microphone
is outside of the receiver’s
range
Keep wireless
microphone within
operating range of the
receiver
The wireless transmitter is
off or muted (switch set to
“OFF” or “MUTE”)
Turn wireless micro-
phone on (switch set
to “ON”). Replace
batteries if necessary
Sound reaches the
receiver
(AUDIO LED lights up)
but no sound coming
from the receiver
Volume control too low Turn up the output
volume by turning the
small trimmer in the
back of the receiver
clockwise
Output is not (or wrongly)
connected
Verify all connections
to the rest of your
system. Try diff erent
connection cables if
available
8

Overall System
Carrier frequency range: UHF 618.0-865.6MHz
(frequency of operation depends on local regulations)
Frequency Stability: 0.003%
Dynamic Range:>100dB
T.H.D: <0.5%
Frequency Response: 50Hz-18kHz
Outputs: XLR balanced mixed; ¼” unbalanced mixed
Audio Output Level: 0-500mV
Range: 150’ (
Operating temperature: -10°C~+50°C
Handheld & Bodypack Transmitter
Modulation Mode: FM
Maximum Deviation: 75kHz
Size:
Handheld: 239 x 49 mm
Bodypack: 110 x 63 x 20 mm
Weight (without batteries)
Handheld: 248g
Bodypack: 66g
Power requirements: 2 AA alkaline or rechargeable batteries per transmitter
Battery life: about 8 hours
Receiver
Power: ≤ 10mW
Power: 5W
S/N: >103 dB (1kHz-A)
Image Rejection: > 110dB
Spurious Rejection: > 90dB
Sensitivity: -105dBm
XLR Output:
Pin 1: Ground
Pin 2: (+)
Pin 3: (-)
Power: DC12~18V, Current: 400mA, External power adaptor
9

Our Warranty to you:
Phenyx Technologies (“Phenyx”) warrants Phenyx products against evident de-
fects in material and workmanship for a period of one year from the date of origi-
nal purchase for use. This warranty is valid exclusively in the US and applies only
to the original owner. If you discover a defect covered by this warranty, Phenyx
will repair or replace the product at our sole discretion using new or refurbished
components. Performance of repairs or replacements under this Warranty is sub-
ject to registration of your product at www.phenyxusa.com/registerproduct.
Product failures not covered by this warranty:
This warranty covers defects in manufacturing that arise from the correct use of
the device. It is limited to defects in materials or workmanship and does not cover
electrical or mechanical damage resulting from abuse, misuse, unauthorized
modifi cation, lack of reasonable care, extreme heat, cold, damage due to natural
forces, or corrosive environments. This warranty does not cover the normal wear
and tear on covers, housing, connectors, and accessories.
Limits of liability:
If your Phenyx product fails or does not perform as warranted, your sole recourse
shall be to replace or repair it as described above. Phenyx will not be liable to you
or anyone else for any damages that result from the failure of this product. These
damages include, but are not limited to, the following: lost profi ts, lost savings,
lost data, damage to other equipment, and incidental or consequential damages
arising from the use of or inability to use this product. IN NO EVENT PHENYX
SHALL BE LIABLE FOR MORE THAN THE AMOUNT OF YOUR PURCHASE
PRICE, NOT TO EXCEED THE CURRENT LIST PRICE OF THE PRODUCT.
How to obtain service under this warranty:
Please contact us at [email protected] with any questions or concerns
about your product and a Phenyx representative will contact you to provide assis-
tance.
10
