Philco PDA 15103 X User manual

DISHWASHER
USER'S MANUAL
PDA 15103 X

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read
all the instructions in this user's manual.

EN - 1
06/2013Copyright © 2013, Fast ČR, a. s.
CONTENTS
PART 1: BEFORE PUTTING INTO OPERATION................................................................................................. 2
 Important safety instructions.....................................................................................................................................................2
PART 2: DESCRIPTION OF THE APPLIANCE .................................................................................................... 5
PART 3: INSTALLATION.................................................................................................................................... 6
 Unpacking.........................................................................................................................................................................................6
 Placement..........................................................................................................................................................................................6
 Electrical connection.....................................................................................................................................................................7

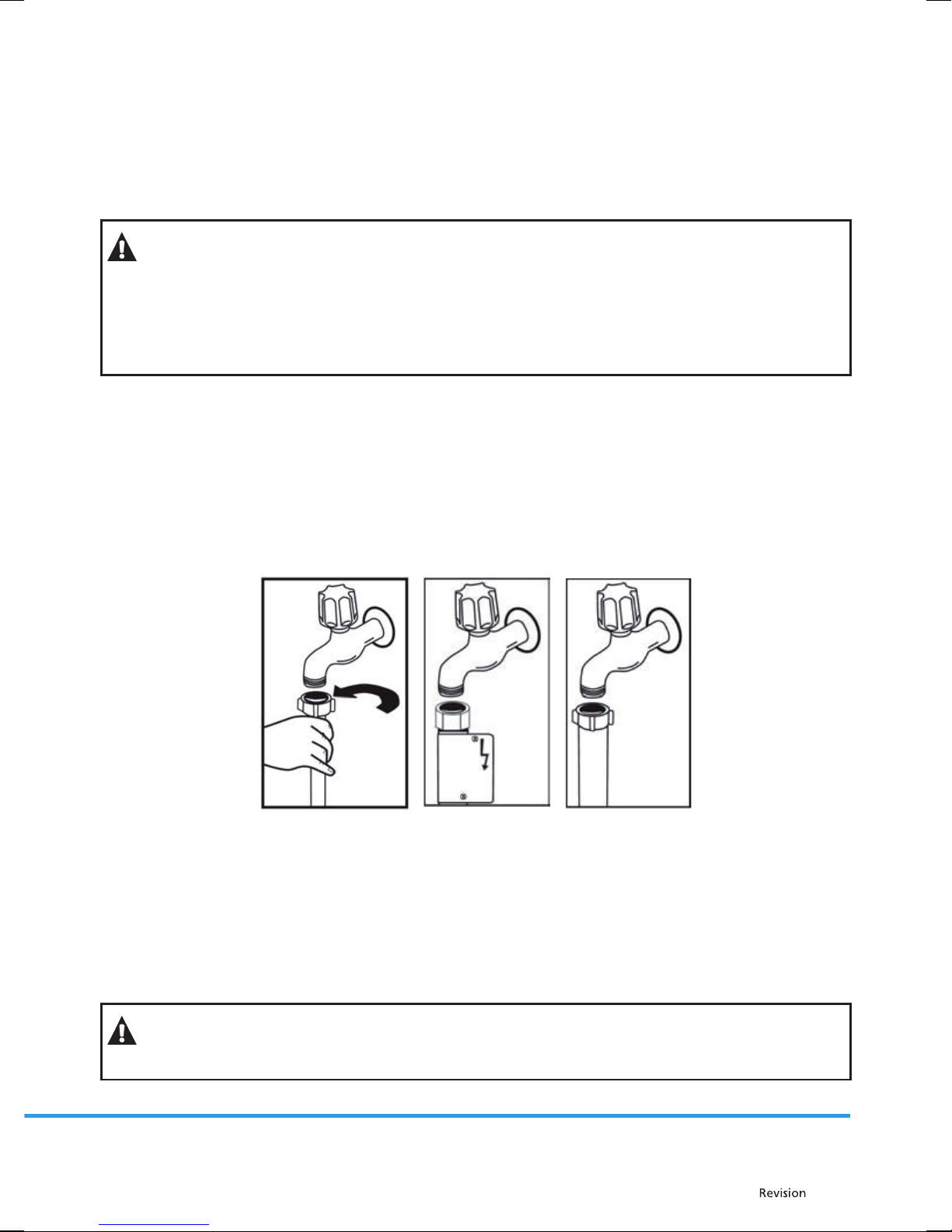

 Water supply.....................................................................................................................................................................................7
 Connecting the drain hose..........................................................................................................................................................8

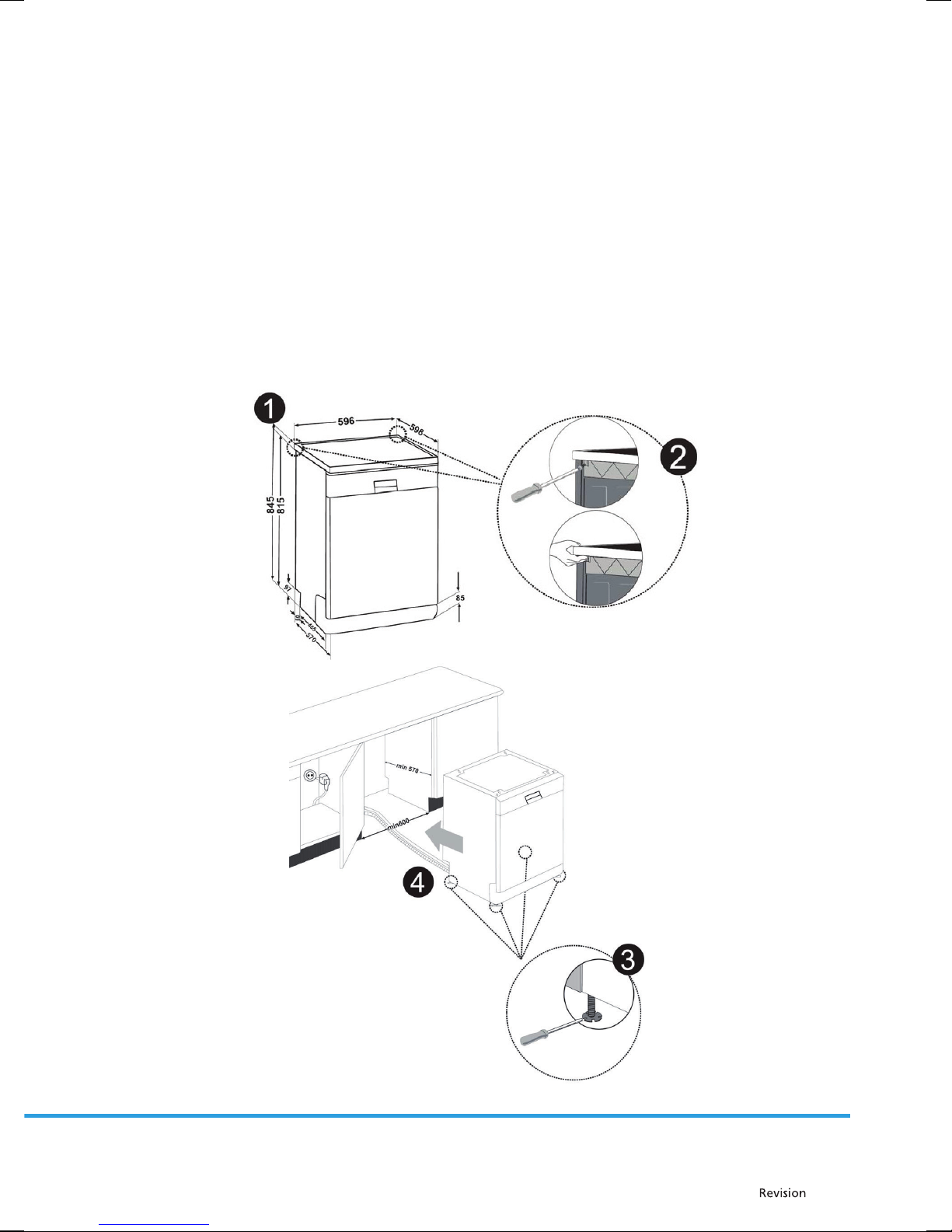

 Built-in installation .........................................................................................................................................................................9
PART 4: CONTROL PANEL .............................................................................................................................. 11
PART 5: BEFORE PUTTING INTO OPERATION............................................................................................... 13
 Before rst use .............................................................................................................................................................................. 13
 Identifying water hardness ...................................................................................................................................................... 13

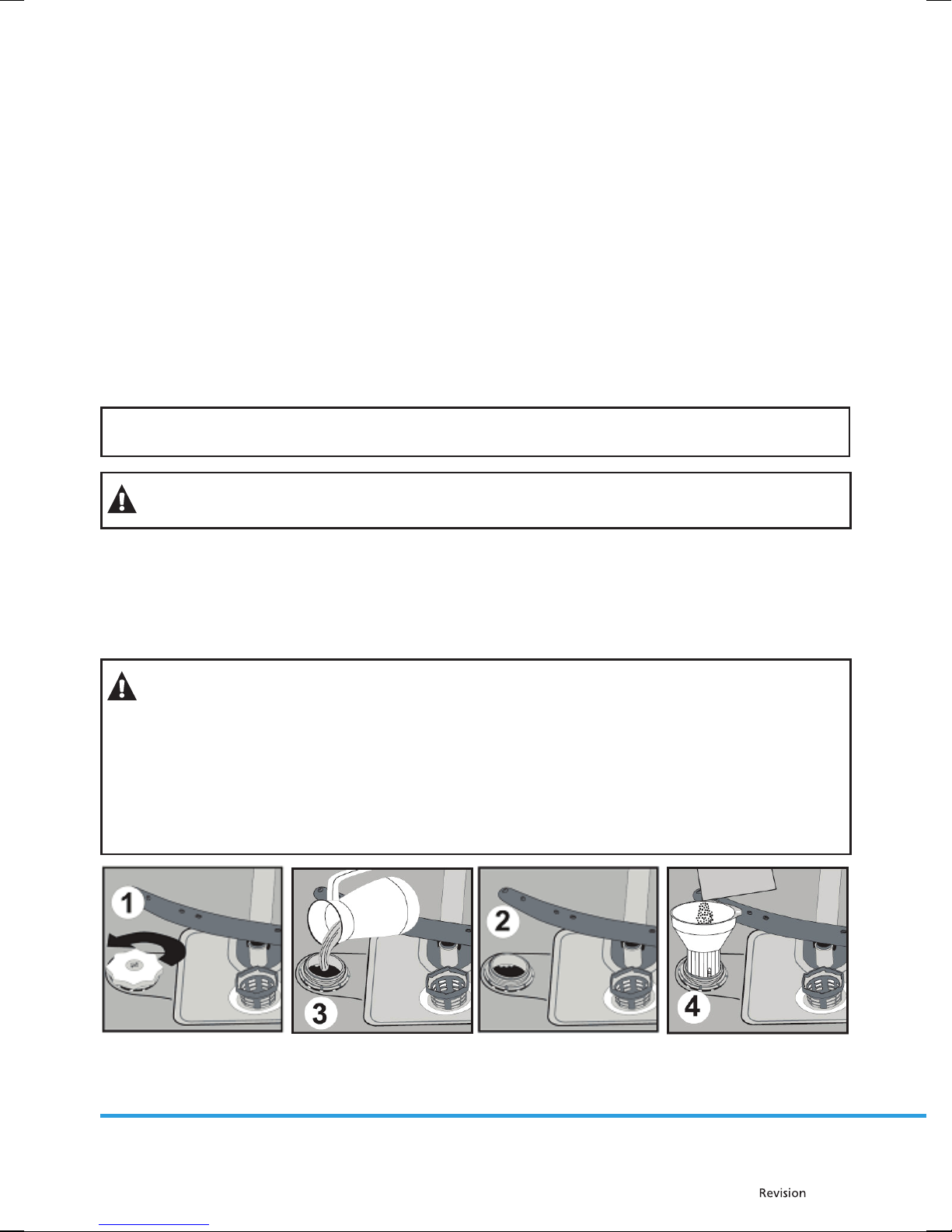

 Adding salt into the salt container ........................................................................................................................................ 14
 Adding rinsing aid.......................................................................................................................................................................15
 Function of the detergent ........................................................................................................................................................16
 Dosage of the detergent........................................................................................................................................................... 17
PART 6: WASHING DISHES / EATING UTENSILS............................................................................................ 19
 Upper rack...................................................................................................................................................................................... 20
 Lower rack ...................................................................................................................................................................................... 22
 Basket for cutlery .........................................................................................................................................................................24
PART 7: PROGRAM CHART ............................................................................................................................ 25
PART 8: OPERATING THE DISHWASHER ....................................................................................................... 27
 Turning on the appliance / starting a washing program ..............................................................................................27
 Monitoring the washing cycle ................................................................................................................................................28
 Additional functions................................................................................................................................................................... 28
 Changing a program ..................................................................................................................................................................29
 Settings menu............................................................................................................................................................................... 30
 Child safety lock ...........................................................................................................................................................................31
 Delayed start ................................................................................................................................................................................. 32
PART 9: MAINTENANCE AND CLEANING...................................................................................................... 33
 Filtration system........................................................................................................................................................................... 33
 Installing the lter ....................................................................................................................................................................... 33
 Cleaning the lter........................................................................................................................................................................ 34
 Dishwasher care........................................................................................................................................................................... 34
 Protection against frost ............................................................................................................................................................. 34
PART 10: PREVENTION OF MINOR MALFUNCTIONS ................................................................................... 36
 Error codes ..................................................................................................................................................................................... 38
PART 11: INFORMATION SHEET................................................................................................................... 39

EN - 2
06/2013Copyright © 2013, Fast ČR, a. s.
PART 1: BEFORE PUTTING INTO OPERATION
Important safety instructions
 Read carefully and store for future use.
 The safety of ths applance comples wth ndustry norms and meets legal applance safety requrements.
However, as manufacturers, we consder t our duty to provde you wth the followng safety nstructons.
 It s essental that you store ths user's manual n a safe place so that you can use t n the future.
If you ntend to sell the applance, gve t to another owner, or f you move, always make sure that the
user's manual s attached to the applance, so that the new owner can fnd out about the operaton of the
applance and the relevant warnngs.
 Before nstallaton or operaton of the applance you MUST carefully read all the safety nstructons and
the user's manual.
 Before puttng the applance nto operaton for the frst tme, check that t has not been damaged durng
transport.
 If the applance s suppled n the wnter months, when the temperature falls below 0°C, store the applance
at room temperature for 24 hours before frst use.
 This dishwasher is designed for washing household dishwasher-safe dishes. Use the dishwasher only for the
purposes for which it was designed. The dishwasher is designed for a maximum of 15 sets of dishes!
 This appliance must not be used by any persons (including children) with mental disabilities, weak strength
or by inexperienced persons, unless they have been properly trained or schooled in the safe use of the
product, or unless they are properly supervised by a qualied person who is responsible for their safety.
 Children must be supervised to ensure that they do not play with the appliance.
Installation
 Check that the dishwasher has not been damaged during transport. Never connect a damaged appliance.
If the dishwasher is damaged, contact the supplier.
 It is necessary to remove all packaging from the dishwasher before it is used. Dispose of the packaging
materials in a proper manner. Do not allow children to play with the packaging material. There is a danger
of suocation!
 The electrical and plumbing installation necessary for the connection of this dishwasher may only be
performed by a person with relevant qualications.
 Maximum permitted water pressure is 1 MPa. Minimum permitted water pressure is 0.03 MPa.
 Connect the appliance to the water source using a new hose, do not use a used hose.
 The power cord must not be excessively or dangerously bent or pressed during the installation.
 For safety reasons, changing the technical parameters, or making any other modications to the appliance
is dangerous.
 Never use the dishwasher, if the electrical connection or the water hose are damaged, or if the control
panel, workbench or its support is damaged, when the inside of the appliance is freely accessible. Contact
a local service centre to avoid exposing yourself to possible dangers.
 You must not drill into any side of the dishwasher so that you do not damage the plumbing and electrical
components.
 Do not turn on your dishwasher until all covers are properly installed.
WARNING!
When using the dishwasher follow all the notices below.

EN - 3
06/2013Copyright © 2013, Fast ČR, a. s.
Grounding instructions
 This appliance must be grounded. In the event of a failure or malfunction the grounding will reduce the
risk of injury by electrical shock by ensuring a lower resistance to the electrical current. This appliance is
equipped with a power cord with a grounding conductor and power plug.
 You must connect the power plug into an appropriate power socket installed and grounded in accordance
with local laws and regulations.
WARNING!
 The incorrect connection of the grounding conductor may create a risk of injury by electrical
shock.
 If you have any doubts about the proper grounding of the appliance, ask a qualied electrician
or service technician for verication. Do not modify the power plug included with the
appliance, if it does not t into the power socket. Ask a qualied electrician to install a proper
power socket.
Correct use
 Before inserting dishes or kitchen utensils, check that they are suitable for washing in a dishwasher. The
manufacturer of the dishes or kitchen utensils will provide more details, or such information is included
in the attached documentation. Not adhering to this notice may lead to the damage of dishes or kitchen
utensils, or also the appliance. The warranty does not cover this kind of damage.
 Do not wash plastic items in the dishwasher unless they are marked by the manufacturer as
dishwasher-safe.Forplasticitemswithoutsuchmarkings,followtherecommendationsofthe manufacturer.
 When using the dishwasher you should prevent the plastic items from coming into contact with the
heating element. (These instructions are intended only for dishwashers with freely accessible heating
elements.)
 Use only agents (detergents and rinsing aids, salt and polishing agents) designed to be used with
automatic dishwashers.
 Never use soap, washing or cleaning detergents designed for hand washing. Keep all these substances out
of the reach of children.
 Store all cleaning agents in a safe place. Keep children away from all washing and rinsing agents and at
a sucient distance from the open dishwasher door, because there could be remains of detergents inside.
 Do not use any solvents in the dishwasher. The could cause an explosion.
 Dishwasher detergents are very alkaline and their ingestion may be life threatening! Avoid contact with
the skin or eyes, because there is a danger of chemical burns of eyes or skin. Keep children at a sucient
distance from the dishwasher when the door is open. Follow the safety instructions of the dishwasher
detergent manufacturer.
 The water inside the dishwasher is not intended for drinking. It may contain remains of detergents.
 Place sharp items in such a way that they do not damage the door gasket seal.
WARNING!
Knives and other utensils with sharp tines and blades must be placed inside the basket with tips
facing downwards or in a horizontal position.
 Ensure that the dishwasher door is always closed, except for the time when dishes are being inserted or
removed. This will prevent the danger of tripping over the door and subsequent injury. If the door is open,
do not allow children to come close to the dishwasher.

EN - 4
06/2013Copyright © 2013, Fast ČR, a. s.
WARNING!
Do not sit on the door or on the wire racks, do not stand on them or handle them with brute force. Do
not touch the heating elements during operation or immediately afterwards. (These instructions
are intended only for dishwashers with freely accessible heating elements.)
Do not place any heavy items on the door when it is open and do not stand on it. The appliance
could tip over.
 Open the dishwasher carefully during operation so that water does not spray out and so that you do not
get scalded by the escaping steam.
 Do not pull any dishes out of the dishwasher until the cycle is completed.
 After the completion of a washing cycle, check that the detergent compartment is empty.
 After using the dishwasher, disconnect it from the power source and turn o the water supply.
 Under no circumstances tamper with the controller.
Servicing, disposal
 If it is necessary to repair the appliance, contact an authorised service technician, who should use only
original spare parts.
 If the power cord is damaged it must be replaced by the manufacturer or the manufacturer's service
technician, to prevent injury to persons or damage to the appliance.
 Never attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may lead to
injuries or serious damage to the appliance. Contact a local service centre. Always request original spare
parts.
 When taking an old dishwasher out of service or when disposing it, remove the dishwasher door. This
will prevent children or animals from closing themselves inside the dishwasher and prevent this life
threatening situation.

EN - 5
06/2013Copyright © 2013, Fast ČR, a. s.
PART 2: DESCRIPTION OF THE APPLIANCE
1.
2.
3.
4.
5.
6.
7.
8.
13.
14.
12.
11.
10.
9.
1. Top cover
2. Upper rack with cup shelves
3. Top spraying arm
4. Lower rack
5. Bottom spraying arm
6. Filters
7. Rating label
8. Control panel
9. Washing detergent and rinsing aid compartment
10. Salt compartment
11. Rail of the upper rack
12. Special basket for cutlery
13. Turbo drying system for better dish drying results in the dishwasher
14. Ceiling washing arm for better washing results in the upper rack

EN - 6
06/2013Copyright © 2013, Fast ČR, a. s.
PART 3: INSTALLATION
Unpacking
Remove the external packaging, remove the protective plastic lm from the surface of the appliance (if used)
and clean the external parts of the appliance with an agent designed for this purpose. Do not use steel wool or
any coarse agents, which could irreparably damage the surface of the appliance. Carefully remove all papers
and adhesive tape from the appliance, door and other parts packed in polystyrene. Remove documents and
accessories from inside the appliance.
The packaging material is recyclable and is marked with a recycling symbol. For disposal follow the local
regulations. Packaging materials (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children,
because they present a possible source of danger.
Carefully inspect the appliance. If you discover any defects, stop the installation and contact the vendor.
Placement
Place the appliance in the desired location. The dishwasher is equipped with a water supply hose and a drain
hose, which can be connected either on the right or left hand side of the dishwasher.
Levelling the appliance
After placing the dishwasher in its place it is not level, you can level it by using the levelling feet. Under no
circumstances should the dishwasher be tilted by more than 2°.
Connecting to a power source
WARNING!
For reason of personal safety:
Do not connect to an extension cord or a multi-plug socket. Under no circumstances remove or cut
away grounding from the power cord.
Power source demands
Information about the required voltage for the connection of the dishwasher to a suitable power source is
contained on the appliance's rating label. Use the required 10A fuse, the recommended delaying fuse or circuit
breaker and ensure that this appliance has its own independent electrical circuit.
Before use, check that the appliance is properly grounded.

EN - 7
06/2013Copyright © 2013, Fast ČR, a. s.
Electrical connection
Check that the voltage and frequency of the used power source correspond to the information on the
appliance's rating label. Insert the power plug only into a properly grounded power socket. If the socket to
which the appliance will be connected is not properly grounded, replace the socket rather than using adapters,
etc., which could lead to overheating or burning.
WARNING!
 The incorrect connection of the grounding conductor may create a risk of injury by electrical
shock.
 If you have any doubts about the proper grounding of the appliance, ask a qualied electrician
or service technician for verication.
 Do not modify the power plug supplied with the appliance. If the power plug does not correctly
t into your power socket, ask a qualied electrician to replace it.
Water supply
How to connect the water supply hose?
You must connect the dishwasher to a water supply using a new hose. Do not use perished, old or otherwise
damaged hoses.
Water pressure must be in the range 0.03 MPa to 1 MPa. If the water pressure in your system is lower, ask for
advice from our service department.
 Pull out the hose fully from the storage area in the rear part of the dishwasher.
 Screw in the water supply hose to a tap with a 3/4" thread.
 Fully open the water supply before turning on the dishwasher.
Water supply hose
The water supply hose has double wall. The water lling system guarantees intervention by blocking the
water supply in the event that the water supply hose fails.
WARNING!
The hose connected to the water supply to the sink may break, if the sink is connected to the same
watersystem as the dishwasher. Werecommendthatyoudisconnect thehoseand plugtheopening.

EN - 8
06/2013Copyright © 2013, Fast ČR, a. s.
How to disconnect the water supply hose?
 Shut o the water inlet.
 Reduce water pressure by pressing the reduce pressure button. This will reduce the water pressure and
prevent water from possibly squirting out into the room.
 Unscrew the water supply hose from the water tap.
Cold water supply connection
Connect the water supply hose to the cold water inlet with a 3/4" thread and check that you have tightened
it properly. If the hoses are new or have not been used for a long time, ush them out with water, to be sure
that they are clean inside with all dirt removed. If you do not do this, you risk clogging up the water inlet and
damaging the appliance.
Hot water supply connection
You can also connect hot water to the dishwasher (supplied by the central system, heated by the heating
system), if the water temperature does not exceed 60 °C.This will shorten the washing cycle by 15 minutes and
the washing eciency will be slightly reduced.
The connection must be carried out in the same way as for the cold water.
WARNING!
To prevent water from staying in the hose, close the water inlet into the dishwasher. (This does not
apply to dishwashers with the aqua-stop function.)

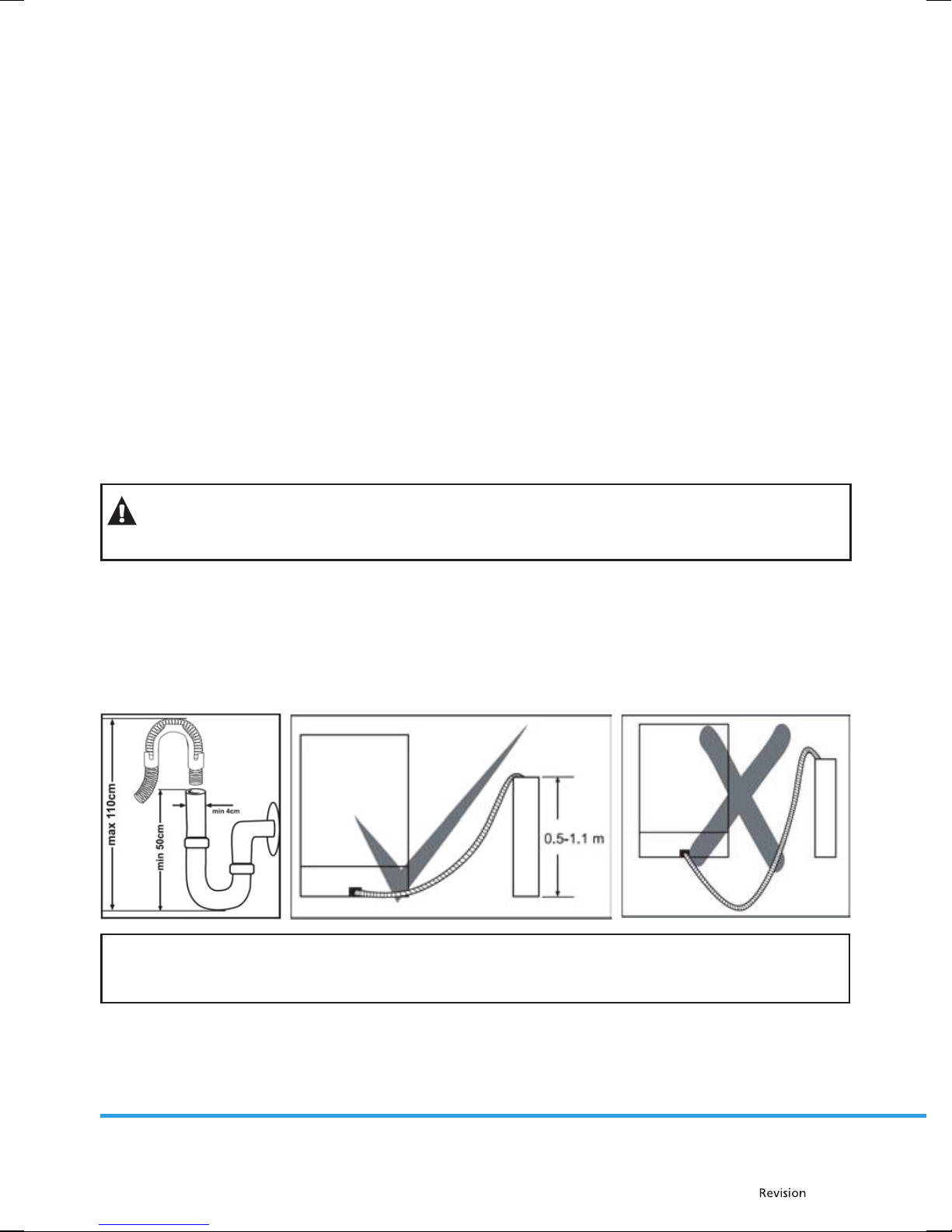

Connecting the drain hose
Insert the drain hose into the waste water pipe with a minimum diameter of 4 cm or leave it
lying in the sink and ensure that it is not bent or dented. Use a special plastic bracket supplied
with the appliance. The hose must be at a height of 50 to 100 cm above the ground. The loose end of the hose
must not be submerged in water so that reverse water ow does not occur.
NOTE:
The hose must be at a height of 50 to 100 cm above the ground. The loose end must not be submerged
in water.
