Philco PCD 3122 Installation instructions

Refrigerator Freezer
User Instruction
PCD 3122

Dear customer,
Thank you for buying aPHILCO brand product. So that your appliance serves you well, please read all
the instructions in this user'smanual.

EN - 1
08/2015Copyright © 2015, Fast ČR, a. s.
CONTENTS
PART 1: SAFETY INFORMATION ......................................................................................................................2
PART 2: OVERVIEW ..........................................................................................................................................6
PART 3: REVERSE DOOR ..................................................................................................................................7
PART 4: INSTALLATION ..................................................................................................................................11
PART 5: DAILY USE .........................................................................................................................................13
PART 6: INFORMATION SHEET ......................................................................................................................17

EN - 2
08/2015Copyright © 2015, Fast ČR, a. s.
PART 1: SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing and rst using the appliance, read
this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is
important to ensure that all people using the appliance are thoroughly familiar with its operation and safety
features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so
that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user’sinstructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or
instruction concerning use of the appliance in asafe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above
and supervised.
• Keep all packaging well away from children. There is risk of suocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to
the appliance as you can) and remove the door to prevent playing children to suer electric shock or to
close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having aspring lock (latch)
on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will
prevent it from becoming adeath trap for achild.
General safety
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances, unless they are approved for this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has been on for along period of time because it could be
very hot.1)
• Do not store explosive substances such as aerosol cans with aammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, anatural gas
with ahigh level of environmental compatibility, which is nevertheless ammable.
• During transportation and installation of the appliance, be certain that none of the components of the
refrigerant circuit become damaged.
- avoid open ames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated

EN - 3
08/2015Copyright © 2015, Fast ČR, a. s.
• It is dangerous to alter the specications or modify this product in any way. Any damage to the cord may
cause ashort circuit, re and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
- sta kitchen areas in shops, oces and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by
acertied service agent or qualied service personnel.
WARNING! The light bulb supplied with this appliance is a“special use lamp bulb”usable only with the
appliance supplied. This “special use lamp”is not usable for domestic lighting.1)
1) If there is alight in the compartment.
• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. Asquashed or
damaged power plug may overheat and cause are.
• Make sure that you can come to the mains plug of the appliance.
• Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is arisk of electric shock or re.
• You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could
cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 1)
• Store pre-packed frozen food in accordance with the frozen food manufacture’sinstructions. 1)
• Appliance’s manufactures storage recommendations should be strictly adhered to. Refer to relevant
instructions.
• Do not place carbonated of zzy drinks in the freezer compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to the appliance. 1)
• Ice lollies can cause frost burns if consumed straight from the appliance.1)
Care and cleaning
• Before maintenance, switch o the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use aplastic scraper. 1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain
is blocked, water will collect in te bottom of the appliance. 2)
1) If there is afreezer compartment.
2) If there is afresh-food storage compartment.

EN - 4
08/2015Copyright © 2015, Fast ČR, a. s.
Installation
Important! For electrical connection carefully follow the instructions given in specic paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged.
Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to ow back in
the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve
sucient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against awall to avoid touching or catching warm
parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
Service
• Any electrical work required to do the servicing of the appliance should be carried out by a qualied
electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be
used.
Energy saving
• Don’t put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;
• Make sure food don’t touch the back of the compartment(s);
• If electricity goes o, don’t open the door(s);
• Don’t open the door(s) frequently;
• Don’t keep the door(s) open for too long time;
• Don’t set the thermostat on exceeding cold temperatures;
• Some accessaries, such as drawers, can be removed to get larger storage volume and lower energy
consumption.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant
circuit or insulation materials.The appliance shall not be discarded together with the urban refuse and
rubbish. The insulation foam contains ammable gases: the appliance shall be disposed according
to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit,
especially the heat exchanger. The materials used on this appliance marked by the symbol are
recyclable.
The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it should be taken to the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local council, your household waste disposal
service or the shop where you purchased the product.

EN - 5
08/2015Copyright © 2015, Fast ČR, a. s.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to
recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut o the mains cable and discard it.

EN - 6
08/2015Copyright © 2015, Fast ČR, a. s.
PART 2: OVERVIEW
1
2
3
4
5
6
7
1. Thermostat and Light 5. Freezer Drawers
2. Glass Shelves 6. Leveling Feet
3. Crisper Cover 7. Balconies
4. Crisper 8. Upper Crisper
This illustration is only for hinting, the detail please check your appliance.
PART 2: OVERVIEW
3

EN - 7
08/2015Copyright © 2015, Fast ČR, a. s.
PART 3: REVERSE DOOR
Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
• Ensure the unit is unplugged and empty.
• To take the door o, it is necessary to tilt the unit backwards. You should rest the unit on something solid
so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit at as this may damage the coolant system.
• It’sbetter that 2 people handle the unit during assembly.
1. Remove two screw cover on the front plate.
2. Unscrew the hinge and then remove upper door and place it on
asoft pad to avoid scratch.
PART
3:
REVER
S
E D
OOR
Unscrew

EN - 8
08/2015Copyright © 2015, Fast ČR, a. s.
3. Remove the pin with ascrewdriver and ip the hinge bracket. Then
ret the pin to hinge bracket.
4. Unscrew middle hinge. Then lift lower door and place it on asoft
pad to avoid scratch.
5. Move the hinge hole covers from left side to right side.

EN - 9
08/2015Copyright © 2015, Fast ČR, a. s.
6. Unscrew bottom hinge. Then remove the adjustable feet from both
side.
7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
Unscrew Screw
8. Ret the bracket tting the bottom hinge pin. Replace both
adjustable feet. Transfer the lower door to the property position.

EN - 10
08/2015Copyright © 2015, Fast ČR, a. s.
9. Make the middle hinge reverse the direction 180°C, then transfer
it to the left property position. Make the middle hinge pin in the
upper hole of the lower door, then tight the bolts.

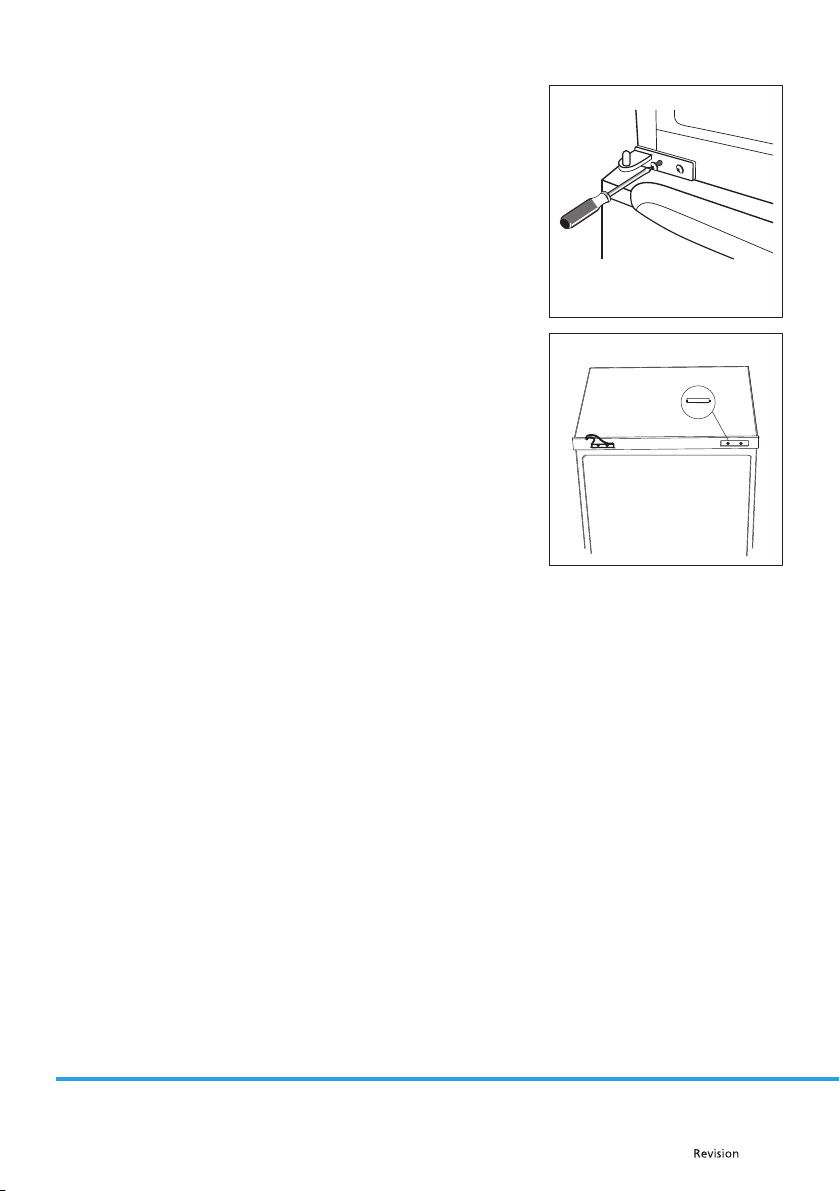

10. Place the upper door back on. Ensure the door is aligned horizontally
and vertically so that the seal are closed on all sides before nally
tightening the top hinge. Then inert the hinge and screw it to the
front of the unit.
11. Fix the screw cover.

EN - 11
08/2015Copyright © 2015, Fast ČR, a. s.
PART 4: INSTALLATION
Install door external handle (if external handle is present)
Rear spacer
Screw the rear spacers at the rear of the unit.
Space Requirement
• Keep enough space of door open.
• Keep at least 50 mm gap at two sides.
Screw
xxxmm
xxxmm

EN - 12
08/2015Copyright © 2015, Fast ČR, a. s.
Levelling the unit
To do this adjust the two levelling feet at front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
Positioning
Install this appliance at alocation where the ambient temperature corresponds to the climate class indicated
on the rating plate of the appliance:
Climatic class Ambient temperature
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
Location
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight
etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the
appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet
and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below
overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.
Warning! It must be possible to disconnect the appliance from the mains power supply; the plug
must therefore be easily accessible after installation.
Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your
domestic power supply. The appliance must be earthed. The power supply cable plug is provided with acontact
for this purpose. If the domestic power supply socket is not earthed, connect the appliance to aseparate earth
in compliance with current regulations, consulting aqualied electrician.
The manufacturer declines all responsibility if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.

EN - 13
08/2015Copyright © 2015, Fast ČR, a. s.
PART 5: DAILY USE
First use
Cleaning the interior
Before using the appliance for the rst time, wash the interior and all internal accessories with lukewarm water
and some neutral soap so as to remove the typical smell of abrand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the nish.
Temperature Setting
• Plug on your appliance.The internal temperature is controlled by athermostat.
There are 8 settings. 1 is warmest setting and 7 is coldest setting and 0 is o.
• The appliance may not operate at the correct temperature if it is in
aparticularly hot or if you open the door often.
Freezing fresh food
• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for
along time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specied on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storing frozen food
When rst starting-up or after aperiod out of use, before putting the product in the compartment let the
appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrosting, for example the power has been o for longer than
the value shown in the technical characteristics chart under “rising time”, the defrosted food must be
consumed quickly or cooked immediately and then re-frozen (after cooked).
Thawing
Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature,
depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.
Ice-cube
This appliance may be equipped with one or more ice-cube to produce ice.
Accessories
Movable shelves
The walls of the refrigerator are equipped with aseries of runners so that the shelves
can be positioned as desired.

EN - 14
08/2015Copyright © 2015, Fast ČR, a. s.
Positioning the door balconies
To permit storage of food packages of various sizes, the door balconies can
be placed at dierent heights. To make these adjustments proceed as follows:
gradually pull the balcony in the direction of the arrows until it comes free, then
reposition as required.
Helpful hints and tips
To help you make the most of the freezing process, here are some important hints:
• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstus;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible
subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding arise in temperature
of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer
compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage
time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
make sure that the commercially frozen foodstus were adequately stored by the retailer;
be sure that frozen foodstus are transferred from the food store to the freezer in the shortest possible time;
not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigeration
To obtain the best performance:
• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has astrong avour
• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or
polythene bags to exclude as much air as possible.
• Milk bottle: these should have acap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

EN - 15
08/2015Copyright © 2015, Fast ČR, a. s.
Cleaning
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical
shock! Before cleaning switch the appliance o and remove the plug from the mains, or switch o or
turn out the circuit breaker or fuse. Never clean the appliance with asteam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage
of plastic parts. The appliance must be dry before it is placed back into service.
Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice
form orange peel, butyric acid, cleanser that contain acetic acid.
Clean drain hole
To avoid defrost water overowing into the fridge, periodically clean the drain
hole at back of fridge compartment. Use acleaner to clean the hole as showed
in right picture.
1) If the condenser is at back of appliance.
• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in acool place, well covered.
• Switch the appliance o and remove the plug from the mains, or switch o or turn out the circuit breaker
of fuse.
• Clean the appliance and the interior accessories with acloth and lukewarm water. After cleaning wipe with
fresh water and rub dry.
• After everything is dry place appliance back into service.
Defrosting of the freezer
The freezer compartment, however, will become progressively covered with frost. This should be removed.
Never use sharp metal tools to scrape o frost from the evaporator as you could damage it.
However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as
fellows:
• pull out the plug from the socket;
• remove all stored food, wrap it in several layers of newspaper and put it in acool place;
• keep the door open, and placing abasin underneath of the appliance to collect the defrost water;
• when defrosting is completed, dry the interior thoroughly
• replace the plug in the power socket to run the appliance again.
Replace the lamp
The internal light is a LED type. To replace the lamp, please contact qualied
technician.

EN - 16
08/2015Copyright © 2015, Fast ČR, a. s.
Troubleshooting
Caution! Before troubleshooting, disconnect the power supply. Only a qualied electrician of
competent person must do the troubleshooting that is not in this manual.
Important! There are some sounds during normal use (compressor, refrigerant circulation).
Problem Possible cause Solution
Appliance does not work
Temperature regulation knob is set at
number“0”.
Set the knob at other number to
switch on the appliance.
Mains plug is not plugged in or is
loose. Insert mains plug.
Fuse has blown or is defective. Check fuse, replace if necessary.
Socket is defective. Mains malfunctions are to be corrected
by an electrician.
The food is too warm.
Temperature is not properly adjusted. Please look in the installation location
section.
Door was open for an extended period. Open the door only as long as
necessary.
Alarge quantity of warm food was
placed in the appliance within the last
24 hours.
Turn the temperature regulation to
acolder setting temporarily.
The appliance is near aheat source. Please look in the initial Temperature
Setting section.
Appliance cools too
much Temperature is set too cold. Turn the temperature regulation knob
to awarmer setting temporarily.
Unusual noises
Appliance is not level. Re-adjust the feet.
The appliance is touching the wall or
other objects. Move the appliance slightly.
Acomponent, e.g. apipe, on the rear
of the appliance is touching another
part of the appliance or the wall.
If necessary, carefully bend the
component out of the way.
Water on the oor Water drain hole is blocked. See the Cleaning section.
Side panel is hot Condenser is inside the panel. It’snormal.
If the malfunction shows again, contact the Service Center.

EN - 17
08/2015Copyright © 2015, Fast ČR, a. s.
PART 6: INFORMATION SHEET
Information Sheet
INFORMATION SHEET: Philco
Philco brand:
Brand Philco
Model identication PCD 3122
Type of appliance 3) 7
Energy eciency class
(A... low electricity consumption to G high electricity consumption) A++
Electricity consumption per 365 days 1) kWh 212
Total available volume: l
312
of which: refrigerator part l 223
of which: freezer part l 89
Star mark for the freezer area ****
Frost free Space for freezing and refrigeration
Storage time after shut-o (temperature rise time) [hrs.] 21,7
Freezing capacity kg/24h
4
Climatic class 2) ST
Voltage 220-240 V~ 50 Hz
Noise level 4) dB (re 1pW) 42
Dimensions cm (h x wx d) cm 185,8 x 60,5 x 60,5
Weight kg 58
Built-in appliance no
1) Electricity consumption in kWh / year is based on the results of anormalised test carried out over aperiod
of 24 hours. Actual electricity consumption depends on the use and location of the appliance.
2) SN: ambient temperatures from +10 °C to +32 °C
ST: ambient temperatures from +18 °C to +38 °C
N: ambient temperatures from +16 °C to +32 °C
3) 1 = Refrigerator without low temperature areas
7 = Refrigerator/freezer with low temperature areas *(***)
8 = Box freezer
4) Noise level according to European norm EN 60704
The original version is Czech.
PART
6:
INF
O
RMATI
O
N
S
HEE
T

EN - 18
08/2015Copyright © 2015, Fast ČR, a. s.
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED
PACKAGING MATERIALS
Dispose of packaging material at apublic waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates that this
product shall not be treated as household waste. Please, dispose of this product at your applicable
collection point for the recycling of electrical & electronic equipment waste. Alternatively in some
states of the European Union or other European states you may return your products to your local
retailer when buying an equivalent new product. The correct disposal of this product will help save
valuable natural resources and help in preventing the potential negative impact on the environment
and human health, which could be caused as aresult of improper liquidation of waste. Please ask
your local authorities or the nearest waste collection centre for further details. The improper disposal
of this type of waste may fall subject to national regulations for nes.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary information from
your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the correct disposal
method from local government departments or from your seller.
This product meets all the basic EU regulation requirements that relate to it.
Changes to the text, design and technical specications may occur without prior notice and we reserve the
right to make these changes.
