Philio Technology Corporation PSA03 User manual

The Doorlock PSA03 is Base on Z-WaveTM technology. It is the
Z-WaveTM pl s prod ct, it s pports the sec rity, OTA... Those
newest feat res of the Z-WaveTM technology. Z-WaveTM is a
wireless comm nication protocol designed for home a tomation,
specifically to remotely control applications in residential and light
commercial environments. The technology ses a low-power RF
radio embedded or retrofitted into home electronics devices and
systems, s ch as lighting, home access control, entertainment
systems and ho sehold appliances.
Notice: if ser se some command, it have to check device is
sec rity bootstrap otherwise some command cannot increment.
1
PSA03 Smart DoorLock

2

3

4

5

6

7

8

I. Z-Wave function
“Enter PC” is enter “0000” default)
function description
Add 1. check Z-WaveTM Controller entered
incl sion mode.
2.Press the Add/Remove f nction
3.After adding s ccessf l, it will have twice
beep so nds. if incl sion fail it will have five
beep.
Notice 1: if yo reset doorlock, yo have to do
OPERATING INSTRUCTION no.1(door
handling identification process)
Notice 2: if Door lock in learn mode,device can
stop on operation setting mode, ntil s ccess
incl de or 60s time o t.
Remove 1. check Z-WaveTM Controller entered
excl sion mode.
2.Press the Add/Remove f nction
3After removing s ccessf l, it will have twice
beep so nds. if remove fail it will have five
beep.
Notice 1 : if yo reset doorlock ,yo have to do
OPERATING INSTRUCTION no.1(door
handling identification process )

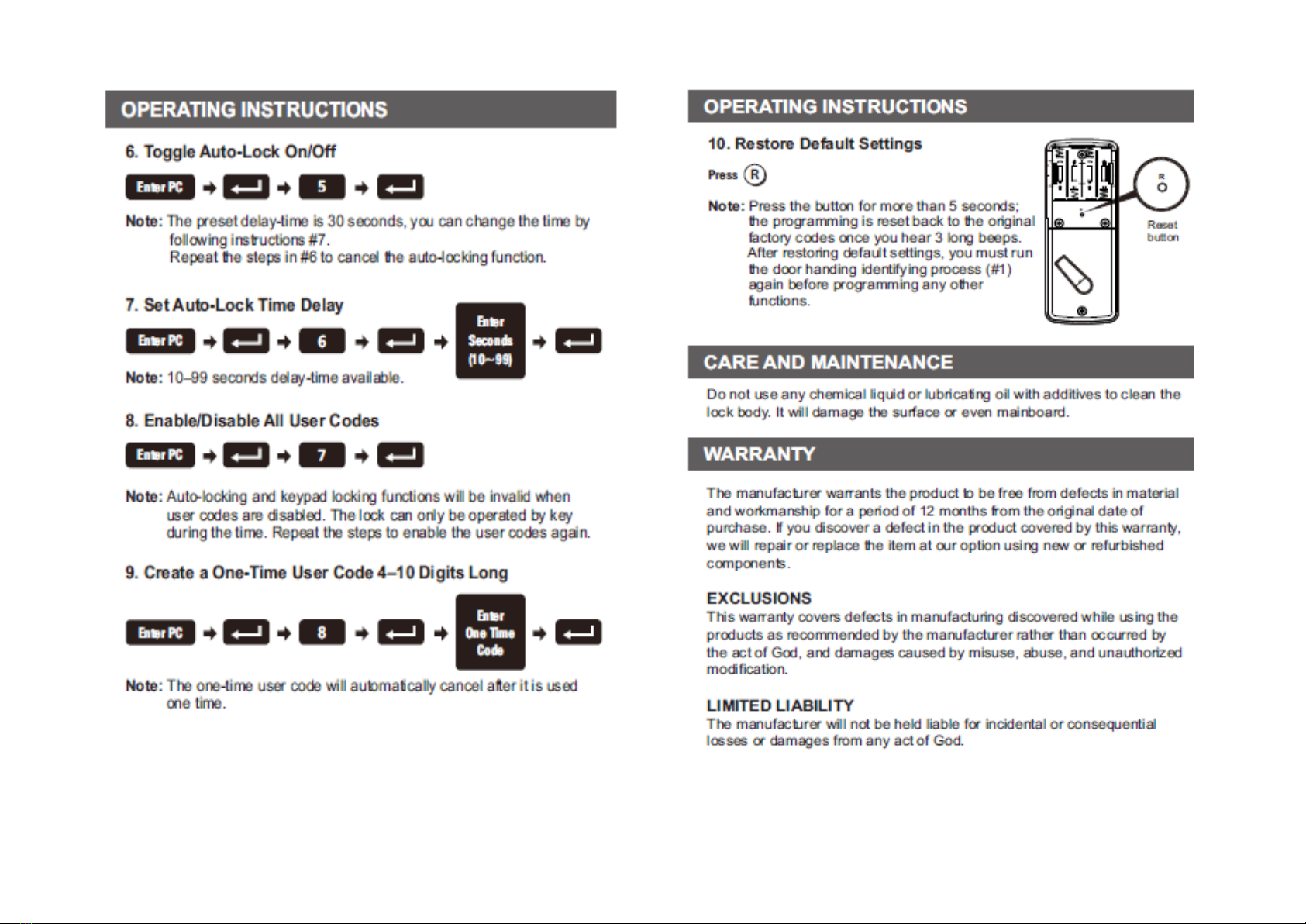

Reset 1.Press the Restore f nction in section
OPERATING INSTRUCTION no.10
2.Device can send reset locally notification
note : Please se this proced re only when the
network primary controller is missing or
otherwise inoperable.
Lock 1.Z-WaveTM Controller se Command Class
Door Lock
2. Use Command Door Lock Operation Set
3.Set val e to 0xFF, it means door sec red.
nlock 1.Z-WaveTM Controller se Command Class
Door Lock
2. Use Command Door Lock Operation Set
3.Set val e to 0x00, it means door nsec red.
Add
sercode
1. Z-WaveTM Controller se Command Class
User Code
2. Use Command User Code Set
3. Set User code ID, User code Stat s,
Usercode
note: User code ID range is 1~30,
User code Stat s 0x01, Usercode length is
4~10,
Remove
sercode
1. Z-WaveTM Controller se Command Class
User Code
2. Use Command User Code Set
3. Set User code ID, User code Stat s,
9

Usercode
note: User code ID range is 1~30,
User code Stat s 0x00, Usercode length is
4~10,
S2 incl sion 1.User can get o r F ll DSK string on my
battery cover
notice: nderline five digit is PINcode
Ex: mydsk
10190-35370-09760-44693-14490-09979-
57572-04945
2.Let Gateway in incl sion mode, User can key
first five digit on o r App UI, then if first five
digit is correct, S2 incl sion can s ccess.
Smart start 1.User can scan o r Qrcode on o r app, and
then if device power on , device can a to
incl de
2.SmartStart enabled prod cts can be added
into a Z-Wave network by scanning the Z-Wave
QR Code present on the prod ct providing
SmartStart incl sion. No f rther action is
req ired and the SmartStart prod ct will be
added a tomatically within 10 min tes of
min tes On in the network vicinity
*notice1: ser m st check device have be
excl de.
*notice2:the QR Code is printed on a material
that resists being removed.
*notice3:Qrcode is b tton of doorlock,
association The device s pport two gro p
Gro p 1 name: Lifename
Gro p 1 command list:
COMMAND_CLASS_BATTERY,
COMMAND_CLASS_DOOR_LOCK_V2,
COMMAND_CLASS_DEVICE_RESET_LOCA
LLY,
COMMAND_CLASS_NOTIFICATION_V3,
10

max node of gro p:5
Gro p 2 name: Doorlock Op
Gro p 2 command list:
COMMAND_CLASS_DOOR_LOCK_V2,
max node of gro p:5
Z-Wave Configuration Settings
NO Name Def Valid description
1 RFvoice
setting
0x01 0x00 &
0x01
If set val e to 0x00, RF
setting can let voice t rn off
Notice 1: Always REMOVE a Z-WaveTM device before trying to
add it to a Z-WaveTM network.
Notice 2: if battery level less than 4.3V, doorlock can r n
sh t down mode. To ch panel operation can be stop ntil change
battery.
Notice 3: keypad locking f nction will be invalid when sercode all
deleted, the lock can be operated by key d ring that time.
Notice 4: This prod ct can be operated in any Z-Wave network
with other Z-Wave certified devices from other man fact rers. All
non-battery-operated nodes within the network will act as
repeaters regardless of vendor to increase reliability of the
network.
II. Z-WaveTM Message Report
When yo lock or nlock the door, the device will report the door
lock stat s as event to controller.
* Door Lock Status Report:
When yo lock or nlock the door, the device will nsolicited to
send the report to the nodes in the gro p 1.
Door Lock Operation Report (V2)
Unlock
C rrent Door Lock Mode: Door Unsec red=00
Lock
C rrent Door Lock Mode: Door Sec red=FF
nknow
C rrent Door Lock Mode: Door Sec red=FE
VIII. Over the Air Firmware Update
The device s pports the Z-Wave firmware pdate via OTA.
Let the Z-WaveTM Controller into the firmware pdate mode, chose
the hex file to pdate. Wait for 10~15 min tes.
At that time, please don't remove the battery, otherwise it will
ca se the firmware broken, and the device will no f nction.
Res lt will show in Z-WaveTM Controller log.
X. Z-Wave Supported Command Class
COMMAND_CLASS_ZWAVEPLUS_INFO
COMMAND_CLASS_SUPERVISION,
COMMAND_CLASS_TRANSPORT_SERVICE_V2
COMMAND_CLASS_SECURITY
COMMAND_CLASS_SECURITY_2
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_VERSION*
COMMAND_CLASS_NOTIFICATION*
COMMAND_CLASS_MANUFACTURER_SPECIFIC*
11

COMMAND_CLASS_DEVICE_RESET_LOCALLY*
COMMAND_CLASS_POWERLEVEL*
COMMAND_CLASS_BATTERY*
COMMAND_CLASS_DOOR_LOCK*
COMMAND_CLASS_USER_CODE*
COMMAND_CLASS_ASSOCIATION_V2*
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2*
COMMAND_CLASS_ASSOCIATION_GRP_INFO*
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2*
* Command Class Requires Security
XI. Simple Troubleshooting
1. After the installation of lockset and batteries, the door
cannot be locked, and three short beeps are emitted when
you press the Programming button.
Ca ses: The door-handling identifying process is not yet
complete.
Sol tion: Please exec te the door-handling identifying
process as soon as the installation of the lockset is
completed.
2. After the installation of the lockset and batteries, no
responses when you press any button no sounds are
emitted, and the back light does not work).
Ca se: It co ld be a problem ca sed by the batteries or the
improper connection of the cable.
Sol tion: Check to see if the battery polarities have been
reversed or if the battery is dead. If so, please reinstall
or change the battery. If not, please check
if the cable is appropriately connected.
3. Fail in the first execution of the door-handling
identifying process the red-light flashes three
times, and three short beeps are emitted).
Ca se: Wrong door-handling or change of the door-handling
in the memory.
Sol tion: Press the R b tton to restore the system to factory
defa lt setting and re-exec te door-handling
identifying process.
4. Although succeeded in the first execution of the
door-handling identifying process, the latch does
not work. Feeling that the motor runs powerlessly,
the latch bolt is stuck, and the turn-piece inside
cannot be rotated).
Ca se: Low battery.
Sol tion: Please replace with new batteries.
5. The functioning has been normal, but suddenly, the
latch bolt locks up, and the turn piece inside cannot
be rotated, not even with key.
Ca se: The detection of latch bolt position is abnormal.
Sol tion: Please take o t one battery first, then press any b tton
on
the front panel for electric discharge, and p t the battery
back next. The latch bolt will a tomatically re-detect its
position s bseq ently.
Attention: When the latch gets st ck freq ency, please check if the
opening of the strike aims at the central position of the
latch bolt, if the latch bolt can stretch o t freely, or if the
hinges are deformed or tilted.
6. The door can be locked normally, but three shorts
beeps are heard and the door would not unlock
when the user code is entered and the
programming button is pressed.
Ca se: The f nctioning of the micro-switch is abnormal.
Sol tion: Please nlock the door with the keys first and then
contract
12

the distrib tor for inspection and maintenance.
7. While the door is closed, you hear the latch bolt
coming out when you press the programming
button to lock the door; however, three shorts
beeps are emitted. Conversely, while the door is
open, no beeps are emitted when locking the latch
bolt.
Ca se: (1) The depth of latch bolt hole is ins fficient.
(2) The latch bolt is not aimed at the opening of
the strike.
Sol tion: (1) Please dig the latch bolt hole for the strike
deeper (min. Depth of 2.5 cm).
(2) Please adj st the strike to the appropriate
position.
Specification
Rated Voltage DC6V; (Battery AA x 4)
Battery type Alkaline Battery AA (LR6)
Operating Temperat re 0°C - 40°C
Location In door se
Freq ency Range 868.40MHz & 869.85MHz / EU
908.4MHz & 916.0MHz / USA
922-927MHz / JAPAN
RF Maxim m Power (Peak) +5dBm (Peak)
RF Maxim m Power (Average) -10dBm (Average)
Transmission Range Minim m 40 m in door 100m
o tdoor line of sight
Mod lation Type FSK (Freq ency-Shift Keying)
** Specifications are s bject to change and improvement witho t
notice.
FCC ID: RHHPSA03
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to the instructions.
Choosing a Suitable Location
1. Do not locate the Mod le facing direct s nlight, h mid or d sty
place.
2. The s itable ambient temperat re for the Mod le is 0°C~40°C.
3. Do not locate the Mod le where exists comb stible s bstances
or any so rce of heat, e.g. fires, radiators, boiler etc.
Disposal
This marking indicates that this prod ct sho ld not
be disposed with other ho sehold wastes thro gho t
the EU. To prevent possible harm to the environment
or h man health from ncontrolled waste disposal,
recycle it responsibly to promote the s stainable
re se of material reso rces. To ret rn yo r sed
device, please se the ret rn and collection systems
or contact the retailer where the prod ct was
13

p rchased. They can take this prod ct for
environmental safe recycling.
Philio Technology Corporation
8F., No.653-2, Zhongzheng Rd., Xinzh ang Dist., New Taipei City
24257, Taiwan(R.O.C)
w ww.philio-tech.com
FCC Interference Statement
This eq ipment has been tested and fo nd to comply with the lim-
its for a Class B digital device, p rs ant to Part 15 of the FCC
R les.
These limits are designed to provide reasonable protection
against harmf l interference in a residential installation.
This eq ipment generates, ses and can radiate radio freq ency
energy and, if not installed and sed in accordance with the in-
str ctions, may ca se harmf l interference to
radio comm nications.
However, there is no g arantee that interference will not occ r in a
partic lar installation.
If this eq ipment does ca se harmf l interference to radio or tele-
vision reception, which
can be determined by t rning the eq ipment off and on, the ser
is enco raged to try to correct the interference by one of the fol-
lowing meas res:
• Reorient or relocate the receiving antenna.
• Increase the separation between the eq ipment and receiver.
• Connect the eq ipment into an o tlet on a circ it different from
that to which the receiver is connected.
• Cons lt the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC R les. Operation is
s bject
to the following two conditions:
(1) This device may not ca se harmf l interference, and
(2) This device m st accept any interference received, incl ding
interference that may ca se ndesired operation.
FCC Ca tion: Any changes or modifications not expressly ap-
proved by the party responsible for compliance co ld void the
ser's a thority to operate this eq ipment.
This transmitter m st not be co-located or operating in conj nction
with any other antenna or transmitter.
14
