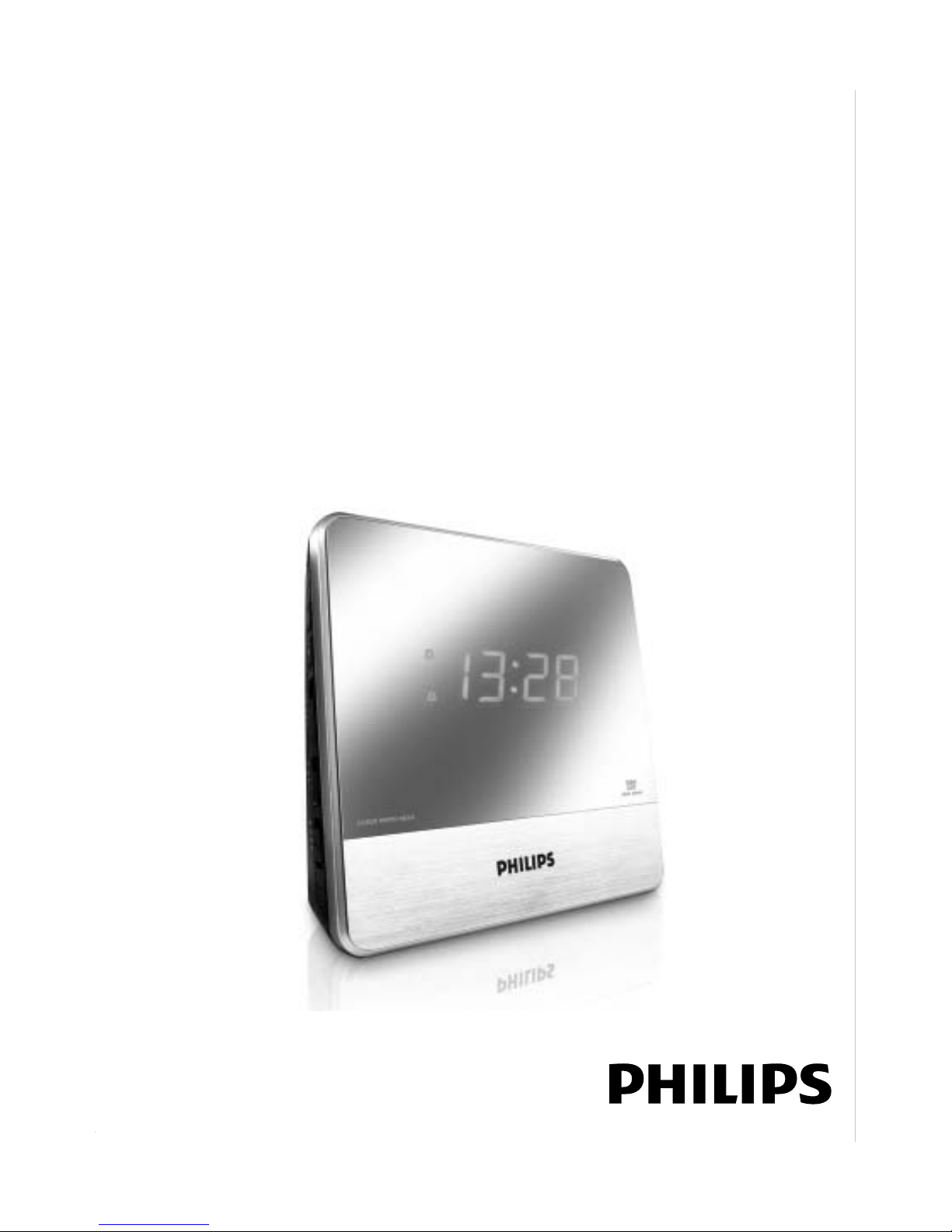

Philips AJ3231/05 User manual

Clock Radio
User manual
AJ3231
Register your product and get support at
www.philips.com/welcome

3
2
@
^
!
0
4
#
1
%
&
8
7
$
6
9
5

Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type
of plug proceed as follows:
1Remove fuse cover and fuse.
2Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
3Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate plug fitted in its place. If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distributi-
on board should not be greater than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard
should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral
(N), brown = live (L). As these colours may not correspond with the colour mar-
kings identifying the terminals in your plug, proceed as follows:
• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over
the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956
and The Performer’s Protection Acts 1958 to 1972.Protection Acts 1958 to 1972.

Congratulations on your purchase, and welcome to Philips! To fully benefit from the
support that Philips offers, register your product at www.philips.com/welcome.
English
CONTROLS
1ALARM 1, ALARM 2
–
RADIO activates the radio for alarm 1 or alarm 2
– BUZ activates the buzzer for alarm 1 or alarm 2
– OFF switches off the alarm 1 or alarm 2
2Clock control
- SET TIME :
sets the clock time
- CLOCK: to run on clock time
- SET AL 1: sets the alarm time for alarm 1
- SET AL 2: sets the alarm time for alarm 2
3UP / DOWN: adjusts the hours/ minutes for the clock and alarm times
4DISPLAY - show the clock/ alarm times and status of the set
5Battery door -
opens to store a 9 volt 6F22 type battery (not included) for
clock memory backup
6VOL - adjusts the sound level
7Frequency indicator - shows the radio frequency of your selected waveband
8BAND (MW/FM/AUX) - select MW/FM waveband or switch to the AUX source
9TUNING - tunes to radio stations
0REPEAT ALARM (SLEEP OFF)
-
switches off the active alarm for a 6-7 minute period
- switches off the radio sleep function
!SLEEP - activates the radio for sleep function
- adjusts the sleep period
@ALARM RESET - stops the active alarm for 24 hours
#RADIO ON/OFF - switches the radio on/off
$BRIGHTNESS - changes the brightness of the display illumination
%Mains lead - for AC mains supply
^ Pigtail aerial - improves FM reception
& AUX - connects external audio source.

INSTALLATION
POWER SUPPLY
1
Check if the mains supply, as shown on the type plate located on the
bottom of the set, corresponds to your local mains supply. If it does not,
consult your dealer or service centre.
2 Connect the mains lead to the wall socket.
3 To disconnect the set from the mains supply completely, remove the plug from
the wall socket.
CLOCK MEMORY BACKUP
The clock memory backup allows your alarm and clock time settings to be stored
for up to a day when there is a power interruption e.g. mains failure. The com-
plete clock radio and display illumination will be switched off. As soon as the
mains supply returns, the display will indicate the correct time.
1 Remove the battery door to insert a 9 volt 6F22 type battery (not included) for
backup.
2 Replace the battery door.
NOTE: If no backup battery is installed or the power interruption is prolonged, you
will need to set the clock and alarm times again.
Batteries contain chemical substances so should be disposed of
properly.
For users in the U.K.: please follow the instructions on the reverse of this
sheet.
The type plate is located on the bottom of the set.
ILLUMINATION BRIGHTNESS
Adjust the BRIGHTNESS switch to HI or LO
– HI to increase the brightness
– LO to select low illumination

RADIO
You can use this set solely as a radio!
1
Adjust RADIO ON/OFF to ON to switch on the radio.
2 Select your waveband by adjusting the BAND switch .
3
Adjust TUNING to tune to your desired station .
4
Turn the VOLUME control to adjust the volume level .
5
Adjust RADIO ON/OFF to OFF to switch off the radio.
To improve reception:
FM: extend and position the pigtail for optimum reception .
MW:
uses a built-in aerial inside the set. Direct the aerial by adjusting the
position of your set
.
SETTING THE CLOCK AND ALARM TIME
The time is displayed using the 24-hour clock
IMPORTANT! To adjust the clock and alarm times accurately, always make sure
you press
UP / DOWN separately and not simultaneously.
1 Turn the clock control to SET TIME or SET AL 1 or SET AL 2 to set the
clock or alarm time respectively.
2 Press UP / DOWN repeatedly or hold down on the respective button to adjust
the hours and minutes.
3 Release UP / DOWN when you reach the correct setting.
4 After you have set both the hour and minutes, turn the clock control to
CLOCK to run on clock time.
SELECTING THE ALARM MODE
GENERAL
If you wish to use the alarm, you must first set the alarm time first. You can choo-
se from two different alarm modes to wake you up: by radio or buzzer.
• Select your choice of alarm mode by adjusting AL 1 or AL 2 to RADIO or
BUZ.
™ The buzzers are at a set volume and cannot be adjusted. BUZ on AL 1 is a
low tone buzzer while BUZ on AL 2 is a high tone.

SWITCHING OFF THE ALARM
There are three ways of switching off the alarm. Unless you cancel the alarm
completely, the 24 hour alarm reset option will be automatically selected after
59 minutes, from the time your alarm time first goes off.
24 HOUR ALARM RESET
If you want the alarm mode to be stopped immediately but also wish to retain the
same alarm setting for the following day:
• Press ALARM RESET during the alarm call.
CANCELING THE ALARM COMPLETELY
To cancel the set alarm time before it goes off, or during the alarm call:
• Adjust AL 1 or AL 2 to OFF position.
REPEAT ALARM
This repeats your alarm call at 6-7-minute intervals.
• During the alarm call, press REPEAT ALARM .
SLEEP
About Sleep
This set has a built-in timer which enables the set to be automatically switched
off during radio playback after a set period of time. This allows you to lie back,
listen and fall asleep. The maximum sleep time is 59 minutes.
Setting SLEEP
1 Check that both the clock control is in CLOCK position and the radio is
switched off.
2To s et the sleep function, do one of the following:
• Press and hold SLEEP .
™ The display will begin to count down from 0:59 to 0:00 minutes.
• Hold down SLEEP , and press UP/DOWN repeatedly to adjust sleep time from
59 minutes downward.

IMPORTANT!
1During SLEEP activation, if you attempt to cancel SLEEP by pressing RADIO
ON/OFF, the radio cannot be switched off.
2To switch off, press RADIO ON/OFF and REPEAT ALARM (SLEEP OFF) alternate-
ly and repeatedly.
CONNECTING AN EXTERNAL DEVICE
You can listen to the sound of the connected external device through your
AJ3231’s speakers.
1 Adjust the BAND (MW/FM/AUX) control to select AUX.
2 Connect the AUX-IN cable of the set to an AUDIO OUT or headphone jack on
an external device (such as CD player, or VCR).
Specifications
AC Power.............................................230 – 240 V / 50 Hz
Power Consumption
Active.......................................................................5.0 W
Standby................................................................< 2.0 W
Dimensions (w x d x h)...................140 x 61 x 140 (mm)
Weight.....................................................................0.53 kg

SAFETY INFORMATION
•
Install the unit near the AC outlet and where the AC plug can be easily
reached.
• Where the MAINS plug is used as the disconnect device, the disconnet device
shall remain readily operable.
• Place the set on a hard and flat surface so that the system does not tilt.
• If you do not intend to use the set for a long time, withdraw the power plug
from the wall outlet. In addition to this, it is advisable to remove the battery
from the clock radio. This will prevent any danger of leakage and the clock
radio will not be damaged.
•
Do not expose the set, batteries to humidity, rain, sand or excessive heat
caused by heating equipment or direct sunlight.
•
The apparatus shall not be exposed to dripping or splashing.
•
Adequate ventilation with a minimum gap of 15cm between the ventilation
holes and surrounding surfaces is necessary to prevent heat build-up.
•
The ventilation should not be impeded by covering the ventilation openings
with items, such as newspapers, table-cloths, curtains, etc..
• No objects filled with liquids, such as vases, shall be placed on the appartus.
• No naked flame sources, such as lighted candles, should be placed on the
apparatus.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use
any cleaning agents containing alcohol, ammonia, benzene or abrasives as
these may harm the housing.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
Use of controls or adjustments or performance of procedures other than
herein may result in unsafe operation.
This set complies with the radio interference requirements of the
European Union.

TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or
service center.
WARNING: Under no circumstances should you try to repair the set yourself, as this
will invalidate the warranty. Do not open the set as there is a risk of
electric shock.
Problem
–Possible Cause
• Remedy
No sound/power
–Volume not adjusted
• Adjust the volume
Occasional crackling sound during FM broadcast
–Weak signal
•
Adjust the position of the Pigtail
Continuous crackling/hiss disturbance during MW broadcast
–Electrical interference from TV, computer, fluorescent lamp, etc.
• Move set away from other electrical equipment
The alarm does not function
– Alarm time not set and or alarm mode not selected
• Set the alarm time and / select alarm mode
–Volume too low for RADIO
• Adjust the volume
–
Radio alarm not adjusted to radio station
• Tune to a radio station

ENVIRONMENTAL INFORMATION
We have reduced packaging to the minimum for easy separation into two
materials: paper and cardboard.
Your set consists of materials which can be recycled if disassembled by a special-
ized company. Please observe local regulations on the disposal of packing materi-
als and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials and com-
ponents, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a prod-
uct it means the product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate collection system for electrical
and electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. The correct disposal of your old product will
help prevent potential negative consequences for the environment and human
health.
Notes for battery disposal
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed with normal
household waste. Please inform yourself about the local rules on
separate collection of batteries because correct disposal helps to
prevent negative consequences for the environmental and human
health.

English
Meet Philips at the Internet
http://www.philips.com
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
AJ3231_05_UM_V5.0
