Register your product and get support at
www.philips.com/welcome
Always there to help you
Руководство пользователя 29
User manual 3
Question?
Contact
Philips
Question?
Contact
Philips
CED230/51
CED230_51_UM_V2.1.indb 1 8/14/2012 4:37:40 PM

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What's in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Install the car audio 10
Connect 10
Mount into dashboard 11
Attach the front panel 12
Install remote control battery 12
4 Get started 13
Turn on and turn off 13
Adjust volume 13
Mute 13
Set clock 13
5 Play audio/video/picture 14

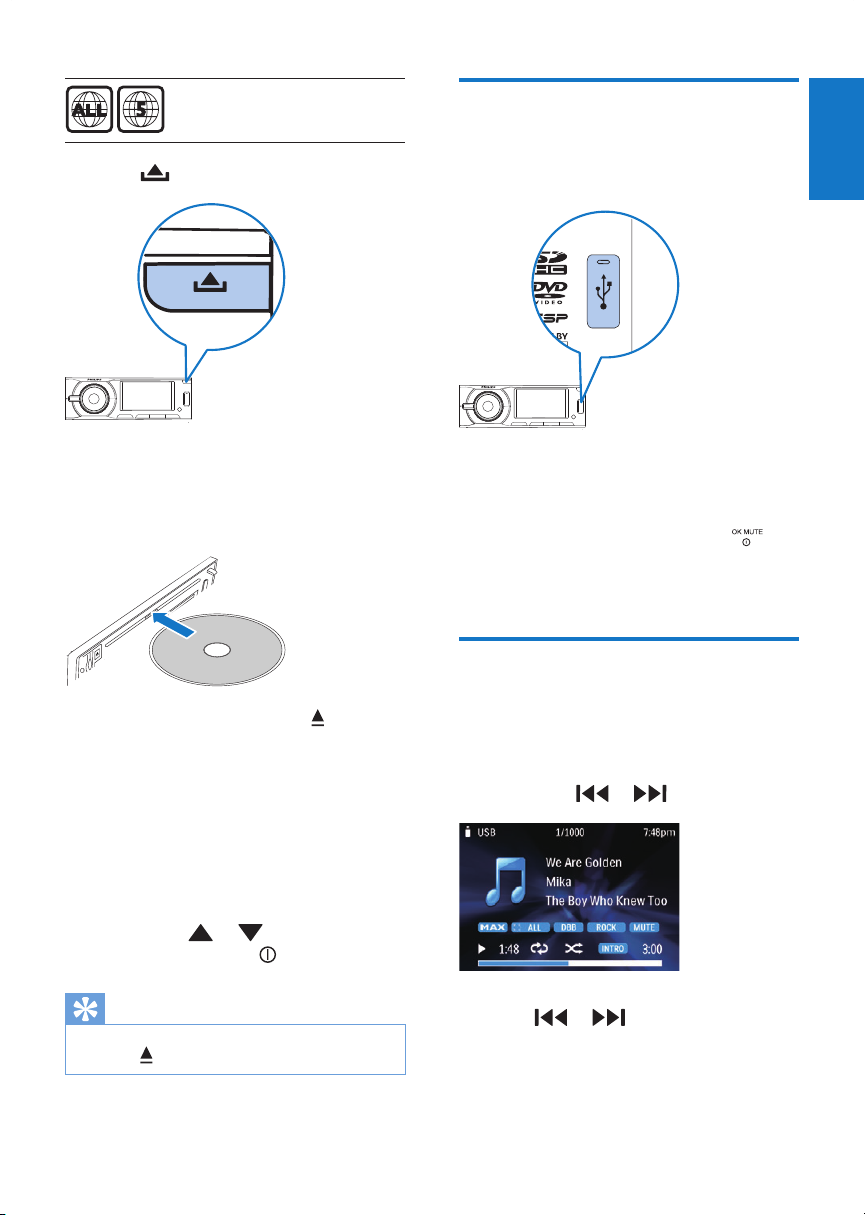

Load and eject discs 14
Insert and remove USB device 15
Skip/search 15
Select Language 16
Select audio language 16
Intro play 16
Repeat play 16
Random play 17
Zoom 17
6 Radio 17
Manual tune to a radio station 17
Auto tune to a radio station 17
Store stations manually 17
Store stations automatically 18
Select the preset station 18
Play with RDS 18
7 Adjust sound 19
Dynamic Bass Boost 19
MAX sound 19
Select equalizer settings 20
Select listening zone 20
Other sound settings 20
8 System settings 21
Adjust general settings 21
Select video settings 22
Select language settings 23
Adjust turner settings 23
9 Other settings 24
Turn on or off the screen backlight 24
Select Video Output format 24
Listen to other devices 24
Set rear view camera 24
Reset 24
Replace fuse 25
10 Product information 26
General 26
Disc player 26
Tuner 26
LCD 26
Compatible USB devices 26
Supported formats 26
Unsupported formats 27
11 Troubleshooting 28
CED230_51_UM_V2.1.indb 3 8/14/2012 4:37:41 PM

4EN
1 Important
Safety
• Read and understand all instructions
before you use the apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
• Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
• This unit is designed for negative ground
(earth) 12 V DC operation only.
• Toreducetheriskoftrafcaccident,dono
watch video during driving.
• To ensure safe driving, adjust the volume to
a safe and comfortable level.
• Improper fuses can cause damage or
re.Whenyouneedtochangethefuse,
consult a professional.
• Use only the supplied mounting hardware
for a safe and secure installation.
• To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
• Never insert objects into the ventilation
slots or other openings on the apparatus.
• Never place any objects other than discs
into the disc tray/slot.
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Risk of damage to the screen! Never touch,
push, rub or strike the screen with any
object.
• Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
• Clean the apparatus with soft, damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners on the
apparatus.
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
Notice
The making of unauthorized copies of copy-
protected material, including computer
programs,les,broadcastsandsound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
CED230_51_UM_V2.1.indb 4 8/14/2012 4:37:41 PM

5
English
EN
Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Anychangesormodicationsmadetothis
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2012 © Koninklijke Philips Electronics N.V.
Specicationsaresubjecttochangewithout
notice.Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
CED230_51_UM_V2.1.indb 5 8/14/2012 4:37:41 PM

6EN
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips!
TofullybenetfromthesupportthatPhilips
offers, register your product at www.Philips.
com/welcome.
Read this user manual carefully before you
install and use the unit. Save it for future
reference.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
• FM or AM (MW) radio
• Audio from USB drive or external devices.
• Music CDs
• DVD and VCD video
What's in the box
Caution
•Use the controls only as stated in this user manual.
Registeryourproductandgetsupportat
www.philips.com/welcome
EN Usermanual
CED229
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
CED230_51_UM_V2.1.indb 6 8/14/2012 4:37:43 PM

7
English
EN
Overview of the main unit
a SOURCE
• Select source.
• Turn off the display.
b MENU
• Access the system menu.
c
• Return to previous menu.
bcde
tp ronmlkjihf g sq
a
uv
w
d Screen
e
• Unlock the front panel.
f USB socket
g Remote control sensor
h R/L, 6
• Select preset station no. 6.
• Select audio channel.
CED230_51_UM_V2.1.indb 7 8/14/2012 4:37:43 PM

8EN
i 5,
• Select preset station no. 5
• Stop playback.
j SHUF, 4
• Turn random play on or off.
• Select preset station no. 4
k 3, REP
• Select repeat play mode.
• Select preset station no. 3
l INTRO, 2
• Turn scan play on or off.
• Select preset station no. 2
m 1,
• Start play.
• Pause or resume play.
• Select preset station no. 1
n
• Select listening zone.
o DBB,
6281'
,
• Turn on or off Dynamic Bass Boost
(DBB) sound and maximum volume.
p , AS
• Store radio station automatically.
q OK/MUTE
• Turn the unit on or off.
• Turn mute on or off.
• Adjust volume.
• Conrmselection.
r /
• Select tuner band.
• Select folder.
s /
• Tune for radio station.
• Skip/search for track.
t EQ/AUDIO
• Select equalizer (EQ) setting.
• Access audio setting menu.
u
• Eject disc.
v Disc slot
w RESET
• Restore default settings.

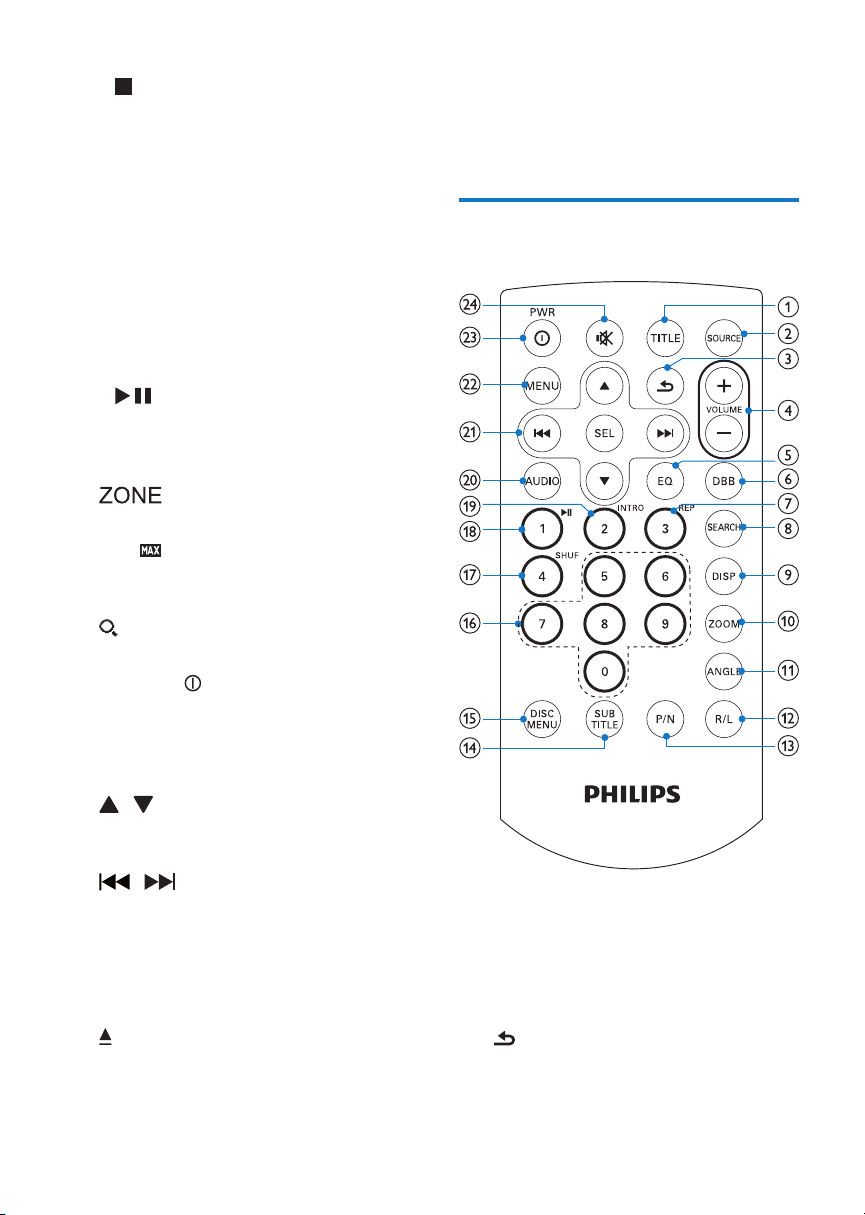

Overview of the remote
control
a TITLE
• Access or exit DVD title menu.
b SOURCE
• Select connected device.
• Turn off the display.
c
• Return to previous menu.
• Disable screen saver.
CED230_51_UM_V2.1.indb 8 8/14/2012 4:37:46 PM

9
English
EN
d VOLUME +/-
• Adjust volume.
e EQ
• Select equalizer (EQ) setting.
f DBB
• Turn on or off Dynamic Bass Boost
(DBB) sound.
g 3, REP
• Select repeat play mode.
• Select preset station no. 3
h SEARCH
• Store radio station automatically.
i DISP
• Display play information.
j ZOOM
• Enlarge or reduce picture or active
image size.
k ANGLE
• Select a difference angle/version of the
current DVD scene.
l R/L
• Select audio channel.
m P/N
• Select video output format.
n SUBTITLE
• Select DVD subtitle language.
o DISC MENU
• Return to DVD main menu.
p 5/6/7/8/9/0+
• Select track or preset radio station.
q SHUF, 4
• Turn random play on or off.
• Select preset station no. 4.
r 1/
• Select preset station no. 1
• Start play.
• Pause or resume play.
s INTRO, 2
• Turn intro play on or off.
• Select preset station no. 2
t AUDIO
• Access audio setting menu.
u Navigation buttons
/
• Tune for radio station.
• Skip/search for track.
/
• Select tuner band.
• Select folder.
• SEL
• Conrmselection.
v MENU
• Access system menu.
w PWR
• Turn the unit on or off.
x
• Mute or unmute audio.
CED230_51_UM_V2.1.indb 9 8/14/2012 4:37:47 PM

10 EN
3 Install the car
audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
•This unit is designed for negative ground (earth) 12 V
DC operation only.
•Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•To avoid short-circuit: before you connect, ensure that
the ignition is off.
•Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•Ensure that all loose leads are insulated with electrical
tape.
•Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•Ensure that all ground (earth) leads are run to a
common ground (earth) point.
•Use only the supplied mounting hardware for a safe
and secure installation.
•Improperfusescancausedamageorre.Whenyou
need to change the fuse, consult a professional.
Note on the power supply lead (yellow)
• When you connect other devices to this
apparatus, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
• Never connect speaker wires to the metal
body or chassis of the car.
• Never connect speaker wires with stripes
to one another.
Connect
Caution
•Make sure that all bare wires are insulated with
electrical tape.
Note
•As different cars have different requirements, you might
need to connect the device differently from the user
manual's instructions. In that case, consult a professional
mechanic to connect.
OR
++
++
--
--
a
jk
l
fg
h
i
b
c
d
e
no
FR
FLRL
RR
a
b
c
d
e
CED230_51_UM_V2.1.indb 10 8/14/2012 4:37:49 PM

11
English
EN
1 Illumination switch
2 To the +12V car battery which is
energized at all time
3 Motor/electric antenna relay control lead/
Amplierrelaycontrollead
4 Ground
5 Ignition Key +12V DC when ON/ACC
6 Antenna
7 Aux-In
8 Parking Switch Cable
9 Reverse Driving Cable
10 Video-In
11 Camera-In
12 Video-Out
13 Rear line-Out
14 Front line-Out
Connect parking brake cable and
reverse driving cable to a rear view
backup camera
Note
•Check your local driving regulations on whether it is
legally required to install the rear view backup camera.
These connections require a professional mechanic to
install.
This car audio video system allows you to
connect to the rear view backup camera.You
can view the things that happens behind your
car in the display, especially you are driving a big
vehicle.This helps protecting your bumper and
anything it might contact.
Mount into dashboard
Note
•For proper operation of the DVD player, the chassis
must be mounted within 20 degree horizontal. Ensure
that the unit is mounted within this limitation.
Caution
•Keep the connection of the car battery if there is an
on-board drive or navigation computer. Otherwise, the
computer may lost its memory.
•To avoid short circuit, ensure the bare wires do not
touch each other and disconnect the negative terminal
of the car battery.
1 Remove the two transport screws on the
top of the unit.
2 Remove the mounting sleeve with the
supplied disassembly tools.
3 Install the sleeve into the dashboard.
4 Bendthetabsoutwardtoxthesleeve.
183mm
53.5mm
CED230_51_UM_V2.1.indb 11 8/14/2012 4:37:50 PM

12 EN
5 Slide the unit into the sleeve until you hear
a "click"
6 Attach the trim plate.
Attach the front panel
1 Insert the notch on the front panel to the
chassis on the main unit.
2 Press the left end of the front panel
inwards until it is securely locked with a
"click".
Detach the front panel
Note
•Before you detach the front panel, make sure that the
system is turned off.
1 Press to release the front panel.
2 Pull the front panel leftward to release it
from the chassis of the main unit.
3 Pull the front panel outwards to remove it.
Install remote control battery
Caution
•Risk of explosion! Keep batteries away from heat,
sunshineorre.Neverdiscardbatteriesinre.
•Risk of decreased battery life! Never mix different
brands or types of batteries.
•Risk of product damage! When the remote control is
not used for long periods, remove the batteries.
•Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/percholorate.
Forrsttimeuse
To replace the remote control battery
CED230_51_UM_V2.1.indb 12 8/14/2012 4:37:51 PM

13
English
EN
2
1
CR2025
CR2025
3V
CR2025
3V
4 Get started
Turn on and turn off
Turn On
Press the power button ( ).
Turn Off
Press and hold the same power button for 3
seconds.
Adjust volume
To adjust volume, rotate knob on the front
panel or press VOLUME +/- on the remote
control.
Mute
Set clock
1 Press MENU.
2 Press the navigation buttons to select
[SETTINGS], then press .
3 Select [GENERAL], then press .
CED230_51_UM_V2.1.indb 13 8/14/2012 4:37:53 PM

14 EN
4 Press the navigation buttons to select
[TIME MODE], then press .
» The time mode options are displayed:
• [12 HOUR MODE]
• [24 HOUR MODE]
5 Select a mode, then press .
6 Press the navigation buttons to select
[TIME ADJUST], then press .
7 Press or to enter clock, then press
.
5 Play audio/
video/picture
Make sure that the disc or device contains
playable music or video.
Note
•ForCDsrecordedinmultiplesessions,onlytherst
session is played.
•Does not support MP3 Pro audio format.
•It may not support and display special characters track
name (ID3) or album name properly.
•It cannot play some WMA is protected by Digital Rights
Management (DRM).
•Thesystemdoesnotdisplayorplaythefoldersorles
that exceed the supporting limit.
Warning
•Toreducetheriskoftrafcaccident,donotwatch
video during driving.
Load and eject discs
Warning
•Toreducetheriskoftrafcaccident,donowatch
video during driving.
You can play video, audio or images stored on
the following discs:
• DVD video, DVD-R, DVD-RW
• VCD
• AudioCD,CDwithJPEGles,CD-R,
CD-RW
Note
•Ensure that the disc contains playable content.
You can play DVD discs with the following
region codes:
CED230_51_UM_V2.1.indb 14 8/14/2012 4:37:53 PM

15
English
EN
Russia, India
1 Press to open the front panel.
2 Insert the disc into the disc slot with label
side facing up.
» Play resumes from the point where it
was last stopped.
3 To remove the disc, press the button.
» When the disc is ejected, the
unit switches to TUNER mode
automatically.
4 Close the front panel.
» After a few seconds, the screen
illuminates.
• The disc starts playing automatically.
• For discs that contain MP3s,WMAs, or
JPEGs, press or to select a folder,
track or picture. Press to start playing.
Tip
•If the disc is blocked in the disc compartment, press and
hold the button until the disc comes out.
Insert and remove USB
device
1 Slide down the USB socket cover.
2 Insert the USB device into the USB socket.
» The unit starts playing from the USB
device automatically.
3 To remove the USB device, press to
turn off the unit.
4 Remove the USB device.
Skip/search
During video and audio disc play
• Toskiptoaspeciedchapterortrack,
press the numeric buttons.
• To skip to the previous or next chapter or
track, press or .
• To search backward or forward quickly,
press or for 3 seconds.
CED230_51_UM_V2.1.indb 15 8/14/2012 4:37:55 PM

16 EN
During MP3/WMA play
• To select a track, press or to select
a folder. Press or to skip to
previous or next track.
• Toskiptoaspeciedchapterortrack,
press the numeric buttons.
Select Language
You can select the subtitle language if the DVD
discs contain two or more subtitle languages.
During play, press on the
remote control repeatedly until the language is
selected.
Select audio language
You can select the audio language if the video
discs contain two or more audio channels.
During play, press on the remote control
repeatedly until the language is selected.
Intro play
Thisfeatureplaystherst10secondsofeach
audio track.
Press the button to select an
option.
• [INTRO 1]:playtherst10secondsof
each audio track.
• [SEQ PLAY]: resume normal play.
Repeat play
There are different modes of repeat play for
video, audio, and MP3/WMA.
Press the button repeated to select.
• [RPT]: [RPT 1] - play the current chapter
or track repeatedly.
• [RPT]: [RPT DIR] - play the current folder
repeatedly.
• [RPT]: [RPT ALL] - play all chapters in the
title or all tracks repeatedly.
• [RPT]: [RPT OFF] - cancel repeat play.
CED230_51_UM_V2.1.indb 16 8/14/2012 4:37:57 PM

17
English
EN
Random play
There are different modes of random play for
audio and MP3/WMA.
Press the button repeatedly to
select.
• [SHUFFLE]:[ON] - start random play for
all tracks.
• [RANDOM DIR]: start random play in
current folder.
• [SHUFFLE]: [OFF] - cancel random play.
Zoom
To zoom in and out of video images and
pictures:
1 Press on the remote control
repeatedly.
» [ZOOM] is displayed.
2 Press the navigation buttons , , ,
to pan across the display.
6 Radio
Manual tune to a radio
station
1 Press .
2 Press the navigation buttons to select
[RADIO], then press .
3 Press or to select band.
» [FM] or [AM] is display.
4 Press or to tune to a radio
station manually.
Auto tune to a radio station
In [RADIO] mode, press and hold or
for 3 seconds.
Store stations manually
You can store up to 6 stations in each band.
1 Tune to the station which you want to
store.
2 Press and hold the numeric buttons (1 to
6) for 3 seconds.
CED230_51_UM_V2.1.indb 17 8/14/2012 4:37:59 PM

18 EN
Store stations automatically
You can store up to 6 stations in each band.
1 Press .
» The six strongest stations of the
selected band are saved in preset
channels 1-6 automatically.
Select the preset station
1 Press or to select band.
» [FM] or [AM] is display.
2 Press the numeric button (1 to 6) to select
the preset station.
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and the station name are
displayed.
Search for an RDS station by PTY
information
ThePTY(programtype)functionletsyound
similar programming by genre, and the radio
starts searching for stations broadcasting in the
selected category.
1 Press and hold MENU.
» The PTY menu is displayed.
2 Start to rotate within two seconds,
rotate and select a program type,
then press to start searching.
3 Select a channel.
RDS program types
Item Program
type
Description
1 NEWS News services
2 AFFAIRS Politics and current
affairs
3 INFO Special information
programs
4 SPORT Sports
5 EDUCATE Education and advanced
training
6 DRAMA Radio plays and
literature
7CULTURE Culture, religion and
society

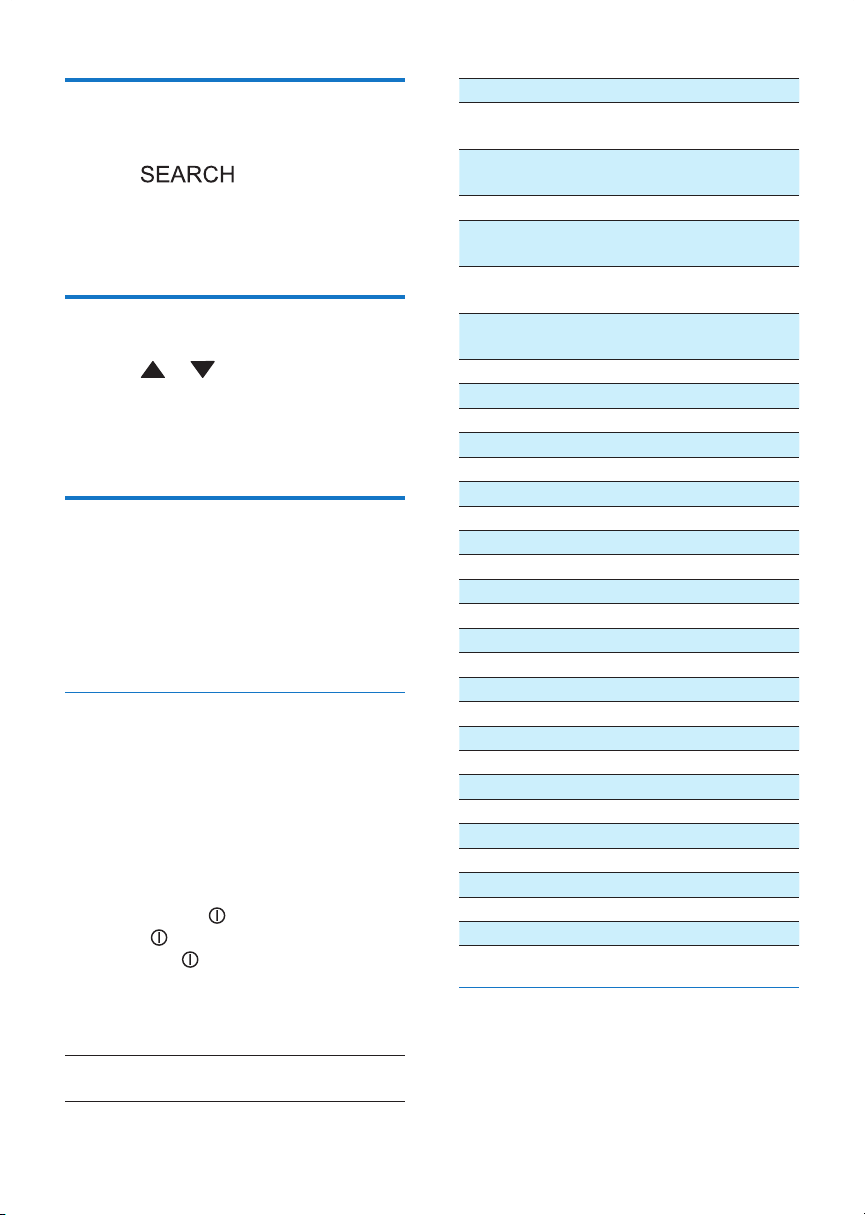

8SCIENCE Science
9VARIED Entertainment programs
10 POP M Pop music
11 ROCK M Rock music
12 MOR M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Tr ave l
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TES Alarm Test
31 ALARM Alarm
Activate AF/TA/REG/CT functions
1 Press and hold MENU.
» The setting menu is displayed.
CED230_51_UM_V2.1.indb 18 8/14/2012 4:37:59 PM

19
English
EN
2 Press the navigation buttons to select
[SETTINGS], the press toconrm.
» The settings menu is displayed
3 Press the navigation buttons to select
[Radio], then press to select an option.
• TA(trafcannouncement):allows
youtoreceivetrafcannouncements
automatically no matter what source
you are listening to.
• TA VOLUME: sets TA volume.
• AF (alternate frequency): automatically
searches for a different station when
the tuner cannot get a good reception.
• REG (regional radio): sets AF tuning
region.
• CT (clock time): synchronizes the
clock of the unit with that on the RDS
station.
4 Turn to select [ON], then press to
conrm.
7 Adjust sound
Dynamic Bass Boost
1 Press / on the car
audio system for 3 seconds or press
on the remote control.
» [DBB ON]:The Dynamic Bass Boost
(DBB) function is on.
» [DBB OFF]:The DBB function is off.
2 Press again to change the DBB
setting.
MAX sound
1 Press / to produce
an instant boost in bass and maximize
volume.
2 Press / again to
turn off.
CED230_51_UM_V2.1.indb 19 8/14/2012 4:38:00 PM

20 EN

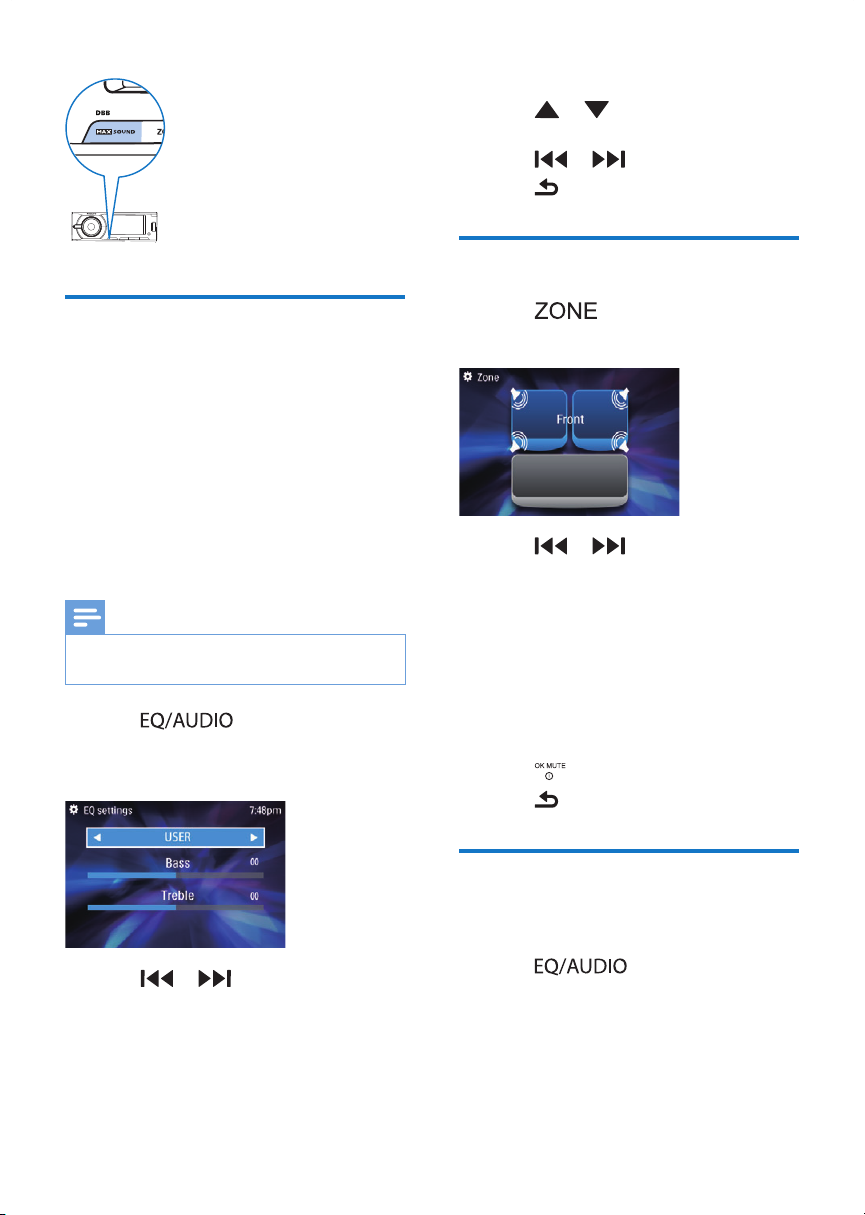

Select equalizer settings
You can select preset equalizer settings, and
they are:
• [USER]
• [TECHNO]
• [ROCK]
• [CLASSIC]
• [JAZZ]
• [OPTIMAL]
• [FLAT]
• [POP]
Note
•Only when you select [USER], then you can adjust the
sound value of [BASS], [MID], and [TREBLE] .
1 Press .
» The current equalizer setting is
displayed.
2 Press or to select one of the
preset equalizer settings.
3 You can also select [USER].
4 Press or to select of [BASS], and
[TREBLE].
5 Press or to adjust the values.
6 Press to exit.
Select listening zone
1 Press .
» The current zone setting is displayed.
2 Press or to select one of the
preset zone settings:
• [ALL] - all speakers are in same
volume level.
• [LEFT] - front left speaker is louder
than the rest of the speakers.
• [RIGHT] - front right speaker is louder
than the rest of the speakers.
• [FRONT] - the front speakers are
louder than the rear speakers.
3 Press toconrm.
4 Press to exit.
Other sound settings
You can adjust the front and rear speaker
balance, and the left and right speaker balance.
1 Press for 3 seconds.
» The following options are displayed.
CED230_51_UM_V2.1.indb 20 8/14/2012 4:38:02 PM

21
English
EN
2 Press or to select the audio
settings to be adjusted.
• [BALANCE]: 7L to 7R (L= left speaker
; R= right speaker)
• [FADE]: 7R to 7F (R= rear speaker ;
F= front speaker)
3 Press or to change the value,
and then press toconrm.
• You can also turn the control knob to
select a value.
4 Press to exit.
8 System settings
Within system settings, there are:
• General settings,
• DVD settings,
• Language settings, and
• Radio settings.
Adjust general settings
1 Press .
» The main menu is displayed.
2 Press the navigation buttons to select
[SETTINGS], the press toconrm.
» The settings menu is displayed
3 Press or buttons to select the
general setting .
4 Press , then or to select the
sub-menu, and then press toconrm.
[AV-IN] [ON]/[OFF]
[CAMERA] [ON]/[OFF]
CED230_51_UM_V2.1.indb 21 8/14/2012 4:38:04 PM
