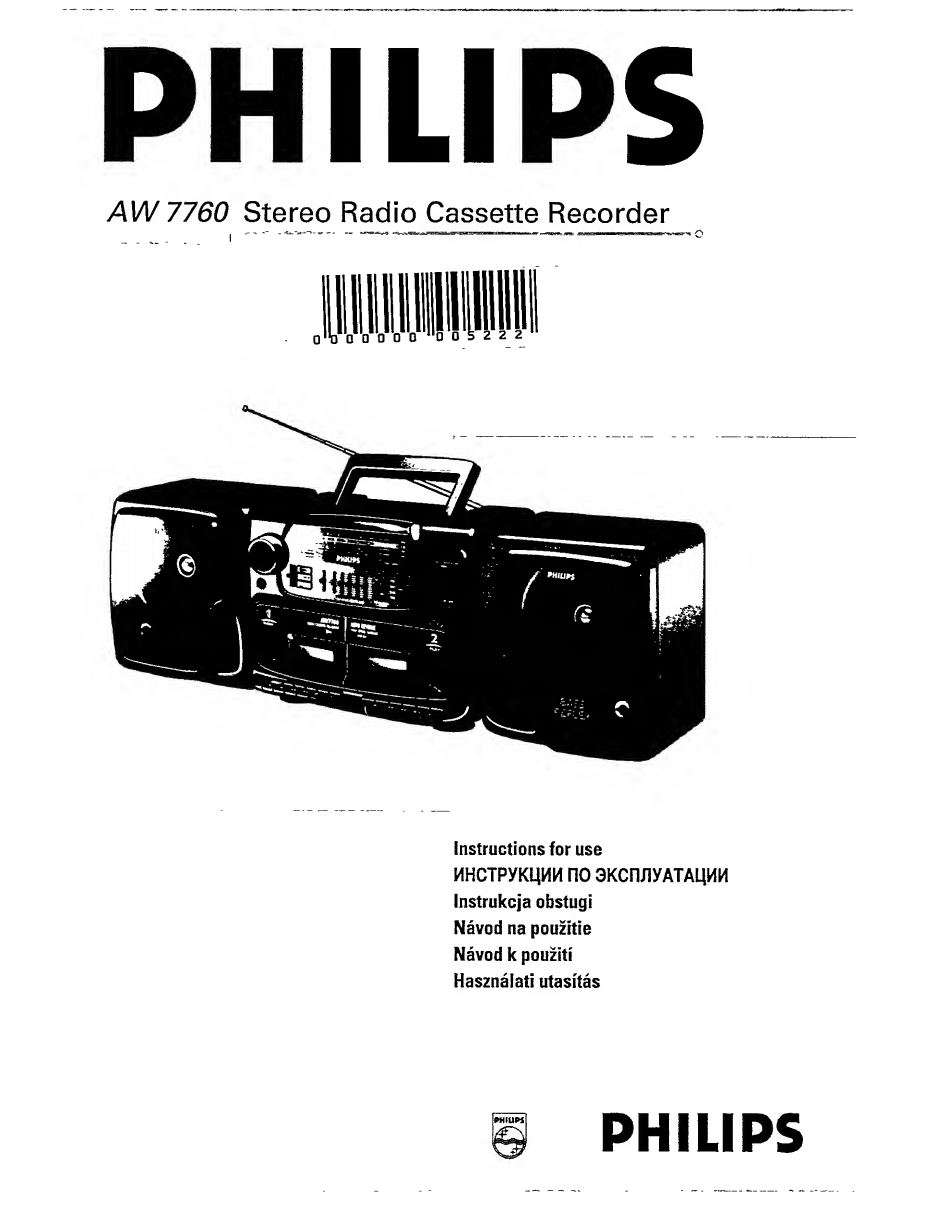

PHILIPS

AW

7760

Stereo

Radio

Cassette

Recorder

Instructions

for

use

MHCTPyKLl

m

no

3KCn/iyATAl4MM

Instrukcja

obstugi

Navod

na

pouzitie

Navod

k

pouzitl

Hasznalati

utasftas

POWER

SUPPLY

CONNECTIONS

Batteries

(optional)

Whenever

convenient,

use

mains

supply

to

conserve

battery

life.

1.

Open

the

battery

compartment

and

insert

eight

batteries,

type

R20,

UM1

or

D-cells

(preferably

alkaline),

with

the

correct

polarity

as

indicated

by

the

V

andsymbols

inside

the

compartment.

2.

Replace

the

compartment

door,

making

sure

that

the

batteries

are

firmly

and

correctly

in

place.

The

set

is

now

ready

to

operate.

-

The

battery

supply

is

switched

off

when

the

set

is

connected

to

the

mains.

To

change

over

to

battery

supply,

pull

out

the

plug

from

the

MAINS

socket.

Incorrect

use

of

batteries

can

cause

electrolyte

leakage

and

will

corrode

the

compartment

or

cause

the

batteries

to

burst.

Therefore:

•

Don't

mix

battery

types.

•

When

inserting

new

batteries

replace

eight

batteries

at

the

same

time.

Do

not

try

to

mix

old

batteries

with

the

new

ones.

•

Remove

the

batteries

if

they

are

empty

or

when

the

set

will

not

be

used

again

for

a

long

time.

Mains

supply

-

Check

if

the

mains

voltage,

as

shown

on

the

model

number

plate

(on

the

base

of

the

set)

corresponds

to

your

local

mains

voltage.

If

it

does

not,

consult

your

dealer

or

service

centre.

-

If

the

set

is

equipped

with

a

voltage

selector,

switch

to

local

main

voltage.

-

Connect

the

mains

lead

to

the

MAINS

socket

and

the

wall

socket.

The

mains

supply

is

switched

on.

•

The

battery

supply

is

switched

off

when

the

set

is

connected

to

the

mains.

To

change

over

to

battery

supply,

pull

out

the

plug

from

the

set's

MAINS

socket.

•

To

disconnect

the

set

from

the

mains

completely,

withdraw

the

mains

plug

from

the

mains

socket.

Removable

speakers

Connecting

the

loudspeakers

-

Connect

the

right

loudspeaker

to

the

R

terminal

and

the

left

loudspeaker

to

the

L

terminal.

-

Clip

the

exposed

portion

of

the

wire

into

the

corresponding

colour

terminal.

-

Repeat

the

wiring

procedure

for

the

left

speaker

to

terminal

L,

making

sure

that

you

connect

the

red

wire

to

'©'

and

black

to

'©'.

Note:

Loudspeakers

other

than

supplied

can

be

used.

They

have

to

be

6

Ohms

or

higher.

Do

NOT

use

loudspeakers

with

an

impedance

lower

than

6

Ohms,

as

this

will

damage

the

set.

Taking

off

the

loudspeakers

-

Keep

the

lever

(on

the

back

of

the

loudspeakers)

pressed

and

slide

the

loudspeaker

upwards.

Attaching

the

loudspeakers

-

Slide

the

loudspeakers

from

above

in

the

sleeves

on

the

sides

of

the

set

cabinet.

The

loudspeakers

will

click

into

position.

Positioning

the

loudspeakers

-

You

will

find

the

best

loudspeaker

position

by

experimenting.

Placing

the

loudspeakers

on

the

floor

will

increase

the

bass

response.

Placing

the

loudspeakers

behind

curtains,

furniture

etc.

will

reduce

the

treble

response

and

the

stereo

effect.

The

ideal

position

is

obtained

when

the

2

front

loudspeakers

and

the

listening

position

build

an

equilateral

triangle

and

the

loudspeakers

are

at

ear-

height.

The

model

and

production

numbers

are

located

at

the

bottom

of

the

set.

This

product

complies

with

the

radio

interference

requirements

of

the

European

Community.

5

English

English

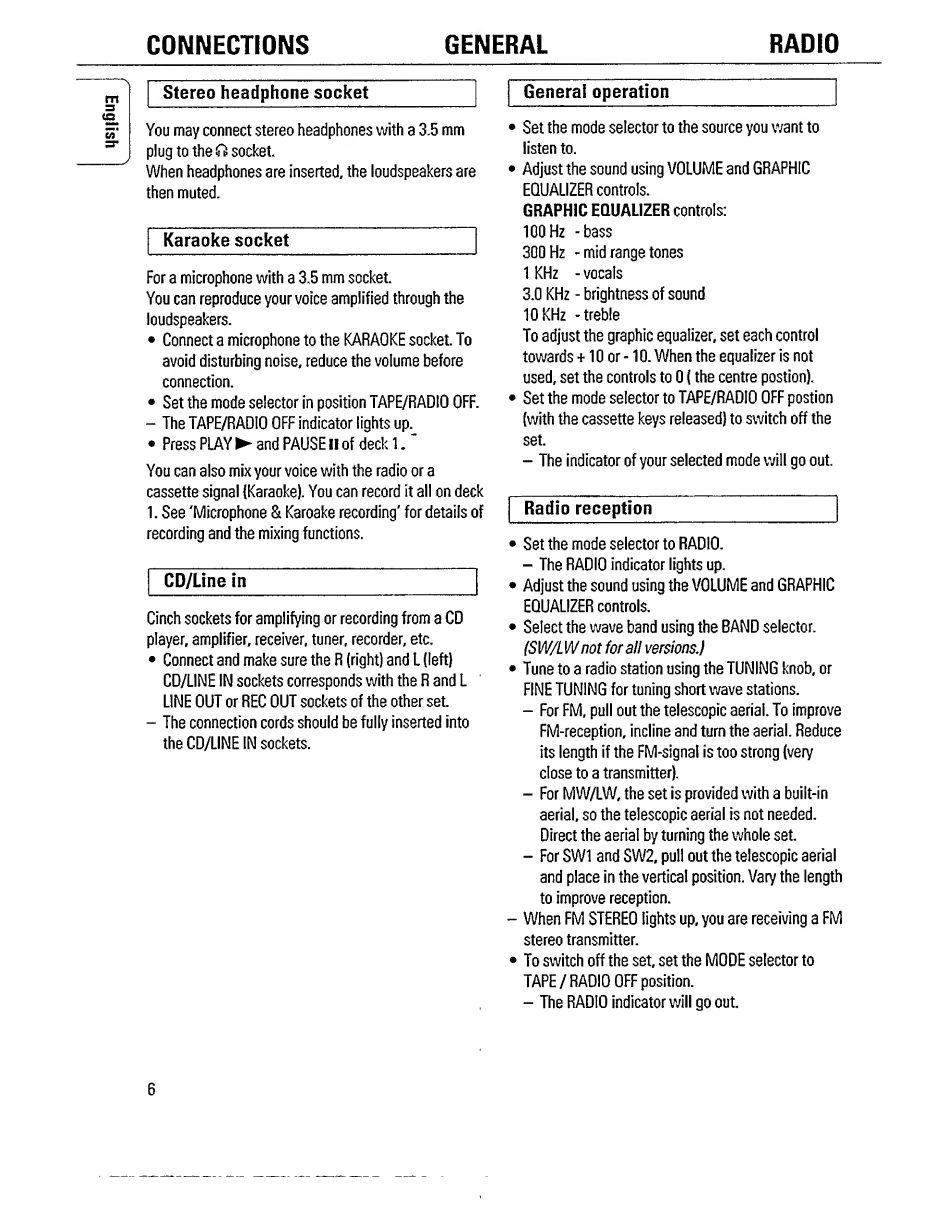

CONNECTIONS

GENERAL

RADIO

Stereo

headphone

socket

You

may

connect

stereo

headphones

with

a

3.5

mm

plug

to

the

0

socket

When

headphones

are

inserted,

the

loudspeakers

are

then

muted.

Karaoke

socket

General

operation

•

Set

the

mode

selector

to

the

source

you

want

to

listen

to.

•

Adjust

the

sound

using

VOLUME

and

GRAPHIC

EQUALIZER

controls.

GRAPHIC

EQUALIZER

controls:

100Hz

-bass

300

Hz

-

mid

range

tones

1

KHz

-

vocals

3.0

KHz

-

brightness

of

sound

10KHz

-treble

To

adjust

the

graphic

equalizer,

set

each

control

towards

+10

or

-10.

When

the

equalizer

is

not

used,

set

the

controls

to

0

(the

centre

postion).

•

Set

the

mode

selector

to

TAPE/RADIO

OFF

postion

(with

the

cassette

keys

released)

to

switch

off

the

set.

-

The

indicator

of

your

selected

mode

will

go

out.

Radio

reception

•

Set

the

mode

selector

to

RADIO.

-

The

RADIO

indicator

lights

up.

•

Adjust

the

sound

using

the

VOLUME

and

GRAPHIC

EQUALIZER

controls.

•

Select

the

wave

band

using

the

BAND

selector.

ISW/L

W

not

for

all

versions.)

•

Tune

to

a

radio

station

using

the

TUNING

knob,

or

FINE

TUNING

fortuning

shortwave

stations.

-

For

FM,

pull

out

the

telescopic

aerial.

To

improve

FM-reception,

incline

and

turn

the

aerial.

Reduce

its

length

if

the

FM-signal

is

too

strong

(very

close

to

a

transmitter).

-

For

MW/LW,

the

set

is

provided

with

a

built-in

aerial,

so

the

telescopic

aerial

is

not

needed.

Direct

the

aerial

by

turning

the

whole

set

-

For

SW1

and

SW2,

pull

out

the

telescopic

aerial

and

place

in

the

vertical

position.

Vary

the

length

to

improve

reception.

-

When

FM

STEREO

lights

up,

you

are

receiving

a

FM

stereo

transmitter.

•

To

switch

off

the

set,

set

the

MODE

selector

to

TAPE

/

RADIO

OFF

position.

-

The

RADIO

indicator

will

go

out

For

a

microphone

with

a

3,5

mm

socket.

You

can

reproduce

your

voice

amplified

through

the

loudspeakers.

•

Connect

a

microphone

to

the

KARAOKE

socket.

To

avoid

disturbing

noise,

reduce

the

volume

before

connection.

•

Set

the

mode

selector

in

position

TAPE/RADIO

OFF.

-

The

TAPE/RADIO

OFF

indicator

lights

up.

•

Press

PLAY

►

and

PAUSE

II

of

deck

1.

You

can

also

mix

your

voice

with

the

radio

or

a

cassette

signal

(Karaoke).

You

can

record

it

all

on

deck

1.

See

'Microphone

&

Karoake

recording'

for

details

of

recording

and

the

mixing

functions.

CD/Line

in

Cinch

sockets

for

amplifying

or

recording

from

a

CD

player,

amplifier,

receiver,

tuner,

recorder,

etc.

•

Connect

and

make

sure

the

R

(right)

and

L

(left)

CD/LINE

IN

sockets

corresponds

with

the

R

and

L

LINE

OUT

or

REC

OUT

sockets

of

the

other

set.

-

The

connection

cords

should

be

fully

inserted

into

the

CD/LINE

IN

sockets.

6

CASSETTE

RECORDER

Playback

on

deck

1

or

2

•

Set

the

mode

selector

to

TAPE/RADIO

OFF.

•

Press

STOP

•

OPEN

■

A

to

open

the

cassette

holder.

•

Insert

a

recorded

cassette.

•

For

playback

on

deck

2

only,

set

the

REVERSE

key

CD

to:

JL

CZD

continuous

reverse

-

For

non-stop

playback.

The

recorder

reverses

the

tape

direction

whenever

reaching

the

end

of

the

cassette.

To

stop,

STOP

•

OPEN

■

A

must

be

pressed.

ZD

single

reverse

-

To

play

both

sides

of

the

cassette

only

once.

At

the

end

of

the

first

side,

the

tape

direction

is

reversed.

The

recorder

stops

at

the

end

of

the

second

cassette

side.

•

Press

PLAY

►

to

start

playback.

-

The

TAPE/RADIO

OFF

indicator

lights

up.

•

Adjust

the

sound

using

the

BALANCE,

VOLUME

and

GRAPHIC

EQUALIZER

controls.

•

To

interrupt

playback,

press

PAUSE

11.

To

resume

press

PAUSE

ll

again.

•

On

deck

2,

you

can

reverse

the

tape

direction

automatically

at

any

moment

by

pressing

DIRECTION

The

tape

direction

indicator

will

show

the

actual

direction

of

the

tape

during

operation

of

deck

2,

•

For

fast

winding,

press

SEARCH

◄◄

or

►►

.

•

Press

STOP

•

OPEN

■

A

to

stop

playback.

-

The

TAPE/RADIO

OFF

indicator

will

go

out.

Note:

When

the

end

of

the

tape

is

reached,

the

keys

are

automatically

released

and

the

set

switched

off.

Continuous

playback

•

Set

the

mode

selector

to

TAPE/RADIO

OFF.

•

Press

both

STOP

•

OPEN

■

A

keys

to

open

the

cassette

holders.

•

Insert

a

recorded

cassette

into

both

decks.

•

Set

the

REVERSE

key

CZD

on

deck

2

to

ZD

and

select

the

tape

direction

using

the

DIRECTION

key

•

Press

PLAY

►

on

deck

2.

-

Deck

2

will

start

playback.

•

Press

PAUSE

II

and

then

PLAY

►

o

n

deck

1.

-

As

soon

as

deck

2

stops

(at

the

end

of

the

cassette

or

when

STOP

•

OPEN

■

A

is

pressed),

PAUSE

II

is

released

and

deck

1

will

start

playback.

•

To

stop

the

tape,

press

STOP

•

OPEN

■

A.

-

The

TAPE/RADIO

OFF

indicator

will

go

out.

Recording

•

Recording

is

permissible

insofar

as

copyright

or

other

rights

of

third

parties

are

not

infringed.

•

Recording

is

only

possible

with

deck

1.

During

recording

it

is

advisable

not

to

wind

or

rewind

a

cassette

in

deck

2.

•

For

recording

only

use

NORMAL

type

cassettes

(IEC

type

I)

on

which

the

tabs

are

not

broken

out.

This

set

is

NOT

suited

for

recording

on

CHROME

(IEC

II)

or

METAL

(IEC

IV)

type

cassettes.

•

Before

recording,

tighten

slack

tape

with

a

pencil,

to

avoid

jamming

the

deck

mechanism.

•

The

best

recording

level

is

automatically

set.

Altering

the

BALANCE,

VOLUME

and

GRAPHIC

EQUALIZER

controls

will

not

affect

the

recording

in

progress.

•

At

the

very

beginning

and

end

of

the

tape,

no

recording

will

take

place

during

7

seconds

when

the

leader

passes

the

recorder

heads.

•

To

prevent

the

accidental

erasure

of

a

recording,

keep

the

cassette

side

to

be

safeguarded

in

front

of

you

and

break

out

the

left

tab.

Now,

recording

on

this

side

is

no

longer

possible.

To

render

this

safeguard

ineffective,

cover

the

aperture

with

a

piece

of

adhesive

tape.

7

English

English

CASSETTE

RECORDER

Recording

from

the

radio

•

Set

the

MODE

selector

to

RADIO.

-

The

RADIO

indicator

will

lights

up.

•

Tune

to

the

desired

radio

station

(see

'Radio

reception').

•

Insert

a

blank

cassette

in

deck

1.

•

Press

RECORD#

to

start

recording.

-

For

brief

interruptions,

press

PAUSE

II.

To

resume

recording

press

PAUSE

II

again.

-

A

whistling

sound

occuring

during

AM

radio

recordings

can

be

suppressed

by

setting

the

BEAT

CUT

switch

to

another

positions.

•

To

stop

recording,

press

STOP

•

OPEN

■

A.

Microphone

&

Karaoke

recording

•

Connect

the

microphone

to

the

KARAOKE

socket,

with

the

volume

turned

down

to

avoid

noise

disturbance.

•

Set

the

MODE

selector

to

the

desired

position

(TAPE/RADIO

OFF,

CD/LINE

IN

or

RADIO).

•

Insert

a

blank

cassette

in

deck

1.

•

Press

RECORD

•

to

start

recording.

-

For

brief

interruptions,

press

PAUSE

II.

To

resume

recording

press

PAUSE

II

again.

•

To

stop

recording,

press

STOP

•

OPEN

■

A.

-

If

you

want

to

monitor

your

microphone

recording,

you

can

insert

headphones

in

the

Cl

socket.

Karaoke

•

For

recording

karaoke,

connect

the

microphone

to

the

KARAOKE

socket,

with

the

volume

turned

down

to

avoid

noise

disturbance.

•

Press

both

STOP

•

OPEN

■

A

buttons

and

insert

a

recorded

tape

into

deck

2

and

a

suitable

tape

for

recording

in

deck

1.

•

Press

PAUSE

II

and

then

RECORD

•

on

deck

1.

•

To

start

recording,

press

PLAY^

on

deck

2.

PAUSE

lion

deck

1

is

then

released.

•

By

pressing

PAUSE

II

on

deck

1,

you

can

omit

undesired

passages

while

deck

2

continues.

Press

PAUSE

II

to

resume

recording.

•

To

stop

recording

karaoke,

press

both

STOP

•

OPEN

■

A

buttons.

Recording

from

CD/LINE

IN

sources

•

Connect

the

CD/LINE

in

sockets

of

the

set

with

the

LINE

OUT

or

REC

OUT

sockets

of

the

other

set.

•

Set

the

mode

selector

to

CD/LINE

in.

The

CD/UNE

IN

indicator

lights

up.

•

Insert

a

blank

cassette

tape

in

the

cassette

holder.

•

Press

RECORD#

to

start

recording.

•

to

stop

recording,

press

STOP

•

OPEN

■

A.

-

The

CD/UNE

IN

indicator

will

go

out.

Dubbing

-

Copying

from

deck

2

to

1

When

copying,

it

is

recommended

to

use

fresh

batteries

or

to

connect

the

set

to

the

mains

supply.

•

Set

the

MODE

selector

to

TAPE/RADIO

OFF.

Do

not

move

this

selector

during

dubbing.

•

Press

HIGH

SPEED

DUBBING,

unless

you

want

to

record

at

normal

speed.

Do

not

press

this

button

during

dubbing

otherwise

your

recording

will

be

affected!

•

Press

both

STOP

•

OPEN

■

A

buttons

and

insert

a

recorded

tape

into

deck

2

and

a

suitable

tape

for

recording

in

deck

1.

•

Press

PAUSE

II

and

then

RECORD

•

on

deck

1.

•

To

start

dubbing,

press

PLAY

►

on

deck

2.

PAUSE

II

on

deck

1

is

then

released.

•

By

pressing

PAUSE

II

on

deck

1,

you

can

omit

undesired

passages

while

deck

2

continues.

Press

PAUSE

II

to

resume

dubbing.

•

To

stop

dubbing,

press

both

STOP

•

OPEN

■

A

buttons.

8

GENERAL

INFORMATION

General

maintenance

•

Do

not

expose

the

set

batteries

or

cassettes

to

humitidy,

rain,

sand

or

excessive

heat

caused

by

heating

equipment

or

direct

sunlight

•

The

mechanical

parts

of

the

set

contain

self-

lubricating

bearings

and

must

not

be

oiled

or

lubricated.

•

To

clean

the

set,

use

a

soft,

slightly

dampened

chamois

leather.

Do

not

use

any

cleaning

agents

and

solvents

such

as

thinner,

benzene,

as

they

could

have

a

corrosive

effect.

Tape

deck

maintenance

To

ensure

a

good

recording

and

playback

quality,

clean

the

parts

(a),

(§)

and

©

after

approx.

50

hours

of

operation

or,

on

average

once

a

month.

Use

a

cotton

bud

slightly

moistened

with

alcohol

or

a

special

cleaning

fluid.

•

Open

the

cassette

holder

by

pressing

STOP

•

OPEN

■

A.

•

Press

PLAY

►

and

clean

the

rubber

pressure

roller

©•

•

Press

PAUSE

II

and

clean

the

magnetics

heads

®,

and

also

the

capstans

®.

•

After

cleaning,

press

STOP*

OPEN*

A.

Note:

Cleaning

of

the

heads

®

can

also

be

done

by

playing

a

cleaning

cassette

through

once

Environmental

information

All

redundant

packaging

material

has

been

omitted.

We

have

done

our

utmost

to

make

the

packaging

easily

separable

into

three

mono

materials:

cardboard

(box),

expandable

polystyrene

(buffer)

and

polyethylene

(bags,

protective

foam

sheet).

Your

set

consists

of

materials

which

can

be

recycled

if

disassembled

by

a

specialized

company.

Please

observe

the

local

regulations

regarding

the

disposal

of

packing

materials,

exhausted

batteries

and

old

equipment.

9

English

English

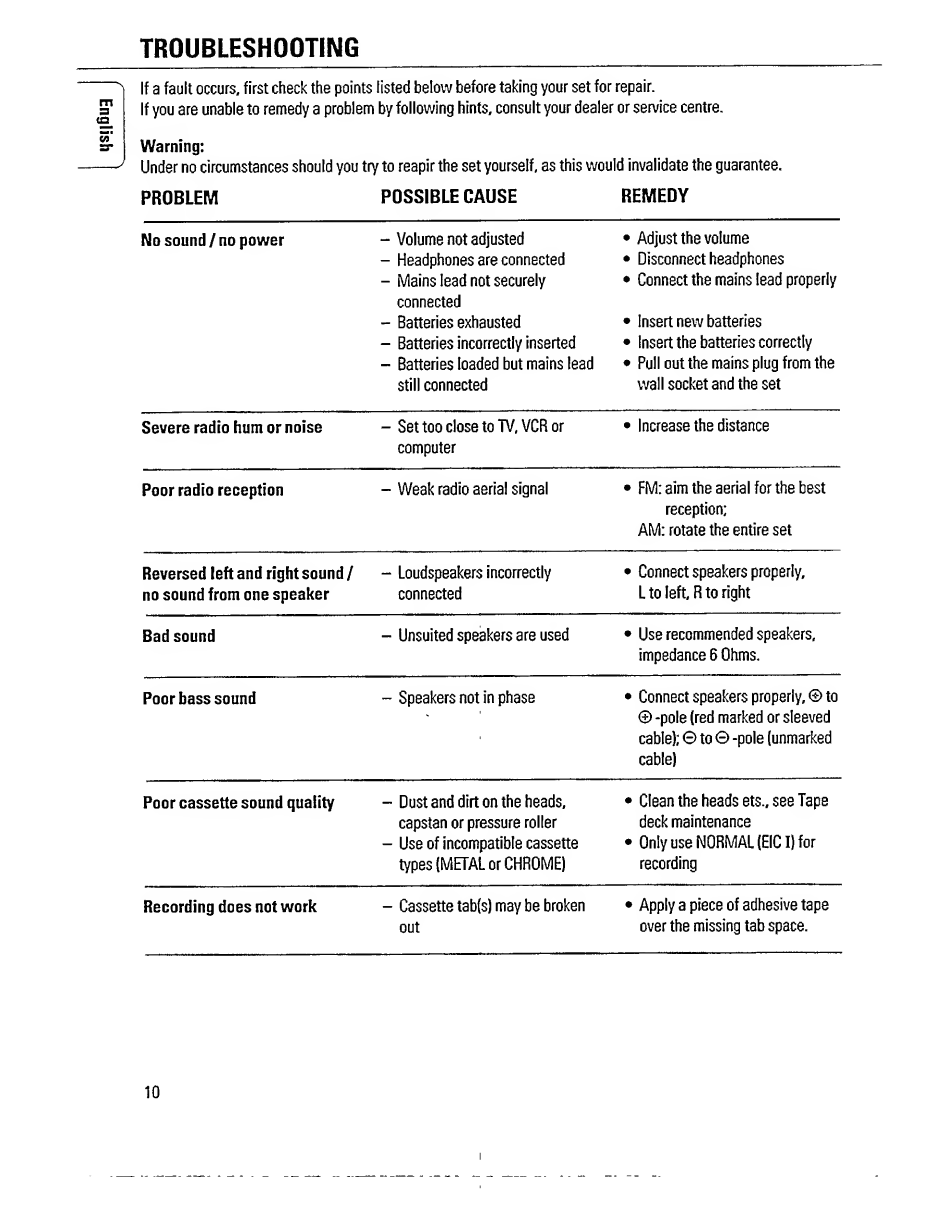

TROUBLESHOOTING

^

If

a

fault

occurs,

first

check

the

points

listed

below

before

taking

your

set

for

repair.

If

you

are

unable

to

remedy

a

problem

by

following

hints,

consult

your

dealer

or

service

centre.

Warning:

J

Under

no

circumstances

should

you

try

to

reapir

the

set

yourself,

as

this

would

invalidate

the

guarantee.

PROBLEM

POSSIBLE

CAUSE

REMEDY

No

sound/no

power

-

Volume

not

adjusted

•

Adjust

the

volume

-

Headphones

are

connected

•

Disconnect

headphones

-

Mains

lead

not

securely

connected

•

Connect

the

mains

lead

properly

-

Batteries

exhausted

•

Insert

new

batteries

-

Batteries

incorrectly

inserted

•

Insert

the

batteries

correctly

-

Batteries

loaded

but

mains

lead

•

Pull

out

the

mains

plug

from

the

still

connected

wall

socket

and

the

set

Severe

radio

hum

or

noise

-

Set

too

close

to

TV,

VCR

or

•

Increase

the

distance

computer

Poor

radio

reception

-

Weak

radio

aerial

signal

•

FM:

aim

the

aerial

for

the

best

reception;

AM:

rotate

the

entire

set

Reversed

left

and

right

sound

/

-

Loudspeakers

incorrectly

•

Connect

speakers

properly.

no

sound

from

one

speaker

connected

L

to

left,

R

to

right

Bad

sound

-

Unsuited

speakers

are

used

•

Use

recommended

speakers,

impedance

6

Ohms.

Poor

bass

sound

-

Speakers

not

in

phase

•

Connect

speakers

properly,

©

to

©

-pole

(red

marked

or

sleeved

cable);

0

to

©

-pole

(unmarked

cable)

Poor

cassette

sound

quality

-

Dust

and

dirt

on

the

heads.

•

Clean

the

heads

ets.,

see

Tape

capstan

or

pressure

roller

deck

maintenance

-

Use

of

incompatible

cassette

•

Only

use

NORMAL

(EICI)

for

types

(METAL

or

CHROME)

recording

Recording

does

not

work

-

Cassette

tab(s)

may

be

broken

•

Apply

a

piece

of

adhesive

tape

out

over

the

missing

tab

space.

10

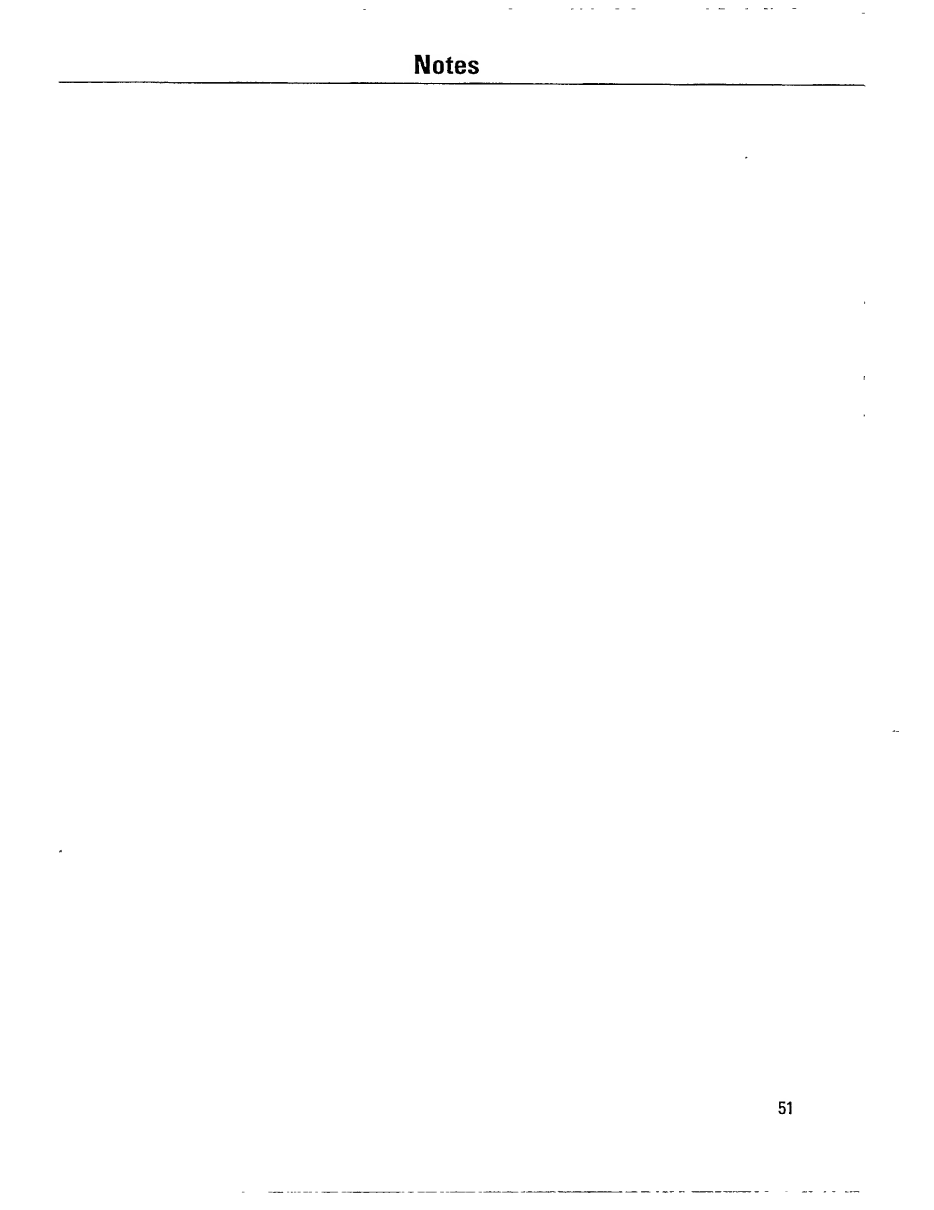

Notes

51

Notes
