Philips TCD168/VUAFAHYP User manual

© 1999 Philips Consumer Communications
Division of Philips France
All rights reserved
Printed in France
4311 256 00312
User manual
LEAFLET c13db ÉXÉ 17/11/99 15:03 Page 1

Table of contents
Glossary 1
Before you start 2
The micro-SIM card 2
The battery 2
Insert the micro-SIM card 3
Insert the battery 3
Discover your phone 4
Display 5
Entering text 6
Basic functions 7
Switch ON/OFF 7
Voice dialling 7
Make a call 7
Answer or reject a call 8
Earpiece volume 8
Consult last calls 8
Adjust ringer volume 8
Emergency call 9
Change language 9
International call 9
Keypad lock/unlock 9
Special functions 10
Answer a second call 10
Automatic redial 10
Scratchpad 10
Touchtones (DTMF) 11
Hide your identity 11
Setting up Flash Dial 11
Menus 12
Discover the Compass key 12
Names 13
Add a name 13
Add voice dial 13
View names in the name list 14
Quick access to names 14
Search for a specific name 15
Road your own number 15
Delete a name 15
Messages 16
Read new messages 16
Read archived messages 17
Send short messages (SMS) 17
Service center number 17
Emotion icons 18
Send short messages from
phoneboock 19
Usual messages 19
Calls 20
View calls 20
Delete all calls 20
Meters 21
View meters 21
Reset meters 21
Settings 22
Set up meters 22
Key tones ON/OFF 22
Choose ringer 23
Cell broadcast 23
View topics, add a topic 23
Manual registration 24
Voice mailbox number 24
Consult your voice messages 25
Security 25
Pin request, 25
change PIN and PIN 2 codes 25
Fixed names 26
Extra 27
Alarm clock,(set off/set on) 27
Set clock 27
Calculator 28
Euro converter 28
Biorythm calendar 29
Stopwatch 29
Call forwarding 30
Forward always to voice mail 30
Forward always to number 30
Cancel all 30
PhilipsAuthenticAccessories 31
Troubleshooting 33
Safety Precautions 34
Index
TABLE OF CONTENTS
Philips Savvy p23 à 36 GB 15/11/99 15:30 Page 36

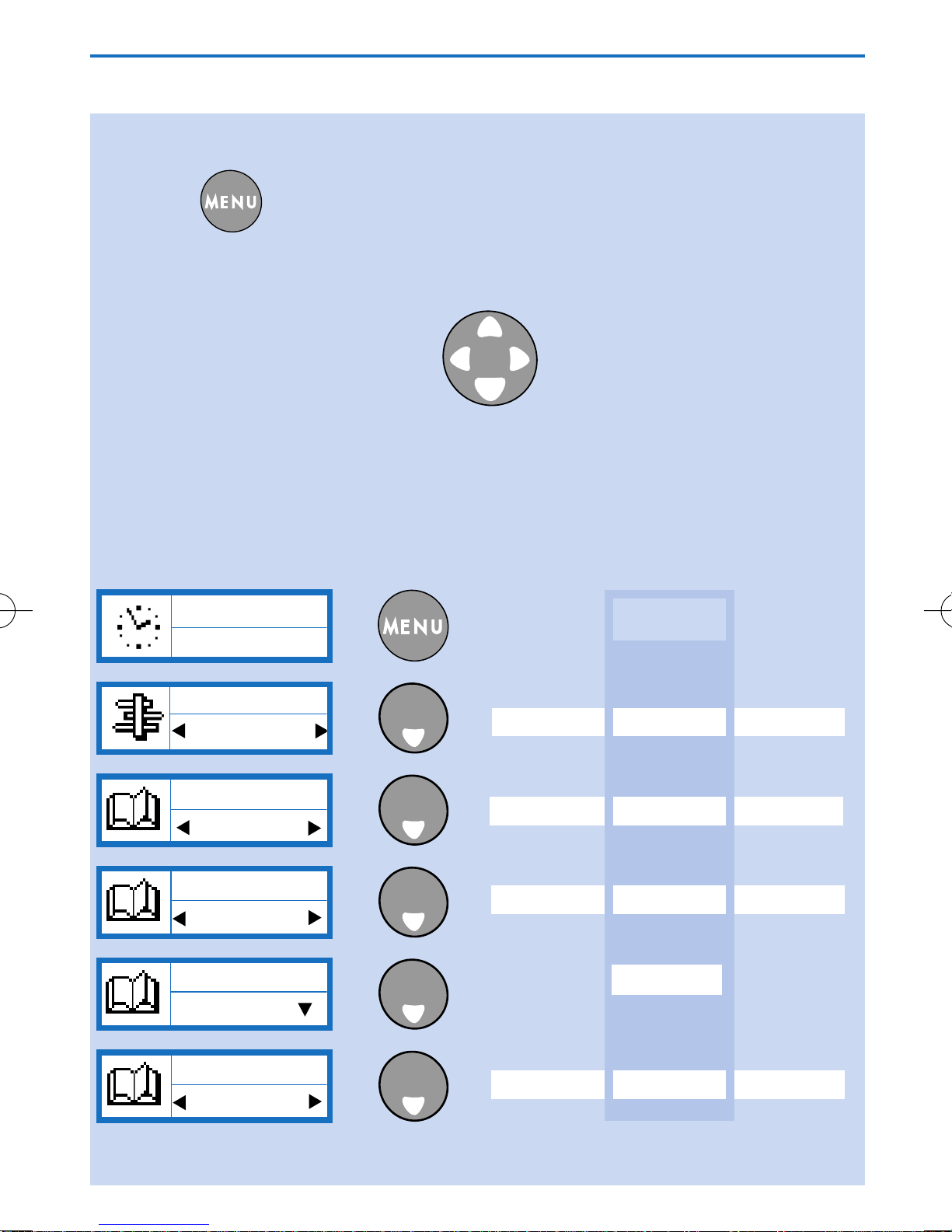

QUICK GUIDE
SWITCH ON
Press and
hold
Enter your
PIN code.
MAKEA CALL
Enter
phone
number.
Call the
number
(e.g.:112 for
emergency see p.9)
ANSWERA CALL
Accept.
ENDA CALL
End.
ADDA NAME
Enter
phone
number.
Enter name
If number is OK
ForVoice dial options
(see page 13)
ACCESSTO MENU
Enter or exit
the menus.
NAVIGATION
Move Up
or
Back.
Move Right.
Move Left.
Move Down
or
Forward
or
Validate.
SWITCH OFF
Press
and hold.
When your
phone is
switched off,you
cannot receive
calls.
OK
OK
Stored
OK
1234_
Number:
OK
Name:
_
OK
1234_
Store no .
OK
1234_
Network
12345678
OK
Enter PIN:
_
✄
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page I

MENU MAP
MENU
FORWARDING MESSAGES NAMES CALLS EXTRA SETTINGS SECURITY
Forwarding
Always Status If no reply If busy Unreachable Cancel all
Messages
Centre no. Archive Send Usual msg. Forwarding
Names
Search View Add Own number
Calls
Delete all View Meters
Extra
Stopwatch Clock Alarm clock Calculator BioCalendar Converter
Settings
Register Key tones Ringer Voicemail Box number Broadcast
Security
Change PIN2 Change PIN PIN code Fixed names Restriction
✄
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page II

1
DTMF Dual Tone Multi Frequency
The tones are transmitted by the phone to the
network. They are used to interrogate answering
machines, transmit codes,...
GSM Network Global System for Mobile communications. The type
of phone network used by your phone.
PIN Code Personnal Identification Number, this is the secret
code of the SIM Card. If you, or someone else,
enters the wrong PIN code three times your SIM
card is blocked. If this happens, please contact
your service provider.
PIN2 Code Secret code that allows you to access certain SIM
card dependent features. If you, or someone else,
enters the wrong PIN2 code three times your SIM
card is blocked. If this happens, please contact
your service provider.
PUK Code Secret code used to unblock your SIM card if you,
or someone else, enters the wrong PIN code three
times. This code will be given to you by your
service provider.
Roaming Using your phone in a network other than your
home network in your country or abroad.
SIM card Subscriber Identification Module. This card which is
provided by your GSM service provider allows you
to make phone calls with your GSM phone. Your
phone number is contained inside the card.
SMS Short Messages Service. This service provided by
the operator allows you to send and receive short
written messages (Maximum : 160 characters).
GLOSSARY
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 1

From your card,remove
the micro-SIM card
The micro-SIM card
To use your phone,you must insert a valid
micro-SIM card supplied by your GSM network
operator.When you switch the phone on,it may
ask for the PIN code.The PIN code is the secret
code of the micro-SIM card.
The micro-SIM card contains your subscription number and phone number.It
also contains a memory in which you can store phone numbers and messages.If
you use your micro-SIM card on another phone,you still retain the same phone
number,stored numbers,and messages.
The battery
Your phone is powered by a rechargeable battery.
• After you plug in the battery,please wait a few seconds
before pressing the on/off key to switch the phone on.
• A battery only reaches its maximum capacity after being
totally discharged and recharged 2 or 3 times.
• A battery lasts longer if you allow it to fully discharge from
time to time.
• If you do not use your phone for several days,it is better
to remove the battery.
Remove the battery cover
Press on the latch on the back of the phone
and lift off the battery cover.
Remove the battery (if necessary)
Lift up on the bottom of the battery and
remove it from the phone.
BEFORE YOU START
2
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 2

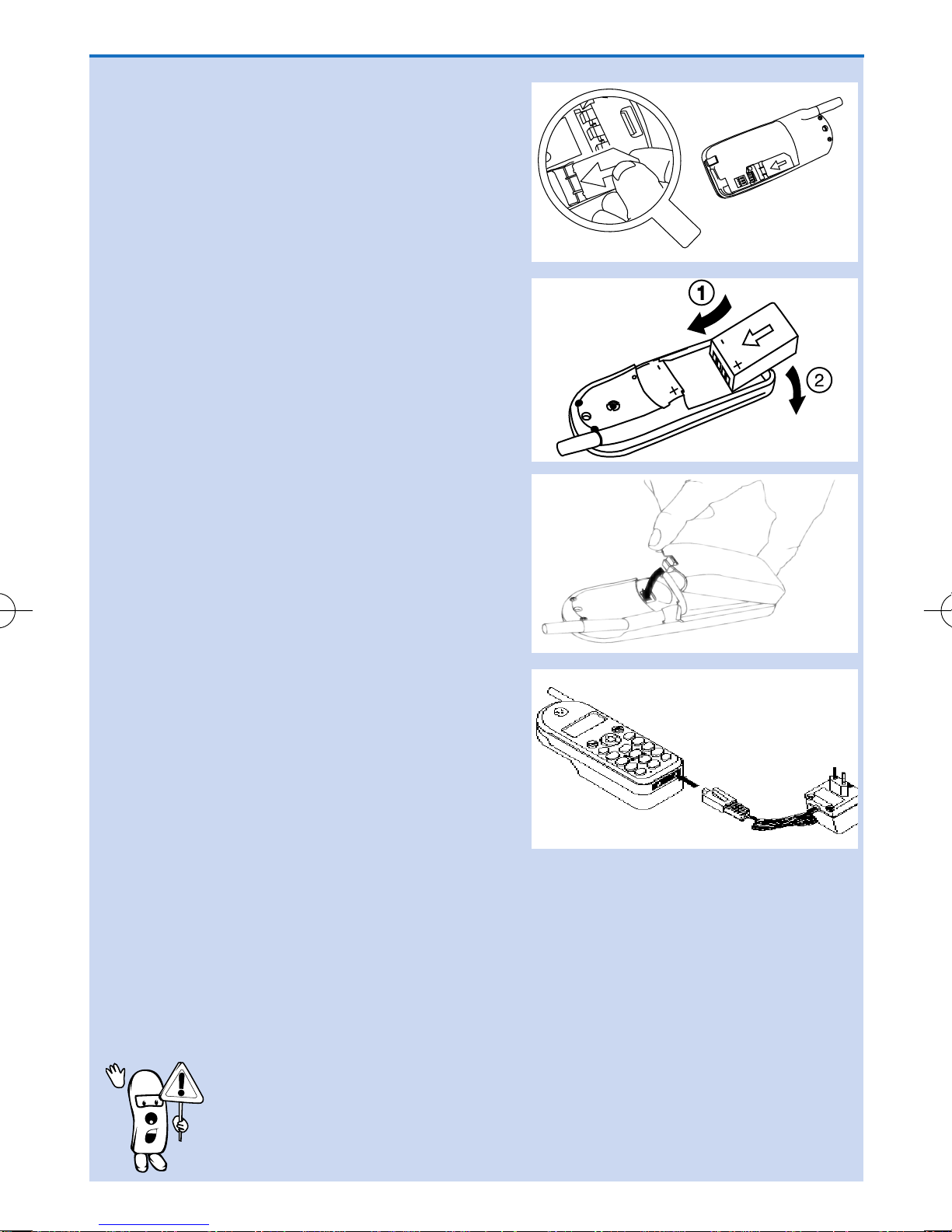

Insert the micro-SIM card
First,place the micro-SIM card into the
appropriate slot in the battery compartment
(the clipped corner should be at the top left).
Then,slide the card with your finger until it
stops.
Insert the battery
1. Keep the battery + and - on the top
facing the + and - of the phone.
2. Slide the battery onto the contacts
points and press.
Replace the battery cover
Hook the battery cover onto the hinges on
bottom of phone and press forward until the
latch catches.
Charge the battery
With the battery inserted in the phone,plug
the connector into the right socket at the
base of the phone.Next,plug the transformer
unit into anAC power socket.
The only way to turn off the charger is to
unplug it,so use an easily accessibleAC
power socket.
The battery icon on your phone’s display
indicates the state of the charge process:
• Bars moving = battery is charging.
• Bars steady = battery is fully charged.
• Battery outline flashing (seeTroubleshooting p.32).
You can switch the phone on and use it during charging.
The first time you charge the battery and later, if it is completely discharged, the
battery icon will only appear 2 to 3 minutes after you connect the charger.
Please charge the phone for a minimum of 3 hours before first use.
BEFORE YOU START
3
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 3

DISCOVER YOUR PHONE
4
Antenna
Earpiece
listen here
Display
see next page
Red "ON/OFF" key
a long press on
this key switches
the phone on/off,
a short press ends
a call
Green "CALL" key
press this key to dial the
number or name on the
display, or use it to
answer a call
"CLEAR" key
to delete numbers and
letters on the display
Keypad
to enter
numbers and
text
MENU key
to enter and exit
the menus
Microphone
"Compass" key
use this key to navigate
in the menus,
the OK key is used to
validate information
MENU
C
78
6
9
5
2
4
MNO
PQRS TUV WXYZ
JKL
ABC
GHI
13
DEF
#
0
.
+=
OK
If you encounter the symbol in this manual,it means
that you have to press and hold the key to activate the
function.
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 4

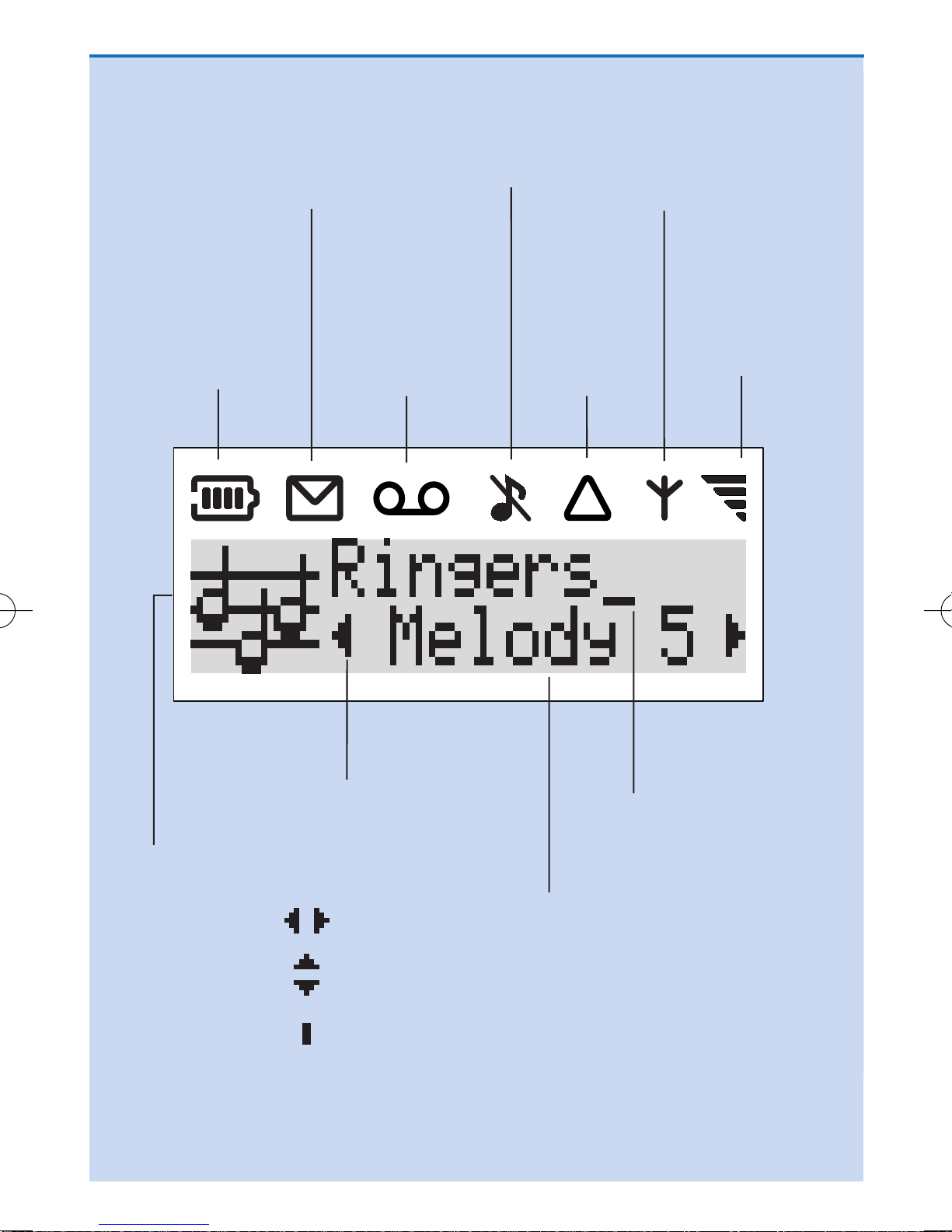

DISPLAY
5
Silent mode
if on: phone will not
ring or beep (except
for the alarm clock)
New text message(s)
- if on: you received new messages
- if flashing: the memory is full,
you need to delete old messages
before you can receive new ones
Roaming
your phone
is registered
to a foreign
network
Network
if on: your phone is
registered to a network
if flashing: registration
is in progress
New voicemail
if on: there are
new messages
waiting in your
voicemailbox (*)
Reception quality
the more bars are
shown the better
the reception
Battery level
the bars indicate the
battery level (4 bars
is full, no bars
means recharging is
needed)
2 text lines
to enter numbers
and text or to read
text messages
Arrows
indicate in which directions
you can go using the
Compass key
left/right
and
back/forward
or
end of menu
Graphics area
displays the clock
and guides you
through the menu
Cursor
indicates that you can
enter numbers or text
(*) Depending on the network.
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 5

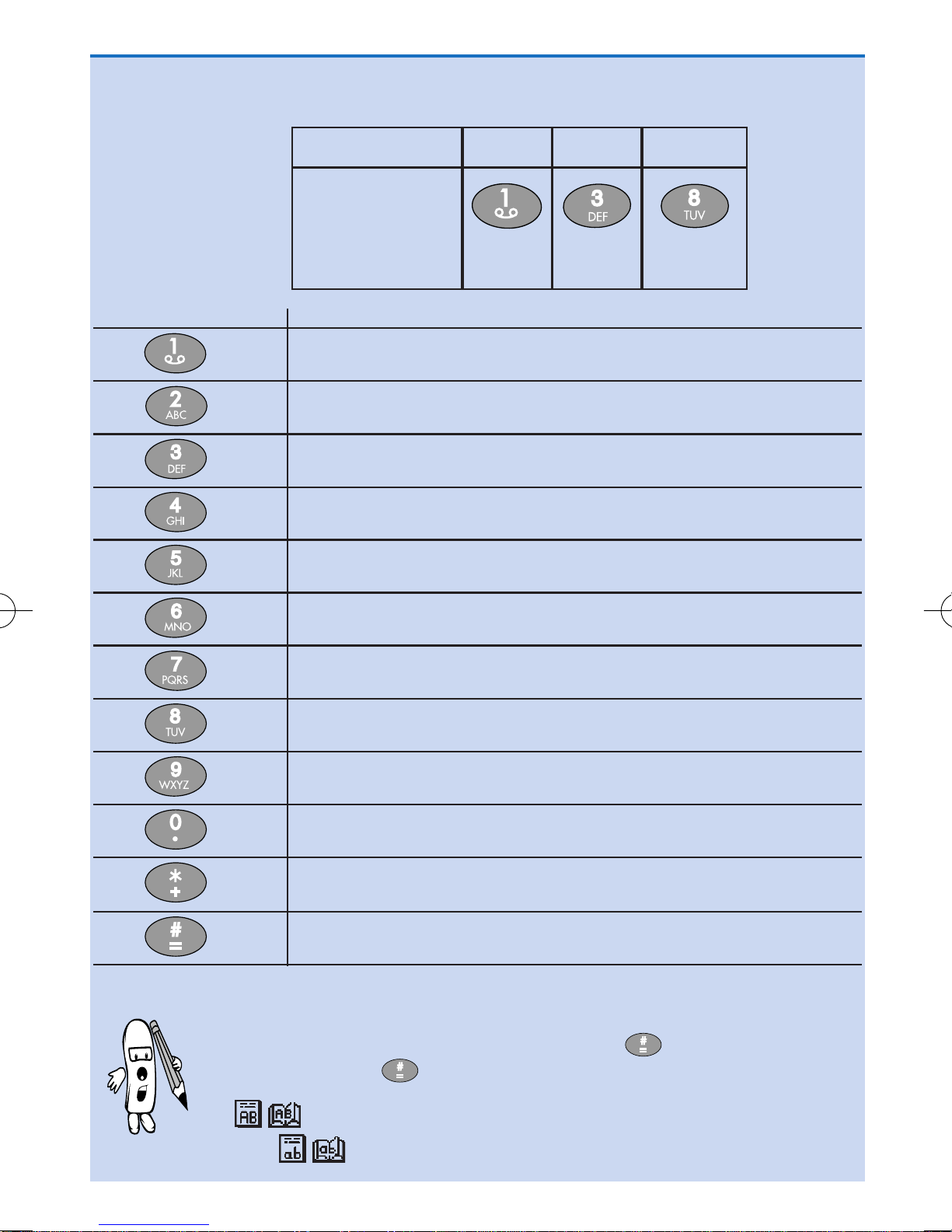

ENTERING TEXT
6
Each key allows you to obtain several characters.You have to quickly press
the same key several times to reach the desired character.
Example:
Key Characters
space 1 @ # = <> ( ) & £ $ ¥
a b c 2 à ä å æ ç
d e f 3 é è ∆ Φ
g h i 4 Γ ì
j k l 5 Λ
m n o 6 ñ ò ö ø
p q r s 7 β Π Θ Σ
t u v 8 ü ù
w x y z 9 Ω Ξ Ψ
.0 ” ’ ? ! ,:¡ ¿
*+ - / %
upper-case lower-case mode
While you enter text your phone changes between upper-case and lower-case
automatically.
If you wish to enter text in the upper-case mode press ,to enter text in the
lower-case mode press again.
The icons will show that you are in the upper-case mode.In the lower-case
mode the icons appear.
TO OBTAIN Space D ü
PRESS
Once Once Five times
quickly
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 6

7

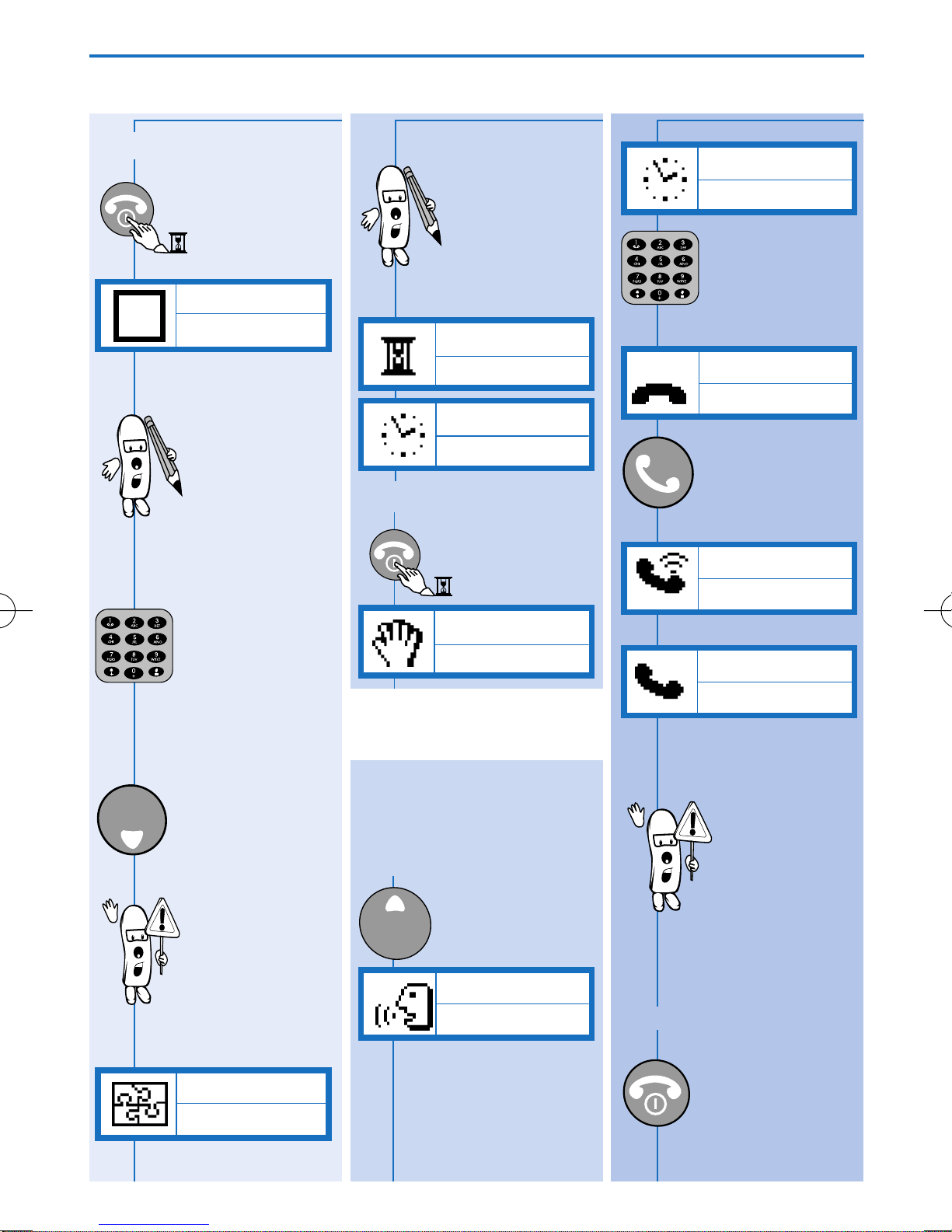

BASIC FUNCTIONS
Switch on/off... ... Make a call
SWITCH ON
Press and
hold.
Sometimes
entering the PIN
code is not
necessary
(depends on your
subscription and
on your PIN
request settings -
see page 24).
Enter your
PIN code.
The digits entered
are replaced by
big dots.
If you enter a
wrong code
3 times your card
will be blocked.If
this happens,
contact your
operator.
If this is the phone’s
initial use or if the
battery has been
removed since the
last use,you will need
to re-set the clock
SWITCH OFF
Press and
hold.
You can also make a call
by pronouncing the voice
tag you have associated
to a number (see p.13).
Press and hold
Pronounce the name
you have associated to
the number. The phone
dials automaticaly the
number.
Enter
phone
number
Call the number
Display shows
a call cost if sent
by your network.
The name will
be displayed only
if the name is
stored in your
phone’s Names
list.
END CALL
Black Jack
00:02
Calling
0145678901
01456_
Network
Speak now
Goodbye
Network
Registering
PIN correct
OK
Enter PIN:
_
Voice dialling
Philips Savvy p1à11 GB-21/7 15/11/99 15:21 Page 7

BASIC FUNCTIONS
8
Answer or
reject a call Consult last calls
Adjust ringer volume
and vibrator
The caller number
is displayed only if
your subscription
supports caller line
identification.
If the number is in
your Names list,the
name will appear
instead.
Accept the call
or
Reject the call.
While on a call you
can adjust the
earpiece volume.
Raise earpiece
volume.
OR
Lower earpiece
volume.
Your phone
automatically stores a
list of the last 10 calls
you dialled and the last
10 callers who dialled
you (including missed
calls).
Display the
last call made,
received or
missed.
To view other
calls.
To call.
For information
on viewing the
last
20 calls you
placed or
received,see
“Calls Section”
p.20.
You can select the
vibrator options and
adjust or turn off the
ringer volume
Display ringer
volume
selection.
❚Silent◆Vibrator◆Vibra+ring◆
Low◆Medium◆High❚
Select the
volume.
OR
Select
vibrator mode
Validate
vibrator or
volume
selection.
OK
Volume
Vibrator
Volume
High
Volume
Medium
Network
Calls
Florence
Network
Helen
17:24
OK
Helen
17:24
Helen
17:24
123456789
Earpiece volume
Philips Savvy p1à11 GB-21/7 15/11/99 15:22 Page 8

BASIC FUNCTIONS
9
Emergency call International call Keypad lock/unlock
Enter 112
Depending on
your network
operator,the
emergency
number 112 can
be dialled without
the micro-SIM
card inserted.
Normally your phone
automatically selects
the right language for
your country,but in
case you want to
change it:
Press and
hold.
Select
language.
To make an
international call,
you can use“+”
as the
international
prefix.
Press and
hold.
Dial the
number
(international
country code
and local
number).
Call the
number.
Avoid undesired
keystrokes when the
phone is in your
pocket or purse.
Press and
hold
to lock
keypad.
Press and
hold to
unlock
keypad.
When the
keypad is locked,
it is possible
to dial the
emergency
number and to
receive calls.
Keypad is
unlocked
Network
Keypad is
locked
Network
Calling
[phone]
+_
Network
OK
Language
English
Calling
112
Change language
Philips Savvy p1à11 GB-21/7 15/11/99 15:22 Page 9

SPECIAL FUNCTIONS
10
Answer a second
call (CallWaiting) Automatic redial Scratchpad
This feature
depends on the
network.If a second
person calls you,you
will hear a beep.
Check the display
for a second call.
Reject
second call
OR
Accept
second call
Call 1 is put on
hold.
Switch
between Call 1
and Call 2.
To end the call
on display and
return to other
call.
Return to single
call state.
When you dial a
number and your
correspondant is
busy,your phone
offers the function
of automatically
redialling.
Call failed or
recipient is busy.
Confirm.
OR
Any other key
cancels autoredial.
A beep will sound
for each redial
attempt or vibrate 5
seconds in both
vibrator modes
A beep informs
you when the
connection has
been made.
An incoming call
or any use of the
phone will end
automatic redial.
The scratchpad
feature is useful if
you want to store a
telephone number
during a call.
The number can be
dialled or viewed
later.
Enter the
number you
want to keep.
The display
automatically
returns to your call.
End the call.
Call the
number on the
scratchpad.
OR
For options.
67890123
Store no .
OK
67890123_
0123456789
12:15
67890123_
0123456789
05:12
0123456789
00:01
0123456789
OK
0123456789
Autoredial?
Failed
Kim
01:16
Rob
Kim
Rob
00:02
Rob
Waiting
Philips Savvy p1à11 GB-21/7 15/11/99 15:22 Page 10

SPECIAL FUNCTIONS
11

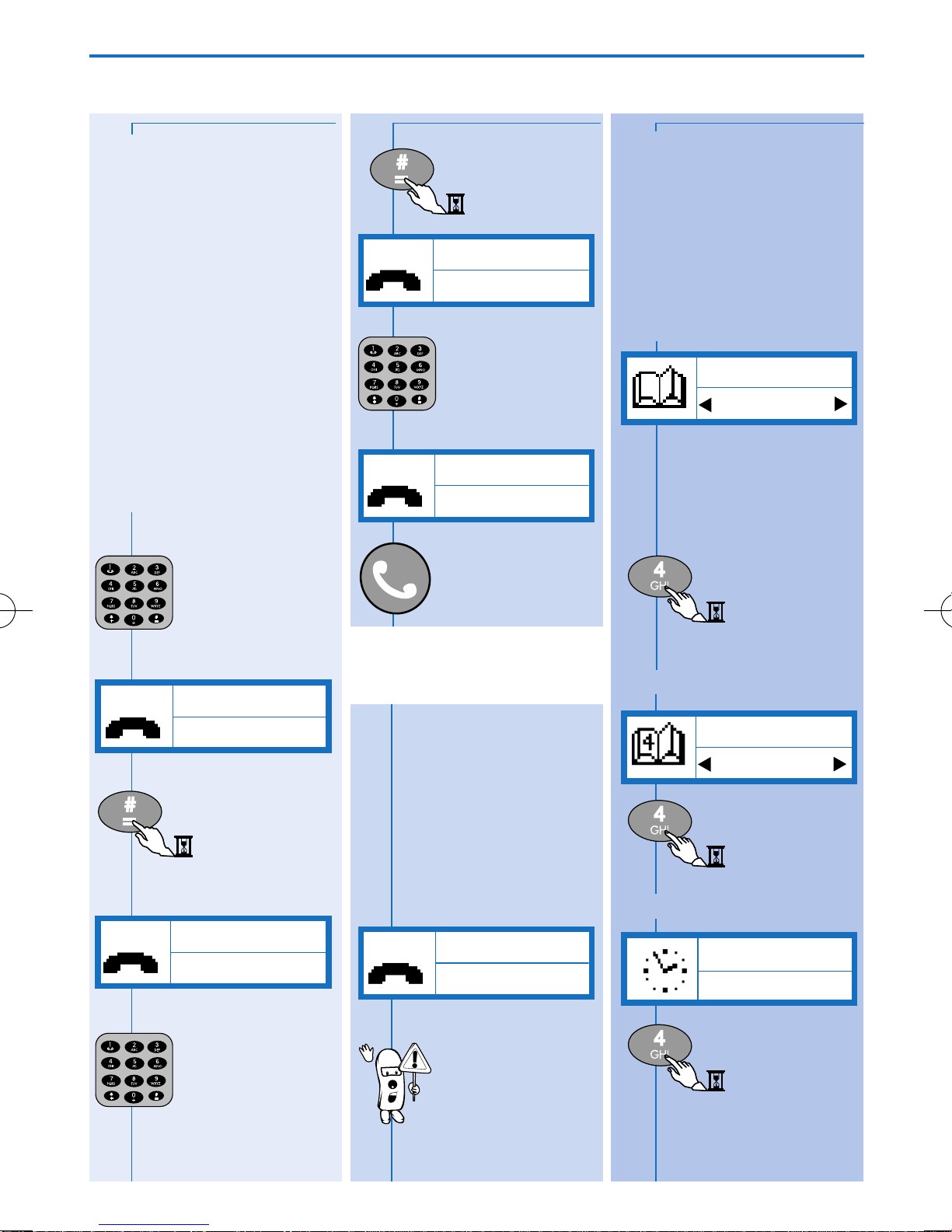

Touchtones (DTMF) Hide your identity Setting up Flash Dial
During a call or in direct
dialling,the numeric
keys always transmit
DTMF tones (DualTone
Multi Frequency) also
known as“touchtones”.
These tones are used to
operate services that
you can reach with your
phone,like a pager or
an answering machine.
Example,to consult your
home answering
machine: Enter
telephone
number of
your home
answering
machine.
Enter a
“wait”signal
to give time
for the phone
to connect.
Enter the
password of your
home answering
machine (e.g.:
code:9876).
Enter
“pause”
character.
Enter code to
listen to new
message
(e.g.:code 3).
Call.
If you type #31#
followed by the
phone number
you call,your
phone number is
hidden to the other
person.
Availability of this
feature depends
on your network.
You can associate
8 names in the Names
list or FDN list with keys
2-9 on the keypad. A
long press on one of
these keys will
automaticaly dial the
the associated number.
Choose the name
you want to
make Flash Dial.
Press and
hold to link
the name to
key 4.
CANCEL FLASH DIAL
Press and
hold to cancel
link.
TO FLASH DIAL
Press and
hold to dial
linked
number.
Network
Names
Vincent
Names
Vincent
#31#0123456
78_
0123456789w
876p3_
0123456789w9
876p_
0123456789w_
0123456789_
’
Hide your identity
Philips Savvy p1à11 GB-21/7 15/11/99 15:22 Page 11

The Compass Key is your navigator while in the menus.
Press to enter or exit the menus.
Move one menu-
level back.
Switches to option on the left. Switches to option on the right.
Move forward
or validate the displayed option.
Here’s an example:
What you see on the display Press this key The Names list menu options
OK
Anders
Send msg.
OK
012345
OK
Names
Anders
OK
Names
View
OK
Menu
Names
Network
OK
MENUS
12
Discover the Compass Key
MENU
Messages Names Calls
Search View Add
Zara Anders Barbara
012345_
Delete Send msg. Usual msg.
Philips Savvy p12 à 22 GB-21/07 15/11/99 15:08 Page 12

MENUS / NAMES...
13
Add a name ... AddVoice Dial
With your phone,you
can store the names and
phone numbers of
people you call
frequently.
Switch to
“Add”.
Accept.
Enter name
(max 11
characters).
For example:Jim
J I M
Once Three Once
times
quickly
Delete one
character.
OR
Press and
hold to
delete all
characters.
Enter number
(20 digits
max).
Accept
number.
NO VOICE DIAL
Select“No”
TO ADD VOICE DIAL
Pronounce
the voice tag
you want to
associate to
the number
Repeat the
voice tag you
want to
associate to
the name
WhenVoice dial
memory is full
(10 names) the
Voice dial menu
disappears
Stored
OK
Press OK
and speak
OK
Press OK
and speak
OK
OK
Voice dial
Yes
OK
Number:
0123456789_
Number:
_
OK
Name:
Jim_
Name:
_
OK
Names
Add
Names
View
OK
Menu
Names
Philips Savvy p12 à 22 GB-21/07 15/11/99 15:08 Page 13

MENUS/ NAMES...
14
View names
in the Names list ... Quick access to names..
Accept.
Accept.
To scroll
through the
list.
OR
Use the
keypad to
quickly jump
to a name.
For example:
Press to jump to
names starting
with “P”,“Q”,
“R”or“S”.
Press to jump
to next name.
Call the
number.
OR
To view the
number.
To view the
available
options.
❚ Delete◆Send msg◆Usual msg ◆
Voice dial◆Change❚
Switch to the
option you
want.
Accept.
There is a quick way to
access the names you
stored:
Switch to
other names.
Call.
Names:
Anders
OK
Network
OK
Zara
Send msg.
OK
0123456789
OK
Names
Rozenn
Names
Philippe
Names
Adam
OK
Names
View
OK
Menu
Names
Quick access to
names
Philips Savvy p12 à 22 GB-21/07 15/11/99 15:08 Page 14

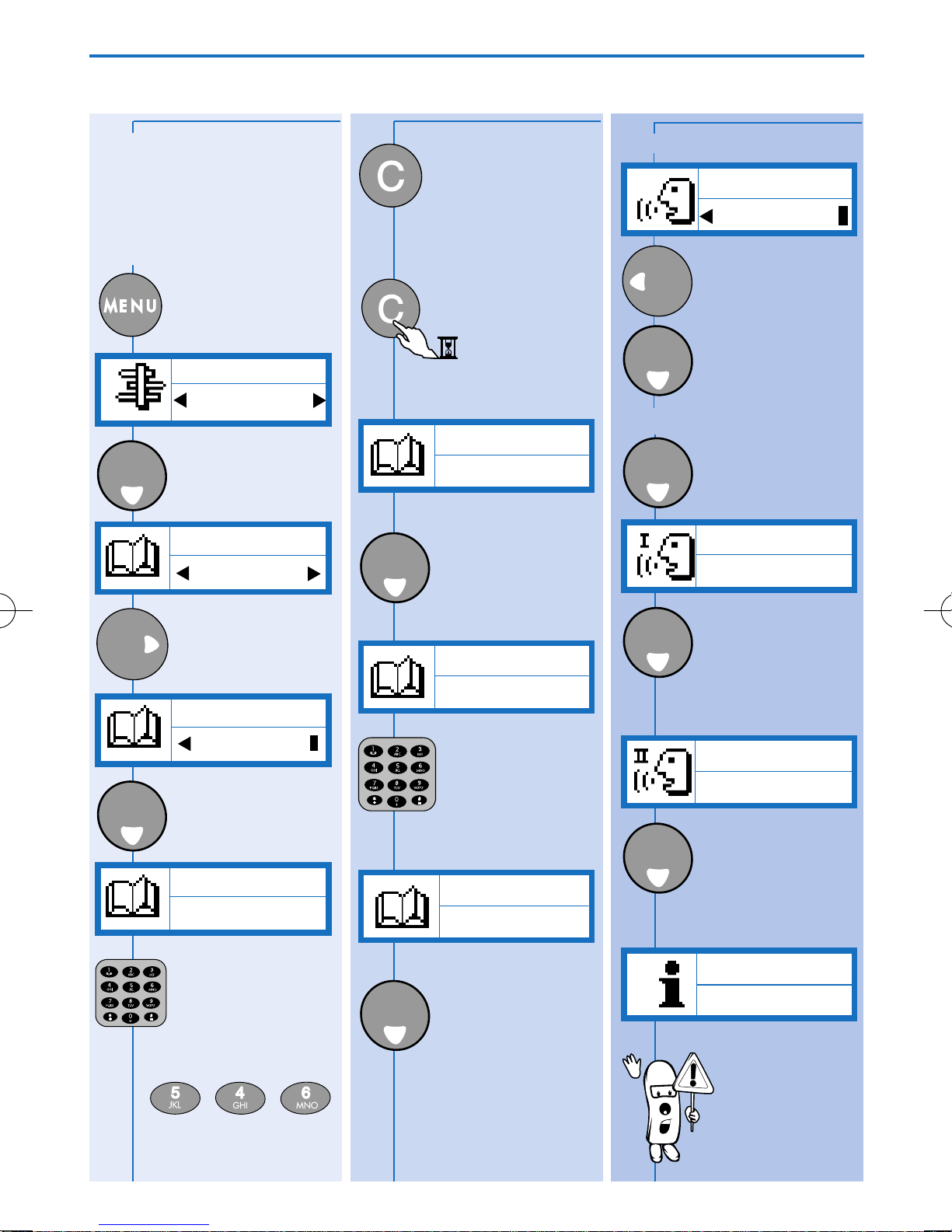

MENUS / NAMES...
15
Search for a
specific name Read your own phone number Delete a name
Accept.
Switch to
“Search”.
Accept.
Example:
Enter first few letters
of name
U R
Twice Three times
quickly quickly
Call name on
display.
Switch to
“Own
number”.
Accept.
Only available if
present in the
SIM card.
To access
directly to
phonebook
Select name
you want to
delete
“Accept twice”
Go to delete
Deleted
Press C
to delete
OK
Xavier
Send msg.
OK
Names
Xavier
Names
Axel
OK
Own number
0123456789
OK
Names
Own
number
OK
Menu
Names
Names
Urszula
OK
Search for:
Ur_
OK
Names
View
OK
Menu
Names
Philips Savvy p12 à 22 GB-21/07 15/11/99 15:08 Page 15

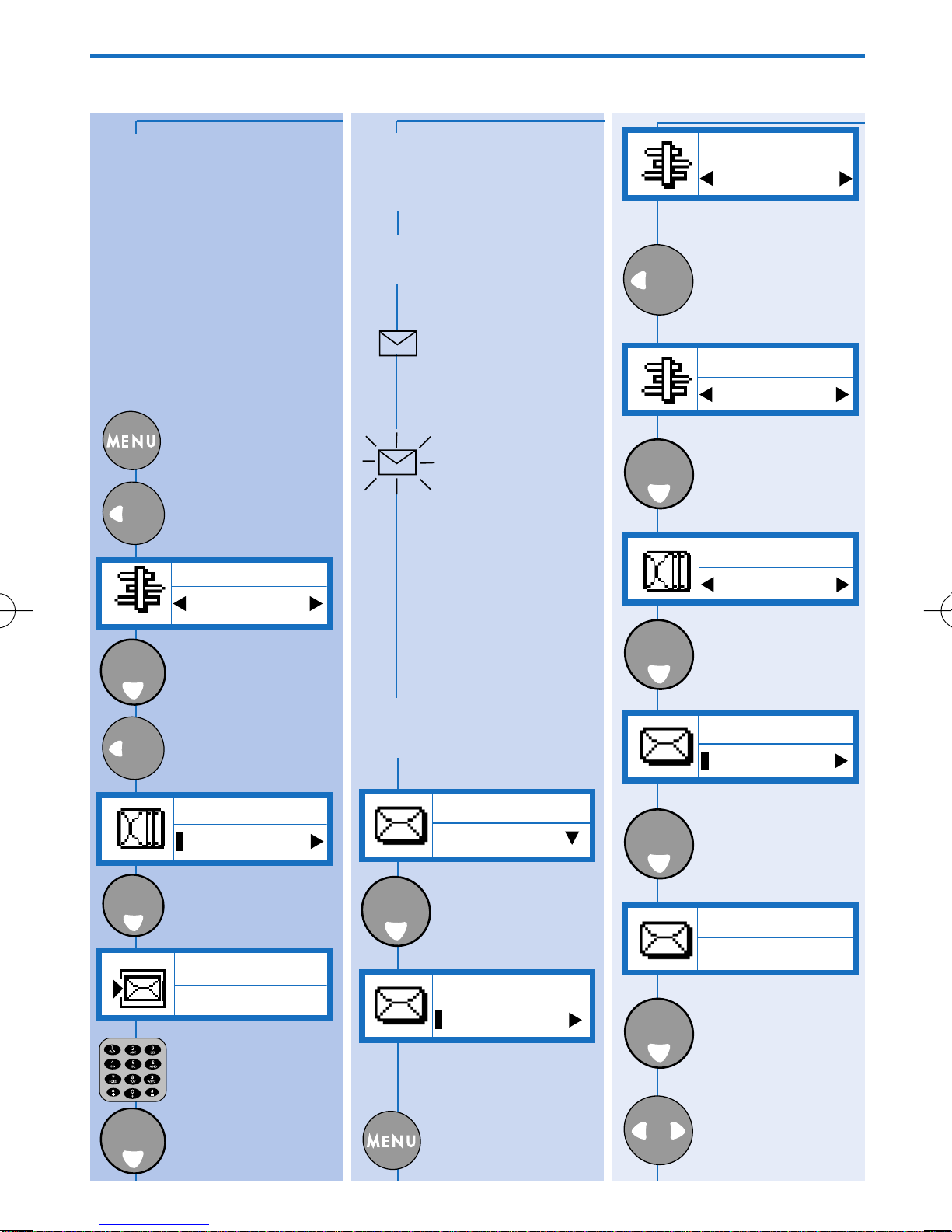

MENUS / MESSAGES..
16
Messages New message(s) ...
With your GSM phone you
can receive text messages
(SMS) and send messages
to other GSM phones.
To have the possibility of
writing and sending messages,
you need to enter a service
center number first.
If it is not present in the
SIM card,ask your network
operator for it.
Switch to
“Messages”.
Switch to
“Centre no.”
Enter number.
Your phone allows you
to send or receive short
written messages.
NEW MESSAGE
INDICATORS
Lights up on the
display when
you receive a
text message.
Flashes when the
message
memory is full.If
this happens,
you need to
delete archived
messages
otherwise new
ones will be
rejected.
READ NEW
MESSAGE(S)
OR
Switch to
“Messages”.
Read the
message.
Scroll
through the
message.
To switch
to other
messages.
OK
12 AUG 17:55
Hello, how
OK
Messages
1 of 2
OK
Messages
New
OK
Menu
Messages
Menu
Names
Messages
1 of 2
OK
Network
2 msg.
OK
Centre no:
_
OK
Messages
Centre no.
OK
Menu
Messages
Philips Savvy p12 à 22 GB-21/07 15/11/99 15:09 Page 16
