Philips W5510 User manual

SR701W5510

Back of the phone:
5.0Mpix camera Power key
Back
Side volume key
To uch screen
Headphone jack
DTV antenna
Front camera
Home
Recent
Charger/micro USB port
connector

1Your Phone
Home screen
You may activate functions of this device by
operations on the touch screen. There are five
main screens, which could be switched by sliding
to the left or the right.Tap in any interface to
go back to the main screen.Tap an application icon
on the main screen to start that application. Tap
[Apps Panel ] to find all applications.
Your phone’s home screen consists of the following
areas:
Status Bar
Application icons
Shortcut icons
Apps Panel

2
Keys
Learn about the main keys:
Key Definition Function
Power key -Press to turn on/off the
screen display.
-Press and hold to access the
Phone options, choose Silent,
Airplane mode, Power off or
Mobile Data.
Home key -Return to the home screen.
-Press and hold to open the
list of recent applications.
Back key -Back to the previous screen
or exit.
-Hide the onscreen keyboard
while it’s opened.
Menu key -Open options menu available
on the current screen.
-Hide the onscreen options
menu while it's opened.
Key Definition Function
Volume key -Volume up/down.
-Press to turn to silent mode
while there is a call.
Shortcuts
Learn about the shortcuts:
Key Definition Function
Message Quick access to message.
Dial Quick access to dial phone.
Contacts Quick access to phonebook.
Browser Quick access to browser.
Apps Panel Tap to into the applications
screen.
Notification Panel
When you get a new notification, you can open the
Your Phone

3
Notifications panel to see what event notification
or new information you have received. The
Notifications panel lets you quickly switch between
recently-opened apps.
To open the Notifications panel, press and hold the
status bar, then slide your finger downward.
If you have several notifications, you can scroll
down the screen to see them all.
Status Icon
Learn about the status icons on the screen.
Icons Function
Your phone will not ring when
receiving a call.
Your phone will vibrate when receiving
a call.
Flight mode activated.
Your phone is connected to a GSM/
WCDMA network.The more bars are
shown the better the reception is.
Icons Function
Call in progress.
Call on hold.
Speakerphone activated.
You have a missed call.
New SMS or MMS.
New Email.
WLAN is activated.
The bars indicate the battery level.
Connected to PC.
Bluetooth is activated.
The alarm clock is activated.
The headset is plugged into the phone.
Error occurred or caution required.
Your Phone

4
Table of contents
Getting started-----------------------------------6
Assembling and Charge---------------------------------6
Insert a Micro SD card (Memory card)--------------8
Personalize your phone---------------------------------9
Basic function-----------------------------------10
Calls------------------------------------------------------10
Messaging------------------------------------------------11
Email------------------------------------------------------11
Multimedia---------------------------------------13
Camera--------------------------------------------------13
Music-----------------------------------------------------14
FM Player-------------------------------------------------15
Digital television (DTV) ------------------------------15
Search and Web--------------------------------16
Search settings------------------------------------------16
Web browser-------------------------------------------16
Internet connections--------------------------17
Bluetooth------------------------------------------------17
Wi-Fi-----------------------------------------------------18
Settings-------------------------------------------19
Sound setting--------------------------------------------19
Screen settings------------------------------------------19
Factory data reset--------------------------------------20
Safety & Precaution----------------------------21
Table of contents

5
Getting started
Congratulations on your purchase and welcome to
Philips!
To get the most of your product and enjoy all
Philips has to offer, register your product at:
www.philips.com/mobilephones
More details about your product, please access:
www.philips.com/support
Note:
Please read the safety instructions in the "Safety &•
Precaution" section before use.
Assembling and Charge
Learn about installing SIM card and charging the
battery for the first use.
Insert SIM card
Follow the steps below to insert your SIM card.
Remember to turn off your mobile phone before
removing the back cover.
Remove the back cover.1.
Take out the battery.2.
Getting started

6

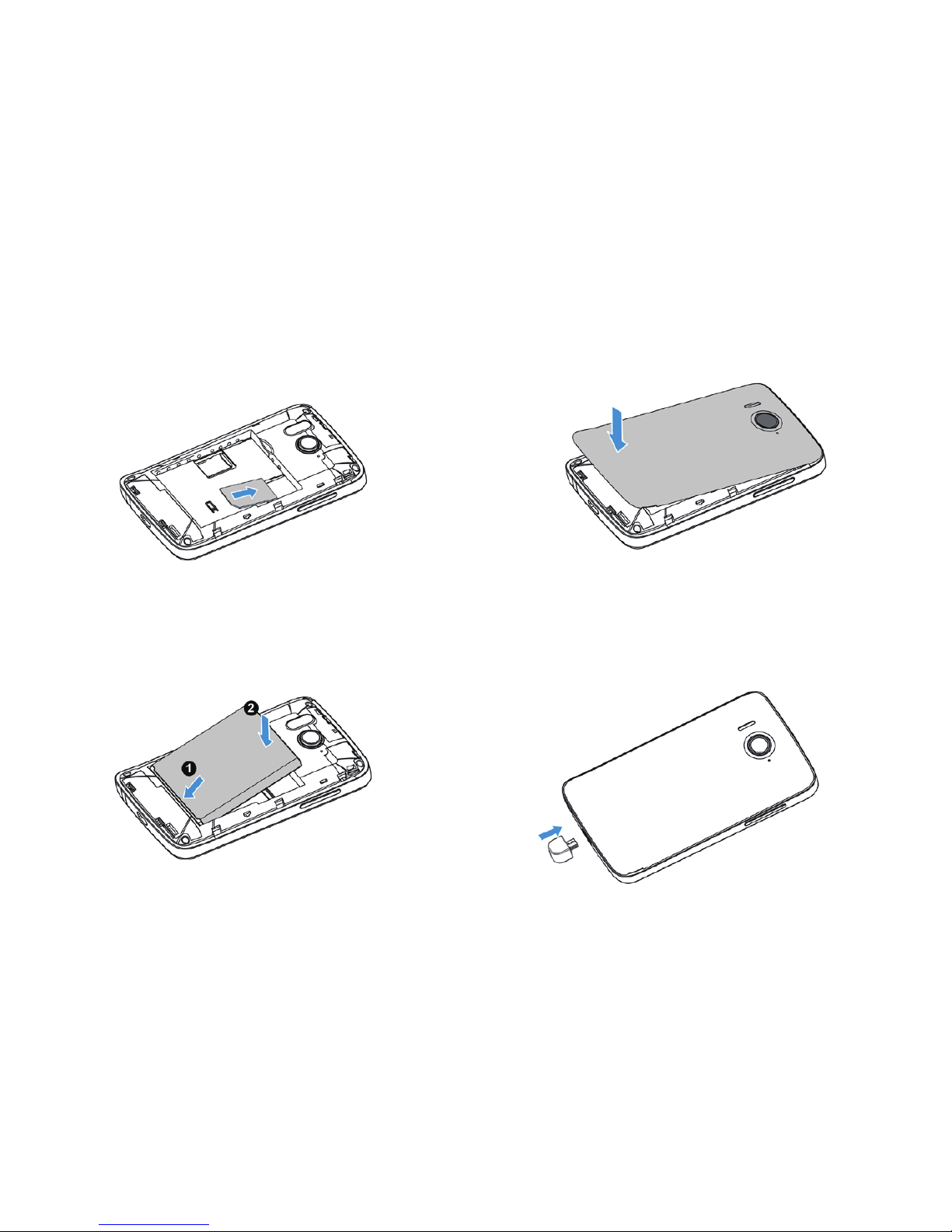

Insert the SIM card.3.
Install the battery.4.
Replace the back cover.5.
Charge the battery
A new battery is partially charged.The battery icon
in the upper-right corner shows the battery level
of charging status.
Getting started

7Getting started
Tips
You can use the phone while it is charging.•
Keeping the charger plugged to the mobile phone when•
the battery is fully charged will not damage the battery.
The only way to turn off the charger is to unplug it, so it is
advisable to use an easily accessible power socket.
If you do not intend to use your phone for several days,•
we recommend that you remove the battery.
If a fully charged battery left unused, it will lost its charge•
over time.
If a battery is being used for the first time or the battery•
has not been used for a prolonged period, it may take
longer time to recharge.
Insert a Micro SD card
Insert a memory card
See the image below for additional information:
1. Push the card door 2. Lift the card door
3. Insert the card 4. Put down and lock the
card door
Remove the memory card
Before removing a memory card, first unmount it
for safe removal.
In idle screen, tap1. > System settings >
Storage > Unmount SD card.
Press down the card holder and push out the2.
memory card.
Note:
Do not remove a memory card while the device•
is transferring or accessing information to prevent
corrupting or damaging the files in the memory card.
Format the memory card
Formatting your memory card on a PC may cause
12

8Getting started
incompatibilities with your device, please format
the memory card only on the device.
In idle screen tap > System settings >
Storage > Unmount SD card > Erase SD
card > Erase everything to format the memory
card.
Note:
Before formatting the memory card, remember to make•
backup copies of all important data stored on your device.
The manufacturer’s warranty does not cover loss of data
resulting from user actions.
Use as mass storage
Memory card can be used as mass storage when
connected with PC. You can synchronize data
between your computer and memory card.
Connect the phone and PC with USB cable.1.
Drag down the Notification panel, and tap2. USB
connected > Turn on USB storage.
On your computer, then you can check/edit the3.
content of memory card.
Note:
Before turning on USB storage, make sure you have•
mounted the memory card to your phone.
Personalize your phone
Make the phone look and sound just the way
you want it to. Personalize it with a different
wallpaper, skin, ringtone, and notification sound for
events such as incoming text, email, and calendar
reminders.
Change the wallpaper: Tap1. > Wallpaper
to choose the one you want, or press and hold
the blank area of the home screen to change.
Add widgets/shortcuts to the home screen:Tap2.
, press and hold the widget or icon you want
to add, drag it to a location.
Rearrange or remove widgets and icons: Press3.
and hold the widget or icon you want to move,
drag it to a new location.
Delete the widgets and icons: Press and hold4.
the widget or icon, drag it to the deletion area
on the top of the screen.

9
Basic function
Calls
Make a call from Dialer
Tap1. in the home screen to enter dialer
interface.
Input the phone number you want to dial in the2.
interface, tap to make a call.
Note:
•can be used to delete mistake number.
Answer/Reject a call
Answer a call: when a call comes in, slide the1.
phone button right to answer the call.
Reject a call: when a call comes in, slide the2.
phone button left to reject the call.
Reject a call with message: when a call comes3.
in, slide the phone button top to reject the
call with message.
Tips
When a call is in progress, use the buttons onscreen•
to mute or unmute the microphone or to turn the
speakerphone on or off.
When a call is in progress, you can tap•Hold and then
tap Add call to add a new call, the first call will be hold
automatically.
Call a phone number in a text message or
email
Tap and hold the phone number within the1.
message or email to have menu options.
Select to call with the SIM card you want.2.
Make an emergency call
Tap in the main screen to enter dialer
interface, and dial the emergency number for your
locale, and then tap .
Basic function

10
Messaging
Send a SMS/MMS message
In the idle mode, tap1. >.
Tap2. to edit or add the receiver from
Contacts.
Tap the text box to edit the text message.3.
Tap4. to add Pictures/Videos/Audio/ VCard/
Slideshow if you want to sent an MMS message.
Tap5. to send message or tap to save
the message as a draft.
Note:
There is a limit on the number of characters for a single•
text message. If you exceed the limit, your text message
will be delivered as one but will be billed as more than
one message.
Your text message automatically becomes a multimedia•
message if you enter an email address as the recipient, add
a message subject, attach an item, or compose a very long
message.
Message setting options
You can set storage, delivery reports, message
ringtone etc. by tapping Messaging >
>Settings.
Email
You may receive and send emails via Email.
Set up Email
In the applications menu, tap1. Email.
Input email address and password, tap2. Next,
give this account a name, your name (displayed
on outgoing messages) , tap Next.
You may also use Manual setup for the email
account:
Input email address and password.1.
Tap2. Manual setup to select the type of
account.
Finish details like server.3.
Tap4. Next to complete the setup.
Basic function

11Basic function
Note:
When you are finished setting up the email account, the•
email messages are downloaded to your device.
Consult your mail service provider for the mail server•
configuration.
Send emails
You may send emails to one or more recipients.
Before sending, add the recipient email address, or
select from Contacts.
In the applications menu, tap1. Email.
Tap2. for the editing interface.
Tap3. To and input the recipient’s email address.
If necessary, tap >Add Cc/Bcc to input
other recipient’s email address for cc or bcc.
Tap4. Subject and input the subject.
Tap5. Compose email and input the text.
Tap6. > Attach file to insert the file as
needed.
Tap7. to send the email.
Receive emails
In the applications menu, tap1. Email.
Tap2. to refresh the email list.
The device will connect to the server and3.
download emails. All emails received will be
saved in the Inbox.
Tap the email to read.4.
During reading, tap5. to reply the email to the
sender; tap and tap Forward to forward
the email to others; tap and tap Reply all
to reply to all contacts in the email.

12
Multimedia
Camera
Learn about camera function. Let you take photos
as desired by using your phone.
Take a photo/Record a video
In the application menu, tap1. Camera.
Tap2. Settings menu to set the camera if
necessary.
Tap3. Camera/Camcord e r / Pa n a r a m a
switcher to switch between camera,
camcorder and panorama mode.
Touch the preview screen to focus.4.
Tap5. to start taking photos in camera mode.
Tap6. to start recording videos in camcorder
mode.
After taking photos/recording videos, select7.
Gallery to view.
Camera settings
Before taking photos/recording videos, customize
your camera settings in Settings menu.
Tap1. to select camera (front or back
camera).
Tap2. and scroll the bar to zoom.
Tap3. to enter more settings menu, include
White balance, Exposure, Store location,
Picture size, Color effect, Saturation,
Contrast,Anti banding,Touch AF/AEC,
Focus mode, Sharpness etc..
Gallery
Shutter button
Camera/Camcorder/
Panorama switcher
Settings menu
Multimedia

13Multimedia
Music
You can play your favorite music through music
player.
Note:
Please install the memory card with music saved before•
playing music.
Play Music
In the application menu, tap1. Music. Select the
song you want to start playback.
In now playing screen, tap2. >Add to
playlist, you can place the song in current
playlist, or create a new playlist.
In now playing screen, tap3. >Use as
ringtone, you can set the current music as
ringtone.
Function Definition
Play and resume playback.
Pause playback.
Select previous track.
Select next track.
Select the play mode:
• Repeating current song.
• Repeating all song.
Activate Shuffle mode, play current in
randomly.
Select to enter into playlist.
Tips
When listening to music, adjust the volume to a moderate•
level. Continuous exposure to high volume may impair
your hearing.

14
FM Player
To listen to the FM Player, you must connect
headset, which serves as the radio antenna.
Tap , you can find more menu:
Scan1. :Tap to search the radio frequency
automatically.
Start recording/Stop recording2. : Tap to
record FM radio.
Settings3. : Set Regional band, Audio output
mode, Alternate frequency, Record
duration and Revert to factory defaults.
Sleep4. :Tap select Auto-off sleep time.
All channels5. :Tap to view all channels.
Multimedia
Press to turn on/off radio
Headset/Speaker switcher
Switch next / previous radio
Tap '+' to add a new frequency;
Tap preset frequency to select
the frequency.

15
Digital television (DTV)
Your phone supports digital television based on
Terrestrial Integrated Services Digital Broadcasting
(ISDB-T).
Tap , you can find more menu:
Scan1. :Tap to search the radio frequency
automatically.
Start recording/Stop recording2. : Tap to
Switch next /
previous chanel
View chanel list
Ta p to view more menuSingal of DTV Chanel name
Capture screen
record FM radio.
Settings3. : Set Regional band, Audio output
mode, Alternate frequency, Record
duration and Revert to factory defaults.
Sleep4. :Tap select Auto-off sleep time.
All channels5. :Tap to view all channels.

16
Search and Web
You can search for information on the phone and
on the Web by using Google Search.
Search settings
Tap Search widget in home screen or tap1. >
Search to enter search screen.
Tap2. > Search settings.
Tap3. Searchable items to select items you
want included when doing a search.
Tap4. Clear shortcuts to clear shortcuts to
recently chosen search suggestions.
Tips
Tap•in search screen to quickly select search range(all/
web/apps/people).
Web browser
Open the web browser and start surng the Web.
Going to a webpage
Tap1. Browser to enter the wap, then tap URL
field on top of the screen to input the web
address.
Note:
URL bar will auto-disappear, and will auto-appear when•
slide down on the screen.
Tap2. button on URL bar, to open multiple
browser windows or switch among them.
Tap3. >Bookmarks to view bookmarks list.
Tap4. >Save to bookmarks to add the
current web as a bookmark.
Tips
You can swipe your finger on the screen to navigate and•
view other areas of the webpage or pinch to zoom in/out.
Search and Web

17
Internet connections
Bluetooth
The device supports wireless Bluetooth connection
to create wireless connections between the device
and the Bluetooth earphone, hands free vehicle-
mounted phone equipment, computer or other
devices for data exchange.
Turn on/ off Bluetooth
In the applications menu, tap1. Settings.
Tap2. Bluetooth to select or clear Bluetooth
check box.
Note:
Turn off Bluetooth when not in use to save battery power,•
or in places where using a wireless device is prohibited,
such as on board an aircraft and in hospitals.
Receive data via Bluetooth
Turn on the Bluetooth function, then tap1.
Settings> Bluetooth, tap the device name on
the top to make the device visible.
Note:
You can set the device visibility timeout by tap•>
Visibility timeout.
Tap2. Search for devices on the bottom.
Select a device, enter a pair password and select3.
Pair to pair with the other device.
On the receiving device, accept the file.4.
Note:
Some devices, especially headsets or hands-free car kits,•
may have a fixed Bluetooth PIN, such as 0000. If the other
device has a PIN, you must enter it.
Send data via Bluetooth
Select a file or item, such as a contact or media1.
file from an appropriate application or file.
Tap2. > Share>Bluetooth.
Select a paired Bluetooth device on the list,3.
then the file will be sent directly.
Internet connections

18 Internet connections
Wi-Fi
You may connect to Wi-Fi for wireless internet
and download.
Connect to Wi-Fi
In the applications menu, tap1. Settings>Wi-Fi.
Select or clear Wi-Fi check box.2.
Wi-Fi search and connection
In the applications menu, tap1. Settings>Wi-Fi.
If W-Fi is on, tap2. Scan. The device will list the
networks in the range being searched.
Select the network to be connected, and tap3.
Connect.
Note:
If necessary, input the wireless password and other•
information, then tap Connect.The wireless indicator
will show in the status line after the device reaches the
network.
