Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this
type of plug proceed as follows:
1Remove fuse cover and fuse.
2Fix new fuse which should be a BS1362 3 Amp, A.S.T.A. or BSI approved type.
3Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate plug fitted in its place. If the mains plug contains a fuse, this should
have a value of 3 Amp. If a plug without a fuse is used, the fuse at the distribu-
tion board should not be greater than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard
should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral
(N), brown = live (L). As these colours may not correspond with the colour mark-
ings identifying the terminals in your plug, proceed as follows:
•Connect the blue wire to the terminal marked N or coloured black.
•Connect the brown wire to the terminal marked L or coloured red.
•Do not connect either wire to the earth terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over
the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956
and The Performer’s Protection Acts 1958 to 1972.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 2

3
4
1
#%^ $
5
9
0
678
2
!
@
1
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 3

English

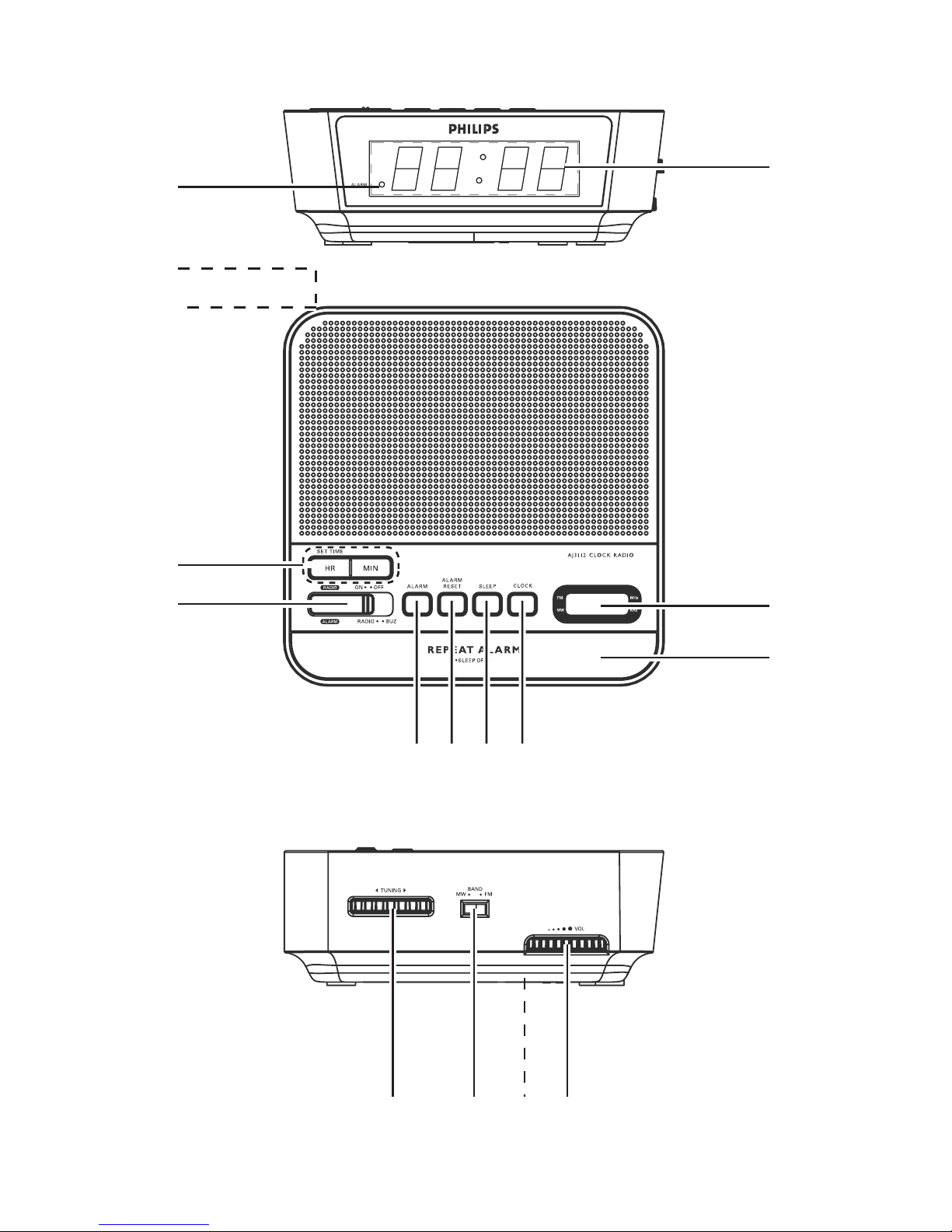

CONTROLS (see fig. 1)
1DISPLAY - shows the clock/ alarm time and status of the set
2ALARM indicator -
lights up when alarm is activated
3Frequency indicator - shows the radio frequency of your selected waveband
4REPEAT ALARM / SLEEP OFF
- switches off the active alarm for a 8-9 minute period
- switches off the sleep function
5CLOCK - sets the clock time
6SLEEP
- activates the radio for sleep function
- adjusts the sleep period
7ALARM RESET - stops the active alarm for 24 hours
8ALARM - sets the alarm function
9RADIO / ALARM
RADIO ON: switches on the radio
RADIO OFF: switches off the radio/alarm
ALARM - RADIO: activates the radio for alarm
ALARM - BUZ: activates the buzzer for alarm
0SET TIME HR / MIN
- adjusts the hours / minutes for clock / alarm / sleep time
!Power cord -
connects to wall outlet
@Pigtail - improve FM reception
#VOLUME - adjusts the sound level
$Battery door - opens to store a 9 volts 6F22 battery (not included) for clock
memory backup.
%FM/MW - selects FM/MW waveband
^TUNING - tunes to radio stations
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your
product at www.philips.com/welcome.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 4

INSTALLATION
POWER SUPPLY
1
Check if the power supply, as shown on the type plate located on the bot-
tom of the set, corresponds to your local power supply. If it does not, consult
your dealer or service center.
2 Connect the plug to the wall outlet.
3 To disconnect the set from the power supply completely, remove the
plug from the wall outlet.
CLOCK MEMORY BACKUP
The clock memory backup allows your alarm and clock time settings to be stored
for up to a day when there is a power interruption e.g. power failure. The com-
plete clock radio and display illumination will be switched off. As soon as the
power supply returns, the display will indicate the correct time.
1 Remove the battery door to insert a 9 volts 6F22 type battery (not included)
for backup.
2 Replace the battery door.
NOTE: If no backup battery is installed or the power interruption is prolonged,
you will need to set the clock and alarm times again.
Batteries contain chemical substances so they should be disposed of
properly.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 5

RADIO
You can use this set solely as a radio!
1
Adjust RADIO / ALARM to RADIO ON to switch on the radio.
2 Select your waveband by adjusting the FM/MW switch .
3
Adjust TUNING to tune to your desired station .
4
Turn the VOLUME control to adjust the volume level .
5
Adjust RADIO / ALARM to OFF to switch off the radio.
To improve reception:
FM: Extend and position the pigtail fully to obtain optimal reception.
MW: uses a built-in antenna inside the set. Direct the antenna by adjust-
ing the position of your set
.
SETTING THE CLOCK / ALARM TIME
The time is displayed using the 24-hour clock.
1 Hold down CLOCK or ALARM.
2 Press HR or MIN repeatedly, or hold down HR or MIN to adjust minute
and/or hour.
3 Release CLOCK or ALARM and HR or MIN when you reach the correct set-
ting.
™The set clock time will show on the display and start to run.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 6

SELECTING THE ALARM MODE
To use the alarm, you must set the alarm time first. You can choose from two
different alarm modes to wake you up: by radio or buzzer.
1 Select your choice of alarm mode by adjusting RADIO / ALARM to RADIO or
BUZ .
™ The alarm indicator (AL) will light up.
Helpful Hint:
• If you have selected the radio mode, make sure you have adjusted the vol-
ume loud enough to wake you.
• The buzzer is set at a fixed volume and cannot be adjusted.
SWITCHING OFF THE ALARM
There are three ways of switching off the alarm. Unless you cancel the alarm
completely, the 24 hour alarm reset option will be automatically selected after
1 hour and 59 minutes, from the time your alarm time first goes off.
24 HOUR ALARM RESET
If you want the alarm mode to be stopped immediately but also wish to retain
the same alarm setting for the following day:
• Press ALARM RESET during the alarm call.
™ The alarm indicator (AL) will remain on.
CANCELING THE ALARM COMPLETELY
To cancel the set alarm time before it goes off, or during the alarm call:
• Adjust RADIO / ALARM to OFF position.
™ The alarm indicator (AL) will light off.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 7

REPEAT ALARM
This repeats your alarm call at 9-minute intervals.
1 During the alarm call, press REPEAT ALARM / SLEEP OFF .
™ The alarm indicator (AL) will remain on.
SLEEP
This set has a built-in timer which enables the set to be automatically switched
off during radio playback after a set period of time. This allows you to lie back,
listen and fall asleep. The maximum sleep time is 1 hour and 59 minutes.
Setting SLEEP
1 Set RADIO / ALARM to OFF position.
2 Set the sleep time to activate sleep function by selecting on the following
ways:
• Simply press SLEEP to set your sleep time to 59 minutes.
• Hold down SLEEP , and press MIN repeatedly to adjust sleep time from 59
minutes downward.
• Hold down SLEEP and press HR to get one more hour sleep time (1:59)
™ To cancel sleep, press REPEAT ALARM / SLEEP OFF .
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 8

SAFETY INFORMATION
• Install the unit near the AC outlet and where the AC plug can be easily
reached.
• Where the MAINS plug is used as the disconnect device, the disconnet device
shall remain readily operable.
• Place the set on a hard and flat surface so that the system does not tilt.
• If you do not intend to use the set for a long time, withdraw the power plug
from the wall outlet. In addition to this, it is advisable to remove the battery
from the clock radio. This will prevent any danger of leakage and the clock
radio will not be damaged.
• Do not expose the set, batteries to humidity, rain, sand or excessive heat
caused by heating equipment or direct sunlight.
• The apparatus shall not be exposed to dripping or splashing.
• Adequate ventilation with a minimum gap of 15cm between the ventilation
holes and surrounding surfaces is necessary to prevent heat build-up.
• The ventilation should not be impeded by covering the ventilation openings
with items, such as newspapers, table-cloths, curtains, etc..
• No objects filled with liquids, such as vases, shall be placed on the appartus.
• No naked flame sources, such as lighted candles, should be placed on the
apparatus.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use
any cleaning agents containing alcohol, ammonia, benzene or abrasives as
these may harm the housing.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
Use of controls or adjustments or performance of procedures other than
herein may result in unsafe operation.
This set complies with the radio interference requirements of the
European Union.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 9

TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or
service center.
WARNING: Under no circumstances should you try to repair the set yourself, as this
will invalidate the warranty. Do not open the set as there is a risk of
electric shock.
Problem
–Possible Cause
•Remedy
No sound/power
–Volume not adjusted
•Adjust the volume
Occasional crackling sound during FM broadcast
–Weak signal
•
Adjust the position of the Pigtail
Continuous crackling/hiss disturbance during MW broadcast
–Electrical interference from TV, computer, fluorescent lamp, etc.
•Move set away from other electrical equipment
The alarm does not function
– Alarm time not set and or alarm mode not selected
•Set the alarm time and / select alarm mode
–Volume too low for RADIO
•Adjust the volume
–
Radio alarm not adjusted to radio station
•Tune to a radio station
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 10

ENVIRONMENTAL INFORMATION
We have reduced packaging to the minimum for easy separation into two
materials: paper and cardboard.
Your set consists of materials which can be recycled if disassembled by a special-
ized company. Please observe local regulations on the disposal of packing materi-
als and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials and com-
ponents, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a prod-
uct it means the product is covered by the European Directive
2002/96/EC.
Please inform yourself about the local separate collection system for electrical
and electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. The correct disposal of your old product will
help prevent potential negative consequences for the environment and human
health.
IFU_AJ3112_eng_05 2008.3.24 5:21 PM Page 11

Specifications
AC Power.............................................220 – 230 V / 50 Hz
Power Consumption
Active.........................................................................3.1W
Standby......................................................................2.8W
Dimensions (w x d x h)...............130.4 x 130 x 46.8 (mm)
Weight.....................................................................0.395 kg
