Philips AJ7030D/98 User manual

EN User manual
Register your product and get support at AJ7030D

A
B
d
e
k
l
b
c
a
f
g
h
m
n
j
i

C
D

E
F
G

1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specied by the
manufacturer.

kUse only with the cart, stand, tripod, bracket, or table
specied by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
lUnplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
nBattery usage CAUTION – To prevent battery leakage which
may result in bodily injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as marked on the
unit.
• Do not mix batteries (old and new or carbon and alkaline,
etc.).
• Remove batteries when the unit is not used for a long
time.

oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).
qThis product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
rWhere the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
Warning
•Never remove the casing of this apparatus.
•Never lubricate any part of this apparatus.
•Never place this apparatus on other electrical equipment.
•Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.
•Never look into the laser beam inside this apparatus.
•Ensure that you always have easy access to the power cord, plug or
adaptor to disconnect this apparatus from the power.

2 Your clock radio
Congratulations on your purchase, and welcome to Philips!To fully
benetfromthesupportthatPhilipsoffers,registeryourproductat
www.philips.com/welcome.
Introduction
With this clock radio, you can:
• listen to FM radio;
• enjoy audio from iPod/iPhone or an external device;
• know the time; and
• wake up by buzzer alarm, radio, or audio in iPod/iPhone.
What’s in the box
Check and identify the contents of your package:
• Main unit (with a battery)
• AC adapter(plug switchable)
• User manual

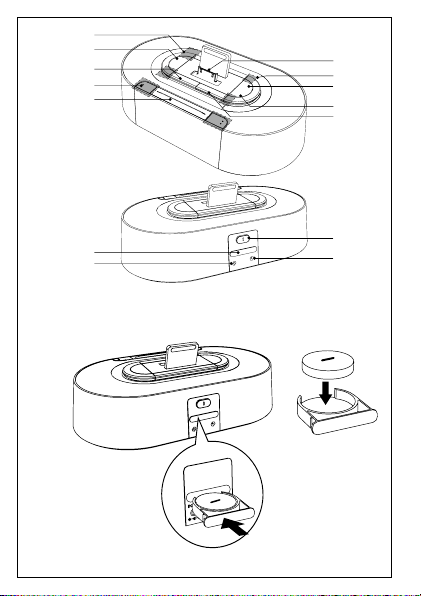

Overview of the main unit A
aPRESET
• Select a preset radio station.
• Adjust hour and minute.
bTUNING +/-
• Tune to a FM radio station.
• Adjust hour and minute.

c
• Turn on/off the clock radio.
• Switch the clock radio to standby mode.
dAL1/AL2
• Set alarm.
• View alarm settings.
• Activate/deactivate alarm timer.
eSNOOZE/BRIGHTNESS
• Snooze alarm.
• Adjust display brightness.
fiPod/iPhone
• Dock for iPod/iPhone.
gVOLUME +/-
• Adjust volume.
hSET
• Store radio stations automatically/manually.
• Set clock.
iSLEEP
• Set sleep timer.
jSOURCE
• Select source.
kBattery tray
lAUX IN
• Connect an external audio device.
mAL1/2 iPhone·RADIO·BUZZ
• Select alarm source.

nDC 5V
• Power supply socket.
3 Get started
Caution
•Use of controls or adjustments or performance of procedures other
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
Install battery
Caution
•Riskofexplosion!Keepbatteriesawayfromheat,sunshineorre.
Neverdiscardbatteriesinre.
•Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
•The battery contains chemical substances, so it should be disposed
of properly.
•Keep children away from the battery.
•Perchlorate Material - special handling may apply. See www.dtsc.
ca.gov/hazardouswaste/perchlorate.

Note
•You can only use AC power as power supply. The pre-installed
lithium CR2032 battery can only back up time and alarm.
•When power is disconnected, the display backlight is off.
For rst-time use:
Remove the protective tab to activate the battery.
To replace the battery: B

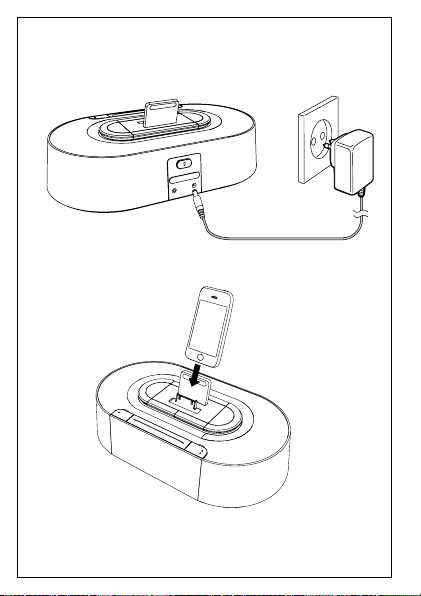

Connect power C
Caution
•Risk of product damage! Ensure that the power voltage corresponds
to the voltage printed on the back or underside of the clock radio.
•Risk of electric shock! When you unplug the AC adapter, always pull
the plug from the socket. Never pull the cord.
Set clock
1In standby mode, press and hold SET for two seconds to
activate clock setting mode.
»[12H] or [24H] is displayed.
2Press TUNING +/- or / repeatedly to select 12/24 hour
format.
3Press SETagaintoconrm.
»The hour digits begin to blink.
4Repeat Steps 2 to 3 to set the hour and minute.

Note
•If clock is not manually set, when iPod/iPhone is connected, the clock
radio synchronizes time from the iPod/iPhone automatically.
Turn on
Press .
»The clock radio switches to the last selected source.
Switch to standby mode
Press to switch the clock radio to standby mode.
»The clock (if set) appears on the display panel.
4 Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through this clock radio.
Compatible iPod/iPhone
The clock radio supports these iPod and iPhone models:
Made for.
• iPod touch (1st, 2nd, 3rd, and 4th generation)
• iPod classic
• iPod with video
• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation)
• iPod with color display
• iPod mini
• iPhone 4
• iPhone 3GS

• iPhone 3G
• iPhone
Listen to audio from iPod/iPhone
1Press SOURCE repeatedly to select iPod/iPhone mode.
2Place the iPod/iPhone in the dock. D
3Start to play audio from the iPod/iPhone.

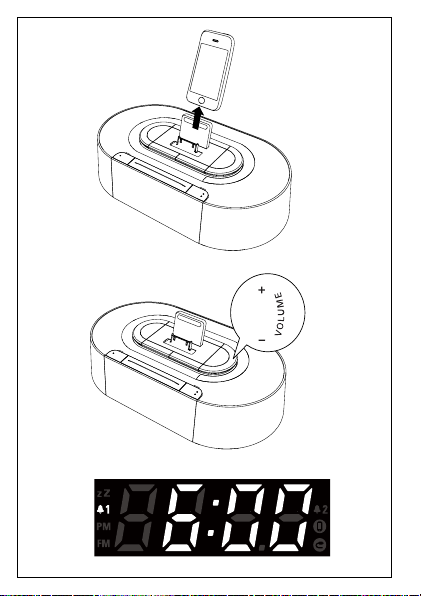

Remove the iPod/iPhone E
Pull the iPod/iPhone out of the dock.
Charge the iPod/iPhone
When the clock radio is connected to power, the docked iPod/iPhone
starts charging.
Adjust volume F

5 Listen to FM radio
Tune to FM radio stations
Tip
•Position the antenna as far as possible from TV, VCR, or other
radiation source.
•For better reception, fully extend and adjust the position of the
antenna.
1Press SOURCE repeatedly to select FM tuner source.
2Press and hold TUNING +/- for 2 seconds.
»The clock radio tunes to a station with strong reception
automatically.
3Repeat steps 2 to tune to more stations.
To tune to a station manually:
1Press TUNING +/-repeatedlyuntilyoundoptimal
reception.
Store FM radio stations automatically
You can store a maximum of 20 FM radio stations.
In tuner mode, press a hold SET for two seconds.
»The clock radio stores all the available FM radio stations and
broadcaststherstavailablestationautomatically.

Store FM radio stations manually
1Tune to an FM radio station.
2Press SET.
»The preset number begins to blink.
3Press PRESET /repeatedly to select a number.
4Press SETagaintoconrm.
5Repeat steps 1 to 4 to store other stations.
Note
•To remove a pre-stored station, store another station in its place.
Select a preset radio station
In tuner mode, press PRESET / to select a preset number.
6 Other features
Set alarm timer
Set alarm
In standby mode, you can set two alarms to ring at different time.
Note
•Make sure that you have set the clock correctly.

1Press and hold AL1/AL2 for two seconds to activate alarm
setting mode.
»The hour digits and alarm icon begin to blink.
2Press TUNING +/- or / to set the hour.
3Press AL1/AL2toconrm.
»The minute digits begin to blink.
4Repeat steps 2 to 3 to set the minute and alarm volume. G
Select alarm source
Adjust AL1/2 iPhone·RADIO·BUZZ control to select alarm
source for both alarms.
Note
•When alarm time comes, the selected radio, buzzer, or iPod/iPhone
turns on.
•You can only select the same alarm source for Alarm 1/ Alarm2.
•If iPhone is selected as alarm source, while no iPod/iPhone is
connected, the clock radio switches to buzzer source instead.
Activate/deactivate alarm timer
1Press AL1/AL2 to view alarm settings.
2Press AL1/AL2 again to activate or deactivate the alarm timer.
»or appears if alarm timer is on and disappears if it
is off.
• To stop the ringing alarm, press the corresponding
AL1/AL2.
• The alarm repeats ringing for the next day.

Snooze alarm
When alarm sounds, press SNOOZE.
»The alarm snoozes and repeats ringing nine minutes later.
Set sleep timer
This clock radio can switch to standby mode automatically after a
preset period.
Press SLEEP repeatedly to select the sleep timer period (in minutes).
»When the sleep timer is activated, appears.
To deactivate the sleep timer, press SLEEP repeatedly until [OFF] (off)
appears.
Play audio from an external device
You can listen to audio from an external device through this clock
radio.
1Connect the audio cable to:
• the AUX IN socket.
• the AUDIO OUT sockets of an external device.
2Press SOURCE repeatedly to select AUX source.
»is displayed.
3Start to play the external device
(see the user manual of this device).
15 30 60 90 120
off

Adjust display brightness
Press BRIGHTNESS repeatedly to select different brightness levels.
7 Product information
Note
•Product information is subject to change without prior notice.
Specications
Amplier
Rated Output Power 2 X 3 W RMS
Tuner
Tuning Range FM: 87.5 - 108 MHz
Sensitivity
- Mono, 26dB S/N Ratio
FM: <22 dBf
Search Selectivity FM: <28 dBf
Total Harmonic Distortion FM: <2%
Signal to Noise Ratio FM: >55 dB

General information
AC Power Model: ASSA28-050200;
Output: 5 V; 2 A
Operation Power Consumption 8 W
Standby Power Consumption <1 W
Dimensions
- Main Unit (W x H x D) 198 x 71 x 111 mm
Weight
- With Packing
- Main Unit
0.9 kg
0.5 kg
8 Troubleshooting
Warning
•Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).
When you contact Philips, ensure that the apparatus is nearby and the
model number and serial number are available.
No power
•Ensure that the AC power plug of the clock radio is
connected properly.
•Ensure that there is power at the AC outlet.

No response from the clock radio
•Disconnect and reconnect the AC power plug, then turn on
the clock radio again.
Poor radio reception
•Increase the distance between the unit and your TV or VCR.
•Fully extend the FM antenna.
Alarm does not work
•Set the clock/alarm correctly.
Clock/alarm setting erased
•Power has been interrupted or the power plug has been
disconnected.
•Reset the clock/alarm.
9 Notice
Anychangesormodicationsmadetothisdevicethatarenot
expressly approved by Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
This product complies with the radio interference requirements of
the European Community.
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
