Philips LM9012/60R1 User manual

English 7
Latviešu 24
Magyar 41
Română 58
Български 75
Українська 93

English
7
English
General description
1 Ristretto button
2 Espresso button
3 Lungo button
4 Water tank lid
5 Water tank
6 Mains cord with plug
7 Used capsule compartment
8 Waste water drawer
9 Platform for large cups or bowls
10 Drip tray
11 Cup tray
12 Coffee outlets
13 Coffee dispensing spout
14 Capsule compartment
15 Lever
Introduction
Welcome to the L'OR Barista world! L'OR Barista is the only capsule coffee
system that allows you to brew two cups of coffee at the same time thanks to
the double spout and the exclusive L’OR Barista double-shot capsules with twice
as much coffee. The L'OR Barista coffee machine is also compatible with the L'OR
Espresso single-shot coffee capsules. Thanks to the Dual Capsule Recognition
technology, the machine automatically recognizes the capsule size and adapts
the volume accordingly. All you need to do is press the button for the type of
coffee you desire.
Capsules and capsule compatibility
The L'OR Barista coffee machine has been designed to work with L’OR Espresso
single-shot capsules and L’OR Barista double-shot capsules, as well as with
Nespresso* capsules and aluminum capsules from coffee brands produced by
Jacobs Douwe Egberts, such as Douwe Egberts, JACOBS, Jacqmotte, Jacques
Vabre, Grand Mère, L'OR, Marcilla, Moccona, Saimaza and Senseo.
*brand of a third party not connected to JACOBS DOUWE EGBERTS and / or
PHILIPS
L’OR aluminum capsules are available online at www.lorespresso.com and in
shops. You can choose from a variety of coffee capsules for different types of
coffee.
Direct start and auto switch-off
The direct start function allows you to brew the coffee you desire with just one
press of a button. After the coffee has been prepared the machine switches off
automatically to save energy.

8English
Preparing for use
Before first use, remove all packaging materials from the machine.
When you use the machine for the first time or if you have not used it for 1 day
or longer, perform the following steps:
1Remove the water tank from the machine.
2Rinse and fill the water tank under the tap. Place the water tank back onto
the machine.
3Place a bowl under the coffee dispensing spout. Do not insert a capsule and
make sure that the lever is closed.
Note: You can remove the drip tray to create enough space to place a bowl
under the coffee dispensing spout.
4Press the lungo button.

9
English
5The machine heats up in about 25 seconds and starts rinsing. Water flows
from the coffee dispensing spout into the bowl until the internal water circuit
is empty.
Note: When the internal water circuit is empty, the machine produces a
humming sound. When the machine dispenses water, it produces a less loud
humming sound. This is normal.
6Empty the drip tray and the waste water drawer.
The machine is now ready for use.
Brewing coffee
Beverages and capsules
Beverages
Thanks to the Dual Capsule Recognition technology, the machine automatically
recognizes the capsule size and adapts the volume of your drink accordingly. All
you need to do is press the button for the type of coffee you desire.

10 English
Preparing coffee
1For one coffee, place one cup under the coffee dispensing spout.

11
English
2For two coffees, place two cups under the coffee dispensing spout.
3For a large coffee or Grand Café Filtre, remove the cup platform and the drip
tray, place the cup platform on the lower drip tray and place a large cup or
mug on the cup platform under the coffee dispensing spout.
4Lift the lever.
5Insert a capsule.
-For a single cup of coffee, insert a L'OR Espresso single-shot capsule.
-For two cups of coffee or one large coffee, insert a L'OR Barista double-
shot capsule.

12 English
6Close the lever by pushing it down.
Warning: Do not insert a finger into the brew chamber when
closing the lever to avoid injury. There is an invisible sharp
piercer on the inside of the lever.
7Press the button for the type of coffee you desire. The button lights up and
the machine starts heating up. When the heating-up process is finished, the
machine starts brewing the desired coffee.
Caution: Do not lift the lever until the brewing process has finished.
Brewing is finished when the lights stop flashing and no more coffee
comes out of the coffee dispensing spout.
8After the brewing process has finished, the machine switches off
automatically to save energy.
Brewing Grand Café Filtre
1Remove the seal completely from the capsule.
2Lift the lever and insert the capsule.
3Close the lever.

13
English
4Remove the drip tray with the cup platform. Put the drip tray aside and place
the cup platform on the lower drip tray.
5Place a large cup or mug on the cup platform under the coffee dispensing
spout.
6Press the lungo button to start the brewing process.
Drink personalization: program your drink volume
Each coffee button has been programmed to brew coffee at its ideal setting.
Nevertheless, you can personalize your drink volume to your wishes, within a
range that ensures the best coffee quality.

14 English
The volumes for normal and XXL capsules are adjusted separately:
1Fill the water tank.
2Insert a capsule and close the lever.
-If you want to adjust the volume for normal capsules, insert a L'OR single-
shot espresso capsule.
-If you want to adjust the volume for an XXL capsule, insert a L’OR Barista
double-shot capsule.
3Press and hold the button of the coffee whose volume you want to adjust for
4 seconds until the button flashes quickly. Then release the button. The
machine starts brewing coffee.
4Press the same button again when the cup contains the desired volume. The
button shows a light burst to indicate the new volume is stored.
Note: If you press the coffee button too early, the machine programs the
minimum volume shown in the table above. If you do not press the coffee
button, the machine programs the maximum volume shown in the table.
Resetting the drink volume
To reset the drink volumes to their factory settings:
1Press and hold the ristretto, espresso and lungo buttons simultaneously until
all buttons flash quickly to show that the machine has been reset to factory
settings.

15
English
Cleaning and maintenance
Cleaning the used capsule drawer and waste water drawer
Check the used capsule compartment and waste water drawer regularly.
Note: For optimal hygiene, pull up the lever after use to ensure the last used
capsule falls into used capsule compartment.
1Pull the waste water drawer and capsule compartment out of the machine.
2Remove the drip tray.
3Rinse the drip tray and the cup tray under the tap or clean them in the
dishwasher.
4Lift the used capsule compartment off the waste water drawer and empty it.
Caution: Be careful when you remove the used capsule compartment.
Capsules are still hot immediately after brewing.

16 English
5Rinse the waste water drawer and used capsule container under a tap. You
can also clean all these parts in the dishwasher.
6After cleaning, place the used capsule compartment on the waste water
drawer.
7Slide the waste water drawer with the used capsule container into the
machine.
8Place the drip tray back onto the lower drip tray. Place the cup tray on the
drip tray.
Cleaning other parts of the machine
1Clean the outside of the machine with a soft damp cloth.
Caution: Never use scouring pads, abrasive cleaning agents or
aggressive liquids such as petrol or acetone to clean the machine.
Warning: Do not insert a finger into the capsule compartment to
avoid injury. There is an invisible piercer on the inside of the
lever.
2Clean the water tank by rinsing it under a warm tap.
Note: The water tank is not dishwasher-proof.
Note: Rinse the water tank and fill it with fresh water every 24 hours.

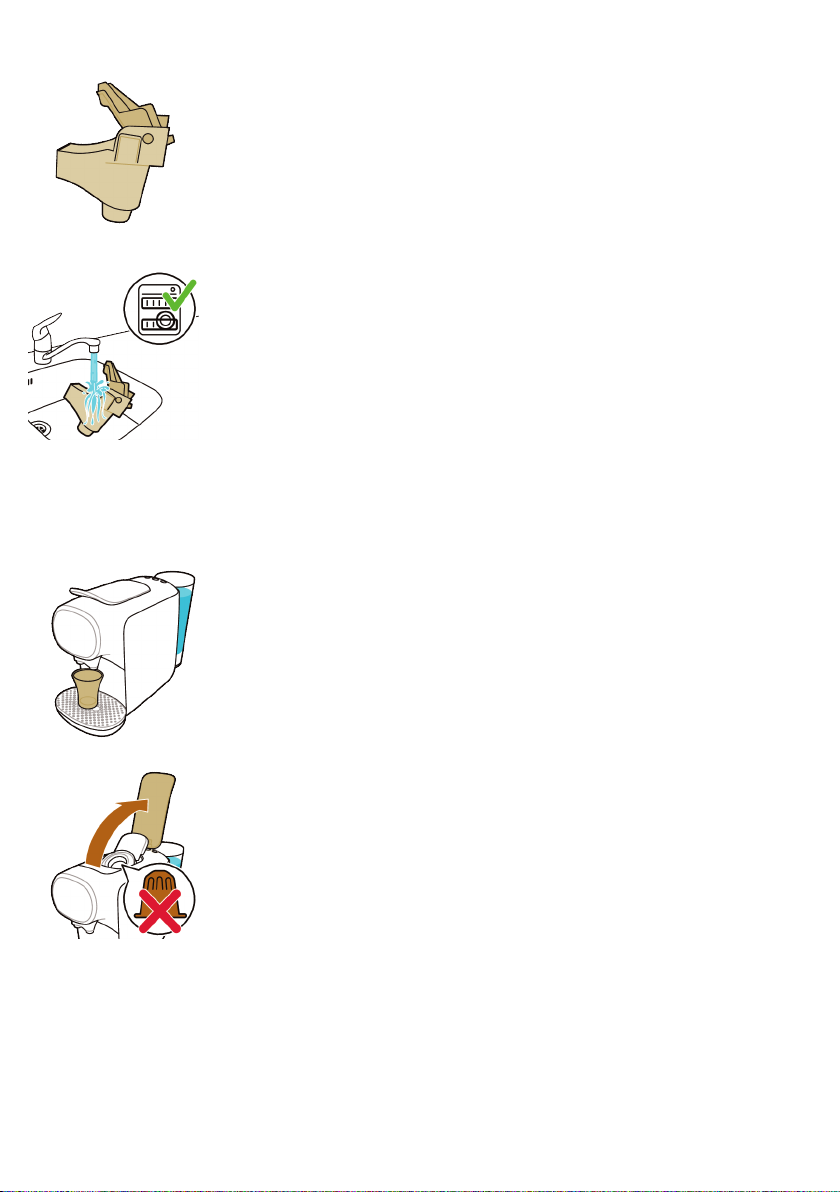

3Pull the coffee dispensing spout off the machine.
4Rinse coffee dispensing spout under a warm tap.

17
English
5To clean the coffee dispensing spout thoroughly, open the cover.
6Rinse the coffee dispensing spout under a warm tap. You can also clean it in
the dishwasher
Cleaning the coffee circuit
Clean the coffee circuit every week to ensure you get coffee with an optimum
quality and taste.
1Place a cup under the coffee dispensing spout.
2Lift the lever to ensure the last used capsule falls into the used capsule
compartment.
3Do not insert a new capsule and close the lever.

18 English

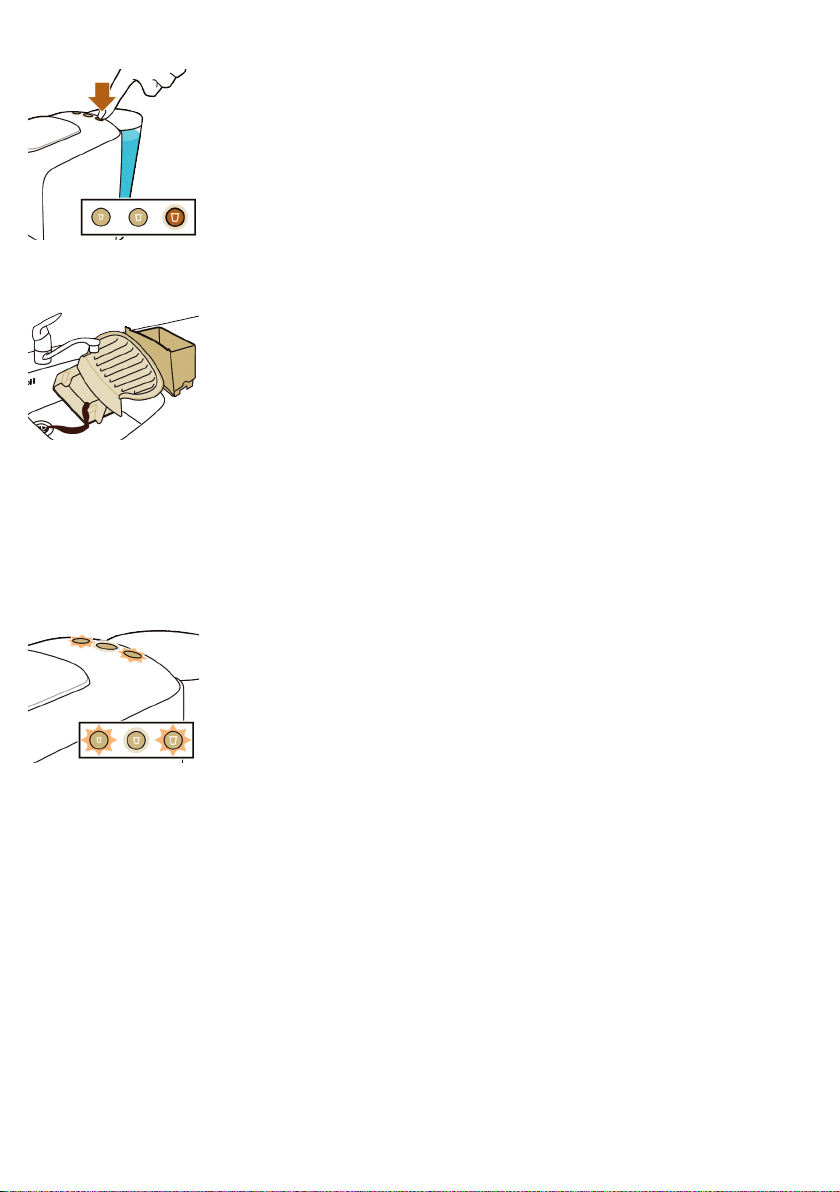

4Press the lungo button.
5Empty the cup after the machine has finished dispensing water.
6Open the lever and repeat steps 3 to 5 to ensure proper cleaning of the
coffee circuit.
7Empty the waste water drawer.
The machine is now ready for use.
Descaling
When to descale
-Descale the machine when the ristretto and lungo button flash quickly a few
times after brewing. The descaling procedure takes up to 40 minutes and
consists of a descaling cycle and a rinsing cycle. Do not interrupt the descaling
procedure.
Why to descale
Descaling is essential for the following reasons:
-It prolongs the life of your L'OR Barista coffee machine
-It ensures maximum cup volume
-It ensures maximum coffee temperature
-The machine produces less sound during brewing
-It prevents malfunctioning
If the descaling procedure is not performed correctly, scale residue remains
behind in the machine. This causes scale to build up more quickly and may cause
permanent and irreparable damage to the machine.
Use the correct descaler
Only lactic acid-based descalers are suitable for descaling the L'OR Barista
machine. This type of descaler descales the machine without damaging it. We

19
English
advise you to use the dedicated L'OR Barista liquid descaler (CA6530) or Saeco
liquid descaler (CA6700). It is available in bottles that contain liquid descaler for
two descaling procedures. You need half a bottle for one descaling procedure
and can store the other half for the next descaling procedure.
Descaling procedure
Note: If something goes wrong during the descaling procedure, e.g. because you
accidentally interrupt the descaling cycle, you have to restart the descaling
procedure from step 1.
1Pour half a bottle of liquid descaler into the water tank.
2Fill up the water tank with fresh tap water.
3Make sure that there is no capsule in the capsule compartment.
4Close the lever.

20 English
5Place a bowl with a minimum capacity of 1.5 liters on the lower drip tray
under the coffee dispensing spout to collect the descaling solution.
6Press and hold the ristretto and lungo button for 3 seconds at the same time.
The ristretto button starts to flash and the lungo button is steady on
7The machine dispenses the entire descaling solution at regular intervals. This
takes up to 30 minutes.
-When the lungo button start to flash quickly and the ristretto button is on,
the first phase of the descaling cycle has finished
8Remove and empty the bowl. Place the bowl back onto the lower drip tray
under the coffee dispensing spout.
9Remove the water tank and rinse it under the tap. Fill the water tank with
cold tap water and place it back onto the machine.

21
English
10 Press the flashing button to start the flushing cycle. The ristretto button is on
and the lungo button flashes during the flushing phase
Note: The water tank will be emptied without interruption. The flushing cycle
lasts about 3 minutes.
11 When the flushing cycle has finished, the ristretto and lungo button flash a
few times.
Note: It is normal that some water remains behind in the water tank after the
descaling procedure.
The machine switches off. The descaling procedure is finished.
Meaning of light signals
-The selected coffee button flashes slowly: the machine is preparing your
drink.
-The selected coffee button flashes quickly: the water tank is empty, fill the
water tank with tap water.
-The selected coffee button flashes intermittently: The new coffee quantity is
saved and programming is active.
-The ristretto and lungo button flash simultaneously after brewing coffee: you
need to descale the machine.
-All three buttons flash simultaneously: the machine needs to cool down. Wait
approx. 2 minutes before you start brewing a new drink.
Troubleshooting
This chapter summarizes the most common problems you could encounter with
your machine. If you are unable to solve the problem with the information
below, visit www.lorbarista.com/support for a list of frequently asked questions
or contact the Consumer Care Center in your country.
Problem Possible cause Solution
The machine does not switch
on.
The machine is not connected to the
mains.
Put the plug in an earthed wall
socket.
The coffee does not flow out of
the machine immediately when
I press the button.
The machine needs a few seconds to
heat up before it starts brewing.
This is normal.
The brewing time is longer than
before.
The machine is clogging up with
scale.
Descale the machine.

22 English
Problem Possible cause Solution
The temperature of freshly
brewed coffee gradually
decreases.
The machine is clogging up with
scale.
Descale the machine.
The pump makes a lot of noise. There is not enough water in the
water tank.
Fill the water tank with fresh tap
water.
The water tank is not placed
correctly.
Place the water tank correctly and
push it downwards.
The machine suddenly stops
brewing coffee.
There is not enough water in the
water tank.
Fill the water tank with fresh tap
water. Press the button of the
selected type of coffee again to
continue brewing. When the cup is
full, press the same button again to
stop the brewing process.
The selected coffee button
flashes quickly.
The water tank is empty. Fill the water tank with fresh tap
water. Press the button of the
selected type of coffee again to
continue brewing. When the cup is
full, press the same button again to
stop the brewing process.
I cannot close the capsule
compartment lever completely.
Check if you use the recommended
L'OR capsule. Other capsules may
cause problems during use.
The used capsule drawer is full. Empty the used capsule drawer
and insert the capsule again.
The capsule is not inserted correctly. Insert the capsule again and check
if it is inserted correctly.
The capsule is stuck. Open and close the lever a few
times with moderate force to
remove the capsule.
The lever does not open
completely.
The used capsule drawer is full. Empty the used capsule drawer.
The machine does not dispense
coffee or only dispenses drops
of coffee.
You have not flushed the machine
before first use.
Flush the machine before first use
(see 'Preparing for use').
There is not enough water in the
water tank.
Fill the water tank with fresh tap
water.
Scale has built up inside the machine
(see 'Descaling').
Descale the machine (see
'Descaling').
Coffee grounds end up in the
cup of coffee.
A small amount of ground coffee will
always end up on the bottom of the
cup.
This is normal.

23
English
Problem Possible cause Solution
The coffee flow splits or is not
straight.
The coffee dispensing spout cap is
not placed correctly or it is missing.
Snap the coffee dispensing spout
onto the coffee outlets.
The ristretto and lungo button
lights are flashing after
brewing.
This means it is time to descale the
machine to prevent it from clogging
with scale.
Descale the machine (see
'Descaling').
Why do I find water in the
waste water drawer?
The used capsule drawer and waste
water drawer catch the residual
water released after brewing coffee.
This is normal. Empty the capsule
and waste water drawer frequently
The coffee volume is not what I
expected.
The coffee volume has been
adjusted.
Readjust the coffee volume (see
'Drink personalization: program
your drink volume ') or reset the
coffee volume (see 'Resetting the
drink volume').
My coffee is less warm. When you brew the first cup of the
day or when it has been a while since
your previous cup of coffee, the
inside of the machine is still cold
when you brew coffee.
You can pre-heat the machine and
coffee cup by brewing a cup of
coffee first without placing a
coffee capsule.
If you use a cold, thick-walled cup,
the coffee will cool down
immediately.
Use thin-walled cups, as thin-
walled cups will absorb less heat
from the coffee than thick-walled
cups. Make sure the size of the cup
matches the coffee quantity. Do
not brew a small quantity of coffee
in a large cup.
The machine is clogged with scale. Descale the machine when the
ristretto and lungo button flash
quickly a few times after brewing
(see 'Descaling').
You used cold milk. If you drink coffee with cold, fresh
milk, this will cool down your
coffee. You can prevent this by
preheating the milk.
The machine switches off after
each brewing cycle.
This is the automatic shut-off
function.
To save energy, the machine
switches off automatically after
each brewing cycle.
