Philips SOPHO IPC 100 User manual

Single Line
Telephone
User Guide
The Advanced IP-PBX Communication Solution



1
Thank you for purchasing the SOPHO IPC 100 system.
The telephone described in this manual should only be connected to a SOPHO IPC 100 system by means of
the installation cables that come with the equipment.
Due to the flexibility built into the system, your Dialling Codes and Feature Capacities may differ from those
in this guide. Check with your Supplier / System Administrator and make a note of any differences.
Before using Your Telephone…
Using Your Telephone
Typical Single Line Telephone is displayed here. This User Guide describes general analogue Single Line
Telephone (SLT) procedures. Refer to the User Guide included with to your specific SLT for details on
additional key functions.
Redial Key
Recall Key
Handset Dial Keys
Message Lamp
Ring Key
Volume Control Keys

2
Placing Calls
Placing Calls Quickly
Your call will ring or voice-announce. If you hear ringing, wait for an answer. If you hear a beep, begin
speaking. Dialling “1” changes voice/ring mode (where the destination is an IPC 100 Telephone).
Placing an Intercom Call
Extension Number
???
Common/Personal Abbreviated Dialling Bins are numbered as follows (by default):
2-digit dialling: Common = 00-79, Personal = 80-99, or
3-digit dialling: Common = 000-899, Personal = 990-919.
Single Line Telephones cannot store a number into an Abbreviated Dialling Bin. For this you must
use an IPC 100 Display Telephone or PC Programming application. Ask your PBC Authorised Supplier
for details.
System programming is required to provide Group Abbreviated Dialling. Ask your PBC Authorised
Supplier for details.
Abbreviated Dialling <for outside calls>
Group
Abbv. 18 4
Group A
bbv.
Bin No.
???
Common/Personal
Abbv. Bin No.
Common/
Personal
A
bbv.
???
Listen for Dial Tone before dialling the Telephone Number.
Placing an Outside Call
Telephone Number
????
9

Trunk Code
8

1
3


3
If your call doesn’t go through…
Setting Camp On / Callback / Trunk Queuing
<Camp On> For Intercom Call, when you hear ringing, wait for the called party to answer.
For Trunk Queuing, when you hear Dial Tone, begin dialling the telephone number.
<Callback> For Intercom Call, when your phone starts the ringing, lift handset and wait for the called
party to answer.
For Trunk Queuing, when your phone starts the ringing, lift handset, hear Dial Tone and
begin dialling the telephone number.
Wait without
hanging up
Wait for the
system to call
you back
<Camp On>
<Callback>
(Hear Busy Tone,
No Answer, or
Trunk Unavailable)
(
When
Camp On
set
)
8 07
Cancelling Camp On / Callback / Trunk Queuing
Placing Calls Quickly
Intercom numbers can also be stored under Last Number Redial. (System programming is required.
Ask your PBC Authorised Supplier for details.)
Last Number Redial <for outside and intercom calls>
8

1
6

8

5

0


4
Answering an Outside / Intercom Call
(Ringing)
Each type of incoming call can have its own distinctive ringing pattern. Ask you PBC Authorised
Supplier for details.

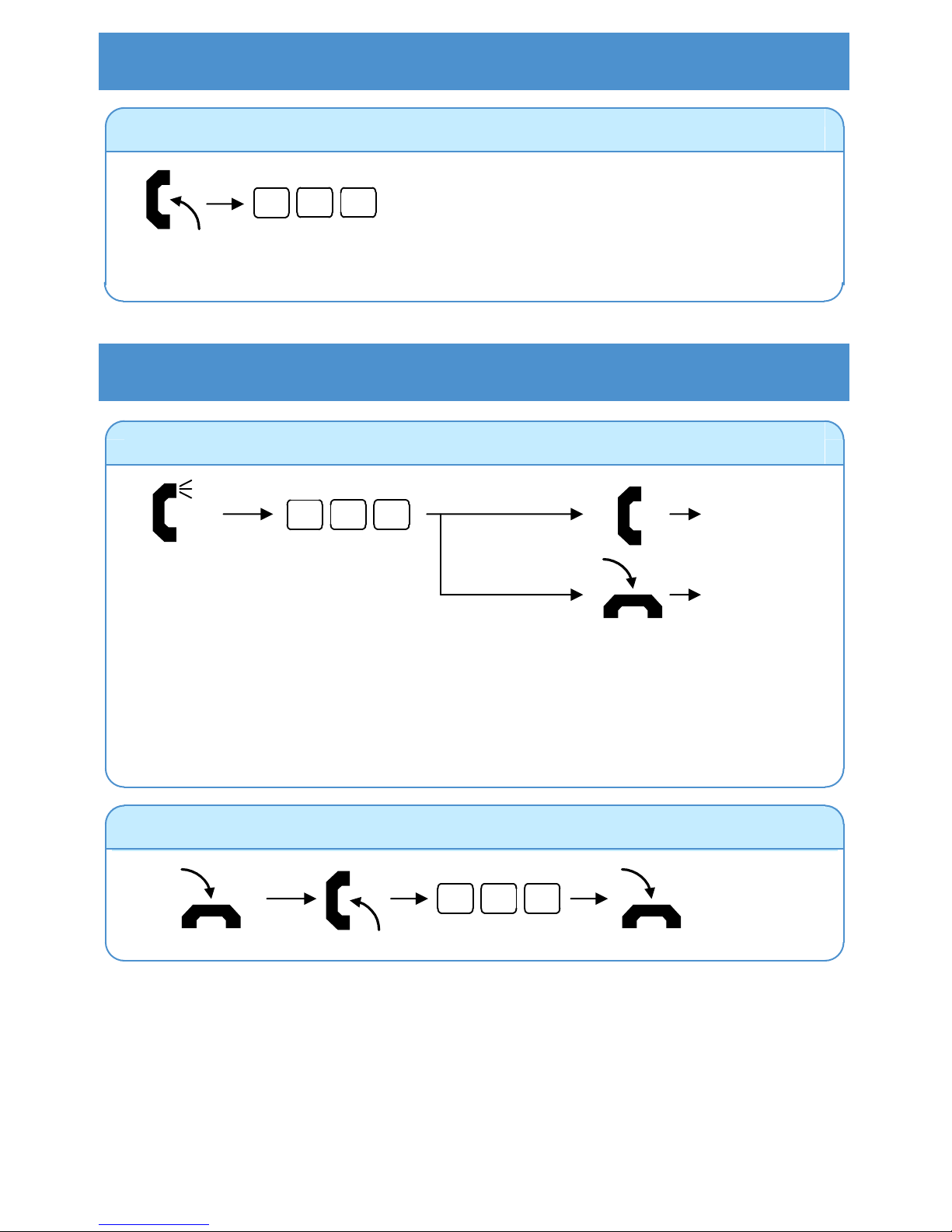

Setting / Answering a Message Waiting Indication
(Hear Busy Tone or No Answer)
Your phone’s
MW Indicator
is flashing
Set
Answer
8 14
8 14
When you set MW, the called party’s MW Indicator starts to flash.
When you answer MW, the MW Indicator shall automatically go off when the called party answers.
3
Clearing All Message Waiting Indications (at any extension)
8 7
Clear all messages (you have left for other extensions and messages other extensions have left for
you).
If your call doesn’t go through…
Cancelling a Message Waiting Indication (at originating extension)
871
Extension Number
you want to cancel MW
???
Answering Calls

5
Answering Calls
Picking up another Extension’s Call
System programming is required to allow Group Call Pickup. Ask your PBC Authorised Supplier for
details.
Hold / Transferring Calls
68 7
?7 5 ? ?
Extension Number
In same
Group
In other
Groups
Pickup for
Specified
Extension
68 9
1
Retrieving a Held Outside Call
? ?7 7 2
Trunk No.
you want to retrieve
Transferring a Call to another Extension
(Talking)
???
Extension Number
(Announce)
RECALL
Placing a Call on Hold / Retrieving a Held Call
(Talking)
If you go on hook, the held call will ring back.
This operation puts your call on Exclusive Hold. Other extension users can not take the call off Hold.
Hold
Retrieve
(Don
’
t hang up)
RECALL
RECALL

6

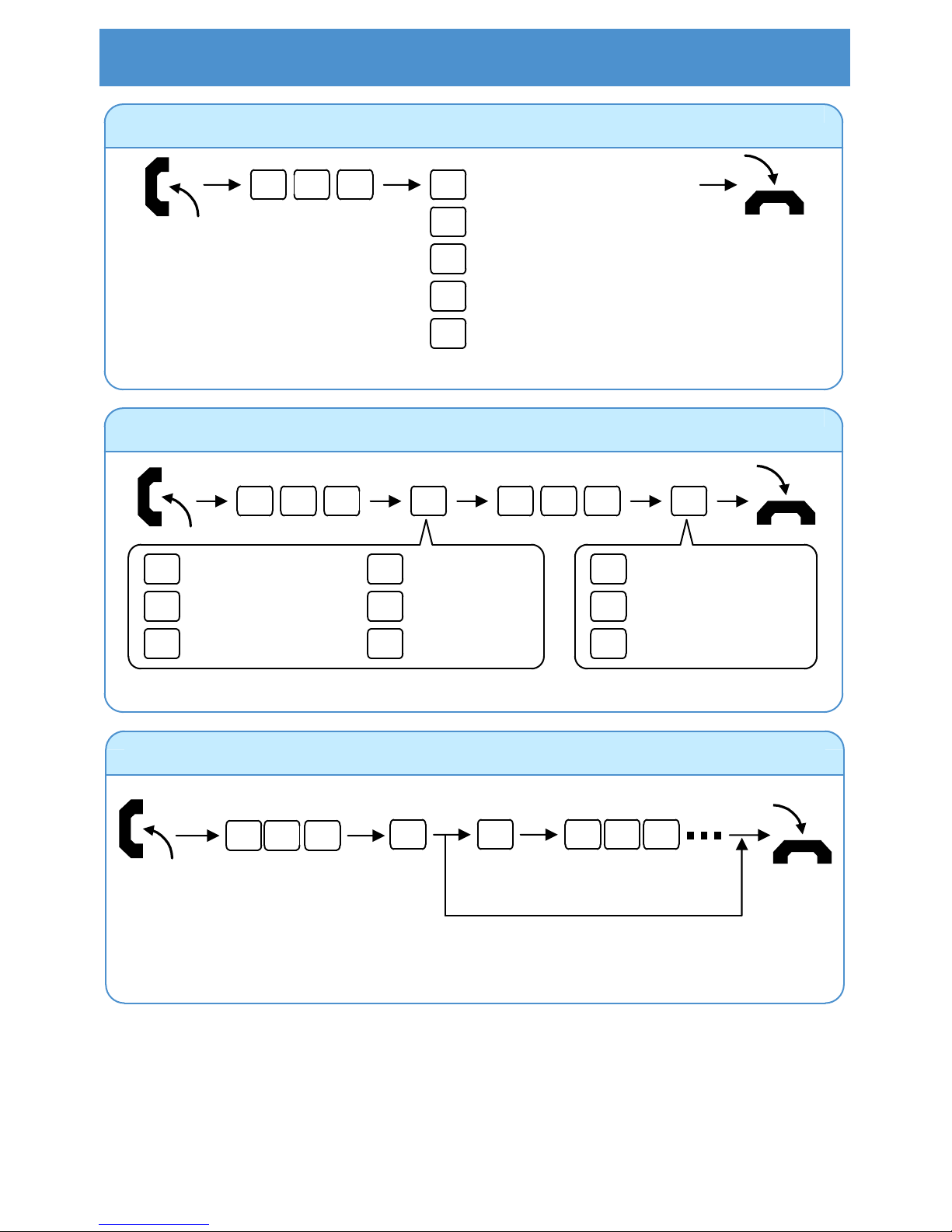

Forwarding Calls / Do Not Disturb
Do Not Disturb (DND)
1
3
2
4
0
DND : Trunk Incoming Call
DND : Intercom Incoming Call
DND : Trunk & Intercom Incoming Call
DND : Transferred (CFW) Call
DND : Cancel
When you set DND, the Internal Dial Tone pattern changes.
8 74
Call Forwarding / Follow Me
When you set a Call Forward, the Internal Dial Tone pattern changes.
8 ? ? ?
Extension Number
8 8
7
62
4 0
Busy / No Answer
Cancel
?
CFW Condition
?
CFW Type
Immediate
No Answer
Dual Ring
2
4
3
FWD All Calls
FWD Outside Calls only
FWD Intercom Calls only
3Follow Me
Call Forward Off-Premise
When you set a Call Forward, the DND/CONF Key’s lamp flashes and the Internal Dial Tone pattern
changes.
7 31 6
Telephone Number
? ? ?0
To Cancel
































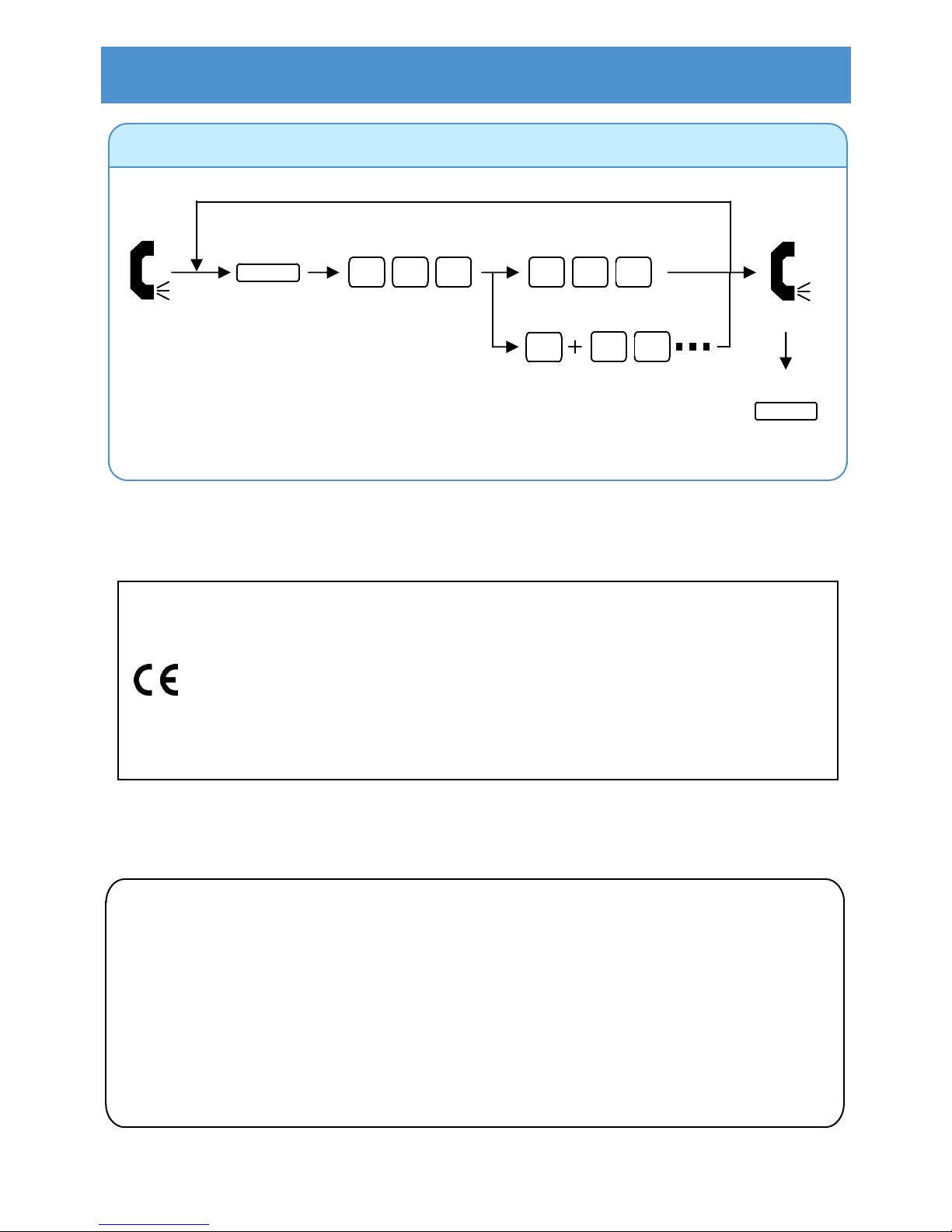

Conferencing
Establishing a Conference Call
You can repeat this operation to add additional parties. You
may be able to have up to 8 parties in total (including your
extension)
.
826
(Talking)
???
Extension Number
Trunk Code Telephone
Number
? ?
(Talk)
<press twice>
RECALL
RECALL
0
Repeat for additional parties
