SL STRIP 10IP
IMPORTANT INFORMATION
IMPORTANT INFORMATION
When using electrical equipment, basic safety precautions should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not mount near gas or electric heaters.
c. Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
d. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition.
e. Do not use this equipment for other than intended use.
f. Refer service to qualified personnel.
SAVE THESE INSTRUCTIONS.
WARNING: You must have access to a main circuit breaker or other power disconnect device before
installing any wiring. Be sure that power is disconnected by removing fuses or turning the main circuit
breaker off before installation. Installing the device with power on may expose you to dangerous
voltages and damage the device. A qualified electrician must perform this installation.
WARNING: Refer to national Electrical Code and local codes for cable specifications. Failure to use
proper cable can result in damage to equipment or danger to personnel.
WARNING: This equipment is intended for installation in accordance with the National Electric Code
and local regulations. It is also intended for installation in indoor applications only. Before any
electrical work is performed, disconnect power at the circuit breaker or remove the fuse to avoid
shock or damage to the control. It is recommended that a qualified electrician perform this installation.
Warnings and Notices

SL STRIP 10IP
GENERAL INFORMATION 1
GENERAL INFORMATION
ACCESSORIES
Thanks for your purchasing Showline SL STRIP 10IP lighting equipment, the SL STRIP 10IP is compatible of both
DMX & RDM and with 10 channel LED intensity adjustable. Programs can be updated via RDM interface. It is
available in master and slave control connection. It is easy for users to install and operate.
For the optimum operation and best performance, please read the instruction in this manual carefully and
thoroughly.
PHYSICAL DIMENSIONS
Unit: mm
Note: Accessories will be dispatched to each luminaire depending on models(US or International).
AC Input cable (1750mm)
(For US, Canada and Latin America market only) AC Input cable (1500mm)
(For International market only)
AC Output cable (1000mm)
(For International market only)
AC Output cable (1000mm)
(For US, Canada and Latin America market only)
DMX Input cable (1000mm) DMX Input cable (1000mm)
DMX Output cable (1000mm)
DMX Output cable (1000mm)
US Market International Market

SL STRIP 10IP
MAIN FEATURES
2
1. Wing screw(2pcs)
2. Mounting Assemble(2pcs)
0.5m power / signal cable with bare end
10 built-in programs subject to Speed and Dimmer
0-255 dimming level
Standard DMX-512 and RDM protocol
01 Thru 99 Chase Speed adjustment
Power failure memory
MAIN FEATURES
LED display window-shows current activity and function state
Accessories(Included):
INSTALLATION
Note :
Once this unit is for hanging application, it is required to use a safety rope (sold separately, which can hold
at least 10 times the weight of the fixture ) to ensure the mounting safety of the fixture by attached through
the holder.
01 pixel, 02 pixel, 05 pixel,10 pixel DMX Channels selection
Wing screw(x2)
Mount Assembly
(x2)
SL STRIP 10IP LED Luminaires are provided with the ability to fix the unit on the Mount assembly by the
wing screws. User can tighten the wing screws manually. Once this unit is for hanging application, it is
recommended (and may be required by local and national safety codes) to use and install a safety cable
(sold separately). When hanging the fixture, be sure to leave enough space around the luminaire to allow
proper, uninterrupted airflow for a safety cooling and positioning.

SL STRIP 10IP
SYSTEM CONNECTION 3
Power:
Before plugging your unit in, be sure the resource voltage in your area matches the unit required voltage.
Because the line voltage may vary from venue to venue, you should be sure to plug the socket into a matching
wall outlet before attempting to operate your unit.
SYSTEM CONNECTION
Maximum amount of this units that may be connected is 11pcs(AC120V) or 20pcs(230V).
One universe DMX can drive up to 32 pcs of SL STRIP 10IP, please add DMX booster if SL STRIP
10IP are connected together in line over 32 pcs or data cable over 100M. The connections may be
illuminated as following.
RDM/DM X IN
RDM/DM X IN
RDM/DM X IN
RDM/DM X IN
RDM/DM X IN
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
32
32
32
32
32
POWER IN
POWER IN
POWER IN
POWER IN
POWER IN
DMX IN
DMX IN
DMX IN
DMX IN
DMX IN
POWER OUT
POWER OUT
POWER OUT
POWER OUT
POWER OUT
DMX OUT
DMX OUT
DMX OUT
DMX OUT
DMX OUT
SL STRIP 10IP
SL STRIP 10IP
SL STRIP 10IP
SL STRIP 10IP
SL STRIP 10IP
POW ER IN
AC110-240V 15A MAX
POW ER IN
AC110-240V 15A MAX
POW ER IN
AC110-240V 15A MAX
POW ER IN
AC110-240V 15A MAX
POW ER IN
AC110-240V 15A MAX
15A Max.
RDM / DMX OUTPUT
RDM / DMX OUTPUT
RDM / DMX OUTPUT
RDM / DMX OUTPUT
RDM / DMX OUTPUT
AC OUTPUT
AC OUTPUT
AC OUTPUT
AC OUTPUT
AC OUTPUT

SL STRIP 10IP
LAYOUT OVERVIEW
4
Layout Overview
Rear Panel Overview
1. LCD Display
This multi-function display will detail all DMX Address, Chase , Program, Speed activity that pertains to the
current operation mode of the unit.
2. Mode button
This button will call up the unit operation mode between DMX, Chase and Manual mode.
5. Menu button
This button will active the different functions in DMX Mode, Chase Mode and Manual Mode.
3. UP button
This button will increase the displayed value in the LED display.
4. Down Key
This button will decrease the displayed value in the LED display.
6. AC Input:
AC110-240V~50/60Hz, Max15A. The supply power is input into your unit via this connector. Be sure to
always connect to proper voltage.
7. RDM / DMX In
This connector accepts your RDM / DMX input signal.
8. RDM / DMX Out
9. AC Output:
AC110-240V~50/60Hz, Max15A. This connector sends the supply power to the next unit.
POWE R THRU
(15A Max.)
110-24 0V~
50/60 Hz
POWER INPUT
(15A Ma x.)
110-2 40V~
50/60 Hz
RDM/ DMX
OUTPUT
RDM/ DMX
INPUT
Made in China 中国制造
IP65
0.2m
o
40 C
SL STRIP 10IP
Minim um safe ty dist ance to f lamma ble mat erial s: 0.2m .
Dista nce de sé curit é minim ale aux m atéri aux inf lamma bles: 0 .2 m.
Minimu m safet y distan ce from l ighted o bject s: 0.5m
Dista nce de sé curit é minim ale des o bjets i llumi nés: 0. 5m
Maximum operating temperature of enclosure surface is 60 °C
Température de fonctionnement maximale de la surface de l'enceinte est de 60 °C
DO NOT STARE AT THE OPERATING LIGHT SOURCE
警告: 机 器 在 接 电 前 请 参 阅 安 装 ⼿ 册 ， 使 ⽤ 带 安 全 接 地 的 电
源插座；本机器有电击风险，⾮专业⼈员切勿私⾃打开机
壳，维修前请先切断电源。
POWE R INPU T(输⼊电压): 110-2 40V~, 5 0/60 Hz;
POWER CONSUMPTION(功耗): 150W M ax.
CAUT ION / ATTENT ION:
RISK OF ELECTRIC SHOCK DO NOT OPEN
RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR
NOT FOR HOUSEHOLD USE.
IMPROPRE A L'USAGE DOMESTIQUE
DRY LOCATIONS
EMPLACEMENTS SECS
NOT FOR RESIDENTIAL / HOUSEHOLD USE
PAS POUR USAGE RÉSIDENTIEL / MÉNAGE
FOR SAFETY INSTRUCTION AND MOUNTING OPTIONS
REFER TO USER MANUAL
POUR INSTRUCTION DE SECURITE ET OPTIONS DE
MONTAGE RÉFÉRER AU MANUEL UTILISATEUR MODE M ENUUP DOW N
2
1
345
8 96 7
This connector sends your DMX signal through to the next unit.

SL STRIP 10IP
OPERATION MODES 5
OPERATION MODES
The “SL STRIP 10IP” has four different operation modes. It can be used as a 01 pixel, 02 pixel, 5 pixel,
10 pixel channel DMX dimmer. Please follow illustrations below to operate the unit in your desired mode.
Use this operation mode only when you are about to use the unit as a DMX dimmer. This function can allow
you set your unit dimmer function as a 01 pixel, 02 pixel, 05 pixel,10 pixel channel DMX dimmer and DMX
address.
DMX Mode
Mode Parameter Parameter Value Function
DMX
Chase
Manual
Calibration
Address
Channel
DMX Fade
Program
Speed
Dimmer
Fade
R
G
B
W
001-512
8 Bit:1/2/5/10 pixel 16 Bit:1/2/5/10 pixel
OFF/ON
01-10
01-99
000-255
000-100
000-255
000-255
000-255
000-255
To set the initial DMX receiving address
To set the DMX Control Mode
To set the status of the fixture when there is no DMX input
To set the output intensity of the red
To set the output intensity of the green
To set the output intensity of the blue
Can be set as ON or OFF
To set the output intensity of the cool white
To select a built-in program
To set the speed level of the built-in Program
To set the intensity
To set the speed of the Fadetime(percentage)

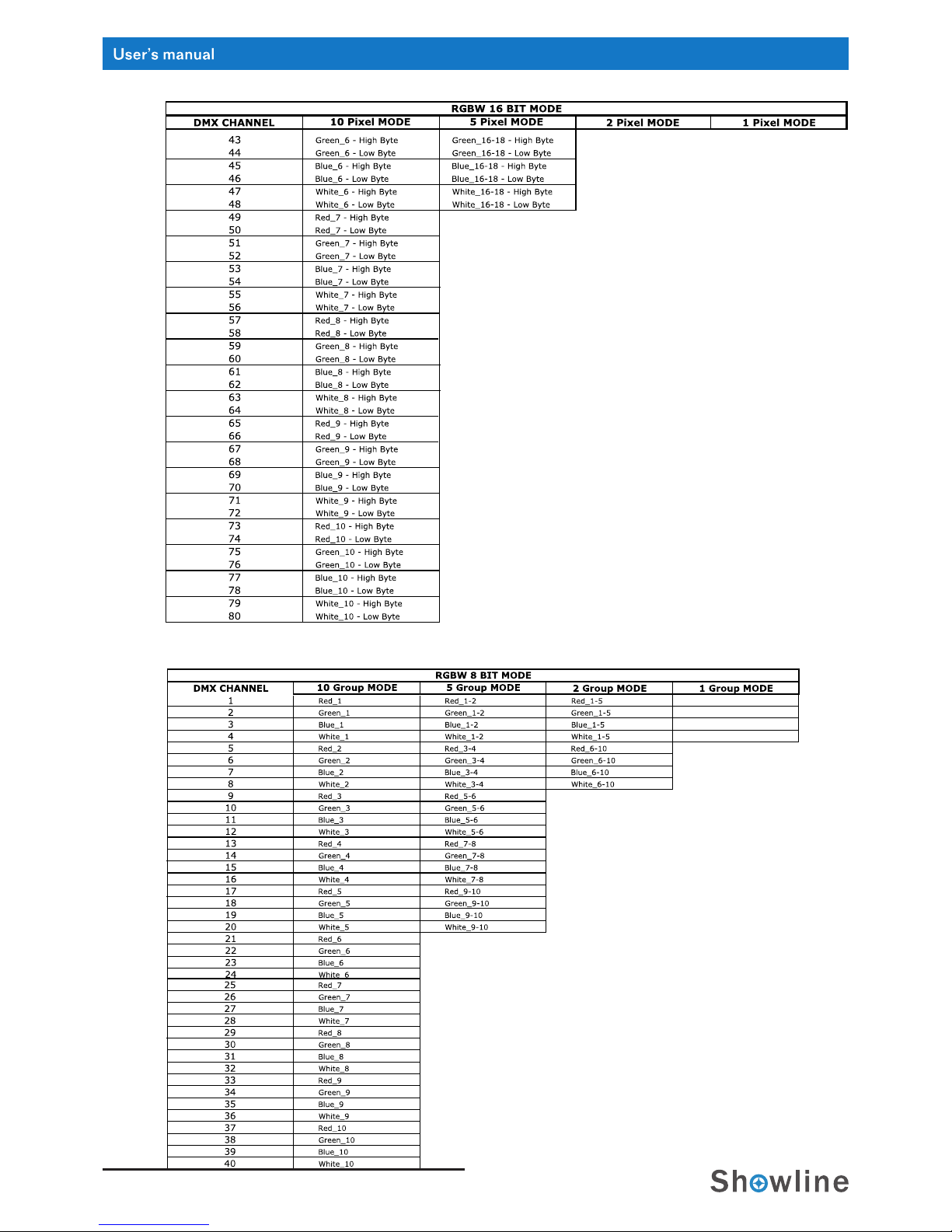

SL STRIP 10IP DMX Mapping (RGBW 16 Bit Mode)
Red _ 9-10 - High Byte
Blue _ 9-10 - High Byte
Green _ 9-10 - High Byte
White _ 9-10 - High Byte
Red _ 9-10 - Low Byte
Blue _ 9-10 - Low Byte
Green _ 9-10 - Low Byte
White _ 9-10 - Low Byte

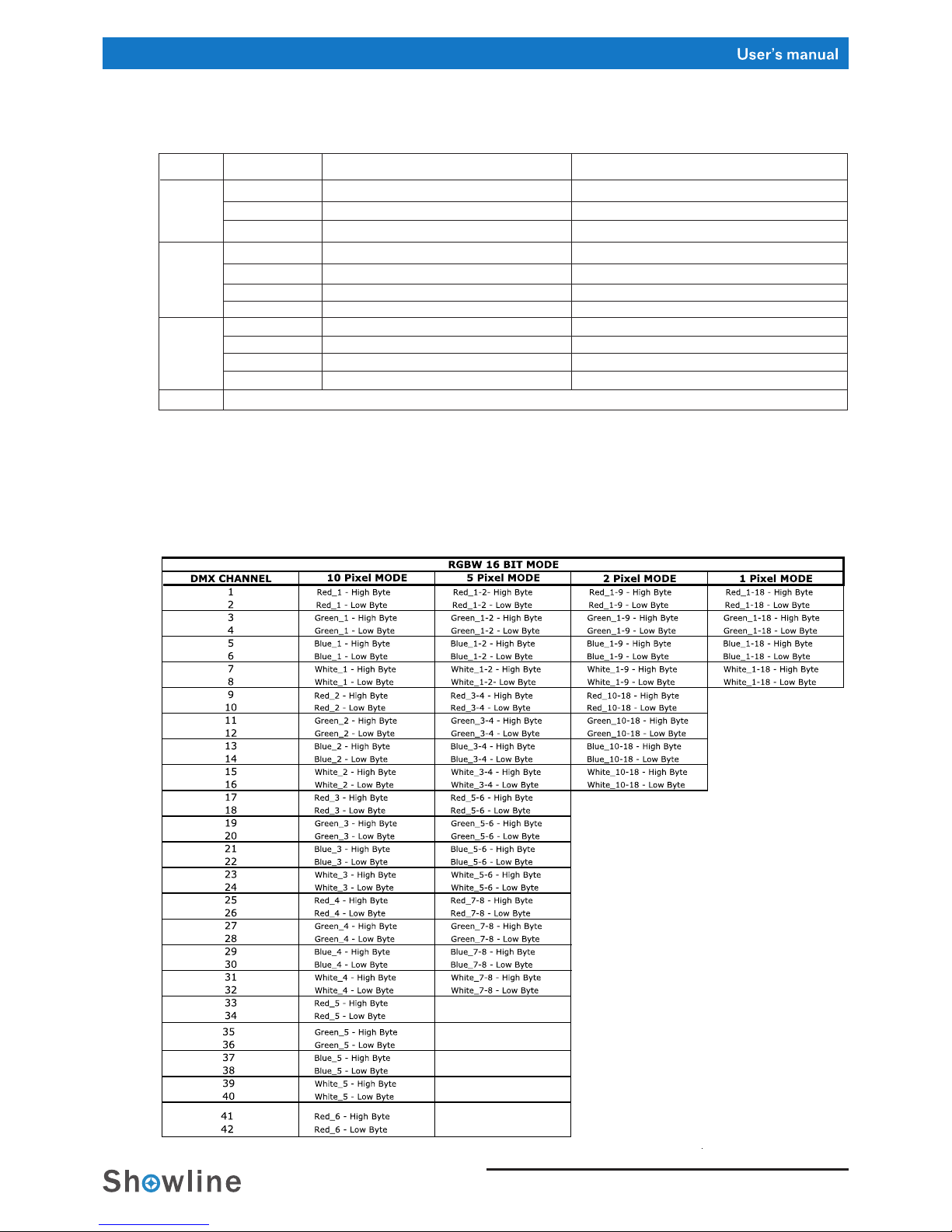

SL STRIP 10IP DMX Mapping (RGBW 16 Bit Mode)
SL STRIP 10IP DMX Mapping (RGBW 8 Bit Mode)
SL STRIP 10IP
OPERATION MODES
6
Red_1-10
Green_1-10
Blue_1-10
White_1-10

Chase Mode:
Use the operation mode only when you are about to use your unit as a channel chaser among of the 01
pixel, 02 pixel, 05 pixel, 10 pixel channel chasers. The unit has 10 built-in programs. Of course, you
can select any of these programs to chase for a more dramatic lighting show, and you can also control
the speed at which the set programs will be chased.
Selecting any program of Program 01-10 will activate the selected
program.
Chase
Prog:01
MODE UP DOWN MENU
DMX Addr
Addr:512
DMX Ch
1 Pixel
DMX Bit
8 Bit
DMX Fade
Fade on
MODE UP DOWN MENU
MODE UP DOWN MENU
MODE UP DOWN MENU
MODE UP DOWN MENU
1. Setting your desired Chase Program:
1. Setting DMX Address
4. Setting DMX Channel
2. Setting DMX Bit
3. Setting DMX Fade On/OFF
Press “MODE” button to activate the Chase Mode. Then you can tap
the “MENU” button to select and activate “Chase Program” menu. The
chase pattern is displayed in the LCD by "Chase Prog " followed by
two digits 01~10 appears. You can tap “UP” and “DOWN” button
to select any of them to run at a single time.
Press the “MODE’ button to select and activate “DMX” menu.
In this menu, you can set the DMX address, DMX Bit, DMX Fade
and DMX Channel. Press the “MENU” button to select and enter
the desired menu.
The DMX Address Mode is indicated by “DMX Addr” followed by
three digits 001~512. You can tap the "UP " and "DOWN" buttons
to change the DMX Address Value.
Press the “MENU” button to select and activate “DMX Ch” menu.
You can tap the "UP " and "DOWN" buttons to change the DMX
Channel Value between 1 pixel, 2 pixel, 5 pixel and 10 pixel.
Press the “MENU” button to select and activate “DMX Bit” menu.
You can tap the "UP " and "DOWN" buttons to change the DMX
Bit Value between 8 Bit and 16 Bit.
Press the “MENU” button to select and activate “DMX Fade” menu.
You can tap the "UP " and "DOWN" buttons to set the DMX Fade on
or off.
SL STRIP 10IP
CHASE MODE 7

Manual Mode:
User can adjust the intensity or Red, Green, Blue, Cool White manually in this mode.
Manual:
R:000
Manual:
G:255
Press “MODE” button to select and activate “Manual”
menu. In this menu, you can adjust the intensity of each color.
Press “MENU” button to select the color between R, G, B and W.
Use the "UP " and "DOWN" buttons to adjust the chase speed
from 000 thru 255. A set value of 000 will give you the weakest output
intensity and a set value of 255 will give you the full intensity.
MODE UP DOWN MENU
MODE UP DOWN MENU
2. Chase Speed Menu:
4. Chase Dimmer Menu:
3. Chase Fade Menu:
Use the "UP" and "DOWN " buttons to adjust the light output
intensity between 000 ~ 255. A set value of 000 will give you
the weakest output intensity and a set value of 255 will give
you the full intensity.
Chase
Speed:01
Chase
Fade:000
Chase
Dimm:000
Chase
Dimm:255
Press “MENU’ button to select and activate “Chase Speed”
menu. In this menu, you can adjust the program chase speed.
Use the "UP " and "DOWN" buttons to adjust the chase speed
from 01 thru 99. A set value of 99 will give you the fastest
chase speed(approx.1/10th of a second) . While a set value of
01 will give you the slowest chase speed (once every 30 second.).
To adjust the output intensity, you must activate the
Chase Dimmer Menu as the previous step. Press “MENU”
button and select “Chase Dimmer” menu, the LCD will display
“Chase Dimm” followed by three digits.
Press “MENU” button and select “Chase Fade” menu, the LCD will
display “Chase Fade” followed by three digits, user can press “UP”
or “DOWN” button set the desired Fade time value from 000 to 100.
MODE UP DOWN MENU
MODE UP DOWN MENU
MODE UP DOWN MENU
MODE UP DOWN MENU
Note: When the backlight of LCD is off, press any button will activate the LCD display and it will shows
the current operating temperature.
SL STRIP 10IP
MANUAL MODE
8

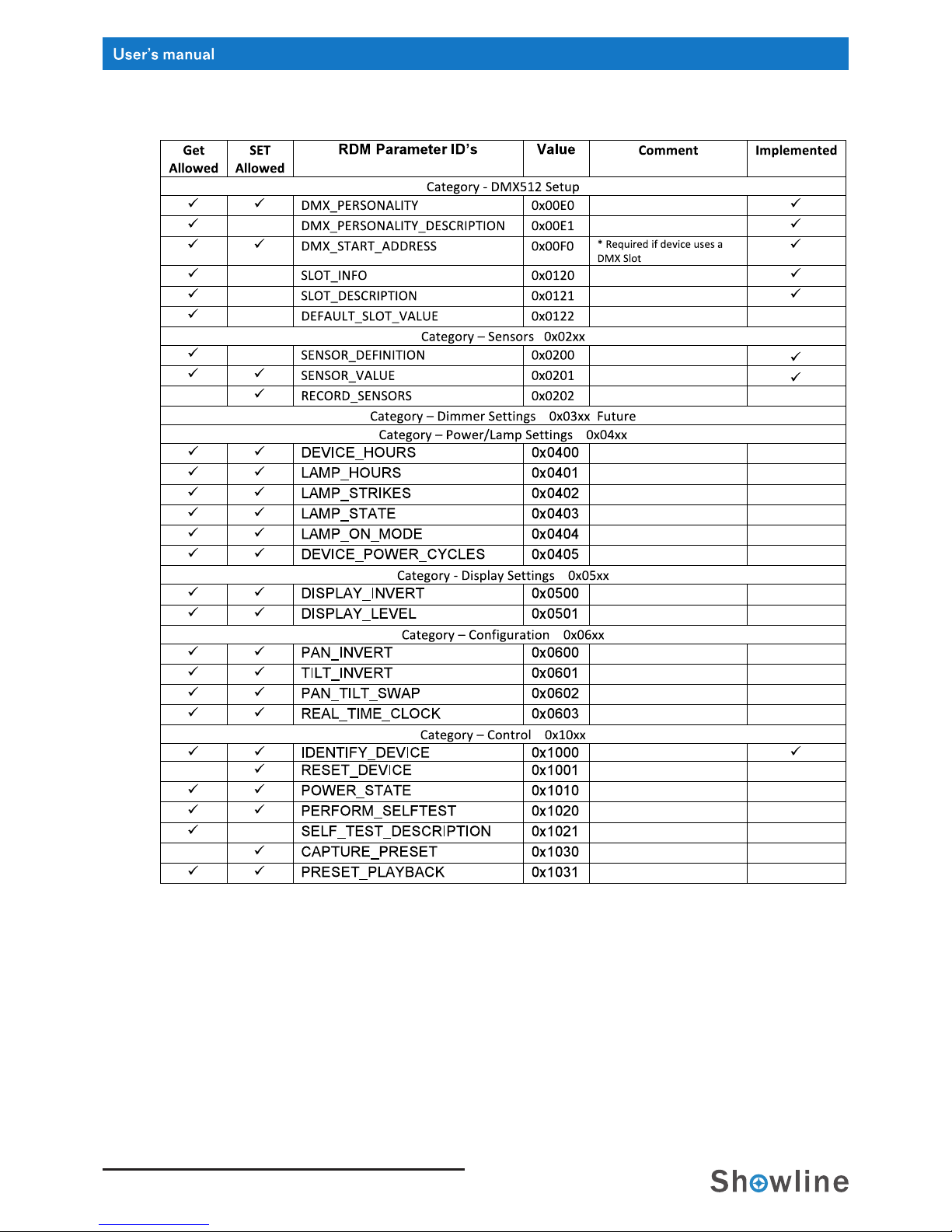

SL STRIP 10IP RDM Parameter IDs
The following tables outline and describe all the RDM parameters IDs associated with SL STRIP 10IP.
Table 1: SL STRIP 10IP RDM Parameter IDs
SL STRIP 10IP
SL STRIP 10IP
0x1000
Philips Entertain. Lighting Asia
0x0105
RDM PARAMETER IDS 9
SL STRIP 10IP
82H

Table 1: SL STRIP 10IP RDM Parameter IDs
SL STRIP 10IP
RDM PARAMETER IDS
10

Table 2: SL STRIP 10IP Manufacturer Status IDs
Table 3: SL STRIP 10IP Manufacturer Specific PIDs
Manufacturer Defined Status IDs
Manufacturer Specific messages are in the range of 0x8000 —0xFFDF. Each Manufacturer-specific
Status ID shall have a unique meaning, which shall be consistent across all products having a given
Manufacturer ID. See Table B-2, ANSI E1.20-2010
Status Message ID Value Data Value 1 Data Value 2 Status ID Description
8100H 00H 00H ALL OK
Manufacturer Specific PIDs
Manufacturer Defind PIDs range is 0x8000-0xffdf. See Table A-3, ANSI E1.20-2010
Get
Allowed SET
Allowed RDM Parameter
Id’s TYPE UNIT PREFIX MIN MAX DEFAULT DESCRIPTION
Chase program
Chase Dimmer
DMX Fade on/off
Manual red
Manual green
Manual blue
Chase Speed
Manual white
Chase Fade
Calibration On/off
8A00H
8AA1H
8AB2H
8A0CH
8AB1H
8AA0H
8A92H
8AA2H
8A94H
8A44H
U8
U8
U8
U8
U8
U8
U8
U8
U8
U8
1
1
0
0
0
0
1
255
1
1
1
0
1
0
10
255
1
1
0
0
0
0
0
0
100
255
1
1
0
0
0
0
99
255
1
1
0
0
255
1
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
LENGTH
SL STRIP 10IP
MANUFACTURER STATUS IDS 11

PROGRAM UPDATE
Programs of this device can be updated via the RDM interface with proper tool named SC-NODE
and RDM Program Tool. Connect the SL STRIP 10IP to the output terminal of the SC-NODE then
connect the SC-NODE to the PC, run the TCP/IP setting, see the following figures for details.
After the TCP/IP is set, run the RDM_Program_Tool.exe software, the tool will search RDM devices
automatically for the first time, user may also search devices via ArtTod Control command.
When the software searched a RDM device, the RDM UID will be listed in the “RDM UID Lists”. Select the
listing RDM UID, then press “Update Selected Device” command to upload the desired updating program,
press “open”command to start updating. After finishing updating, the software will start to search device once
again, and showing “update successful!”, means program updating completed.
SL STRIP 10IP
PROGRAM UPDATE
12

LED Source 10 pcs 4in1 RGBW (RGB+Cool White)
Power Thru/Input AC110~240V, 50/60Hz
Control Protocols DMX512 (1990) / DMX512A (RDM) / On-Board Menu
Power Consumption 150W Max.
TECHNICAL SPECIFICATIONS
Please note: Specifications and improvements in the design of this product and this manual are subject to
change without any prior notice.
Explanation For The Label
SPECIAL NOTE
This fixture can be easily mounted with the provided mount assemble, meanwhile a safety cable(sold separately)
is always required to ensure the mounting safety of the fixture by attached and fastened through safety chain
/cord attachment point. This safety rope can hold at least 10 times the weight of the fixture and with a screw
on it.
Weight 7.5Kg
Dimension 1077(L)*120(W)*201(H)mm.
Beam Angle 6 Degrees
IP Rating IP65
Indicating that the ambient temperature should not be above 40 degrees.
Minimum safety distance to lighted object: 0.2m.
SL STRIP 10IP
TECHNICAL SPECIFICATIONS 13
Mount Assembly
Mount Assembly
SAFETY CABLE: Is sold
separately and recommended
for all hanging installation and
may be required by national
and local codes. Use enclosure
handles for safety cable anchor
points for this fixture.

Philips Group 2014
All rights reserved.
The Company reserves the right to make any
variation in design or construction to the
equipment described. E&OE
Philips Entertainment Lighting Asia(PELA)
Tel:+(852)2796 9786
Fax:+(852)2798 6545
Unit C , 14/F, Roxy Industrial Centre,NO. 41-49, Kwai Cheong
Road,Kwai Chung, N.T.Hong Kong
Sh wline
