Philips DVDR3480/05B User manual

Quick Start Guide
2007 © Koninklijke Philips N.V.
All rights reserved.
12 NC 3139 245 27162
Need help?
User Manual
See the user manual that came with your Philips recorder.
Online
Go to www.philips.com/welcome.
3Enjoy DVD Player/ Recorder DVDR3480
Connect
Set up
Enjoy
1
2
3
What’s in the box?
DVD Player/ Recorder
Remote Control
and 2 batteries
RF Antenna Cable
User
Manual
Start recording
A
Recording from the TV or an
external device
AInsert a recordable DVD disc in the tray.
Types of discs for recording
DVD+R DL
DVD-R DL
zTo record a TV programme,
use P+/-to scroll through the channels, or press
0 - 9 to select the channel that you want to record.
Note If you have used Option B in ‘Basic
Connection’, press SOURCE repeatedly to select
‘EXT2’. Use the remote control of your cable box to
select the TV programme to record.
zTo record from a connected device,
press SOURCE repeatedly to select the source to
record from (DV, CAM or EXT2).
Note Press REC MODE repeatedly to select a
preferred recording mode.
Record Quality Hours of recording that can be stored
on an empty DVD recordable disc.
DVD±R
Double Layer
HQ (high quality)
SP (standard play)
SPP (standard play plus)
LP (long play)
EP (extended play)
SLP (super long play)
1
2
2.5
3
4
6
1 hr 55 mins
3 hrs 40 mins
4 hrs 35 mins
5 hrs 30 mins
7 hrs 20 mins
12 hrs
BPress REC âto start recording, press REC â
again to automatically record 30 minutes.
CTo end recording, press STOPÇ. ‘UPDATE’ will
be displayed on the recorder.
DTo playback the recording, press DISC, select the
title and press u.
Start playback
A
Playback from disc
APress OPEN/CLOSEçto open the disc tray Load a
disc and close the disc tray.
BPress DISC.
CUse WXST keys to reach the title/file you want to
play and press uto start.
B
Playback from USB device
AInsert the USB device to the USB port.
BPress USB to show the contents list.
CSelect the contents type and press Xright.
DSelect a data file (MP3, WMA, DivX and JPEG) and
press uto start playback.
DVDR3480-05n31_qsg_eng_27162.ind1 1DVDR3480-05n31_qsg_eng_27162.ind1 1 2007-08-03 10:29:28 AM2007-08-03 10:29:28 AM

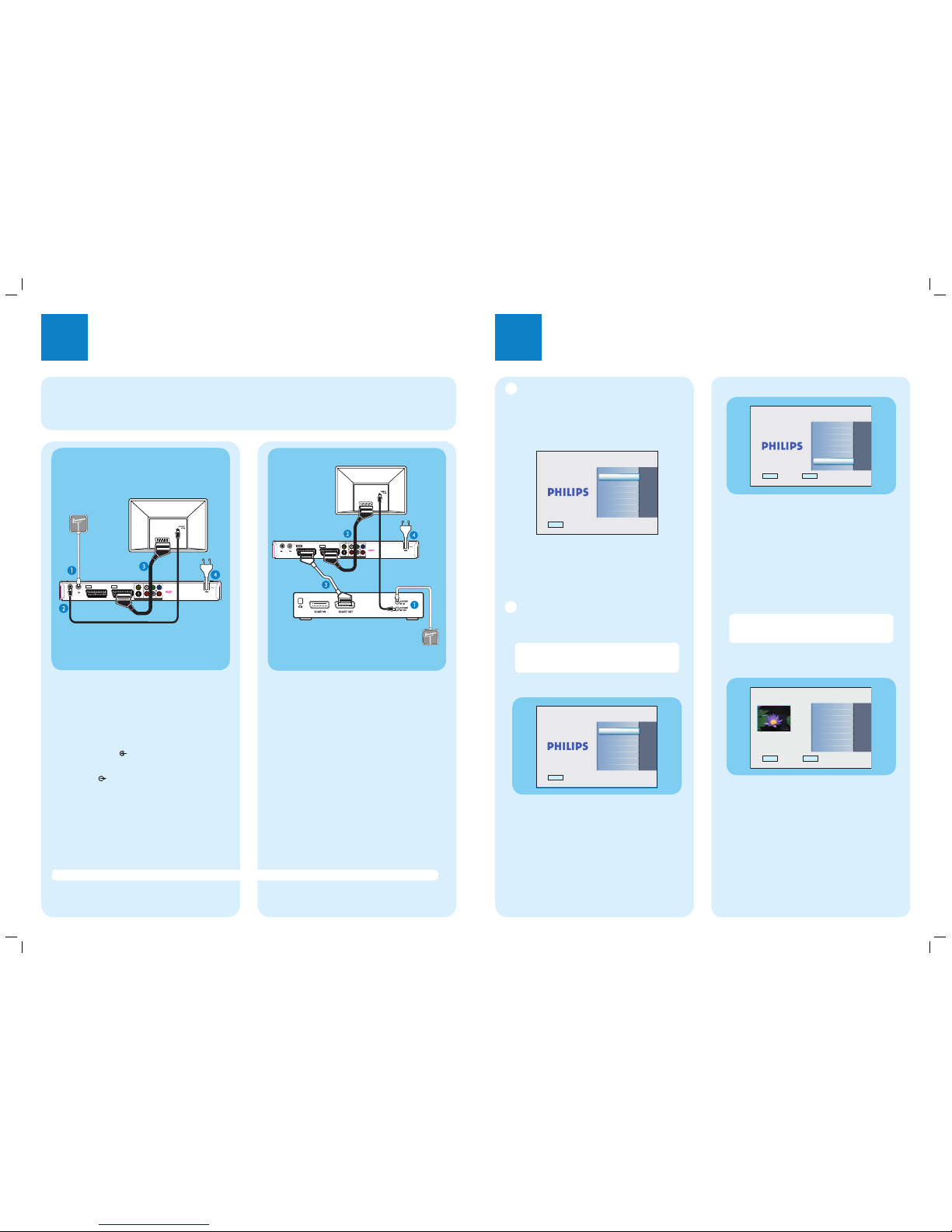

1Connect 2Set up
Basic Connection
Before Connecting
Select one of the following basic connections ( Aor B) according to the type of connecting devices you have.
Option A
Use this connection if you are connecting the antenna
cable directly from the antenna wall socket or from a
Cable Box without a Scart output socket.
AUnplug the antenna cable that is currently connected
to your TV and plug in the antenna cable to the
ANTENNA-IN socket on this recorder.
BConnect the supplied RF antenna cable from the
TV-OUT socket on this recorder to the
Antenna In socket on the TV.
CConnect a scart cable (not supplied) from the EXT1
TO TV-I/O socket on this recorder to the Scart
input socket on your TV.
DPlug in the power cable from the recorder to an AC
power outlet.
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT1
AUX - I/O
EXT2
DIGITALAUDIO
COAXIAL
COMPONENT
VIDEO
AUDIO-R Pr
AUDIO-L Y Pb
S-VIDEO
CVBS
MAINS
OUTPUT
SCART IN
From an off-
air antenna
wall socket or
cable box
Television ( rear)
Note See the accompanying user manual for other possible connections (e.g. Composite Video, Component Video, S-VIDEO).
Philips
Recorder (rear)
Option B
Use this connection if your current antenna cable is
connecting through a Cable Box with Scart output
socket.
AKeep the existing antenna connection from the Cable
box to your TV.
BConnect a scart cable (not supplied) from the
EXT1 TO TV-I/O socket on this recorder to the
Scart input socket on your TV.
CConnect another scart cable (not supplied) from the
EXT2 AUX-I/O socket on this recorder to the
Scart output socket on the Cable Box.
DPlug in the power cable from the recorder to an AC
power outlet.
ANTENNA-IN
TV-OUT
TOTV - I/O
EXT1
AUX- I/O
EXT2
DIGITALAUDIO
COAXIAL
COMPONENT
VIDEO
AUDIO-R Pr
AUDIO-L Y Pb
S-VIDEO
CVBS
MAINS
OUTPUT
SCART IN
From an off-air
antenna wall socket
Television ( rear)
Philips Recorder
(rear)
Cable Box (rear)
BSelect the country of your residence.
Select your country.
Previous
BACK Next OK
Finland
Austria
Denmark
Czech
Country
Belgium
Germany
France
Greece
CSet the date.
Use the alphanumeric keypad 0-9 or STWX
keys to enter the correct date. Press OK to
confirm and continue.
DSet the time.
Use the alphanumeric keypad 0-9 or STWX
keys to enter the correct time. Press OK to
confirm and continue.
EAutomatic channel search begins.
Note If you have used Option B in ‘Basic
Connection’ press OK to skip channel search and
proceed to the next step.
FAll available TV channels are stored.
The first preset programme appears.
Installation Complete
Please enjoy using
the recorder.
Previous
BACK Exit OK
GPress OK to exit.
The recorder is now ready for use.
A
Finding the viewing channel
APress STANDBY-ON on the recorder.
BSwitch on the TV and other connected devices (e.g.
Cable Box, Satellite Receiver). The installation menu is
displayed.
Select a menu
language.
Next
OK
Menu Language
Français
Italiano
English
Español
Deutsch
Nederlands
CIn case you don’t see the recorder’s setting menu, press
the Channel Down button on the TV’s remote control
repeatedly (or AV, SELECT, °button) until you see the
menu. This is the correct viewing channel for the
recorder.
B
Start basic setup
Use the recorder’s remote control and follow the on-
screen instructions to complete the installation.
Note Use up Sand down Tkeys to toggle
through the options. Select an item by pressing
right X. To conrm a setting, press OK.
ASelect the recorder’s menu display language.
Select a menu
language.
Next
OK
Menu Language
Français
Italiano
English
Español
Deutsch
Nederlands
