Philips S6680 User manual

S6680, S6650,
S6640, S6630,
S6620, S6610

25
22
2826
18
17
19
20 21
16
11 12
13
27
14
15
24 23
3
2
1
4
5
6
7
8
9
10

empty page before TOC

English 6
Deutsch 38
Español 72
Français 106
Nederlands 139
한국어 173

English
General description (Fig. 1)
1 Protection cap for nose trimmer attachment
(S6650 only)
2 Click-on nose trimmer attachment (S6650 only)
3 Comb for beard styler attachment (S6640 only)
4 Click-on beard styler attachment (S6640 only)
5 Length settings (S6640 only)
6 Click-on precision trimmer attachment (S6680,
S6650, S6630, S6620, S6610 only)
7 Click-on shaving unit
8 Shaving head holder release button
9 On/off button
10 Guard mode button
11 Cleaning reminder
12 Replacement reminder
13 Travel lock symbol
14 Unplug for use symbol
15 Battery charge indicator
16 Socket for small plug
17 On/off button (S6680 only)
18 Replacement symbol (S6680 only)
19 Rinsing symbol (S6680 only)
20 Ready symbol (S6680 only)
21 Battery symbol (S6680 only)
22 Cap of SmartClean system (S6680 only)
23 SmartClean system (S6680 only)
24 Cleaning cartridge for SmartClean system
(S6680 only)
25 Supply unit
26 Small plug
27 Cleaning brush
28 Pouch
The accessories supplied may vary for different
products. The box shows the accessories that have
been supplied with your appliance.
6English

Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains
information about the features of this shaver as
well as some tips to make shaving easier and more
enjoyable.
Important safety information
Read this important information carefully before
you use the appliance and save it for future
reference.
Danger
- Keep the supply unit dry.
Warning
- To charge the battery, only use the detachable
supply unit (HQ8505) provided with the
appliance.
- The supply unit contains a transformer. Do not
cut off the supply unit to replace it with another
plug, as this causes a hazardous situation.
7
English

- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
- Always unplug the shaver before you clean it
under the tap.
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as
this may cause injury. Always replace a
damaged part with one of the original type.
- This appliance contains batteries that are non-
replaceable.
- Do not open the appliance to replace the
rechargeable battery.
Caution

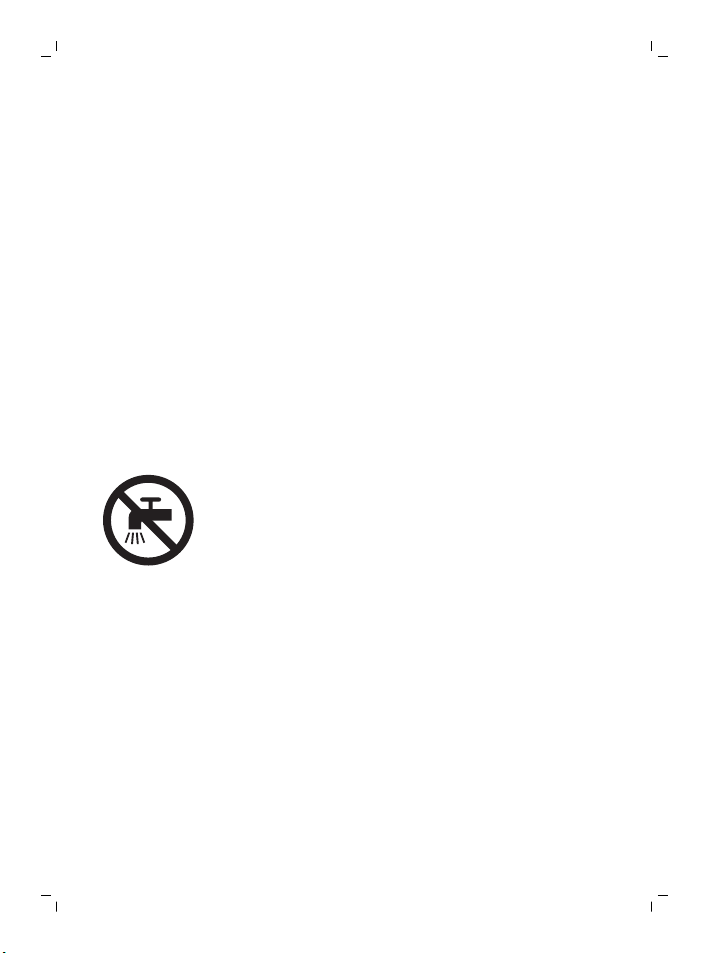

- Never immerse the cleaning system or the
charging stand in water and do not rinse it
under the tap.
- Never use water hotter than 60°C to rinse the
shaver.
- Only use this appliance for its intended purpose
as shown in the user manual.
- For hygienic reasons, the appliance should only
be used by one person.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the
appliance.
8English

- If your shaver comes with a cleaning system,
always use the original Philips cleaning fluid
(cartridge or bottle, depending on the type of
cleaning system).
- Always place the cleaning system on a stable,
level and horizontal surface to prevent leakage.
- If your cleaning system uses a cleaning
cartridge, always make sure the cartridge
compartment is closed before you use the
cleaning system to clean or charge the shaver.
- When the cleaning system is ready for use, do
not move it to prevent leakage of cleaning fluid.
- Water may drip from the socket at the bottom
of the shaver when you rinse it. This is normal
and not dangerous because all electronics are
enclosed in a sealed power unit inside the
shaver.
- Do not use the supply unit in or near wall
sockets that contain an electric air freshener to
prevent irreparable damage to the supply unit.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
General
- This shaver is waterproof. It is suitable for use in
the bath or shower and for cleaning under the
tap. For safety reasons, the shaver can
therefore only be used without cord.
- The supply unit is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
9
English

The display
Battery charge indicator
Quick charge: When the battery is empty and you
connect the shaver to a wall socket, the lights of
the battery charge indicator light up white one
after the other repeatedly. When the battery
contains enough energy for one shave, the bottom
light of the battery charge indicator starts flashing
white slowly.
As charging continues, each light flashes and then
lights up continuously to indicate to what level the
battery has been charged.
Battery fully charged
When the battery is fully charged, all lights of the
battery charge indicator light up white
continuously.
Note: When you press the on/off button while the
shaver is still connected to the wall socket, the
'unplug for use' symbol lights up (see '’Unplug for
use’ reminder').
Note: When the battery is full, the display switches
off automatically after 30 minutes.
10 English

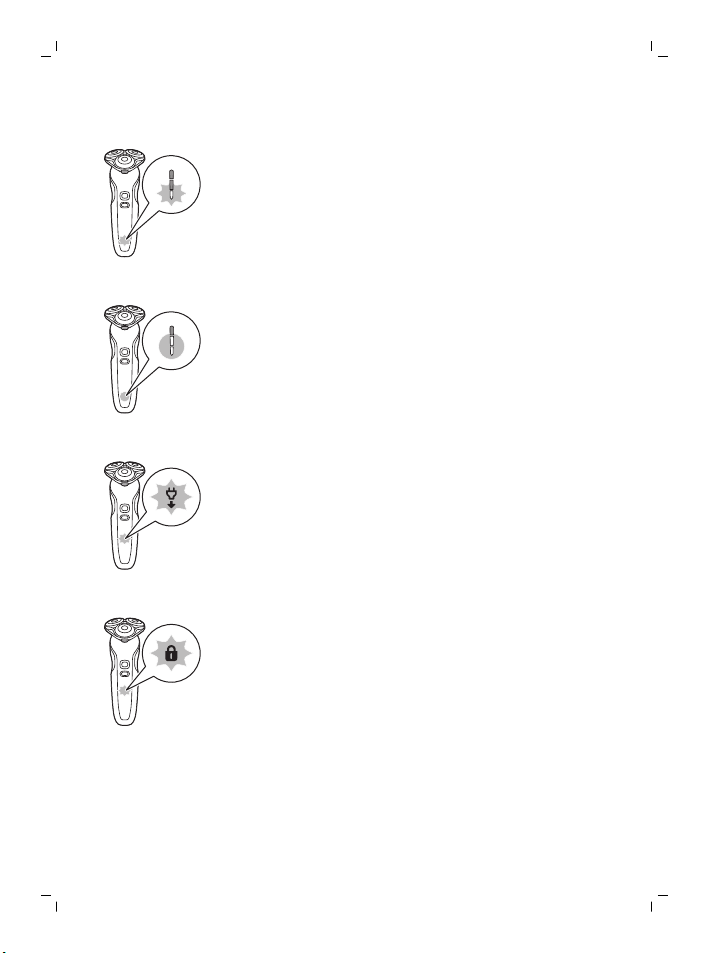

Battery low
When the battery is almost empty, the bottom light
of the battery charge indicator flashes orange. At
this point there is enough energy left for one
shave.
Remaining battery charge
The remaining battery charge is indicated by the
lights of the battery charge indicator that light up
continuously.
’Unplug for use’ reminder
The ‘unplug for use’ reminder flashes to remind
you to disconnect the shaver from the wall socket
before you can switch it on.
Travel lock
When you are going to travel, you can lock the
shaver to prevent it from accidentally switching on.
11
English

Replacement reminder
For maximum shaving performance, we advise you
to replace the shaving heads every two years. The
shaver is equipped with a replacement reminder
which flashes to remind you to replace the shaving
heads.
Note: After replacing the shaving heads, you
should reset the replacement reminder by pressing
the on/off button for 7 seconds. If you do not reset
the replacement reminder, the shaver resets
automatically after 9 shaves.
Cleaning reminder
Clean the shaver after every use for optimal
performance (see 'Cleaning and maintenance').
When you switch off the shaver, the cleaning
reminder flashes to remind you to clean the
shaver.
Guard mode
This setting lowers the rotation speed of the
shaver (see 'Shaving with guard mode').
Charging
Charge the shaver before you use it for the first
time and when the display indicates that the
battery is almost empty.
Charging takes max. 1 hour. A fully charged shaver
has a shaving timeof up to 60 minutes.
Note: You cannot use the shaver while it is
charging.
12 English

Quick charge
After approx. 3 minutes of charging, the shaver
contains enough power for one shave. The bottom
light of the battery charge indicator starts flashing
white slowly when the quick charge is finished.

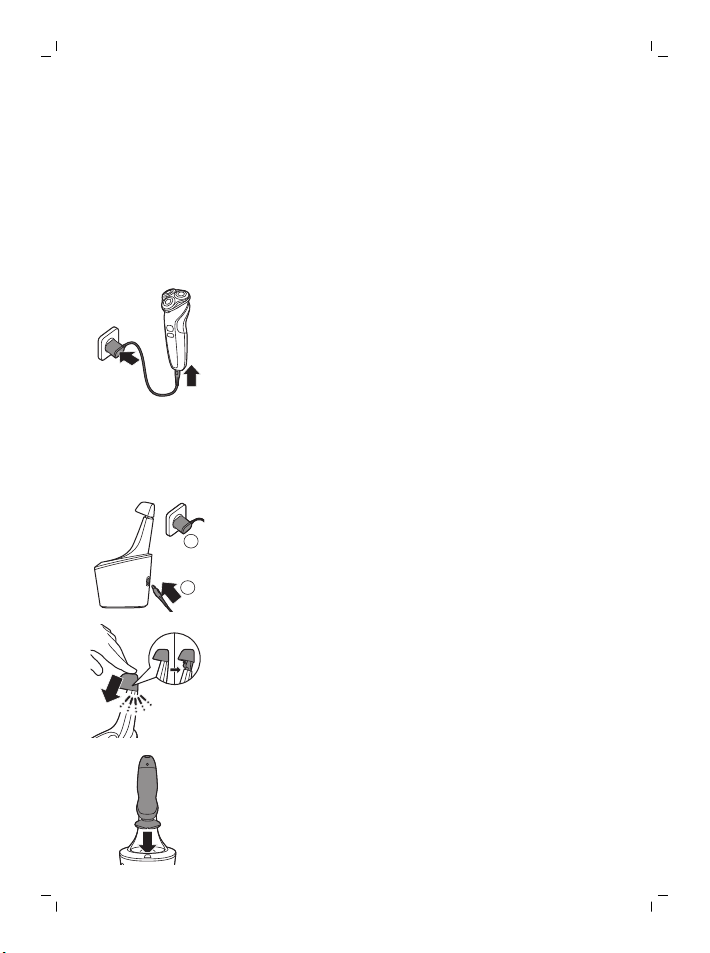

Charging with the supply unit
1Make sure the shaver is switched off.
2Put the small plug in the shaver and put the
supply unit in the wall socket.
The display of the shaver indicates that the
shaver is charging.
3After charging, remove the supply unit from the
wall socket and pull the small plug out of the
shaver.
Charging in the SmartClean system (specific types
only)
1
2
1Put the small plug in the back of the
SmartClean system.
2Put the supply unit in the wall socket.
3Press to open the SmartClean system cap, to be
able to place the shaver in the holder ('click').
4Hold the shaver upside down above the holder.
Make sure the front of the shaver points
towards the SmartClean system holder.
13
English

1
23
5Place the shaver in the holder, tilt the shaver
backwards and press down the SmartClean
system cap to connect the shaver (‘click’).
The battery symbol flashes to indicate that the
appliance is charging. When the battery is fully
charged, the battery symbol lights up
continuously.
Using the shaver
Always check the shaver and all accessories
before use. Do not use the shaver or any
accessory if it is damaged, as this may cause
injury. Always replace a damaged part with one of
the original type.
- Use this shaver for its intended household use
as described in this manual.
- For hygienic reasons, the shaver should only be
used by one person.
- Trimming is easier when the skin and hair are
dry.
- Do not place the SmartClean system near water
and make sure it does not get wet.
Note: This shaver is waterproof. It is suitable for
use in the bath or shower and for cleaning under
the tap. For safety reasons, the shaver can only be
used without cord.
Switching the shaver on and off
1To switch the shaver on or off, press the on/off
button once.
The display lights up for a few seconds to show
the battery status.
14 English

Shaving
Skin adaptation period
Your first shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. To allow
your skin to adapt to this new appliance, we advise
you to shave regularly (at least 3 times a week) and
exclusively with this appliance for a period of 3
weeks.
Shaving tips
- For the best results on skin comfort, pre-trim
your beard if you have not shaved for 3 days or
longer.
Guard mode
- Activate the guard mode to reduce the rotation
speed of the shaver (see 'Shaving with guard
mode').

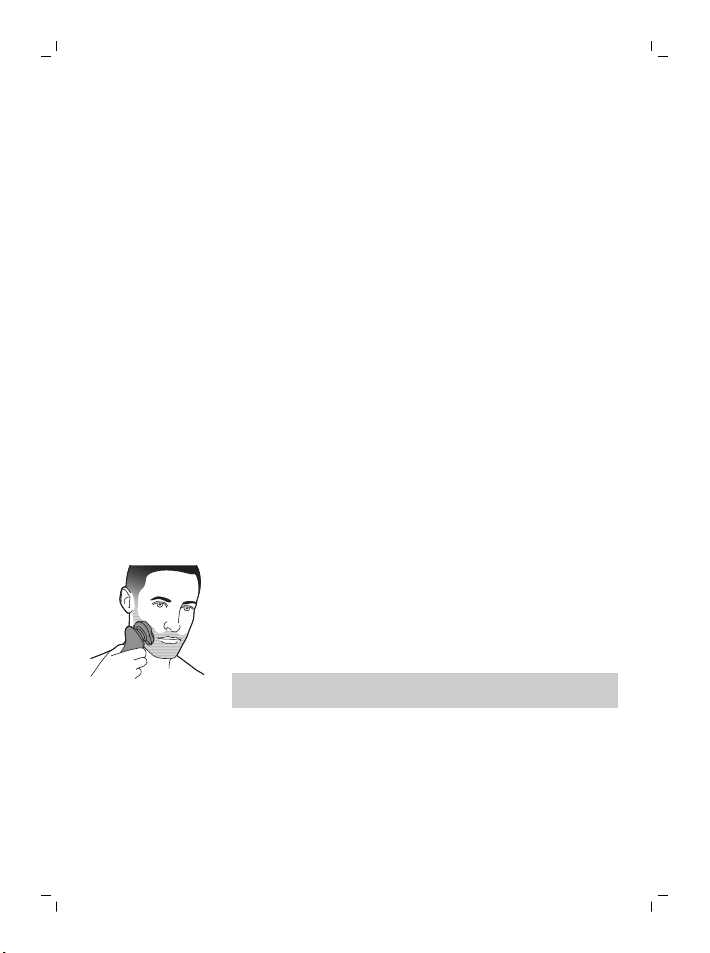

Dry shaving
1Switch on the shaver.
2Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
Note: Do not press too hard, as this can cause
skin irritation.
3Switch off and clean the shaver after each use
(see 'Cleaning and maintenance').
Wet shaving
For a more comfortable shave, you can also use
this shaver on a wet face with shaving foam or
shaving gel.
15
English

1Apply some water to your skin.
2Apply shaving foam or shaving gel to your skin.
3Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4Switch on the shaver.
5Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
Note: Do not press too hard, this can cause skin
irritation.
Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your
skin.
6Switch off and clean the shaver after each use
(see 'Cleaning and maintenance').
7Dry your face.
Note: Make sure that you rinse all foam or shaving
gel off the shaver.
Shaving with guard mode
1Switch on the shaver.
16 English

2Press the guard button once if you want to
shave at a lower, more gentle speed.
3Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
4Switch off the guard mode by pressing the
guard button once.
Note: The shaver automatically starts operating
at normal speed when you switch it on again.
Using click-on attachments
Removing or attaching click-on attachments
1Make sure the shaver is switched off.
2Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you
pull it off the appliance.
3Insert the lug of the attachment into the slot in
the top of the appliance. Then press down the
attachment to attach it to the appliance (‘click’).
Using the precision trimmer attachment (specific types
only)
You can use the precision trimmer attachment to
touch up your beard, sideburns and moustache.
17
English

1Attach the attachment to the appliance (‘click’).
2Switch on the appliance.
3Hold the precision trimmer perpendicular to the
skin and move it downwards while exerting
gentle pressure.
4Switch off the appliance and clean the
attachment after use.
Using the beard styler attachment with comb (specific
types only)
You can use the beard styler attachment with the
comb attached to style your beard at one fixed
setting or at different length settings. You can also
use it to pre-trim any long hairs before shaving for
a more comfortable shave.
The length settings on the beard styler attachment
correspond to the remaining hair length after
cutting and range from 1 to 5mm (3/64 - 3/16in).
1Attach the attachment to the appliance ('click').
2Slide the comb straight into the guiding grooves
on both sides of the beard styler attachment
(‘click’).
18 English

2
1

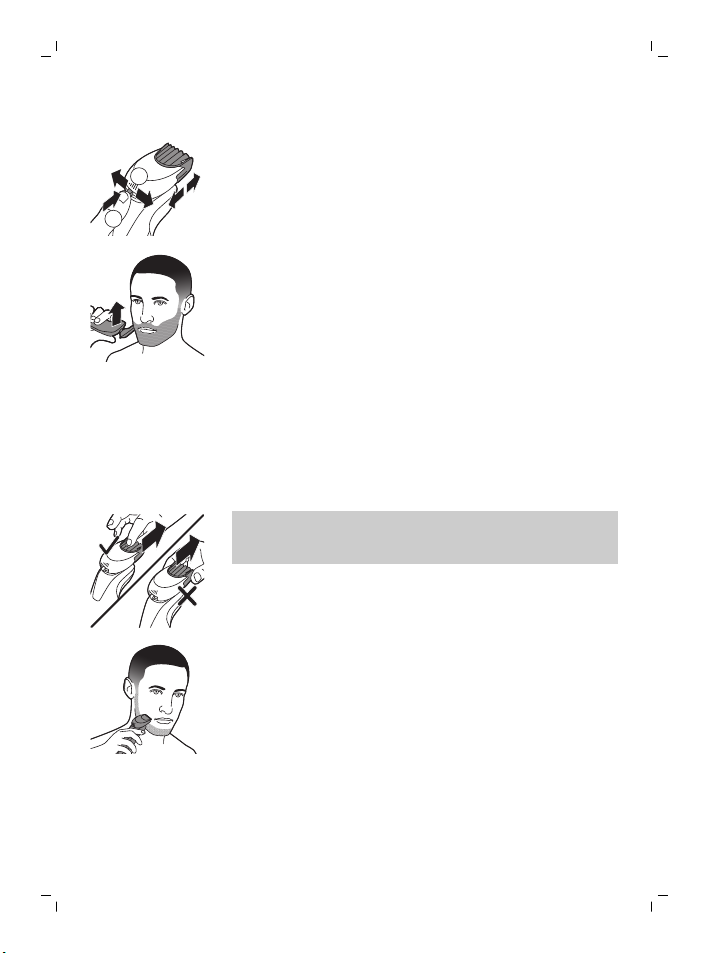

3Press the length selector and then push it to
the left or right to select the desired hair length
setting.
4Switch on the appliance.
5Move the appliance upwards while you exert
gentle pressure. Make sure the front of the
comb is in full contact with the skin.
6Clean the attachment after use.
Using the beard styler attachment without comb
You can use the beard styler attachment without
the comb to contour your beard, moustache,
sideburns or neckline at a length of 0.5mm
(1/32in).
1Pull the comb off the beard styler attachment.
Note: Grab the comb in the center to pull it off
the beard styler attachment. Do not pull at the
sides of the comb.
2Switch on the appliance.
3Hold the beard styler attachment perpendicular
to the skin and move the appliance downwards
while you exert gentle pressure.
4Clean the attachment after use.
Using the nose/ear trimmer attachment (specific types
only)
You can use the nose/ear trimmer attachment to
trim your nose and/or ear hair.
19
English

Trimming nose hair
When trimming nose hair, make sure your nostrils
are clean.

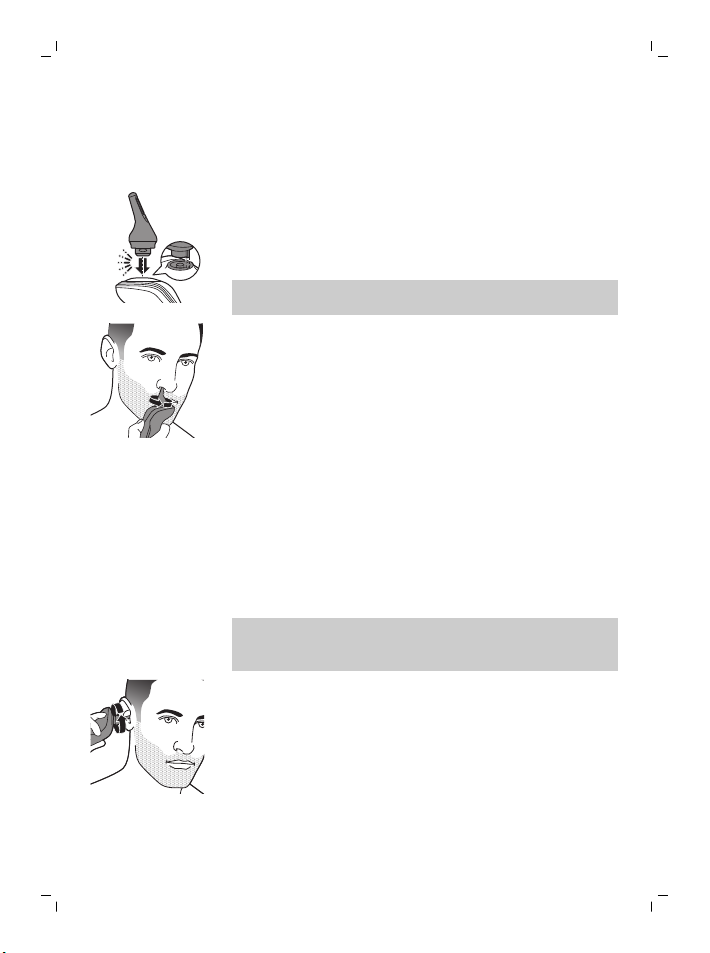

1Attach the attachment to the appliance (‘click’).
2Switch on the appliance.
3Carefully insert the attachment into one of your
nostrils.
Do not insert the attachment more than 0.5cm
into your nostrils.
4Slowly move the attachment around to remove
all unwanted hairs in your nostrils.
5Clean the attachment after use.
Trimming ear hair
When trimming ear hair, make sure your outer ear
channels are clean and free from wax.
1Attach the attachment to the appliance (‘click’).
2Switch on the appliance.
3Slowly move the attachment along the rim of
the ear to remove hairs that stick out beyond
the rim.
4Insert the attachment into the outer ear
channel.
Do not insert the attachment more than 0.5cm
into your ear channel, as this could damage the
eardrum.
5Slowly turn the attachment around to remove
all unwanted hairs from your outer ear channel.
6Clean the attachment after use.
20 English
