Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips
offers, register your product at www.philips.com/
welcome.


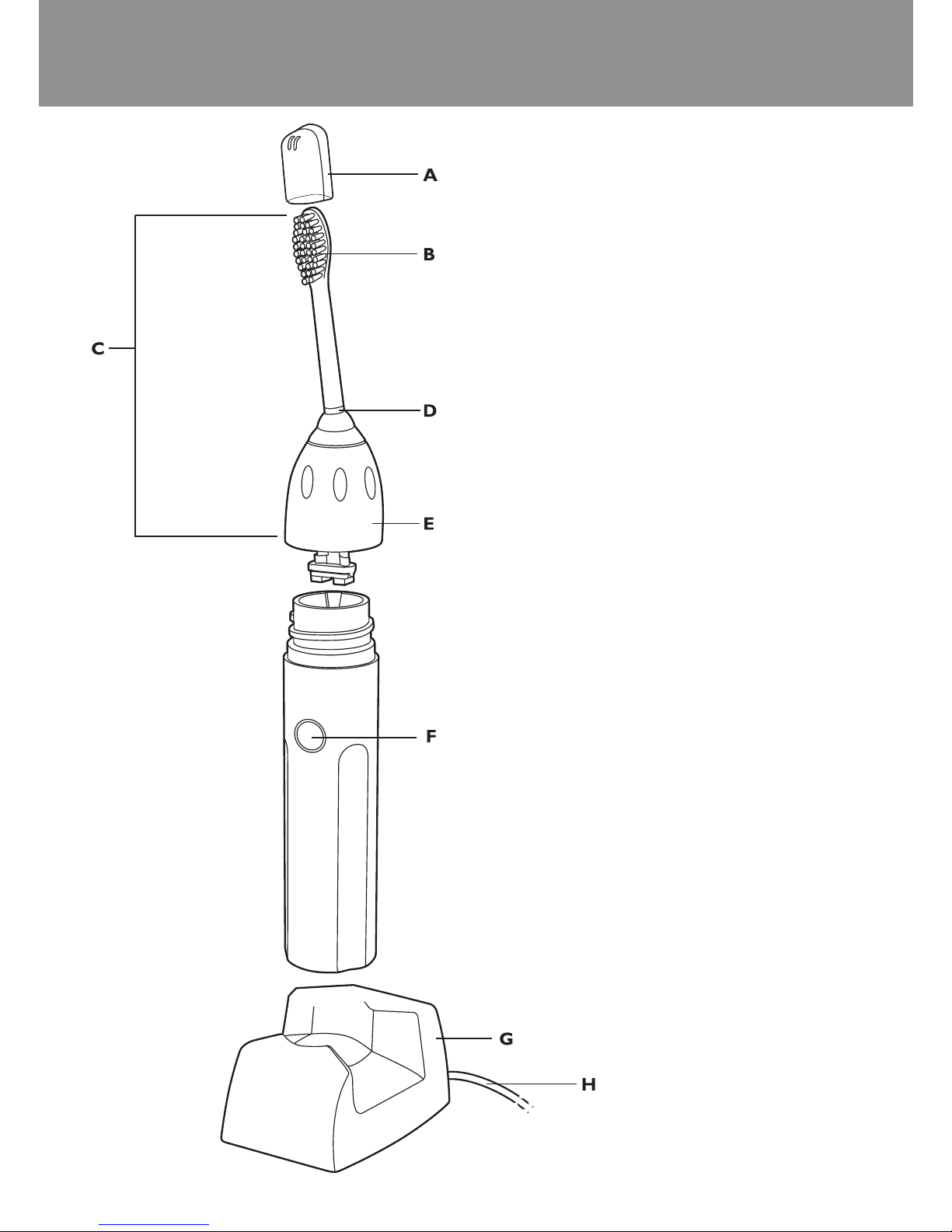

 Travel cap
 Extra-soft bristles
 Brush head
 Colour code ring
 Removable nut
 On/off button with charging light
 Charger with cord storage hooks
 Mains cord

Read this user manual carefully before you use the
appliance and save it for future reference.

- Keep the charger away from water. Do not place
or store it over or near water contained in a
bathtub, washbasin, sink etc. Do not immerse
the charger in water or any other liquid. After
cleaning, make sure the charger is completely dry
before you connect it to the mains.

- Check if the voltage indicated on the appliance
corresponds to the local mains voltage before you
connect the appliance.
- Never use the charger if it is damaged in any way.
If the charger, the cord or the plug is damaged,
always have the charger replaced with one of the
original type in order to avoid a hazard.


- If the appliance is damaged in any way (brush
head, toothbrush handle, charger), stop using it.
This appliance contains no user-serviceable parts.
If the appliance is damaged, contact the Consumer
Care Centre in your country (see chapter
‘Guarantee & service’).
- Do not use the charger outdoors or near heated
surfaces.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.

- Do not use the toothbrush in the bath or shower.
- If you have had oral or gum surgery in the
previous 2 months, consult your dentist before
you use the toothbrush.
- Consult your dentist if excessive bleeding occurs
after using this toothbrush or if bleeding continues
to occur after 1 week of use.
- The Sonicare toothbrush complies with the safety
standards for electromagnetic devices. If you have
a pacemaker or other implanted device, contact
your physician or the device manufacturer of the
implanted device before you use the Sonicare.
- This appliance has only been designed for
cleaning teeth, gums and tongue. Do not use it
for any other purpose. Stop using the appliance
and contact your doctor if you experience any
discomfort or pain.
- If you have medical concerns, consult your doctor
before you use the Sonicare.
 5

- The Sonicare toothbrush is a personal care device
and is not intended for use on multiple patients in
a dental practice or institution.
- Stop using a brush head with crushed or bent
bristles. Replace the brush head every 3 months
or sooner if signs of wear appear.
- Do not clean the brush head in the dishwasher.
- Do not use other brush heads than the ones
recommended by the manufacturer.
- Supervise children while they are brushing until
they have established good brushing habits.
- If your toothpaste contains peroxide, baking
soda or bicarbonate (common in whitening
toothpastes), thoroughly clean the brush head
with soap and water after each use. This prevents
possible cracking of the plastic.

This Philips appliance complies with all standards
regarding electromagnetic elds (EMF). If handled
properly and according to the instructions in this
user manual, the appliance is safe to use based on
scientic evidence available today.

1 To store excess cord, wind it round the cord
storage hooks in the bottom of the charger.
6


1 To place the brush head on the handle, slide
the ribs on the inside of the nut into the
grooves in the top of the handle.
2 Screw the brush head nut clockwise until it
is rmly tightened. If the brush head rattles
during use, tighten the nut further.
3 Remove the travel cap from the brush head
before you start brushing.

Charge the Sonicare for at least 24 hours during the
rst few days of use.
We advise you to keep the Sonicare in the plugged-
in charger when not in use, to maintain a full battery
charge.
When the battery is empty, it takes at least 24 hours
to charge the Sonicare fully.
1 Place the handle in the charger (with the on/off
button facing towards the front of the charger)
to charge the appliance.
Make sure the bottom of the handle sits back
securely in the charger so that it makes complete
contact.
,The charging light ashes slowly when the
handle is in the charger to indicate that charging
is in progress.
,When the Sonicare is fully charged, the charging
light lights up continuously to indicate that the
Sonicare is ready for use.
 7

Note: When the handle is placed in the charger
incorrectly, the charging light may still go on, but
charging does not take place.
Note: The handles of other Sonicare models do not t
in this charger and therefore will not charge effectively.
Do not attempt to force a handle into this charger, as
this causes damage.


When the battery runs low, you hear 5 beeps
after the 2-minute brushing cycle and the charging
light ashes rapidly. When you hear the low charge
indication, there are 3 or fewer 2-minute brushings
left.


Follow these simple steps to maximise your brushing
experience.
1 Before you switch on the Sonicare, place the
bristles of the brush head on your gumline at a
45-degree angle.
2 Hold the handle with a light grip and switch
on the Sonicare. Gently move the bristles in a
small circular motion so that the longer bristles
reach between your teeth. After a few seconds,
pass the bristles to the next section. Continue
this routine throughout the 2-minute brushing
cycle.
3 To maximise the effectiveness of the Sonicare
toothbrush, use light pressure and let the
4
5
º
8

Sonicare do the brushing for you. Do not
scrub.

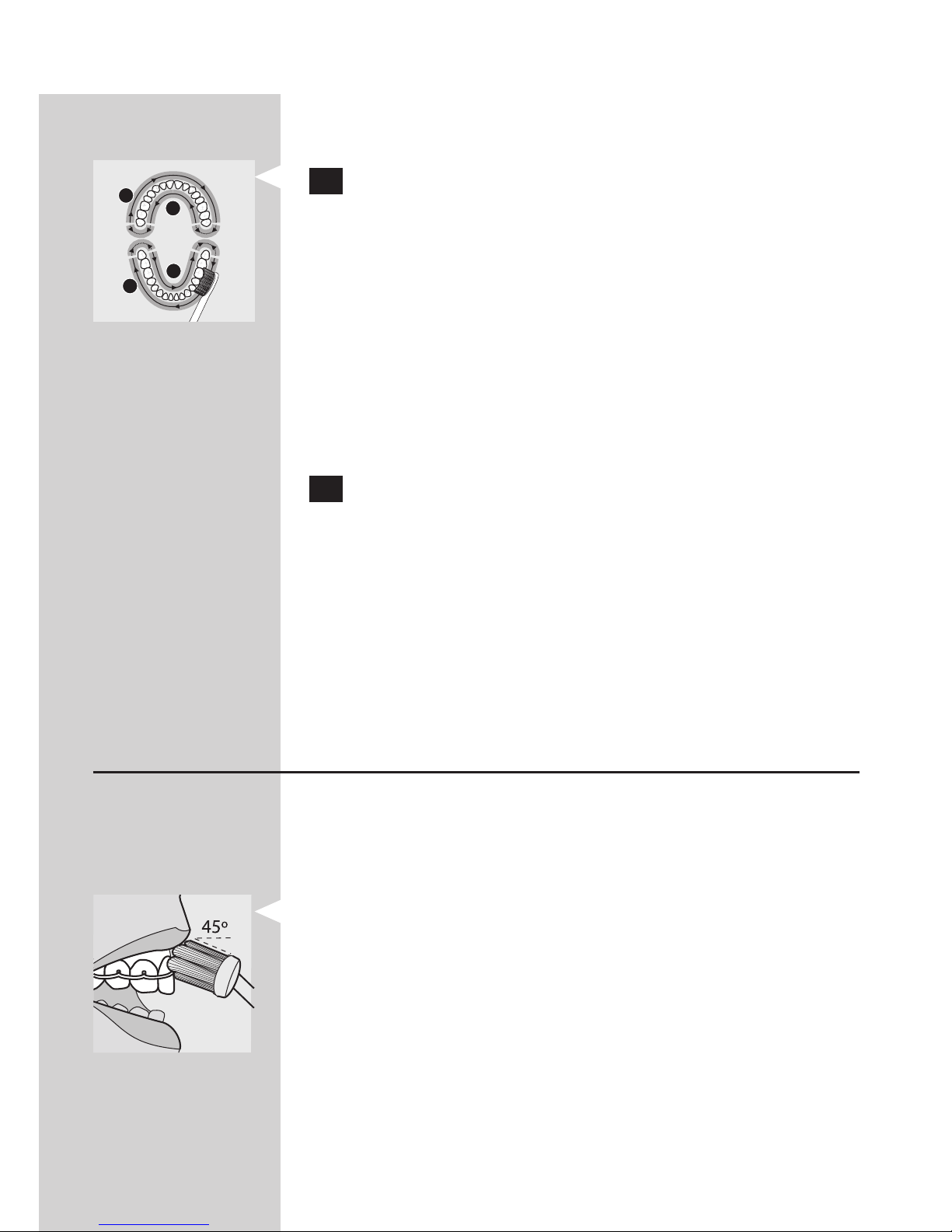

4 To make sure you brush evenly throughout
the mouth, divide your mouth into 4 sections:
outside upper teeth, inside upper teeth,
outside lower teeth and inside lower teeth.
Begin brushing the rst section (outside upper
teeth) and brush for 30 seconds before moving
to the next section (inside upper teeth).
Continue brushing the other two sections for
30 seconds each until you have completed the
2-minute brushing cycle.
5 After the 2-minute brushing cycle, you can
briey switch on the Sonicare again to brush
the chewing surfaces of your teeth.
You can press the on/off button to switch the
Sonicare on or off as desired.
Tip: To clean your mouth more completely, you can also
brush your tongue with the toothbrush switched on or
off, as you prefer.

- Stain removal
For even better stain removal, dedicate a few
seconds of extra brushing time to areas where
excess staining occurs.
- Braces
Place the brush head at a 45-degree angle between
the brackets and the gumline. Using light pressure,
gently move the bristles in a small circular motion
so the longer bristles reach between your teeth for
2 seconds. Then gently roll the brush handle so the
bristles clean the bracket and the rest of the tooth.
Subsequently pass the bristles to the next tooth.
Continue this procedure until you have brushed all
1
2
4
3
 9

your teeth. Please note that brush heads wear out
sooner when used on braces.
- Dental restorations
Use the Sonicare on dental restorations (such as
implants, caps, crowns, bridges and llings) as you
do on your natural tooth surfaces. Work the bristles
round all the areas of the restoration for thorough
cleaning.
- Periodontal pockets
Your dentist or dental hygienist may have indicated
that you have periodontal pockets, deep pockets
where plaque bacteria collect. If this is the case,
spend extra time brushing these areas after you have
completed the 2-minute brushing cycle to improve
your gum health.


- This Sonicare model comes with the Easy-start
feature activated, which helps you get used to
brushing with the Sonicare.
- The brushing power gently increases to full power
over the rst 12 brushings.
- The Easy-start feature is active if you hear 2
beeps immediately after you switch on the
Sonicare. Once the Sonicare has reached optimal
brushing power (after the 12th brushing), you no
longer hear the 2 beeps at the beginning of each
brushing cycle.
Note: Each of the rst 12 brushings must be at least
1 minute long to move properly through the Easy-start
ramp-up cycle.
To deactivate or activate the Easy-start feature:
1 Attach the brush head to the handle.
10

2 Place the handle in the plugged-in charger.
3 To deactivate the Easy-start feature, press and
hold the on/off button for 5 seconds. You hear
1 beep to indicate that the Easy-start feature
has been deactivated.
4 To activate the Easy-start feature, press and
hold the on/off button for 5 seconds. You hear
2 beeps to indicate that the Easy-start feature
has been activated.
Use of the Easy-start feature beyond the initial
ramp-up period is not recommended and reduces
the effectiveness of the Sonicare toothbrush in
removing plaque.
Make sure the Easy-start feature is deactivated and
the handle fully charged when the Sonicare is used
in clinical trials.

- The Smartimer automatically sets the brushing
time to the 2 minutes that dentists and dental
hygienists recommend.
- After 2 minutes, the Smartimer automatically
switches off the toothbrush.
- If you want to stop brushing briey during a
2-minute brushing cycle, press the on/off button.
When you press the on/off button again, the
Smartimer resumes the brushing cycle at the
point where you stopped.
- The Smartimer automatically resets to the
beginning of a 2-minute cycle if:
1 you stop brushing for 30 seconds or longer;
2 you put the handle in the charger.
 11


- The Quadpacer 30-second interval timer ensures
that you brush all sections of your mouth evenly
and thoroughly. At 30, 60 and 90 seconds,
you hear a short beep and notice a pause in
brushing action. These signals tell you to continue
with the next section of your mouth.

Regular cleaning guarantees the best performance
and a long life for the appliance.
We advise you to use a mild cleaning agent, water
and a moist cloth to clean the Sonicare.
1 Rinse the brush head and bristles after every
use.
2 Clean the brush head at least once a week,
including under the removable nut.

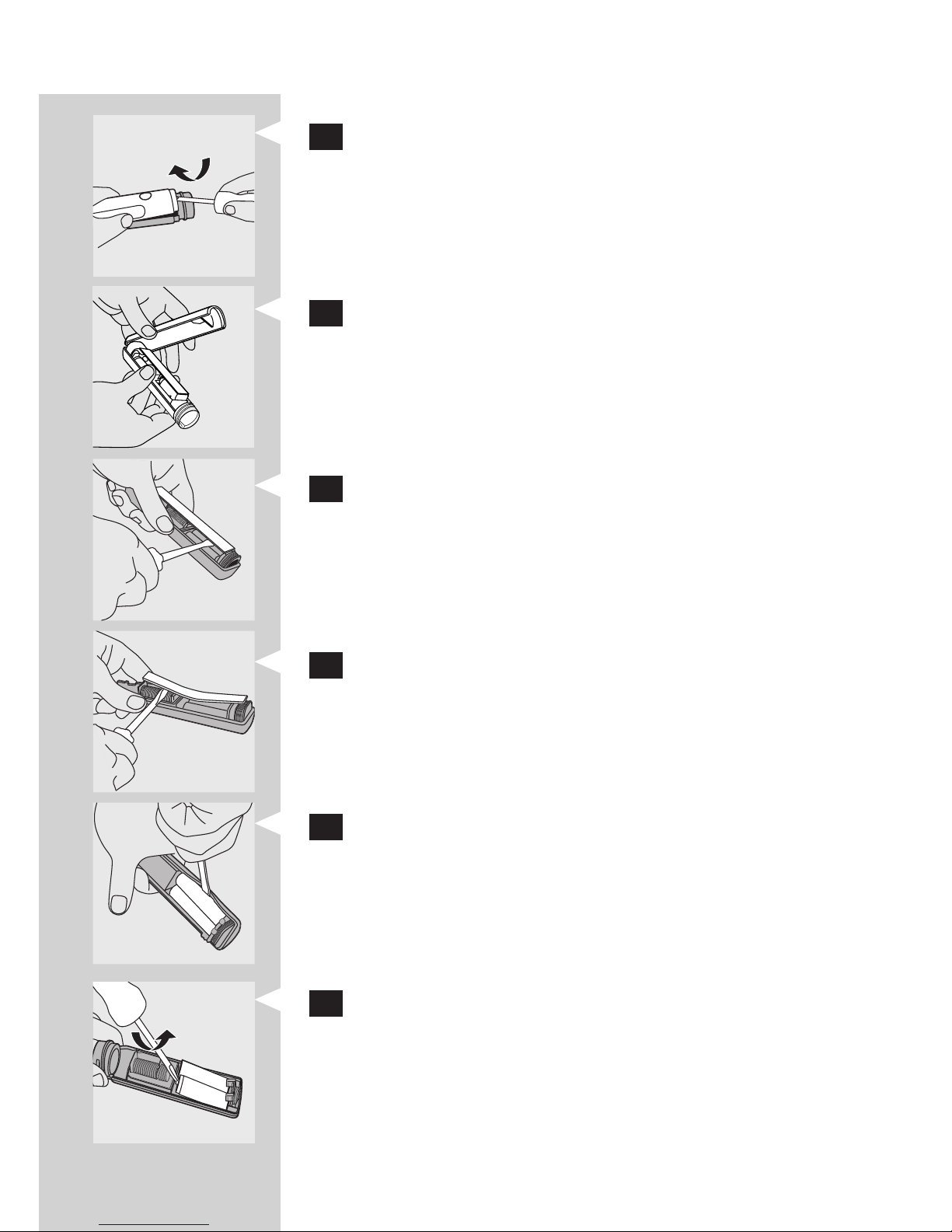

To remove the nut:
3 To remove the nut, gently press on the rubber
seal with your thumbs.
Do not use sharp objects to press on the seal, as
this may cause damage.
4 Pull up the nut over the top of the brush head.
5 To reattach the nut, slip the nut over the brush
head shaft and pull it down until it snaps home.
1
2
4
3
12

6 Clean and dry the handle weekly.
7 Clean the charger periodically.
Unplug the charger before you clean it. After you
have cleaned the charger, dry it completely before
you put the plug back into the wall socket.

If you do not intend to use the appliance for a long
time, unplug it, clean it and store it in a cool and dry
place away from direct sunlight. You can store the
cord by winding it round the cord storage hooks in
the bottom of the charger.


- Replace the brush head every 3 months to
achieve optimal results.
- Only use Sonicare replacement brush heads that
are suitable for this Sonicare model.

- The built-in rechargeable batteries contain
substances that may pollute the environment.
Always remove the batteries before you discard
and hand in the appliance at an ofcial collection
point. Dispose of the batteries at an ofcial
collection point for batteries. If you have trouble
removing the batteries, you can also take the
appliance to a Philips service centre. The staff of
this centre will remove the batteries for you and
will dispose of them in an environmentally safe
way.
 13

- Do not throw away the appliance with the normal
household waste at the end of its life, but hand
it in at an ofcial collection point for recycling. By
doing this, you help to preserve the environment.

This process is not reversible.
To remove the batteries yourself, you need a at-
head (standard) screwdriver.
1 Remove the toothbrush from the charger,
switch it on and let it run until it stops.
Continue to switch on the Sonicare until the
batteries are completely empty.
2 Insert a screwdriver into one of the slots that
are located near the top part of the handle.
Push the screwdriver blade into the handle
as far as it goes and twist the blade. The
housing begins to split.
3 Remove the screwdriver and apply the above
instruction to the other slot, which is located
on the opposite side of the handle. Twist the
blade to split the rest of the housing.
4 Now insert the screwdriver into the middle
slot, which is located on the top front part of
the handle, as shown. Push the blade in as far as
it goes.
14

5 Now use the screwdriver as a lever to pry the
2 handle sections apart.
6 Pull the 2 handle sections completely apart.
7 Insert the screwdriver underneath the
electronic circuit board in multiple places.
8 Twist and pry the electronic circuit board
loose until it is completely separated from the
handle.
9 Pry the batteries loose by inserting the
screwdriver on the sides of the two batteries
in the locations that are shown in the gure.
10 Twist the screwdriver to break the glue bond
round the batteries. The batteries are joined
together with glue and are lifted out together.
 15


If you need service or information or if you have a
problem, please visit the Philips website at
www.philips.com or contact the Philips Consumer
Care Centre in your country (you nd its phone
number in the worldwide guarantee leaet). If there
is no Consumer Care Centre in your country, go to
your local Philips dealer.

The terms of the international guarantee do not
cover the following:
- Brush heads
- Damage caused by misuse, abuse, neglect or
alterations
- Normal wear and tear, including chips, scratches,
abrasions, discolouration or fading

This chapter summarises the most common
problems you could encounter with the Sonicare. If
you are unable to solve the problem, contact the
Philips Consumer Care Centre in your country (see
chapter ‘Guarantee & service’) or visit www.philips.
com.
Problem Solution
The Sonicare
toothbrush does
not work.
You may need to recharge the Sonicare. Charge
the Sonicare for at least 24 hours.
Make sure the socket is live when you recharge
the appliance. The electricity supply to sockets in
mirror cabinets over washbasins or shaver sockets
in bathrooms may be cut off when the light is
switched off.
16

Problem Solution
You may need to reattach or replace the brush
head.
I feel a tickling
sensation when I
use the Sonicare.
You may experience a slight tickling/tingling
sensation when you use the Sonicare for the rst
time. As you become accustomed to brushing
with the Sonicare, this sensation diminishes.
The brush head
rattles when I use
the Sonicare.
The Sonicare should produce a gentle hum during
operation. Tighten the brush head nut to eliminate
excessive rattling. If the rattling does not stop, you
may need to replace the brush head.
Make sure you remove the travel cap before you
switch on the appliance.
The brush head
chatters against
my teeth.
You can avoid this by keeping the brush head
properly oriented, with the brush head placed on
the gumline at an angle of 45 degrees.
Brushing seems
less powerful. You may need to recharge the Sonicare.
The Easy-start feature may be active and needs to
be deactivated (see chapter ‘Features’).
You may need to clean the brush head.
You may need to replace the brush head.
The Sonicare gives
off an unpleasant
smell.
You may need to clean the appliance. Clean the
handle, brush head and charger thoroughly (see
chapter ‘Cleaning’).
You may need to replace the brush head.
 17

18

Herzlichen Glückwunsch zu Ihrem Kauf und
willkommen bei Philips! Um die Unterstützung von
Philips optimal nutzen zu können, registrieren Sie Ihr
Produkt bitte unter www.philips.com/welcome.

 Schutzkappe
 Besonders weiche Borsten
 Bürstenkopf
 Farbring
 Abnehmbare Bürstenkopfmutter
 Ein-/Ausschalter mit Ladeanzeige
 Ladegerät mit Kabelaufwicklung
 Netzkabel

Lesen Sie diese Bedienungsanleitung vor dem
Gebrauch des Geräts aufmerksam durch, und
bewahren Sie sie für eine spätere Verwendung auf.

- Halten Sie das Ladegerät von Wasser fern! Stellen
Sie es nicht über oder nahe einer mit Wasser
gefüllten Badewanne bzw. einem Waschbecken ab.
Tauchen Sie das Ladegerät nicht in Wasser oder
andere Flüssigkeiten. Schließen Sie das Ladegerät
nach dem Reinigen erst wieder an das Stromnetz
an, wenn es vollkommen trocken ist.

- Prüfen Sie, bevor Sie das Gerät in Betrieb nehmen,
ob die Spannungsangabe auf dem Gerät mit der
örtlichen Netzspannung übereinstimmt.
- Benutzen Sie das Ladegerät nicht, wenn es
beschädigt ist. Sollte das Ladegerät, das Netzkabel


oder der Netzstecker beschädigt sein, muss
das Ladegerät durch ein Original-Ersatzteil
ausgetauscht werden, um Gefährdungen zu
vermeiden.
- Benutzen Sie das Gerät nicht, wenn es irgendeinen
Schaden aufweist (Bürstenkopf, Handstück,
Ladegerät). Die Geräteteile lassen sich nicht vom
Benutzer warten/reparieren. Ist das Gerät defekt,
wenden Sie sich bitte an das Philips Service-
Center in Ihrem Land (siehe “Garantie und
Kundendienst”).
- Benutzen Sie das Ladegerät nicht im Freien oder
in der Nähe von heißen Oberächen.
- Dieses Gerät ist für Benutzer (einschl. Kinder)
mit eingeschränkten physischen, sensorischen
oder psychischen Fähigkeiten bzw. ohne jegliche
Erfahrung oder Vorwissen nur dann geeignet, wenn
eine angemessene Aufsicht oder ausführliche
Anleitung zur Benutzung des Geräts durch eine
verantwortliche Person sichergestellt ist.
- Achten Sie darauf, dass Kinder nicht mit dem
Gerät spielen.

- Benutzen Sie die Zahnbürste nicht in der
Badewanne oder Dusche.
- Wenn in den vergangenen 2 Monaten ein
chirurgischer Eingriff an Ihren Zähnen oder am
Zahneisch vorgenommen wurde, sollten Sie
vor Benutzung der Zahnbürste Ihren Zahnarzt
konsultieren.
- Konsultieren Sie Ihren Zahnarzt, wenn nach
Benutzung dieses Geräts übermäßiges
Zahneischbluten auftritt oder Zahneischbluten
länger als eine Woche anhält.
- Die Sonicare-Zahnbürste entspricht den
Sicherheitsstandards für elektromagnetische
 19

Geräte. Wenn Sie als Träger eines
Herzschrittmachers oder eines anderen Implantats
Fragen zur Verwendung des Geräts haben, setzen
Sie sich bitte mit Ihrem Arzt oder dem Hersteller
des Schrittmachers oder Implantats in Verbindung.
- Dieses Gerät ist ausschließlich zum Reinigen von
Zähnen, Zahneisch und Zunge vorgesehen und
sollte nicht für andere Zwecke benutzt werden.
Sollten Sie bei Gebrauch des Geräts Unbehagen
oder Schmerzen verspüren, benutzen Sie es nicht
weiter, und konsultieren Sie Ihren Arzt.
- Sollten Sie Bedenken wegen Ihrer Gesundheit
haben, konsultieren Sie vor Benutzung der
Sonicare Ihren Arzt.
- Die Sonicare Zahnbürste ist ein Gerät zur
individuellen Mundpege und nicht für die
Verwendung durch mehrere Patienten in einer
Zahnarztpraxis oder Zahnklinik geeignet.
- Benutzen Sie keinen Bürstenkopf mit abgeknickten
oder zerdrückten Borsten. Tauschen Sie den
Bürstenkopf spätestens nach 3 Monaten aus, oder
früher, wenn sich Abnutzungserscheinungen zeigen.
- Reinigen Sie den Bürstenkopf nicht in der
Spülmaschine.
- Benutzen Sie nur die vom Hersteller für diese
Zahnbürste empfohlenen Bürstenköpfe.
- Beaufsichtigen Sie Kinder bei ihrer täglichen
Zahnpege, bis sie sich die Zähne richtig putzen.
- Bei Verwendung peroxid-, natron- oder
bikarbonathaltiger Zahnpasta (üblich in
Weißmacher-Zahnpasta) sollten Sie den
Bürstenkopf nach jedem Gebrauch gründlich mit
mildem Seifenwasser reinigen. Dadurch werden
Risse im Kunststoff verhindert.
20
