Philips Sonicare 3 Series User manual

Philips Sonicare
3 Series
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 1 24/02/15 09:30

1
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 2 24/02/15 09:30

Sonicare 3 Series
ENGLISH 4
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 3 24/02/15 09:30

4
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that Philips
offers, register your product at www.philips.com/
welcome.
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USE
DANGERS
To reduce the risk of electrocution:
1 Always place and store the charger at a safe
distance from water.
2 Do not reach for a charger that has fallen into
water. Unplug immediately.
3
Never use a charger with a damaged cord or plug.
WARNINGS
To reduce the risk of burns, electrocution,
fire or physical injury:
1 Do not use attachments other than those
recommended by the manufacturer.
2 Do not plug the charger into an outlet with a
voltage other than specified on the bottom of
the charger.This product is designed to operate
within a range of 100 to 240 volts.
Voltage converters do not warrant voltage
compatibility.
3
Never force the plug into an outlet; if the plug does
not easily fit into the outlet, discontinue use.
ENGLISH
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 4 24/02/15 09:30

4 Discontinue use if the product appears damaged
in any way (brush head, handle or charger).
5 The mains cord cannot be replaced. If the mains
cord is damaged, discard the charger.
6 Keep the cord away from heated surfaces.
7 Do not use the charger outdoors.
8 This product contains no user-serviceable parts.
Refer to ‘Warranty and support’ if the product
no longer works properly or needs repair.
9 Use this product only for its intended use as
described in this document or as recommended
by your dental professional.
10 This product is not intended for use by persons
(including children) with reduced physical,
sensory, or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
11 Children should be supervised to ensure that
they do not play with the product.
12 Sonicare is a personal care device and is not
intended for use on multiple patients in a dental
office or institution.
MEDICAL WARNINGS
1 Consult your dental professional before you use
this product if you have had oral or gum surgery
in the previous 2 months.
2 Contact your dental professional if excessive
bleeding occurs after using this product or
bleeding continues to occur after 1 week of use.
3 Discontinue use of this product and contact
a physician/dentist if discomfort or pain is
experienced.
ENGLISH 5
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 5 24/02/15 09:30

4 This product complies with the safety standards
for electromagnetic devices. If you have a
pacemaker or other implanted device, contact
your physician or the device manufacturer prior
to use.
5 Consult you physician if you have other medical
concerns.
Electromagnetic elds (EMF)
This Philips product complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
SAVE THESE
INSTRUCTIONS

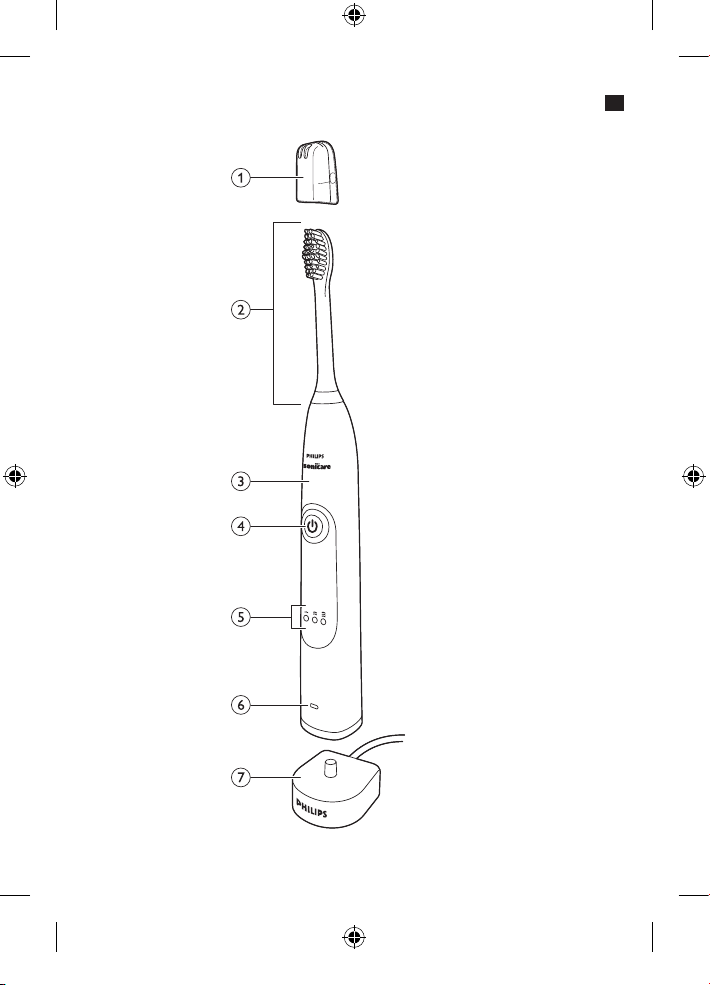

Your Sonicare (Fig. 1)
1 Hygienic travel cap
2 Brushheadwithuniqueidentier
3 Handle
4 Power on/off button
5 Intensity level LEDs
6 Battery level indicator
7 Charger
Note:The contents of the box may vary based on
model purchased.
ENGLISH6
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 6 24/02/15 09:30

Getting started
Attaching the brush head
1 Align the brush head so the bristles face the
front of the handle.
2 Firmly press the brush head down on the metal
shaft until it stops.
Note: Sonicare brush heads come with easily
identiable icons to identify your brush head.
Charging your Sonicare
1 Plug the charger into a live electrical outlet.
2 Place the handle on the charger.
,Thebatterylevelindicatorashestoindicate
that the toothbrush is charging.
Note: It can take up to 48 hours to fully charge the
battery, but the Sonicare may be used before it is fully
charged.
Using your Sonicare
Brushing instructions
1 Wet the bristles and apply a small amount of
toothpaste.
2 Place the toothbrush bristles against the teeth
at a slight angle towards the gumline.
ENGLISH 7
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 7 24/02/15 09:30

3 Press the power on/off button to turn on the
Sonicare.
4 Apply light pressure to maximize Sonicare’s
effectiveness and let the Sonicare toothbrush
do the brushing for you. Do not scrub.
5 Gently move the brush head slowly across
the teeth in a small back and forth motion so
the longer bristles reach between the teeth.
Continue this motion throughout the brushing
cycle.
Note:To make sure you brush evenly throughout the
mouth, divide the mouth into 4 sections using the
Quadpacer feature (see chapter ‘Features’).
6 Begin brushing in section 1 (outside top teeth)
and brush for 30 seconds before moving to
section 2 (inside top teeth). Continue brushing
in section 3 (outside bottom teeth) and brush
for 30 seconds before moving to section 4
(inside bottom teeth).
Note: After you have completed the brushing cycle,
you can spend additional time brushing the chewing
surfaces of your teeth and areas where staining occurs.
You may also brush your tongue, with the toothbrush
turned on or off, as you prefer.
Your Sonicare is safe to use on:
- Braces (brush heads may wear out more quickly
when used on braces)
- Dental restorations (fillings, crowns, veneers,
implants)
Note:When the Sonicare is used in clinical studies, the
handle has to be fully charged, set to the high intensity
level and the Easy-start feature must be deactivated.
ENGLISH8
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 8 24/02/15 09:30

Intensity levels
- Low: 1 LED indicator light
- Medium: 2 LED indicator lights
- High: 3 LED indicator lights
Note:To adjust the intensity level, press the power
on/off button to let your Sonicare cycle through the
intensity levels in the following order: High, Medium,
Low, High etc. Each touch of the button allows you to
select the next available intensity level.
Battery status (when handle is not on charger)
- A yellow battery level indicator indicates a
low charge.
- A green battery level indicator indicates a
high charge.
- The battery level indicator turns off when the
battery is in between a low and a high charge.
Note:When you hear 3 beeps and the battery level
indicator ashes yellow, this means the battery is below
10% and should be recharged.
Note:When you hear 2 sets of 5 beeps, this means the
Sonicare will not operate and needs to be recharged.
ENGLISH 9
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 9 24/02/15 09:30

Note:To keep the battery fully charged at all times, you
may keep your Sonicare on the charger when not in use.
Features
Quadpacer
- The Quadpacer is an interval timer that has a
short beep and pause to remind you to brush the
4 sections of your mouth.The Quadpacer feature
works at all 3 intensity levels.
Smartimer
The Smartimer indicates that your brushing cycle
is complete when it automatically turns off the
toothbrush at the end of the brushing cycle.
Dental professionals recommend brushing at least
2 minutes twice a day.
Note:After brushing for 2.5 seconds, pressing the
power on/off button causes the toothbrush to pause.
After a pause of 30 seconds, the Smartimer resets.
Easy-start
The Easy-start feature gently increases power over
the first 14 brushings to ease into the Sonicare
experience.
The Easy-start feature works on all intensity levels.
This Sonicare model comes with the Easy-start
feature deactivated.
ENGLISH10
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 10 24/02/15 09:30

To activate or deactivate the Easy-start
feature:
1 Attach your brush head to the handle.
2 Place the handle in the plugged-in charger.
3 Activate or deactivate Easy-start:
,To activate Easy-start: Press and hold the power
on/off button for 2 seconds.You hear 2 beeps
andthebatterylevelindicatorashesgreento
indicate that the Easy-start feature has been
activated.
,To deactivate Easy-start: Press and hold the
power on/off button for 2 seconds.You hear
1beepandthebatterylevelindicatorashes
yellow to indicate that the Easy-start feature has
been deactivated.
Note: Each of the rst 14 brushings must be at least
1 minute in length to properly move through the
Easy-start ramp-up cycle.
Note: Using the Easy-start feature beyond the initial
ramp-up period is not recommended and reduces
Sonicare’s effectiveness in removing plaque.
Cleaning
Do not clean the brush head, handle or charger in
dishwasher.
Toothbrush handle
1 Remove the brush head and rinse the metal
shaft area with warm water.
Do not push on the rubber seal on the metal shaft
with sharp objects, as this may cause damage.
2 Use a damp cloth to wipe the entire surface of
the handle.
ENGLISH 11
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 11 24/02/15 09:30

Brush head
1
Rinse the brush head and bristles after each use.
2 Remove the brush head from the handle and
rinse the brush head connection at least once
a week with warm water.
Charger
1 Unplug the charger.
2 Use a damp cloth to wipe the surface of the
charger.
Storage
If you are not going to use the product for an
extended period of time, unplug it from the
electrical outlet, clean it and store it in a cool and
dry place away from direct sunlight.
Replacement
Brush head
- Replace Sonicare brush heads every 3 months
to achieve optimal results.
- Use only genuine Philips Sonicare replacement
brush heads that are suitable for this model.
Disposal
This product may contain lead and mercury.
Disposal of these materials may be regulated due
to environmental considerations. For disposal or
recycling information, please contact your local
authorities or visit www.recycle.philips.com.
ENGLISH12
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 12 24/02/15 09:30

This product contains batteries:
- Dispose of batteries properly. Do not incinerate.
Batteries may explode if overheated.
- Do not wrap in metal or aluminum foil.Tape the
waste battery terminals before discarding.
- It is suggested that you contact your local town
or city to determine proper battery redemption
site(s) in your area.
- Please visit www.call2recycle.org for additional
information on a recycling center in your area for
rechargeable batteries.
Removing the rechargeable battery
Please note that this process is not reversible.
To remove the rechargeable battery, you need a
small standard screwdriver and tape. Observe basic
safety precautions when you follow the procedure
below.
1 To deplete the rechargeable battery of any
charge, remove the handle from the charger,
turn on the Sonicare and let it operate until it
stops. Repeat this step until you can no longer
turn on the Sonicare.
2 Insert a small standard screwdriver into the
bottom of the handle and turn it counter-
clockwise to remove the screw. Pull the end
cap off of the handle.
3 Insert the screwdriver between the handle
and the internal frame.Tilt the screwdriver to
loosen the handle.
ENGLISH 13
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 13 24/02/15 09:30

4 Remove the internal frame from the handle.
5 Remove the rubbers that are on top and below
the battery.
6 Insert the screwdriver between the battery
and the frame.Tilt the screwdriver to pop the
battery out of the frame.
7 Place some tape over the ends of the battery
to avoid any short-circuiting due to residual
energy in the battery.
The rechargeable battery can now be recycled or
disposed of and the rest of the product discarded
appropriately.
ENGLISH14
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 14 24/02/15 09:30

Warranty and support
Philips warrants its products for two years after the
date of purchase. Defects due to faulty materials and
workmanship will be repaired or replaced at Philips’
expense provided that convincing proof of purchase
in the qualifying period is provided.
Use of unauthorized replacement parts will void
this warranty.
Contact our Consumer Care Center at
1-800-682-7664 (North America),
outside North America contact your local Philips
Consumer Care Center.
Internet information: www.sonicare.com
(North America) or www.philips.com
(outside North America).
WARRANTY EXCLUSIONS
What is not covered under warranty:
- Brush heads.
- Damage caused by use of unauthorized
replacement parts.
- Damage caused by misuse, abuse, neglect,
alterations or unauthorized repair.
- Normal wear and tear, including chips, scratches,
abrasions, discoloration or fading.
IMPLIED WARRANTIES
ANY IMPLIED WARRANTIES, INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THE
EXPRESS WARRANTIES SET FORTH ABOVE.
IN SOME STATES LIMITATIONS ON DURATION
OF IMPLIED WARRANTIES DO NOT APPLY.
ENGLISH 15
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 15 24/02/15 09:30

LIMITATION OF REMEDIES
IN NO EVENT SHALL PHILIPS OR ANY OF
ITS AFFILIATED OR SUBSIDIARY COMPANIES
BE LIABLE FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES BASED
UPON BREACH OF WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE,TORT, OR ANY
OTHER LEGAL THEORY. SUCH DAMAGES
INCLUDE,WITHOUT LIMITATION, LOSS OF
SAVINGS OR REVENUE; LOSS OF PROFIT;
LOSS OF USE;THE CLAIMS OF THIRD PARTIES
INCLUDING,WITHOUT LIMITATION, DENTISTS
AND DENTAL HYGIENISTS; AND COST OF ANY
SUBSTITUTE EQUIPMENT OR SERVICES. SOME
STATES DO NOT ALLOWTHE EXCLUSION
OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES.
ENGLISH16
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 16 24/02/15 09:30

4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 17 24/02/15 09:30

4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 18 24/02/15 09:30

1
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 19 24/02/15 09:30

4235.020.8625.2
www.philips.com/Sonicare
©2015 Koninklijke Philips N.V. (KPNV). All rights reserved.
Philips and the Philips shield are trademarks of KPNV.
Sonicare and the Sonicare logo are trademarks
of Philips Oral Healthcare, Inc. and/or KPNV.
4235_020_8625_2_DFU-Booklet_Lux_A6_v1.indd 20 24/02/15 09:30
