Light-line systems
Indoor_2008_Chapter_08_LIS.indb 1 20-05-2008 13:20:31

Philips indoor luminairesLight-line systems8.2
Selection guide – Light-line systems
Luminaire family Page Lamps Reflectors Wiring
Fluorescent
TL5 TL-D Steel Aluminum 5-wire
mm2
7-wire
mm2
9-wire
mm2
Maxos
8.4 • • • • • •
TTX400
8.32 • • •••••
Tetrix TTX150
8.64 • • • • •
Indoor_2008_Chapter_08_LIS.indb 2 20-05-2008 13:20:35

Philips indoor luminaires Light-line systems 8.3
Light-line systems
Selection guide – Light-line systems
Luminaire family Wiring Protection Emergency
lighting
Lighting
control
Dynamic lighting option
(color mixing)
2x5 wire
mm2
2x7 wire
mm2
Bus bar
(flexible
positioning)
IP class
Maxos
••• IP64
IP63
IP40
IP20
• • •
TTX400
IP20 • •
Tetrix TTX150
IP20 •
Indoor_2008_Chapter_08_LIS.indb 3 20-05-2008 13:20:35

Philips indoor luminaires8.4 Light-line systems
Maxos
Indoor_2008_Chapter_08_LIS.indb 4 20-05-2008 13:20:38

Philips indoor luminaires 8.5
Light-line systems
Light-line systems
Maxos – the multifunctional
performer, in proper style
Maxos has been designed on the basis of in-depth knowledge of end-user needs
in the retail business and industry. It also offers solutions for schools, ofces and
public spaces. Maxos’ durable quality and electrical exibility, combined with a
wide selection of reectors and accessories, ensure well-designed, cost-effective
lighting solutions with minimum energy consumption.
Maxos is designed for fast installation and is available in TL-D and TL5 versions, in the colors
silver and white, and with IP20 and IP64 protection.The possibility of integrating projectors and
the exibility in positioning electrical units make it the ideal system for retail outlets.
www.philips.com/lighting
Aluminum reector TL-D, perforatedAluminum reector TL5 Trapeze reectorFacetted reector with D6-louver
Indoor_2008_Chapter_08_LIS.indb 5 20-05-2008 13:20:40

Philips indoor luminaires8.6
Maxos
Light-line systems
Main applications
1Retail
Combining attractive design and compact dimensions with outstanding light output and
distribution, Maxos is ideally suited to retail applications – e.g. food, non-food and fashion
stores. The combination of TL5 lamps and aluminum reectors, for example, delivers exactly
the right amount of light precisely where it is needed. Maxos also offers extensive options to
integrate projectors/spots, as well as exibility in positioning of electrical units and spots (bus
bar system).The light-line system is available in both silver and white, ensuring a perfect match
with the store interior.
1 2
Indoor_2008_Chapter_08_LIS.indb 6 20-05-2008 13:20:59

Philips indoor luminaires 8.7
Maxos
Light-line systems
Light-line systems
2Industry
The Maxos light-line system helps to boost operating efciency and safety in industrial
facilities by delivering high lighting levels with low glare, while at the same time reducing
energy consumption and maintenance. Dedicated TL-D aluminum reectors are available
for each application. Maxos has IP64 protection options across the system.A dedicated IP63
reector unit – the outside of which can be cleaned – has been developed for the automotive
and food industries. Maxos is also available in versions with up to 14 wires; this allows, among
other things, zones for separate switching and emergency lighting with cabling separated from
the standard mains.
3Ofces
In ofce environments, the Maxos light-line system delivers high lighting levels, combined with
low glare, for example by means of TL5 lamps in combination with OLC semi-high-gloss high-
quality aluminum optics with 3D lamellae (D6).This creates a bright, stimulating ambience that
minimizes visual fatigue and improves productivity.
4Public spaces
Maxos’ appealing design aesthetic and system exibility makes it eminently suited to a host of
applications in public spaces.
3 4
Indoor_2008_Chapter_08_LIS.indb 7 20-05-2008 13:21:11

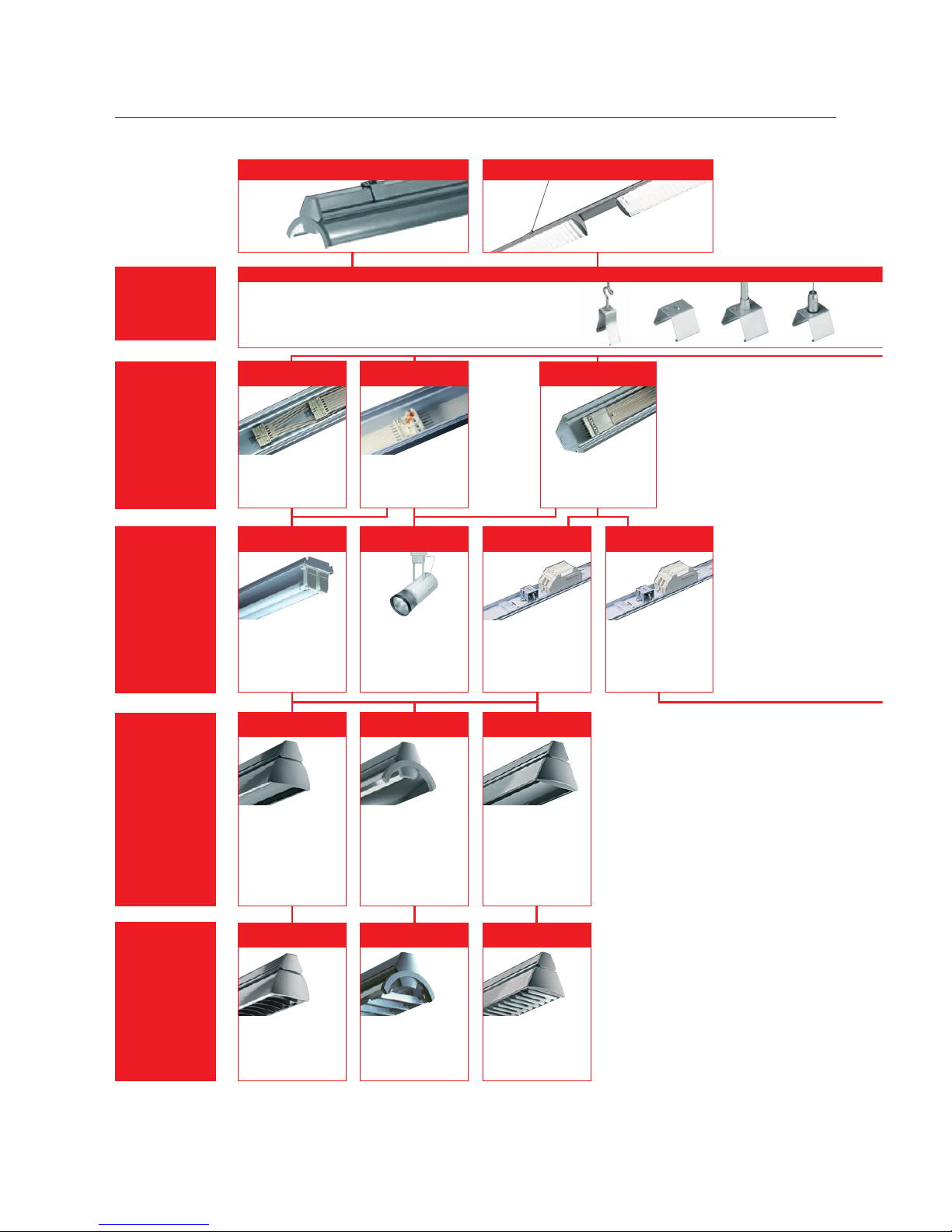

Philips indoor luminaires8.8
Maxos
Light-line systems
Suspension brackets in
silver and white
Trunkings in
silver and white
Electrical units in
silver and white
Maxos TL5 Maxos bus bar system forTL5 and TL-D
4MX656
5-wire 1.5 mm2
7-wire 1.5 mm2
5-wire 2.5 mm2
7-wire 2.5 mm2
4MX056...BB
(bus bar)
Bus bar/5-wire 2.5 mm2
Bus bar/7-wire 2.5 mm2
4MX691
1-lamp TL5
2-lamp TL5
1-lamp TL5 EL
2-lamp TL5 EL
4MX691...BB 4MX091...BB
(bus bar)
Bus bar/1-lamp/TL5
Bus bar/2-lamp/TL5
Bus bar/1-lamp/TL-D
Bus bar/2-lamp/TL-D
Reectorsand
mirror inlays
4MX692...F 4MX692...D/C
Facetted reector
- slotted
- standard
Aluminum reector
- narrow beam
- wide beam
- medium beam
- ‘double asymmetrical beam
- asymmetrical beam
- very narrow beam
4MX692...T
Trapeze reector
- without mirror
- with medium-beam mirror
- with narrow-beam mirror
- perforated without mirror
- slotted without mirror
Louvers and optics
4MX693...D6 4MX693...M2
Semi-high-gloss optic
- wide-beam optic
- narrow-beam optic
White louver
Prismatic optic
Aluminum proled louver
4MX693...L
White louver
4MX656...2x
(double wiring)
2x5-wire 2.5 mm2
2x7-wire 2.5 mm2
Projector connection
Electrical units with 3C track
and bus bar adapter units
Indoor_2008_Chapter_08_LIS.indb 8 20-05-2008 13:21:19

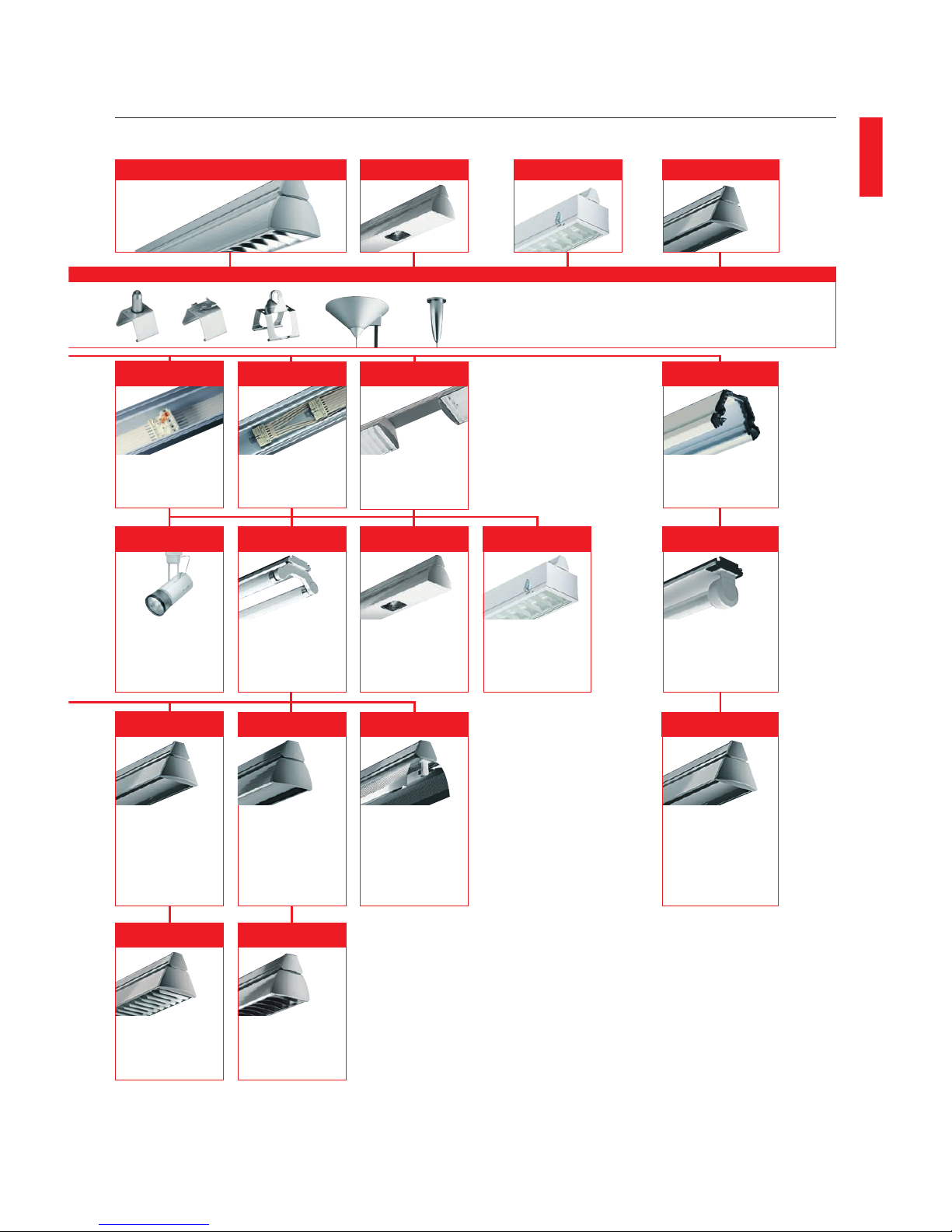

Philips indoor luminaires 8.9
Maxos
Light-line systems
Light-line systems
9MX056
Maxos TL-D / IP20 / IP40 SDW-T /
CDM-T units Maxos TL-D IP64
4MX056...IP64
White only
7-wire 1.5 mm2
5-wire 2.5 mm2
7-wire 2.5 mm2
4MX056 4MX056...2x
(double wiring)
5-wire 1.5 mm2
7-wire 1.5 mm2
5-wire 2.5 mm2
7-wire 2.5 mm2
2x5-wire 1.5 mm2
2x7-wire 1.5 mm2
2x5-wire 2.5 mm2
2x7-wire 2.5 mm2
4MX056 A.../M...E...
Extended trunkings
5-wire 1.5 mm2/300 mm
600 mm
4MX091
1-lamp TL-D
2-lamp TL-D
1-lamp TL-D EL
2-lamp TL-D EL
2-lamp TL-D FSG32 mm
4MX013 4MX014...IP63
White only
1-lamp TL-D
2-lamp TL-D
1-lamp TL5
2-lamp TL5
4MX091...IP64
1-lamp TL-D
2-lamp TL-D
1-lamp TL-D EL
2-lamp TL-D EL
1-lamp TL-D FF-sign
2-lamp TL-D FF-sign
4MX092...IP64
Trapeze reector
4MX092...T 4MX092...F
Trapeze reector
- without mirror
- with wide-beam mirror
- with narrow-beam mirror
- ‘wall washer’
- perforated without mirror
- slotted without mirror
4MX092...D/C/Wing
Aluminum reector
- narrow beam
- wide beam
- asymmetrical beam
- very narrow beam
- wide beam / perforated
Wing optic reector/indirect
4MX093...L 4MX093...
L/PL/C6/D6
White louver
Silver louver
White louver
Prismatic optic
Semi-high-gloss optic
- wide-beam optic
- narrow-beam optic
4MX014...IP63
Projector connection
Electrical units with 3C track
Facetted reector
- without mirror
- with wide-beam mirror
- with asymmetrical beam
mirror
- slotted without mirror
CDM-T lamp
SDW-T lamp
Includes facetted reector
Indoor_2008_Chapter_08_LIS.indb 9 20-05-2008 13:21:33

Philips indoor luminaires8.10
Maxos
Light-line systems
A variety of suspension brackets can
be clicked into place along the trunking
groove.
Fast and smooth
installation
Maxos can be quickly and easily set up by
installers of all ability levels, thanks to its clearly
denable components and simple click together
assembly.
The two trunkings are connected via
a sturdy coupler. Then the prewired
5- or 7-pole electrical connections
can be manually connected.
The gear units are secured in the
trunking via a two-way turnable clip,
simply click them into place. The locks
are made of steel.
Reectors are tted onto the same
mounting points as the gear units.
Louvers and optics can be easily put in
place, enabling easy relamping.
Indoor_2008_Chapter_08_LIS.indb 10 20-05-2008 13:22:05

Philips indoor luminaires 8.11
Maxos
Light-line systems
Light-line systems
Resolutie te laag
Indoor_2008_Chapter_08_LIS.indb 11 20-05-2008 13:22:17

Philips indoor luminaires8.12 Light-line systems
Maxosaluminumreectorsandoptics
The aluminum reectors for TL5 and TL-D lamps are optimized
for applications in supermarkets, shops, distribution centers and
industry.They are made of high-quality aluminum and are available for
electrical units holding 1 or 2 TL5 or TL-D lamps. A semi-high-gloss
(D) aluminum reector is available for wide-beam, medium-beam,
narrow-beam, asymmetrical beam and (double-) asymmetrical-beam
light distributions. For very narrow beams a high-gloss (C) aluminum
reector is available. For TL-D, a perforated decorative high-gloss
aluminum reector in wide beam can be ordered.
TL5 aluminum reectors can be equipped with aluminum louvers with
proled lamellae (M2) or with a simple white steel louver (L) for glare
reduction.
All the reectors are xed to the electrical unit via a simple click. They
can be connected to each other in a line by means of an overlap; for
the TL5 versions, additional coupling pieces (9MX056 CP/TL5) are
available as an option.Also for the TL5 versions, decorative end-plates
for the beginning and end of the light-line are available as accessories.
Maxos
Maxos TL5
Aluminum reectors and optics
Type 4MX692 (TL5 reector)
4MX693 (TL5 louver/optic)
Suitable electrical unit For 1 and 2 TL5 35, 49, 54 and 80 W versions
Material and light
distribution
Reector:
Semi-high gloss aluminum (D), narrow beam
(-NB)
Semi-high gloss aluminum (D), medium beam
(-MB)
Semi-high gloss aluminum (D), wide beam
(-WB)
Semi-high gloss aluminum (D), asymmetric beam
(-A)
Semi-high gloss aluminum (D), double
asymmetric beam (-DA)
High gloss aluminum (C), very narrow beam
(-NB)
Louver:
Aluminum with proled lamelae (M2)
Steel, white coated (L-D WH)
Accessory Aluminum reector end caps (9MX056 EP/TL5 SI
/ WH)*, coupling pieces (9MX056 CP/TL5) *not
for C-NB reector
Remarks Optics and louvers are suitable for 1- and 2 lamp
versions
Main applications Retail (e.g. food, fashion)
Maxos TL-D
Aluminum reectors
Type 4MX092
Suitable electrical unit For 1 and 2 TL-D 36 and 58 W* versions
Material and light
distribution
Semi-high gloss aluminum (D), narrow beam (-NB),
1- and 2-lamp
Semi-high gloss aluminum (D), wide beam (-WB),
1- and 2-lamp
Semi-high gloss aluminum (D), asymmetrical beam
(-A), 1- and 2-lamp
High gloss aluminum (C), very narrow beam (-NB),
1-lamp
High gloss aluminum, perforated (CP), wide beam
(-WB), 1-lamp
Remarks *2-lamp versions of aluminum reectors to
be used with dedicated electrical unit (with
lampholder F32 mm)
Main applications Industry, logistics, retail
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
Indoor_2008_Chapter_08_LIS.indb 12 20-05-2008 13:22:17

Philips indoor luminaires 8.13
Light-line systems
Light-line systems
Maxos 4MX692 TL5 aluminum
reector with semi-high-gloss mirror,
available for narrow-, medium-,
wide-beam, asymmetrical and double
asymmetrical light distribution (D-NB/
D-MB/D-WB/D-A/D-DA)
Maxos 4MX692 TL5 aluminum
reector with high-gloss mirror for
very narrow-beam light distribution
Maxos 4MX692 TL5 aluminum
reector for narrow, medium, wide,
asymmetrical or double-asymmetrical-
beam light distribution, with aluminum
optic with proled lamellae (4MX693
M2) or white lamellae louver (4MX693
L-D)
Maxos 4MX092 TL-D aluminum
reector for 1-lamp electrical unit with
a semi-high-gloss mirror for narrow or
wide-beam light distribution (D-NB/D-
WB) or a high-gloss mirror for narrow-
beam light distribution (C-NB)
Maxos 4MX092 TL-D perforated
aluminum reector for wide-beam light
distribution and upward lighting
Maxos 4MX092 TL-D aluminum
reector for 2-lamps electrical units
with 32 mm lamp holder (F32)
Maxos
TL5 TL-D
Indoor_2008_Chapter_08_LIS.indb 13 20-05-2008 13:22:23

Philips indoor luminaires8.14
Maxos
Light-line systems
Maxosfacettedreectorsandoptics
Facetted reectors for TL5 and TL-D give shops and ofces a high-
class appearance.
They are made of steel, with a white or silver coating, and are available
for electrical units holding 1 or 2 TL5 or TL-D lamps.
The facetted reector can be integrated with a semi-high-gloss (D6)
OLC optic of high-quality aluminum.This optic has parabolic side
reectors and parabolic lamellae, and it can create either a medium
beam (with an integrated white top reector) or a narrow beam (with
an integrated mirror top reector). Moreover, a prismatic acrylic cover
(P) and a white steel louver (L-F) are also available.
End-plates for the beginning and end of the light-line are available as
accessories.
Maxos TL5
Facetted reectors and optics
Type 4MX692 (TL5 reector)
4MX693 (TL5 louver/optic)
Suitable electrical unit For 1 and 2 TL5 35, 49, 54 and 80 W versions
Material and light
distribution
Reector:
Steel, facetted (F) in white (WH) or silver (SI)
Reector option:
Steel, facetted (F) with high-gloss aluminum
mirror, wide beam (-WB)
Steel, facetted (F) with high-gloss aluminum
mirror, asymmetrical beam (-A)
Optic:
Semi-high gloss, high-quality aluminum, (D6),
wide beam (-WB)
Semi-high gloss, high-quality aluminum, (D6),
narrow beam (-NB)
Cover:
PMMA prismatic cover (P)
Louver:
Steel lamellae, white (L-F WH)
Installation Click-in xation on electrical unit
Accessory Facetted reector end caps (9MX056 EP-F WH/
SI), facetted reector coupling pieces (9MX056
CP-F WH/SI)
Remarks Reectors and optics are suitable for 1- and 2
lamp versions
Main applications Ofces, schools, cash areas in shops
Maxos TL-D
Facetted reectors and optics
Type 4MX092 (TL-D reector)
4MX093 (TL-D louver/optic)
Suitable electrical unit For 1 and 2 TL-D 36 and 58 W* versions
Material and light
distribution
Reector:
Steel, facetted (F)
Steel, facetted (F) with high gloss aluminum
mirror, wide beam (-WB)
Steel, facetted (F), with high gloss aluminum
mirror, asymmetrical beam (-A)
Reector option:
Steel, facetted (F) with symmetrical beam, direct/
indirect (F-S-D/I)
Louver:
Semi-high gloss, high-quality aluminum, (D6),
wide beam (-WB)
Semi-high gloss, high-quality aluminum, (D6),
narrow beam (-NB)
PMMA prismatic cover (P)
Steel lamellae, white (L-F WH)
Installation Click-in xation on electrical unit
Accessory Facetted reector end caps (9MX056 EP-F WH/
SI), facetted reector coupling pieces (9MX056
CP-F WH/SI)
Remarks *2-lamp versions of facetted reectors to be used
with dedicated electrical unit (with lampholder
F32 mm)
Reectors and optics are suitable for 1- and 2-
lamp versions
Main applications Ofces, schools, cash areas in shops
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
Indoor_2008_Chapter_08_LIS.indb 14 20-05-2008 13:22:23

Philips indoor luminaires 8.15
Maxos
Light-line systems
Light-line systems
TL5 TL-D
Maxos 4MX692 TL5 facetted reector,
also for wide or asymmetric-beam light
distribution (F/F-WB/F-A)
Maxos 4MX692 TL5 slotted facetted
reector with direct/indirect light
distribution (F-S-D/I); a version for
emergency lighting is also available
(F-S-D/I-EL)
Maxos 4MX692 TL5 aluminum
reector with semi-high-gloss mirror
for narrow, medium, wide, asymmetrical
or double-asymmetrical-beam light
distribution, with lamellae louver for
facetted reector (4MX693 L-F)
Maxos 4MX692 TL5 facetted reector,
for wide or asymmetric-beam light
distribution with OLC semi-high-gloss
high-quality aluminum optic with 3D
lamellae (4MX693 D6)
Maxos 4MX692 TL5 facetted reector
with prismatic refractor (4MX693 P)
Maxos 4MX092 TL-D facetted
reector, also for wide or asymmetric-
beam light distribution (F/F-WB/F-A)
Maxos 4MX092 TL-D slotted facetted
reector with direct/indirect light
distribution (F-S-D/I); a version for
emergency lighting is also available
(F-S-D/I-EL)
Maxos 4MX092 TL-D facetted
reector, for wide or asymmetric-beam
light distribution, with OLC semi-high-
gloss high-quality aluminum optic with
3D lamellae (4MX093 D6)
Maxos 4MX092 TL-D facetted
reector with prismatic refractor
(4MX093 P)
Maxos 4MX092 TL-D facetted
reector, for narrow or wide-beam
light distribution, with a lamellae louver
for facetted reector (4MX093 L)
Indoor_2008_Chapter_08_LIS.indb 15 20-05-2008 13:22:32

Philips indoor luminaires8.16
Maxos
Light-line systems
Maxostrapezereectorsandoptics
The sturdy trapeze reectors for TL5 and TL-D are designed primarily
for applications in industry, supermarkets and shops. They are made of
steel with a white or silver outer nish. The reectors are optimized
for electrical units holding 1 or 2 TL5/TL-D lamps and provide an
excellent light output ratio.
There are basic trapeze reectors without an additional mirror inlay
and trapeze reectors with dedicated aluminum mirror inlays. These
are designed for wide-beam, narrow-beam and asymmetrical wall-
washing light distributions. Moreover, perforated and slotted trapeze
reectors (without mirror inlays) can be ordered for design reasons or
to create an indirect uplighting effect. For glare reduction, the trapeze
reector can be equipped with a steel louver.
Emergency lighting, for TL-D only
If emergency lighting by means of separately connected orientation
light units (E27-sockets) is required, special trapeze reectors with a
bigger cut-off must be used. The length of this reector corresponds
to that of the 58 W trunking length. A 36 W electrical unit plus the
orientation light unit will ll this length.
Maxos TL5
Trapeze reectors and optics
Type 4MX692 (TL5 reector)
4MX693 (TL5 louver/optic)
Suitable electrical unit For 1- and 2 TL5 49, 54 and 80 W versions
Material and light
distribution
Reector:
Steel, trapeze (T)
Steel, trapeze (T) with high gloss aluminum
mirror, medium beam (-MB)
Steel, trapeze (T) with high gloss aluminum
mirror, narrow beam (-NB)
Reector option:
Slotted, direct/indirect (T-S-D/I) or perforated
(T-P)
Louver:
Steel lamellae, white (L-T WH)
Installation Click-in xation on electrical unit
Accessory Trapeze reector end caps (9MX056 EP1-T WH/
SI)
Remarks Reectors and optics are suitable for 1- and 2-
lamp versions
Main applications Retail and general industry
Maxos TL-D
Trapeze reectors and optics
Type 4MX092 (TL-D reector)
4MX093 (TL-D louver/optic)
Suitable electrical unit For 1 and 2 TL-D 36 and 58 W versions
Material and light
distribution
Reector:
Steel, trapeze (T)
Steel, trapeze (T), with high gloss aluminum
mirror, wide beam (-WB)
Steel, trapeze (T), with high gloss aluminum
mirror, narrow beam (-NB)
Steel, trapeze (T), with high gloss aluminum
mirror, asymmetrical half reector (-A)*
Steel, trapeze (T), with high gloss aluminum
mirror, asymmetrical wallwasher (TI-A)*
Reector option:
Slotted, direct/indirect (T-S-D/I) or perforated
(T-P)
Optic and louver:
Steel lamellae, white (L-T WH) or silver (L-T SI)
Installation Click-in xation on electrical unit
Accessory Trapeze reector end caps 1 and 2-lamp version
(9MX056 EP1-T WH/SI, 9MX056 EP2-T WH/SI)
Remarks * For 1-lamp version only
Dedicated reectors for 1- and 2-lamp TL-D
versions
Main applications Retail and general industry
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
Indoor_2008_Chapter_08_LIS.indb 16 20-05-2008 13:22:32

Philips indoor luminaires 8.17
Maxos
Light-line systems
Light-line systems
Maxos 4MX692 TL5 trapeze reector,
also for narrow or wide-beam light
distribution (T/T-NB/T-WB)
Maxos 4MX692 TL5 perforated
trapeze reector (T-P)
Maxos 4MX692 TL5 trapeze reector,
for narrow or wide-beam light
distribution, with a lamellae louver for
trapeze reector (4MX693 L-T)
Maxos 4MX692 TL5 slotted trapeze
reector (T-S-D/I)
TL5 TL-D
Maxos 4MX092 TL-D perforated
trapeze reector
Maxos 4MX092 TL-D trapeze reector,
also for narrow or wide-beam light
distribution (T/T-NB/T-WB)
Maxos 4MX092 TL-D trapeze reector,
for narrow or wide-beam light
distribution, with lamellae louver for
trapeze reector (4MX093 L-T)
Maxos 4MX092 TL-D trapeze reector,
also for narrow or wide-beam light
distribution (T/T-NB/T-WB)
Maxos, 4MX092 TL-D asymmetrical
trapeze reector
Indoor_2008_Chapter_08_LIS.indb 17 20-05-2008 13:22:43

Philips indoor luminaires8.18
Maxos
Light-line systems

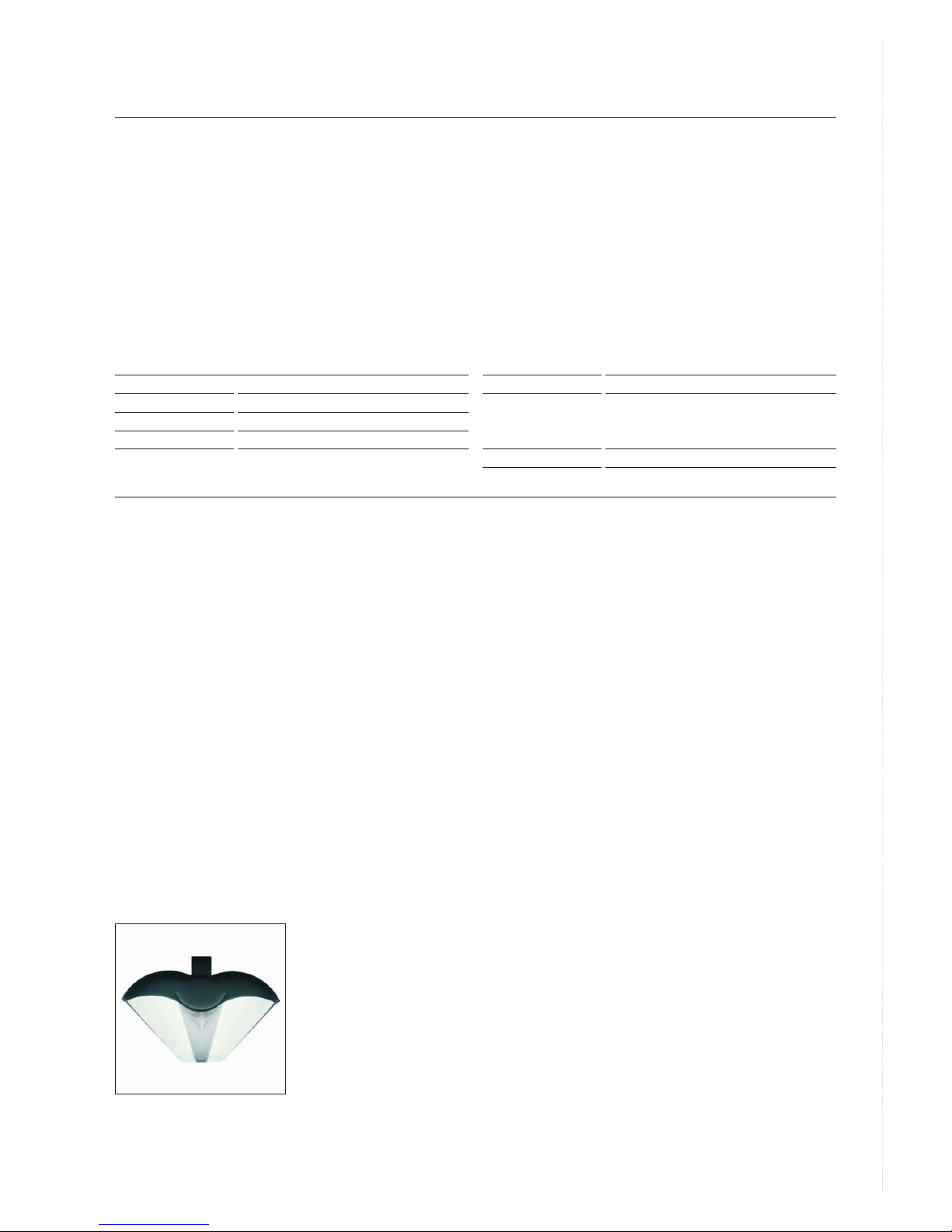

4MX092 WG Wing optic
Maxos TL-D Wing optic
The Wing optic is a reector solution creating soft indirect light,
without glare, and is ideal for ofce and shop applications. Designed
for electrical units holding 1 or 2 TL-D lamps, it is made of white
powder-coated steel and a perforated curved sheet conceals the
lamps.The 2-lamp version must be used with special electrical units
(lamp holder F32 mm).TL5 solutions are available on request.
The Wing optic is xed to the electrical unit via a simple click-in. The
reectors can be connected to each other without additional coupling
pieces, as they are delivered with an integrated connection side at one
end of the reector. Decorative end-plates for the beginning and end
of the light-line are available as accessories.
Maxos TL-D
Wing optic
Type 4MX092 WG
Suitable electrical unit For 1 and 2 TL-D 36 and 58 W* versions
Material Steel, white coated (WH)
Installation Click-in xation on electrical unit
Accessory End plates (9MX056 EP-WG)
Remarks *2-lamp versions of the Wing optic to be used
with dedicated electrical unit (with lampholder
F32 mm)
Main applications shops, ofces
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
Indoor_2008_Chapter_08_LIS.indb 18 20-05-2008 13:22:49

Philips indoor luminaires 8.19
Maxos
Light-line systems
Light-line systems
Indoor_2008_Chapter_08_LIS.indb 19 20-05-2008 13:22:52
