Philips HD4646/70 User manual

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
ServiceManual
Philips Consumer Lifestyle
Kettle
HD4646/70
12/03
PRODUCT INFORMATION
• Product meets the requirements regarding
interference suppression on radio and television.
• After the product has been repaired, it should function
properly and has to meet the safety requirements as
laid down officially established at this moment.
TECHNICAL INFORMATION
• Voltage : 220 - 240 V
• Frequency : 50 - 60 Hz
• Power consumption : 2000 - 2400 W
• Contents Kettle : 500 - 1500 cc
• Colour setting : White/Celestial Blue
• SAP coding : HD4646/70

HD4646/70
2-3
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
• After removing the 3 screws from the Body
Lower, the two fixing snaps can be released from the
main body using a screw driver in the lead-ins provided.
• Disassembly Heater assy
Disconnect the wires that are connected to the heater
assy. Open the lid and gently push (force maybe needed)
on the inside of the heater.
The heater and Gasket will move out of the Kettle body.
Remove the Gasket from the heater.
• Re-assembly the heater assy

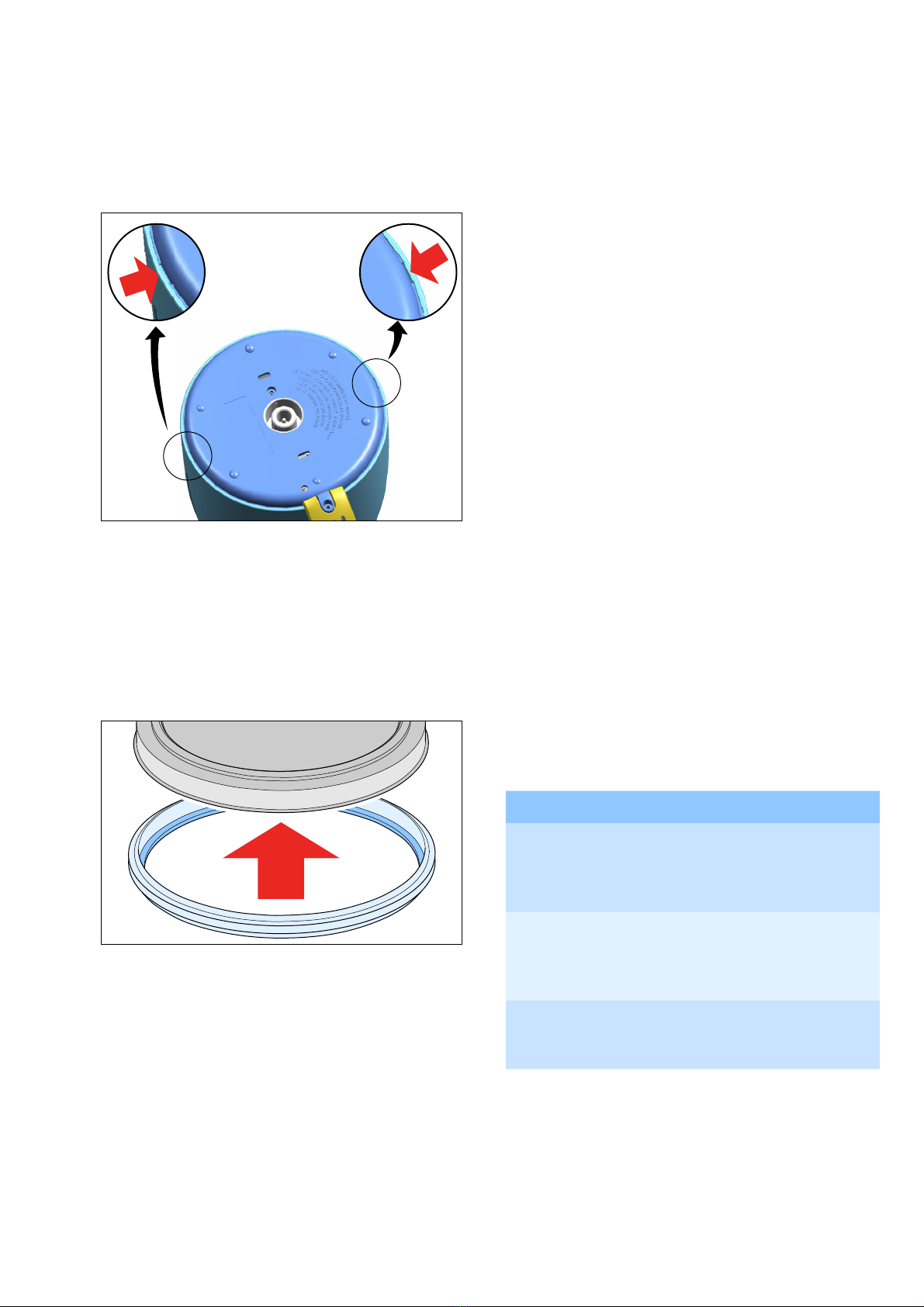

Place the gasket on the heater assy. (see picture for
placement details.)
Make the outside of the gasket and the inside of the
Kettle housing where the gasket will be placed wet with
plain water.
Gently push the heater assy with gasket equable in the
Kettle body.
While pushing inwards check if the gasket keeps well
around the heater assy.
The heater assy and gasket has to be pushed over the
ridge. Check visual if the gasket is correct placed.
By filling the kettle with plain water and leave it for half
an hour, you can check if the gasket properly sealed the
Kettle.
Connect the wires again.
Fix the base again.
Check the functions of the Kettle.
REPAIR INSTRUCTION
• Electrical circuit
When the appliance does not work, check the electrical
Circuit.
• De-scaling
Fill the kettle with water up to three-quarters of the
maximum level indication and press the on/off switch.
After the kettle has switched itself off, add white vinegar
(8% acetic acid) or an appropriate descaler up to the
maximum level indication.
Leave the solution in the kettle overnight.
Empty the kettle and rinse the inside thoroughly.
Repeat this procedure if there is still some scale left in
the kettle.
• Cleaning filter
Clean the filter by rinsing it under a running tap.
If necessary, you can use a soft nylon brush.
The scale filter can also be cleaned in the dishwasher or
clean the filter by de-scaling it in the same way as the
kettle.
Let the filter soak in a cup of warm water with some
white vinegar or an appropriate descaler.
Take the filter out of the cup and rinse it thoroughly
OPTIONAL (accessories)
• No specific issues.
PARTS LIST
Pos Service code Description
1
2
3
4
9965 000 34155
4822 214 12411
9965 000 34146
4822 441 80831
Switch rocker Blue
Z5 control
Base upper
Foot
5
6
7
8
4822 532 21517
4213 247 48770
9965 000 34154
9965 000 34148
CS4 connector
Base lower
Lid latch Celestial Blue
Lid Bright white
9
10
12
9965 000 34149
9965 000 34150
9965 000 34156
Filter Bright white
Element seal
Body Lower Celestial Blue

HD4646/70
3-3
7
8
9
10
12
2
1
3
4
5
6
EXPLODED VIEW
